MAINTENANCE OF YOUR 406
34
CHANGING A WHEEL Access to the spare wheel and jack Saloon:
lift the boot carpet using the
lifting hook. Secure the hook behind the boot seal. Estate: unscrew the two carpet
retaining screws a quarter turn using the ignition key or a coin. Lift the car-pet and secure the retaining hookbehind the tailgate seal. 7-seater estate: fold back the third
row seat, then lift the carpet to gain access to the spare wheel. Tools 1 -
Wheel brace.
2 - Centralising tool.
3 - Trim remover/wheel brace extension.
4 - Jack.
5 - Removable towing eye.
6 - Alloy wheel trim remover.
7 - Trim cap tool.
The tool holder supports the boot
floor. Reposition it to prevent any deforma- tion of the floor when loaded.
Tighten the spare wheel securing strap to prevent noise and for yoursafety in the event of a frontalimpact. Removal
Ð Park the vehicle on level, stable
and non-slippery ground.
Ð Apply the handbrake, engage first or reverse gear (position Pfor the
automatic gearbox).
Ð Remove the wheel trim using the wheelbrace by pulling next to the valve. For vehicles fitted with alloywheels 8, remove the centre
trim by using tool 6in one of the
holes.
Ð Loosen the wheel bolts. For vehicles with alloy wheels 8,
remove the chrome trim caps before-
hand (see page on 'special featuresof alloy wheels' in this section).

17-02-2003
MAINTENANCE OF YOUR 40635

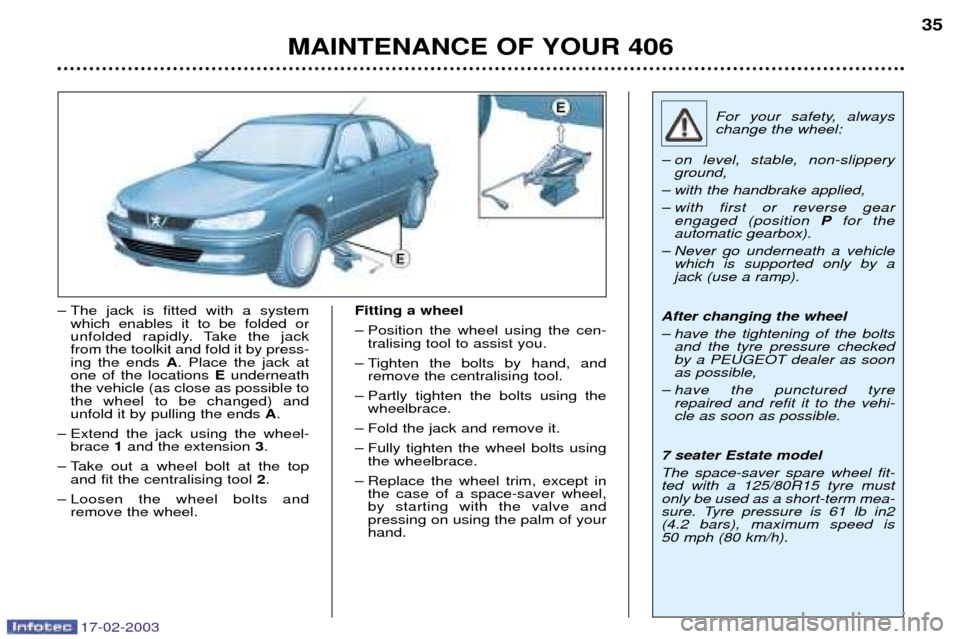

Ð The jack is fitted with a system
which enables it to be folded or
unfolded rapidly. Take the jackfrom the toolkit and fold it by press-ing the ends A. Place the jack at
one of the locations Eunderneath
the vehicle (as close as possible tothe wheel to be changed) andunfold it by pulling the ends A.
Ð Extend the jack using the wheel- brace 1and the extension 3.
Ð Take out a wheel bolt at the top and fit the centralising tool 2.
Ð Loosen the wheel bolts and remove the wheel. Fitting a wheel
Ð Position the wheel using the cen-
tralising tool to assist you.
Ð Tighten the bolts by hand, and remove the centralising tool.
Ð Partly tighten the bolts using the wheelbrace.
Ð Fold the jack and remove it.
Ð Fully tighten the wheel bolts using the wheelbrace.
Ð Replace the wheel trim, except in the case of a space-saver wheel, by starting with the valve andpressing on using the palm of yourhand. For your safety, alwayschange the wheel:
Ð on level, stable, non-slippery ground,
Ð with the handbrake applied,
Ð with first or reverse gear engaged (position Pfor the
automatic gearbox).
Ð Never go underneath a vehicle which is supported only by a jack (use a ramp).
After changing the wheel
Ð have the tightening of the bolts and the tyre pressure checked by a PEUGEOT dealer as soonas possible,
Ð have the punctured tyre repaired and refit it to the vehi-cle as soon as possible.
7 seater Estate model The space-saver spare wheel fit- ted with a 125/80R15 tyre mustonly be used as a short-term mea-
sure. Tyre pressure is 61 lb in2(4.2 bars), maximum speed is 50 mph (80 km/h).

17-02-2003
MAINTENANCE OF YOUR 406
36
Anti-theft bolts* If your wheels are fitted with an anti- theft bolt (one per wheel), thechrome trim and then the plasticcover must be removed using tool 7,
before unscrewing the bolt using oneof the two anti-theft sockets (whichwere given to you on delivery of yourvehicle along with the duplicate keysand the confidential card) and thewheel brace 1.
Note: make a careful note of the
code number engraved on the head
of the anti-theft socket. This willenable you to obtain duplicate anti-
theft sockets from a Peugeot dealer.
* According to model and destination.
Special features of alloy wheels Bolt covers Alloy wheel bolts are covered by chrome trims. Use tool 7to remove the trims before
slackening the bolts.Fitting the spare wheel If your vehicle is fitted with a steel spare wheel, when fitting it, it is normal to notice when tightening the
bolts that the washers do not come
into contact with the rim. The sparewheel is secured by the cone-shapeof each bolt. Fitting snow tyres If you fit snow tyres mounted on steel wheels to your vehicle, it is essential
to use special bolts available from
your PEUGEOT dealer.
