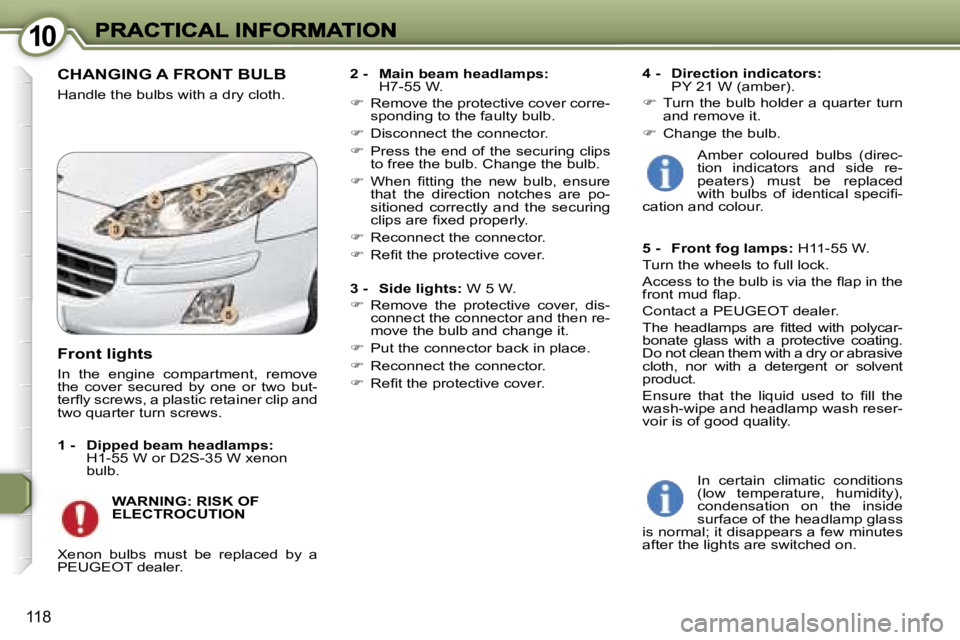

CHANGING A FRONT BULB
Handle the bulbs with a dry cloth.
2 - Main beam headlamps: H7-55 W.
 Remove the protective cover corre-sponding to the faulty bulb.
 Disconnect the connector.
 Press the end of the securing clips to free the bulb. Change the bulb.
 When fitting the new bulb, ensure that the direction notches are po-sitioned correctly and the securing clips are fixed properly.
 Reconnect the connector.
 Refit the protective cover.
3 - Side lights: W 5 W.
 Remove the protective cover, dis-connect the connector and then re-move the bulb and change it.
 Put the connector back in place.
 Reconnect the connector.
 Refit the protective cover.
4 - Direction indicators: PY 21 W (amber).
 Turn the bulb holder a quarter turn and remove it.
 Change the bulb.
WARNING: RISK OF ELECTROCUTION
Front lights
In the engine compartment, remove the cover secured by one or two but-terfly screws, a plastic retainer clip and two quarter turn screws.
1 - Dipped beam headlamps: H1-55 W or D2S-35 W xenon bulb.
Xenon bulbs must be replaced by a PEUGEOT dealer.
Amber coloured bulbs (direc-tion indicators and side re-peaters) must be replaced with bulbs of identical specifi-cation and colour.
5 - Front fog lamps: H11-55 W.
Turn the wheels to full lock.
Access to the bulb is via the flap in the front mud flap.
Contact a PEUGEOT dealer.
The headlamps are fitted with polycar-bonate glass with a protective coating. Do not clean them with a dry or abrasive cloth, nor with a detergent or solvent product.
Ensure that the liquid used to fill the wash-wipe and headlamp wash reser-voir is of good quality.
In certain climatic conditions (low temperature, humidity), condensation on the inside surface of the headlamp glass is normal; it disappears a few minutes after the lights are switched on.

1010
119

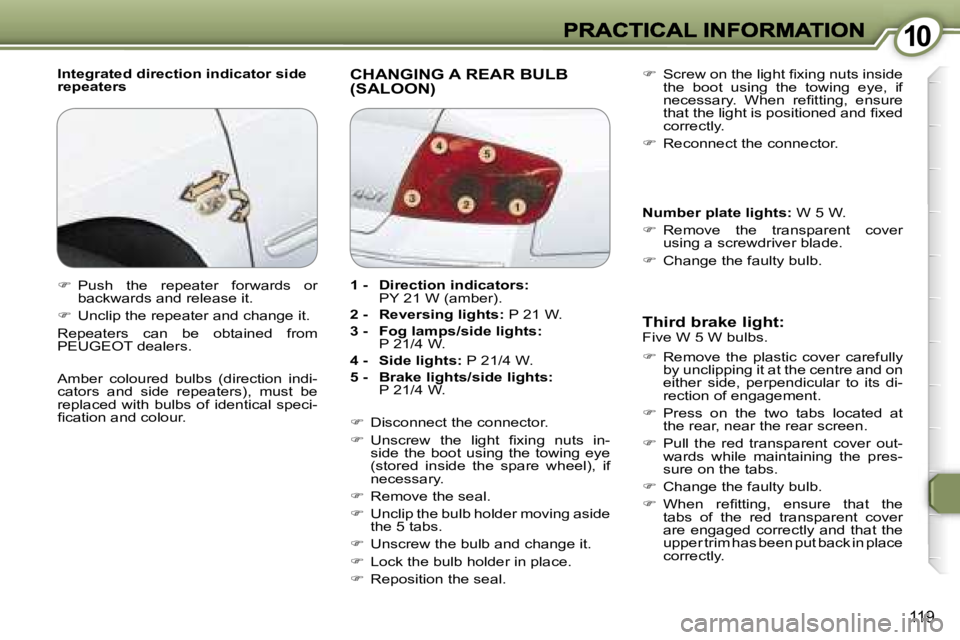

Integrated direction indicator side repeatersCHANGING A REAR BULB (SALOON)
Third brake light: Five W 5 W bulbs.
Remove the plastic cover carefully by unclipping it at the centre and on either side, perpendicular to its di-rection of engagement.
Press on the two tabs located at the rear, near the rear screen.
 Pull the red transparent cover out-wards while maintaining the pres-sure on the tabs.
 Change the faulty bulb.
 When refitting, ensure that the tabs of the red transparent cover are engaged correctly and that the upper trim has been put back in place correctly.
 Screw on the light fixing nuts inside the boot using the towing eye, if necessary. When refitting, ensure that the light is positioned and fixed correctly.
 Reconnect the connector.
Number plate lights: W 5 W.
 Remove the transparent cover using a screwdriver blade.
 Change the faulty bulb.
 Push the repeater forwards or backwards and release it.
Unclip the repeater and change it.
Repeaters can be obtained from PEUGEOT dealers.
Amber coloured bulbs (direction indi-cators and side repeaters), must be replaced with bulbs of identical speci-fication and colour.
1 - Direction indicators: PY 21 W (amber).
2 - Reversing lights: P 21 W.
3 - Fog lamps/side lights: P 21/4 W.
4 - Side lights: P 21/4 W.
5 - Brake lights/side lights:P 21/4 W.
 Disconnect the connector.
 Unscrew the light fixing nuts in-side the boot using the towing eye (stored inside the spare wheel), if necessary.
 Remove the seal.
 Unclip the bulb holder moving aside the 5 tabs.
 Unscrew the bulb and change it.
 Lock the bulb holder in place.
 Reposition the seal.

1010
119
Integrated direction indicator side repeatersCHANGING A REAR BULB (SALOON)
Third brake light: Five W 5 W bulbs.
Remove the plastic cover carefully by unclipping it at the centre and on either side, perpendicular to its di-rection of engagement.
Press on the two tabs located at the rear, near the rear screen.
 Pull the red transparent cover out-wards while maintaining the pres-sure on the tabs.
 Change the faulty bulb.
 When refitting, ensure that the tabs of the red transparent cover are engaged correctly and that the upper trim has been put back in place correctly.
 Screw on the light fixing nuts inside the boot using the towing eye, if necessary. When refitting, ensure that the light is positioned and fixed correctly.
 Reconnect the connector.
Number plate lights: W 5 W.
 Remove the transparent cover using a screwdriver blade.
 Change the faulty bulb.
 Push the repeater forwards or backwards and release it.
Unclip the repeater and change it.
Repeaters can be obtained from PEUGEOT dealers.
Amber coloured bulbs (direction indi-cators and side repeaters), must be replaced with bulbs of identical speci-fication and colour.
1 - Direction indicators: PY 21 W (amber).
2 - Reversing lights: P 21 W.
3 - Fog lamps/side lights: P 21/4 W.
4 - Side lights: P 21/4 W.
5 - Brake lights/side lights:P 21/4 W.
 Disconnect the connector.
 Unscrew the light fixing nuts in-side the boot using the towing eye (stored inside the spare wheel), if necessary.
 Remove the seal.
 Unclip the bulb holder moving aside the 5 tabs.
 Unscrew the bulb and change it.
 Lock the bulb holder in place.
 Reposition the seal.

1010
120

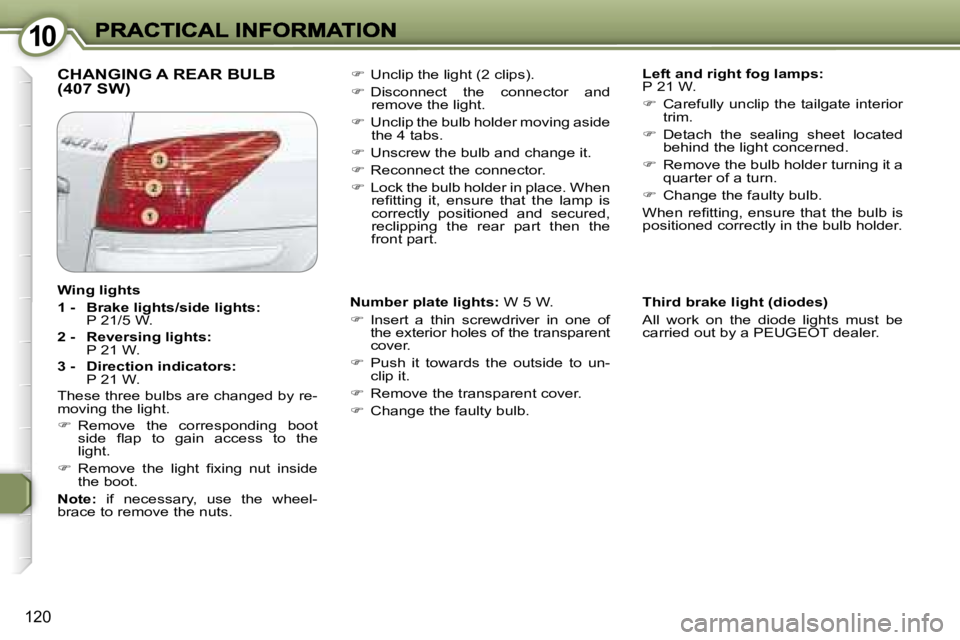

CHANGING A REAR BULB (407 SW) Left and right fog lamps:P 21 W.
 Carefully unclip the tailgate interior trim.
 Detach the sealing sheet located behind the light concerned.
 Remove the bulb holder turning it a quarter of a turn.
 Change the faulty bulb.
When refitting, ensure that the bulb is positioned correctly in the bulb holder.
 Unclip the light (2 clips).
 Disconnect the connector and remove the light.
 Unclip the bulb holder moving aside the 4 tabs.
 Unscrew the bulb and change it.
 Reconnect the connector.
 Lock the bulb holder in place. When refitting it, ensure that the lamp is correctly positioned and secured, reclipping the rear part then the front part.
Number plate lights: W 5 W.
 Insert a thin screwdriver in one of the exterior holes of the transparent cover.
 Push it towards the outside to un-clip it.
 Remove the transparent cover.
 Change the faulty bulb.
Third brake light (diodes)
All work on the diode lights must be carried out by a PEUGEOT dealer.
Wing lights
1 - Brake lights/side lights:P 21/5 W.
2 - Reversing lights: P 21 W.
3 - Direction indicators: P 21 W.
These three bulbs are changed by re-moving the light.
 Remove the corresponding boot side flap to gain access to the light.
 Remove the light fixing nut inside the boot.
Note: if necessary, use the wheel-brace to remove the nuts.

1010
121

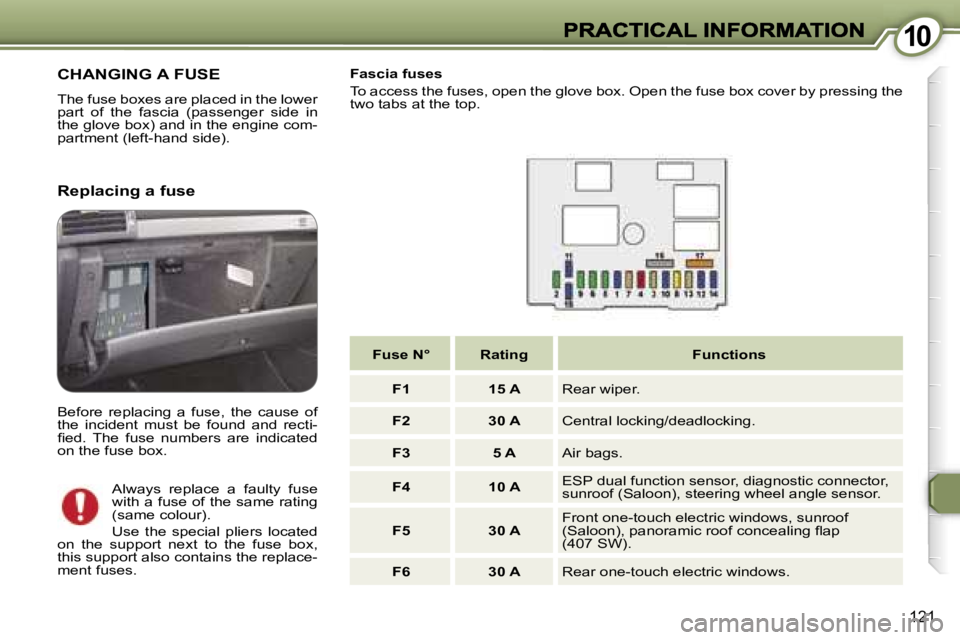

CHANGING A FUSE
The fuse boxes are placed in the lower part of the fascia (passenger side in the glove box) and in the engine com-partment (left-hand side).
Fascia fuses
To access the fuses, open the glove box. Open the fuse box cover by pressing the two tabs at the top.
Replacing a fuse
Before replacing a fuse, the cause of the incident must be found and recti-fied. The fuse numbers are indicated on the fuse box.
Always replace a faulty fuse with a fuse of the same rating (same colour).
Use the special pliers located on the support next to the fuse box, this support also contains the replace-ment fuses.
Fuse N°RatingFunctions
F115 ARear wiper.
F230 ACentral locking/deadlocking.
F35 AAir bags.
F410 AESP dual function sensor, diagnostic connector, sunroof (Saloon), steering wheel angle sensor.
F530 AFront one-touch electric windows, sunroof (Saloon), panoramic roof concealing flap (407 SW).
F630 ARear one-touch electric windows.

1010
121
CHANGING A FUSE
The fuse boxes are placed in the lower part of the fascia (passenger side in the glove box) and in the engine com-partment (left-hand side).
Fascia fuses
To access the fuses, open the glove box. Open the fuse box cover by pressing the two tabs at the top.
Replacing a fuse
Before replacing a fuse, the cause of the incident must be found and recti-fied. The fuse numbers are indicated on the fuse box.
Always replace a faulty fuse with a fuse of the same rating (same colour).
Use the special pliers located on the support next to the fuse box, this support also contains the replace-ment fuses.
Fuse N°RatingFunctions
F115 ARear wiper.
F230 ACentral locking/deadlocking.
F35 AAir bags.
F410 AESP dual function sensor, diagnostic connector, sunroof (Saloon), steering wheel angle sensor.
F530 AFront one-touch electric windows, sunroof (Saloon), panoramic roof concealing flap (407 SW).
F630 ARear one-touch electric windows.

1010
122

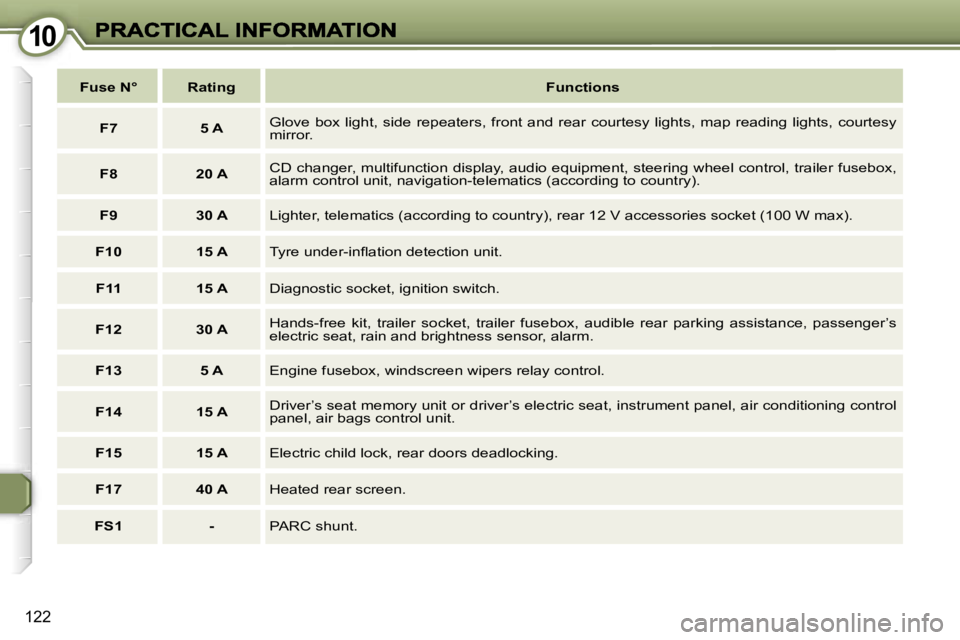

Fuse N°RatingFunctions
F75 AGlove box light, side repeaters, front and rear courtesy lights, map reading lights, courtesy mirror.
F820 ACD changer, multifunction display, audio equipment, steering wheel control, trailer fusebox, alarm control unit, navigation-telematics (according to country).
F930 ALighter, telematics (according to country), rear 12 V accessories socket (100 W max).
F1015 ATyre under-inflation detection unit.
F1115 ADiagnostic socket, ignition switch.
F1230 AHands-free kit, trailer socket, trailer fusebox, audible rear parking assistance, passenger’s electric seat, rain and brightness sensor, alarm.
F135 AEngine fusebox, windscreen wipers relay control.
F1415 ADriver’s seat memory unit or driver’s electric seat, instrument panel, air conditioning control panel, air bags control unit.
F1515 AElectric child lock, rear doors deadlocking.
F1740 AHeated rear screen.
FS1-PARC shunt.

1010
123

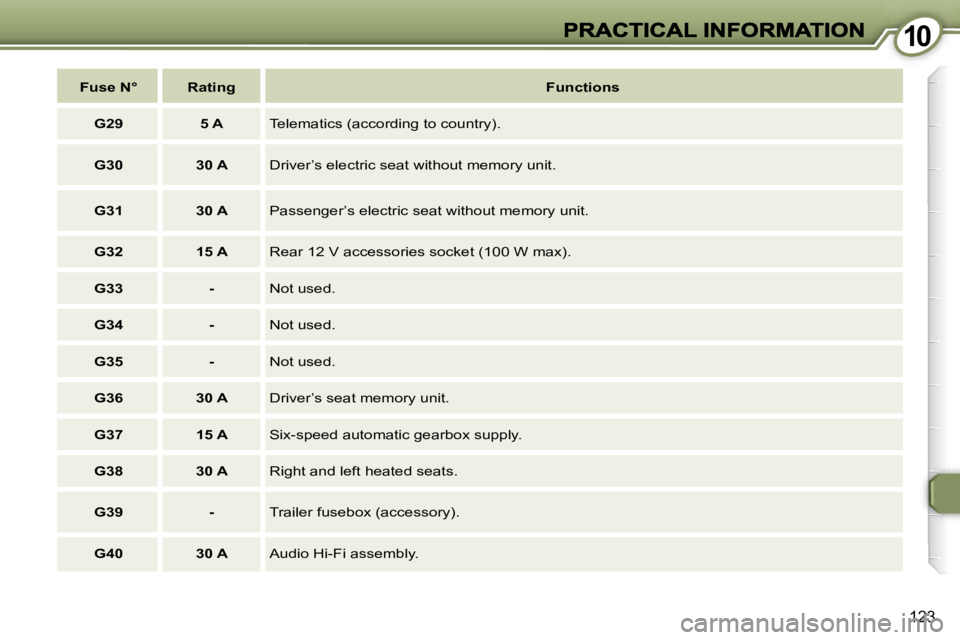

Fuse N°RatingFunctions
G295 ATelematics (according to country).
G3030 ADriver’s electric seat without memory unit.
G3130 APassenger’s electric seat without memory unit.
G3215 ARear 12 V accessories socket (100 W max).
G33-Not used.
G34-Not used.
G35-Not used.
G3630 ADriver’s seat memory unit.
G3715 ASix-speed automatic gearbox supply.
G3830 ARight and left heated seats.
G39-Trailer fusebox (accessory).
G4030 AAudio Hi-Fi assembly.

1010
125
The electrical system of your vehicle is designed to operate with standard or optional equip-ment.
Before installing other electrical equip-ment or accessories on your vehicle, contact a PEUGEOT dealer.
PEUGEOT will not accept responsi-bility for the cost incurred in repairing your vehicle or for rectifying the mal-functions resulting from the installation of accessories not supplied and not recommended by PEUGEOT and not installed in accordance with its instruc-tions, in particular where the equip-ment in question consumes more than 10 milliamperes.
The maxi-fuses provide additional protection for the electrical systems. All work must be carried out by a PEUGEOT dealer.

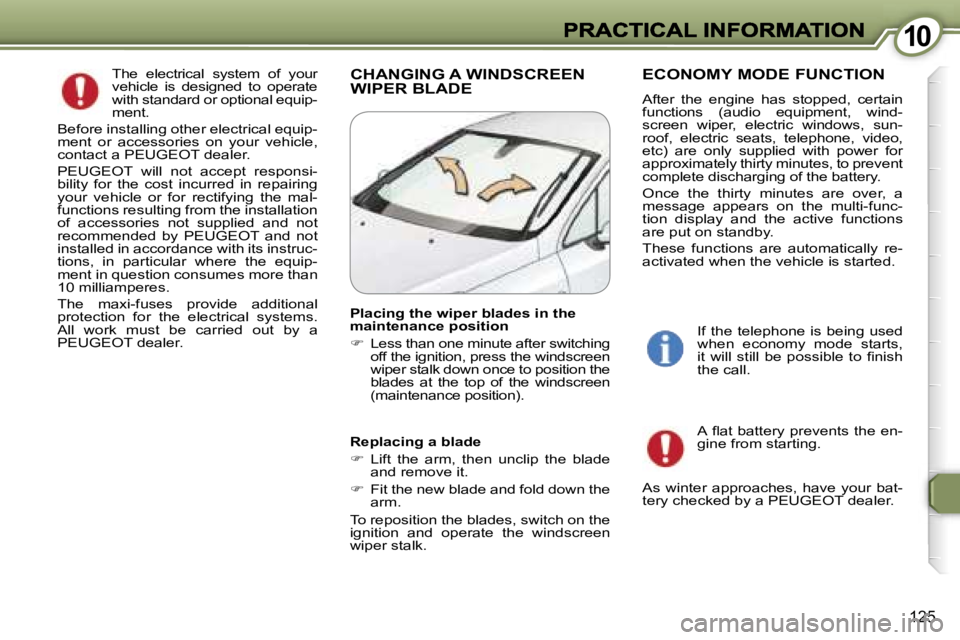

CHANGING A WINDSCREEN WIPER BLADEECONOMY MODE FUNCTION
After the engine has stopped, certain functions (audio equipment, wind-screen wiper, electric windows, sun-roof, electric seats, telephone, video, etc) are only supplied with power for approximately thirty minutes, to prevent complete discharging of the battery.
Once the thirty minutes are over, a message appears on the multi-func-tion display and the active functions areput on standby.
These functions are automatically re-activated when the vehicle is started.
A flat battery prevents the en-gine from starting.
As winter approaches, have your bat-tery checked by a PEUGEOT dealer.
If the telephone is being used when economy mode starts, it will still be possible to finish the call.
Placing the wiper blades in the maintenance position
 Less than one minute after switching off the ignition, press the windscreen wiper stalk down once to position the blades at the top of the windscreen (maintenance position).
Replacing a blade
 Lift the arm, then unclip the blade and remove it.
 Fit the new blade and fold down the arm.
To reposition the blades, switch on the ignition and operate the windscreen wiper stalk.

1010
124

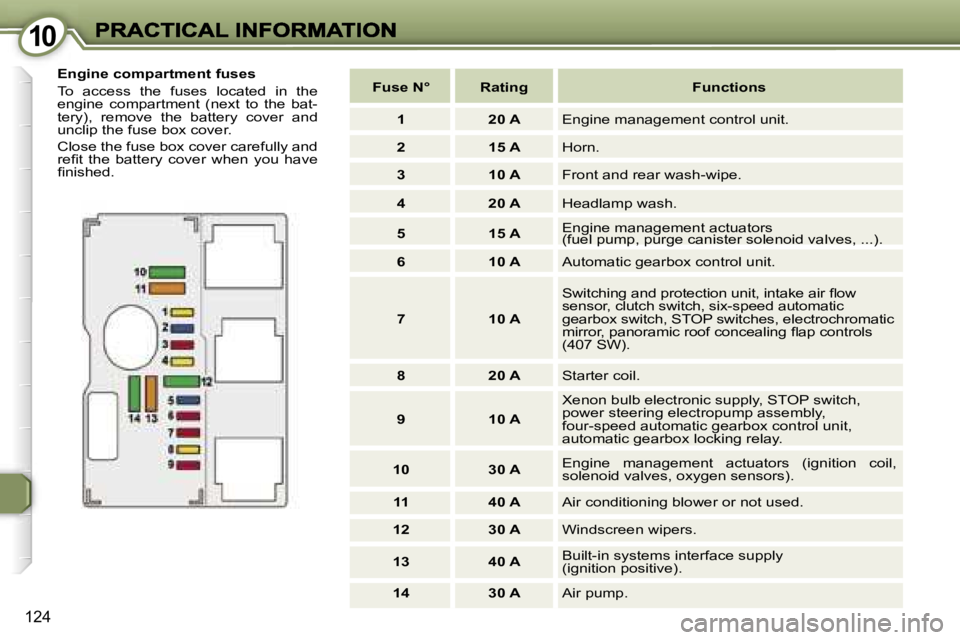

Engine compartment fuses
To access the fuses located in the engine compartment (next to the bat-tery), remove the battery cover and unclip the fuse box cover.
Close the fuse box cover carefully and refit the battery cover when you have finished.
Fuse N°RatingFunctions
120 AEngine management control unit.
215 AHorn.
310 AFront and rear wash-wipe.
420 AHeadlamp wash.
515 AEngine management actuators(fuel pump, purge canister solenoid valves, ...).(fuel pump, purge canister solenoid valves, ...).Engine management actuatorsEngine management actuators
610 AAutomatic gearbox control unit.
710 A
Switching and protection unit, intake air flow sensor, clutch switch, six-speed automatic gearbox switch, STOP switches, electrochromatic mirror, panoramic roof concealing flap controls (407 SW).
820 AStarter coil.
910 A
Xenon bulb electronic supply, STOP switch, power steering electropump assembly,four-speed automatic gearbox control unit, automatic gearbox locking relay.automatic gearbox locking relay.
1030 AEngine management actuators (ignition coil, solenoid valves, oxygen sensors).
1140 AAir conditioning blower or not used.
1230 AWindscreen wipers.
1340 ABuilt-in systems interface supply(ignition positive).
1430 AAir pump.
