Peugeot 407 2010 Owner's Manual

222
05
11
22
22
11
The controls are displayed and managed viathe portable equipment.
First adjust the volume of your portable equipment.
Then adjust the volume of your audio equipment.
The RCA auxiliary socket permits the connection of portable equipment (MP3 player...).
Connect the portable equipment(MP3 player…) to the audio sockets (white and red, RCA type) using a suitable cable (not supplied).
Press the SOURCE button several times in succession and select AUX.

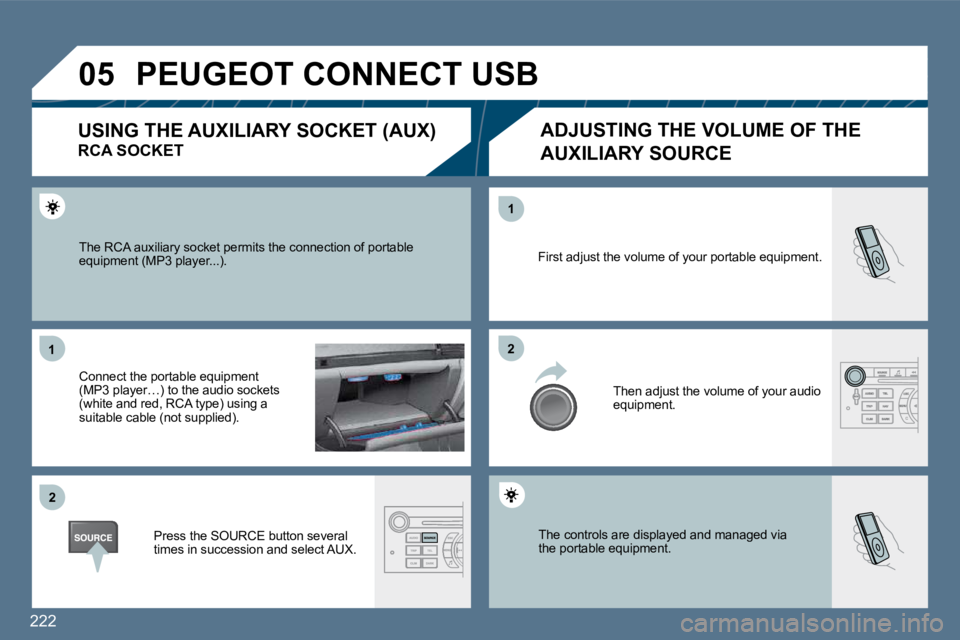

USING THE AUXILIARY SOCKET (AUX)
RCA SOCKET
ADJUSTING THE VOLUME OF THE
AUXILIARY SOURCE
PEUGEOT CONNECT USB

223
11
66
22
77
44
99
55
1010
33
88
Saisir code authentification01OKDel23456789_

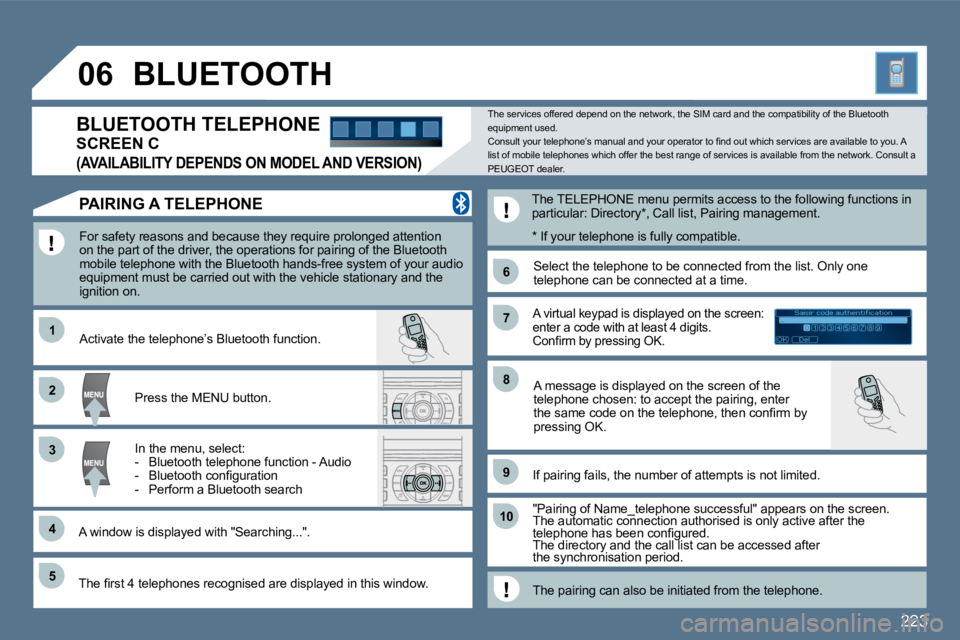

06 BLUETOOTH
For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing of the Bluetooth mobile telephone with the Bluetooth hands-free syst em of your audio equipment must be carried out with the vehicle stationary and the ignition on.
Press the MENU button.
A window is displayed with "Searching...".
Activate the telephone’s Bluetooth function.
In the menu, select: - Bluetooth telephone function - Audio - Bluetooth confi guration - Perform a Bluetooth search
The services offered depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Consult your telephone’s manual and your operator to fi nd out which services are available to you. A list of mobile telephones which offer the best range of services is available from the network. Consul t a PEUGEOT dealer.
BLUETOOTH TELEPHONE
SCREEN C
(AVAILABILITY DEPENDS ON MODEL AND VERSION)
The TELEPHONE menu permits access to the followin g functions in particular: Directory * , Call list, Pairing management.
The fi rst 4 telephones recognised are displayed i n this window.
A virtual keypad is displayed on the screen: enter a code with at least 4 digits. Confi rm by pressing OK.
If pairing fails, the number of attempts is not limited.
Select the telephone to be connected from the lis t. Only one telephone can be connected at a time.
A message is displayed on the screen of the telephone chosen: to accept the pairing, enter the same code on the telephone, then confi rm by pressing OK.
"Pairing of Name_telephone successful" appears on t he screen. The automatic connection authorised is only active after the "Pairing of Name_telephone successful" appears on t he screen. "Pairing of Name_telephone successful" appears on the screen.
telephone has been confi gured. The automatic connection authorised is only active after the The automatic connection authorised is only active after the
The directory and the call list can be accessed aftertelephone has been confi gured. telephone has been confi gured.
the synchronisation period.
PAIRING A TELEPHONE
* If your telephone is fully compatible.
The pairing can also be initiated from the telephone.

224
11
22
11
22
33
22
11

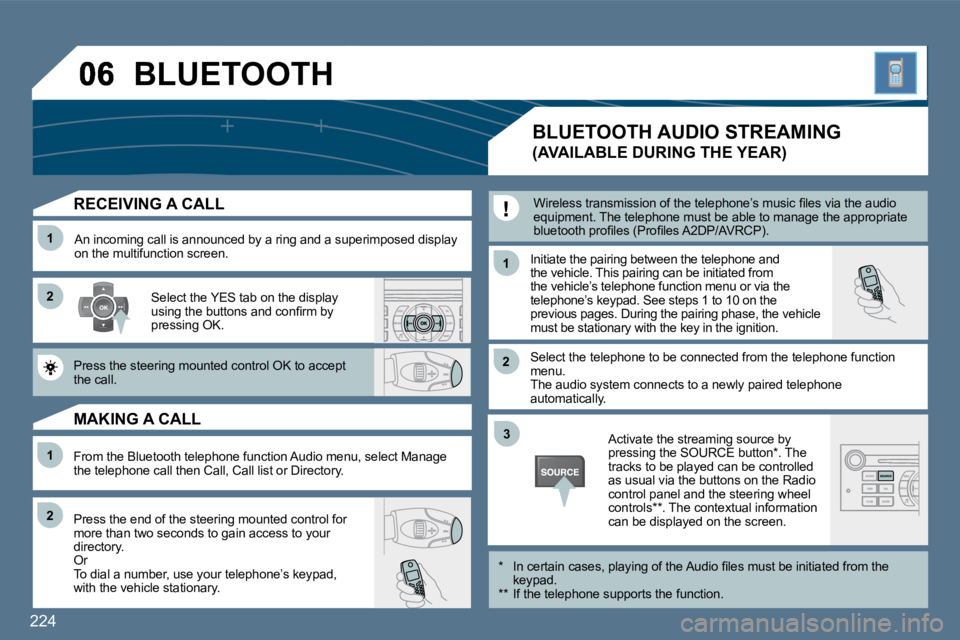

RECEIVING A CALL
An incoming call is announced by a ring and a superimposed display on the multifunction screen. Initiate the pairing between the telephone and the vehicle. This pairing can be initiated from the vehicle’s telephone function menu or via the telephone’s keypad. See steps 1 to 10 on the previous pages. During the pairing phase, the vehicle must be stationary with the key in the ignition.
Select the telephone to be connected from the tele phone function menu. The audio system connects to a newly paired teleph one automatically.
Select the YES tab on the display using the buttons and confi rm by pressing OK.
Press the steering mounted control OK to accept the call.
From the Bluetooth telephone function Audio menu, select Manage the telephone call then Call, Call list or Directory.
Press the end of the steering mounted control for more than two seconds to gain access to your directory. Or To dial a number, use your telephone’s keypad,with the vehicle stationary.
MAKING A CALL
BLUETOOTH AUDIO STREAMING
(AVAILABLE DURING THE YEAR)
Wireless transmission of the telephone’s music fi l es via the audio equipment. The telephone must be able to manage the appropriate bluetooth profi les (Profi les A2DP/AVRCP).
* In certain cases, playing of the Audio fi les must be initiated from the keypad. ** If the telephone supports the function.
Activate the streaming source by pressing the SOURCE button * . The tracks to be played can be controlled as usual via the buttons on the Radio control panel and the steering wheel controls ** . The contextual information can be displayed on the screen.
BLUETOOTH

225
1
22
33
44
5
66
77
88

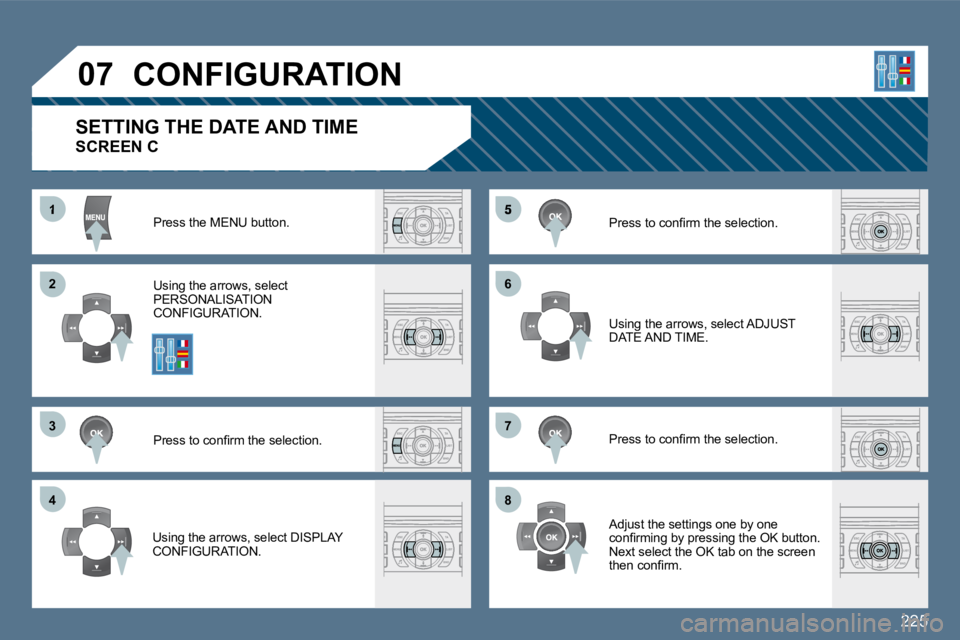

07 CONFIGURATION
Press the MENU button.
Using the arrows, select PERSONALISATION CONFIGURATION.
Press to confi rm the selection.
Using the arrows, select DISPLAY CONFIGURATION.
Press to confi rm the selection.
Press to confi rm the selection.
Using the arrows, select ADJUST DATE AND TIME.
Adjust the settings one by one confi rming by pressing the OK button. Next select the OK tab on the screen then confi rm.
SETTING THE DATE AND TIME
SCREEN C

226
9
08

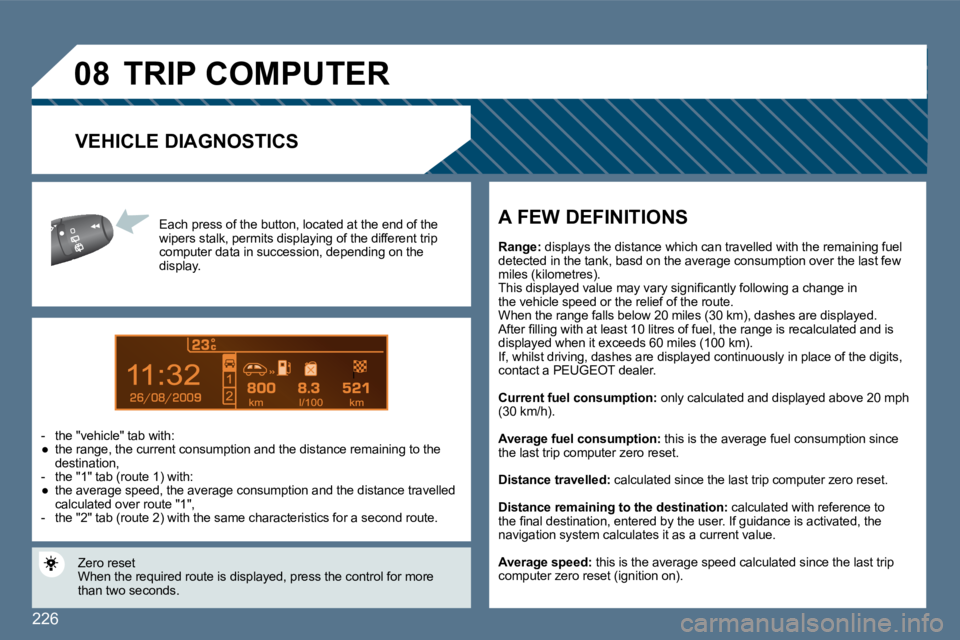

Each press of the button, located at the end of the wipers stalk , permits displaying of the different trip computer data in succession, depending on the display.
- the "vehicle" tab with:

227
123
23
1
2
3
4
3
4
3
4
2
3
4
3
4
3
3
3
2
1
2
2
1
2
3
2
3
4
4
4
4
4
4
09
3
3
3
2
3
3
3
3
3
date and time adjustment
day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode

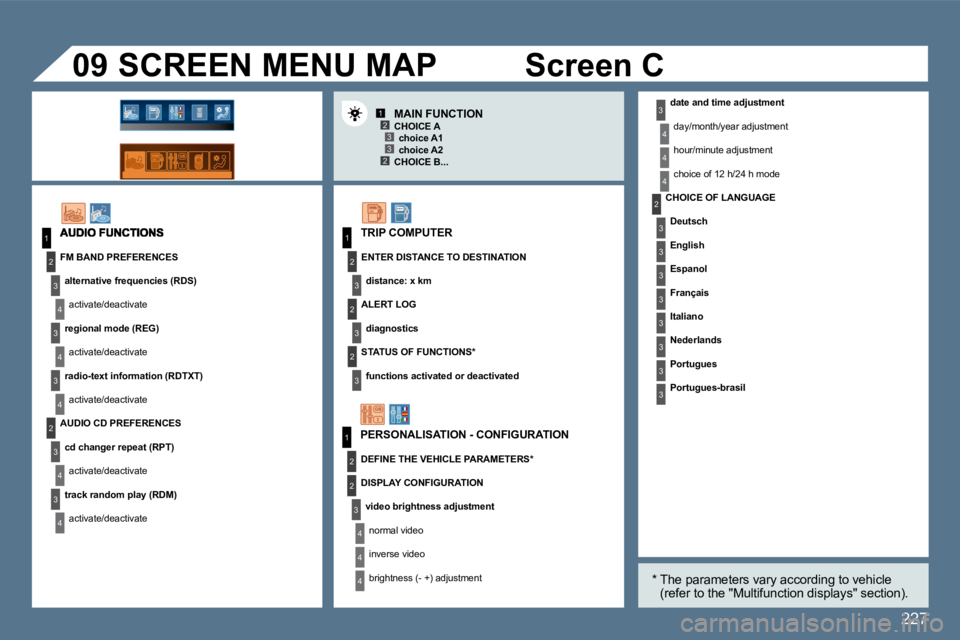

SCREEN MENU MAP
TRIP COMPUTER
MAIN FUNCTION
* The parameters vary according to vehicle (refer to the "Multifunction displays" section).
CHOICE A choice A1 choice A2 CHOICE B...
track random play (RDM)
activate/deactivate
FM BAND PREFERENCES
alternative frequencies (RDS)
activate/deactivate
regional mode (REG)
activate/deactivate
radio-text information (RDTXT)
activate/deactivate
AUDIO CD PREFERENCES
cd changer repeat (RPT)
activate/deactivate
ENTER DISTANCE TO DESTINATION
distance: x km
ALERT LOG
diagnostics
video brightness adjustment
normal video
inverse video
brightness (- +) adjustment
STATUS OF FUNCTIONS *
functions activated or deactivated
PERSONALISATION - CONFIGURATION
DEFINE THE VEHICLE PARAMETERS *
DISPLAY CONFIGURATION
CHOICE OF LANGUAGE
Deutsch
English
Espanol
Français
Italiano
Nederlands
Portugues
Portugues-brasil
Screen C

228
1
2
3
2
1
2
3
3
1
2
2
2
2
1
2
1
2
2

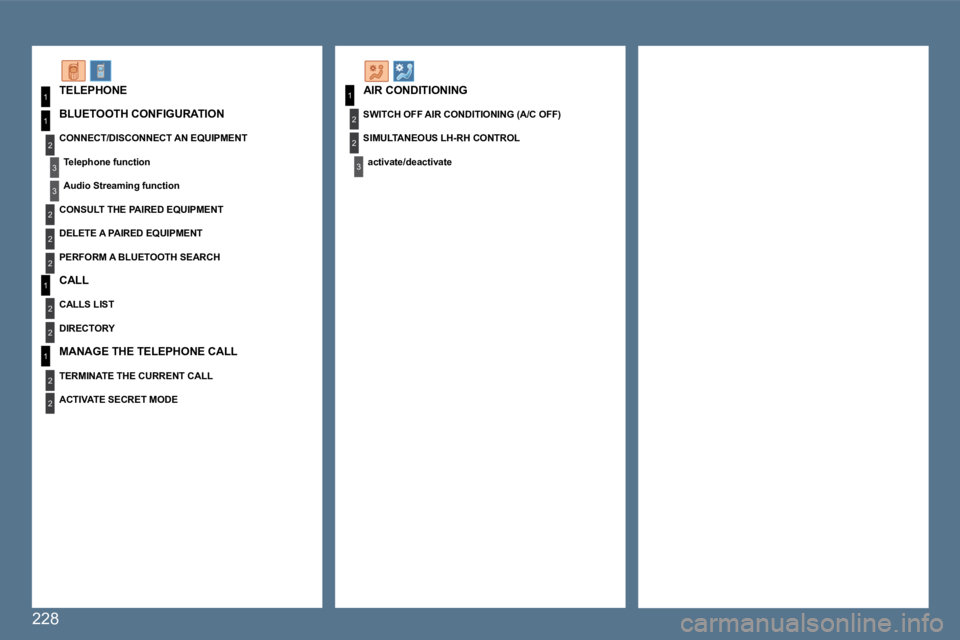

AIR CONDITIONING
SWITCH OFF AIR CONDITIONING (A/C OFF)
TELEPHONE
BLUETOOTH CONFIGURATION
CONNECT/DISCONNECT AN EQUIPMENT
Telephone function
Audio Streaming function
CONSULT THE PAIRED EQUIPMENT
DELETE A PAIRED EQUIPMENT
PERFORM A B PERFORM A PERFORM ALUETOOTH SEARCH
MANAGE THE TELEPHONE CALL
TERMINATE THE CURRENT CALL
ACTIVATE SECRET MODE
CALL
CALLS LIST
DIRECTORY
SIMULTANEOUS LH-RH CONTROL
activate/deactivate

229
There is a difference in sound quality between the different audio sources (radio, CD...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD...).
The CD is ejected automatically or is not played by the player.
- Check that the CD is inserted in the playerthe right way up. - Check the condition of the CD: the CD cannot be played if it is too damaged. - Check the content in the case of a recorded CD: consult the advice in the "Audio" section. - The audio equipment’s CD player does not play DVDs. - Due to their quality level, certain writeable CDs will not be played by the audio system.
The CD is inserted upside down, is unplayable, doe s not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
The message "USB peripheral error" is displayed on the screen.
Recharge the battery of the peripheral device. The Bluetooth connection is cut. The battery of the peripheral may not be suffi ciently charged.
The USB memory stick is not recognised. The memory stick may be corrupt. Reformat the memory stick.
QUESTION SOLUTION ANSWER

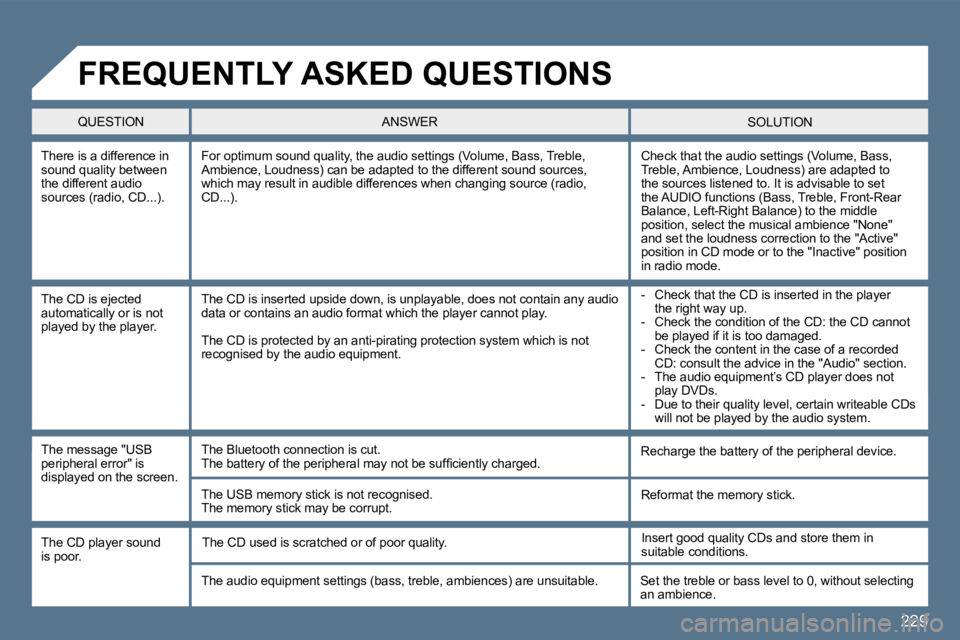

FREQUENTLY ASKED QUESTIONS
The CD player sound is poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambien ces) are unsuitable. Set the treble or bass level to 0, without selecting an ambience.

230
The traffi c announcement (TA) is displayed. I do not receive any traffi c information.
Tune to a radio station which broadcasts traffi c information. The radio station is not part of the regional traffi c information network.
QUESTION SOLUTION ANSWER
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used b y the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
The environment (hills, buildings, tunnels, baseme nt car parks...) block reception, including in RDS mode.
The aerial is absent or has been damaged (for exam ple when going through a car wash or into an underground car park).
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipme nt operating time depends on the battery charge. The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle’s battery.
Start the vehicle’s engine to increase the battery charge.
The stored stations do not function (no sound, 87.5 Mhz is displayed...).
An incorrect waveband is selected. Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on whichthe stations are stored.
The message "the audio system is overheated" appears on the display.
Switch the audio system off for a few minutes to allow the system to cool. In order to protect the installation if the surrounding temperature is too high, the audio equipment switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playingof the CD.
