Page 113 of 211
8
102
TYRE UNDER-INFLATION DETECTION
Sensors check the tyre pressure dur-
ing driving and trigger a warning in the
event of malfunction.
Pressure Check
With the ignition on and the ve-
hicle having been stationary
for approximately 15 minutes,
and after the engine oil level,
this indicator light comes on
on the instrument panel screen to indi-
cate that the system is measuring the
tyre pressures.
Pressure OK
This indicator light comes
on on the instrument panel
screen if all of the tyre pres-
sure values measured are
correct.
If this indicator light does not appear,
contact a PEUGEOT dealer to have
the system checked. Puncture
This warning light, accom-
panied by the audible sig-
nal and the message on the
multi-function display locat-
ing the wheel concerned, is
followed by illumination of the STOP
warning light.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
t u r e d o r v e r y d e fl a t e d t y r e ) , a n d h a v e
the tyre pressure checked as soon as
possible.
Note: this message is also
displayed when one of the
wheels is away from the ve-
hicle (being repaired) or when
one or more wheels without a
s e n s o r a r e fi t t e d . All repairs and changing of
t y r e s o n a w h e e l fi t t e d w i t h t h i s
system must be carried out by
a PEUGEOT dealer.
If, when changing a tyre, you install a
wheel which is not detected by your
vehicle, you must have the system
reinitialised by a PEUGEOT dealer.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n s y s -
tem is an aid to driving which does not
replace the need for the driver to be
vigilant or to drive responsibly.
This system does not eliminate the
need to have the tyre pressure checked
regularly (see manufacturer's label) to
ensure that the optimum dynamic per-
formance of the vehicle is maintained
and prevent premature wear of the
tyres, particularly in arduous driving
conditions (heavy load, high speed).
The tyre pressures must be checked
cold, at least once a month. Remember to
check the pressure of the spare wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n s y s -
tem may experience temporary inter-
ference due to radioelectric emissions
on a frequency close to that used by
the system.
Flat tyre This warning light is accom-
panied by the audible signal
and the message on the mul-
ti-function display locating
the wheel concerned.
If this warning light comes on, have
the tyre pressure checked as soon as
possible. Sensor(s) not detected or faulty
This warning light is accom-
panied by the audible sig-
nal and the message on the
multi-function display which
i n d i c a t e s t h a t u n d e r - i n fl a t i o n
detection is absent from one (or sev-
eral) wheel(s) or that there is a fault in
the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
Page 117 of 211
9
107
To maintain the reliability of
engines and emission control
systems, the use of additives
in engine oil is prohibited. Cooling system CHECKING THE LEVELS
These are normal maintenance opera-
tions which keep your vehicle in good
working order. Consult the instruc-
tions in the PEUGEOT network, on
the Service Box site or in the servicing
booklet enclosed with this handbook.
Dipstick There are two marks on
the dipstick:
A = maximum
N e v e r fi l l p a s t t h i s m a r k .
B = minimum
Oil level
Check the level regularly and top
up between changes.
Check the level with the vehicle level,
the engine having been off for more
than 15 minutes, using the dipstick.
Important: if you have to re-
m o v e / r e fi t t h e e n g i n e s t y l e c o v -
er, handle it with care to avoid
d a m a g i n g t h e fi x i n g c l i p s . Oil change
It is imperative that this is carried out
a t t h e i n t e r v a l s s p e c i fi e d a n d t h e v i s -
cosity of the oil chosen must meet the
requirements laid down in the manu-
facturer’s servicing schedule. Consult
the instructions in the PEUGEOT net-
work or on the SERVICE BOX site.
Note: avoid used oil coming into pro-
longed contact with the skin. Empty
the used oil into the containers provid-
ed for this purpose in the PEUGEOT
network.
Oil filter
Replace the cartridge regularly in ac-
cordance with the recommendations
of the servicing schedule.
Brake fluid change
U s e t h e fl u i d r e c o m m e n d e d b y t h e
m a n u f a c t u r e r , w h i c h f u l fi l s D O T 4
Standards.
I t i s i m p e r a t i v e t h a t t h e b r a k e fl u i d i s
c h a n g e d a t t h e i n t e r v a l s s p e c i fi e d i n
accordance with the manufacturer’s
servicing schedule.
Note: avoid all contact with the skin,
t h e b r a k e fl u i d i s h a r m f u l t o h e a l t h a n d
very corrosive. U s e o n l y t h e fl u i d r e c o m m e n d -
ed by the manufacturer.
Note: the coolant does not need to be
changed.
When the engine is warm, the tem-
perature of the coolant is controlled by
the engine fan. As this fan can oper-
ate with the ignition key removed and
because the cooling system is pressu-
rised, wait for at least one hour after
the engine has stopped before carry-
ing out any work.
S l a c k e n t h e c a p t o t h e fi r s t
notch to release the pressure
to prevent any risk of scald-
ing. When the pressure has
dropped, remove the cap and top up
the level with coolant.
The engine fan can oper-
ate after the vehicle has
stopped.
Page 118 of 211
9
108
Used oil
Do not dispose of used oil,
b r a k e fl u i d o r c o o l a n t i n t o
drains or onto the ground.
Windscreen and headlamp wash level
For best quality cleaning and for your
safety, to see and be seen, we would
advise that you use products of the
PEUGEOT Universal range. At the start of winter, have
your battery checked by a
PEUGEOT dealer.
Battery
CHECKS
H a v e t h e fi l t e r e l e m e n t s r e -
placed regularly. If you drive
in dusty conditions, change
them twice as often.
Air filter and passenger compartment filter
Brake pad wear depends on
the style of driving, in par-
ticular for vehicles which are
used in town, over short dis-
tances.
Brake pads
It may be necessary to check
the thickness of the pads,
even between services. Where the handbrake travel
is too great or there is a re-
duction in the performance
of the system, the handbrake
should be adjusted.
Have the system checked by a
PEUGEOT dealer.
Handbrake
To ensure the best perform-
ance from components as im-
portant as the power steering
and the braking system, the
manufacturer selects and offers spe-
c i fi c p r o d u c t s , o n l y u s e p r o d u c t s r e c -
ommended by PEUGEOT .
To prevent damage to the electrical
units, high pressure washing of the en-
gine compartment is strictly prohibited .
U s e t h e fl u i d r e c o m m e n d e d b y t h e
manufacturer.
Open the reservoir, with the engine
at ambient temperature, the level
should always be above the MIN
mark, close to the MAX mark.
Particle emission filter - Additive reservoir (Diesel)
It is imperative that the maintenance of
t h e p a r t i c l e e m i s s i o n fi l t e r a n d t h e fi l l -
ing of the additive reservoir are carried
out by a PEUGEOT dealer in accord-
ance with the manufacturer’s servicing
schedule.
Disc wear status
For any information relating to check-
ing disc wear, contact a PEUGEOT
dealer.
Power steering fluid level
Page 119 of 211
9
108
Used oil
Do not dispose of used oil,
b r a k e fl u i d o r c o o l a n t i n t o
drains or onto the ground.
Windscreen and headlamp wash level
For best quality cleaning and for your
safety, to see and be seen, we would
advise that you use products of the
PEUGEOT Universal range. At the start of winter, have
your battery checked by a
PEUGEOT dealer.
Battery
CHECKS
H a v e t h e fi l t e r e l e m e n t s r e -
placed regularly. If you drive
in dusty conditions, change
them twice as often.
Air filter and passenger compartment filter
Brake pad wear depends on
the style of driving, in par-
ticular for vehicles which are
used in town, over short dis-
tances.
Brake pads
It may be necessary to check
the thickness of the pads,
even between services. Where the handbrake travel
is too great or there is a re-
duction in the performance
of the system, the handbrake
should be adjusted.
Have the system checked by a
PEUGEOT dealer.
Handbrake
To ensure the best perform-
ance from components as im-
portant as the power steering
and the braking system, the
manufacturer selects and offers spe-
c i fi c p r o d u c t s , o n l y u s e p r o d u c t s r e c -
ommended by PEUGEOT .
To prevent damage to the electrical
units, high pressure washing of the en-
gine compartment is strictly prohibited .
U s e t h e fl u i d r e c o m m e n d e d b y t h e
manufacturer.
Open the reservoir, with the engine
at ambient temperature, the level
should always be above the MIN
mark, close to the MAX mark.
Particle emission filter - Additive reservoir (Diesel)
It is imperative that the maintenance of
t h e p a r t i c l e e m i s s i o n fi l t e r a n d t h e fi l l -
ing of the additive reservoir are carried
out by a PEUGEOT dealer in accord-
ance with the manufacturer’s servicing
schedule.
Disc wear status
For any information relating to check-
ing disc wear, contact a PEUGEOT
dealer.
Power steering fluid level

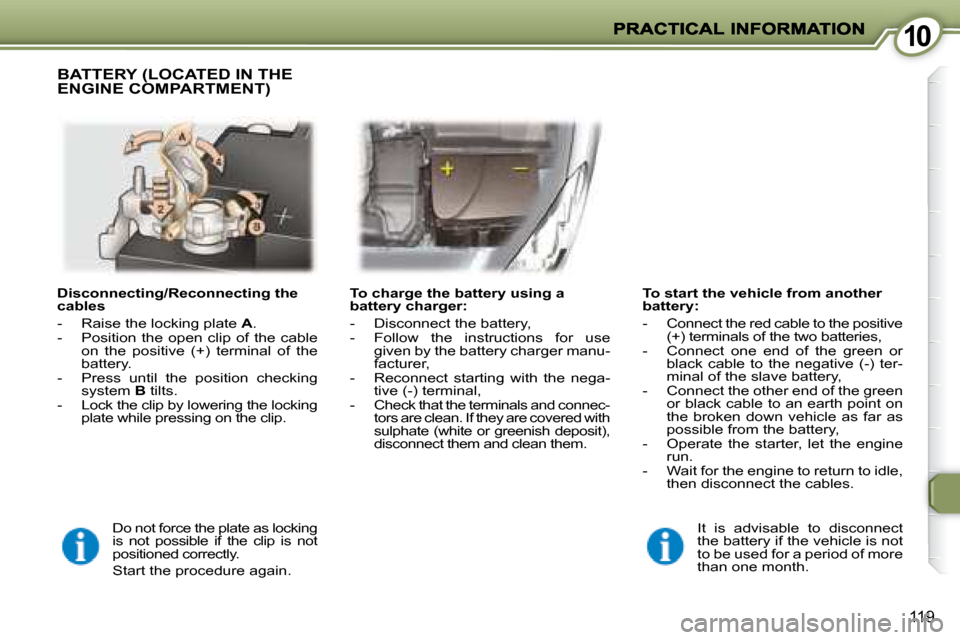

Page 132 of 211
1010
119
Disconnecting/Reconnecting the
cables
- Raise the locking plate A .
- Position the open clip of the cable on the positive (+) terminal of the
battery.
- Press until the position checking system B tilts.
- Lock the clip by lowering the locking plate while pressing on the clip. To start the vehicle from another
battery:
- Connect the red cable to the positive
(+) terminals of the two batteries,
- Connect one end of the green or black cable to the negative (-) ter-
minal of the slave battery,
- Connect the other end of the green or black cable to an earth point on
the broken down vehicle as far as
possible from the battery,
- Operate the starter, let the engine run.
- Wait for the engine to return to idle, then disconnect the cables.
BATTERY (LOCATED IN THE ENGINE COMPARTMENT)
To charge the battery using a
battery charger:
- Disconnect the battery,
- Follow the instructions for use given by the battery charger manu-
facturer,
- Reconnect starting with the nega- tive (-) terminal,
- Check that the terminals and connec- tors are clean. If they are covered with
sulphate (white or greenish deposit),
disconnect them and clean them.
It is advisable to disconnect
the battery if the vehicle is not
to be used for a period of more
than one month.
Do not force the plate as locking
is not possible if the clip is not
positioned correctly.
Start the procedure again.
Page 135 of 211
1010
122
In all cases, pay attention to the cool-
ant temperature.
Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake gradually.
Side wind: sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed. TOWING A TRAILER, CARAVAN, BOAT, ETC...
We recommend the use of original
PEUGEOT towbars which have been
tested and approved from the design
stage of your vehicle and that the tow-
b a r i s fi t t e d b y a P E U G E O T d e a l e r .
Driving advice
Distribution of loads: distribute the
load in the trailer so that the heavi-
est loads are as close as possible to
the axle and the nose weight is close
to the maximum authorised without,
however, exceeding it.
Cooling: towing a trailer on a slope in-
creases the coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
Note: in certain cases of par-
ticularly arduous use (towing
the maximum load in high
temperatures), the engine au-
tomatically limits its power and selects
the appropriate automatic gearbox
gear in manual mode. In this case,
cutting off the air conditioning allows
the engine power to be recovered, and
therefore the towing capacity to be in-
creased.
If the coolant temperature
warning light comes on, stop
the vehicle and switch off the
engine as soon as possible.
Tyres: check the tyre pressures of the
towing vehicle (label on the central
door pillar on the driver's side) and of
the trailer towed, observing the recom-
mended pressure.
Page 173 of 211
171
( T A ) i s d i s p l a y e d . I d o n o t r e c e i v e a n y t r a f fi c information.
T u n e t o a r a d i o s t a t i o n w h i c h b r o a d c a s t s t r a f fi c information. T h e r a d i o s t a t i o n i s n o t p a r t o f t h e r e g i o n a l t r a f fi c i n f o r m a t i o n n e t w o r k .
QUESTION SOLUTION RESPONSE
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is d i s p l a y e d . . . ) .
The vehicle is too far from the transmitter used b y the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
T h e e n v i r o n m e n t ( h i l l s , b u i l d i n g s , t u n n e l s , b a s e m e n t c a r p a r k s . . . ) b l o c k reception, including in RDS mode.
The aerial is absent or has been damaged (for exam ple when going t h r o u g h a c a r w a s h o r i n t o a n u n d e r g r o u n d c a r p a r k ) .
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipme nt operating time depends on the battery charge. The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The stored stations do not function (no sound, 8 7 . 5 M h z i s d i s p l a y e d . . . ) .
An incorrect waveband is selected. Press the BAND AST button to return to the w a v e b a n d ( A M , F M 1 , F M 2 , F M A S T ) o n w h i c h t h e stations are stored.
The message "the audio system is overheated" appears on the display.
Switch the audio system off for a few minutes to allow the system to cool. In order to protect the installation if the surrounding temperature is too high, the audio equipment switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of the CD.
