1. Coolant temperature indicator dial.
2. Lights on indicators:
dipped headlamps.
main beam headlamps.
front fog lamps.
rear fog lamps.
3. Rev counter dial.
4. Warning lights:
seat belts not fastened in the front.
fuel level.
left direction indicator.
5. Fuel level indicator dial.
5-DIAL PETROL-DIESEL MANUAL AND AUTOMATIC GEARBOX INSTRUMENT PA NELS
10. CHECK and trip recorder zero
reset and service display button.
11. Instrument panel display:
Total distance recorder.
Trip recorder.
Cruise control/speed limiter reference value.
Service indicator.
Direction advice (navigation)
CHECK (vehicle autotest).
Trip computer information displays.
Warning and status displays.
6. Warning lights:
handbrake applied o r b r a k e fl u i d l e v e l o r
electronic brake force
distribution fault.
right direction indicator.
7. Speedometer dial.
8. Warning lights:
emission control system.
anti-lock braking system (ABS).
passenger air bag disarmed.
pre-heat (Diesel engine starting)
9. Engine oil temperature indicator
dial. Automatic gearbox lever position
indicator.
12. Instrument panel lighting rheostat.
Page 19 of 211
1
22
CHECK (vehicle autotest)
In the presence of a fault
A "minor" fault has been detected:
when the CHECK OK indicator light
has been displayed, the warning
light(s) is (are) displayed.
You can start your vehicle; however,
contact a PEUGEOT dealer as soon
as possible.
A "major" fault has been detected:
the CHECK OK indicator light does
not appear and the warning light(s) is
(are) displayed.
Do not start your vehicle.
Call a PEUGEOT dealer without delay. * According to country.
Automatic CHECK
With the key in the ignition on position,
all of the warning lights of the functions
tested are displayed. They are switched
off after a few seconds.
At the same time, an automatic CHECK
(vehicle autotest) is carried out.
No "major" fault has been de-
tected: the CHECK OK indi-
cator light is displayed after a
few seconds.
You can start your vehicle. Manual CHECK
Pressing the
"CHECK/000" button on
the instrument panel starts the manual
CHECK (vehicle autotest).
T h i s f u n c t i o n e n a b l e s y o u t o fi n d o u t , a t
any time (with the key in the ignition on
position or with the engine running):
- the warnings present,
- the status of the functions activated or deactivated (wipers, automatic
switching on of the lights). The passenger air bag disarmed
indicator light * remains on while
the air bag is disarmed.
With the engine running and the ve-
hicle moving, the instrument panel
screen displays the warning lights
(in the event of a fault).
Page 21 of 211
1
24
T y r e u n d e r - i n fl a t i o n
warning light
This indicates that the tyre
pressure is too low.
A message on the multifunction display
indicates the wheel(s) concerned.
R e f e r t o t h e i n f o r m a t i o n l a b e l a f fi x e d t o
the central pillar of the driver's door. For
your safety, check the tyre pressures
as soon as possible.
Electronic stability control system
(ESP) warning lights
Activation warning light
Operation warning light
Deactivation warning light
Malfunction warning light
Handbrake warning light
This indicates that the hand-
brake is still applied or has
not been released correctly.
It is linked with the braking system
warning light.
Low wash-wipe and
h e a d l a m p w a s h fl u i d l e v e l
warning light
When the wipers are switched
o n , t h i s i n d i c a t e s t h a t t h e fl u i d
level is too low.
Fill the wash-wipe and headlamp wash
fl u i d r e s e r v o i r .
Battery charge warning
light
When the engine is running,
this indicates a charging circuit
malfunction (battery terminals,
alternator belt).
Consult a PEUGEOT dealer. Engine oil level warning
light
This indicates a low engine
oil level.
Stop immediately.
Consult a PEUGEOT dealer.
WARNING LIGHTS WHICH ARE DISPLAYED ON THE INSTRUMENT PANEL SCREEN
STOP warning light
It comes on linked with the
engine oil pressure, cool-
ant temperature, power
steering, braking system
or punctured tyre warning lights.
Stop immediately.
Consult a PEUGEOT dealer.
Low coolant level warning
light (according to
version)
This warning light indicates
a n i n s u f fi c i e n t c o o l i n g c i r c u i t
level.
Stop immediately.
Consult a PEUGEOT dealer.
Warning: the cooling circuit is pres-
surised, wait for the engine to cool
down before topping up the level.
When topping up, and in order
to prevent any risk of scalding,
unscrew the cap by two turns
to allow the pressure to drop.
When the pressure has dropped, re-
move the cap and top up the level with
coolant. Power steering warning
light
This indicates a power steering
fault.
It is linked with the STOP warning light.
Consult a PEUGEOT dealer.
Page 83 of 211
5
75
The timed duration must also
be set, via the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
A u t o m a t i c s w i t c h i n g o n o f t h e lights
To switch the function on
or off, use the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
Activation
Deactivation When this function is activa-
ted, the indicator light on the
instrument panel comes on.
When the function is deacti-
vated, the indicator light on the
instrument panel comes on.
Cancellation:
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
M a n u a l " f o l l o w - m e - h o m e " l i g h t i n g
If the automatic switching on of the lights
is not activated, the manual "follow-me-
home" lighting can be activated.
When you leave your vehicle, the side
lights and dipped headlamps remain
on for approximately 1 minute.
Activation:
switch off the engine,
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
Deactivation:
fl a s h t h e h e a d l a m p s a g a i n ,
get out of the vehicle and lock it.
A u t o m a t i c " f o l l o w - m e - h o m e "
lighting
When you leave your vehicle with
the
a u t o m a t i c s w i t c h i n g o n o f t h e l i g h t s
activated , the side lights and dipped
headlamps remain on for the duration
selected when the ignition is switched
off.
To activate or deactivate this func-
tion, pass via the multifunction display
" P e r s o n a l i s a t i o n - C o n f i g u r a t i o n "
menu.
In foggy weather, the bright-
n e s s s e n s o r c a n d e t e c t s u f fi -
cient light. As a consequence,
the lights will not come on au-
tomatically.
This function is active when the vehi-
cle is supplied to the customer.
If the brightness sensor does not
f u n c t i o n c o r r e c t l y , if the system is
activated, the dipped headlamps and
the side lights come on.
Contact a PEUGEOT dealer to have
the system checked.
D a y t i m e l i g h t s *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
The instruments and controls
(instrument panel, multifunc-
tion display, air conditioning
control panel, ...) are only lit
on switching to the automatic switch-
ing on of the lights mode or when the
lights are switched on manually. This warning light comes on
on the instrument panel.
* According to country.
This function is available di-
rectly at the lights stalk on
certain versions depending on
the type of lights stalk.
The side lights and dipped beam head-
lamps switch on automatically if the light
is poor, or during operation of the wind-
screen wipers. They switch off as soon
as the light becomes bright enough or
the windscreen wipers stop.
Page 84 of 211
5
75
The timed duration must also
be set, via the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
A u t o m a t i c s w i t c h i n g o n o f t h e lights
To switch the function on
or off, use the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
Activation
Deactivation When this function is activa-
ted, the indicator light on the
instrument panel comes on.
When the function is deacti-
vated, the indicator light on the
instrument panel comes on.
Cancellation:
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
M a n u a l " f o l l o w - m e - h o m e " l i g h t i n g
If the automatic switching on of the lights
is not activated, the manual "follow-me-
home" lighting can be activated.
When you leave your vehicle, the side
lights and dipped headlamps remain
on for approximately 1 minute.
Activation:
switch off the engine,
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
Deactivation:
fl a s h t h e h e a d l a m p s a g a i n ,
get out of the vehicle and lock it.
A u t o m a t i c " f o l l o w - m e - h o m e "
lighting
When you leave your vehicle with
the
a u t o m a t i c s w i t c h i n g o n o f t h e l i g h t s
activated , the side lights and dipped
headlamps remain on for the duration
selected when the ignition is switched
off.
To activate or deactivate this func-
tion, pass via the multifunction display
" P e r s o n a l i s a t i o n - C o n f i g u r a t i o n "
menu.
In foggy weather, the bright-
n e s s s e n s o r c a n d e t e c t s u f fi -
cient light. As a consequence,
the lights will not come on au-
tomatically.
This function is active when the vehi-
cle is supplied to the customer.
If the brightness sensor does not
f u n c t i o n c o r r e c t l y , if the system is
activated, the dipped headlamps and
the side lights come on.
Contact a PEUGEOT dealer to have
the system checked.
D a y t i m e l i g h t s *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
The instruments and controls
(instrument panel, multifunc-
tion display, air conditioning
control panel, ...) are only lit
on switching to the automatic switch-
ing on of the lights mode or when the
lights are switched on manually. This warning light comes on
on the instrument panel.
* According to country.
This function is available di-
rectly at the lights stalk on
certain versions depending on
the type of lights stalk.
The side lights and dipped beam head-
lamps switch on automatically if the light
is poor, or during operation of the wind-
screen wipers. They switch off as soon
as the light becomes bright enough or
the windscreen wipers stop.
Page 95 of 211
7
85

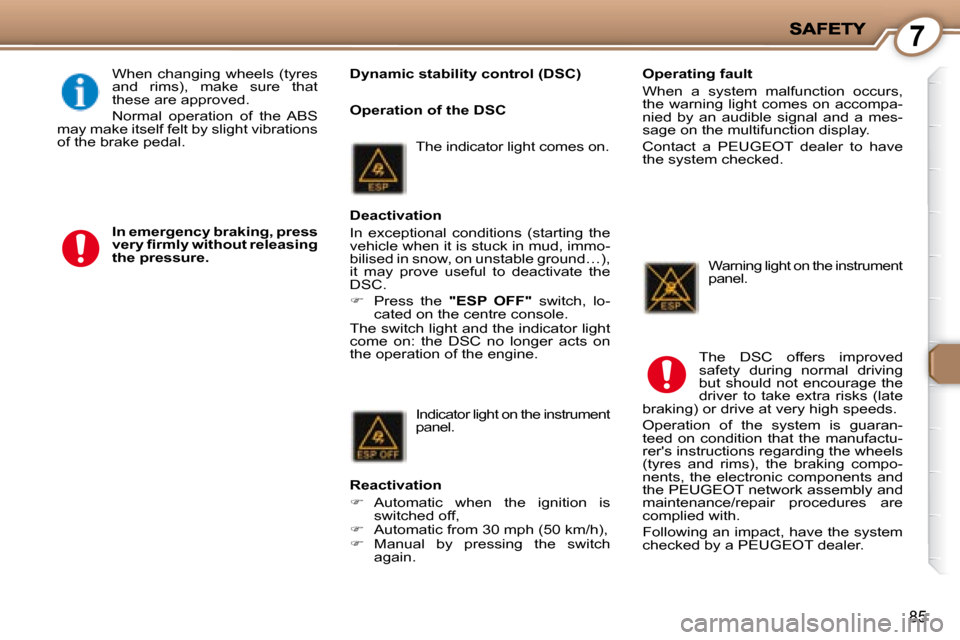

Dynamic stability control (DSC)
When changing wheels (tyres
and rims), make sure that
these are approved.
Normal operation of the ABS
may make itself felt by slight vibrations
of the brake pedal.
In emergency braking, press
v e r y fi r m l y w i t h o u t r e l e a s i n g
the pressure. Operating fault
When a system malfunction occurs,
the warning light comes on accompa-
nied by an audible signal and a mes-
sage on the multifunction display.
Contact a PEUGEOT dealer to have
the system checked.
The DSC offers improved
safety during normal driving
but should not encourage the
driver to take extra risks (late
braking) or drive at very high speeds.
Operation of the system is guaran-
teed on condition that the manufactu-
rer's instructions regarding the wheels
(tyres and rims), the braking compo-
nents, the electronic components and
the PEUGEOT network assembly and
maintenance/repair procedures are
complied with.
Following an impact, have the system
checked by a PEUGEOT dealer.
Warning light on the instrument
panel.
The indicator light comes on.
Deactivation
In exceptional conditions (starting the
vehicle when it is stuck in mud, immo-
bilised in snow, on unstable ground…),
it may prove useful to deactivate the
DSC.
Press the "ESP OFF" switch, lo-
cated on the centre console.
The switch light and the indicator light
come on: the DSC no longer acts on
the operation of the engine.
Indicator light on the instrument
panel.
Reactivation
Automatic when the ignition is
switched off,
Automatic from 30 mph (50 km/h),
Manual by pressing the switch
again.
Operation of the DSC
Page 96 of 211
7
86

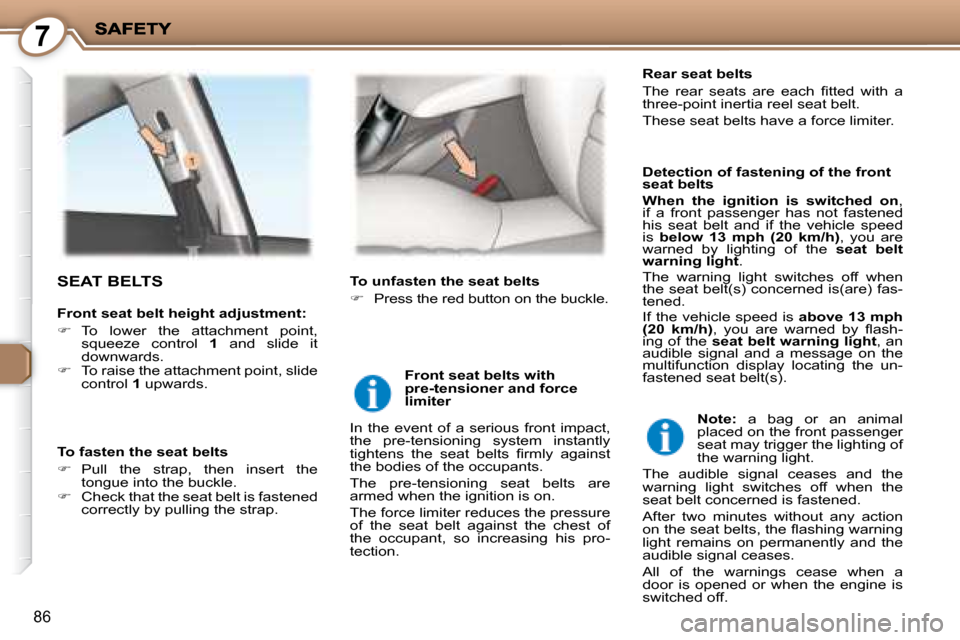

SEAT BELTS
Detection of fastening of the front
seat belts
When the ignition is switched on ,
if a front passenger has not fastened
his seat belt and if the vehicle speed
is below 13 mph (20 km/h) , you are
warned by lighting of the seat belt
warning light .
The warning light switches off when
the seat belt(s) concerned is(are) fas-
tened.
If the vehicle speed is above 13 mph
(20 km/h) , y o u a r e w a r n e d b y fl a s h -
ing of the seat belt warning light , an
audible signal and a message on the
multifunction display locating the un-
fastened seat belt(s).
Front seat belts with
pre-tensioner and force
limiter
In the event of a serious front impact,
the pre-tensioning system instantly
t i g h t e n s t h e s e a t b e l t s fi r m l y a g a i n s t
the bodies of the occupants.
The pre-tensioning seat belts are
armed when the ignition is on.
The force limiter reduces the pressure
of the seat belt against the chest of
the occupant, so increasing his pro-
tection. Rear seat belts
T h e r e a r s e a t s a r e e a c h fi t t e d w i t h a
three-point inertia reel seat belt.
These seat belts have a force limiter.
To fasten the seat belts
Pull the strap, then insert the
tongue into the buckle.
Check that the seat belt is fastened
correctly by pulling the strap. To unfasten the seat belts
Press the red button on the buckle.
Note: a bag or an animal
placed on the front passenger
seat may trigger the lighting of
the warning light.
The audible signal ceases and the
warning light switches off when the
seat belt concerned is fastened.
After two minutes without any action
o n t h e s e a t b e l t s , t h e fl a s h i n g w a r n i n g
light remains on permanently and the
audible signal ceases.
All of the warnings cease when a
door is opened or when the engine is
switched off.
Front seat belt height adjustment:
To lower the attachment point,
squeeze control 1 and slide it
downwards.
To raise the attachment point, slide
control 1 upwards.
Page 105 of 211
8
94
When maintenance opera-
tions need to be carried out
with the engine running, apply
the handbrake and select the

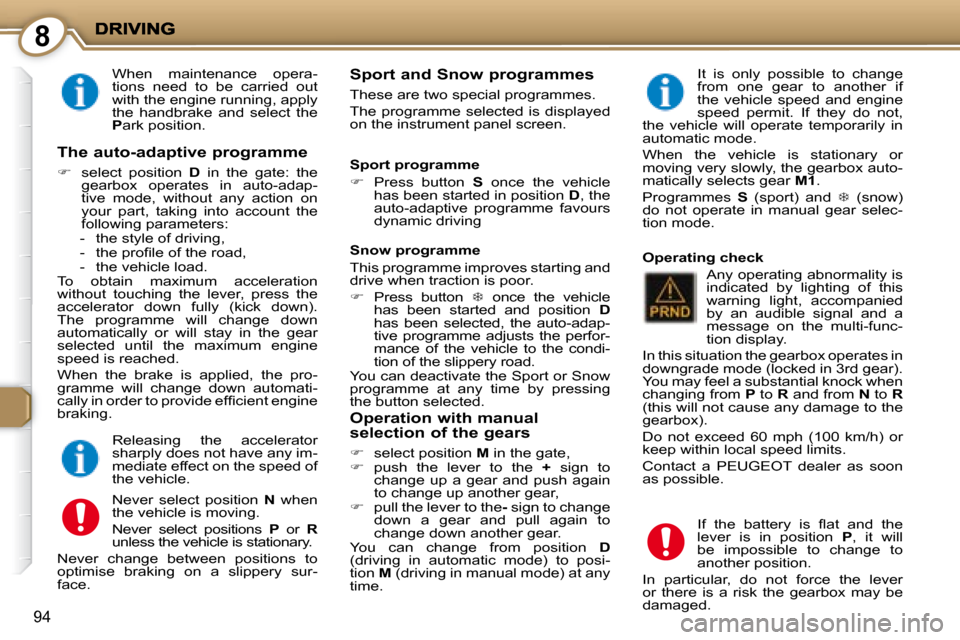

P ark position. Sport and Snow programmes
These are two special programmes.
The programme selected is displayed
on the instrument panel screen. It is only possible to change
from one gear to another if
the vehicle speed and engine
speed permit. If they do not,
the vehicle will operate temporarily in
automatic mode.
When the vehicle is stationary or
moving very slowly, the gearbox auto-
matically selects gear M1 .
Programmes S (sport) and (snow)
do not operate in manual gear selec-
tion mode.
Any operating abnormality is
indicated by lighting of this
warning light, accompanied
by an audible signal and a
message on the multi-func-
tion display.
In this situation the gearbox operates in
downgrade mode (locked in 3rd gear).
You may feel a substantial knock when
changing from P to R and from N to R
(this will not cause any damage to the
gearbox).
Do not exceed 60 mph (100 km/h) or
keep within local speed limits.
Contact a PEUGEOT dealer as soon
as possible.
Operating check
Operation with manual selection of the gears
select position M in the gate,
push the lever to the + sign to
change up a gear and push again
to change up another gear,
pull the lever to the - sign to change
down a gear and pull again to
change down another gear.
You can change from position D
(driving in automatic mode) to posi-
tion M (driving in manual mode) at any
time.
The auto-adaptive programme
select position D in the gate: the
gearbox operates in auto-adap-
tive mode, without any action on
your part, taking into account the
following parameters:
- the style of driving,
- t h e p r o fi l e o f t h e r o a d ,
- the vehicle load.
To obtain maximum acceleration
without touching the lever, press the
accele rator down fully (kick down).
The programme will change down
automatically or will stay in the gear
selected until the maximum engine
speed is reached.
When the brake is applied, the pro-
gramme will change down automati-
c a l l y i n o r d e r t o p r o v i d e e f fi c i e n t e n g i n e
braking. Sport programme
Press button S once the vehicle
has been started in position D , the
auto-adaptive programme favours
dynamic driving
Snow programme
This programme improves starting and
drive when traction is poor.
Press button once the vehicle
has been started and position D
has been selected, the auto-adap-
tive programme adjusts the perfor-
mance of the vehicle to the condi-
tion of the slippery road.
You can deactivate the Sport or Snow
programme at any time by pressing
the button selected.
Releasing the accelerator
sharply does not have any im-
mediate effect on the speed of
the vehicle.
Never select position N when
the vehicle is moving.
Never select positions P or R
unless the vehicle is stationary.
Never change between positions to
optimise braking on a slippery sur-
face. I f t h e b a t t e r y i s fl a t a n d t h e
lever is in position
P , it will
be impossible to change to
another position.
In particular, do not force the lever
or there is a risk the gearbox may be
damaged.
Page 113 of 211
8
102
TYRE UNDER-INFLATION DETECTION
Sensors check the tyre pressure dur-
ing driving and trigger a warning in the
event of malfunction.
Pressure Check With the ignition on and the
vehicle having been stationary
for approximately 15 minutes,
and after the engine oil level,
this indicator light comes on
on the instrument panel screen to indi-
cate that the system is measuring the
tyre pressures.
Pressure OK
This indicator light comes
on on the instrument panel
screen if all of the tyre pres-
sure values measured are
correct.
If this indicator light does not appear,
contact a PEUGEOT dealer to have
the system checked. Puncture
This warning light, accom-
panied by the audible signal
and the message on the
multi-function display loca-
ting the wheel concerned, is
followed by illumination of the STOP
warning light.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
t u r e d o r v e r y d e fl a t e d t y r e ) , a n d h a v e
the tyre pressure checked as soon as
possible.
Note: this message is also dis-
played when one of the wheels
is away from the vehicle (be-
ing repaired) or when one or
more wheels without a sensor
a r e fi t t e d . All repairs and changing of
t y r e s o n a w h e e l fi t t e d w i t h t h i s
system must be carried out by
a PEUGEOT dealer.
If, when changing a tyre, you install a
wheel which is not detected by your
vehicle, you must have the system
reinitialised by a PEUGEOT dealer.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n s y s -
tem is an aid to driving which does not
replace the need for the driver to be
vigilant or to drive responsibly.
This system does not eliminate the
need to have the tyre pressure checked
regularly (see manufacturer's label) to
ensure that the optimum dynamic per-
formance of the vehicle is maintained
and prevent premature wear of the
tyres, particularly in arduous driving
conditions (heavy load, high speed).
The tyre pressures must be checked
cold, at least once a month. Remember
to check the pressure of the spare
wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n s y s -
tem may experience temporary inter-
ference due to radioelectric emissions
on a frequency close to that used by
the system.
Flat tyre
This warning light is accom-
panied by the audible si gnal
and the message on the
multi-function display loca-
ting the wheel concerned.
If this warning light comes on, have
the tyre pressure checked as soon as
possible. Sensor(s) not detected or faulty
This warning light is accom-
panied by the audible si gnal
and the message on the
multi-function display which
i n d i c a t e s t h a t u n d e r - i n fl a t i o n
detection is absent from one (or seve-
ral) wheel(s) or that there is a fault in
the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
Page 135 of 211
1010
122
In all cases, pay attention to the coolant
temperature.
Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake gradually.
Side wind: sensitivity to side wind is
increased. Drive smoothly and at a

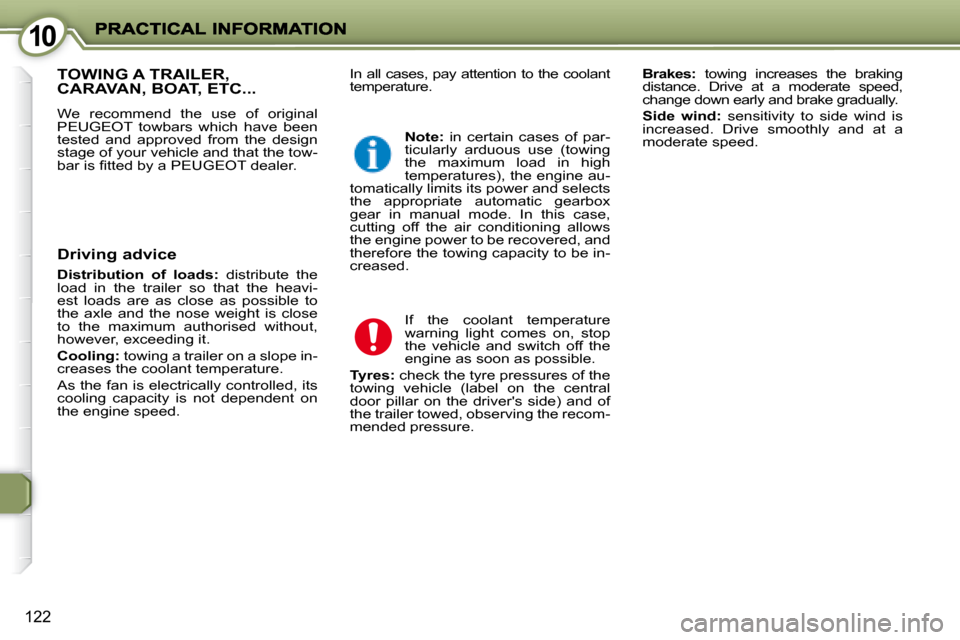

moderate speed. TOWING A TRAILER, CARAVAN, BOAT, ETC...
We recommend the use of original
PEUGEOT towbars which have been
tested and approved from the design
stage of your vehicle and that the tow-
b a r i s fi t t e d b y a P E U G E O T d e a l e r .
Driving advice
Distribution of loads: distribute the
load in the trailer so that the heavi-
est loads are as close as possible to
the axle and the nose weight is close
to the maximum authorised without,
however, exceeding it.
Cooling: towing a trailer on a slope in-
creases the coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
Note: in certain cases of par-
ticularly arduous use (towing
the maximum load in high
temperatures), the engine au-
tomatically limits its power and selects
the appropriate automatic gearbox
gear in manual mode. In this case,
cutting off the air conditioning allows
the engine power to be recovered, and
therefore the towing capacity to be in-
creased.
If the coolant temperature
warning light comes on, stop
the vehicle and switch off the
engine as soon as possible.
Tyres: check the tyre pressures of the
towing vehicle (label on the central
door pillar on the driver's side) and of
the trailer towed, observing the recom-
mended pressure.
