Page 5 of 211
1. Cruise control/speed limiter switches.
2. Steering wheel height and depth
adjustment.
3. Lights and direction indicators controls.
4. Instrument panel.
5. Driver's air bag.
Horn.
6. Gear lever.
7. Driver's footwell air outlet.
8. Fascia fuse box.
9. F u e l fi l l e r fl a p o p e n i n g b u t t o n .
10. Adjustable and closing side vent.
11. Speakers (tweeters).
12. Driver's seat electric controls.
13. Driver's heated seat control.
14. Bonnet release.
Page 6 of 211
1. Steering lock and ignition.
2. Audio equipment steering wheel
control.
3. Wipers/wash-wipe and trip computer
controls.
4. Adjustable and closing central vents.
5. Air diffuser vent grille.
6. Sunshine sensor.
7. Windscreen deicing and demisting
vent.
8. Speakers (tweeters).
9. Adjustable and closing side vent.
10. Disarming of the passenger air bag * .
11. Passenger air bag.
12. Glove box/Video sockets.
13. Passenger footwell air outlet.
14. Passenger heated seat control.
15. Passenger seat electric controls.
* According to country.
Page 37 of 211
3
38
screen, the vents, the air outlets under
the front seats and the air extractor
l o c a t e d b e h i n d t h e fl a p s i n t h e b o o t .
I n c e r t a i n c a s e s o f p a r t i c u l a r l y a r d u o u s
use (towing the maximum load on a
s t e e p g r a d i e n t i n h o t w e a t h e r ) , c u t t i n g
o f f t h e a i r c o n d i t i o n i n g p e r m i t s r e c o v -
e r y o f t h e e n g i n e p o w e r a n d t h e r e f o r e
i m p r o v e m e n t o f t h e t o w i n g c a p a c i t y .
C l o s e t h e w i n d o w s t o b e n e fi t f r o m t h e
f u l l e f f e c t i v e n e s s o f t h e a i r c o n d i t i o n i n g .
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t -
m e n t fi l t e r i s i n g o o d c o n d i t i o n . H a v e
t h e fi l t e r e l e m e n t s r e p l a c e d p e r i o d i c a l l y .
I f y o u d r i v e i n a d u s t y e n v i r o n m e n t ,
r e p l a c e i t t w i c e a s o f t e n .
T h e a i r c o n d i t i o n i n g s y s t e m d o e s n o t
contain chlorine and is not harmful to
t h e o z o n e l a y e r .
O p e r a t e t h e a i r c o n d i t i o n i n g s y s t e m
for 5 to 10 minutes, once or twice a
m o n t h , t o k e e p i t i n p e r f e c t w o r k i n g
o r d e r .
T h e w a t e r f o r m e d b y t h e a i r c o n d i t i o n i n g
c o n d e n s a t i o n i s d i s c h a r g e d v i a a n o p e n -
i n g p r o v i d e d f o r t h i s p u r p o s e . T h e r e f o r e ,
a p u d d l e o f w a t e r m a y f o r m u n d e r n e a t h
t h e v e h i c l e w h e n s t a t i o n a r y .
I f t h e s y s t e m d o e s n o t p r o d u c e c o l d a i r ,
do not use it and contact a PEUGEOT
d e a l e r .
1. C e n t r e p a n e l v e n t s .
2. Adjustment of the glove box air
fl o w ( s e e s e c t i o n " I n t e r i o r l a y o u t " ) .
3. A i r o u t l e t t o p a s s e n g e r f o o t w e l l s .
4. Two ventilation vents at the rear at
t h e b a s e o f t h e c e n t r e c o n s o l e b e -
t w e e n t h e p a s s e n g e r s .
5. S i d e v e n t s .
6. F r o n t w i n d o w s d e - i c i n g o r d e m i s t -
i n g v e n t s .
7. W i n d s c r e e n d e - i c i n g o r d e m i s t i n g
v e n t s .
8. S u n s h i n e s e n s o r .
9. A i r d i f f u s e r g r i l l e . AUTOMATIC REGULATION OF THE AIR CONDITIONING
Air diffuser
The air diffuser grille, located at the
t o p o f t h e c e n t r e c o n s o l e , s i g n i fi c a n t l y
i m p r o v e s d i s t r i b u t i o n a n d fl o w s a n d
p r e v e n t s a i r c u r r e n t s , w h i l e m a i n t a i n -
i n g a n o p t i m u m t e m p e r a t u r e i n s i d e t h e
p a s s e n g e r c o m p a r t m e n t .
Advice on operation
To obtain even ventilation,
avoid closing the air diffuser
grille 9 .
I n h o t w e a t h e r , i n o r d e r t o o b t a i n i n -
t e n s e v e n t i l a t i o n , y o u c a n c l o s e t h e a i r
diffuser grille 10 and use vents 1 and
5 o n l y .
I f , w h e n t h e v e h i c l e h a s b e e n p a r k e d
in the sun for a long time, the interior
t e m p e r a t u r e r e m a i n s v e r y h i g h , d o n o t
h e s i t a t e t o v e n t i l a t e t h e p a s s e n g e r
c o m p a r t m e n t f o r a f e w m i n u t e s .
For even air distribution, take care
not to obstruct the exterior air intake
g r i l l e l o c a t e d a t t h e b o t t o m o f t h e w i n d -
Use of the automatic regulation of the
a i r c o n d i t i o n i n g i s r e c o m m e n d e d . I t
p e r m i t s a u t o m a t i c a n d o p t i m i s e d c o n -
trol of all of the following functions: air
fl o w , p a s s e n g e r c o m p a r t m e n t t e m p e r -
a t u r e a n d a i r d i s t r i b u t i o n , b y m e a n s
o f v a r i o u s s e n s o r s , s o p r e v e n t i n g t h e
n e e d f o r y o u t o c h a n g e y o u r r e f e r -
e n c e s e t t i n g s o t h e r t h a n t h e v a l u e d i s -
p l a y e d .
Do not cover the sunshine sensor
8 .
It is required for regulation of the air
c o n d i t i o n i n g .
Page 115 of 211
9
105

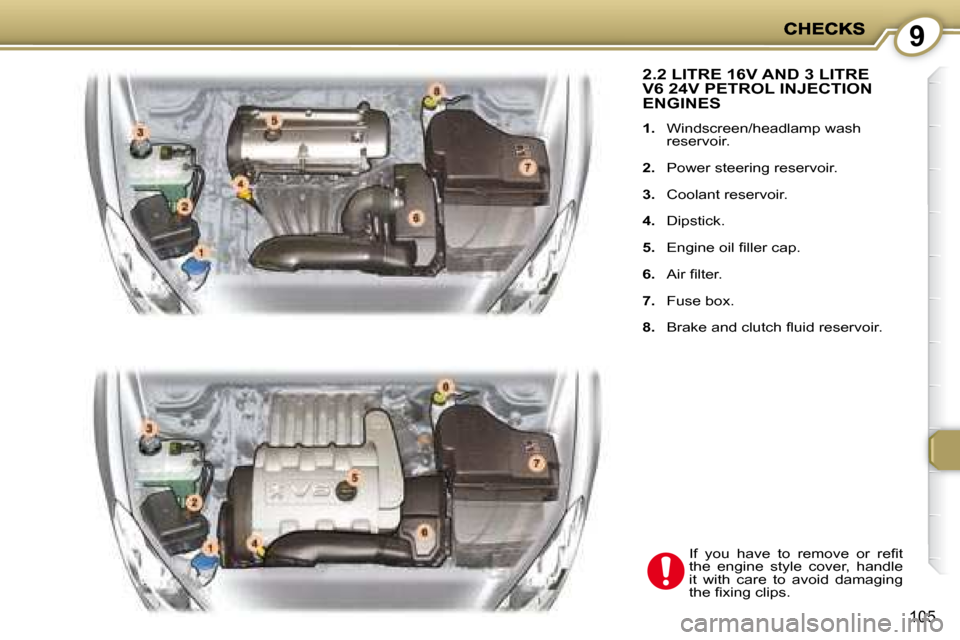

2.2 LITRE 16V AND 3 LITRE V6 24V PETROL INJECTION ENGINES
1. Windscreen/headlamp wash
reservoir.
2. Power steering reservoir.
3. Coolant reservoir.
4. Dipstick.
5. E n g i n e o i l fi l l e r c a p .
6. A i r fi l t e r .
7. Fuse box.
8. B r a k e a n d c l u t c h fl u i d r e s e r v o i r .
I f y o u h a v e t o r e m o v e o r r e fi t
the engine style cover, handle
it with care to avoid damaging
t h e fi x i n g c l i p s .
Page 116 of 211
9
106

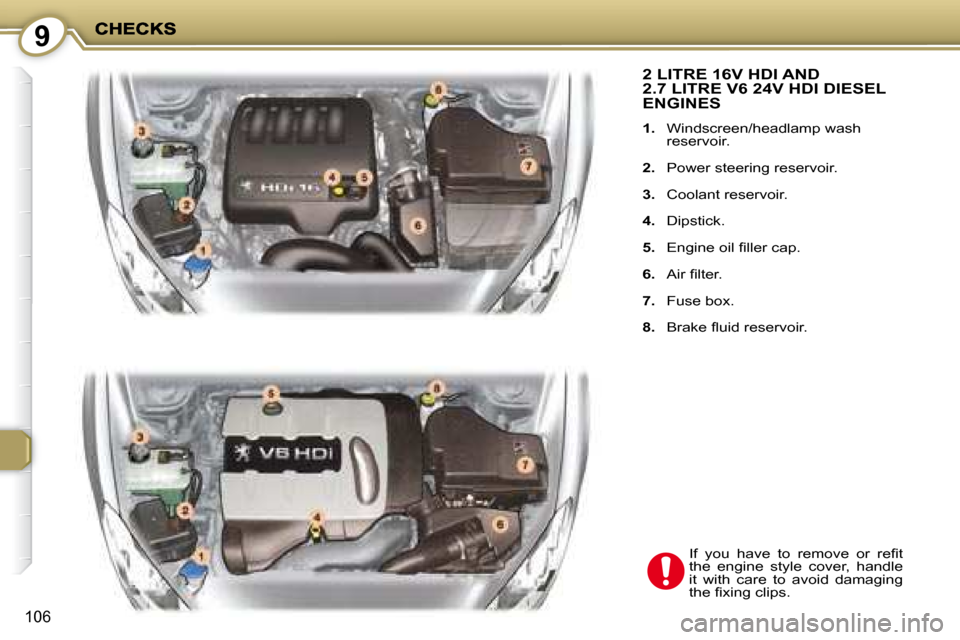

2 LITRE 16V HDI AND 2.7 LITRE V6 24V HDI DIESEL ENGINES
1. Windscreen/headlamp wash
reservoir.
2. Power steering reservoir.
3. Coolant reservoir.
4. Dipstick.
5. E n g i n e o i l fi l l e r c a p .
6. A i r fi l t e r .
7. Fuse box.
8. B r a k e fl u i d r e s e r v o i r .
I f y o u h a v e t o r e m o v e o r r e fi t
the engine style cover, handle
it with care to avoid damaging
t h e fi x i n g c l i p s .
Page 126 of 211
1010
114
CHANGING A FUSE
The fuse boxes are placed in the lower
part of the fascia (driver's side), in the
engine compartment (left-hand side)
and in the left boot trim.
Fascia fuses
To access the fuses, open the cover
of the storage compartment on the
driver's side. Tilt the fuse box down-
wards.
Replacing a fuse
Before replacing a fuse, the cause of
the incident must be found and recti-
fi e d . T h e f u s e n u m b e r s a r e i n d i c a t e d
on the fuse box. Always replace a faulty fuse
with a fuse of the same rating
(same colour). Use the special pliers located on the
support next to the fuse box, this sup-
port also contains the replacement
fuses.
Fuse N° Rating Functions
G29 - Not used.
G30 5 A Heated rear screen.
G31 5 A T y r e u n d e r - i n fl a t i o n d e t e c t i o n , C D c h a n g e r .
G32 - Not used.
G33 5 A Power steering electropump unit, dual-function
brake switch.
G34 5 A Dual-function brake switch, automatic gearbox
relay.
G35 5 A
Steering wheel angle sensor and ESP gyrometer senso r.
G36 25 A H i - F i a m p l i fi e r .
G37 15 A Automatic gearbox.
G38 20 A Heated seats.
G39 30 A Passenger seat memory unit.
G40 30 A Driver's seat memory unit.
Page 127 of 211
1010
114
CHANGING A FUSE
The fuse boxes are placed in the lower
part of the fascia (driver's side), in the
engine compartment (left-hand side)
and in the left boot trim.
Fascia fuses
To access the fuses, open the cover
of the storage compartment on the
driver's side. Tilt the fuse box down-
wards.
Replacing a fuse
Before replacing a fuse, the cause of
the incident must be found and recti-
fi e d . T h e f u s e n u m b e r s a r e i n d i c a t e d
on the fuse box. Always replace a faulty fuse
with a fuse of the same rating
(same colour). Use the special pliers located on the
support next to the fuse box, this sup-
port also contains the replacement
fuses.
Fuse N° Rating Functions
G29 - Not used.
G30 5 A Heated rear screen.
G31 5 A T y r e u n d e r - i n fl a t i o n d e t e c t i o n , C D c h a n g e r .
G32 - Not used.
G33 5 A Power steering electropump unit, dual-function
brake switch.
G34 5 A Dual-function brake switch, automatic gearbox
relay.
G35 5 A
Steering wheel angle sensor and ESP gyrometer senso r.
G36 25 A H i - F i a m p l i fi e r .
G37 15 A Automatic gearbox.
G38 20 A Heated seats.
G39 30 A Passenger seat memory unit.
G40 30 A Driver's seat memory unit.
Page 128 of 211
1010
115
Fuse N° Rating
Functions
F1 - Not used.
F2 30 A Locking and deadlocking.
F3 5 A Air bags and pre-tensioners control unit.
F4 10 A Automatic gearbox switch, diagnostic socket, electrochromatic mirror .
F5 30 A Driver and passenger electric windows.
F6 30 A Sunroof.
F7 5 A Glove box light, map reading lights, courtesy lights, court esy mirrors.
F8 20 A Multifunction display, audio equipment, top-of-column, trai
ler fuse box (accessory), alarm,
alarm siren.
F9 30 A Front lighter, 12 V rear socket, glove box light, map reading
lights, courtesy lights, courtesy
mirrors.
F10 15 A T y r e u n d e r - i n fl a t i o n d e t e c t i o n , C D c h a n g e r .
F11 15 A Diagnostic socket, ignition switch.
F12 15 A Trailer fuse box (accessory), parking assistance control unit supply,
passenger seat
memory unit, rain and brightness sensor.
F13 5 A Windscreen wipers relay control, engine fuse box.
F14 15 A Driver's seat memory unit, instrument panel, air bags and pre-tensi
oners control unit, air
conditioning control panel, steering wheel adjustment switch , hands-free kit.
F15 30 A Locking and deadlocking.
F16 - PARC shunt.
Page 129 of 211
1010
Engine compartment fuses
To access the fuses located in the
engine compartment (next to the bat-
tery), remove the battery cover and
unclip the fuse box cover.
Close the fuse box cover carefully and
r e fi t t h e b a t t e r y c o v e r w h e n y o u h a v e
fi n i s h e d .
Fuse N° Rating Functions
1 20 A Engine control unit, fan assembly relay supply.
2 15 A Horn.
3 10 A Wash-wipe pump.
4 20 A Headlamp wash pump.
5 15 A Fuel pump, engine management actuators
( a i r fl o w s e n s o r , s o l e n o i d v a l v e s , . . . ) .
6 10 A ESP control unit.
7 10 A Automatic headlamp adjustment.
8 20 A Starter coil.
Page 163 of 211
11
2 2
3 3
4 4
5 5
6 6
0 6
150

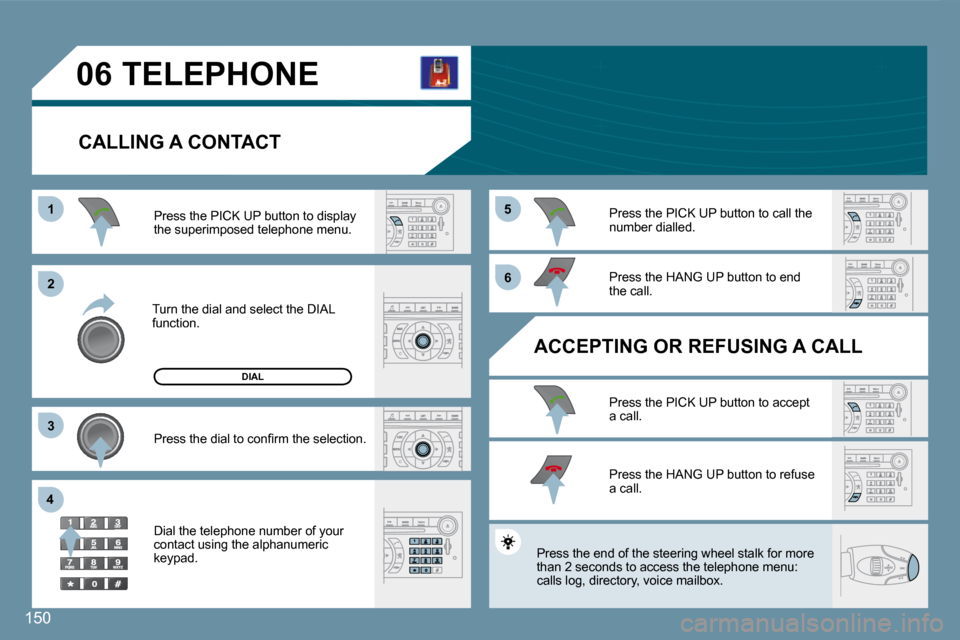

T E L E P H O N E
Turn the dial and select the DIAL function.
Press the PICK UP button to display the superimposed telephone menu.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Dial the telephone number of your contact using the alphanumeric keypad.
Press the PICK UP button to call the number dialled.
Press the HANG UP button to end the call.
A C C E P T I N G O R R E F U S I N G A C A L L
Press the PICK UP button to accept a call.
Press the HANG UP button to refuse a call.
D I A L
Press the end of the steering wheel stalk for more than 2 seconds to access the telephone menu: calls log, directory, voice mailbox.
C A L L I N G A C O N T A C T
