Page 126 of 211
1010
114
CHANGING A FUSE
The fuse boxes are placed in the lower
part of the fascia (driver's side), in the
engine compartment (left-hand side)
and in the left boot trim.
Fascia fuses
To access the fuses, open the cover
of the storage compartment on the
driver's side. Tilt the fuse box down-
wards.
Replacing a fuse
Before replacing a fuse, the cause of
the incident must be found and recti-
fi e d . T h e f u s e n u m b e r s a r e i n d i c a t e d
on the fuse box. Always replace a faulty fuse
with a fuse of the same rating
(same colour). Use the special pliers located on the
support next to the fuse box, this sup-
port also contains the replacement
fuses.
Fuse N° Rating Functions
G29 - Not used.
G30 5 A Heated rear screen.
G31 5 A T y r e u n d e r - i n fl a t i o n d e t e c t i o n , C D c h a n g e r .
G32 - Not used.
G33 5 A Power steering electropump unit, dual-function
brake switch.
G34 5 A Dual-function brake switch, automatic gearbox
relay.
G35 5 A
Steering wheel angle sensor and ESP gyrometer senso r.
G36 25 A H i - F i a m p l i fi e r .
G37 15 A Automatic gearbox.
G38 20 A Heated seats.
G39 30 A Passenger seat memory unit.
G40 30 A Driver's seat memory unit.
Page 127 of 211
1010
114
CHANGING A FUSE
The fuse boxes are placed in the lower
part of the fascia (driver's side), in the
engine compartment (left-hand side)
and in the left boot trim.
Fascia fuses
To access the fuses, open the cover
of the storage compartment on the
driver's side. Tilt the fuse box down-
wards.
Replacing a fuse
Before replacing a fuse, the cause of
the incident must be found and recti-
fi e d . T h e f u s e n u m b e r s a r e i n d i c a t e d
on the fuse box. Always replace a faulty fuse
with a fuse of the same rating
(same colour). Use the special pliers located on the
support next to the fuse box, this sup-
port also contains the replacement
fuses.
Fuse N° Rating Functions
G29 - Not used.
G30 5 A Heated rear screen.
G31 5 A T y r e u n d e r - i n fl a t i o n d e t e c t i o n , C D c h a n g e r .
G32 - Not used.
G33 5 A Power steering electropump unit, dual-function
brake switch.
G34 5 A Dual-function brake switch, automatic gearbox
relay.
G35 5 A
Steering wheel angle sensor and ESP gyrometer senso r.
G36 25 A H i - F i a m p l i fi e r .
G37 15 A Automatic gearbox.
G38 20 A Heated seats.
G39 30 A Passenger seat memory unit.
G40 30 A Driver's seat memory unit.
Page 128 of 211
1010
115

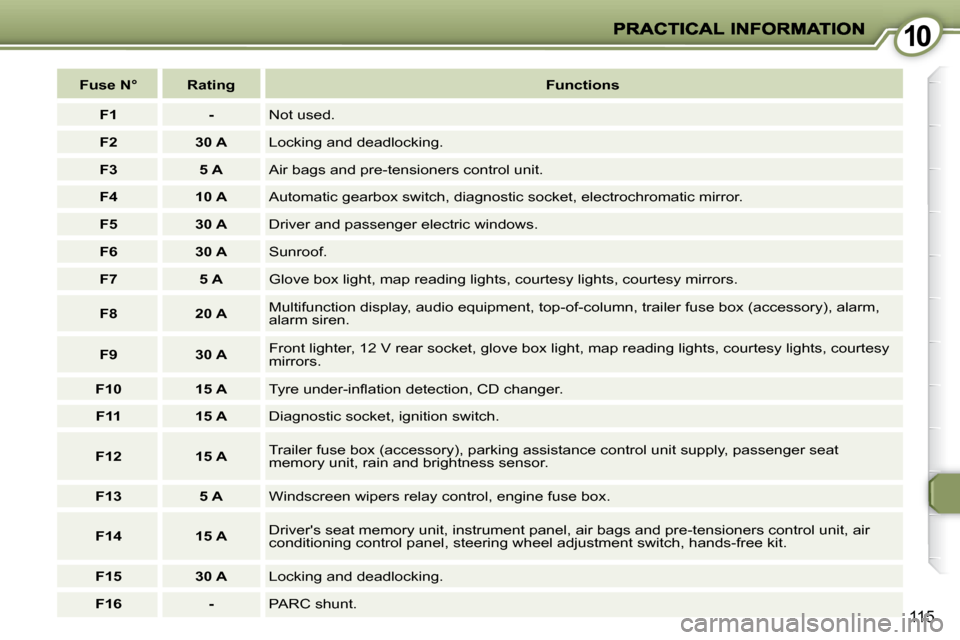

Fuse N° Rating
Functions
F1 - Not used.
F2 30 A Locking and deadlocking.
F3 5 A Air bags and pre-tensioners control unit.
F4 10 A Automatic gearbox switch, diagnostic socket, electrochromatic mirror .
F5 30 A Driver and passenger electric windows.
F6 30 A Sunroof.
F7 5 A Glove box light, map reading lights, courtesy lights, court esy mirrors.
F8 20 A Multifunction display, audio equipment, top-of-column, trai
ler fuse box (accessory), alarm,
alarm siren.
F9 30 A Front lighter, 12 V rear socket, glove box light, map reading
lights, courtesy lights, courtesy
mirrors.
F10 15 A T y r e u n d e r - i n fl a t i o n d e t e c t i o n , C D c h a n g e r .
F11 15 A Diagnostic socket, ignition switch.
F12 15 A Trailer fuse box (accessory), parking assistance control unit supply,
passenger seat
memory unit, rain and brightness sensor.
F13 5 A Windscreen wipers relay control, engine fuse box.
F14 15 A Driver's seat memory unit, instrument panel, air bags and pre-tensi
oners control unit, air
conditioning control panel, steering wheel adjustment switch , hands-free kit.
F15 30 A Locking and deadlocking.
F16 - PARC shunt.
Page 129 of 211
1010

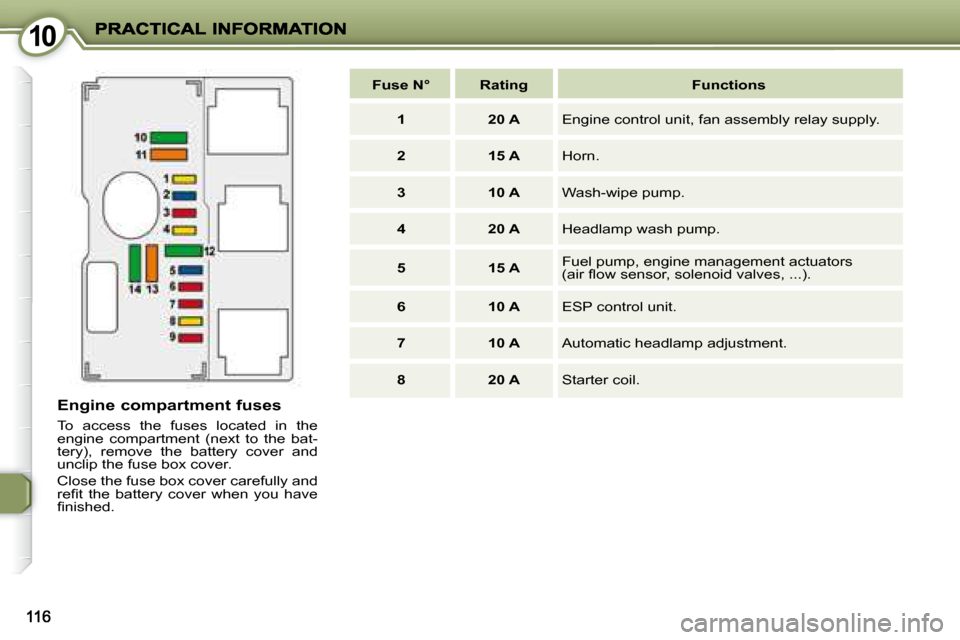

Engine compartment fuses
To access the fuses located in the
engine compartment (next to the bat-
tery), remove the battery cover and
unclip the fuse box cover.
Close the fuse box cover carefully and
r e fi t t h e b a t t e r y c o v e r w h e n y o u h a v e
fi n i s h e d .
Fuse N° Rating Functions
1 20 A Engine control unit, fan assembly relay supply.
2 15 A Horn.
3 10 A Wash-wipe pump.
4 20 A Headlamp wash pump.
5 15 A Fuel pump, engine management actuators
( a i r fl o w s e n s o r , s o l e n o i d v a l v e s , . . . ) .
6 10 A ESP control unit.
7 10 A Automatic headlamp adjustment.
8 20 A Starter coil.
