Special features of BioFlex
engines
A BioFlex vehicle has been designed
to run on unleaded petrol (RON 95 or
RON 98) or ethanol (this is a mixture
containing 85% ethanol and 15% un-
leaded petrol, called E85).
So, regardless of the quantity of fuel
remaining in your tank and irrespec-
tive of its type (RON 95/RON 98, E85
o r a m i x t u r e o f t h e t w o ) , y o u c a n fi l l
your tank at any time with unleaded
petrol (RON 95 or RON 98) or ethanol
(E85).
There is no problem driving on unlea-
ded petrol only with this vehicle. In winter conditions, star-
ting the engine from cold may
s o m e t i m e s p r o v e d i f fi c u l t .
During these very cold periods
you are advised to use unleaded pet-
rol rather than E85 to ensure optimum
starting conditions.
Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10% ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85%
ethanol) are reserved exclusively for
vehicles marketed for the use of this
type of fuel (BioFlex vehicles). The
quality of the ethanol must comply with
European standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100% ethanol (E100 type).
Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform
to current and future European stan-
dards (Diesel fuel which complies with
standard EN 590 mixed with a bio-
fuel which complies with standard EN
14214) available at the pumps (con-
taining up to 7 % Fatty Acid Methyl
Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
PEUGEOT dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or di-
luted, domestic fuel...) is strictly pro-
hibited (risk of damage to the engine
and fuel system).
Page 82 of 249
4ACCESS
73
Special features of BioFlex
engines
A BioFlex vehicle has been designed
to run on unleaded petrol (RON 95 or
RON 98) or ethanol (this is a mixture
containing 85% ethanol and 15% un-
leaded petrol, called E85).
So, regardless of the quantity of fuel
remaining in your tank and irrespec-
tive of its type (RON 95/RON 98, E85
o r a m i x t u r e o f t h e t w o ) , y o u c a n fi l l
your tank at any time with unleaded
petrol (RON 95 or RON 98) or ethanol
(E85).
There is no problem driving on unlea-
ded petrol only with this vehicle. In winter conditions, star-
ting the engine from cold may
s o m e t i m e s p r o v e d i f fi c u l t .
During these very cold periods
you are advised to use unleaded pet-
rol rather than E85 to ensure optimum
starting conditions.
Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10% ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85%
ethanol) are reserved exclusively for
vehicles marketed for the use of this
type of fuel (BioFlex vehicles). The
quality of the ethanol must comply with
European standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100% ethanol (E100 type).
Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform
to current and future European stan-
dards (Diesel fuel which complies with
standard EN 590 mixed with a bio-
fuel which complies with standard EN
14214) available at the pumps (con-
taining up to 7 % Fatty Acid Methyl
Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
PEUGEOT dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or di-
luted, domestic fuel...) is strictly pro-
hibited (risk of damage to the engine
and fuel system).
Page 83 of 249
5
74

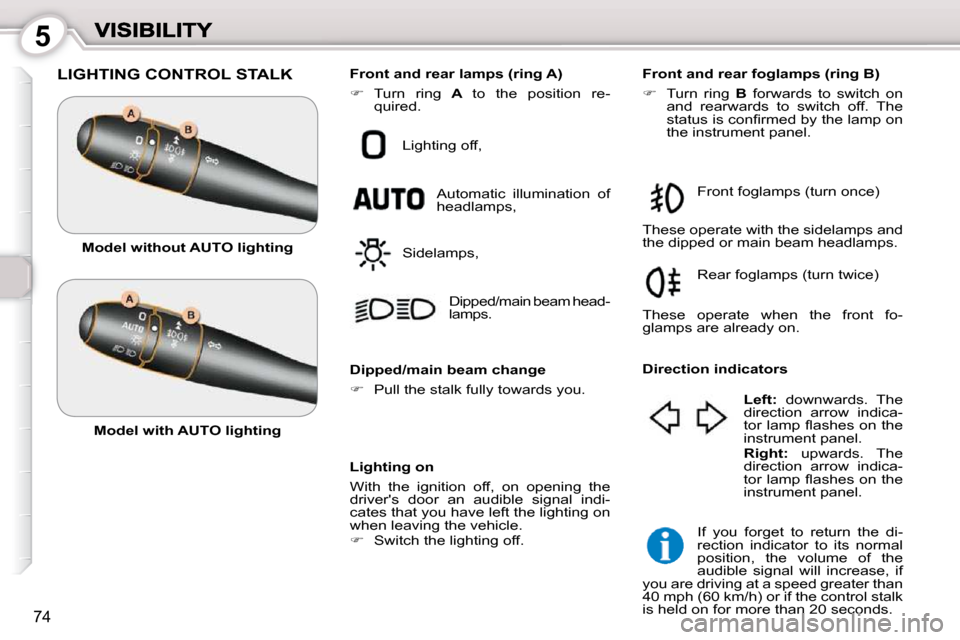

LIGHTING CONTROL STALK
Lighting on
With the ignition off, on opening the
driver's door an audible signal indi-
cates that you have left the lighting on
when leaving the vehicle.
Switch the lighting off. Direction indicators
Dipped/main beam change
Pull the stalk fully towards you. Front and rear foglamps (ring B)
Turn ring B forwards to switch on
and rearwards to switch off. The
s t a t u s i s c o n fi r m e d b y t h e l a m p o n
t h e i n s t r u m e n t p a n e l .
F r o n t f o g l a m p s ( t u r n o n c e )
Left: downwards. The
direction arrow indica-
t o r l a m p fl a s h e s o n t h e
i n s t r u m e n t p a n e l .
Right: upwards. The
direction arrow indica-
t o r l a m p fl a s h e s o n t h e
i n s t r u m e n t p a n e l .
If you forget to return the di-
r e c t i o n i n d i c a t o r t o i t s n o r m a l
p o s i t i o n , t h e v o l u m e o f t h e
audible signal will increase, if
you are driving at a speed greater than
4 0 m p h ( 6 0 k m / h ) o r i f t h e c o n t r o l s t a l k
i s h e l d o n f o r m o r e t h a n 2 0 s e c o n d s .
T h e s e o p e r a t e w i t h t h e s i d e l a m p s a n d
t h e d i p p e d o r m a i n b e a m h e a d l a m p s .
R e a r f o g l a m p s ( t u r n t w i c e )
These operate when the front fo-
g l a m p s a r e a l r e a d y o n .
Front and rear lamps (ring A)
Turn ring A to the position re-
quired.
A u t o m a t i c i l l u m i n a t i o n o f
h e a d l a m p s ,
Lighting off,
S i d e l a m p s ,
D i p p e d / m a i n b e a m h e a d -
l a m p s .
Model without AUTO lighting
Model with AUTO lighting
Page 84 of 249
5
75
Automatic illumination of
headlamps
T h e d i p p e d b e a m h e a d l a m p s s w i t c h
o n a u t o m a t i c a l l y i f t h e l i g h t i s p o o r a n d
when the windscreen wipers operate
continuously. They switch off when
the light is bright enough or the wind-
screen wipers stop.
Warning: in foggy weather or in snow,
t h e s u n s h i n e s e n s o r c a n d e t e c t s u f fi -
c i e n t l i g h t . T h e l i g h t i n g w i l l n o t c o m e
o n a u t o m a t i c a l l y . I f n e c e s s a r y , y o u
m u s t s w i t c h t h e d i p p e d b e a m h e a d -
l a m p s o n m a n u a l l y . Activation Manual "Guide-me-home" lighting
When you leave your vehicle, the side-
l a m p s a n d d i p p e d b e a m h e a d l a m p s
can be left on for a few seconds.
When the function is activated, the
i n d i c a t o r l a m p c o m e s o n o n t h e
5 - d i a l i n s t r u m e n t p a n e l s c r e e n .
To deactivate or activate the
function, use the "Persona-
l i s a t i o n - c o n fi g u r a t i o n "
m e n u o n y o u r m u l t i f u n c t i o n
screen.
F o r s a f e t y r e a s o n s , a c t i v a t i o n /
d e a c t i v a t i o n o f t h e " A u t o m a t i c
i l l u m i n a t i o n o f h e a d l a m p s s "
f u n c t i o n v i a t h e m e n u m u s t b e
carried out when stationary. To deactivate or activate the
" A u t o m a t i c g u i d e - m e - h o m e
lighting" function, use the
"Personalisation - confi-
guration" m e n u o n y o u r
m u l t i f u n c t i o n s c r e e n .
The duration of the lighting
can be set via the "Person-
a l i s a t i o n - c o n fi g u r a t i o n "
m e n u o f y o u r m u l t i f u n c t i o n
screen.
Automatic "Guide-me-home"
lighting
When you leave your vehicle
with
the automatic illumination of head-
lamps a c t i v a t e d , t h e s i d e l a m p s a n d
d i p p e d b e a m h e a d l a m p s r e m a i n o n
for the duration selected after the igni-
tion is switched off.
Deactivation
When the function is deactivated,
t h e i n d i c a t o r l a m p c o m e s o n o n t h e
5 - d i a l i n s t r u m e n t p a n e l s c r e e n .
D o n o t c o v e r t h e s u n s h i n e /
brightness sensor, located in
the centre of the windscreen.
It is used to regulate the air
c o n d i t i o n i n g a n d f o r t h e a u t o m a t i c i l -
l u m i n a t i o n o f h e a d l a m p s .
If the sunshine/brightness sensor
does not function correctly, the
s i d e l a m p s a n d d i p p e d b e a m h e a d l a m -
p s c o m e o n .
Consult a PEUGEOT dealer.
Activation:
switch off the engine,
" fl a s h " t h e h e a d l a m p s ,
get out of the vehicle and lock it.
Page 85 of 249
5
75
Automatic illumination of
headlamps
T h e d i p p e d b e a m h e a d l a m p s s w i t c h
o n a u t o m a t i c a l l y i f t h e l i g h t i s p o o r a n d
when the windscreen wipers operate
continuously. They switch off when
the light is bright enough or the wind-
screen wipers stop.
Warning: in foggy weather or in snow,
t h e s u n s h i n e s e n s o r c a n d e t e c t s u f fi -
c i e n t l i g h t . T h e l i g h t i n g w i l l n o t c o m e
o n a u t o m a t i c a l l y . I f n e c e s s a r y , y o u
m u s t s w i t c h t h e d i p p e d b e a m h e a d -
l a m p s o n m a n u a l l y . Activation Manual "Guide-me-home" lighting
When you leave your vehicle, the side-
l a m p s a n d d i p p e d b e a m h e a d l a m p s
can be left on for a few seconds.
When the function is activated, the
i n d i c a t o r l a m p c o m e s o n o n t h e
5 - d i a l i n s t r u m e n t p a n e l s c r e e n .
To deactivate or activate the
function, use the "Persona-
l i s a t i o n - c o n fi g u r a t i o n "
m e n u o n y o u r m u l t i f u n c t i o n
screen.
F o r s a f e t y r e a s o n s , a c t i v a t i o n /
d e a c t i v a t i o n o f t h e " A u t o m a t i c
i l l u m i n a t i o n o f h e a d l a m p s s "
f u n c t i o n v i a t h e m e n u m u s t b e
carried out when stationary. To deactivate or activate the
" A u t o m a t i c g u i d e - m e - h o m e
lighting" function, use the
"Personalisation - confi-
guration" m e n u o n y o u r
m u l t i f u n c t i o n s c r e e n .
The duration of the lighting
can be set via the "Person-
a l i s a t i o n - c o n fi g u r a t i o n "
m e n u o f y o u r m u l t i f u n c t i o n
screen.
Automatic "Guide-me-home"
lighting
When you leave your vehicle
with
the automatic illumination of head-
lamps a c t i v a t e d , t h e s i d e l a m p s a n d
d i p p e d b e a m h e a d l a m p s r e m a i n o n
for the duration selected after the igni-
tion is switched off.
Deactivation
When the function is deactivated,
t h e i n d i c a t o r l a m p c o m e s o n o n t h e
5 - d i a l i n s t r u m e n t p a n e l s c r e e n .
D o n o t c o v e r t h e s u n s h i n e /
brightness sensor, located in
the centre of the windscreen.
It is used to regulate the air
c o n d i t i o n i n g a n d f o r t h e a u t o m a t i c i l -
l u m i n a t i o n o f h e a d l a m p s .
If the sunshine/brightness sensor
does not function correctly, the
s i d e l a m p s a n d d i p p e d b e a m h e a d l a m -
p s c o m e o n .
Consult a PEUGEOT dealer.
Activation:
switch off the engine,
" fl a s h " t h e h e a d l a m p s ,
get out of the vehicle and lock it.
Page 86 of 249
5
7 6

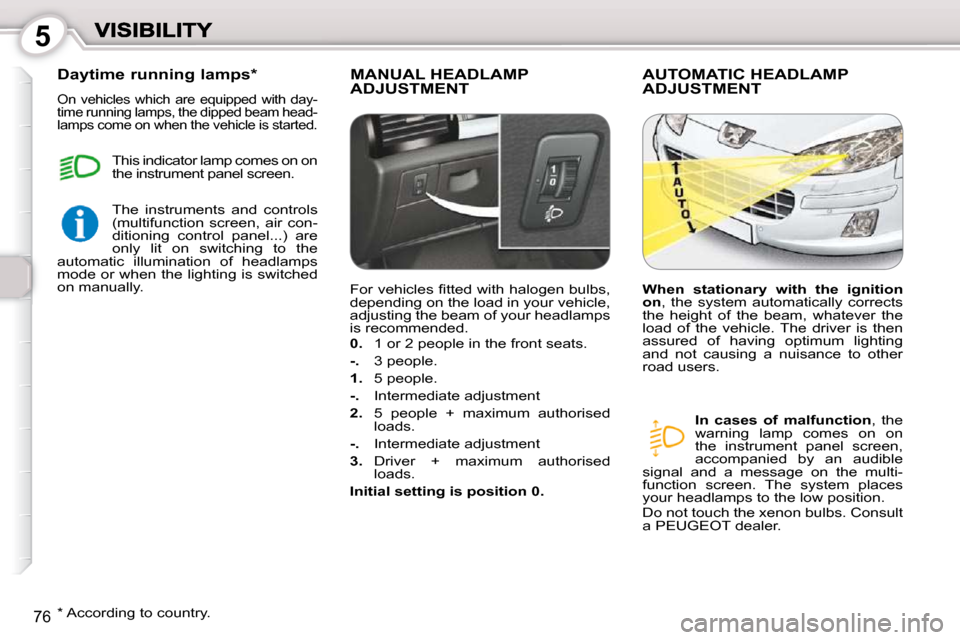

MANUAL HEADLAMP ADJUSTMENT AUTOMATIC HEADLAMP ADJUSTMENT
In cases of malfunction , the
w a r n i n g l a m p c o m e s o n o n
t h e i n s t r u m e n t p a n e l s c r e e n ,
a c c o m p a n i e d b y a n a u d i b l e
s i g n a l a n d a m e s s a g e o n t h e m u l t i -
f u n c t i o n s c r e e n . T h e s y s t e m p l a c e s
y o u r h e a d l a m p s t o t h e l o w p o s i t i o n .
Do not touch the xenon bulbs. Consult
a PEUGEOT dealer.
Daytime running lamps *
On vehicles which are equipped with day-
t i m e r u n n i n g l a m p s , t h e d i p p e d b e a m h e a d -
l a m p s c o m e o n w h e n t h e v e h i c l e i s s t a r t e d .
T h i s i n d i c a t o r l a m p c o m e s o n o n
t h e i n s t r u m e n t p a n e l s c r e e n .
T h e i n s t r u m e n t s a n d c o n t r o l s
( m u l t i f u n c t i o n s c r e e n , a i r c o n -
d i t i o n i n g c o n t r o l p a n e l . . . ) a r e
only lit on switching to the
a u t o m a t i c i l l u m i n a t i o n o f h e a d l a m p s
m o d e o r w h e n t h e l i g h t i n g i s s w i t c h e d
o n m a n u a l l y .
* According to country. F o r v e h i c l e s fi t t e d w i t h h a l o g e n b u l b s ,
depending on the load in your vehicle,
a d j u s t i n g t h e b e a m o f y o u r h e a d l a m p s
i s r e c o m m e n d e d .
0. 1 o r 2 p e o p l e i n t h e f r o n t s e a t s .
-. 3 people.
1. 5 people.
-. I n t e r m e d i a t e a d j u s t m e n t
2. 5 p e o p l e + m a x i m u m a u t h o r i s e d
loads.
-. I n t e r m e d i a t e a d j u s t m e n t
3. D r i v e r + m a x i m u m a u t h o r i s e d
loads.
Initial setting is position 0.
When stationary with the ignition
on , t h e s y s t e m a u t o m a t i c a l l y c o r r e c t s
t h e h e i g h t o f t h e b e a m , w h a t e v e r t h e
load of the vehicle. The driver is then
a s s u r e d o f h a v i n g o p t i m u m l i g h t i n g
and not causing a nuisance to other
road users.
Page 87 of 249
5
77

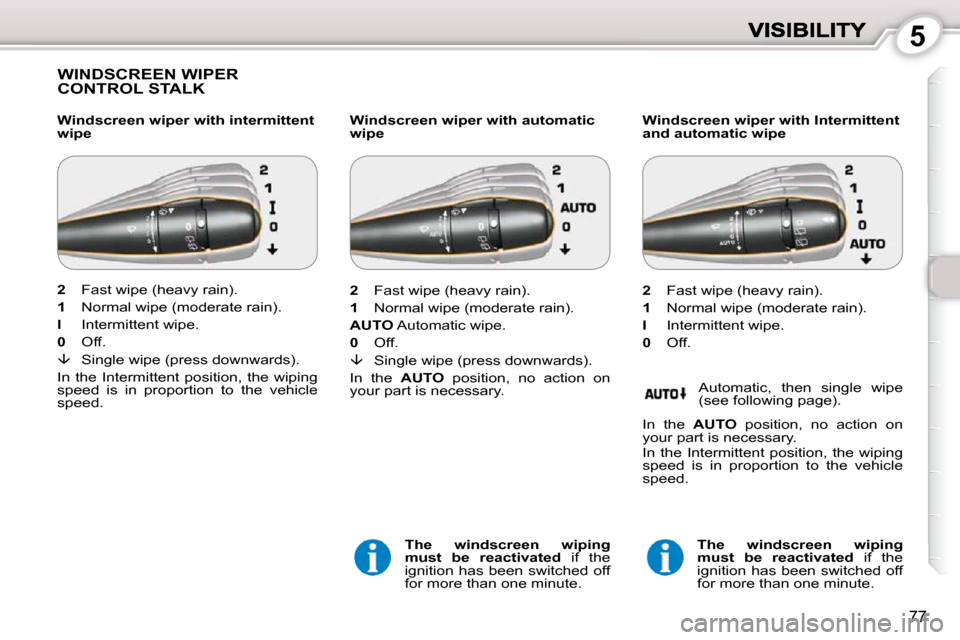

WINDSCREEN WIPER CONTROL STALK
Windscreen wiper with intermittent
wipe Windscreen wiper with automatic
wipe
The windscreen wiping
must be reactivated if the
ignition has been switched off
f o r m o r e t h a n o n e m i n u t e .
2 F a s t w i p e ( h e a v y r a i n ) .
1 N o r m a l w i p e ( m o d e r a t e r a i n ) .
l I n t e r m i t t e n t w i p e .
0 Off.
S i n g l e w i p e ( p r e s s d o w n w a r d s ) .
I n t h e I n t e r m i t t e n t p o s i t i o n , t h e w i p i n g
speed is in proportion to the vehicle
speed.
2 F a s t w i p e ( h e a v y r a i n ) .
1 N o r m a l w i p e ( m o d e r a t e r a i n ) .
AUTO A u t o m a t i c w i p e .
0 Off.
S i n g l e w i p e ( p r e s s d o w n w a r d s ) .
In the AUTO position, no action on
your part is necessary.
2 F a s t w i p e ( h e a v y r a i n ) .
1 N o r m a l w i p e ( m o d e r a t e r a i n ) .
I I n t e r m i t t e n t w i p e .
0 Off.
Windscreen wiper with Intermittent
and automatic wipe
The windscreen wiping
must be reactivated if the
ignition has been switched off
f o r m o r e t h a n o n e m i n u t e . A u t o m a t i c , t h e n s i n g l e w i p e
( s e e f o l l o w i n g p a g e ) .
In the AUTO position, no action on
your part is necessary.
I n t h e I n t e r m i t t e n t p o s i t i o n , t h e w i p i n g
speed is in proportion to the vehicle
speed.
Page 88 of 249
5
78
Automatic rain sensitive
windscreen wipers
Activation REAR WIPER CONTROL (407 SW)
Deactivation
Do not cover the rain sensor
located on the windscreen be-
h i n d t h e r e a r v i e w m i r r o r .
W h e n u s i n g a n a u t o m a t i c c a r
wash to wash your vehicle, switch off
the ignition or check that the wiper
s t a l k i s n o t i n t h e a u t o m a t i c p o s i t i o n .
In winter, it is advisable to wait for the
w i n d s c r e e n t o c o m p l e t e l y c l e a r o f i c e
b e f o r e o p e r a t i n g t h e a u t o m a t i c w i p e r s . Automatic rear wiper
If the windscreen wipers control is ac-
tivated and you engage reverse gear,
t h e r e a r w i p e r o p e r a t e s i n i n t e r m i t t e n t
m o d e .
Note: if a bicycle carrier is
used, deactivate this function
by going to the "personalisa-
t i o n - c o n fi g u r a t i o n " m e n u o n
t h e m u l t i f u n c t i o n s c r e e n o r i n s t a l l a
special bicycle carrier approved by
PEUGEOT.
T u r n t h e r i n g t o t h e fi r s t n o t c h f o r i n t e r -
m i t t e n t w i p i n g .
The control must be reactivated if
the ignition has been switched off.
T o d o t h i s , m o v e t h e c o n t r o l t o a n y
position then return it to the required
position.
Move the control to position
0 then re-
turn it to the AUTO position.
A n i n d i c a t o r l a m p c o m e s o n o n t h e i n -
s t r u m e n t p a n e l s c r e e n , a c c o m p a n i e d
b y a m e s s a g e o n t h e m u l t i f u n c t i o n
screen.
In the AUTO position, the windscreen
w i p e r s o p e r a t e a u t o m a t i c a l l y a n d
adapt their speed to the intensity of
the rainfall.
C o n t r o l w i t h a u t o m a t i c w i p i n g o n l y
In the event of malfunction , the
windscreen wipers will operate in in-
t e r m i t t e n t m o d e .
Contact a PEUGEOT dealer to have
t h e s y s t e m c h e c k e d .
C o n t r o l w i t h I n t e r m i t t e n t a n d a u t o m a t i c w i p i n g
Manual operation of the wiper stalk in-
terrupts the AUTO position, the deacti-
v a t i o n i n d i c a t o r l a m p c o m e s o n o n t h e
i n s t r u m e n t p a n e l s c r e e n , a c c o m p a -
n i e d b y a m e s s a g e o n t h e m u l t i f u n c -
tion screen. Manual operation of the wiper stalk by
m o v i n g t h e s t a l k
A up and returning
it to position "0" interrupts the AUTO
position, the deactivation indicator
l a m p c o m e s o n o n t h e i n s t r u m e n t p a n -
e l s c r e e n , a c c o m p a n i e d b y a m e s s a g e
o n t h e m u l t i f u n c t i o n s c r e e n .
Page 89 of 249
5
78
Automatic rain sensitive
windscreen wipers
Activation REAR WIPER CONTROL (407 SW)
Deactivation
Do not cover the rain sensor
located on the windscreen be-
h i n d t h e r e a r v i e w m i r r o r .
W h e n u s i n g a n a u t o m a t i c c a r
wash to wash your vehicle, switch off
the ignition or check that the wiper
s t a l k i s n o t i n t h e a u t o m a t i c p o s i t i o n .
In winter, it is advisable to wait for the
w i n d s c r e e n t o c o m p l e t e l y c l e a r o f i c e
b e f o r e o p e r a t i n g t h e a u t o m a t i c w i p e r s . Automatic rear wiper
If the windscreen wipers control is ac-
tivated and you engage reverse gear,
t h e r e a r w i p e r o p e r a t e s i n i n t e r m i t t e n t
m o d e .
Note: if a bicycle carrier is
used, deactivate this function
by going to the "personalisa-
t i o n - c o n fi g u r a t i o n " m e n u o n
t h e m u l t i f u n c t i o n s c r e e n o r i n s t a l l a
special bicycle carrier approved by
PEUGEOT.
T u r n t h e r i n g t o t h e fi r s t n o t c h f o r i n t e r -
m i t t e n t w i p i n g .
The control must be reactivated if
the ignition has been switched off.
T o d o t h i s , m o v e t h e c o n t r o l t o a n y
position then return it to the required
position.
Move the control to position
0 then re-
turn it to the AUTO position.
A n i n d i c a t o r l a m p c o m e s o n o n t h e i n -
s t r u m e n t p a n e l s c r e e n , a c c o m p a n i e d
b y a m e s s a g e o n t h e m u l t i f u n c t i o n
screen.
In the AUTO position, the windscreen
w i p e r s o p e r a t e a u t o m a t i c a l l y a n d
adapt their speed to the intensity of
the rainfall.
C o n t r o l w i t h a u t o m a t i c w i p i n g o n l y
In the event of malfunction , the
windscreen wipers will operate in in-
t e r m i t t e n t m o d e .
Contact a PEUGEOT dealer to have
t h e s y s t e m c h e c k e d .
C o n t r o l w i t h I n t e r m i t t e n t a n d a u t o m a t i c w i p i n g
Manual operation of the wiper stalk in-
terrupts the AUTO position, the deacti-
v a t i o n i n d i c a t o r l a m p c o m e s o n o n t h e
i n s t r u m e n t p a n e l s c r e e n , a c c o m p a -
n i e d b y a m e s s a g e o n t h e m u l t i f u n c -
tion screen. Manual operation of the wiper stalk by
m o v i n g t h e s t a l k
A up and returning
it to position "0" interrupts the AUTO
position, the deactivation indicator
l a m p c o m e s o n o n t h e i n s t r u m e n t p a n -
e l s c r e e n , a c c o m p a n i e d b y a m e s s a g e
o n t h e m u l t i f u n c t i o n s c r e e n .
Page 90 of 249
5
79
Windscreen and headlamp wash
Pull the windscreen wiper stalk towards
you. The windscreen wash then the
w i n d s c r e e n w i p e r s o p e r a t e f o r a fi x e d
period.
T h e h e a d l a m p w a s h i s a l s o a c t i v a t e d ,
if the headlamps are on .
W h e n t h e m i n i m u m l e v e l o f
the reservoir is reached, this
w a r n i n g l i g h t c o m e s o n , a c -
c o m p a n i e d b y a n a u d i b l e
s i g n a l a n d a m e s s a g e o n t h e
m u l t i - f u n c t i o n d i s p l a y .
N e x t t i m e y o u s t o p , fi l l t h e s c r e e n w a s h /
h e a d l a m p w a s h r e s e r v o i r .
T h e w a r n i n g l i g h t c o m e s o n e a c h t i m e
the stalk is operated, until the reservoir
i s fi l l e d . FRONT COURTESY LAMP
T h e c o u r t e s y l a m p c a n b e d e a c t i v a t e d
by pressing switch 1 with the door open.
T h e m a p r e a d i n g l a m p s a r e n o t a f f e c t e d
b y t h i s a n d m a y b e s w i t c h e d o n .
T o r e - a c t i v a t e t h e l a m p s , p r e s s t h e
switch, with the door open.
Screenwash/headlamp wash low
1. Courtesy lamp
2. Map reading lamps
With the key in the ignition on or starting
position, operate the relevant switch.
T h e f r o n t c o u r t e s y l a m p c o m e s o n
w h e n t h e i g n i t i o n k e y i s r e m o v e d , o n
unlocking the vehicle or on opening
one of the doors.
It gradually goes off after the ignition
has been switched on or when the ve-
hicle is locked.
Pressing switch 1 turns on the front
c o u r t e s y l a m p .

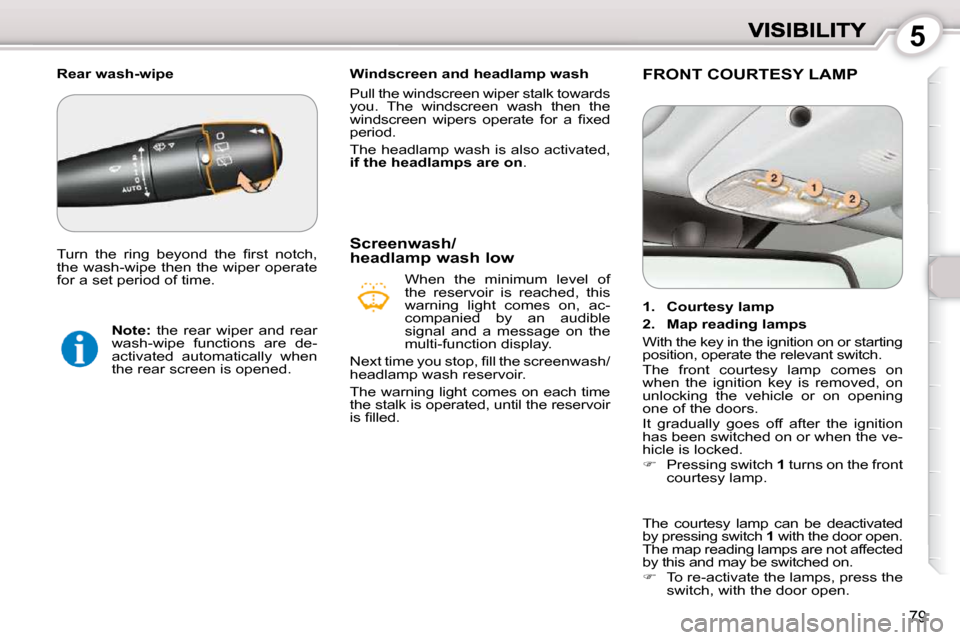

Rear wash-wipe
Note: the rear wiper and rear
wash-wipe functions are de-
a c t i v a t e d a u t o m a t i c a l l y w h e n
the rear screen is opened.
T u r n t h e r i n g b e y o n d t h e fi r s t n o t c h ,
the wash-wipe then the wiper operate
f o r a s e t p e r i o d o f t i m e .
