FAMILIARISATION
1. Insertion the key.
2. Select the "OFF" position
3. Removal the key keeping the switch
in the new position. This prevents opening of the two rear
doors from the inside.
With the ignition on, press the button.
A m e s s a g e a p p e a r s o n t h e m u l t i f u n c -
tion screen.
You are advised to check that the child
lock is activated each time you switch
on the ignition.
When the
ignition is switched on , if
a front occupant has not fastened their
seat belt and if the vehicle speed is be-
low 12 mph (20 km/h) , you are warned
by the seat belt warning lamp which
comes on.
The warning lamp switches off when the
seat belt(s) concerned is(are) fastened.
If the vehicle speed is above 12 mph
(20 km/h) , you are warned by the seat
belt warning lamp w h i c h fl a s h e s , a n
audible signal and a message on the
multifunction screen identifying the seat
belt(s) left unfastened.
Detection of front seat belt
fastening
91
88
64

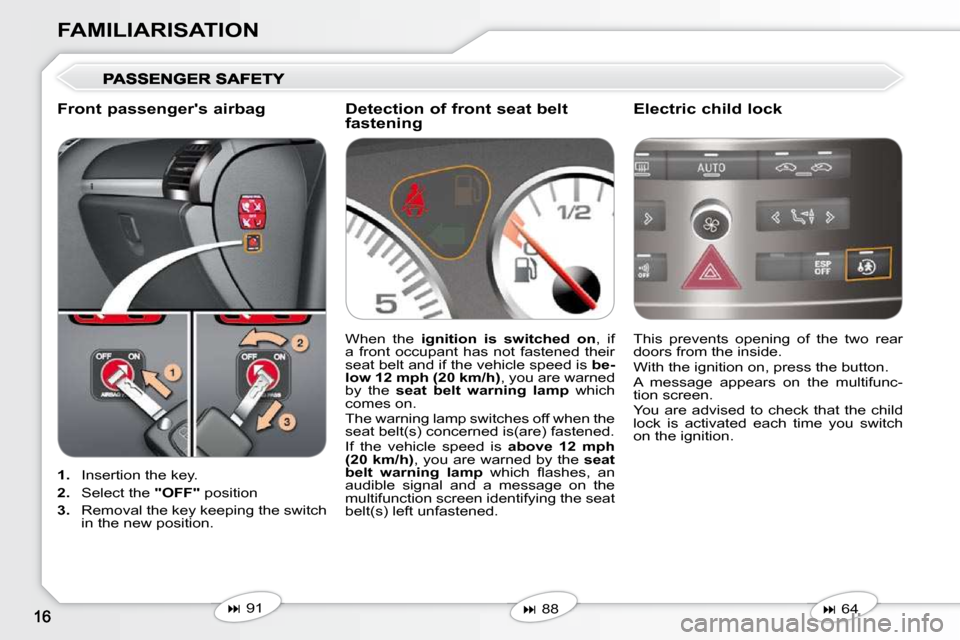

Front passenger's airbag
Electric child lock
Page 16 of 249
1
19
1. Coolant temperature gauge.
2. Lighting on indicators:
dipped beam headlamps.
main beam headlamps.
front foglamps.
rear foglamps.
3. Rev counter dial.
4. Warning lamps:
seat belts not fastened in the front.
fuel level.
left direction indicator.
5. Fuel level gauge.
PETROL-DIESEL MANUAL AND AUTOMATICGEARBOX INSTRUMENT PANELS
10. CHECK and trip recorder zero
reset and service display button.
11. Instrument panel screen:
Total distance recorder.
Trip recorder.
Automatic gearbox lever position indicator.
Cruise control/speed limiter reference value.
Service indicator.
Navigation instructions
CHECK (vehicle autotest).
Trip computer information displays.
Warning and status displays.
12. Instrument panel lighting rheostat.
6. Warning lamps:
parking brake applied or brake fl u i d l e v e l o r e l e c t r o n i c b r a k e f o r c e
distribution fault.
right direction indicator.
7. Speedometer.
8. Warning lamps:
emission control system.
anti-lock braking system (ABS).
passenger's airbag deactivated.
pre-heat (Diesel engine starting).
9. Engine oil temperature gauge.
Page 17 of 249
1
20

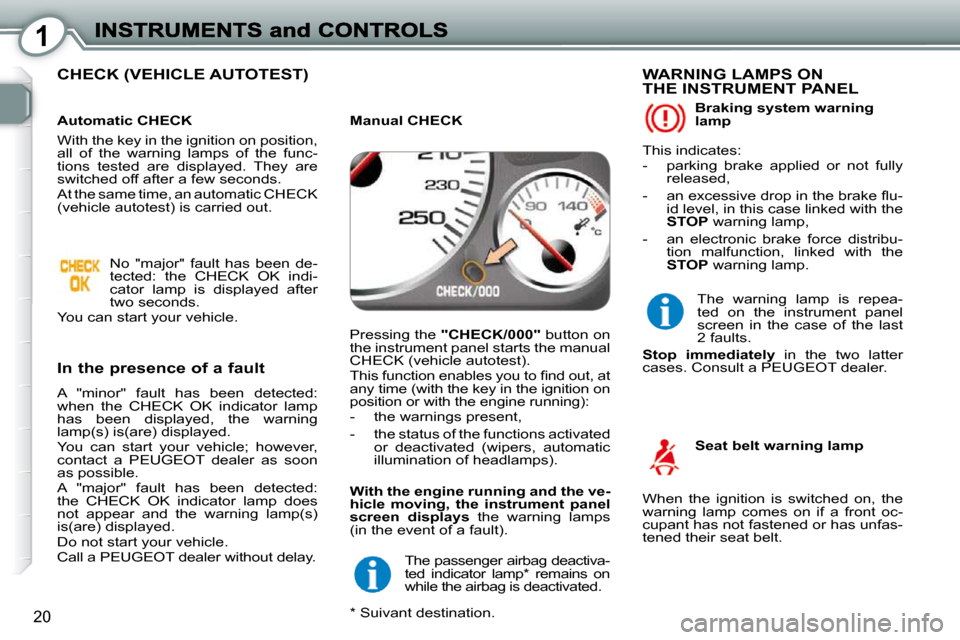

CHECK (VEHICLE AUTOTEST)
In the presence of a fault
A "minor" fault has been detected:
when the CHECK OK indicator lamp
has been displayed, the warning
lamp(s) is(are) displayed.
You can start your vehicle; however,
contact a PEUGEOT dealer as soon
as possible.
A "major" fault has been detected:
the CHECK OK indicator lamp does
not appear and the warning lamp(s)
is(are) displayed.
Do not start your vehicle.
Call a PEUGEOT dealer without delay.
Automatic CHECK
With the key in the ignition on position,
all of the warning lamps of the func-
tions tested are displayed. They are
switched off after a few seconds.
At the same time, an automatic CHECK
(vehicle autotest) is carried out.
No "major" fault has been de-
tected: the CHECK OK indi-
cator lamp is displayed after
two seconds.
You can start your vehicle.
Pressing the "CHECK/000" button on
the instrument panel starts the manual
CHECK (vehicle autotest).
T h i s f u n c t i o n e n a b l e s y o u t o fi n d o u t , a t
any time (with the key in the ignition on
position or with the engine running):
- the warnings present,
- the status of the functions activated or deactivated (wipers, automatic
illumination of headlamps).
Manual CHECK
The passenger airbag deactiva-
ted indicator lamp * remains on
while the airbag is deactivated.
With the engine running and the ve-
hicle moving, the instrument panel
screen displays the warning lamps
(in the event of a fault). Braking system warning
lamp
WARNING LAMPS ONTHE INSTRUMENT PANEL
This indicates:
- parking brake applied or not fully
released,
- a n e x c e s s i v e d r o p i n t h e b r a k e fl u - id level, in this case linked with the
STOP warning lamp,
- an electronic brake force distribu- tion malfunction, linked with the
STOP warning lamp.
Seat belt warning lamp
When the ignition is switched on, the
warning lamp comes on if a front oc-
cupant has not fastened or has unfas-
tened their seat belt. The warning lamp is repea-
ted on the instrument panel
screen in the case of the last
2 faults.
Stop immediately in the two latter
cases. Consult a PEUGEOT dealer.
* Suivant destination.
Page 18 of 249
1
20
CHECK (VEHICLE AUTOTEST)
In the presence of a fault
A "minor" fault has been detected:
when the CHECK OK indicator lamp
has been displayed, the warning
lamp(s) is(are) displayed.
You can start your vehicle; however,
contact a PEUGEOT dealer as soon
as possible.
A "major" fault has been detected:
the CHECK OK indicator lamp does
not appear and the warning lamp(s)
is(are) displayed.
Do not start your vehicle.
Call a PEUGEOT dealer without delay.
Automatic CHECK
With the key in the ignition on position,
all of the warning lamps of the func-
tions tested are displayed. They are
switched off after a few seconds.
At the same time, an automatic CHECK
(vehicle autotest) is carried out.
No "major" fault has been de-
tected: the CHECK OK indi-
cator lamp is displayed after
two seconds.
You can start your vehicle.
Pressing the "CHECK/000" button on
the instrument panel starts the manual
CHECK (vehicle autotest).
T h i s f u n c t i o n e n a b l e s y o u t o fi n d o u t , a t
any time (with the key in the ignition on
position or with the engine running):
- the warnings present,
- the status of the functions activated or deactivated (wipers, automatic
illumination of headlamps).
Manual CHECK
The passenger airbag deactiva-
ted indicator lamp * remains on
while the airbag is deactivated.
With the engine running and the ve-
hicle moving, the instrument panel
screen displays the warning lamps
(in the event of a fault). Braking system warning
lamp
WARNING LAMPS ONTHE INSTRUMENT PANEL
This indicates:
- parking brake applied or not fully
released,
- a n e x c e s s i v e d r o p i n t h e b r a k e fl u - id level, in this case linked with the
STOP warning lamp,
- an electronic brake force distribu- tion malfunction, linked with the
STOP warning lamp.
Seat belt warning lamp
When the ignition is switched on, the
warning lamp comes on if a front oc-
cupant has not fastened or has unfas-
tened their seat belt. The warning lamp is repea-
ted on the instrument panel
screen in the case of the last
2 faults.
Stop immediately in the two latter
cases. Consult a PEUGEOT dealer.
* Suivant destination.
Page 19 of 249
1
21

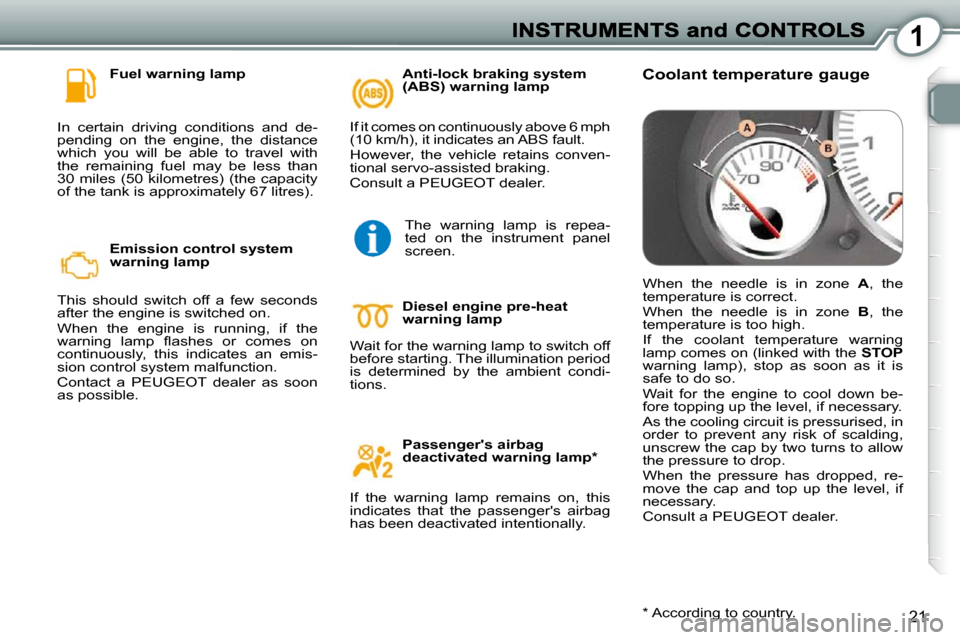

Fuel warning lamp
In certain driving conditions and de-
pending on the engine, the distance
which you will be able to travel with
the remaining fuel may be less than
30 miles (50 kilometres) (the capacity
of the tank is approximately 67 litres).
Emission control system
warning lamp
This should switch off a few seconds
after the engine is switched on.
When the engine is running, if the
w a r n i n g l a m p fl a s h e s o r c o m e s o n
continuously, this indicates an emis-
sion control system malfunction.
Contact a PEUGEOT dealer as soon
as possible. Diesel engine pre-heat
warning lamp
Wait for the warning lamp to switch off
before starting. The illumination period
is determined by the ambient condi-
tions.
Passenger's airbag
deactivated warning lamp *
If the warning lamp remains on, this
indicates that the passenger's airbag
has been deactivated intentionally.
If it comes on continuously above 6 mph
(10 km/h), it indicates an ABS fault.
However, the vehicle retains conven-
tional servo-assisted braking.
Consult a PEUGEOT dealer.
Anti-lock braking system
(ABS) warning lamp
* According to country.
The warning lamp is repea-
ted on the instrument panel
screen. Coolant temperature gauge
When the needle is in zone
A , the
temperature is correct.
When the needle is in zone B , the
temperature is too high.
If the coolant temperature warning
lamp comes on (linked with the STOP
warning lamp), stop as soon as it is
safe to do so.
Wait for the engine to cool down be-
fore topping up the level, if necessary.
As the cooling circuit is pressurised, in
order to prevent any risk of scalding,
unscrew the cap by two turns to allow
the pressure to drop.
When the pressure has dropped, re-
move the cap and top up the level, if
necessary.
Consult a PEUGEOT dealer.
Page 20 of 249
1
21
Fuel warning lamp
In certain driving conditions and de-
pending on the engine, the distance
which you will be able to travel with
the remaining fuel may be less than
30 miles (50 kilometres) (the capacity
of the tank is approximately 67 litres).
Emission control system
warning lamp
This should switch off a few seconds
after the engine is switched on.
When the engine is running, if the
w a r n i n g l a m p fl a s h e s o r c o m e s o n
continuously, this indicates an emis-
sion control system malfunction.
Contact a PEUGEOT dealer as soon
as possible. Diesel engine pre-heat
warning lamp
Wait for the warning lamp to switch off
before starting. The illumination period
is determined by the ambient condi-
tions.
Passenger's airbag
deactivated warning lamp *
If the warning lamp remains on, this
indicates that the passenger's airbag
has been deactivated intentionally.
If it comes on continuously above 6 mph
(10 km/h), it indicates an ABS fault.
However, the vehicle retains conven-
tional servo-assisted braking.
Consult a PEUGEOT dealer.
Anti-lock braking system
(ABS) warning lamp
* According to country.
The warning lamp is repea-
ted on the instrument panel
screen. Coolant temperature gauge
When the needle is in zone
A , the
temperature is correct.
When the needle is in zone B , the
temperature is too high.
If the coolant temperature warning
lamp comes on (linked with the STOP
warning lamp), stop as soon as it is
safe to do so.
Wait for the engine to cool down be-
fore topping up the level, if necessary.
As the cooling circuit is pressurised, in
order to prevent any risk of scalding,
unscrew the cap by two turns to allow
the pressure to drop.
When the pressure has dropped, re-
move the cap and top up the level, if
necessary.
Consult a PEUGEOT dealer.
Page 22 of 249
1
23
T y r e u n d e r - i n fl a t i o n d e t e c t i o n
system warning lamp
This indicates the absence or malfunc-
tion of one or more tyre pressure sen-
sors or a system fault.
Consult a PEUGEOT dealer.
Electronic engine
immobiliser warning lamp
This indicates an electronic engine im-
mobiliser system malfunction.
Consult a PEUGEOT dealer. Front brake pad wear
warning lamp
This indicates that the brake pads are
worn.
For your safety, have them replaced
by a PEUGEOT dealer.
F u e l fi l l e r c a p w a r n i n g l a m p
(according to version)
With the engine running, this indicates
t h a t t h e f u e l fi l l e r c a p i s i n c o r r e c t l y fi t -
ted or absent.
It comes on in orange if the vehicle

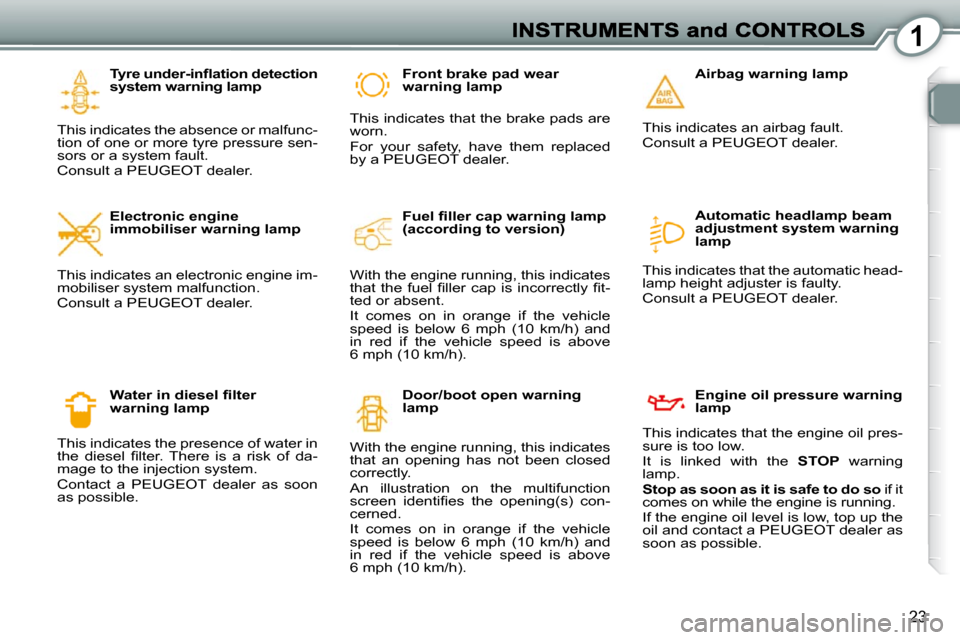

speed is below 6 mph (10 km/h) and
in red if the vehicle speed is above
6 mph (10 km/h).
W a t e r i n d i e s e l fi l t e r
warning lamp
This indicates the presence of water in
t h e d i e s e l fi l t e r . T h e r e i s a r i s k o f d a -
mage to the injection system.
Contact a PEUGEOT dealer as soon
as possible. Door/boot open warning
lamp
With the engine running, this indicates
that an opening has not been closed
correctly.
An illustration on the multifunction
s c r e e n i d e n t i fi e s t h e o p e n i n g ( s ) c o n -
cerned.
It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and
in red if the vehicle speed is above
6 mph (10 km/h). Airbag warning lamp
This indicates an airbag fault.
Consult a PEUGEOT dealer.
Automatic headlamp beam
adjustment system warning
lamp
This indicates that the automatic head-
lamp height adjuster is faulty.
Consult a PEUGEOT dealer.
Engine oil pressure warning
lamp
This indicates that the engine oil pres-
sure is too low.
It is linked with the STOP warning
lamp.
Stop as soon as it is safe to do so if it
comes on while the engine is running.
If the engine oil level is low, top up the
oil and contact a PEUGEOT dealer as
soon as possible.
Page 57 of 249
3COMFORT
55

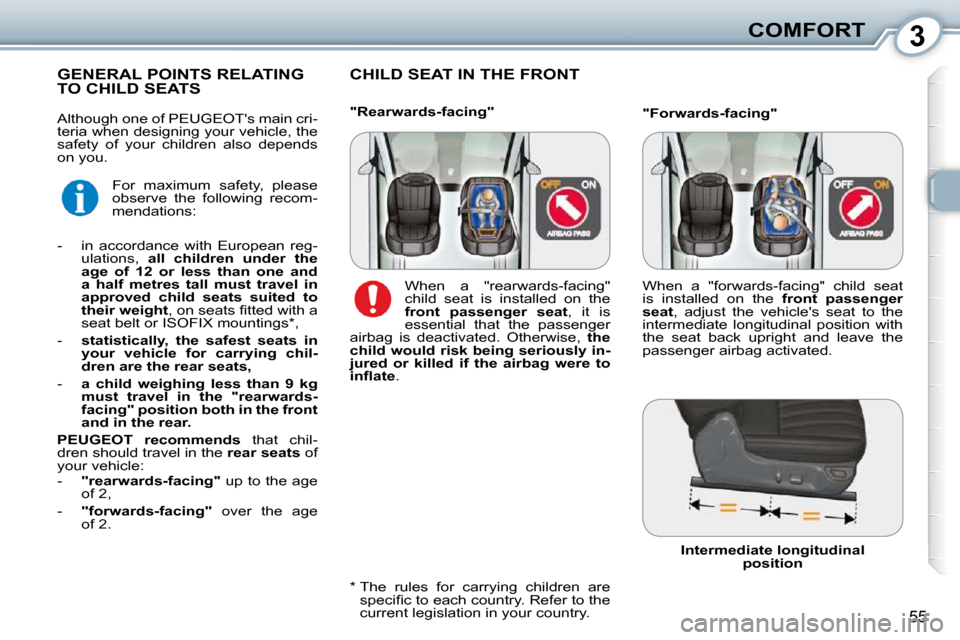

CHILD SEAT IN THE FRONT GENERAL POINTS RELATING TO CHILD SEATS
* T h e r u l e s f o r c a r r y i n g c h i l d r e n a r e s p e c i fi c t o e a c h c o u n t r y . R e f e r t o t h e
c u r r e n t l e g i s l a t i o n i n y o u r c o u n t r y . W h e n a " r e a r w a r d s - f a c i n g "
child seat is installed on the
front passenger seat , it is
e s s e n t i a l t h a t t h e p a s s e n g e r
a i r b a g i s d e a c t i v a t e d . O t h e r w i s e , the
child would risk being seriously in-
jured or killed if the airbag were to
i n fl a t e .
"Rearwards-facing"
A l t h o u g h o n e o f P E U G E O T ' s m a i n c r i -
t e r i a w h e n d e s i g n i n g y o u r v e h i c l e , t h e
s a f e t y o f y o u r c h i l d r e n a l s o d e p e n d s
o n y o u .
F o r m a x i m u m s a f e t y , p l e a s e
observe the following recom-
mendations:
- i n a c c o r d a n c e w i t h E u r o p e a n r e g - ulations, all children under the
age of 12 or less than one and
a half metres tall must travel in
approved child seats suited to
their weight , o n s e a t s fi t t e d w i t h a
seat belt or ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for carrying chil-
dren are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.
PEUGEOT recommends that chil-
dren should travel in the rear seats of
y o u r v e h i c l e :
- "rearwards-facing" u p t o t h e a g e
of 2,
- "forwards-facing" over the age
o f 2 .
Intermediate longitudinal position
W h e n a " f o r w a r d s - f a c i n g " c h i l d s e a t
is installed on the
front passenger
seat , a d j u s t t h e v e h i c l e ' s s e a t t o t h e
i n t e r m e d i a t e l o n g i t u d i n a l p o s i t i o n w i t h
t h e s e a t b a c k u p r i g h t a n d l e a v e t h e
p a s s e n g e r a i r b a g a c t i v a t e d .
"Forwards-facing"
Page 104 of 249
7SAFETY
89

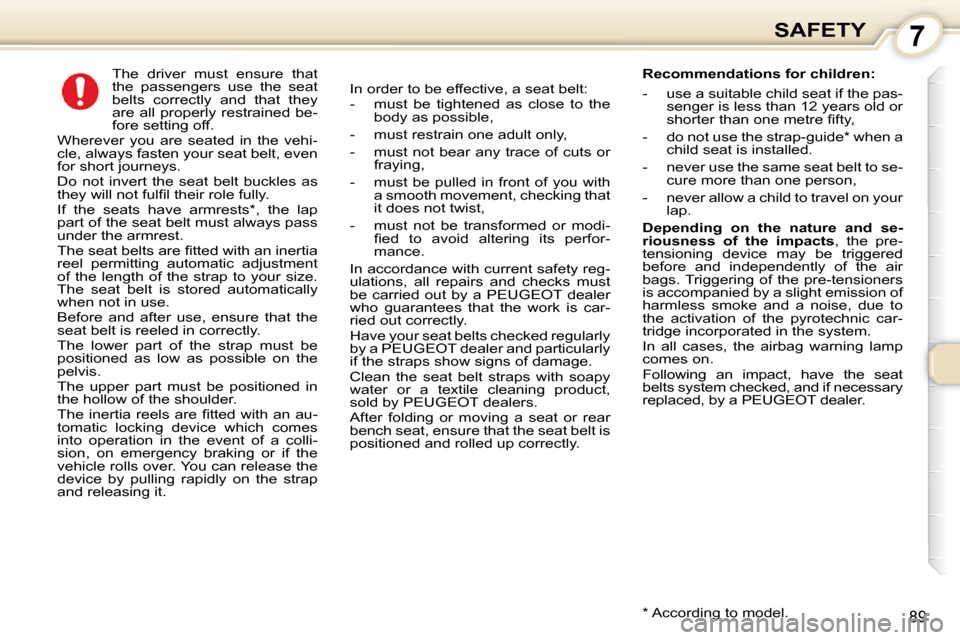

The driver must ensure that
the passengers use the seat
belts correctly and that they
are all properly restrained be-
fore setting off.
Wherever you are seated in the vehi-
cle, always fasten your seat belt, even
for short journeys.
Do not invert the seat belt buckles as
t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
If the seats have armrests * , the lap
part of the seat belt must always pass
under the armrest.
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n e r t i a
reel permitting automatic adjustment
of the length of the strap to your size.
The seat belt is stored automatically
when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n a u -
tomatic locking device which comes
into operation in the event of a colli-
sion, on emergency braking or if the
vehicle rolls over. You can release the
device by pulling rapidly on the strap
and releasing it. Recommendations for children:
- use a suitable child seat if the pas-
senger is less than 12 years old or
s h o r t e r t h a n o n e m e t r e fi f t y ,
- do not use the strap-guide * when a child seat is installed.
- never use the same seat belt to se- cure more than one person,
- never allow a child to travel on your lap.
Depending on the nature and se-
riousness of the impacts , the pre-
tensioning device may be triggered
before and independently of the air
bags. Triggering of the pre-tensioners
is accompanied by a slight emission of
harmless smoke and a noise, due to
the activation of the pyrotechnic car-
tridge incorporated in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if necessary
replaced, by a PEUGEOT dealer.
* According to model.
In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one adult only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking that
it does not twist,
- must not be transformed or modi- fi e d t o a v o i d a l t e r i n g i t s p e r f o r -
mance.
In accordance with current safety reg-
ulations, all repairs and checks must
be carried out by a PEUGEOT dealer
who guarantees that the work is car-
ried out correctly.
Have your seat belts checked regularly
by a PEUGEOT dealer and particularly
if the straps show signs of damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt is
positioned and rolled up correctly.
Page 105 of 249
7SAFETY

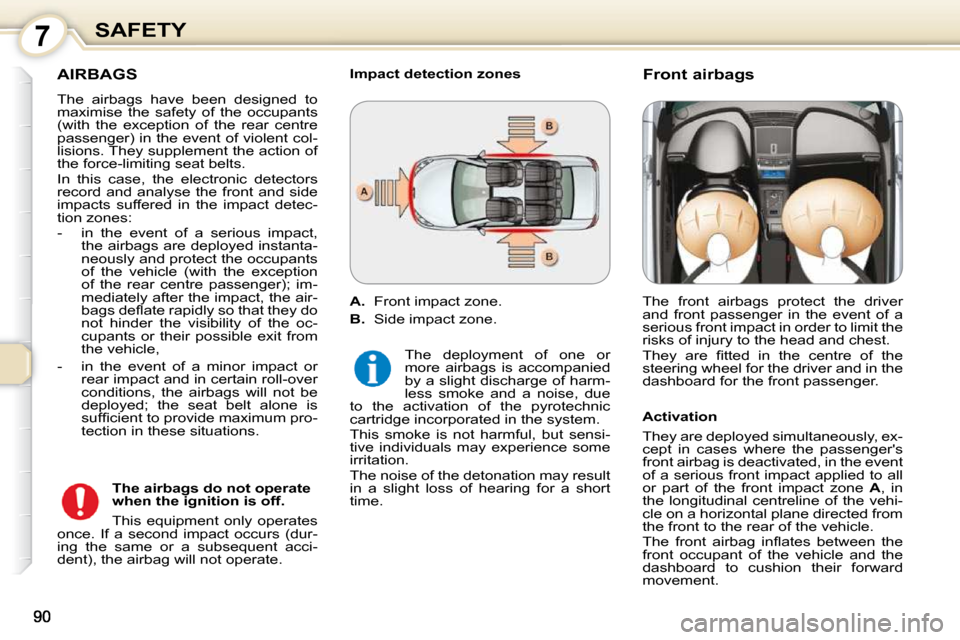

AIRBAGS
The airbags have been designed to
maximise the safety of the occupants
(with the exception of the rear centre
passenger) in the event of violent col-
lisions. They supplement the action of
the force-limiting seat belts.
In this case, the electronic detectors
record and analyse the front and side
impacts suffered in the impact detec-
tion zones:
- in the event of a serious impact, the airbags are deployed instanta-
neously and protect the occupants
of the vehicle (with the exception
of the rear centre passenger); im-
mediately after the impact, the air-
b a g s d e fl a t e r a p i d l y s o t h a t t h e y d o
not hinder the visibility of the oc-
cupants or their possible exit from
the vehicle,
- in the event of a minor impact or rear impact and in certain roll-over
conditions, the airbags will not be
deployed; the seat belt alone is
s u f fi c i e n t t o p r o v i d e m a x i m u m p r o -
tection in these situations. Front airbags
The front airbags protect the driver
and front passenger in the event of a
serious front impact in order to limit the
risks of injury to the head and chest.
T h e y a r e fi t t e d i n t h e c e n t r e o f t h e
steering wheel for the driver and in the
dashboard for the front passenger.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
The deployment of one or
more airbags is accompanied
by a slight discharge of harm-
less smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
This smoke is not harmful, but sensi-
tive individuals may experience some
irritation.
The noise of the detonation may result
in a slight loss of hearing for a short
time. Activation
They are deployed simultaneously, ex-
cept in cases where the passenger's
front airbag is deactivated, in the event
of a serious front impact applied to all
or part of the front impact zone
A , in
the longitudinal centreline of the vehi-
cle on a horizontal plane directed from
the front to the rear of the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
dashboard to cushion their forward
movement.
The airbags do not operate
when the ignition is off.
This equipment only operates
once. If a second impact occurs (dur-
ing the same or a subsequent acci-
dent), the airbag will not operate.
