Page 6 of 249
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Multifunction screen.
2. Audio and telematics system.
3. Automatic air conditioning controls.
4. Deactivation of the audible parking
sensors.
Central locking from the inside.
Alarm control.
Hazard warning lamps.
SPORT suspension control.
Deactivation of the ESP system.
Child lock.
5. Ashtray/Front cigar lighter
(100 W max).
6. Gear lever.
7. Parking brake.
8. Retractable cup holder.
9. Armrest with storage compartment
and USB port.
10. 12 volt accessories socket
(100 W max).
11. Rear ashtray.
139
213
Peugeot Connect Media
Peugeot Connect Navigation
184
Peugeot Connect Sound
Page 12 of 249
FAMILIARISATION
Instrument panel
A. When the ignition is on, the fuel
gauge needle should rise.
B. W h e n t h e e n g i n e i s r u n n i n g , i t s a s -
sociated low level warning lamp
should switch off.
C. When the ignition is on, the oil level
indicator should display "OIL OK"
for a few seconds.
If the levels are not correct, top up the
level which is low.
Lighting of the indicator lamp indicates
the status of the corresponding function. When the ignition is on, the orange and
red warning lamps come on.
When the engine is running, these
warning lamps should switch off.
If any warning lamp remains on, refer to
the page concerned.
18
20
104
A. Audible front/rear parking
sensors off.
B. Central locking.
C. Alarm interior volumetric
protection off.
D. Hazard warning lamps.
E.
S e l e c t i o n o f t h e e l e c t r o n i -
cally controlled suspension.
F. E l e c t r o n i c s t a b i l i t y p r o -
gramme ESP off.
62
65
86
97
86
Warning lamps Switch panel
Page 16 of 249
1
19
1. Coolant temperature gauge.
2. Lighting on indicators:
dipped beam headlamps.
main beam headlamps.
front foglamps.
rear foglamps.
3. Rev counter dial.
4. Warning lamps:
seat belts not fastened in the front.
fuel level.
left direction indicator.
5. Fuel level gauge.
PETROL-DIESEL MANUAL AND AUTOMATICGEARBOX INSTRUMENT PANELS
10. CHECK and trip recorder zero
reset and service display button.
11. Instrument panel screen:
Total distance recorder.
Trip recorder.
Automatic gearbox lever position indicator.
Cruise control/speed limiter reference value.
Service indicator.
Navigation instructions
CHECK (vehicle autotest).
Trip computer information displays.
Warning and status displays.
12. Instrument panel lighting rheostat.
6. Warning lamps:
parking brake applied or brake fl u i d l e v e l o r e l e c t r o n i c b r a k e f o r c e
distribution fault.
right direction indicator.
7. Speedometer.
8. Warning lamps:
emission control system.
anti-lock braking system (ABS).
passenger's airbag deactivated.
pre-heat (Diesel engine starting).
9. Engine oil temperature gauge.

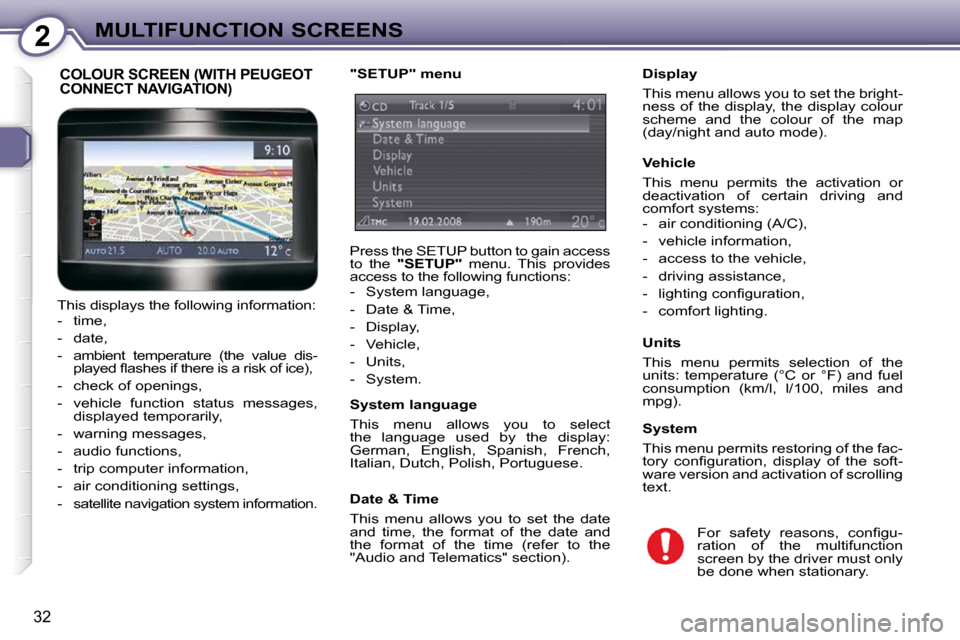

Page 32 of 249
2MULTIFUNCTION SCREENS
32
D i s p l a y
This menu allows you to set the bright-
ness of the display, the display colour
scheme and the colour of the map
(day/night and auto mode).
V e h i c l e
This menu permits the activation or
deactivation of certain driving and
comfort systems:
- air conditioning (A/C),
- vehicle information,
- access to the vehicle,
- driving assistance,
- l i g h t i n g c o n fi g u r a t i o n ,
- comfort lighting.
U n i t s
This menu permits selection of the
units: temperature (°C or °F) and fuel
c o n s u m p t i o n ( k m / l , l / 1 0 0 , m i l e s a n d
mpg).
S y s t e m
This menu permits restoring of the fac-
t o r y c o n fi g u r a t i o n , d i s p l a y o f t h e s o f t -
ware version and activation of scrolling
text. F o r s a f e t y r e a s o n s , c o n fi g u -
ration of the multifunction
screen by the driver must only
be done when stationary. COLOUR SCREEN (WITH PEUGEOT CONNECT NAVIGATION) "SETUP" menu
Press the SETUP button to gain access
to the "SETUP" menu. This provides
access to the following functions:
- System language,
- Date & Time,
- Display,
- Vehicle,
- Units,
- System.
S y s t e m l a n g u a g e
This menu allows you to select
the language used by the display:
German, English, Spanish, French,
Italian, Dutch, Polish, Portuguese.
D a t e & T i m e
This menu allows you to set the date
and time, the format of the date and
the format of the time (refer to the
"Audio and Telematics" section).
This displays the following information:
- time,
- date,
- ambient temperature (the value dis-
p l a y e d fl a s h e s i f t h e r e i s a r i s k o f i c e ) ,
- c h e c k o f o p e n i n g s ,
- vehicle function status messages, displayed temporarily,
- warning messages,
- audio functions,
- trip computer information,
- air conditioning settings,
- satellite navigation system information.
Page 33 of 249
2MULTIFUNCTION SCREENS
33
HIGH DEFINITION COLOUR SCREEN (WITH PEUGEOT CONNECT MEDIA)
This displays the following information:
- time,
- date,
- ambient temperature (the value dis- p l a y e d fl a s h e s i f t h e r e i s a r i s k o f
ice),
- c h e c k o f o p e n i n g s ,
- vehicle function status messages, displayed temporarily,
- warning messages,
- audio functions,
- trip computer information,
- air conditioning settings,
- satellite navigation system information.
Main menu D i s p l a y c o n fi g u r a t i o n
Press the "MENU" button to gain ac-
cess to the main menu and select one
of the following functions: Navigation-
G u i d a n c e , M a p , T r a f fi c I n f o r m a t i o n ,
A u d i o F u n c t i o n s , T e l e m a t i c s , C o n fi g u -
ration, Video, Vehicle Diagnostics and
Air Conditioning. - Choose colour,
- Adjust brightness,
- Adjust date and time,
- Choose units.
D e fi n e t h e v e h i c l e p a r a m e t e r s
Permits the activation or deactivation
of certain driving and comfort ele-
ments:
- p e r m a n e n t l o c k i n g o f t h e b o o t o n
the 407 Saloon,
- automatic illumination of headlamps,
- automatic "guide-me-home" lighting,
- automatic rear wiping on engaging reverse gear on the 407SW.
The " C o n fi g u r a t i o n " menu provides
access to the following functions:
- D i s p l a y c o n fi g u r a t i o n ,
- Sound,
- Choice of language,
- D e fi n e t h e v e h i c l e p a r a m e t e r s .
You can connect video equipment
(camcorder, digital camera, ...) to the
t h r e e v i d e o s o c k e t s , l o c a t e d i n t h e
glove box.
Video display is only possible when
stationary.
Select the Video menu from the gen-
eral menu:
- "Activate video mode" to activate/deactivate the video,
- "Video parameters" to set the dis- play format, the brightness, the con-
trast and the colours.
P r e s s t h e " E S C " o r " D A R K " b u t t o n t o
exit from video mode.
P r e s s t h e " S O U R C E " b u t t o n s e v e r a l
times in succession to select an audio
source other than that of the video. VIDEO MENU (WITH PEUGEOT CONNECT MEDIA)
Page 77 of 249
4ACCESS
69
"Rear screen open" warning
When the engine is running , if the
rear screen is not fully closed, you are
warned by a message on the multi-
function screen.
When the vehicle is moving (speed
greater than 6 mph (10 km/h)), if the
rear screen is not fully closed, you are
warned by an audible signal, a mes-
sage on the multifunction screen and
lighting of the service warning lamp. Tailgate release
This enables the tailgate to be un-
locked in the event of a central locking
fault.
- Fold back the rear seats to gain
access to the lock from inside the
boot.
- Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Page 84 of 249
5
75
Automatic illumination of
headlamps
T h e d i p p e d b e a m h e a d l a m p s s w i t c h
o n a u t o m a t i c a l l y i f t h e l i g h t i s p o o r a n d
when the windscreen wipers operate
continuously. They switch off when
the light is bright enough or the wind-
screen wipers stop.
Warning: in foggy weather or in snow,
t h e s u n s h i n e s e n s o r c a n d e t e c t s u f fi -
c i e n t l i g h t . T h e l i g h t i n g w i l l n o t c o m e
o n a u t o m a t i c a l l y . I f n e c e s s a r y , y o u
m u s t s w i t c h t h e d i p p e d b e a m h e a d -
l a m p s o n m a n u a l l y . Activation Manual "Guide-me-home" lighting
When you leave your vehicle, the side-
l a m p s a n d d i p p e d b e a m h e a d l a m p s
can be left on for a few seconds.
When the function is activated, the
i n d i c a t o r l a m p c o m e s o n o n t h e
5 - d i a l i n s t r u m e n t p a n e l s c r e e n .
To deactivate or activate the
function, use the "Persona-
l i s a t i o n - c o n fi g u r a t i o n "
m e n u o n y o u r m u l t i f u n c t i o n
screen.
F o r s a f e t y r e a s o n s , a c t i v a t i o n /
d e a c t i v a t i o n o f t h e " A u t o m a t i c
i l l u m i n a t i o n o f h e a d l a m p s s "
f u n c t i o n v i a t h e m e n u m u s t b e
carried out when stationary. To deactivate or activate the
" A u t o m a t i c g u i d e - m e - h o m e
lighting" function, use the
"Personalisation - confi-
guration" m e n u o n y o u r
m u l t i f u n c t i o n s c r e e n .
The duration of the lighting
can be set via the "Person-
a l i s a t i o n - c o n fi g u r a t i o n "
m e n u o f y o u r m u l t i f u n c t i o n
screen.
Automatic "Guide-me-home"
lighting
When you leave your vehicle
with
the automatic illumination of head-
lamps a c t i v a t e d , t h e s i d e l a m p s a n d
d i p p e d b e a m h e a d l a m p s r e m a i n o n
for the duration selected after the igni-
tion is switched off.
Deactivation
When the function is deactivated,
t h e i n d i c a t o r l a m p c o m e s o n o n t h e
5 - d i a l i n s t r u m e n t p a n e l s c r e e n .
D o n o t c o v e r t h e s u n s h i n e /
brightness sensor, located in
the centre of the windscreen.
It is used to regulate the air
c o n d i t i o n i n g a n d f o r t h e a u t o m a t i c i l -
l u m i n a t i o n o f h e a d l a m p s .
If the sunshine/brightness sensor
does not function correctly, the
s i d e l a m p s a n d d i p p e d b e a m h e a d l a m -
p s c o m e o n .
Consult a PEUGEOT dealer.
Activation:
switch off the engine,
" fl a s h " t h e h e a d l a m p s ,
get out of the vehicle and lock it.
Page 85 of 249
5
75
Automatic illumination of
headlamps
T h e d i p p e d b e a m h e a d l a m p s s w i t c h
o n a u t o m a t i c a l l y i f t h e l i g h t i s p o o r a n d
when the windscreen wipers operate
continuously. They switch off when
the light is bright enough or the wind-
screen wipers stop.
Warning: in foggy weather or in snow,
t h e s u n s h i n e s e n s o r c a n d e t e c t s u f fi -
c i e n t l i g h t . T h e l i g h t i n g w i l l n o t c o m e
o n a u t o m a t i c a l l y . I f n e c e s s a r y , y o u
m u s t s w i t c h t h e d i p p e d b e a m h e a d -
l a m p s o n m a n u a l l y . Activation Manual "Guide-me-home" lighting
When you leave your vehicle, the side-
l a m p s a n d d i p p e d b e a m h e a d l a m p s
can be left on for a few seconds.
When the function is activated, the
i n d i c a t o r l a m p c o m e s o n o n t h e
5 - d i a l i n s t r u m e n t p a n e l s c r e e n .
To deactivate or activate the
function, use the "Persona-
l i s a t i o n - c o n fi g u r a t i o n "
m e n u o n y o u r m u l t i f u n c t i o n
screen.
F o r s a f e t y r e a s o n s , a c t i v a t i o n /
d e a c t i v a t i o n o f t h e " A u t o m a t i c
i l l u m i n a t i o n o f h e a d l a m p s s "
f u n c t i o n v i a t h e m e n u m u s t b e
carried out when stationary. To deactivate or activate the
" A u t o m a t i c g u i d e - m e - h o m e
lighting" function, use the
"Personalisation - confi-
guration" m e n u o n y o u r
m u l t i f u n c t i o n s c r e e n .
The duration of the lighting
can be set via the "Person-
a l i s a t i o n - c o n fi g u r a t i o n "
m e n u o f y o u r m u l t i f u n c t i o n
screen.
Automatic "Guide-me-home"
lighting
When you leave your vehicle
with
the automatic illumination of head-
lamps a c t i v a t e d , t h e s i d e l a m p s a n d
d i p p e d b e a m h e a d l a m p s r e m a i n o n
for the duration selected after the igni-
tion is switched off.
Deactivation
When the function is deactivated,
t h e i n d i c a t o r l a m p c o m e s o n o n t h e
5 - d i a l i n s t r u m e n t p a n e l s c r e e n .
D o n o t c o v e r t h e s u n s h i n e /
brightness sensor, located in
the centre of the windscreen.
It is used to regulate the air
c o n d i t i o n i n g a n d f o r t h e a u t o m a t i c i l -
l u m i n a t i o n o f h e a d l a m p s .
If the sunshine/brightness sensor
does not function correctly, the
s i d e l a m p s a n d d i p p e d b e a m h e a d l a m -
p s c o m e o n .
Consult a PEUGEOT dealer.
Activation:
switch off the engine,
" fl a s h " t h e h e a d l a m p s ,
get out of the vehicle and lock it.
Page 99 of 249
7SAFETY
86
HORN
Press one of the spokes of the steer-
ing wheel.
HAZARD WARNING LAMPS
Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the
hazard warning lamps come on au-
tomatically. They switch off automati-
c a l l y t h e fi r s t t i m e y o u a c c e l e r a t e .
It is also possible to switch them off by
pressing the button.
ELECTRONIC STABILITY PROGRAMME (ESP)
This system is linked and complemen-
tary to the ABS system.
I n t h e e v e n t o f a s i g n i fi c a n t v a r i a t i o n
between the trajectory of the vehicle
and the path required by the driver,
the ESP monitors wheel by wheel and
acts automatically on the engine and
on the brake of one or more wheels, to
put the vehicle back on course, within
the limit of the laws of physics.
ESP operation The indicator lamp comes on. Disarming the ESP
In exceptional conditions (starting the
vehicle when it is stuck in the mud,
immobilised in snow, on unstable
ground...), it may be advisable to dis-
arm the ESP.
Press the "ESP OFF" switch, lo-
cated on the centre console.
The switch lights up and the warning
light comes on: the ESP no longer acts
on the operation of the engine.
Instrument panel indicator
light.
The system is triggered again:
automatically if the ignition is
switched off,
automatically above 30 mph (50 km/h),
manually by pressing the switch
again.
Press the button, the direction indica-
t o r s fl a s h .
They can operate with the ignition off.
Page 100 of 249
7SAFETY
86
HORN
Press one of the spokes of the steer-
ing wheel.
HAZARD WARNING LAMPS
Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the
hazard warning lamps come on au-
tomatically. They switch off automati-
c a l l y t h e fi r s t t i m e y o u a c c e l e r a t e .
It is also possible to switch them off by
pressing the button.
ELECTRONIC STABILITY PROGRAMME (ESP)
This system is linked and complemen-
tary to the ABS system.
I n t h e e v e n t o f a s i g n i fi c a n t v a r i a t i o n
between the trajectory of the vehicle
and the path required by the driver,
the ESP monitors wheel by wheel and
acts automatically on the engine and
on the brake of one or more wheels, to
put the vehicle back on course, within
the limit of the laws of physics.
ESP operation The indicator lamp comes on. Disarming the ESP
In exceptional conditions (starting the
vehicle when it is stuck in the mud,
immobilised in snow, on unstable
ground...), it may be advisable to dis-
arm the ESP.
Press the "ESP OFF" switch, lo-
cated on the centre console.
The switch lights up and the warning
light comes on: the ESP no longer acts
on the operation of the engine.
Instrument panel indicator
light.
The system is triggered again:
automatically if the ignition is
switched off,
automatically above 30 mph (50 km/h),
manually by pressing the switch
again.
Press the button, the direction indica-
t o r s fl a s h .
They can operate with the ignition off.
