WARNING!(Continued)
•Guard against carbon monoxide with proper main-
tenance. Have the exhaust system inspected every
time the vehicle is raised. Have any abnormal
conditions repaired promptly. Until repaired, drive
with all side windows fully open.
ADDING FUEL/SMART FUEL
NOTE:
•TheSmart Fuelis a device placed on the top of the
filler pipe, it opens and closes automatically when the
fuel nozzle is inserted or extracted.
•Only the correct nozzle size diameter allows the flap
door to open when the nozzle is inserted.Refueling Procedure
1. Open the fuel filler door pulling towards outside.
2. There is no fuel filler cap. A flap door inside the pipe
seals the system.
Fuel Filler Door Location
5
STARTING AND OPERATING 219

3. Insert the fuel nozzle into the filler pipe (the nozzle
opens and holds the flap door while refueling) and
start refueling – when the fuel nozzle “clicks” or shuts
off, the fuel tank is full.4. At the end of refueling, before removing the nozzle,
wait at least 10 seconds to allow the fuel to flow within
the tank.
5. Remove the fuel nozzle from the filler pipe and then
close the fuel door.
Emergency Gas Can Refueling:
Most gas cans will not open the flapper door.
A funnel is provided to open the flapper door to allow
emergency refueling with a gas can.
1. Retrieve the appropriate funnel from the storage area
in the luggage compartment.
2. Insert funnel into same filler pipe opening as the fuel
nozzle.
Fuel Nozzle Location
220 STARTING AND OPERATING

3. Ensure funnel is inserted fully to hold flapper door
open.
4. Pour fuel into funnel opening.
5. Remove funnel from filler pipe, clean off prior to
putting back in the storage area.
CAUTION!
To avoid fuel spillage and overfilling, do not “top
off” the fuel tank after filling.
WARNING!
•Never have any smoking materials lit in or near the
vehicle when the fuel door is open or the tank is
being filled.
•Never add fuel when the engine is running. This is
in violation of most state and federal fire regula-
tions and may cause the “Malfunction Indicator
Light” to turn on.
•A fire may result if fuel is pumped into a portable
container that is inside of a vehicle. You could be
burned. Always place fuel containers on the
ground while filling.
Emergency Fuel Fill Location
5
STARTING AND OPERATING 221

TRAILER TOWING
Trailer towing with this vehicle is not recommended.
RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.)
Towing This Vehicle Behind Another Vehicle
NOTE:This vehicle may be towed on a flatbed or
vehicle trailer provided all four wheels areOFFthe
ground.
CAUTION!
•DO NOT flat tow this vehicle. Damage to the
drivetrain will result.
•Do not dolly tow this vehicle. Use of a towing dolly
can cause significant damage to your vehicle. Dam-
age from improper towing is not covered under the
New Vehicle Limited Warranty.
•Towing this vehicle in violation of the above re-
quirements can cause severe transmission damage.
Damage from improper towing is not covered un-
der the New Vehicle Limited Warranty.
222 STARTING AND OPERATING

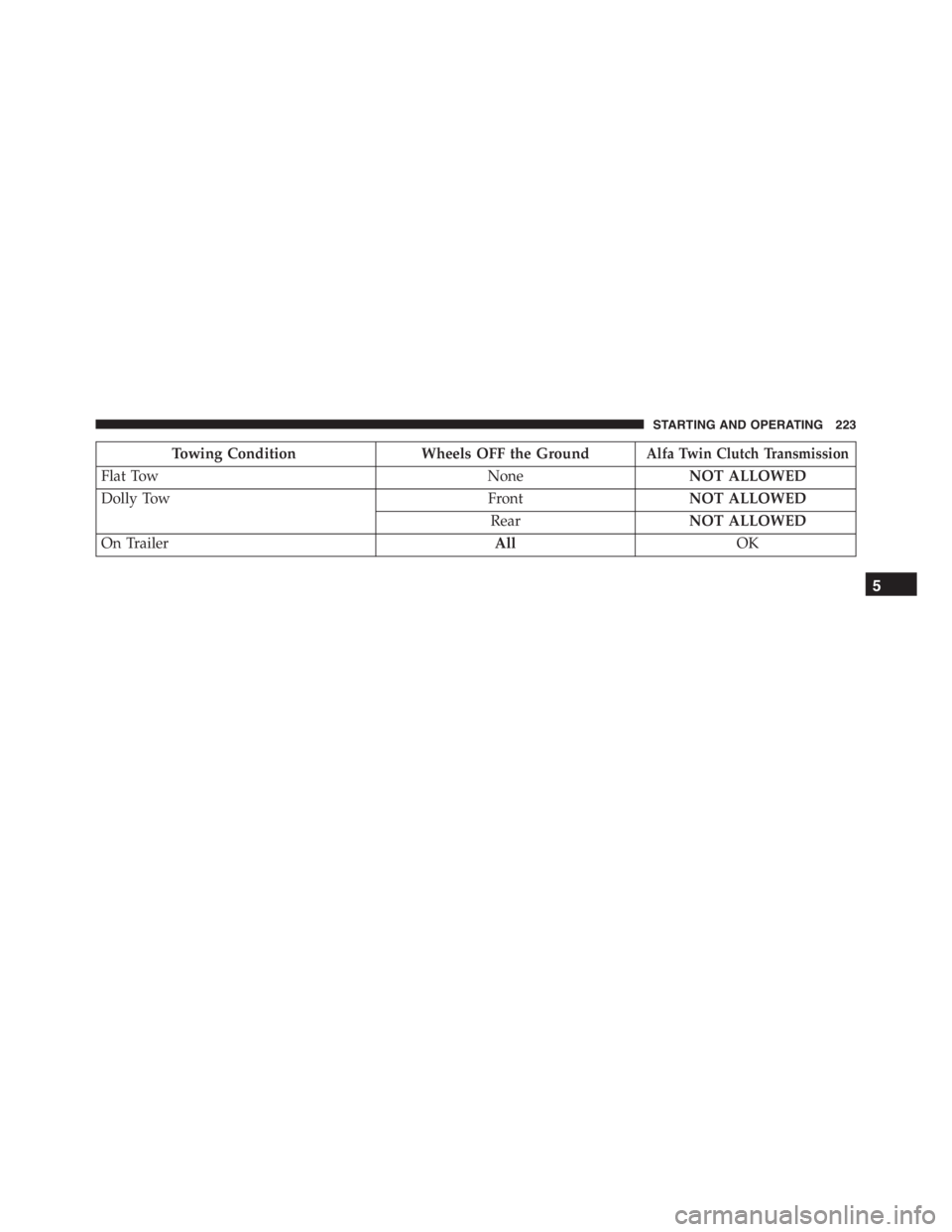

Towing Condition Wheels OFF the GroundAlfa Twin Clutch Transmission
Flat Tow NoneNOT ALLOWED
Dolly Tow FrontNOT ALLOWED
RearNOT ALLOWED
On TrailerAllOK
5
STARTING AND OPERATING 223

WHAT TO DO IN EMERGENCIES
CONTENTS
HAZARD WARNING FLASHER...........226
IF YOUR ENGINE OVERHEATS............226
WHEEL AND TIRE TORQUE
SPECIFICATIONS......................227
▫Torque Specifications...................228
TIRE SERVICE KIT......................230
JUMP-STARTING......................234
▫Preparations For Jump-Start..............234▫Jump-Starting Procedure................236
FREEING A STUCK VEHICLE.............238

ENHANCED ACCIDENT RESPONSE SYSTEM . .240
FRONT TOW EYE USAGE................242
FIRE EXTINGUISHER — IF EQUIPPED.......2456

HAZARD WARNING FLASHER
The Hazard Warning flasher switch is located on the
center console.
Press the switch to turn on the Hazard Warning
flasher. When the switch is activated, all direc-
tional turn signals will flash on and off to warn oncoming
traffic of an emergency. Press the switch a second time to
turn off the Hazard Warning flasher.
This is an emergency warning system and it should not
be used when the vehicle is in motion. Use it when your
vehicle is disabled and it is creating a safety hazard for
other motorists.
When you must leave the vehicle to seek assistance, the
Hazard Warning flasher will continue to operate even
though the ignition is placed in the OFF position.
NOTE:With extended use the Hazard Warning flasher
may wear down your battery.
IF YOUR ENGINE OVERHEATS
In any of the following situations, you can reduce the
potential for overheating by taking the appropriate ac-
tion.
•On the highways — slow down.
•In city traffic — while stopped, place the transmission
in NEUTRAL, but do not increase engine idle speed.
NOTE:There are steps that you can take to slow down
an impending overheat condition:
•If your air conditioner (A/C) is on, turn it off. The A/C
system adds heat to the engine cooling system and
turning the A/C off can help remove this heat.
•You can also turn the temperature control to maximum
heat, the mode control to floor and the blower control
to high. This allows the heater core to act as a
supplement to the radiator and aids in removing heat
from the engine cooling system.
226 WHAT TO DO IN EMERGENCIES

CAUTION!
Driving with a hot cooling system could damage
your vehicle. If the temperature gauge reads 240°F
(116°C) or greater pull over and stop the vehicle. Idle
the vehicle with the air conditioner turned off until
the coolant temperature drops back into the normal
range 200–230°F (93–110°C). The digital warning light
may switch on (together with a message on the
display) to indicate that the coolant temperature is
too high; in this case, stop the engine and call for
service.
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator or coolant bottle is hot.
WHEEL AND TIRE TORQUE SPECIFICATIONS
Proper lug nut/bolt torque is very important to ensure
that the wheel is properly mounted to the vehicle. Any
time a wheel has been removed and reinstalled on the
vehicle the lug nuts/bolts should be torqued using a
properly calibrated torque wrench.
6
WHAT TO DO IN EMERGENCIES 227

Torque Specifications
Lug Nut/Bolt Torque **Lug Nut/
Bolt SizeLug Nut/
Bolt
Socket
Size
72 Ft-Lbs (98 N·m) M12 x 1.25 17 mm
**Use only Alfa Romeo recommended lug nuts/bolts and
clean or remove any dirt or oil before tightening.
Inspect the wheel mounting surface prior to mounting
the tire and remove any corrosion or loose particles.
Tighten the lug nuts/bolts in a star pattern until each
nut/bolt has been tightened twice.
Wheel Mounting Surface
