DRIVING SAFELY
Electric parking brake
Manual application/release

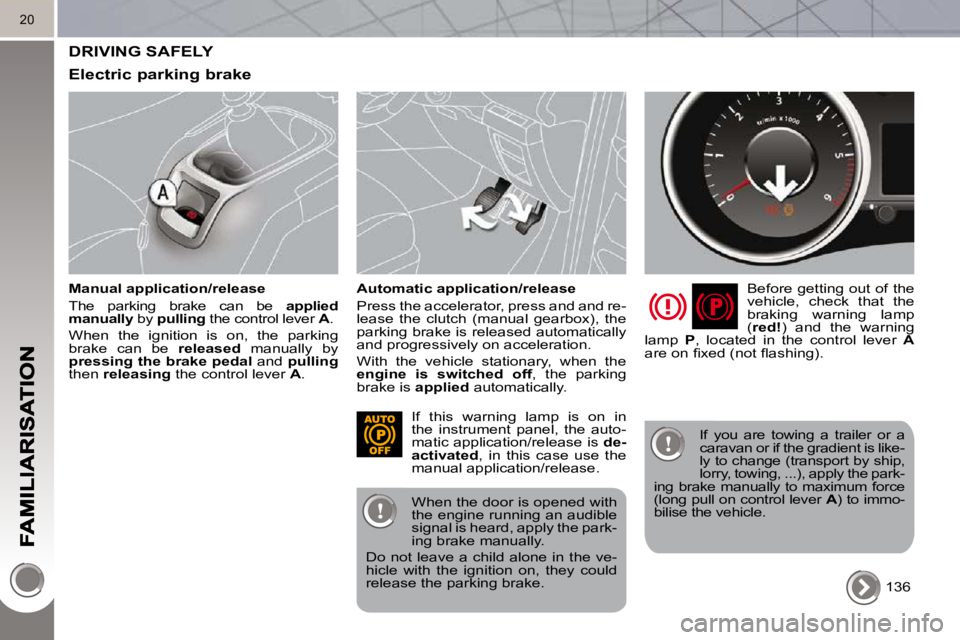

The parking brake can be applied
manually by pulling the control lever A .
When the ignition is on, the parking
brake can be released manually by

pressing the brake pedal and pulling
then releasing the control lever A . Automatic application/release
Press the accelerator, press and and re-
lease the clutch (manual gearbox), the
parking brake is released automatically
and progressively on acceleration.
With the vehicle stationary, when the

engine is switched off , the parking
brake is applied automatically. Before getting out of the
vehicle, check that the
braking warning lamp
(
red! ) and the warning
lamp P , located in the control lever A
are on fi xed (not fl ashing).
136
If this warning lamp is on in
the instrument panel, the auto-
matic application/release is
de-
activated , in this case use the
manual application/release.
When the door is opened with
the engine running an audible
signal is heard, apply the park-
ing brake manually.
Do not leave a child alone in the ve-
hicle with the ignition on, they could
release the parking brake. If you are towing a trailer or a
caravan or if the gradient is like-
ly to change (transport by ship,
lorry, towing, ...), apply the park-
ing brake manually to maximum force
(long pull on control lever A ) to immo-
bilise the vehicle.

28

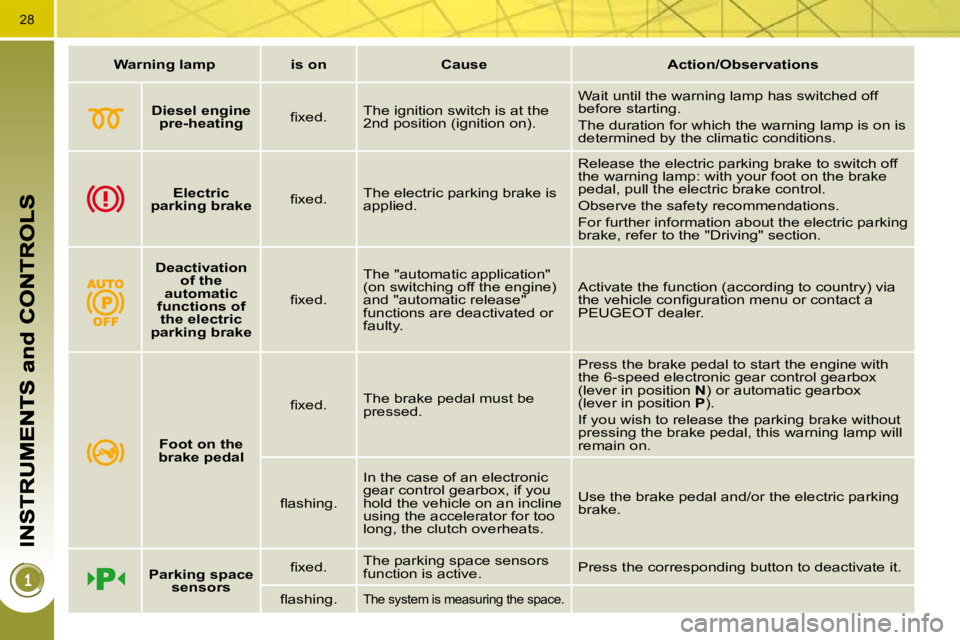

Warning lamp is on Cause Action/Observations

Diesel engine
pre-heating fi xed. The ignition switch is at the
2nd position (ignition on). Wait until the warning lamp has switched off
before starting.
The duration for which the warning lamp is on is
determined by the climatic conditions.

Electric
parking brake fi xed. The electric parking brake is
applied. Release the electric parking brake to switch off
the warning lamp: with your foot on the brake
pedal, pull the electric brake control.
Observe the safety recommendations.
For further information about the electric parking
brake, refer to the "Driving" section.

Deactivation
of the
automatic
functions of the electric
parking brake fi xed.
The "automatic application"
(on switching off the engine)
and "automatic release"
functions are deactivated or
faulty. Activate the function (according to country) via
the vehicle confi guration menu or contact a
PEUGEOT dealer.

Foot on the
brake pedal fi xed.
The brake pedal must be
pressed. Press the brake pedal to start the engine with
the 6-speed electronic gear control gearbox
(lever in position
N ) or automatic gearbox
(lever in position P ).
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.
fl ashing. In the case of an electronic
gear control gearbox, if you
hold the vehicle on an incline
using the accelerator for too
long, the clutch overheats. Use the brake pedal and/or the electric parking
brake.

Parking
space

sensors fi xed.
The parking space sensors
function is active. Press the corresponding button to deactivate it.
fl ashing.
The system is measuring the space.

150
CRUISE CONTROL
System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is switched on
manually: it requires a minimum vehicle
speed of 25 mph (40 km/h) and the en-
gaging:
- of fourth gear on the manual gearbox,
- of second gear on the electronic gear control gearbox or automatic gear-
box, in sequential driving mode,
- of position A on the electronic gear
control gearbox or D on the auto-
matic gearbox. The controls of this system are grouped
together on stalk
A .

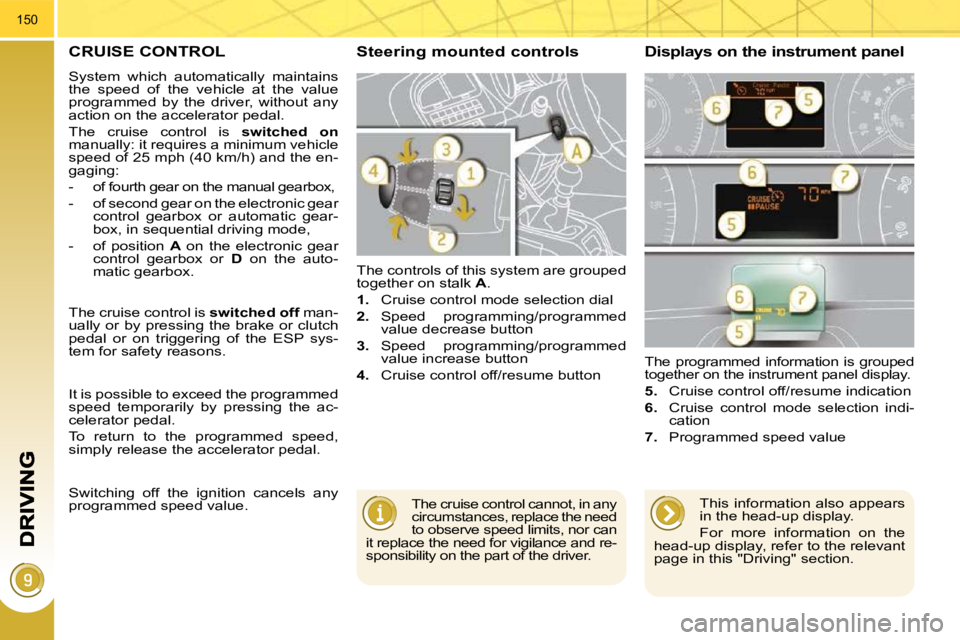

1. Cruise control mode selection dial

2. Speed programming/programmed
value decrease button

3. Speed programming/programmed
value increase button

4. Cruise control off/resume button The programmed information is grouped
together on the instrument panel display.

5. Cruise control off/resume indication

6. Cruise control mode selection indi-
cation

7. Programmed speed value
Steering mounted controls Displays on the instrument panel
The cruise control cannot, in any
circumstances, replace the need
to observe speed limits, nor can
it replace the need for vigilance and re-
sponsibility on the part of the driver.
The cruise control is
switched off man-
ually or by pressing the brake or clutch
pedal or on triggering of the ESP sys-
tem for safety reasons.
It is possible to exceed the programmed
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value. This information also appears
in the head-up display.
For more information on the
head-up display, refer to the relevant
page in this "Driving" section.

152
6-SPEED MANUAL GEARBOX
As a safety precaution and to
facilitate starting of the engine:
Only engage reverse gear
when the vehicle is stationary
with the engine at idle.
Engaging reverse gear

 Raise the ring under the knob and
push the gear lever to the left then
forwards.
* According to engine.
GEAR SHIFT INDICATOR *
System which reduces fuel consumption
by advising the driver to change up on
vehicles fi tted with a manual gearbox.
Operation
The system intervenes only when driving
economically.
Depending on the driving situation and
your vehicle's equipment, the system
may advise you to skip one or more
gears. You can follow this instruc-
tion without engaging the intermediate
gears.
The gear recommended should not
be considered compulsory. In fact, the
confi guration of the road, the amount
of traffi c and safety remain determining
factors when choosing the best gear.
Therefore, the driver remains responsi-
ble for deciding whether or not to follow
the advice given by the system.
This function cannot be deactivated. Example:
- You are in third gear.
In the case of driving which
makes particular demands on
the performance of the engine
(fi rm pressure on the accelerator
pedal, for example, when overtak-
ing...), the system will not recom-
mend a gear change.
The system never suggests:
- engaging fi rst gear,
- engaging reverse gear,
- engaging a lower gear. - You press the accelerator pedal
moderately.
- The system may suggest that you engage a higher gear, if appropriate.
The information appears in the form
of an arrow in the instrument panel
screen.
Depending on your vehicle's equipment,
this arrow may be accompanied by the
recommended gear.
This equipment will become available
during the year.
- always select neutral,
- press the clutch pedal.

PRACTICAL INFORMATION
193
Engine compartment fuses
The fusebox is placed in the engine
compartment near the battery (left-hand
side).
Access to the fuses

 Unclip the cover.

 Change the fuse (see corresponding
paragraph).

 When you have fi nished, close the
cover carefully to ensure correct
sealing of the fusebox. Fuse table

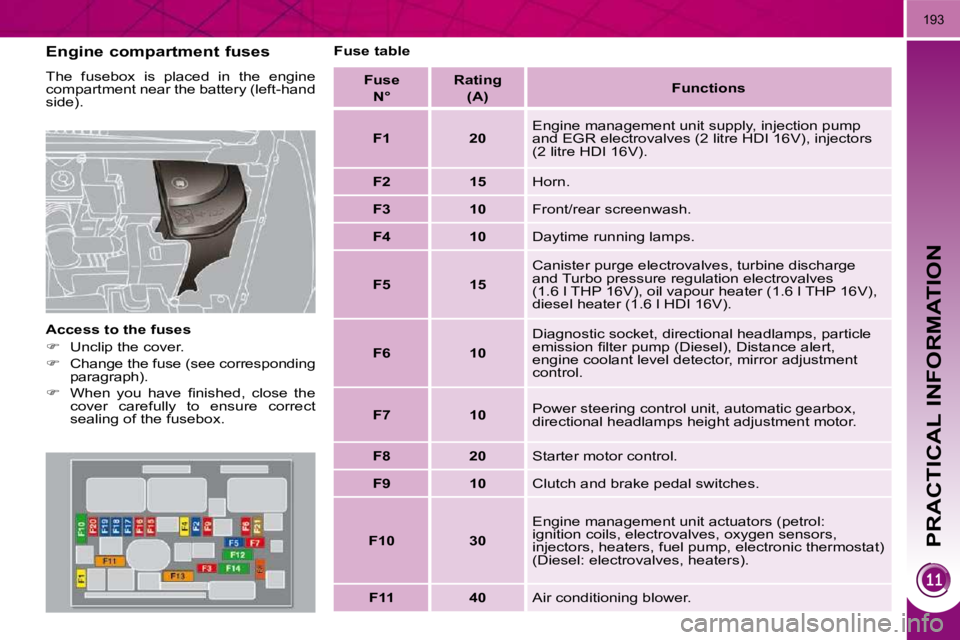

Fuse N° Rating
(A)
Functions

F1 20 Engine management unit supply, injection pump
and EGR electrovalves (2 litre HDI 16V), injectors
(2 litre HDI 16V).

F2 15 Horn.

F3 10 Front/rear screenwash.

F4 10 Daytime running lamps.

F5 15 Canister purge electrovalves, turbine discharge
and Turbo pressure regulation electrovalves
(1.6 l THP 16V), oil vapour heater (1.6 l THP 16V),
diesel heater (1.6 l HDI 16V).

F6 10 Diagnostic socket, directional headlamps, particle
emission fi lter pump (Diesel), Distance alert,
engine coolant level detector, mirror adjustment
control.

F7 10 Power steering control unit, automatic gearbox,
directional headlamps height adjustment motor.

F8 20 Starter motor control.

F9 10 Clutch and brake pedal switches.

F10 30 Engine management unit actuators (petrol:
ignition coils, electrovalves, oxygen sensors,
injectors, heaters, fuel pump, electronic thermostat)
(Diesel: electrovalves, heaters).

F11 40 Air conditioning blower.
