Page 51 of 331
54
A few definitions…
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km). If dashes are displayed contin-
uously while driving in place of
the digits, contact a PEUGEOT
dealer. This function is only displayed
from 20 mph (30 km/h).
This value may vary following
a change in the style of driv-
ing or the relief, resulting in a
s i g n i fi c a n t c h a n g e i n t h e c u r r e n t f u e l
consumption. R a n g e
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled. Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consump-
tion during the last few seconds.
A v e r a g e f u e l c o n s u m p t i o n
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset. D i s t a n c e t r a v e l l e d
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.
A v e r a g e s p e e d
(mph or km/h)
This is the average speed calcu-
lated since the last trip computer
zero reset (ignition on). D i s t a n c e r e m a i n i n g t o
destination
(miles or km)
This is the distance remaining
t o b e t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Page 52 of 331
52
Monochrome screen C
Instrument panel screen - P e u g e o t C o n n e c t M e d i a
16/9 colour screen - P e u g e o t C o n n e c t N a v i g a t i o n
TRIP COMPUTER
System which provides current in-
formation concerning the trip (range,
consumption…).
Depending on your vehicle's
equipment, the trip computer
information appears on the
multifunction screen or on the instru-
ment panel screen.
Data displays
Press the button, located at the end
of the wiper stalk , to display the
various trip computer tabs in suc-
cession. With the instrument panel screen
( P e u g e o t C o n n e c t M e d i a )
Press the up and down arrows on
the navigator, associated with the
Peugeot Connect Media, to display
the various trip computer tabs in
succession.
With the screen C or the colour
s c r e e n ( P e u g e o t C o n n e c t N a v i g a t i o n )
Page 53 of 331
53
Trip zero reset
With the screen C or the colour
screen (
P e u g e o t C o n n e c t N a v i g a t i o n
)
When the trip required is displayed,
press the control for more than
two seconds.
With the instrument panel screen (
P e u g e o t C o n n e c t M e d i a
)
When the required trip is displayed,
press the "OK" button on the navi-
gator, associated with the Peugeot
Connect Media, for more than
two seconds.
Trips "1" and "2" are independent but
their use is identical.
Trip "1" permits, for example, daily calcu-
lations, and trip "2" monthly calculations.
- The current information
tab with:
Page 54 of 331
54
A few definitions…
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km). If dashes are displayed contin-
uously while driving in place of
the digits, contact a PEUGEOT
dealer. This function is only displayed
from 20 mph (30 km/h).
This value may vary following
a change in the style of driv-
ing or the relief, resulting in a
s i g n i fi c a n t c h a n g e i n t h e c u r r e n t f u e l
consumption. R a n g e
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled. Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consump-
tion during the last few seconds.
A v e r a g e f u e l c o n s u m p t i o n
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset. D i s t a n c e t r a v e l l e d
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.
A v e r a g e s p e e d
(mph or km/h)
This is the average speed calcu-
lated since the last trip computer
zero reset (ignition on). D i s t a n c e r e m a i n i n g t o
destination
(miles or km)
This is the distance remaining
t o b e t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Page 55 of 331
55
VENTILATION
System which creates and maintains
good conditions of comfort and visibility in
the vehicle's passenger compartment.
Controls
The incoming air follows various routes
depending on the controls selected by
the driver.
The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits.
The air distribution control enables you
to diffuse the air making use of several
air vents.
T h e a i r fl o w c o n t r o l e n a b l e s y o u t o
increase or reduce the speed of the
ventilation blower. These controls are grouped together on
control panel
A on the centre console.
Depending on the model, the functions
offered are:
- the level of thermal comfort required,
- a i r fl o w ,
- air distribution,
- demisting/defrosting,
- manual or digital air conditioning controls.
Air intake
The air circulating in the passenger com-
p a r t m e n t i s fi l t e r e d a n d o r i g i n a t e s e i t h e r
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode.
Air distribution
1. Windscreen demisting/defrosting vents.
2. Front side window demisting/defrosting
vents.
3. Side adjustable air vents.
4. Central adjustable air vents.
5. Air outlets to the front footwells.
6. Adjustable air vents for the rear pas-
sengers.
7. Air outlets to the rear footwells.
Page 56 of 331
56

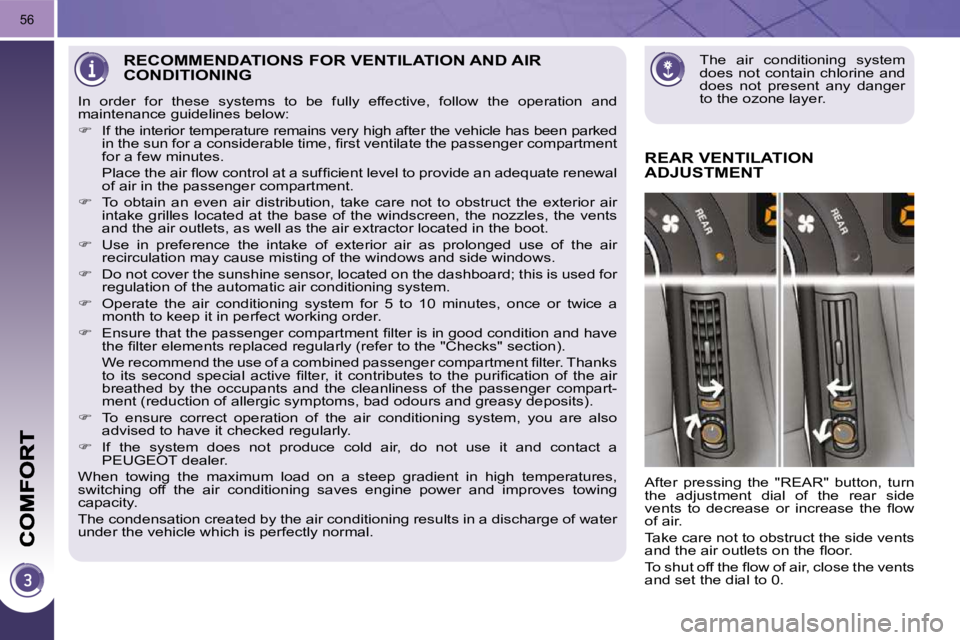

RECOMMENDATIONS FOR VENTILATION AND AIR CONDITIONING
REAR VENTILATION ADJUSTMENT
After pressing the "REAR" button, turn
the adjustment dial of the rear side
v e n t s t o d e c r e a s e o r i n c r e a s e t h e fl o w
of air.
Take care not to obstruct the side vents
a n d t h e a i r o u t l e t s o n t h e fl o o r .
T o s h u t o f f t h e fl o w o f a i r , c l o s e t h e v e n t s
and set the dial to 0.
In order for these systems to be fully effective, follow the
operation and
maintenance guidelines below:
If the interior temperature remains very high aft er the vehicle has been parked
i n t h e s u n f o r a c o n s i d e r a b l e t i m e , fi r s t v e n t i l a t e t h e p a s s e n g e r c o m p a r t m e n t
for a few minutes.
P l a c e t h e a i r fl o w c o n t r o l a t a s u f fi c i e n t l e v e l t o p r o v i d e a n a d e q u a t e r e n e w a l
of air in the passenger compartment.
To obtain an even air distribution, take care not to obst ruct the exterior air
intake grilles located at the base of the windscreen, the n ozzles, the vents
and the air outlets, as well as the air extractor located in the boot.
Use in preference the intake of exterior air as prolonged use of the air
recirculation may cause misting of the windows and side windows.
Do not cover the sunshine sensor, located on the dashboard; this is used for
regulation of the automatic air conditioning system.
Operate the air conditioning system for 5 to 10 minutes, on ce or twice a
month to keep it in perfect working order.
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t m e n t fi l t e r i s i n g o o d c o n d i t i o n a n d h a v e
t h e fi l t e r e l e m e n t s r e p l a c e d r e g u l a r l y ( r e f e r t o t h e " C h e c k s " s e c t i o n ) .
W e r e c o m m e n d t h e u s e o f a c o m b i n e d p a s s e n g e r c o m p a r t m e n t fi l t e r . T h a n k s
t o i t s s e c o n d s p e c i a l a c t i v e fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n o f t h e a i r
breathed by the occupants and the cleanliness of the passenge r compart-
m e n t ( r e d u c t i o n o f a l l e r g i c s y m p t o m s , b a d o d o u r s a n d g r e a s y d e p o s i t s ) .
To ensure correct operation of the air conditioning system, you are also
advised to have it checked regularly.
If the system does not produce cold air, do not use it and contact a
PEUGEOT dealer.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning saves engine power and i mproves towing
capacity.
The condensation created by the air conditioning results in a discharge of water
under the vehicle which is perfectly normal. The air conditioning system
does not contain chlorine and
does not present any danger
to the ozone layer.
Page 57 of 331
57
2 . A i r fl o w a d j u s t m e n t
Turn the dial from position 1
to position 5 to obtain a com-
f o r t a b l e a i r fl o w .
Windscreen, side windows
and front-rear footwells. Footwells, front-rear
( c l o s i n g t h e v e n t s i n c r e a s e s
t h e fl o w t o t h e f o o t w e l l s ) .
Central, side and rear vents.
Turn the dial from blue
( c o l d ) t o r e d ( h o t ) t o a d j u s t
the temperature to your re-
quirements.
Windscreen and side windows.
1 . T e m p e r a t u r e a d j u s t m e n t
The air distribution can be
adapted by placing the dial in
an intermediate position.
The air conditioning can only operate
with the engine running. 4. Air intake/Air recirculation
The intake of exterior air limits misting
of the windscreen and side windows.
The recirculation of interior air insulates
the passenger compartment from exterior
odours and smoke.
Return to exterior air intake as soon as
possible to prevent deterioration of the
air quality and demisting performance.
I
f y o u p l a c e t h e a i r fl o w c o n t r o l
in position 0 ( d e a c t i v a t i o n o f
t h e s y s t e m ) , t h e t e m p e r a t u r e
is no longer maintained at a
3 . A i r d i s t r i b u t i o n a d j u s t m e n t
Press the button to recir-
culate the interior air. The
indicator lamp comes on to
c o n fi r m t h i s .
Press the button again to permit the
intake of exterior air. The indicator
l a m p s w i t c h e s o f f t o c o n fi r m t h i s .
MANUAL AIR CONDITIONING
c o m f o r t a b l e l e v e l . H o w e v e r , a s l i g h t fl o w
of air, due to the movement of the vehicle,
can still be felt.
Page 58 of 331
58
D e m i s t i n g / d e f r o s t i n g
The control button is located
on the air conditioning system
control panel.
REAR SCREEN DEMIST/DEFROST
Switch off the demist/de-
frost of the rear screen and
door mirrors as soon as it
is no longer necessary as
lower current consump-
tion results in reduced fuel
consumption.
S w i t c h i n g o n
The rear screen demist/defrost can only
operate when the engine is running.
Press this button to demist/defrost
the rear screen and the door mir-
rors. The indicator lamp associated
with the button comes on.
S w i t c h i n g o f f
The demist/defrost switches off automati-
cally to prevent an excessive consumption
of current.
It is possible to stop the demist/de-
frost operation before it is switched
off automatically by pressing the
button again. The indicator lamp as-
sociated with the button switches
off.
5 . A i r c o n d i t i o n i n g O n / O f f
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the de- misting in winter, above 0 °C.
S w i t c h i n g o n
Press the "A/C" button, the associ-
ated indicator lamp comes on.
T h e a i r c o n d i t i o n i n g d o e s n o t o p -
e r a t e w h e n t h e a i r fl o w a d j u s t m e n t
c o n t r o l 2 i s i n p o s i t i o n " 0 " .
S w i t c h i n g o f f
Press the "A/C" button again, the
associated indicator lamp switches
off.
switch on the air conditioning by
pressing the "A/C" button.
The marking on the control
panel indicates the position of
the controls to quickly demist
or defrost the windscreen and
side windows:
place the air intake control 4 in the
" E x t e r i o r a i r i n t a k e " p o s i t i o n ( i n d i c a -
t o r l a m p o f f ) ,
place the air distribution dial 3 in the
"Windscreen position",
p l a c e t h e a i r fl o w d i a l 2 in position 5
( m a x i m u m ) ,
place the temperature dial 1 in the
r e d p o s i t i o n ( h o t ) ,
Page 59 of 331
58
D e m i s t i n g / d e f r o s t i n g
The control button is located
on the air conditioning system
control panel.
REAR SCREEN DEMIST/DEFROST
Switch off the demist/de-
frost of the rear screen and
door mirrors as soon as it
is no longer necessary as
lower current consump-
tion results in reduced fuel
consumption.
S w i t c h i n g o n
The rear screen demist/defrost can only
operate when the engine is running.
Press this button to demist/defrost
the rear screen and the door mir-
rors. The indicator lamp associated
with the button comes on.
S w i t c h i n g o f f
The demist/defrost switches off automati-
cally to prevent an excessive consumption
of current.
It is possible to stop the demist/de-
frost operation before it is switched
off automatically by pressing the
button again. The indicator lamp as-
sociated with the button switches
off.
5 . A i r c o n d i t i o n i n g O n / O f f
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the de- misting in winter, above 0 °C.
S w i t c h i n g o n
Press the "A/C" button, the associ-
ated indicator lamp comes on.
T h e a i r c o n d i t i o n i n g d o e s n o t o p -
e r a t e w h e n t h e a i r fl o w a d j u s t m e n t
c o n t r o l 2 i s i n p o s i t i o n " 0 " .
S w i t c h i n g o f f
Press the "A/C" button again, the
associated indicator lamp switches
off.
switch on the air conditioning by
pressing the "A/C" button.
The marking on the control
panel indicates the position of
the controls to quickly demist
or defrost the windscreen and
side windows:
place the air intake control 4 in the
" E x t e r i o r a i r i n t a k e " p o s i t i o n ( i n d i c a -
t o r l a m p o f f ) ,
place the air distribution dial 3 in the
"Windscreen position",
p l a c e t h e a i r fl o w d i a l 2 in position 5
( m a x i m u m ) ,
place the temperature dial 1 in the
r e d p o s i t i o n ( h o t ) ,
Page 60 of 331
59
By means of the air quality sensor, the
system also optimises the air quality
in the passenger compartment. On entering the vehicle, if the
interior temperature is much
colder or warmer than the
comfort value, there is no need to
change the value displayed in order
to obtain the comfort required more
quickly. The system corrects the dif-
ference in temperature automatically
and as quickly as possible.
The air conditioning only operates when
the engine is running. The driver and front passenger
can each adjust the tempera-
ture to their requirements.
Turn control 2 or 3 to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depending
on your requirements, a setting between
18 and 24 is normal.
You are advised to avoid a left/right set-
ting difference of more than 3. 4 . A u t o m a t i c v i s i b i l i t y p r o g r a m m e
The automatic comfort pro-
g r a m m e m a y n o t b e s u f fi c i e n t
to quickly demist or defrost
the windscreen and side win-
d o w s ( h u m i d i t y , s e v e r a l p a s -
s e n g e r s , i c e , e t c . ) .
In this case, select the automatic
visibility programme.
The system automatically controls the
a i r c o n d i t i o n i n g , t h e a i r fl o w a n d t h e a i r
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
A u t o m a t i c o p e r a t i o n
Press the "AUTO" button.
The indicator lamp on the
button comes on.
D U A L - Z O N E D I G I T A L A I R CONDITIONING
We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-
g e r c o m p a r t m e n t t e m p e r a t u r e , a i r fl o w ,
air distribution and air recirculation, in
accordance with the comfort value that
you have chosen.
This system is designed to operate
effectively in all seasons, with the win-
dows closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
To switch it off, press the " v i s i b i l i t y "
button again or press the "AUTO"
button, the indicator lamp on the but-
ton switches off or the indicator lamp
on the "AUTO" button comes on.
1 . A u t o m a t i c c o m f o r t p r o g r a m m e
2 - 3 . D r i v e r - p a s s e n g e r s i d e
a d j u s t m e n t When the engine is cold, to
prevent too great a distribution
o f c o l d a i r , t h e a i r fl o w w i l l r e a c h
its optimum level gradually.
In cold weather, it favours the distri-
bution of warm air to the windscreen,
side windows and footwells only.
