FA
M
14

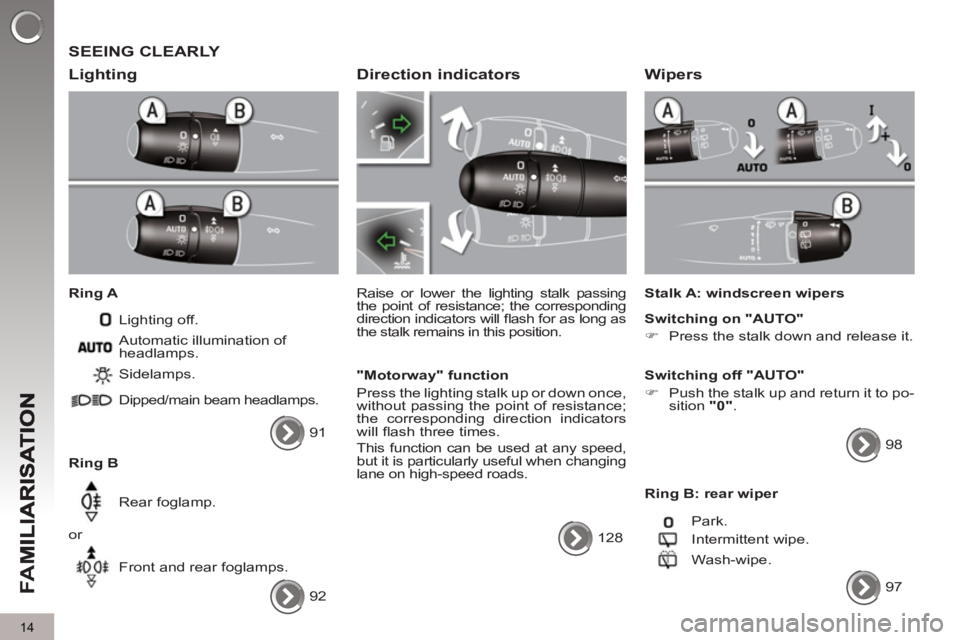

SEEING CLEARLY

Li
ghting


Ring A
Lighting off.

Ring B Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or
Front and rear foglamps. Automatic illumination of
headlamps.
92

Direction indicators

Raise or lower the lighting stalk passing
the point of resistance; the corresponding
direction indicators will fl ash for as long as
the stalk remains in this position.

"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
This function can be used at any speed,
but it is particularly useful when changing
lane on high-speed roads.
128



Wipers


Stalk A: windscreen wipers

Switching on "AUTO"


)
Press the stalk down and release it.


Switching off "AUTO"


)
Push the stalk up and return it to po-
sition "0"
.
98

Ring B: rear wiper
Park.
Intermittent wipe.
Wash-wipe.
97
91

PRACTICAL INFORMATION
194

Risk of electrocution

Xenon bulbs (D1S-35W) must
be replaced by a PEUGEOT
dealer or a qualifi ed workshop.

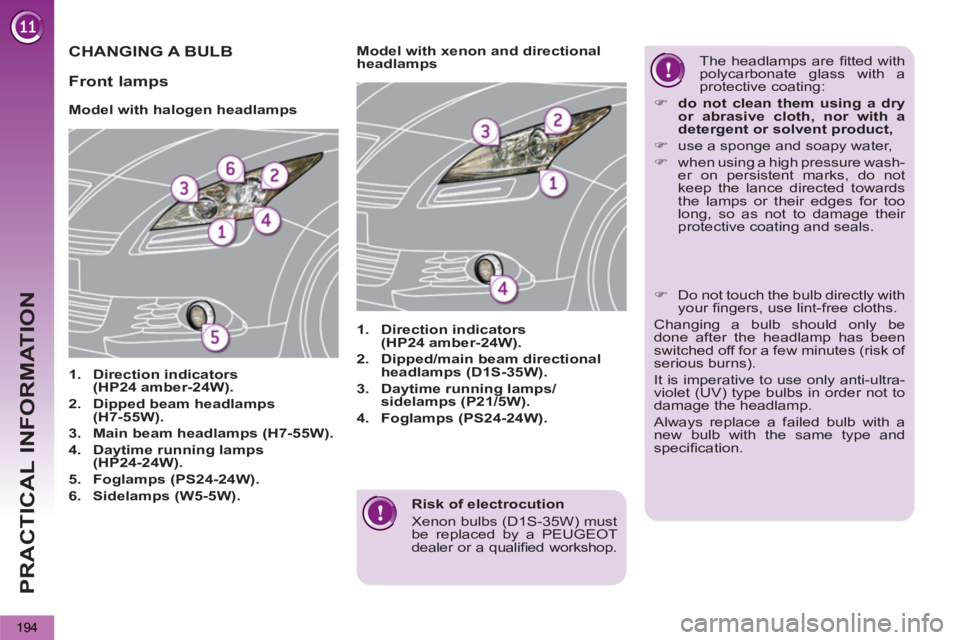

CHANGING A BULB








Model with halogen headlamps


1.
Direction indicators
(HP24 amber-24W).


2.
Dipped beam headlamps
(H7-55W).


3.
Main beam headlamps (H7-55W).


4.
Daytime running lamps
(HP24-24W).


5.
Foglamps (PS24-24W).


6.
Sidelamps (W5-5W).





1.
Direction indicators
(HP24 amber-24W).


2.
Dipped/main beam directional
headlamps (D1S-35W).


3.
Daytime running lamps/
sidelamps (P21/5W).


4.
Foglamps (PS24-24W).






























Model with xenon and directional
headlamps The headlamps are fi tted with
polycarbonate glass with a
protective coating:


)
do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,


)
use a sponge and soapy water,

)
when using a high pressure wash-
er on persistent marks, do not
keep the lance directed towards
the lamps or their edges for too
long, so as not to damage their
protective coating and seals.


Front lamps




)
Do not touch the bulb directly with
your fi ngers, use lint-free cloths.
Changing a bulb should only be
done after the headlamp has been
switched off for a few minutes (risk of
serious burns).
It is imperative to use only anti-ultra-
violet (UV) type bulbs in order not to
damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specifi cation.
