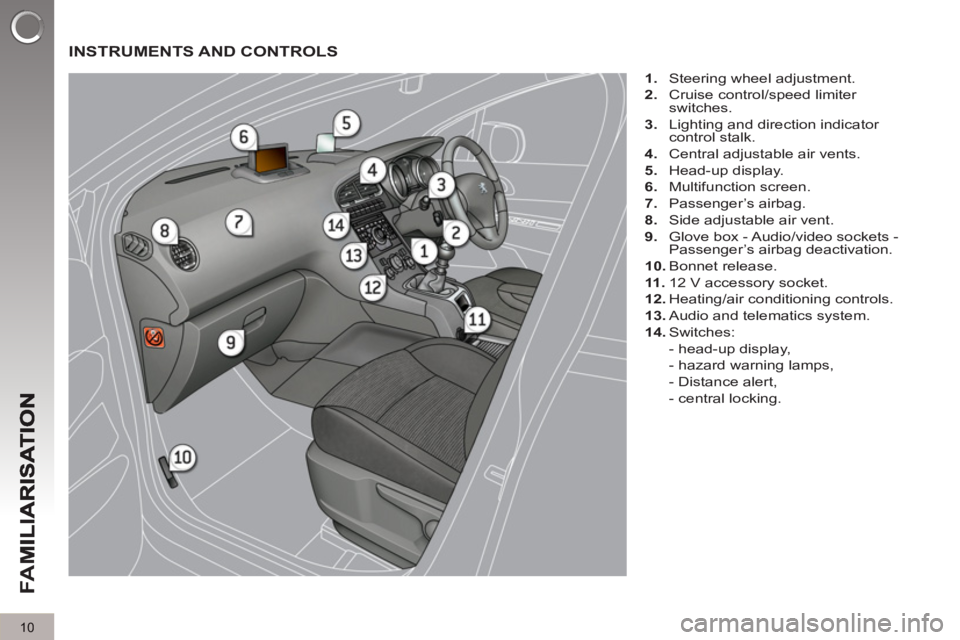

INSTRUMENTS AND CONTROLS



1.
Steering wheel adjustment.

2.
Cruise control/speed limiter
switches.

3.
Lighting and direction indicator
control stalk.

4.
Central adjustable air vents.

5.
Head-up display.

6.
Multifunction screen.

7.
Passenger’s airbag.

8.
Side adjustable air vent.

9.
Glove box - Audio/video sockets -
Passenger’s airbag deactivation.

10.
Bonnet release.

11 .
12 V accessory socket.

12.
Heating/air conditioning controls.

13.
Audio and telematics system.

14.
Switches:
- head-up display,
- hazard warning lamps,
- Distance alert,
- central locking.

FA
M
12

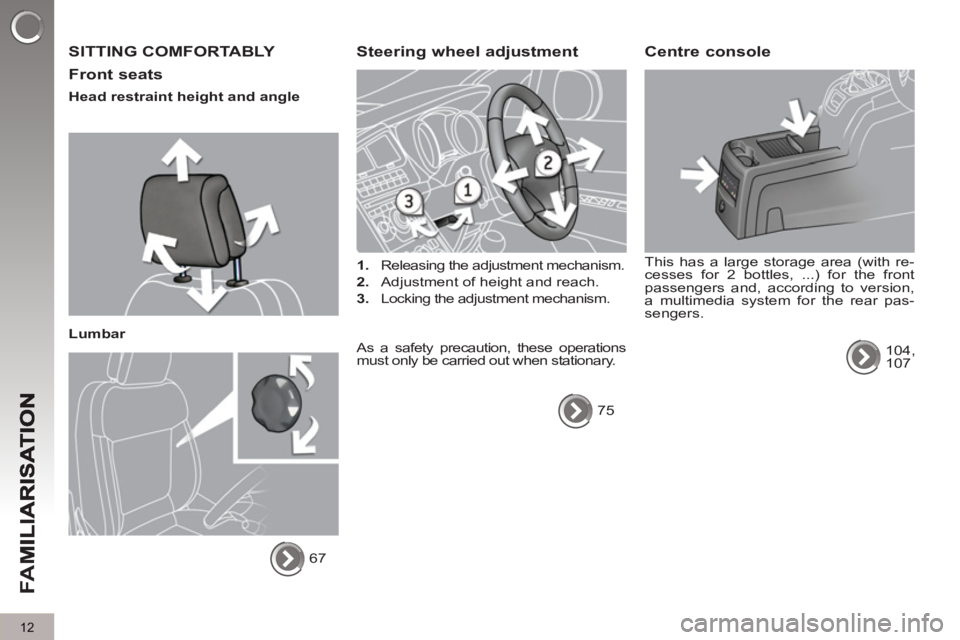

SITTING COMFORTABLY

Front seats


Head restraint height and angle

Lumbar
67

Steering wheel adjustment



1.
Releasing the adjustment mechanism.

2.
Adjustment of height and reach.

3.
Locking the adjustment mechanism.
As a safety precaution, these operations
must only be carried out when stationary.
75


Centre console

This has a large storage area (with re-
cesses for 2 bottles, ...) for the front
passengers and, according to version,
a multimedia system for the rear pas-
sengers.
104,
107

26

Limit the causes of excess consumption


Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.

At the end of winter, remove snow
tyres and refi t your summer tyres.

Observe the recommendationson maintenance


Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.

Have your vehicle serviced regularly (en-
gine oil, oil fi lter, air fi lter...) and observe the
schedule of operations recommended by
the manufacturer.


When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid
any overfl ow.


At the wheel of your new vehicle, it is only
after the fi rst 1 800 miles (3 000 kilome-
tres) that you will see the fuel consumption
settle down to a consistent average.

37
IN
S

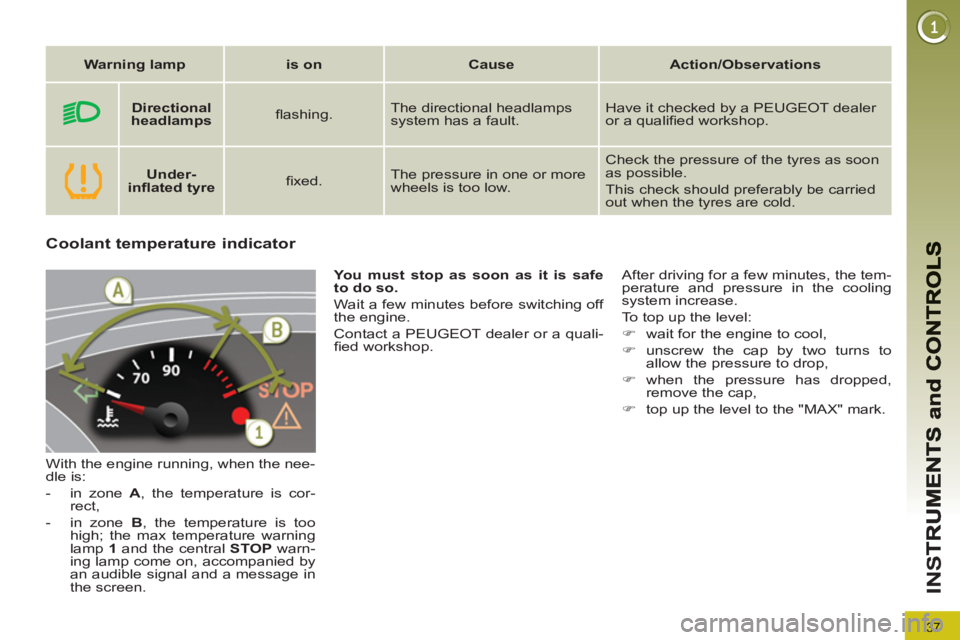

Coolant temperature indicator
With the engine running, when the nee-
dle is:


- in zone A
, the temperature is cor-
rect,

- in zone B
, the temperature is too
high; the max temperature warning
lamp 1
and the central STOP
warn-
ing lamp come on, accompanied by
an audible signal and a message in
the screen. After driving for a few minutes, the tem-
perature and pressure in the cooling
system increase.
To top up the level:


)
wait for the engine to cool,

)
unscrew the cap by two turns to
allow the pressure to drop,

)
when the pressure has dropped,
remove the cap,

)
top up the level to the "MAX" mark.

You must stop as soon as it is safe
to do so.

Wait a few minutes before switching off
the engine.
Contact a PEUGEOT dealer or a quali-
fi ed workshop.

Warning lamp



is on



Cause



Action/Observations




Directional
headlamps


fl ashing. The directional headlamps
system has a fault. Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.


Under-
infl ated tyre


fi xed. The pressure in one or more
wheels is too low. Check the pressure of the tyres as soon
as possible.
This check should preferably be carried
out when the tyres are cold.

FITTINGS
102

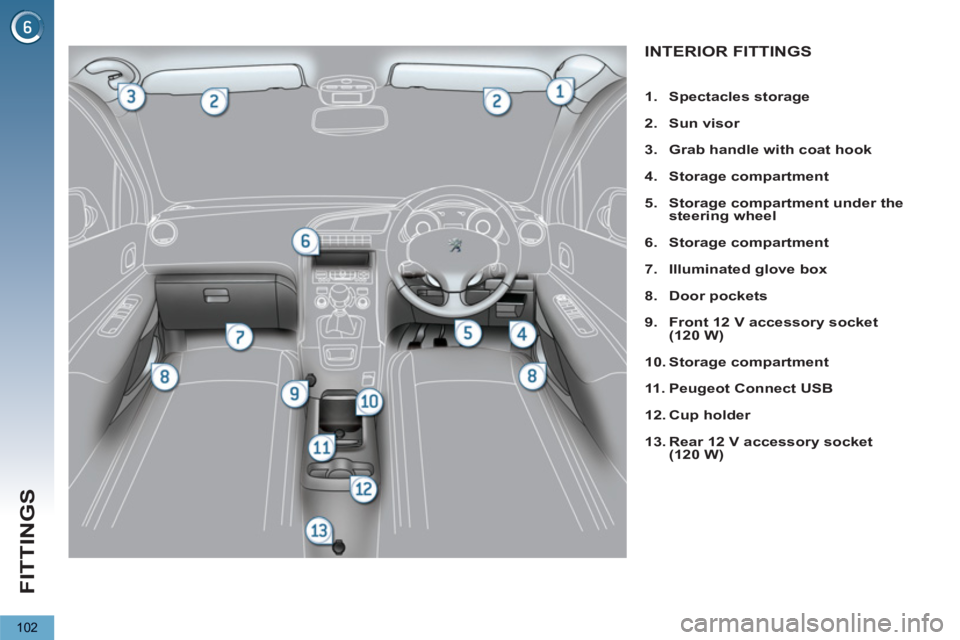

INTERIOR FITTINGS


1.
Spectacles storage


2.
Sun visor


3.
Grab handle with coat hook


4.
Storage compartment


5.
Storage compartment under the
steering wheel


6.
Storage compartment


7.
Illuminated glove box


8.
Door pockets


9.
Front 12 V accessory socket
(120 W)


10.
Storage compartment


11 .
Peugeot Connect USB


12.
Cup holder


13.
Rear 12 V accessory socket
(120 W)

FITTINGS
115

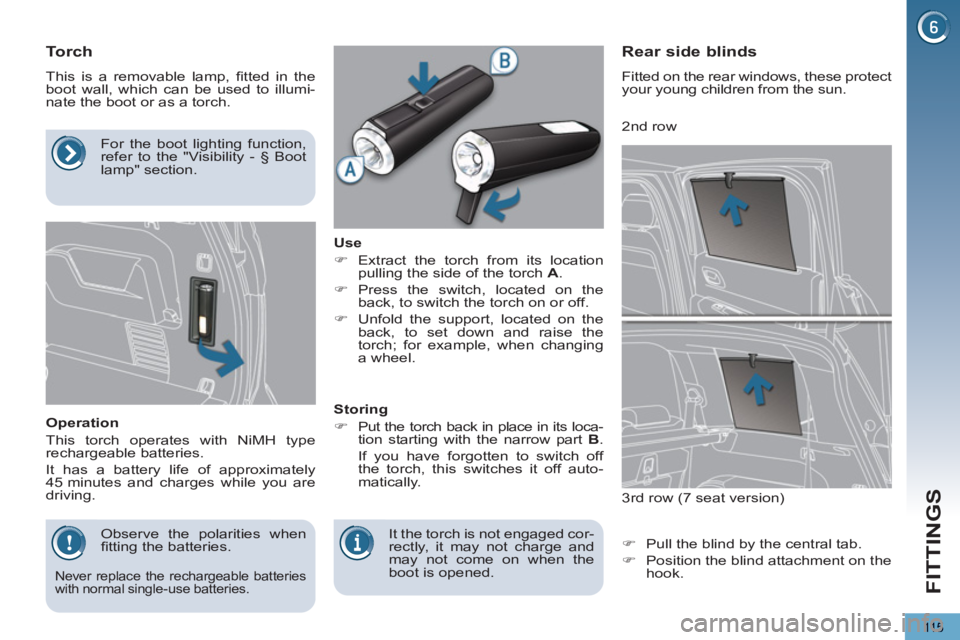

Torch

This is a removable lamp, fi tted in the
boot wall, which can be used to illumi-
nate the boot or as a torch.

Operation
This torch operates with NiMH type
rechargeable batteries.
It has a battery life of approximately
45 minutes and charges while you are
driving.
Use


)
Extract the torch from its location
pulling the side of the torch A
.

)
Press the switch, located on the
back, to switch the torch on or off.

)
Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.


Storing


)
Put the torch back in place in its loca-
tion starting with the narrow part B
.
If you have forgotten to switch off
the torch, this switches it off auto-
matically.










Rear side blinds

Fitted on the rear windows, these protect
your young children from the sun.


)
Pull the blind by the central tab.

)
Position the blind attachment on the
hook.
Observe the polarities when
fi tting the batteries.

Never replace the rechargeable batteries
with normal single-use batteries.

It the torch is not engaged cor-
rectly, it may not charge and
may not come on when the
boot is opened.
For the boot lighting function,
refer to the "Visibility - § Boot
lamp" section.
3 rd row (7 seat version)
2 nd row

SA
F
128

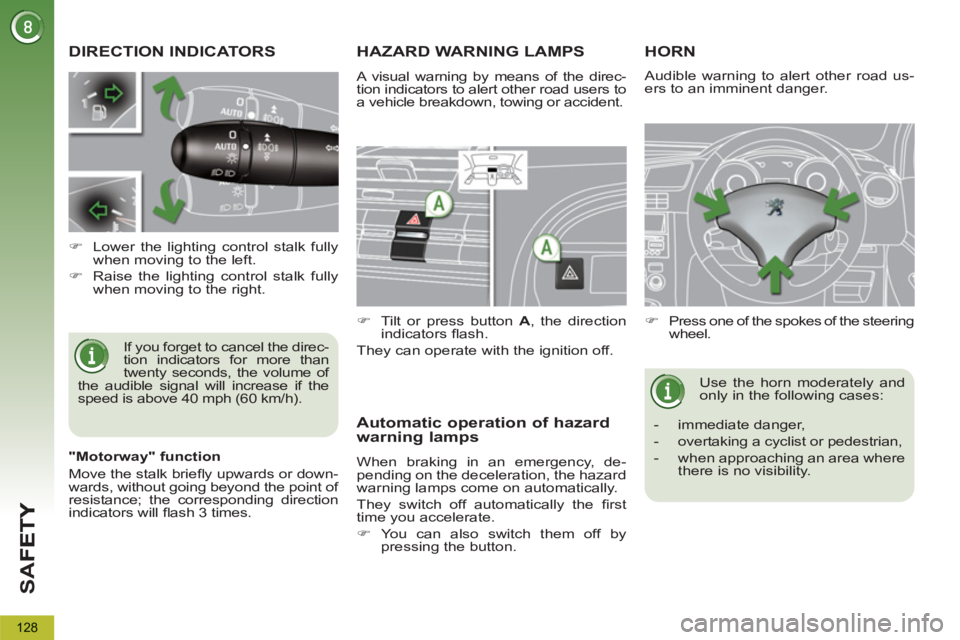

DIRECTION INDICATORS
If you forget to cancel the direc-
tion indicators for more than
twenty seconds, the volume of
the audible signal will increase if the
speed is above 40 mph (60 km/h).


)
Lower the lighting control stalk fully
when moving to the left.

)
Raise the lighting control stalk fully
when moving to the right.
HAZARD WARNING LAMPS

A visual warning by means of the direc-
tion indicators to alert other road users to
a vehicle breakdown, towing or accident.


)
Tilt or press button A
, the direction
indicators fl ash.
They can operate with the ignition off.
Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
They switch off automatically the fi rst
time you accelerate.


)
You can also switch them off by
pressing the button.

HORN



)
Press one of the spokes of the steering
wheel.
Use the horn moderately and
only in the following cases:


- immediate danger,

- overtaking a cyclist or pedestrian,

- when approaching an area where
there is no visibility.

Audible warning to alert other road us-
ers to an imminent danger.

"Motorway" function
Move the stalk briefl y upwards or down-
wards, without going beyond the point of
resistance; the corresponding direction
indicators will fl ash 3 times.

SA
F
129

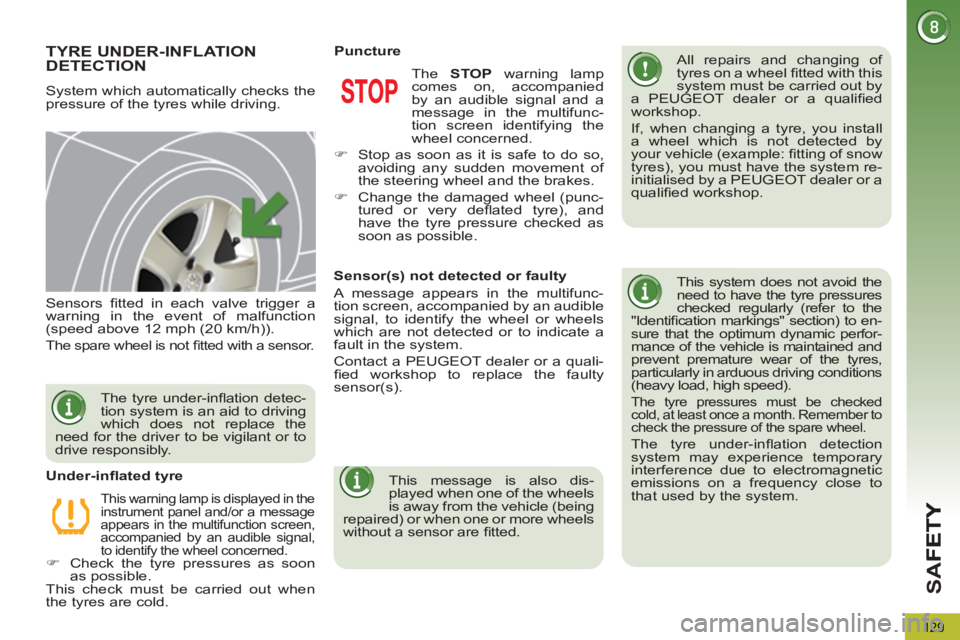

TYRE UNDER-INFLATION DETECTION
System which automatically checks the
pressure of the tyres while driving.
All repairs and changing of
tyres on a wheel fi tted with this
system must be carried out by
a PEUGEOT dealer or a qualifi ed
workshop.
If, when changing a tyre, you install
a wheel which is not detected by
your vehicle (example: fi tting of snow
tyres), you must have the system re-
initialised by a PEUGEOT dealer or a
qualifi ed workshop.

This system does not avoid the
need to have the tyre pressures
checked regularly (refer to the
"Identifi cation markings" section) to en-
sure that the optimum dynamic perfor-
mance of the vehicle is maintained and
prevent premature wear of the tyres,
particularly in arduous driving conditions
(heavy load, high speed).
The tyre pressures must be checked
cold, at least once a month. Remember to
check the pressure of the spare wheel.
The tyre under-infl ation detection
system may experience temporary
interference due to electromagnetic
emissions on a frequency close to
that used by the system.

Sensors fi tted in each valve trigger a
warning in the event of malfunction
(speed above 12 mph (20 km/h)).

The spare wheel is not fi tted with a sensor.

This warning lamp is displayed in the
instrument panel and/or a message
appears in the multifunction screen,
accompanied by an audible signal,
to identify the wheel concerned.


)
Check the tyre pressures as soon
as possible.
This check must be carried out when
the tyres are cold.
Under-infl ated tyre The STOP
warning lamp
comes on, accompanied
by an audible signal and a
message in the multifunc-
tion screen identifying the
wheel concerned.


)
Stop as soon as it is safe to do so,
avoiding any sudden movement of
the steering wheel and the brakes.

)
Change the damaged wheel (punc-
tured or very defl ated tyre), and
have the tyre pressure checked as
soon as possible.

Puncture

The tyre under-infl ation detec-
tion system is an aid to driving
which does not replace the
need for the driver to be vigilant or to
drive responsibly.


Sensor(s) not detected or faulty
A message appears in the multifunc-
tion screen, accompanied by an audible
signal, to identify the wheel or wheels
which are not detected or to indicate a
fault in the system.
Contact a PEUGEOT dealer or a quali-
fi ed workshop to replace the faulty
sensor(s).

This message is also dis-
played when one of the wheels
is away from the vehicle (being
repaired) or when one or more wheels
without a sensor are fi tted.
