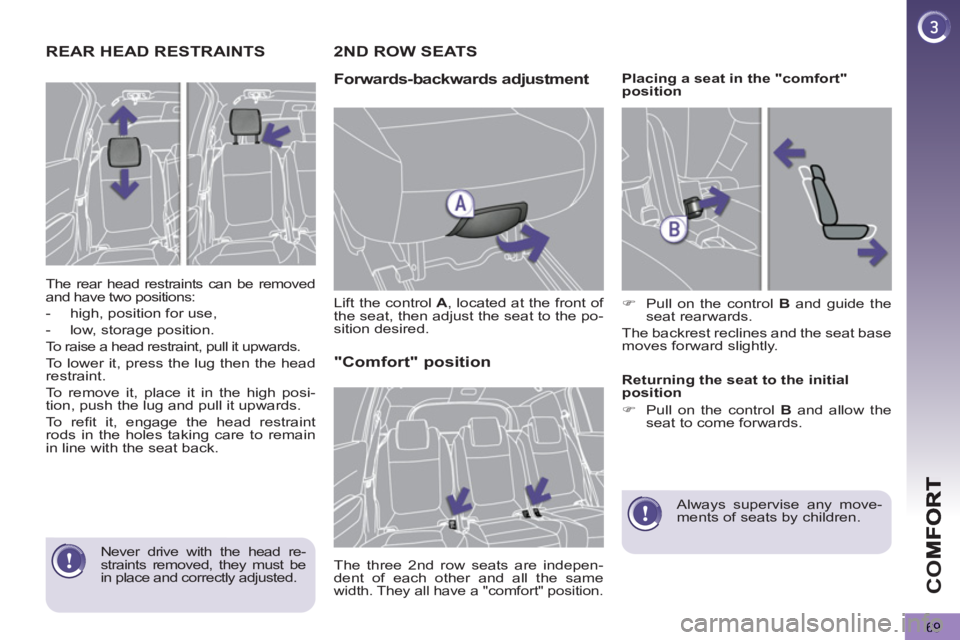

REAR HEAD RESTRAINTS
The rear head restraints can be removed
and have two positions:


- high, position for use,

- low, storage position.
To raise a head restraint, pull it upwards.
To lower it, press the lug then the head
restraint.
To remove it, place it in the high posi-
tion, push the lug and pull it upwards.
To r efi t it, engage the head restraint
rods in the holes taking care to remain
in line with the seat back.
2 NDROW SEATS

Forwards-backwards ad
justment

Lift the control A
, located at the front of
the seat, then adjust the seat to the po-
sition desired.
"Comfort" position

The three 2 nd row seats are indepen-
dent of each other and all the same
width. They all have a "comfort" position.

Placing a seat in the "comfort"
position


)
Pull on the control B
and guide the
seat rearwards.
The backrest reclines and the seat base
moves forward slightly.

Returning the seat to the initial
position


)
Pull on the control B
and allow the
seat to come forwards.


Always supervise any move-
ments of seats by children.

Never drive with the head re-
straints removed, they must be
in place and correctly adjusted.
