Page 38 of 340
36
IN
S
Battery
charge
fi xed. The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...). The warning lamp should go off when
the engine is started.
If it does not go off, contact a PEUGEOT
dealer or a qualifi ed workshop.
Warning lamp
is on
Cause
Action/Observations
Front seat
belt not
fastened/
unfastened
fi xed then fl ashing
accompanied by an
increasing audible
signal. The driver and/or the front
passenger has not fastened
or has unfastened their seat
belt.
Pull the strap then insert the tongue in
the buckle.
Rear seat
belt not
fastened/
unfastened
fi xed then fl ashing
accompanied by an
audible signal. One or more rear
passengers have unfastened
their seat belt.
Door(s)
open
fi xed if the speed is
below 6 mph (10 km/h).
A door, the boot, the lower
tailgate or the bonnet
(with alarm only) is still open. Close the door or boot.
fi xed and accompanied
by an audible signal
if the speed is above
6 mph (10 km/h).
Airbags
on temporarily. This lamp comes on for a few
seconds when you turn on
the ignition, then goes off. This lamp should go off when the engine
is started.
If it does not go off, contact a PEUGEOT
dealer or a qualifi ed workshop.
fi xed. One of the airbag or seat belt
pretensioner systems has a
fault. Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
Water in
Diesel
fi xed. The Diesel fuel fi lter contains
water. Risk of damage to the injection system
on Diesel engines.
Contact a PEUGEOT dealer or a
qualifi ed workshop without delay.
Page 83 of 340
AC
81

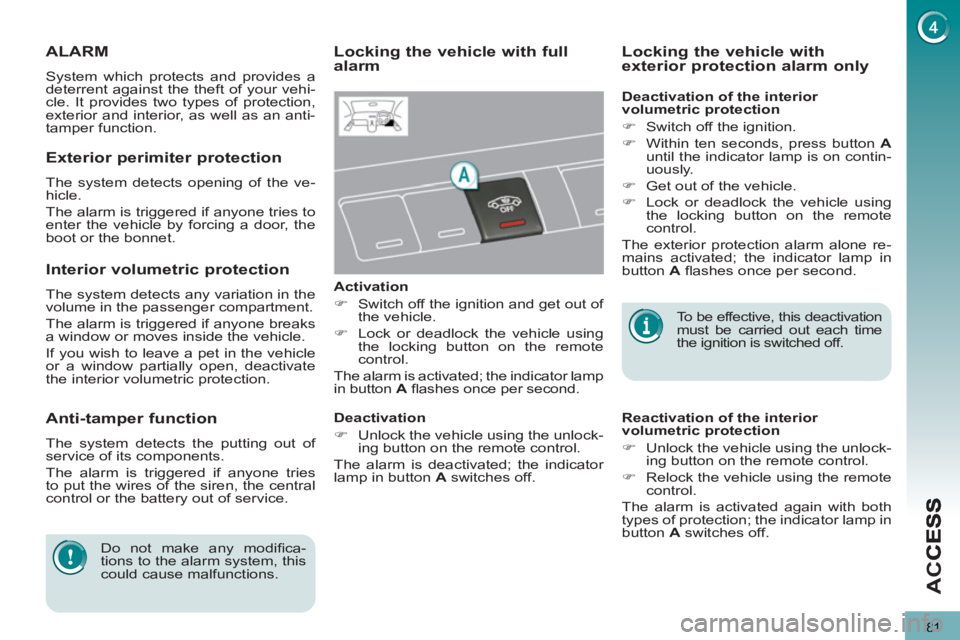

ALARM
System which protects and provides a
deterrent against the theft of your vehi-
cle. It provides two types of protection,
exterior and interior, as well as an anti-
tamper function.
Locking the vehicle with fullalarm
Do not make any modifi ca-
tions to the alarm system, this
could cause malfunctions.
To be effective, this deactivation
must be carried out each time
the ignition is switched off.
Reactivation of the interior
volumetric protection
)
Unlock the vehicle using the unlock-
ing button on the remote control.
)
Relock the vehicle using the remote
control.
The alarm is activated again with both
types of protection; the indicator lamp in
button A
switches off.
Locking the vehicle with exterior protection alarm only
Deactivation
)
Unlock the vehicle using the unlock-
ing button on the remote control.
The alarm is deactivated; the indicator
lamp in button A
switches off.
Exterior perimiter protection
The system detects opening of the ve-
hicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior volumetric protection
The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior volumetric protection.
Anti-tamper function
The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
Activation
)
Switch off the ignition and get out of
the vehicle.
)
Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator lamp
in button A
fl ashes once per second.
Deactivation of the interior
volumetric protection
)
Switch off the ignition.
)
Within ten seconds, press button A
until the indicator lamp is on contin-
uously.
)
Get out of the vehicle.
)
Lock or deadlock the vehicle using
the locking button on the remote
control.
The exterior protection alarm alone re-
mains activated; the indicator lamp in
button A
fl ashes once per second.
Page 174 of 340
CHECKS
172

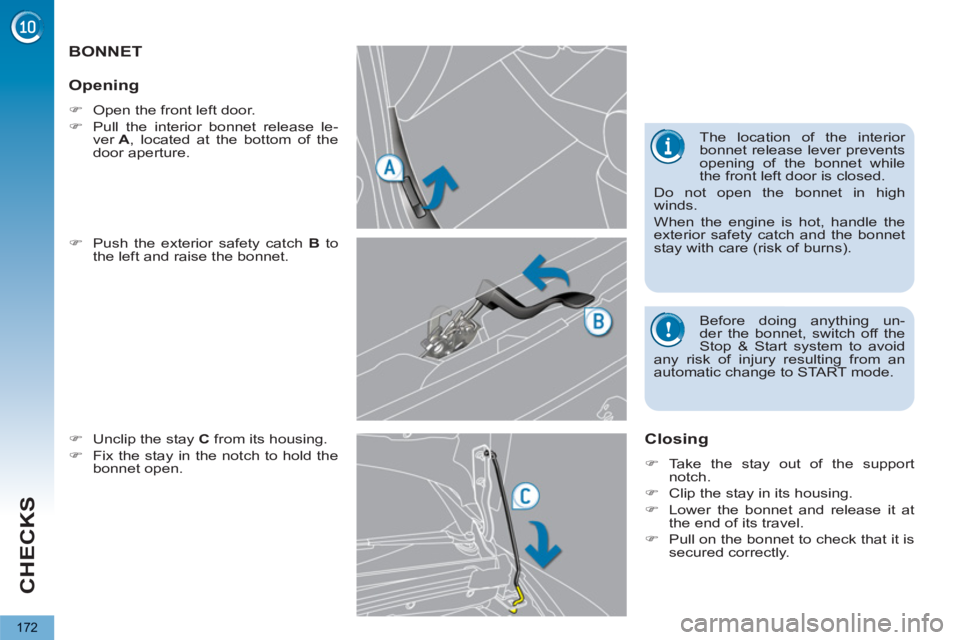

BONNET
)
Push the exterior safety catch B
to
the left and raise the bonnet.
)
Unclip the stay C
from its housing.
)
Fix the stay in the notch to hold the
bonnet open.
Closing
)
Take the stay out of the support
notch.
)
Clip the stay in its housing.
)
Lower the bonnet and release it at
the end of its travel.
)
Pull on the bonnet to check that it is
secured correctly.
Opening
)
Open the front left door.
)
Pull the interior bonnet release le-
ver A
, located at the bottom of the
door aperture. The location of the interior
bonnet release lever prevents
opening of the bonnet while
the front left door is closed.
Do not open the bonnet in high
winds.
When the engine is hot, handle the
exterior safety catch and the bonnet
stay with care (risk of burns).
Before doing anything un-
der the bonnet, switch off the
Stop & Start system to avoid
any risk of injury resulting from an
automatic change to START mode.
Page 175 of 340
CHECKS
173

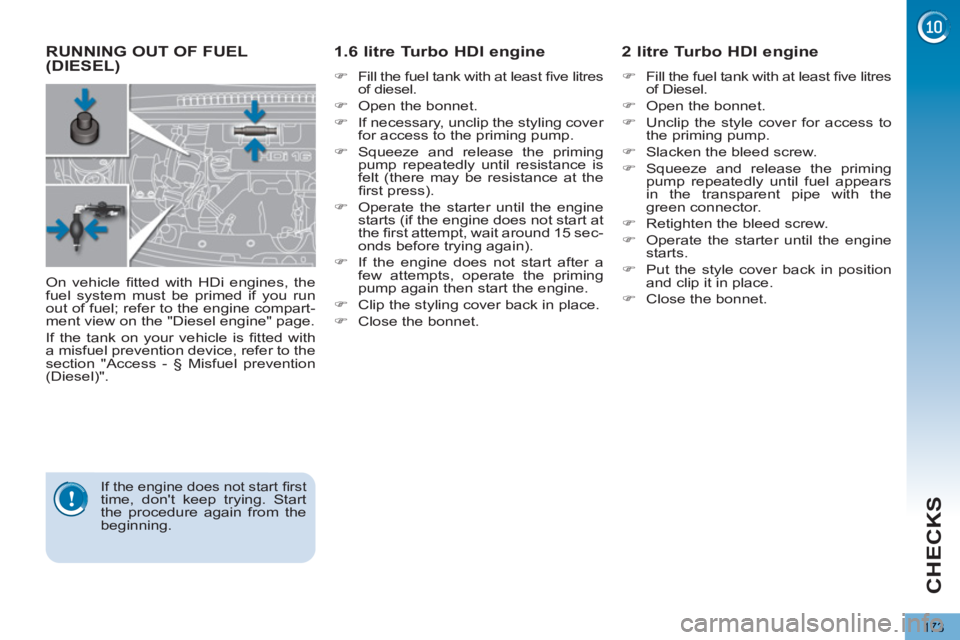

RUNNING OUT OF FUEL(DIESEL)
1.6 litre Turbo HDI engine
)
Fill the fuel tank with at least fi ve litres
of diesel.
)
Open the bonnet.
)
If necessary, unclip the styling cover
for access to the priming pump.
)
Squeeze and release the priming
pump repeatedly until resistance is
felt (there may be resistance at the
fi rst press).
)
Operate the starter until the engine
starts (if the engine does not start at
the fi rst attempt, wait around 15 sec-
onds before trying again).
)
If the engine does not start after a
few attempts, operate the priming
pump again then start the engine.
)
Clip the styling cover back in place.
)
Close the bonnet.
2 litre Turbo HDI engine
)
Fill the fuel tank with at least fi ve litres
of Diesel.
)
Open the bonnet.
)
Unclip the style cover for access to
the priming pump.
)
Slacken the bleed screw.
)
Squeeze and release the priming
pump repeatedly until fuel appears
in the transparent pipe with the
green connector.
)
Retighten the bleed screw.
)
Operate the starter until the engine
starts.
)
Put the style cover back in position
and clip it in place.
)
Close the bonnet.
On vehicle fi tted with HDi engines, the
fuel system must be primed if you run
out of fuel; refer to the engine compart-
ment view on the "Diesel engine" page.
If the tank on your vehicle is fi tted with
a misfuel prevention device, refer to the
section "Access - § Misfuel prevention
(Diesel)".
If the engine does not start fi rst time, don't keep trying. Start
the procedure again from the
beginning.
Page 208 of 340
PRACTICAL INFORMATION

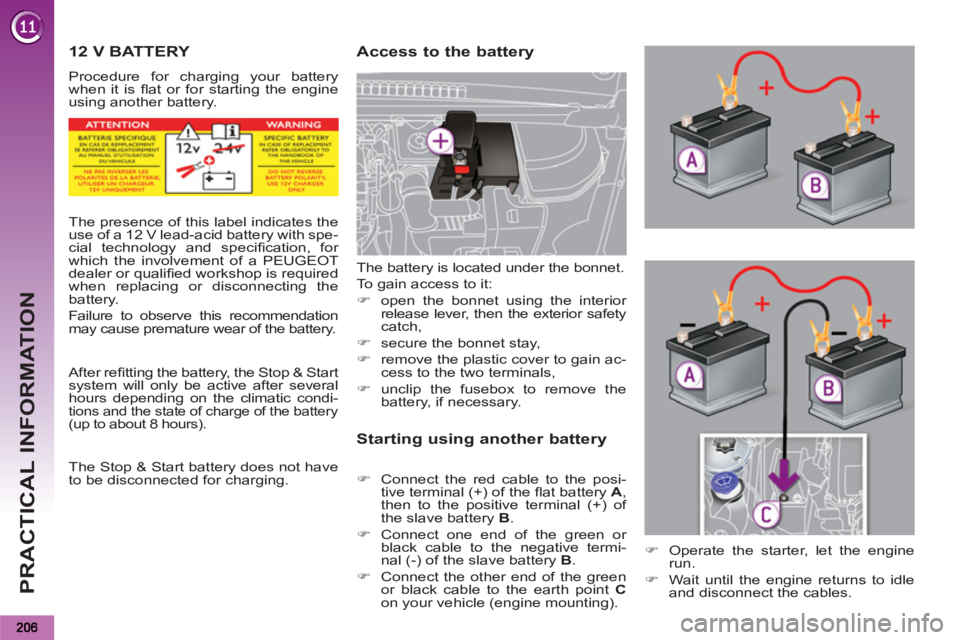

12 V BATTERY
Procedure for charging your battery
when it is fl at or for starting the engine
using another battery.
Access to the battery
Starting using another battery
)
Connect the red cable to the posi-
tive terminal (+) of the fl at battery A
,
then to the positive terminal (+) of
the slave battery B
.
)
Connect one end of the green or
black cable to the negative termi-
nal (-) of the slave battery B
.
)
Connect the other end of the green
or black cable to the earth point C
on your vehicle (engine mounting). The battery is located under the bonnet.
To gain access to it:
)
open the bonnet using the interior
release lever, then the exterior safety
catch,
)
secure the bonnet stay,
)
remove the plastic cover to gain ac-
cess to the two terminals,
)
unclip the fusebox to remove the
battery, if necessary.
The presence of this label indicates the
use of a 12 V lead-acid battery with spe-
cial technology and specifi cation, for
which the involvement of a PEUGEOT
dealer or qualifi ed workshop is required
when replacing or disconnecting the
battery.
Failure to observe this recommendation
may cause premature wear of the battery.
After refi tting the battery, the Stop & Start
system will only be active after several
hours depending on the climatic condi-
tions and the state of charge of the battery (up to about 8 hours).
The Stop & Start battery does not have
to be disconnected for charging.
)
Operate the starter, let the engine
run.
)
Wait until the engine returns to idle
and disconnect the cables.
Page 329 of 340

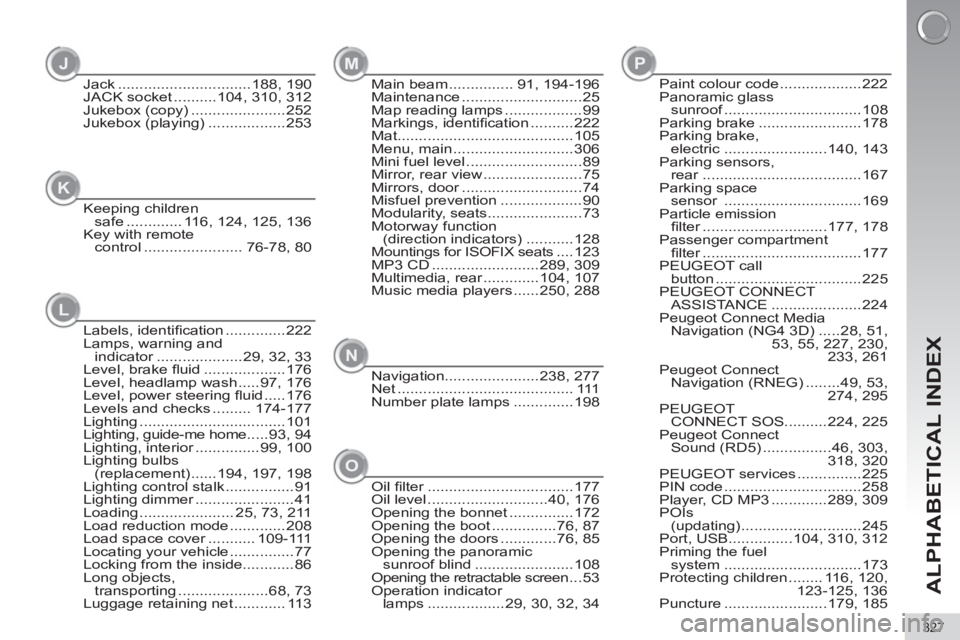

ALPHABETICAL INDEX
327
Main beam ............... 91, 194-196
Maintenance ............................25
Map reading lamps ..................99
Markings, identifi cation ..........222
Mat.........................................105
Menu, main ............................306
Mini fuel level ...........................89
Mirror, rear view .......................75
Mirrors, door ............................74
Misfuel prevention ...................90
Modularity, seats ......................73
Motorway function
(direction indicators) ...........128
Mountings for ISOFIX seats ....123
MP3 CD .........................289, 309
Multimedia, rear .............104, 107
Music media players ......250, 288
M
Navigation......................238, 277
Net ......................................... 111
Number plate lamps ..............198
N
Paint colour code ...................222
Panoramic glass
sunroof ................................108
Parking brake ........................178
Parking brake,
electric ........................140, 143
Parking sensors,
rear .....................................167
Parking space
sensor ................................169
Particle emission
fi lter .............................177, 178
Passenger compartment
fi lter .....................................177
PEUGEOT call
button ..................................225
PEUGEOT CONNECT
ASSISTANCE .....................224
Peugeot Connect Media
Navigation (NG4 3D) .....28, 51,
53, 55, 227, 230,
233, 261
Peugeot Connect
Navigation (RNEG) ........49, 53,
274, 295
PEUGEOT
CONNECT SOS ..........224, 225
Peugeot Connect
Sound (RD5) ................46, 303,
318, 320
PEUGEOT services ...............225
PIN code ................................258
Player, CD MP3 .............289, 309
POIs
(updating) ............................245
Port, USB...............104, 310, 312
Priming the fuel
system ................................173
Protecting children ........ 116, 120,
123-125, 136
Puncture ........................179, 185
P
Jack ...............................188, 190
JACK socket ..........104, 310, 312
Jukebox (copy) ......................252
Jukebox (playing) ..................253
J
Keeping children
safe ............. 116, 124, 125, 136
Key with remote
control ....................... 76-78, 80
K
Labels, identifi cation ..............222
Lamps, warning and
indicator ....................29, 32, 33
Level, brake fl uid ...................176
Level, headlamp wash .....97, 176
Level, power steering fl uid .....176
Levels and checks ......... 174-177
Lighting ..................................101
Lighting, guide-me home .....93, 94
Lighting, interior ...............99, 100
Lighting bulbs
(replacement) ......194, 197, 198
Lighting control stalk ................91
Lighting dimmer .......................41
Loading ...................... 25, 73, 211
Load reduction mode .............208
Load space cover ........... 109-111
Locating your vehicle ...............77
Locking from the inside............86
Long objects,
transporting .....................68, 73
Luggage retaining net ............ 113
L
Oil fi lter ..................................177
Oil level ............................40, 176
Opening the bonnet ...............172
Opening the boot ...............76, 87
Opening the doors .............76, 85
Opening the panoramic
sunroof blind .......................108
Opening the retractable screen ...53
Operation indicator
lamps ..................29, 30, 32, 34
O
Page 334 of 340
VISUAL SEARCH
332

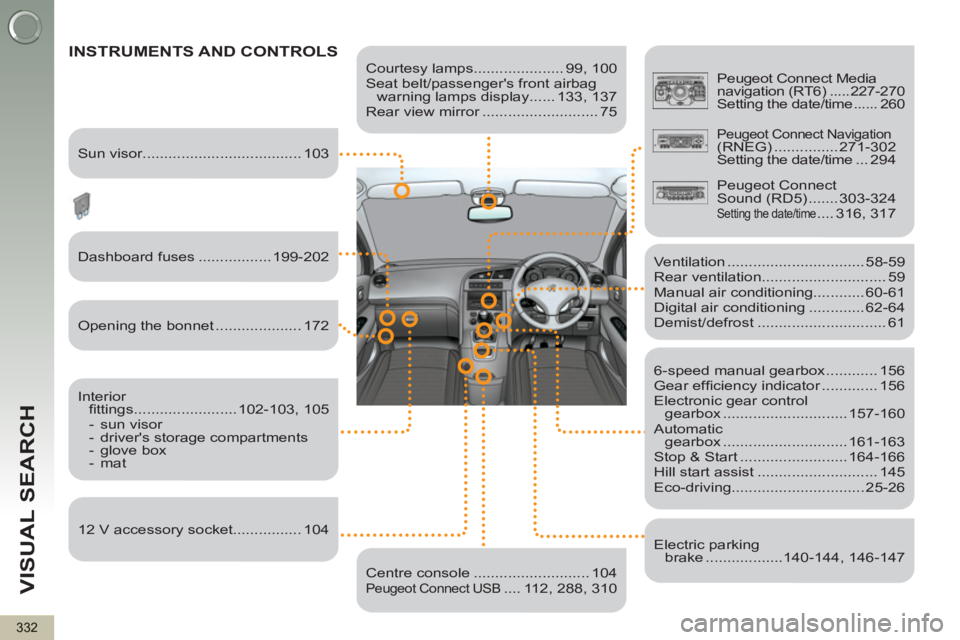

INSTRUMENTS AND CONTROLS
Courtesy lamps..................... 99, 100
Seat belt/passenger's front airbag
warning lamps display ...... 133, 137
Rear view mirror ........................... 75
Dashboard fuses ................. 199-202
6-speed manual gearbox ............ 156
Gear effi ciency indicator ............. 156
Electronic gear control
gearbox ............................. 157-160
Automatic
gearbox ............................. 161-163
Stop & Start ......................... 164-166
Hill start assist ............................ 145
Eco-driving............................... 25-26
Ventilation ................................ 58-59
Rear ventilation............................. 59
Manual air conditioning............ 60-61
Digital air conditioning ............. 62-64
Demist/defrost .............................. 61
Centre console ........................... 104
Peugeot Connect USB .... 112, 288, 310
Peugeot Connect Media
navigation (RT6) ..... 227-270
Setting the date/time ...... 260
Sun visor..................................... 103
Opening the bonnet .................... 172
Electric parking
brake ..................140-144, 146-147
Interior
fi ttings ........................ 102-103, 105
- sun visor
- driver's storage compartments
- glove box
- mat
12 V accessory socket................ 104
Peugeot Connect Navigation (RNEG) ............... 271-302
Setting the date/time ...294
Peugeot Connect
Sound (RD5) ....... 303-324
Setting the date/time .... 316, 317
Page 336 of 340
VISUAL SEARCH
334

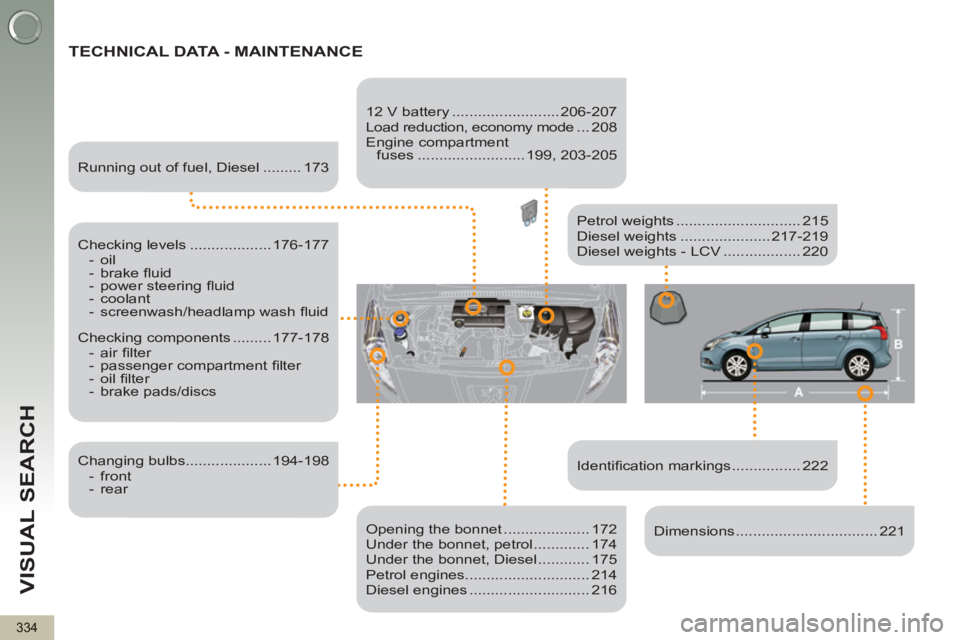

TECHNICAL DATA - MAINTENANCE
Identifi cation markings ................ 222
Petrol weights ............................. 215
Diesel weights ..................... 217-219
Diesel weights - LCV .................. 220
Running out of fuel, Diesel ......... 173
Checking levels ................... 176-177
- oil
- brake fl uid
- power steering fl uid
- coolant
- screenwash/headlamp wash fl uid
Checking components ......... 177-178
- air fi lter
- passenger compartment fi lter
- oil fi lter
- brake pads/discs
Changing bulbs.................... 194-198
- front
- rear
12 V battery ......................... 206-207
Load reduction, economy mode ...208
Engine compartment
fuses ......................... 199, 203-205
Opening the bonnet .................... 172
Under the bonnet, petrol ............. 174
Under the bonnet, Diesel ............ 175
Petrol engines............................. 214
Diesel engines ............................ 216
Dimensions ................................. 221
