Instrument panel navigator associatedwith the Peugeot Connect Media

This group of buttons permits:


- when stationary
, confi guration of the
vehicle's equipment and the screen
settings (languages, units...),

- while driving
, scrolling of the active
functions (trip computer, naviga-
tion...).
Controls
There are four buttons to control the
large 16/9 screen in the instrument
panel:


1.
access the main menu, confi rm the
selection,

2.
move up through the menu,

3.
move down through the menu,

4.
return to the previous display, exit
from the menu.


A.
Speed limiter

or
Cruise control.

(mph or km/h)

B.
Trip distance recorder.

(miles or km)
C.
Service indicator.

(miles or km) or,
Engine oil level indicator.

or
distance recorder.

(miles or km)

D.
6-speed electronic gear control
or automatic gearbox.


E.
Warning messages and function
status messages, trip computer,
GPS navigation information, menus
(with Peugeot Connect Media).

38
IN
S





Service indicator

System which informs the driver when
the next service is due, in accor-
dance with the manufacturer’s servicing
schedule.
The point at which the service is due is
calculated from the last indicator zero
reset. It is determined by two para-
meters:


- the distance travelled,

- the time elapsed since the last service.
Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due
For 5 seconds after the ignition is switched
on, the spanner symbolising the service op-
erations comes on. The distance recorder
display line indicates the distance remain-
ing before the next service is due.

Example:
1 700 miles (2 800 km) re-
main before the next service is due.
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched
on, the spanner goes off
; the distance
recorder resumes its normal operation.
The screen then indicates the total and
trip distances.
Less than 600 miles (1 000 km) remain
before the next service is due

Example:
400 miles (900 km) remain
before the next service is due.
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains on
to indicate that a service
must be carried out soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no
service information appears in the
screen.

39
IN
S
Following this operation, if you
wish to disconnect the battery,
lock the vehicle and wait at
least fi ve minutes for the zero reset
to be taken into account.






Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:


)
switch off the ignition,

)
press and hold the trip distance re-
corder zero reset button,

)
switch on the ignition; the distance
recorder display begins a count-
down,

)
when the display indicates "=0"
, re-
lease the button; the spanner disap-
pears. The distance remaining may
be weighted by the time fac-
tor, depending on the driving
conditions.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.

Service overdue
For 5 seconds after the ignition is
switched on, the spanner fl ashes
to
indicate that the service must be carried
out as soon as possible.

Example:
the service is overdue by
180 miles (300 km).
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains on
.
Retrieving the service information
You can access the service information
at any time.


)
Press the trip distance recorder zero
reset button.
The service information is displayed
for a few seconds, then disappears.

IN
S

The level shown will only be
correct if the vehicle is on level
ground and the engine has been
off for more than 30 minutes.
Engine oil level indicator
System which informs the driver whether
the engine oil level is correct or not. This information is indicated for a few
seconds when the ignition is switched
on, after the service information.

Oil level correct

Oil level low
Oil level indicator fault

Dipstick
This is indicated by the fl ashing of "OIL"
,
linked with the service warning lamp, ac-
companied by an audible signal and a
message in the multifunction screen.
If the low oil level is confi rmed by a
check using the dipstick, the level must
be topped up to prevent damage to the
engine. This is indicated by the fl ashing of
"OIL --"
. Contact a PEUGEOT dealer or
a qualifi ed workshop.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine.
There are 2 marks on the
dipstick:


- A
= max; never exceed
this level (risk of dam-
age to the engine),

- B
= min; top up the level
via the oil fi ller cap, using
the grade of oil suited to
your engine.

AC
81
ALARM
System which protects and provides a
deterrent against the theft of your vehi-
cle. It provides two types of protection,
exterior and interior, as well as an anti-
tamper function.

Locking the vehicle with fullalarm


Do not make any modifi ca-
tions to the alarm system, this
could cause malfunctions.

To be effective, this deactivation
must be carried out each time
the ignition is switched off.

Reactivation of the interior
volumetric protection


)
Unlock the vehicle using the unlock-
ing button on the remote control.

)
Relock the vehicle using the remote
control.
The alarm is activated again with both
types of protection; the indicator lamp in
button A
switches off.


Locking the vehicle with exterior protection alarm only


Deactivation


)
Unlock the vehicle using the unlock-
ing button on the remote control.
The alarm is deactivated; the indicator
lamp in button A
switches off.

Exterior perimiter protection

The system detects opening of the ve-
hicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior volumetric protection

The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior volumetric protection.
Anti-tamper function

The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
Activation


)
Switch off the ignition and get out of
the vehicle.

)
Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator lamp
in button A
fl ashes once per second.
Deactivation of the interior
volumetric protection


)
Switch off the ignition.

)
Within ten seconds, press button A

until the indicator lamp is on contin-
uously.

)
Get out of the vehicle.

)
Lock or deadlock the vehicle using
the locking button on the remote
control.
The exterior protection alarm alone re-
mains activated; the indicator lamp in
button A
fl ashes once per second.

CHECKS
176

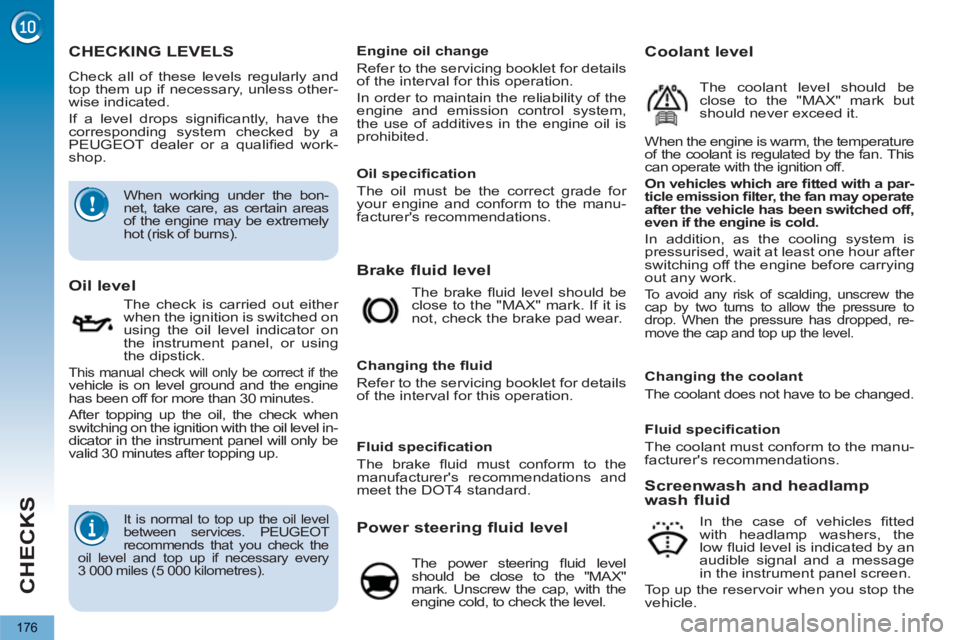

CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
If a level drops signifi cantly, have the
corresponding system checked by a
PEUGEOT dealer or a qualifi ed work-
shop.

Brake fluid level

Oil level


The check is carried out either
when the ignition is switched on
using the oil level indicator on
the instrument panel, or using
the dipstick.
This manual check will only be correct if the vehicle is on level ground and the engine
has been off for more than 30 minutes.
After topping up the oil, the check when
switching on the ignition with the oil level in-
dicator in the instrument panel will only be
valid 30 minutes after topping up. The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.

Changing the fl uid
Refer to the servicing booklet for details
of the interval for this operation.


Power steering fluid level

The power steering fl uid level
should be close to the "MAX"
mark. Unscrew the cap, with the
engine cold, to check the level.


Screenwash and headlamp
wash fluid

In the case of vehicles fi tted
with headlamp washers, the
low fl uid level is indicated by an
audible signal and a message
in the instrument panel screen.
Top up the reservoir when you stop the
vehicle.
Engine oil change
Refer to the servicing booklet for details
of the interval for this operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.

Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
meet the DOT4 standard.
When the engine is warm, the temperature
of the coolant is regulated by the fan. This
can operate with the ignition off.

On vehicles which are fi tted with a par-
ticle emission fi lter, the fan may operate
after the vehicle has been switched off,
even if the engine is cold.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure to
drop. When the pressure has dropped, re-
move the cap and top up the level.

Coolant level

The coolant level should be
close to the "MAX" mark but
should never exceed it.


When working under the bon-
net, take care, as certain areas
of the engine may be extremely
hot (risk of burns).


It is normal to top up the oil level
between services. PEUGEOT
recommends that you check the
oil level and top up if necessary every
3 000 miles (5 000 kilometres).


Oil specifi cation
The oil must be the correct grade for
your engine and conform to the manu-
facturer's recommendations.


Changing the coolant

The coolant does not have to be changed.


Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.

225
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
EMERGENCY OR ASSISTANCE CALL USING
Peugeot Connect Media
In an emergency, press the SOS button until an audible
signal is heard and a "Confi rmation/Cancellation"
screen is displayed (if valid SIM card inserted).
A call is made to the PEU
GEOT Emergency team
which receives locating information from the vehicleand can send a detailed alert to the relevant emergency services.
In countries in which the team is not operational, or
when the locatin
g service has been expressly declined,
the call is sent to the emergency services (11 2). Warning - the emergency call and the services are only active
i
f the internal telephone is used with a valid SIM card. With a
Bluetooth telephone and without a SIM card, these services are not
operational. Press this button for access to PEUGEOT services.
Customer call Select "Customer call" to request
an
y information about the PEUGEOT marque.

Select "PEUGEOT Assistance"
to make a roadside assistance call.
PEUGEOT Assistance
This service is subject to conditions and availability. Consult a
PEUGEOT dealer. If you have purchased your vehicle outside the
PEUGEOT dealer network, we invite you to have a dealer check theconfi guration of these services and, if desired, modifi ed to suit your
wishes.

If an impact is detected b
y the airbag control unit, and independentlyof the deployment of any airbags, an emergency call is made
automatically.

The message "Deteriorated emergency call" associated withfl ashing of the orange indicator lamp indicates a malfunction.Contact a PEUGEOT dealer.

ALPHABETICAL INDEX
327
Main beam ............... 91, 194-196
Maintenance ............................25
Map reading lamps ..................99
Markings, identifi cation ..........222
Mat.........................................105
Menu, main ............................306
Mini fuel level ...........................89
Mirror, rear view .......................75
Mirrors, door ............................74
Misfuel prevention ...................90
Modularity, seats ......................73
Motorway function
(direction indicators) ...........128
Mountings for ISOFIX seats ....123
MP3 CD .........................289, 309
Multimedia, rear .............104, 107
Music media players ......250, 288
M
Navigation......................238, 277
Net ......................................... 111
Number plate lamps ..............198
N
Paint colour code ...................222
Panoramic glass
sunroof ................................108
Parking brake ........................178
Parking brake,
electric ........................140, 143
Parking sensors,
rear .....................................167
Parking space
sensor ................................169
Particle emission
fi lter .............................177, 178
Passenger compartment
fi lter .....................................177
PEUGEOT call
button ..................................225
PEUGEOT CONNECT
ASSISTANCE .....................224
Peugeot Connect Media
Navigation (NG4 3D) .....28, 51,
53, 55, 227, 230,
233, 261
Peugeot Connect
Navigation (RNEG) ........49, 53,
274, 295
PEUGEOT
CONNECT SOS ..........224, 225
Peugeot Connect
Sound (RD5) ................46, 303,
318, 320
PEUGEOT services ...............225
PIN code ................................258
Player, CD MP3 .............289, 309
POIs
(updating) ............................245
Port, USB...............104, 310, 312
Priming the fuel
system ................................173
Protecting children ........ 116, 120,
123-125, 136
Puncture ........................179, 185
P
Jack ...............................188, 190
JACK socket ..........104, 310, 312
Jukebox (copy) ......................252
Jukebox (playing) ..................253
J
Keeping children
safe ............. 116, 124, 125, 136
Key with remote
control ....................... 76-78, 80
K
Labels, identifi cation ..............222
Lamps, warning and
indicator ....................29, 32, 33
Level, brake fl uid ...................176
Level, headlamp wash .....97, 176
Level, power steering fl uid .....176
Levels and checks ......... 174-177
Lighting ..................................101
Lighting, guide-me home .....93, 94
Lighting, interior ...............99, 100
Lighting bulbs
(replacement) ......194, 197, 198
Lighting control stalk ................91
Lighting dimmer .......................41
Loading ...................... 25, 73, 211
Load reduction mode .............208
Load space cover ........... 109-111
Locating your vehicle ...............77
Locking from the inside............86
Long objects,
transporting .....................68, 73
Luggage retaining net ............ 113
L
Oil fi lter ..................................177
Oil level ............................40, 176
Opening the bonnet ...............172
Opening the boot ...............76, 87
Opening the doors .............76, 85
Opening the panoramic
sunroof blind .......................108
Opening the retractable screen ...53
Operation indicator
lamps ..................29, 30, 32, 34
O

ALPHABETICAL INDEX
328
Safety for children....83, 120, 127
Screen,
colour 16/9 ...233, 261, 274, 295
Screen,
monochrome .......306, 318, 320
Screen, monochrome C...........55
Screen, multifunction (with audio
equipment) ....44, 46, 49, 51, 53
Screen, multifunction
(without audio equipment) ....42
Screen-wash reservoir...........176
Screen menu
map .............261, 295, 318, 320
Screenwash, front....................97
Screenwash fl uid level .....97, 176
Seat adjustment...........65, 66, 69
Seat belts....... 110, 132, 133, 135
Seat confi gurations ..................73
Seats, electric ..........................66
Seats, rear ...................69, 71, 72
Serial number, vehicle ...........222
Service indicator ......................38
Servicing ..................................25
Setting
the clock ......260, 294, 316, 317
Short-cut menus ....234, 275, 276
Sidelamps ................ 91, 194-197
Side repeater .........................196
SIM card ........................103, 258
Spare wheel...................188, 190
Spectacles storage ................102
Speed limiter..........................152
Speedometer ...........................27
Spotlamps, side .....................100
Stability control (ESP)............131
Starting
the vehicle .............78, 157, 161
Steering mounted controls,
audio ...........................232, 305
Stopping
the vehicle .............78, 157, 161
S
Radio .....................249, 287, 307
RCA sockets ..........................254
Reading lamps, rear ................99
Rear foglamp .................197, 198
Rear screen
(demisting) ............................61
Recharging the battery ..........206
Reduction of electrical
load .....................................208
Reinitialising the electric
windows ................................83
Reinitialising the remote
control ...................................79
Remote control ............76, 77, 80
Removable screen
(snow shield) .......................212
Removing a wheel .................192
Removing the mat .................105
Repair kit, puncture .......179, 185
Replacing bulbs .....194, 197, 198
Replacing fuses .....................199
Replacing the air fi lter ............177
Replacing the oil fi lter ............177
Replacing the particle
emission fi lter ......................178
Replacing the passenger
compartment fi lter ...............177
Replacing wiper
blades ...........................98, 208
Resetting the service
indicator ................................39
Resetting the trip recorder .......41
Rev counter .............................27
Reversing lamp......................197
Rigid panel...............................71
Risk areas
(update) ......................245, 284
Roof bars ............................... 211
Routine checks ..............177, 178
Running out of fuel
(Diesel) ...............................173
RStop & Start ..........57, 61, 63, 89,
164, 172, 177, 206
Storage ... 102, 104, 106, 109, 110
Storage box ...........................103
Storage drawer ......................106
Storage wells ................. 109, 110
Stowing rings ................. 109, 110
Sun visor................ 102, 103, 115
Synchronising
the remote control .................79
System, navigation ........238, 277
Systems, ASR and ESP ........131
Table of weights .....215, 217, 220
Tables, aircraft .......................106
Tables of engines...........214, 216
Tables of fuses.......................199
Tank, fuel .................................90
Technical
data ............. 214-216, 217, 220
Telephone ............. 225, 255-257,
291, 292
Telephone, hands-free .... 255-257
Temperature, coolant ...............37
Temperature control
for heated seats ....................67
Temporary tyre repair kit ........179
Third brake lamp....................198
TMC (Traffi c info) ...........247, 285
Tools ..............................188, 190
Torch .............. 101, 109, 110, 115
Total distance recorder ............41
Towbar ...................................210
Towed loads...........215, 217, 220
Towing another vehicle ..........209
Traction control
(ASR) ..................................131
Traffi c information
(TA) .............248, 286, 287, 308
T

VISUAL SEARCH
333
INSTRUMENTS AND CONTROLS (CONTINUED)

Instrument panels,
screens ................................. 27-29
Warning lamps ......................... 29-37
Indicators ................................. 37-40
Gear effi ciency indicator ............ 156
Buttons ................................... 39, 41


- check/service indicator/trip
distance recorder

- lighting dimmer

Head-up display................... 148-149
Distance alert....................... 150-151

Lighting controls ...................... 91-95
Direction indicators ..................... 128

Speed limiter........................ 152-153
Cruise control ...................... 154-155

Switch panel ................................. 16
Stop & Start ......................... 164-166
Door mirrors .................................. 74
Electric windows, deactivating .... 83-84

Headlamp height adjustment..... 94, 95

Steering wheel adjustment ........... 75
Horn ............................................ 128
Multifunction screens ............... 42-52


- Screen A

- Screen C

- 16/9 colour screen

- 16/9 high defi nition colour screen
Retractable
screen ........................................ 53
Screen A:
setting the date/time ............. 43, 45

Hazard warning lamps ................ 128
Head-up display................... 148-149
Distance alert....................... 150-151
Wiper controls.......................... 96-98
Trip computer .......................... 54-57

Ignition switch ............................... 78

Panoramic sunroof ..................... 108
