tailgate PEUGEOT 5008 2011 Owners Manual

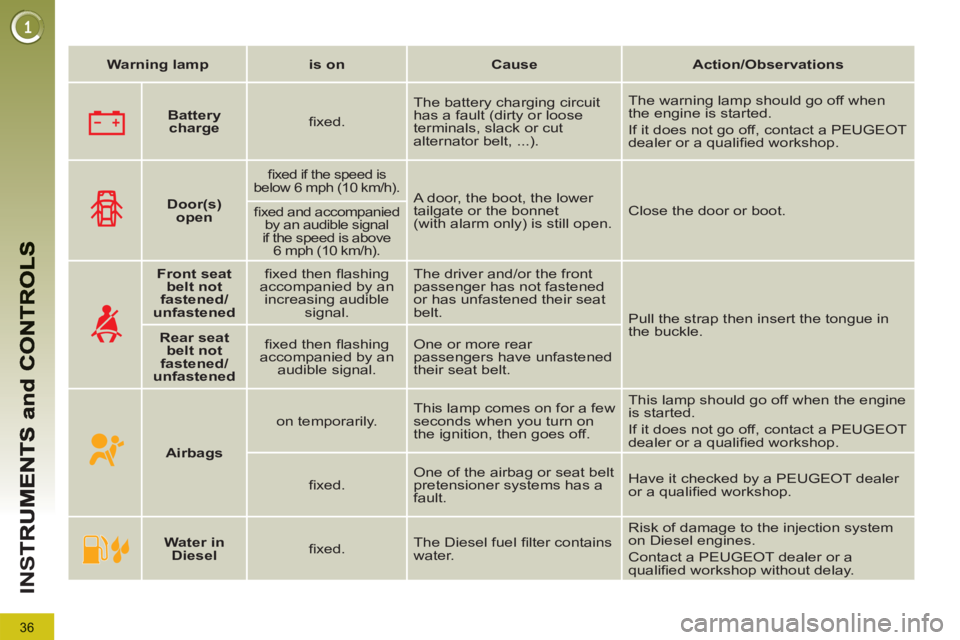

36
IN
S


Battery
charge


fi xed. The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...). The warning lamp should go off when
the engine is started.
If it does not go off, contact a PEUGEOT
dealer or a qualifi ed workshop.

Warning lamp



is on



Cause



Action/Observations




Front seat
belt not
fastened/
unfastened


fi xed then fl ashing
accompanied by an
increasing audible
signal. The driver and/or the front
passenger has not fastened
or has unfastened their seat
belt.
Pull the strap then insert the tongue in
the buckle.


Rear seat
belt not
fastened/
unfastened


fi xed then fl ashing
accompanied by an
audible signal. One or more rear
passengers have unfastened
their seat belt.

Door(s)
open


fi xed if the speed is
below 6 mph (10 km/h).

A door, the boot, the lower
tailgate or the bonnet
(with alarm only) is still open. Close the door or boot.

fi xed and accompanied
by an audible signal
if the speed is above
6 mph (10 km/h).







Airbags


on temporarily. This lamp comes on for a few
seconds when you turn on
the ignition, then goes off. This lamp should go off when the engine
is started.
If it does not go off, contact a PEUGEOT
dealer or a qualifi ed workshop.

fi xed. One of the airbag or seat belt
pretensioner systems has a
fault. Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.


Water in
Diesel


fi xed. The Diesel fuel fi lter contains
water. Risk of damage to the injection system
on Diesel engines.
Contact a PEUGEOT dealer or a
qualifi ed workshop without delay.

AC
87

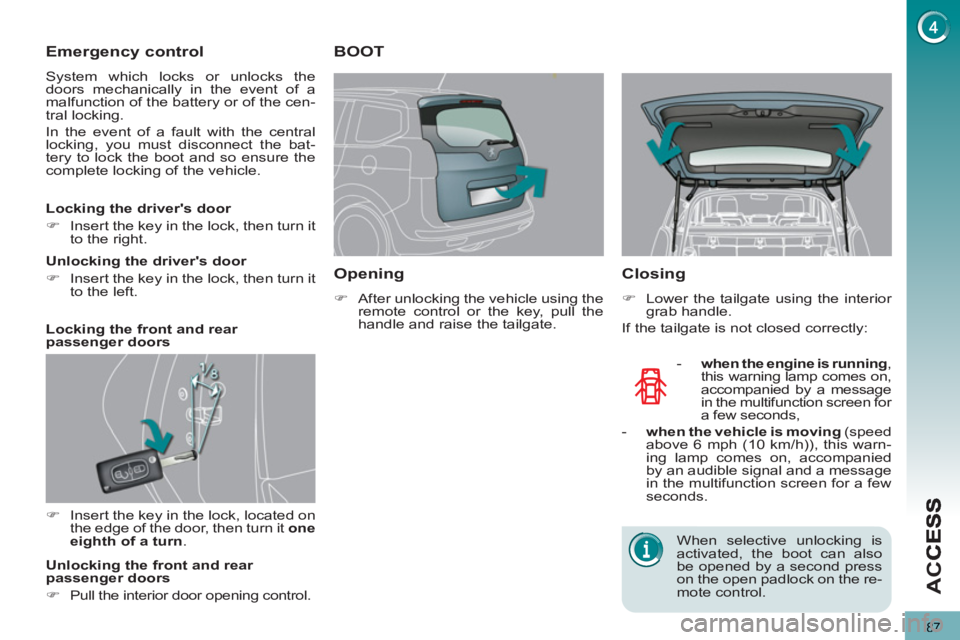

Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the cen-
tral locking.
In the event of a fault with the central
locking, you must disconnect the bat-
tery to lock the boot and so ensure the
complete locking of the vehicle.


)
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn
.

Locking the driver's door


)
Insert the key in the lock, then turn it
to the right.


Unlocking the driver's door


)
Insert the key in the lock, then turn it
to the left.


Locking the front and rear
passenger doors

Unlocking the front and rear
passenger doors


)
Pull the interior door opening control.


BOOT

Openin
g



)
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.



- when the engine is running
,
this warning lamp comes on,
accompanied by a message
in the multifunction screen for
a few seconds,

- when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
in the multifunction screen for a few
seconds.

Closing



)
Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly:
When selective unlocking is
activated, the boot can also
be opened by a second press
on the open padlock on the re-
mote control.

AC
C
88

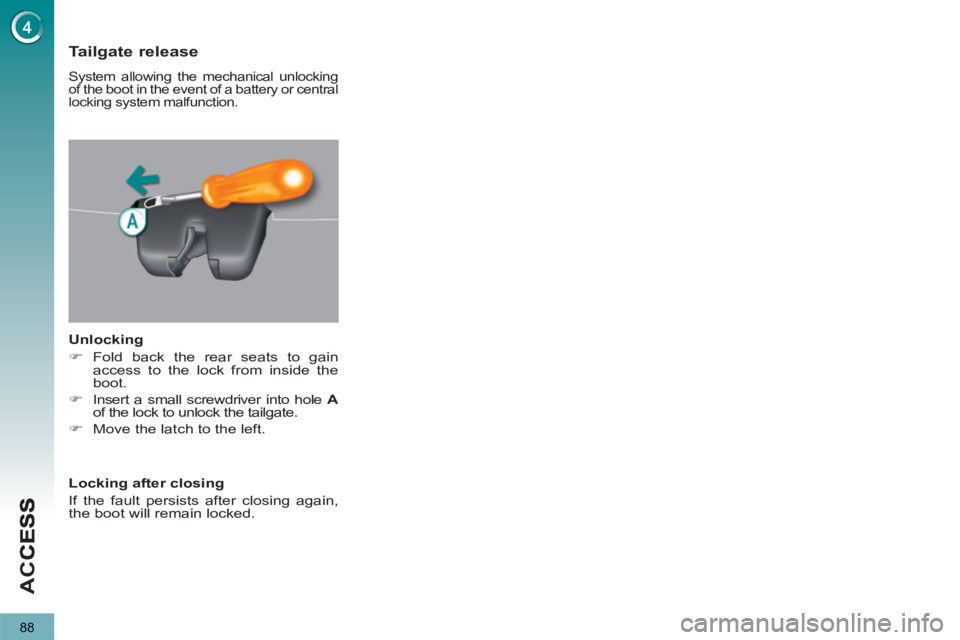

Tailgate release
System allowing the mechanical unlocking
of the boot in the event of a battery or central
locking system malfunction.

Unlocking


)
Fold back the rear seats to gain
access to the lock from inside the
boot.

)
Insert a small screwdriver into hole A

of the lock to unlock the tailgate.

)
Move the latch to the left.


Locking after closing
If the fault persists after closing again,
the boot will remain locked.
