Technical data259
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country). High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C, limit the towed load.
* The kerb weight is equal to the unladen weight + driver (75 kg). ** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

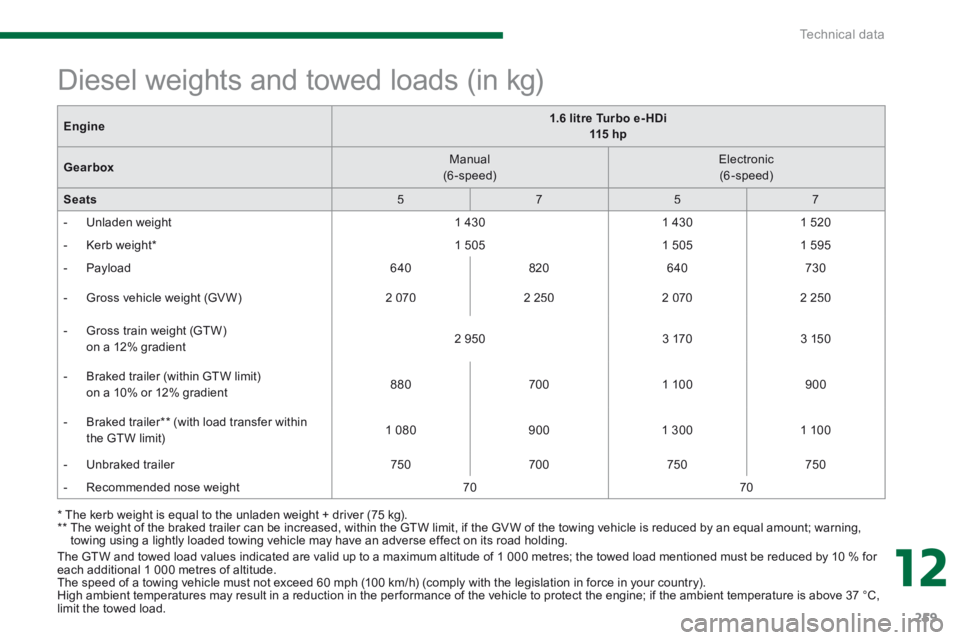

Diesel weights and towed loads (in kg)
Engine1.6 litre Turbo e- HDi 115 h p
Gearbox Manual (6-speed) Electronic (6-speed)
Seats 5 7 5 7
- Unladen weight 1 4 3 0 1 4 3 0 1 5 2 0
- Kerb weight * 1 5 0 5 1 5 0 5 1 5 9 5
- Payload 6 4 0 8 2 0 6 4 0 7 3 0
- Gross vehicle weight (GV W) 2 0 7 0 2 2 5 0 2 0 7 0 2 2 5 0
- Gross train weight (GTW) on a 12% gradient 2 9 5 0 3 1 7 0 3 1 5 0
- Braked trailer (within GTW limit) on a 10% or 12% gradient 880 7 0 0 1 1 0 0 9 0 0
- Braked trailer ** (with load transfer within the GTW limit) 1 0 8 0 9 0 0 1 3 0 0 1 1 0 0
- Unbraked trailer 7 5 0 7 0 0 7 5 0 7 5 0
- Recommended nose weight 7 0 7 0

Technical data
260
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country). High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C, limit the towed load.
* The kerb weight is equal to the unladen weight + driver (75 kg). ** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

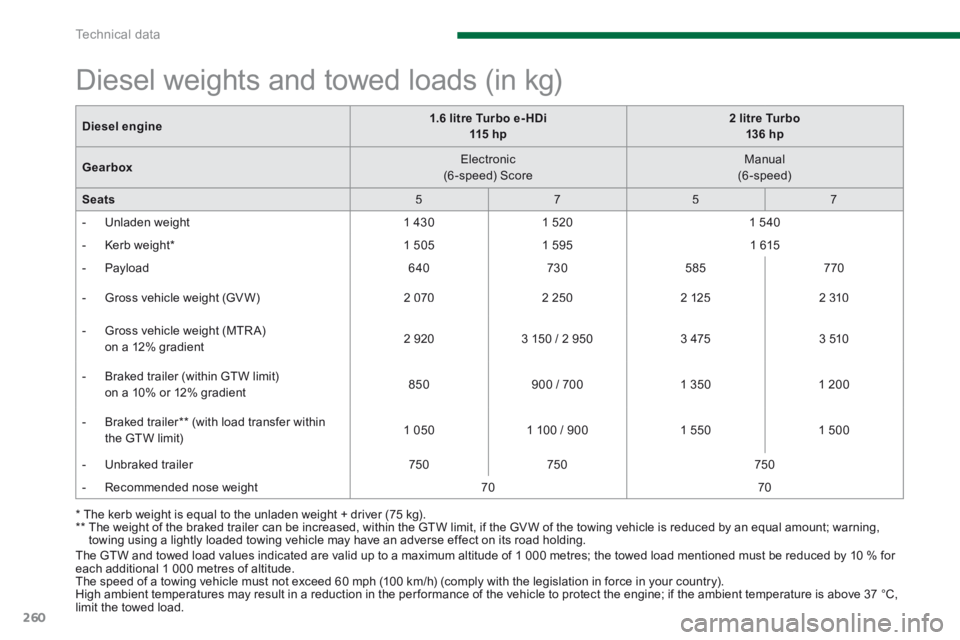

Diesel weights and towed loads (in kg)
Diesel engine1.6 litre Turbo e- HDi 115 hp2 litre Turbo 136 hp
Gearbox Electronic (6 -speed) Score Manual (6-speed)
Seats 5 7 5 7
- Unladen weight 1 4 3 0 1 5 2 0 1 5 4 0
- Kerb weight * 1 5 0 5 1 5 9 5 1 6 1 5
- Payload 6 4 0 7 3 0 585 7 7 0
- Gross vehicle weight (GV W) 2 0 7 0 2 2 5 0 2 1 2 5 2 3 1 0
- Gross vehicle weight (MTR A) on a 12% gradient 2 9 2 0 3 150 / 2 950 3 4 7 5 3 5 1 0
- Braked trailer (within GTW limit) on a 10% or 12% gradient 850 900 / 700 1 3 5 0 1 2 0 0
- Braked trailer ** (with load transfer within the GTW limit) 1 0 5 0 1 100 / 900 1 5 5 0 1 5 0 0
- Unbraked trailer 7 5 0 7 5 0 7 5 0
- Recommended nose weight 7 0 7 0

12
Technical data261
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country). High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C, limit the towed load.
* The kerb weight is equal to the unladen weight + driver (75 kg). ** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

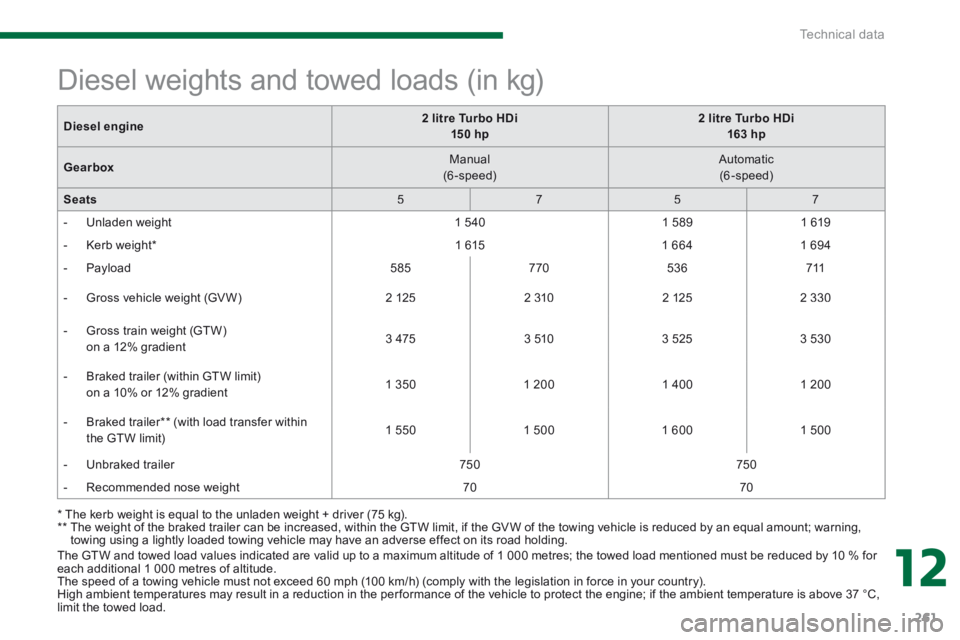

Diesel weights and towed loads (in kg)
Diesel engine2 litre Turbo HDi 15 0 hp2 litre Turbo HDi 163 hp
Gearbox Manual (6-speed) Automatic (6-speed)
Seats 5 7 5 7
- Unladen weight 1 5 4 0 1 5 8 9 1 6 1 9
- Kerb weight * 1 6 1 5 1 6 6 4 1 6 9 4
- Payload 585 7 7 0 5 3 6 7 1 1
- Gross vehicle weight (GV W) 2 1 2 5 2 3 1 0 2 1 2 5 2 3 3 0
- Gross train weight (GTW) on a 12% gradient 3 4 7 5 3 5 1 0 3 5 2 5 3 5 3 0
- Braked trailer (within GTW limit) on a 10% or 12% gradient 1 3 5 0 1 2 0 0 1 4 0 0 1 2 0 0
- Braked trailer ** (with load transfer within the GTW limit) 1 5 5 0 1 5 0 0 1 6 0 0 1 5 0 0
- Unbraked trailer 7 5 0 7 5 0
- Recommended nose weight 7 0 7 0

Technical data
262
Engines1.6 litre Turbo e- HDi 115 h p2 litre Turbo HDi 15 0 hp
Gearbox Manual (6-speed) Electronic (6-speed) Manual ( 6 - s p e e d ) Manual (6-speed)
Model codes 9 H Z 9 H Z 9 H R RHE
- Unladen weight 1 4 8 1 1 4 8 2 1 4 8 1 1 5 7 2
- Kerb weight * 1 5 5 6 1 5 5 7 1 5 5 6 1 6 4 7
- Gross vehicle weight (GV W) ** 2 2 2 5 2 2 3 0 2 2 0 0 2 3 1 0
- Gross train weight (GTW) on a 12% gradient *** 3 1 2 0 3 1 7 0 3 4 7 5
- Braked trailer (within GTW limit) on a 10% or 12% gradient **** 8 9 5 8 9 0 9 7 0 1 1 6 5
- Braked trailer (with load transfer within the GTW limit) X X X X
- Unbraked trailer 7 5 0 7 5 0
- Recommended nose weight 7 0 7 0
* The kerb weight is equal to the unladen weight + driver (75 kg). ** Exceeding the maximum rear axle weight involves limiting the speed to 50 mph (80 km/h) as defined in point 2.7 of the Directive. *** Exceeding the gross vehicle weight when the vehicle is towing involves limiting the speed to 50 mph (80 km/h) as defined in point 2.7 of the Directive. **** Maximum braked trailer weight within the GTW limit; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1000 metres of altitude. High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C, limit the towed load.

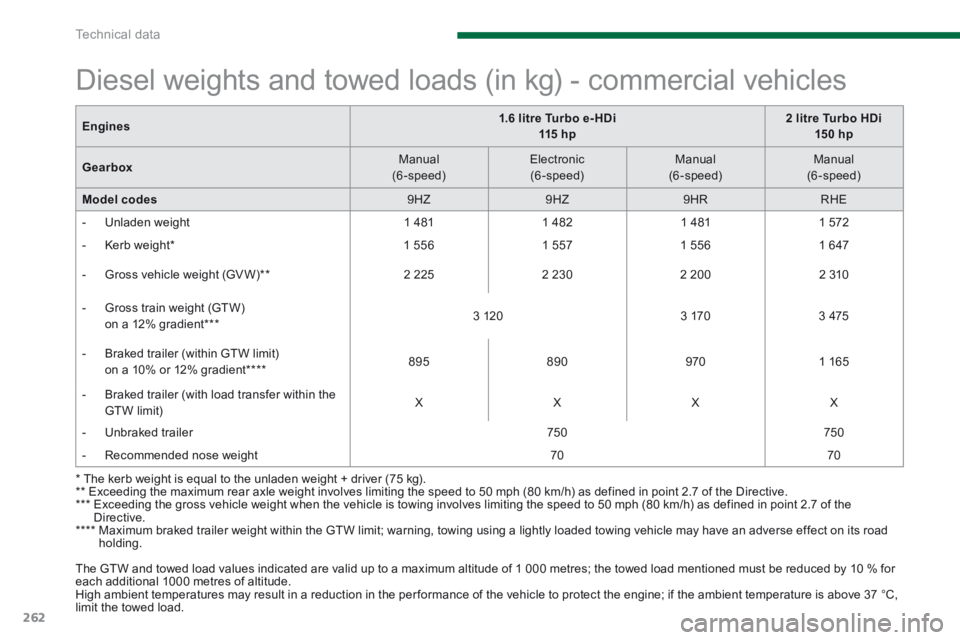

Diesel weights and towed loads (in kg) - commercial vehicles

12
Technical data263

Dimensions (in mm)

Technical data
264
Identifi cation markings

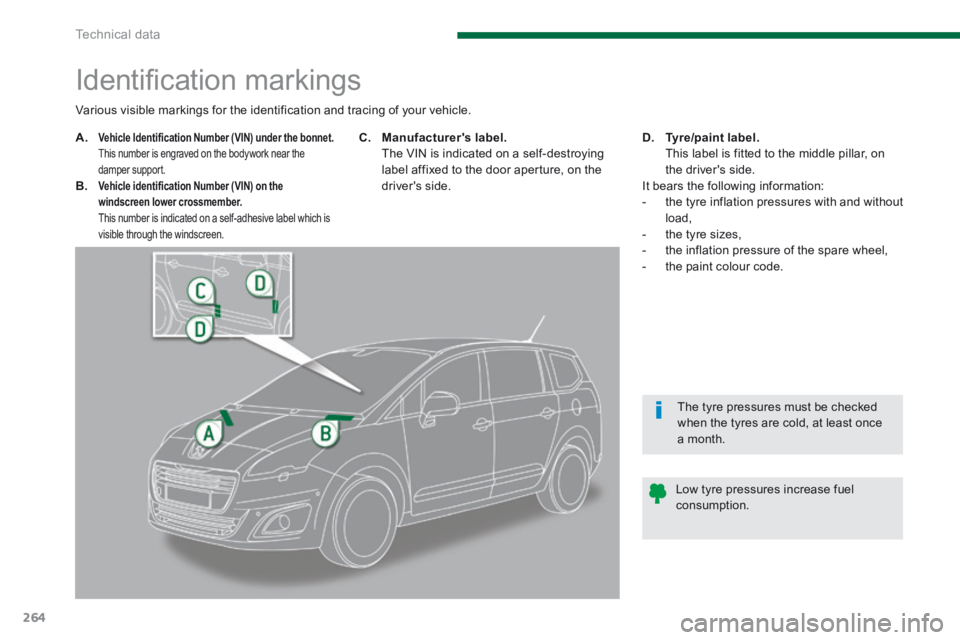

A.Vehicle Identification Number (VIN) under the bonnet. This number is engraved on the bodywork near the damper support. B. Vehicle identification Number (VIN) on the windscreen lower crossmember. This number is indicated on a self-adhesive label which is visible through the windscreen.
C. Manufacturer's label. The VIN is indicated on a self-destroying label affixed to the door aperture, on the driver's side.
D. Tyre/paint label. This label is fitted to the middle pillar, on the driver's side. It bears the following information: - the tyre inflation pressures with and without load, - the tyre sizes, - the inflation pressure of the spare wheel, - the paint colour code.
Various visible markings for the identification and tracing of your vehicle.
Low tyre pressures increase fuel consumption.
The tyre pressures must be checked when the tyres are cold, at least once
a month.

265
EMERGENCY OR ASSISTANCE CALL

266
EMERGENCY OR ASSISTANCE CALL

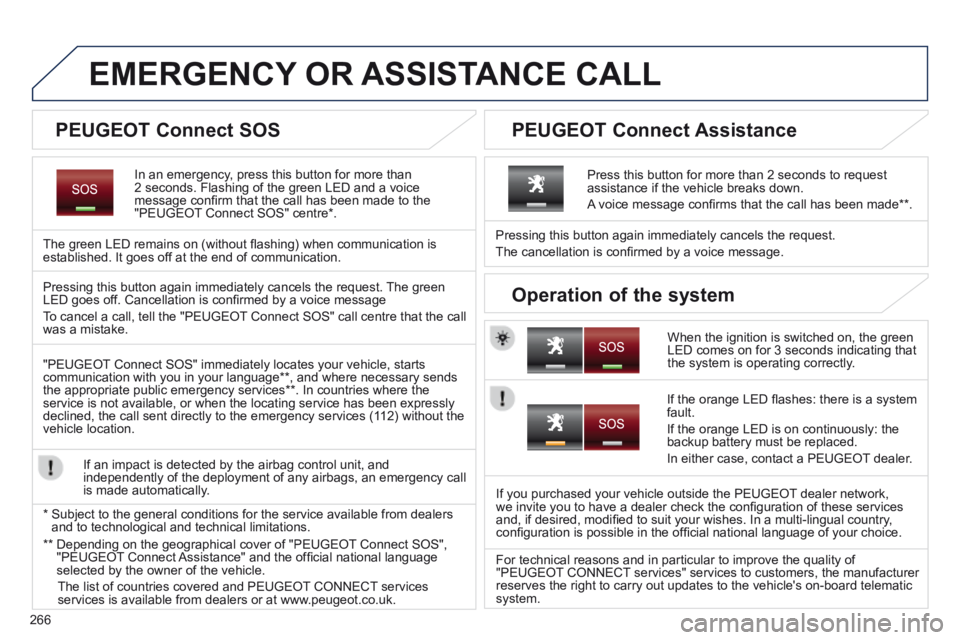

In an emergency, press this button for more than 2 seconds. Flashing of the green LED and a voice message confi rm that the call has been made to the "PEUGEOT Connect SOS" centre * .
The green LED remains on (without fl ashing) when communication is established. It goes off at the end of communication.
When the ignition is switched on, the green LED comes on for 3 seconds indicating that the system is operating correctly.
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.
Press this button for more than 2 seconds to request assistance if the vehicle breaks down.
A voice message confi rms that the call has been made ** .
Pressing this button again immediately cancels the request. The green LED goes off. Cancellation is confi rmed by a voice message
To cancel a call, tell the "PEUGEOT Connect SOS" call centre that the call was a mistake.
"PEUGEOT Connect SOS" immediately locates your vehicle, starts communication with you in your language ** , and where necessary sends the appropriate public emergency services ** . In countries where the service is not available, or when the locating service has been expressl\
y declined, the call sent directly to the emergency services (112) without the vehicle location.
If an impact is detected by the airbag control unit, and independently of the deployment of any airbags, an emergency call is made automatically.
* Subject to the general conditions for the service available from dealers\
and to technological and technical limitations.
If the orange LED fl ashes: there is a system fault.
If the orange LED is on continuously: the backup battery must be replaced.
In either case, contact a PEUGEOT dealer.
If you purchased your vehicle outside the PEUGEOT dealer network, we invite you to have a dealer check the confi guration of these services and, if desired, modifi ed to suit your wishes. In a multi-lingual country, confi guration is possible in the offi cial national language of your choice.
For technical reasons and in particular to improve the quality of "PEUGEOT CONNECT services" services to customers, the manufacturer reserves the right to carry out updates to the vehicle's on-board telema\
tic system.
PEUGEOT Connect SOS PEUGEOT Connect Assistance
Operation of the system
** Depending on the geographical cover of "PEUGEOT Connect SOS", "PEUGEOT Connect Assistance" and the offi cial national language selected by the owner of the vehicle.
The list of countries covered and PEUGEOT CONNECT services services is available from dealers or at www.peugeot.co.uk.

267
2ABC3DEF5JKL4GHI6MNO8TUV7PQR S9WXYZ0*#
1RADIO MEDIA NA
V TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQR S9WXYZ0*#
1RADIO MEDIA NA
V TRAFFIC
SETUPADDR
BOOK
EMERGENCY OR ASSISTANCE CALL USING

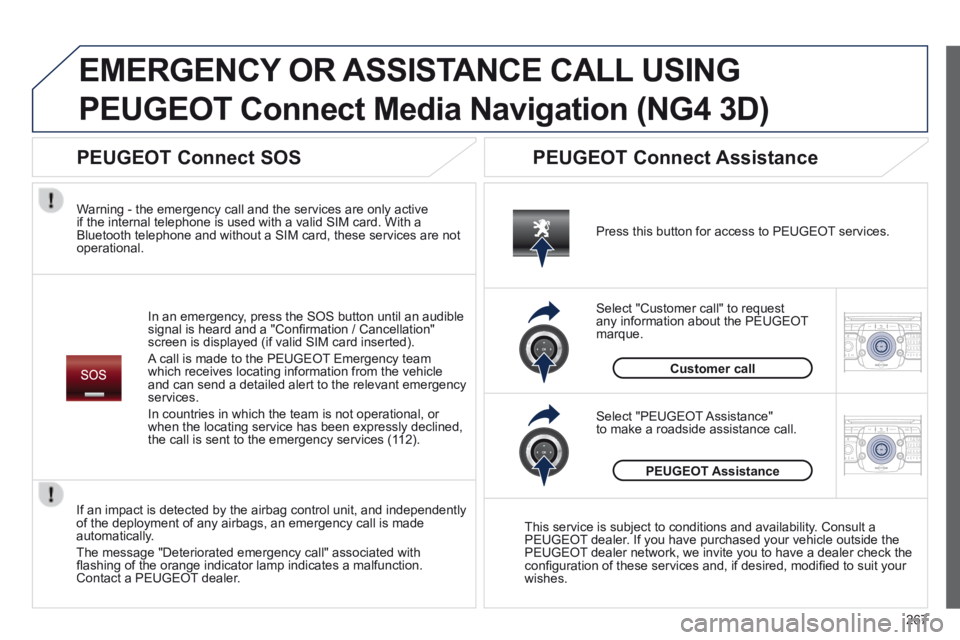

PEUGEOT Connect Media Navigation (NG4 3D)
In an emergency, press the SOS button until an audible signal is heard and a "Confi rmation / Cancellation" screen is displayed (if valid SIM card inserted).
A call is made to the PEUGEOT Emergency team which receives locating information from the vehicle and can send a detailed alert to the relevant emergency services.
In countries in which the team is not operational, or when the locating service has been expressly declined, the call is sent to the emergency services (112).
Warning - the emergency call and the services are only active if the internal telephone is used with a valid SIM card. With a Bluetooth telephone and without a SIM card, these services are not operational.
Press this button for access to PEUGEOT services.
Customer call
Select "Customer call" to request any information about the PEUGEOT marque.
Select "PEUGEOT Assistance" to make a roadside assistance call.
PEUGEOT Assistance
This service is subject to conditions and availability. Consult a PEUGEOT dealer. If you have purchased your vehicle outside the PEUGEOT dealer network, we invite you to have a dealer check the confi guration of these services and, if desired, modifi ed to suit your wishes.
If an impact is detected by the airbag control unit, and independently of the deployment of any airbags, an emergency call is made automatically.
The message "Deteriorated emergency call" associated with fl ashing of the orange indicator lamp indicates a malfunction. Contact a PEUGEOT dealer.
PEUGEOT Connect SOS PEUGEOT Connect Assistance
