PEUGEOT 5008 2015 Owners Manual

149
Wait until this warning lamp goes off in the
instrument panel then operate the starter
motor by turning the key to position 3
without pressing the accelerator pedal,
until the engine starts. Once the engine is
running, release the key.

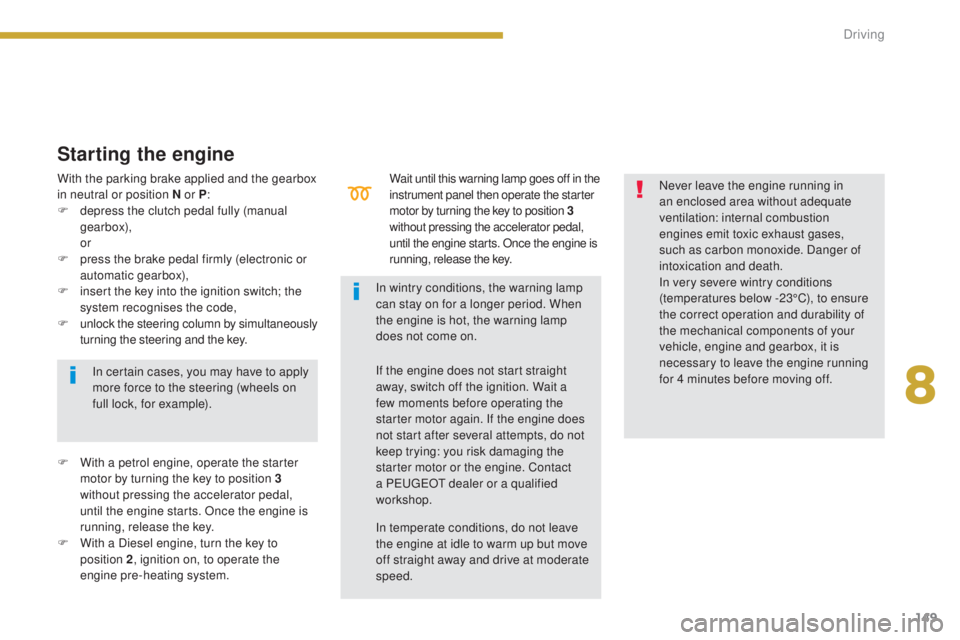

Starting the engine
In certain cases, you may have to apply
more force to the steering (wheels on
full lock, for example).
F

W

ith a petrol engine, operate the starter
motor by turning the key to position 3
without pressing the accelerator pedal,
until the engine starts. Once the engine is
running, release the key.
F

W

ith a Diesel engine, turn the key to
position 2 , ignition on, to operate the
engine pre-heating system. Never leave the engine running in
an enclosed area without adequate
ventilation: internal combustion
engines emit toxic exhaust gases,
such as carbon monoxide. Danger of
intoxication and death.
In very severe wintry conditions
(temperatures below -23°C), to ensure
the correct operation and durability of
the mechanical components of your
vehicle, engine and gearbox, it is
necessary to leave the engine running
for 4 minutes before moving off.
In wintry conditions, the warning lamp
can stay on for a longer period. When
the engine is hot, the warning lamp
does not come on.
With the parking brake applied and the gearbox
in neutral or position N or P
:
F

d

epress the clutch pedal fully (manual
gearbox),


or
F

p

ress the brake pedal firmly (electronic or
automatic gearbox),
F

i

nsert the key into the ignition switch; the
system recognises the code,
F

u

nlock the steering column by simultaneously
turning the steering and the key.
If the engine does not start straight
away, switch off the ignition. Wait a
few moments before operating the
starter motor again. If the engine does
not start after several attempts, do not
keep trying: you risk damaging the
starter motor or the engine. Contact
a PEUGEOT dealer or a qualified
workshop.
In temperate conditions, do not leave
the engine at idle to warm up but move
off straight away and drive at moderate
speed.
8
Driving

150
Key left in the "Ignition on"
position
If the key has been left in the ignition
switch at position 2 (Ignition on),
the ignition will be switched off
automatically after one hour.
To switch the ignition back on, turn the
key to position 1 (Stop) , then back to
position 2 (Ignition on) .
Avoid attaching heavy objects to the
key, which would weigh down on its
blade in the ignition switch and could
cause a malfunction. For more information, refer to the
"Practical information" section, under
"Energy economy mode".
Switching off the engine
Energy economy mode
After switching off the engine (position 1- Stop
),
for a maximum of 30 minutes you can still use
functions such as the audio and telematic
system, the wipers, dipped beam headlamps,
courtesy lamps,
...
To facilitate unlocking of the steering
column, it is recommended that the
wheels be returned to the straight ahead
position before switching off the engine.
F

C

heck that the parking brake is correctly
applied, particularly on sloping ground. Never switch off the ignition before the
vehicle is at a complete stop. With the
engine off, the braking and steering
assistance systems are also cut off: risk
of loss of control of the vehicle.
When you leave the vehicle, keep the
key with you and lock the vehicle.
F

S

top the vehicle.
F

W

ith the engine running at idle, turn the key
to position 1 .
F

R

emove the key from the ignition switch.
F

T

o lock the steering column, turn the
steering until it locks.
Driving

151
The electric parking brake
combines 2 operating modes:
-
A
utomatic application/release
A

pplication is automatic when the engine
stops, release is automatic on use of the
accelerator,
-

M
anual application/release
T

he parking brake can be applied /
released manually by pulling control
lever


A.

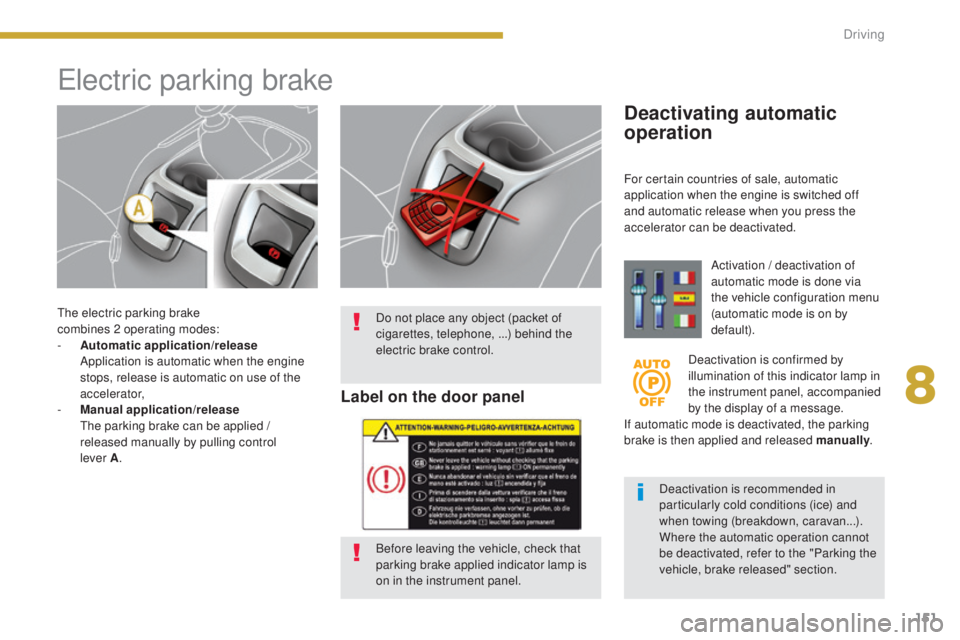

Electric parking brake
Deactivating automatic
operation
Activation / deactivation of
automatic mode is done via
the vehicle configuration menu
(automatic mode is on by
default).
Deactivation is confirmed by
illumination of this indicator lamp in
the instrument panel, accompanied
by the display of a message.
If automatic mode is deactivated, the parking
brake is then applied and released manually .
Deactivation is recommended in
particularly cold conditions (ice) and
when towing (breakdown, caravan...).
Where the automatic operation cannot
be deactivated, refer to the "Parking the
vehicle, brake released" section.
For certain countries of sale, automatic
application when the engine is switched off
and automatic release when you press the
accelerator can be deactivated.
Label on the door panel
Before leaving the vehicle, check that
parking brake applied indicator lamp is
on in the instrument panel. Do not place any object (packet of
cigarettes, telephone,
...) behind the
electric brake control.
8
Driving

152
With the vehicle stationary, to apply the parking
brake whether the engine is running or off, pull
the control lever A towards you.
Application of the parking brake is confirmed
by:
-

i
llumination of the parking brake
applied indicator lamp,
-

i
llumination of the P indicator
lamp in the control lever A ,
-

d
isplay of the "Parking brake applied"
message.
Manual release
With the ignition on or the engine running, to
release the parking brake, press the brake
pedal or the accelerator, pull then release the
control lever A .
-

t
he parking brake application
indicator lamp going off,
-
the P indicator lamp in the
control lever A going of f,
-

t
he display of the "Parking brake released"
message.
Manual application
Before leaving the vehicle, check that
parking brake indicator lamp and the P
indicator lamp in the control lever A ,
are on.
When the driver’s door is opened with
the engine running, there is an audible
signal and a message is displayed
if the parking brake has not been
applied (unless the selector lever is
in position

P (Park) in the case of an
automatic gearbox).
If you pull the control lever A without
pressing the brake pedal, the
parking brake will not be released and a warning
lamp will come on in the instrument panel.
When the driver’s door is opened, an
audible signal heard and a message is
displayed if the parking brake has not
been applied (unless the selector lever
is in position P (Park) in the case of an
automatic gearbox). Full application of the parking brake is
confirmed by:

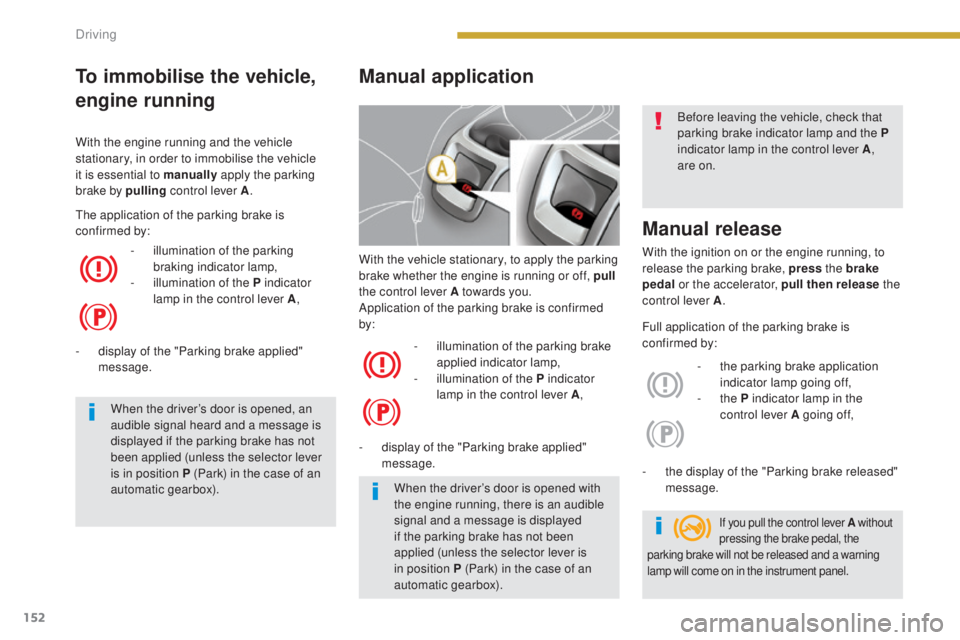

To immobilise the vehicle,
engine running
With the engine running and the vehicle
stationary, in order to immobilise the vehicle
it is essential to manually
apply the parking
brake by pulling


control lever A.
-

i
llumination of the parking
braking indicator lamp,
-

i
llumination of the P indicator
lamp in the control lever A ,
-

d
isplay of the "Parking brake applied"
message.
The application of the parking brake is
confirmed by:
Driving

153
Automatic application,
engine off
With the vehicle stationary, the parking brake
is automatically applied when the engine is
switched off.
-

i
llumination of the parking brake
applied indicator lamp,
-

i
llumination of the P indicator
lamp in the control lever A ,
Automatic release
The electric parking brake releases
automatically and progressively when you
press the accelerator:
F

M
anual gearbox : press down fully on the
clutch pedal, engage first gear or reverse,
press on the accelerator pedal and move
of f.
F

E
lectronic gearbox : select position A, M
or R then press the accelerator pedal.
F

A
utomatic gearbox : select position D, M
or R then press the accelerator pedal.
-

t
he parking brake application
indicator lamp going off,
-
the P indicator lamp in the
control lever A going of f,
-

d

isplay of the "Parking brake applied"
message.
The characteristic noise of operation confirms
the application of the electric parking brake. Full release of the parking brake is confirmed
by:
When stationary, with the engine running, do
not press the accelerator pedal unnecessarily,
as you may release the parking brake.
Before leaving the vehicle, check that
parking brake indicator lamp is on in the
instrument panel.
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.
In the case of towing, a loaded vehicle
or parking on a gradient, turn the front
wheels towards the pavement and
engage a gear when you park.

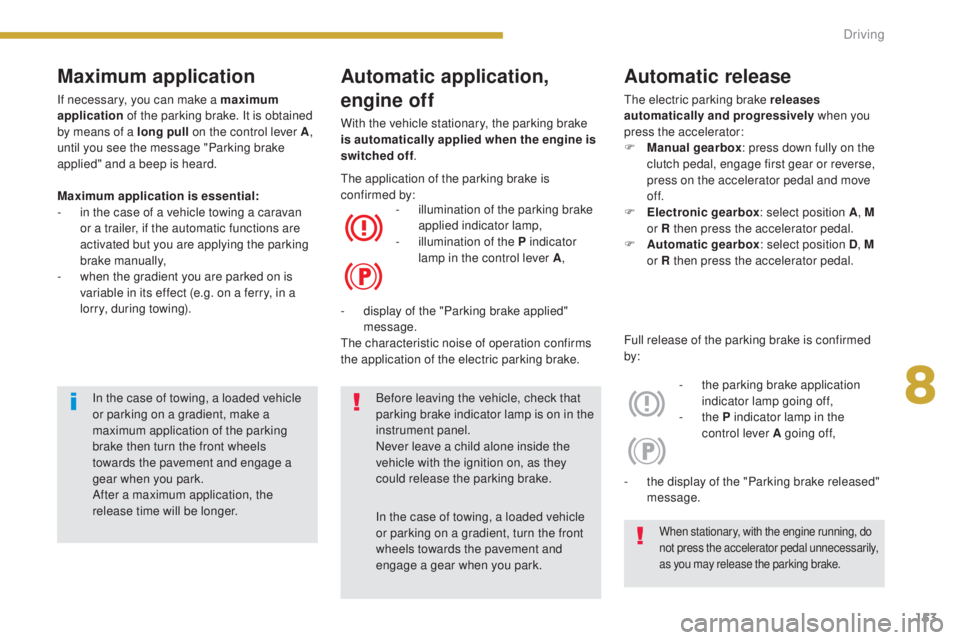

Maximum application
If necessary, you can make a maximum
application
of the parking brake. It is obtained
by means of a long pull on the control lever
A,
until you see the message "Parking brake
applied" and a beep is heard.
Maximum application is essential:
-

i
n the case of a vehicle towing a caravan
or a trailer, if the automatic functions are
activated but you are applying the parking
brake manually,
-

w
hen the gradient you are parked on is
variable in its effect (e.g. on a ferry, in a
lorry, during towing).
In the case of towing, a loaded vehicle
or parking on a gradient, make a
maximum application of the parking
brake then turn the front wheels
towards the pavement and engage a
gear when you park.
After a maximum application, the
release time will be longer. -

t
he display of the "Parking brake released"
message.
The application of the parking brake is
confirmed by:
8
Driving

154

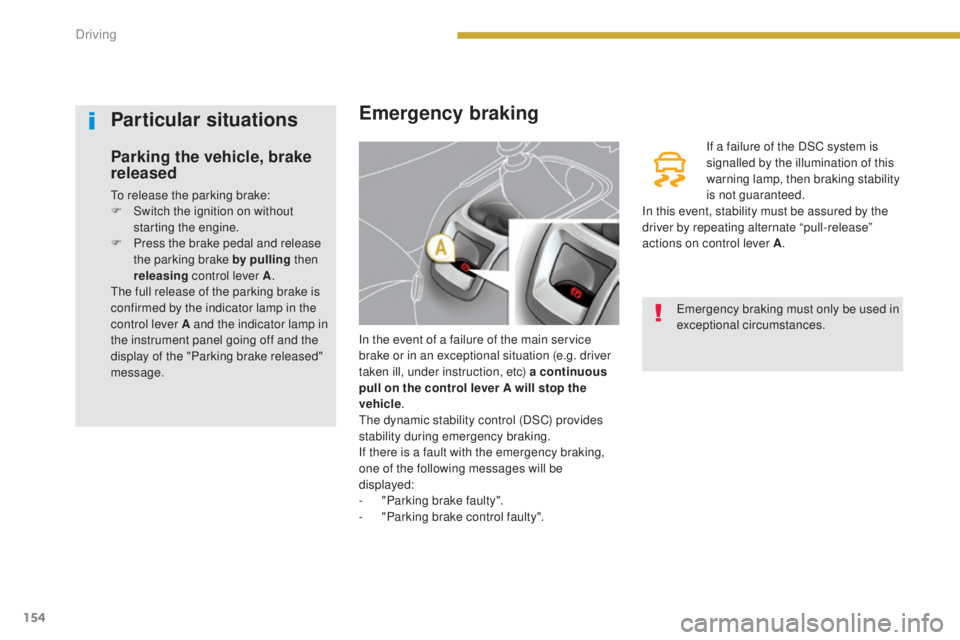

Emergency braking
In the event of a failure of the main service
brake or in an exceptional situation (e.g. driver
taken ill, under instruction, etc) a continuous
pull on the control lever A will stop the
vehicle .
The dynamic stability control (DSC) provides
stability during emergency braking.
If there is a fault with the emergency braking,
one of the following messages will be
displayed:
-

"
Parking brake faulty".
-

"
Parking brake control faulty". If a failure of the DSC system is
signalled by the illumination of this
warning lamp, then braking stability
is not guaranteed.
In this event, stability must be assured by the
driver by repeating alternate “pull-release”
actions on control lever A .
Particular situations
Parking the vehicle, brake
released
To release the parking brake:
F
S witch the ignition on without
starting the engine.
F

P
ress the brake pedal and release
the parking brake by pulling then
releasing control lever A .
The full release of the parking brake is
confirmed by the indicator lamp in the
control lever A and the indicator lamp in
the instrument panel going off and the
display of the "Parking brake released"
message. Emergency braking must only be used in
exceptional circumstances.
Driving

155

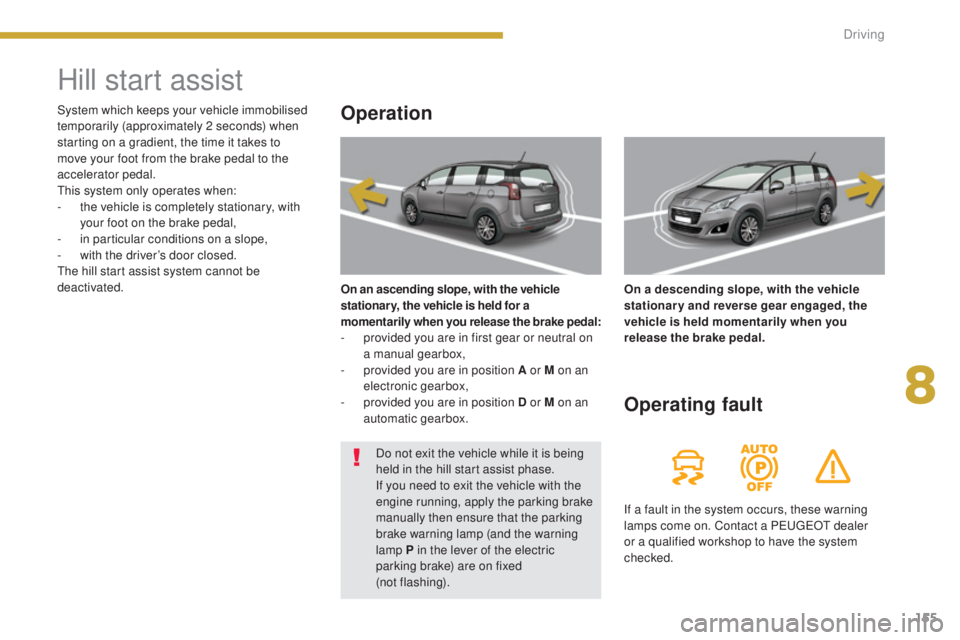

Hill start assist
Operation
On an ascending slope, with the vehicle
stationar y, the vehicle is held for a
momentarily when you release the brake pedal:
- provided you are in first gear or neutral on a manual gearbox,
-

p
rovided you are in position A or M on an
electronic gearbox,
-

p
rovided you are in position D or M on an
automatic gearbox. On a descending slope, with the vehicle
stationary and reverse gear engaged, the
vehicle is held momentarily when you
release the brake pedal.
Operating fault
If a fault in the system occurs, these warning
lamps come on. Contact a PEUGEOT dealer
or a qualified workshop to have the system
checked.
System which keeps your vehicle immobilised
temporarily (approximately 2 seconds) when
starting on a gradient, the time it takes to
move your foot from the brake pedal to the
accelerator pedal.
This system only operates when:
-

t

he vehicle is completely stationary, with
your foot on the brake pedal,
-

i

n particular conditions on a slope,
-

w

ith the driver’s door closed.
The hill start assist system cannot be
deactivated.
Do not exit the vehicle while it is being
held in the hill start assist phase.
If you need to exit the vehicle with the
engine running, apply the parking brake
manually then ensure that the parking
brake warning lamp (and the warning
lamp P in the lever of the electric
parking brake) are on fixed
(not flashing).
8
Driving

156

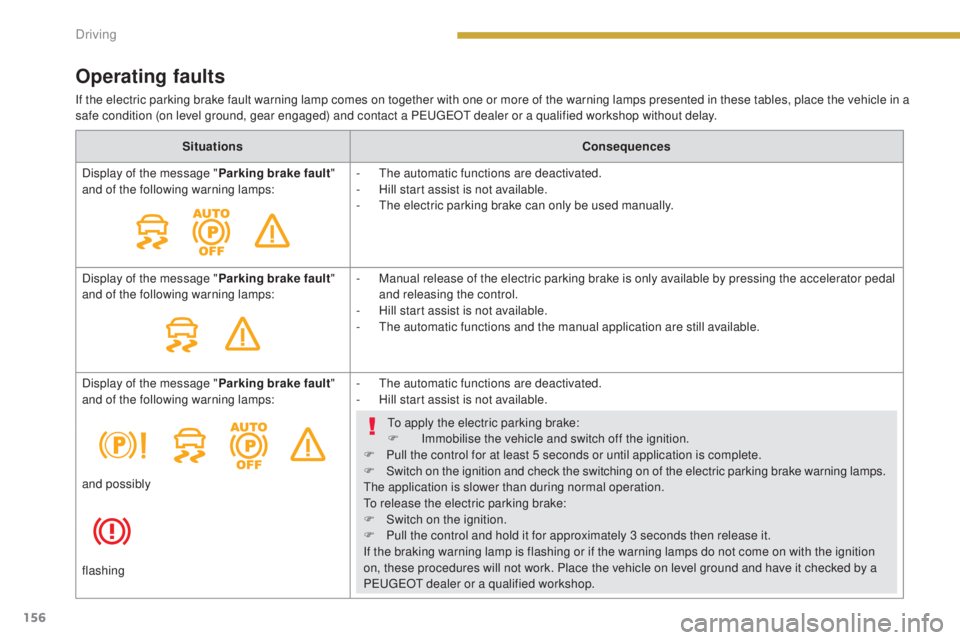

Operating faults
If the electric parking brake fault warning lamp comes on together with one or more of the warning lamps presented in these tables, place the vehicle in a
safe condition (on level ground, gear engaged) and contact a PEUGEOT dealer or a qualified workshop without delay.Situations Consequences
Display of the message " Parking brake fault"
and of the following warning lamps: -

T
he automatic functions are deactivated.
-

H
ill start assist is not available.
-

T
he electric parking brake can only be used manually.
Display of the message " Parking brake fault"
and of the following warning lamps: -

M
anual release of the electric parking brake is only available by pressing the accelerator pedal
and releasing the control.
-

H
ill start assist is not available.
-

T
he automatic functions and the manual application are still available.
Display of the message " Parking brake fault"
and of the following warning lamps: -

T
he automatic functions are deactivated.
-

H
ill start assist is not available.
To apply the electric parking brake:
F

I
mmobilise the vehicle and switch off the ignition.
F

P
ull the control for at least 5 seconds or until application is complete.
F

S
witch on the ignition and check the switching on of the electric parking brake warning lamps.
The application is slower than during normal operation.
To release the electric parking brake:
F

S
witch on the ignition.
F

P
ull the control and hold it for approximately 3 seconds then release it.
If the braking warning lamp is flashing or if the warning lamps do not come on with the ignition
on, these procedures will not work. Place the vehicle on level ground and have it checked by a
PEUGEOT dealer or a qualified workshop.
and possibly
flashing
Driving

157

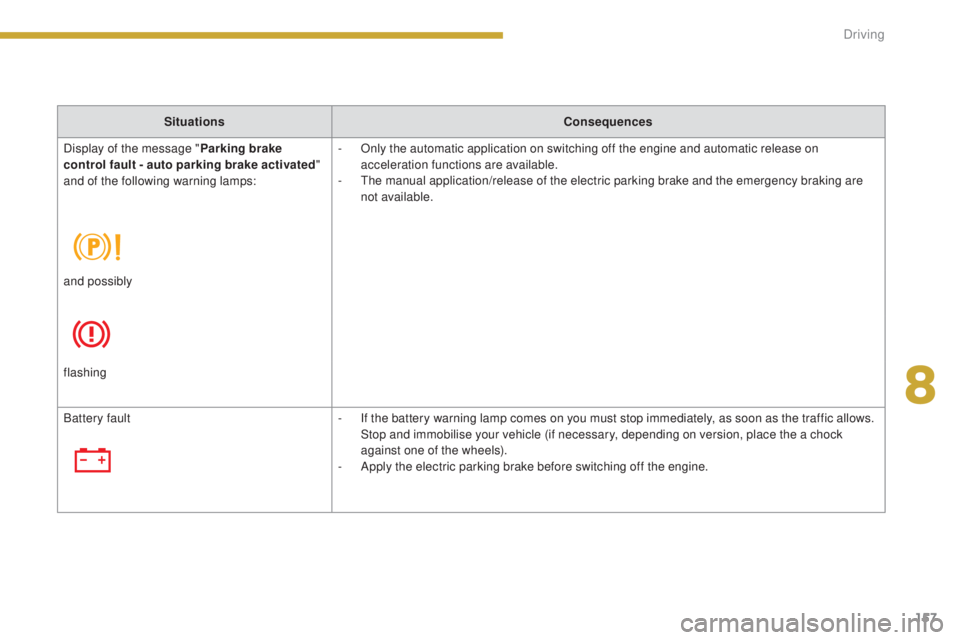

SituationsConsequences
Display of the message " Parking brake
control fault - auto parking brake activated "
and of the following warning lamps: -

O
nly the automatic application on switching off the engine and automatic release on
acceleration functions are available.
-

T
he manual application/release of the electric parking brake and the emergency braking are
not available.
and possibly
flashing
Battery fault -

I
f the battery warning lamp comes on you must stop immediately, as soon as the traffic allows.
Stop and immobilise your vehicle (if necessary, depending on version, place the a chock
against one of the wheels).
-

A
pply the electric parking brake before switching off the engine.
8
Driving

158

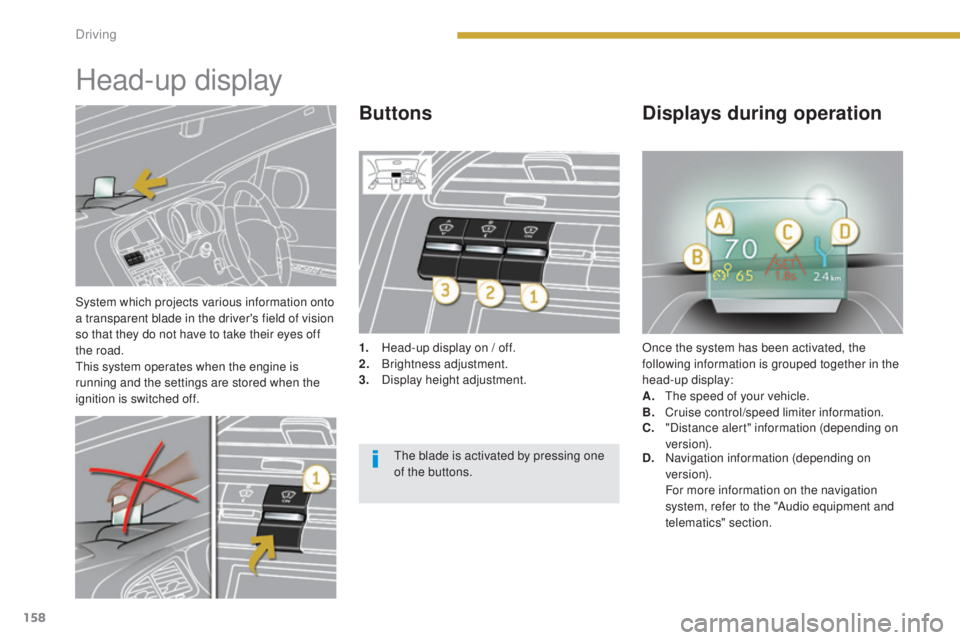

System which projects various information onto
a transparent blade in the driver's field of vision
so that they do not have to take their eyes off
the road.
This system operates when the engine is
running and the settings are stored when the
ignition is switched off.
Head-up display
1. Head-up display on / off.
2. Brightness adjustment.
3.
D

isplay height adjustment. Once the system has been activated, the
following information is grouped together in the
head-up display:
A.
T

he speed of your vehicle.
B.
C

ruise control/speed limiter information.
ButtonsDisplays during operation
C. "Distance alert" information (depending on
ve r s i o n).
D.
N

avigation information (depending on
ve r s i o n).
F

or more information on the navigation
system, refer to the "Audio equipment and
telematics" section.
The blade is activated by pressing one
of the buttons.
Driving
