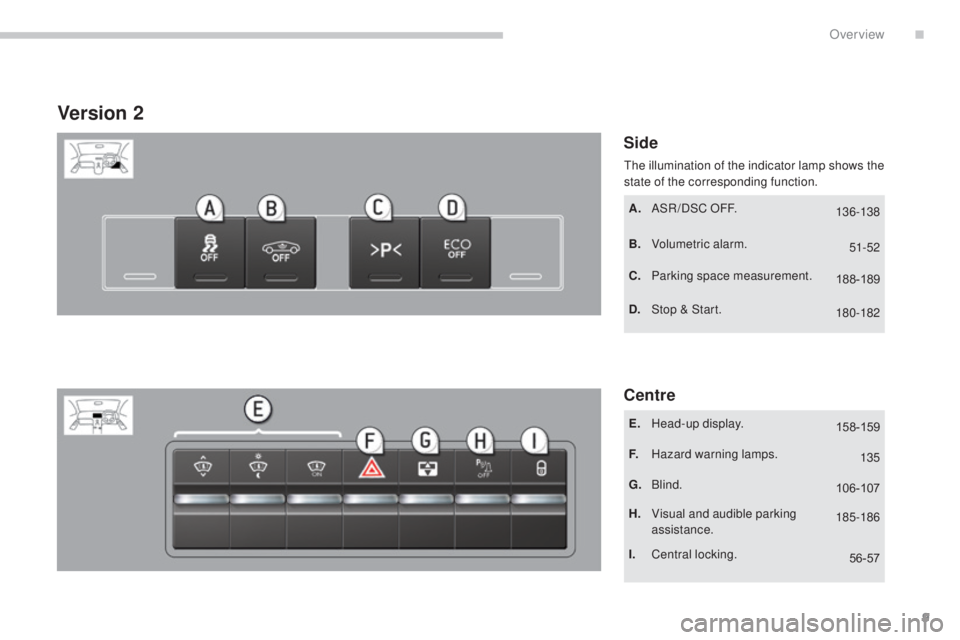

PEUGEOT 5008 2015 User Guide

9
Version 2
Side
Centre
A. ASR/DSC OFF.
B.
V
olumetric alarm.
C.
P

arking space measurement.
D.
St

op & Start.
E.
H

ead-up display.
F.
H

azard warning lamps.
G.
B

lind.
H.
V

isual and audible parking
assistance.
I.
C

entral locking.
The illumination of the indicator lamp shows the
state of the corresponding function.
136-138
51-52
188-189
180-182
158-159 135
106-107
185-186
56-57
.
Over view

10

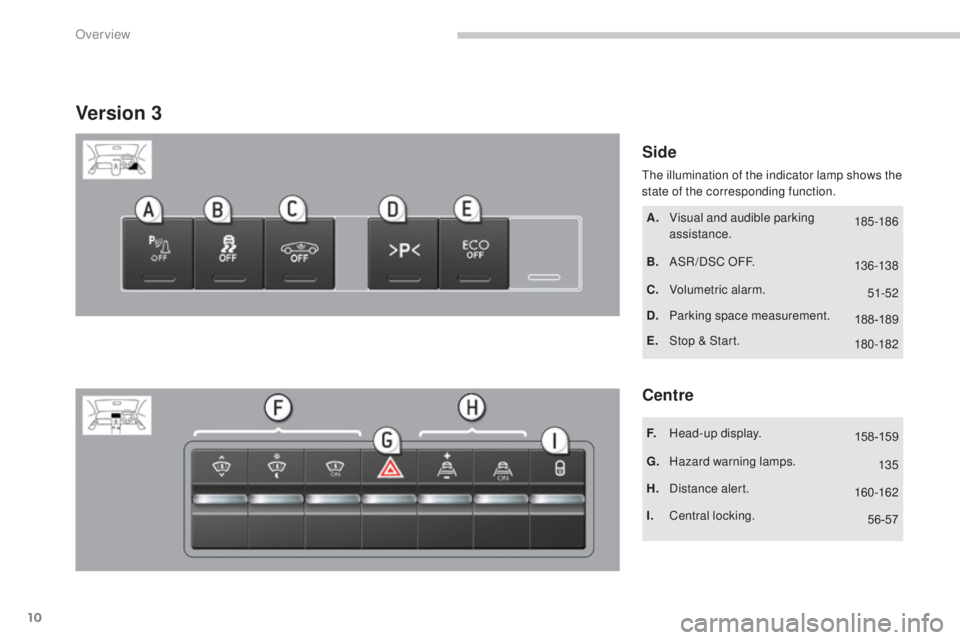

Version 3
Side
Centre
A. Visual and audible parking assistance.
B.
AS

R/DSC OFF.
C.
V

olumetric alarm.
D.
P

arking space measurement.
E.
St

op & Start.
F.
H

ead-up display.
G.
H

azard warning lamps.
H.
D

istance alert.
I.
C

entral locking.
The illumination of the indicator lamp shows the
state of the corresponding function.
185-186
136-13851-52
188-189
180-182
158-159
135
160-162 56-57
Over view

11

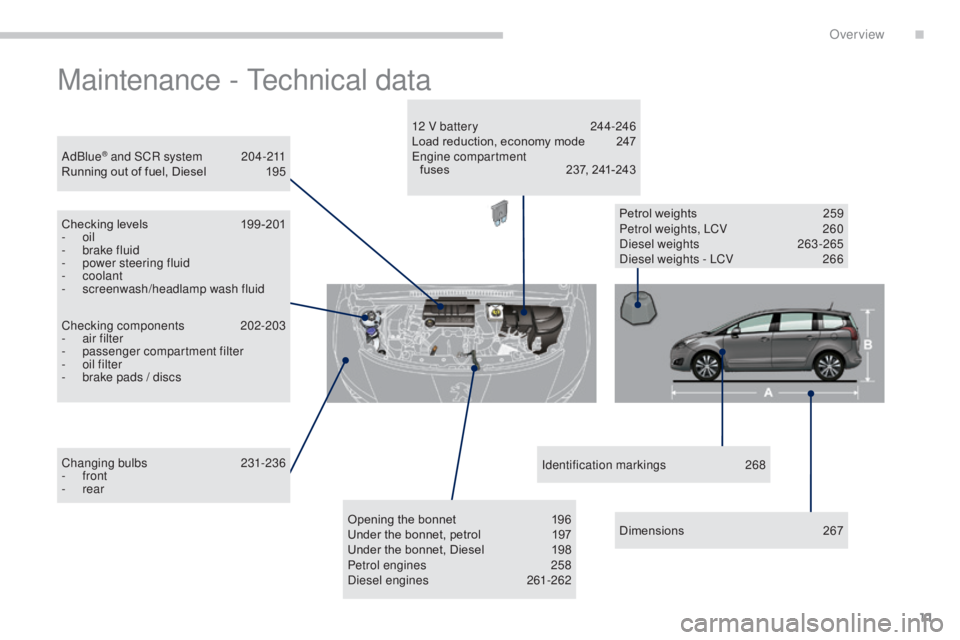

Maintenance - Technical data
Checking components 202-203
- a ir filter
-
p

assenger compartment filter
-

o
il filter
-

b
rake pads / discs
AdBlue
® and SCR system 2
04-211
Running out of fuel, Diesel 1 95
Checking levels

1
99 -201
-

oil
-

b

rake fluid
-

p

ower steering fluid
-


coolant
-
s

creenwash/headlamp wash fluid
Changing bulbs
2

31-236
-

front
-

rear Petrol weights

2
59
Petrol weights, LCV

2
60
Diesel weights
26

3-265
Diesel weights - LCV

2
66
12 V battery

2
44-246
Load reduction, economy mode 2 47
Engine compartment fuses
2 37, 241-243
Opening the bonnet

1
96
Under the bonnet, petrol

1
97
Under the bonnet, Diesel

1
98
Petrol engines

2
58
Diesel engines
2

61-262Identification markings
2

68
Dimensions
2

67
.
Over view

12
Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up without waiting.
During acceleration change up early.
With an automatic or electronic gearbox, give preference to automatic
mode and avoid pressing the accelerator pedal heavily or suddenly.
The gear shift indicator invites you engage the most suitable gear: as
soon as the indication is displayed in the instrument panel, follow it
straight away.
For vehicles fitted with an electronic or automatic gearbox, this
indicator appears only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. These
practices contribute towards a reduction in fuel consumption and CO
2
emissions and also helps reduce the background traffic noise.
If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well.
Control the use of your electrical
equipment
Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the level of light
does not require their use.
Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.
Eco-driving

13
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on
maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
-
b
efore a long journey,
-

a
t each change of season,
-

a
fter a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the manufacturer's service schedule.
With a BlueHDi Diesel engine, if the SCR system is faulty your vehicle
becomes polluting; go to a PEUGEOT dealer or a qualified workshop
without delay to have the emissions of nitrous oxides brought back to
the legal level.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any over flow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3
000 kilometres) that you will see the fuel consumption settle down to
a consistent average.
.
Eco-driving

14
Instrument panels
Panel grouping together the vehicle operation indication dials and warning lamps.
Instruments
1. Rev counter. I
ndicates the engine speed (x 1 000 rpm).
2.
C

oolant temperature gauge.
I

ndicates the temperature of the engine
coolant (° Celsius).
3.
F

uel level.
I

ndicates the quantity of fuel remaining in
the tank.
4.
S

peedometer.
I

ndicates the current speed of the moving
vehicle (mph or km/h).
5.
S

creen.
6.
C

ontrol switch.
T

emporary display of the service indicator
and driving range with the AdBlue
®
additive.
D

isplay and reset the selected function (trip
distance recorder or service indicator).
7.
I

nstrument panel lighting dimmer.
A

djusts the brightness of the lighting of
the instruments and controls, if the vehicle
lighting is on.
For more information, refer to the
section corresponding to the button or
function and its associated display.
Monitoring

15

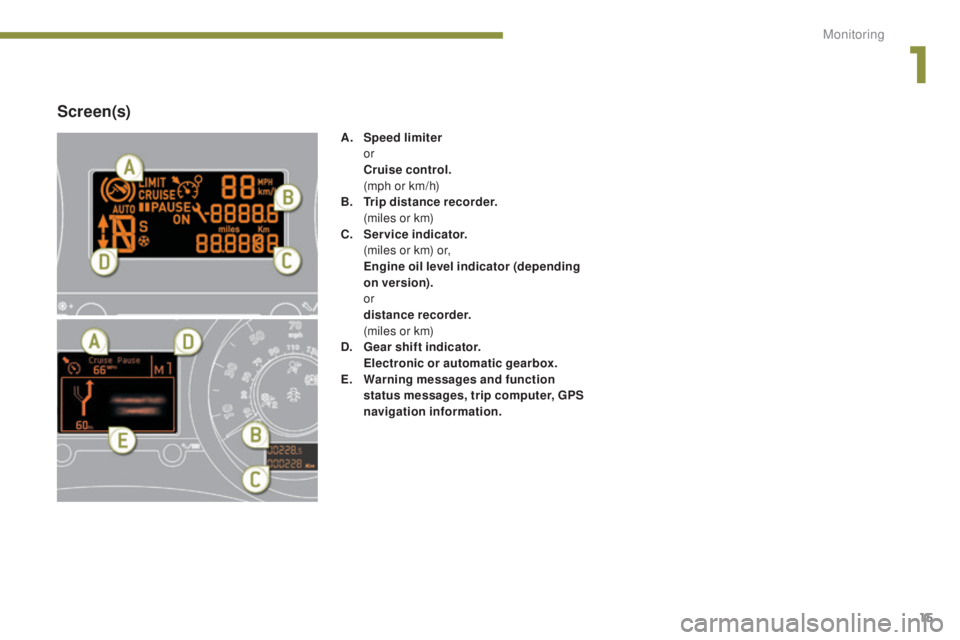

Screen(s)
A. Speed limiter
or
C

ruise control.
(

mph or km/h)
B.
T

rip distance recorder.
(

miles or km)
C.
S

ervice indicator.
(

miles or km) or,
E

ngine oil level indicator (depending
on version).


or
d

istance recorder.
(

miles or km)
D.
G

ear shift indicator.
E

lectronic or automatic gearbox.
E.
W

arning messages and function
status messages, trip computer, GPS
navigation information.
1
Monitoring

16
Left-hand
direction
indicator flashing with buzzer.
The lighting stalk is pushed down.
Right-hand
direction
indicator flashing with buzzer.
The lighting stalk is pushed up.
Operation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has come into operation.
Warning lamp is onCause Action / Observations
Sidelamps fixed. The lighting stalk is in the
"Sidelamps" position.

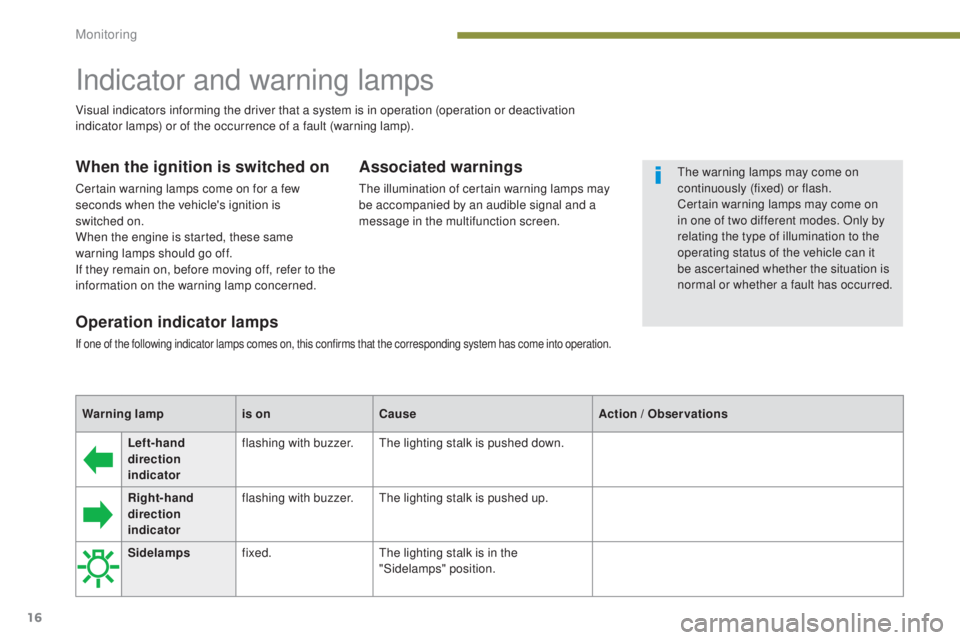

Indicator and warning lamps
When the ignition is switched on
Certain warning lamps come on for a few
seconds when the vehicle's ignition is
switched


on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.
Associated warnings
The illumination of certain warning lamps may
be accompanied by an audible signal and a
message in the multifunction screen.
Visual indicators informing the driver that a system is in operation (operation or deactivation
indicator lamps) or of the occurrence of a fault (warning lamp).
The warning lamps may come on
continuously (fixed) or flash.
Certain warning lamps may come on
in one of two different modes. Only by
relating the type of illumination to the
operating status of the vehicle can it
be ascertained whether the situation is
normal or whether a fault has occurred.
Monitoring

17
Diesel engine
pre-heatingfixed.
The ignition switch is at the
2nd
position (ignition on).Wait until the warning lamp has switched off before starting.
The duration for which the warning lamp is on is determined
by the climatic conditions.
Dipped beam
headlampsfixed.
The lighting stalk is in the "Dipped
beam headlamps" position.
Main beam
headlamps fixed.
The lighting stalk is pulled towards
you. Pull the stalk to return to dipped beam headlamps.
Front foglamps fixed. The front foglamps are switched on
using the ring on the lighting control
stalk. Turn the ring on the lighting control stalk rear ward
twice to switch off the front foglamps.
Rear foglamps fixed. The rear foglamps are on. Turn the ring on the stalk rear ward to switch off the
rear foglamps.
Electric parking
brake fixed.
The electric parking brake is applied. Release the electric parking brake to switch off the
warning lamp: with your foot on the brake pedal, pull
the electric parking brake control lever.
Observe the safety recommendations.
For more information on the electric parking brake,
refer to the corresponding section.

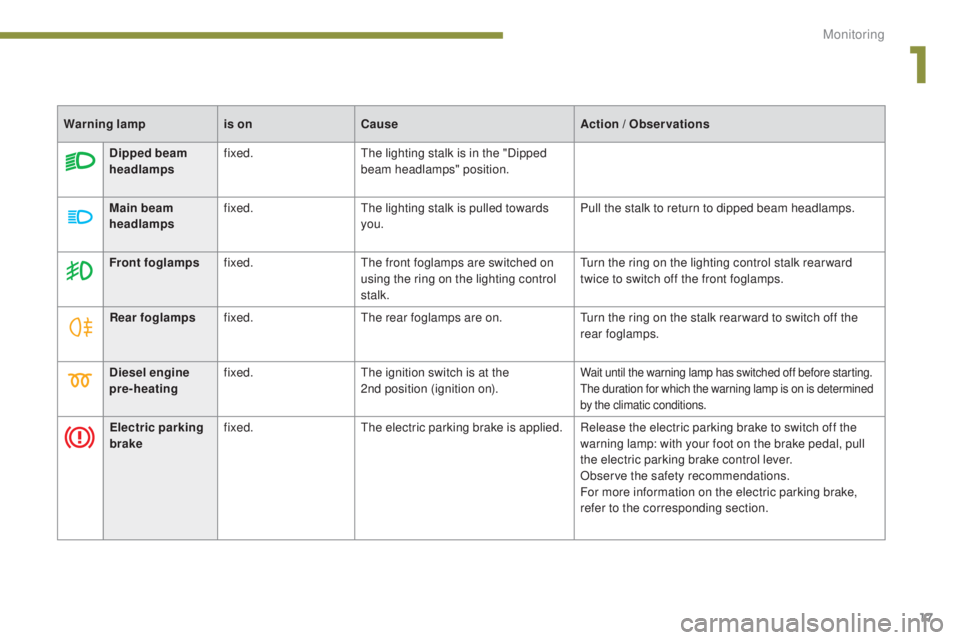

Warning lamp
is onCause Action / Observations
1
Monitoring

18

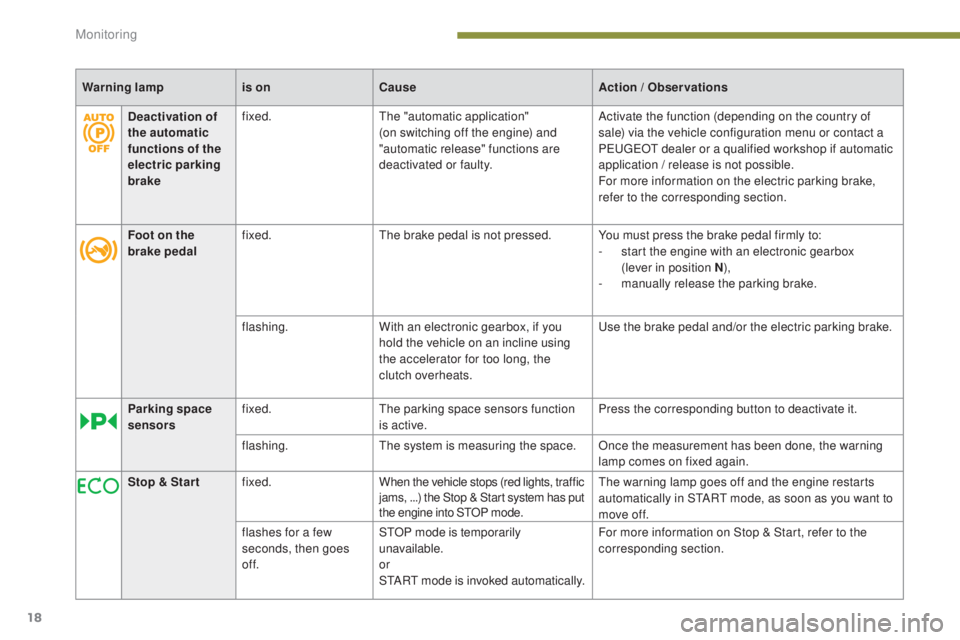

Warning lampis onCause Action / Observations
Deactivation of
the automatic
functions of the
electric parking
brake fixed.
The "automatic application"
(on switching off the engine) and
"automatic release" functions are
deactivated or faulty. Activate the function (depending on the country of
sale) via the vehicle configuration menu or contact a
PEUGEOT dealer or a qualified workshop if automatic
application / release is not possible.
For more information on the electric parking brake,
refer to the corresponding section.
Foot on the
brake pedal fixed.
The brake pedal is not pressed. You must press the brake pedal firmly to:
-

s
tart the engine with an electronic gearbox
(lever in position N ),
-
m

anually release the parking brake.
flashing. With an electronic gearbox, if you
hold the vehicle on an incline using
the accelerator for too long, the
clutch overheats. Use the brake pedal and/or the electric parking brake.
Parking space
sensors fixed.
The parking space sensors function
is active. Press the corresponding button to deactivate it.
flashing. The system is measuring the space. Once the measurement has been done, the warning
lamp comes on fixed again.
Stop & Star t fixed. When the vehicle stops (red lights, traffic
jams, ...) the Stop & Start system has put
the engine into STOP mode. The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.
flashes for a few
seconds, then goes
of f. STOP mode is temporarily
unavailable.
or
START mode is invoked automatically. For more information on Stop & Start, refer to the
corresponding section.
Monitoring
