technical data PEUGEOT 5008 2022 User Guide

219

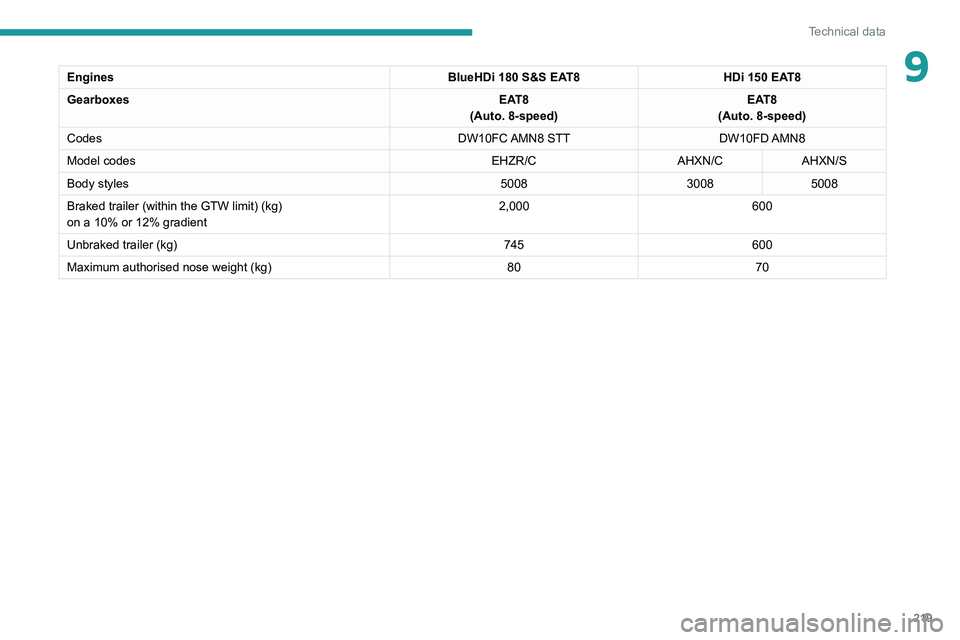

Technical data
9EnginesBlueHDi 180 S&S EAT8HDi 150 EAT8
Gearboxes EAT8
(Auto. 8-speed) EAT8
(Auto. 8-speed)
Codes DW10FC AMN8 STTDW10FD AMN8
Model codes EHZR/CAHXN/CAHXN/S
Body styles 500830085008
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 2,000
600
Unbraked trailer (kg) 745600
Maximum authorised nose weight (kg) 8070

220
Technical data
Dimensions (mm)
These dimensions have been measured on an unladen vehicle.
3008

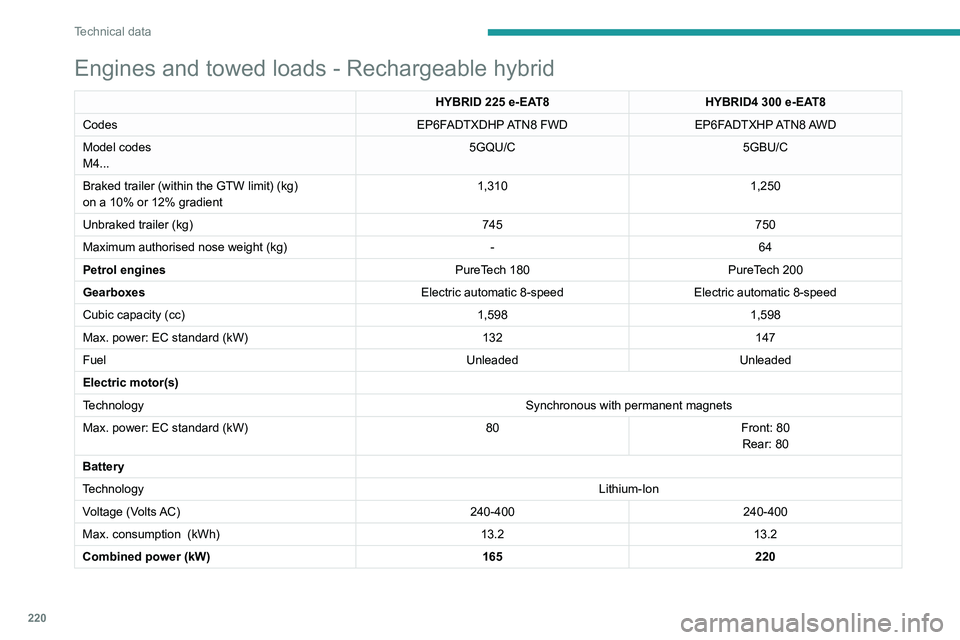

Engines and towed loads - Rechargeable hybrid
HYBRID 225 e-EAT8 HYBRID4 300 e-EAT8
Codes EP6FADTXDHP ATN8 FWDEP6FADTXHP ATN8 AWD
Model codes
M4... 5GQU/C
5GBU/C
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 1,310
1,250
Unbraked trailer (kg) 745750
Maximum authorised nose weight (kg) -64
Petrol engines PureTech 180PureTech 200
Gearboxes Electric automatic 8-speedElectric automatic 8-speed
Cubic capacity (cc) 1,5981,598
Max. power: EC standard (kW) 132147
Fuel UnleadedUnleaded
Electric motor(s)
Technology Synchronous with permanent magnets
Max. power: EC standard (kW) 80Front: 80
Rear: 80
Battery
Technology Lithium-Ion
Voltage (Volts AC) 240-400240-400
Max. consumption

(kWh) 13.213.2
Combined power (kW) 165220

221
Technical data

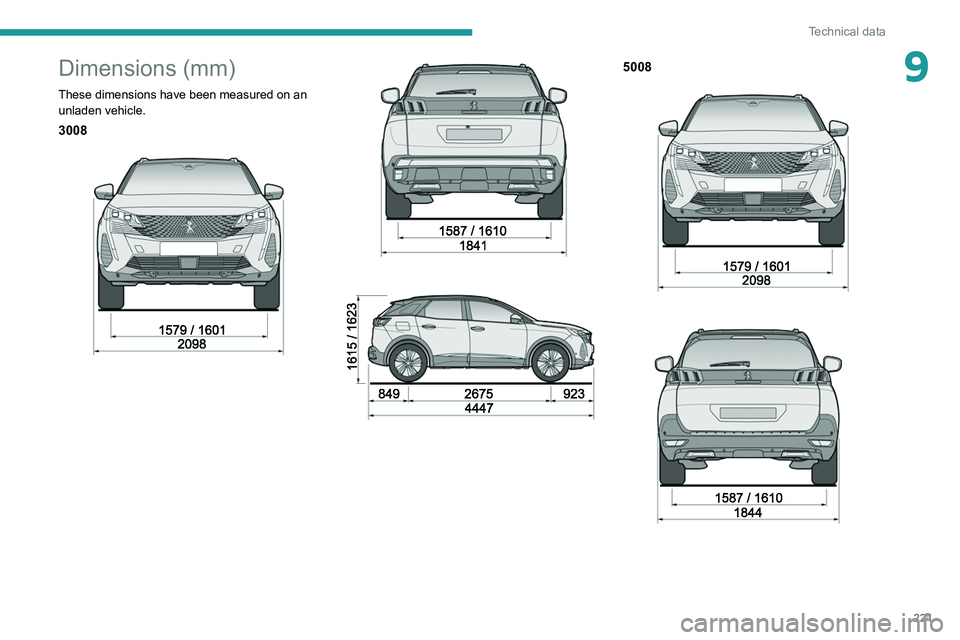

9Dimensions (mm)
These dimensions have been measured on an unladen vehicle.
3008



5008

222
Technical data

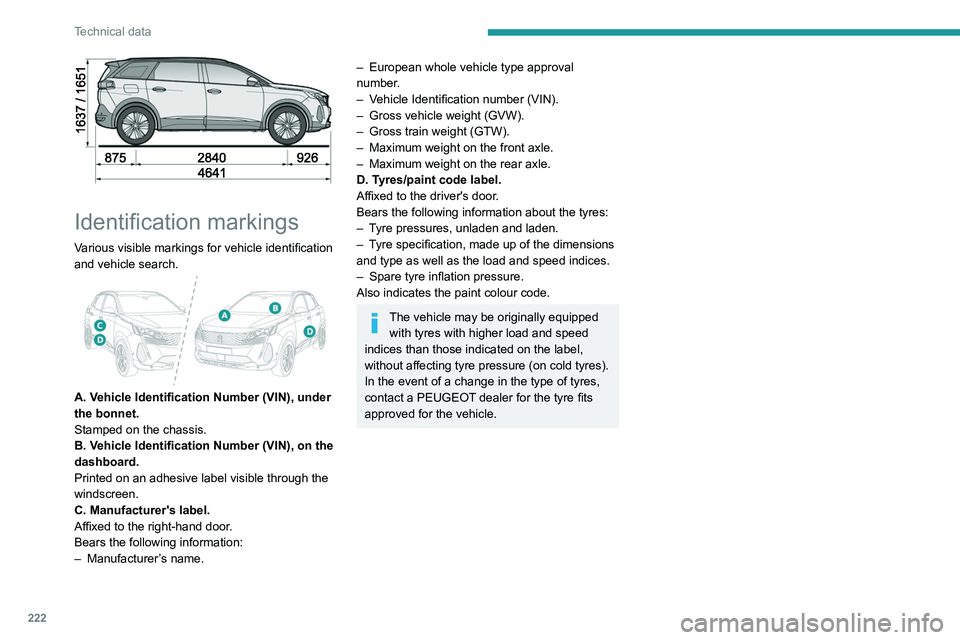

Identification markings
Various visible markings for vehicle identification
and vehicle search.


A. Vehicle Identification Number (VIN), under
the bonnet.
Stamped on the chassis.
B. Vehicle Identification Number (VIN), on the
dashboard.
Printed on an adhesive label visible through the
windscreen.
C. Manufacturer's label.
Affixed to the right-hand door.
Bears the following information:
–
Manufacturer
’s name.
– European whole vehicle type approval
number .
–

V
ehicle Identification number (VIN).
–

Gross vehicle weight (GVW).
–


Gross train weight (GTW).
–


Maximum weight on the front axle.
–


Maximum weight on the rear axle.
D. T

yres/paint code label.
Affixed to the driver's door.
Bears the following information about the tyres:
–

T
yre pressures, unladen and laden.
–

T
yre specification, made up of the dimensions
and type as well as the load and speed indices.
–

Spare tyre inflation pressure.
Also indicates the paint colour code.
The vehicle may be originally equipped with tyres with higher load and speed
indices than those indicated on the label,
without affecting tyre pressure (on cold tyres).
In the event of a change in the type of tyres,
contact a PEUGEOT dealer for the tyre fits
approved for the vehicle.

267

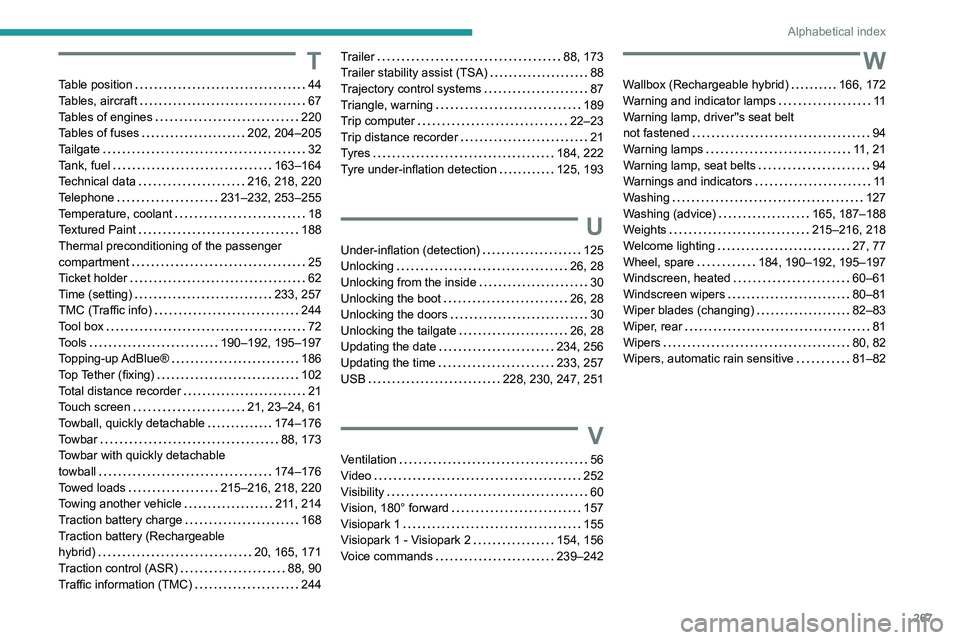

Alphabetical index
T
Table position 44
Tables, aircraft
67
Tables of engines

220
Tables of fuses

202, 204–205
Tailgate

32
Tank, fuel

163–164
Technical data

216, 218, 220
Telephone

231–232, 253–255
Temperature, coolant

18
Textured Paint

188
Thermal preconditioning of the passenger
compartment

25
Ticket holder

62
Time (setting)

233, 257
TMC (Traffic info)

244
Tool box

72
Tools

190–192, 195–197
Topping-up AdBlue®

186
Top Tether (fixing)

102
Total distance recorder

21
Touch screen

21, 23–24, 61
Towball, quickly detachable

174–176
Towbar

88, 173
Towbar with quickly detachable
towball

174–176
Towed loads

215–216, 218, 220
Towing another vehicle

211, 214
Traction battery charge

168
Traction battery (Rechargeable
hybrid)

20, 165, 171
Traction control (ASR)

88, 90
Traffic information (TMC)

244
Trailer 88, 173
Trailer stability assist (TSA)
88
Trajectory control systems

87
Triangle, warning

189
Trip computer

22–23
Trip distance recorder

21
Tyres

184, 222
Tyre under-inflation detection

125, 193
U
Under-inflation (detection) 125
Unlocking
26, 28
Unlocking from the inside

30
Unlocking the boot

26, 28
Unlocking the doors

30
Unlocking the tailgate

26, 28
Updating the date

234, 256
Updating the time

233, 257
USB

228, 230, 247, 251
V
Ventilation 56
Video
252
Visibility

60
Vision, 180° forward

157
Visiopark 1

155
Visiopark 1 - Visiopark 2

154, 156
Voice commands

239–242
W
Wallbox (Rechargeable hybrid) 166, 172
Warning and indicator lamps
11
Warning lamp, driver''s seat belt
not fastened

94
Warning lamps

11, 21
Warning lamp, seat belts

94
Warnings and indicators

11
Washing

127
Washing (advice)

165, 187–188
Weights

215–216, 218
Welcome lighting

27, 77
Wheel, spare

184, 190–192, 195–197
Windscreen, heated

60–61
Windscreen wipers

80–81
Wiper blades (changing)

82–83
Wiper, rear

81
Wipers

80, 82
Wipers, automatic rain sensitive

81–82
