Checks
Avoid prolonged contact of used oil or fluids with the skin. Most of these fluids are harmful to health or indeed very corrosive.
Do not discard used oil or fluids into sewers or onto the ground. Take used oil to a PEUGEOT dealer (France) or an authorised waste disposal site.
Used products
Topping up
This additive must be topped up by a PEUGEOT dealer or a qualified workshop without delay.
Diesel additive level
(Diesel engine with particle
emission filter)
A low additive level is indicated by illumination of the ser vice warning lamp, accompanied by an audible warning and a message in the instrument panel screen.

216
i
Checks
Checks

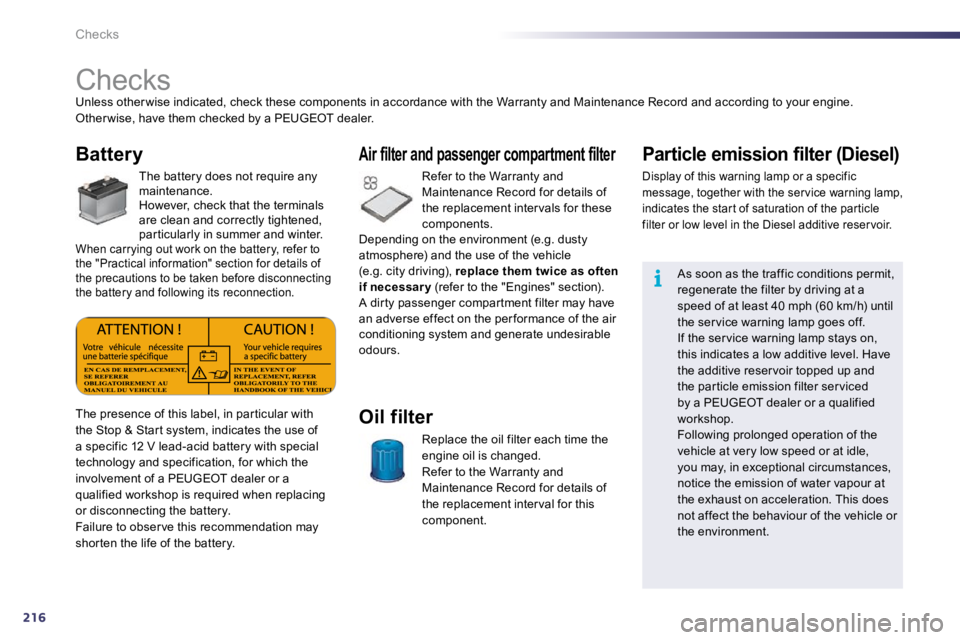

Unless other wise indicated, check these components in accordance with the Warranty and Maintenance Record and according to your engine. Other wise, have them checked by a PEUGEOT dealer.
Battery
The battery does not require any maintenance. However, check that the terminals are clean and correctly tightened, par ticularly in summer and winter. When carrying out work on the battery, refer to the "Practical information" section for details of the precautions to be taken before disconnecting the battery and following its reconnection.
Refer to the Warranty and Maintenance Record for details of the replacement inter vals for these components. Depending on the environment (e.g. dusty atmosphere) and the use of the vehicle (e.g. city driving), replace them twice as often if necessar y (refer to the "Engines" section). A dir ty passenger compar tment filter may have an adverse effect on the per formance of the air conditioning system and generate undesirable odours.
Air filter and passenger compartment filter
Replace the oil filter each time the engine oil is changed. Refer to the Warranty and Maintenance Record for details of the replacement inter val for this component.
Oil filter The presence of this label, in par ticular with the Stop & Star t system, indicates the use of a specific 12 V lead-acid battery with special technology and specification, for which the involvement of a PEUGEOT dealer or a qualified workshop is required when replacing or disconnecting the battery. Failure to obser ve this recommendation may shor ten the life of the battery.
Particle emission filter (Diesel)
Display of this warning lamp or a specific message, together with the ser vice warning lamp, indicates the start of saturation of the particle filter or low level in the Diesel additive reser voir.
As soon as the traffic conditions permit, regenerate the filter by driving at a speed of at least 40 mph (60 km/h) until the ser vice warning lamp goes off. If the ser vice warning lamp stays on, this indicates a low additive level. Have the additive reser voir topped up and the par ticle emission filter ser viced by a PEUGEOT dealer or a qualified workshop. Following prolonged operation of the vehicle at very low speed or at idle, you may, in exceptional circumstances,
notice the emission of water vapour at the exhaust on acceleration. This does not affect the behaviour of the vehicle or the environment.

9217
!
Checks
Manual gearbox
The gearbox does not require any maintenance (no oil change). Refer to the Warranty and Maintenance Record for the details of the level checking interval for this component.
6-speed electronic gear
control gearbox
The gearbox does not require any maintenance (no oil change). Refer to the Warranty and Maintenance Record for details of the checking interval for this component.
Automatic gearbox
The gearbox does not require any maintenance (no oil change). Refer to the Warranty and Maintenance
Record for details of the level checking interval for this component.
Brake wear depends on the style of driving, par ticularly in the case of vehicles used in town, over shor t distances. It may be necessary to have the condition of the brakes checked, even between vehicle ser vices. Unless there is a leak in the system, a drop in the brake fluid level indicates that the brake pads are worn.
Brake pads
For information on checking brake disc wear, contact a PEUGEOT dealer or a qualified workshop.
Brake disc wear
Manual parking brake
If a loss of effectiveness of this system is noticed, the parking brake must be checked, even between
two ser vices. Checking this system must be done by a PEUGEOT dealer or a qualified workshop.
Electric parking brake
This system does not require any routine ser vicing. However, in the event of a problem, have the system checked by a PEUGEOT dealer or a qualified workshop. For more information, see "Driving - Electric parking brake - § Operating faults".

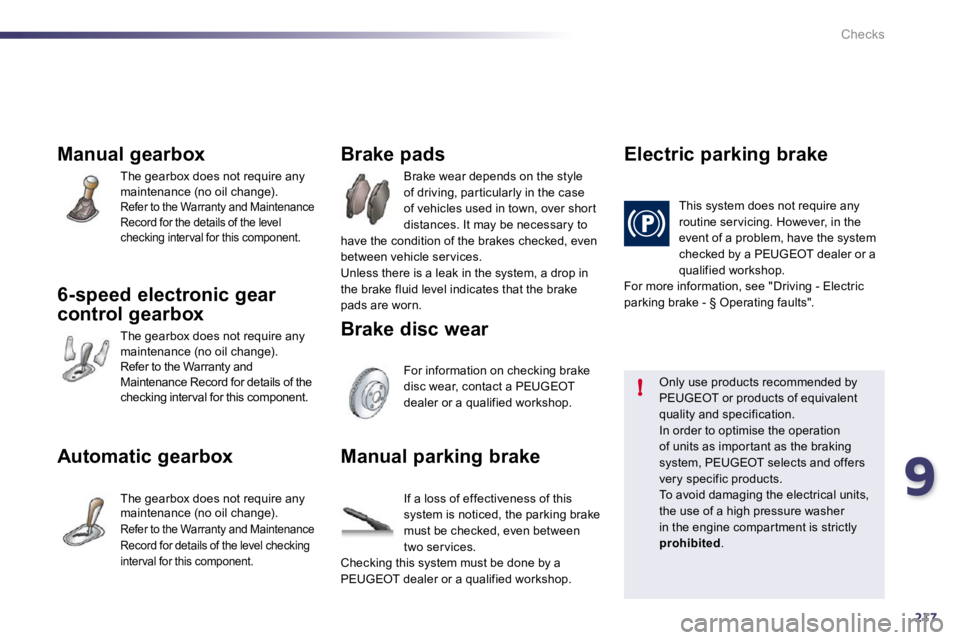

Only use products recommended by PEUGEOT or products of equivalent quality and specification.
In order to optimise the operation of units as impor tant as the braking system, PEUGEOT selects and offers
very specific products. To avoid damaging the electrical units, the use of a high pressure washer in the engine compar tment is strictly prohibited .

218

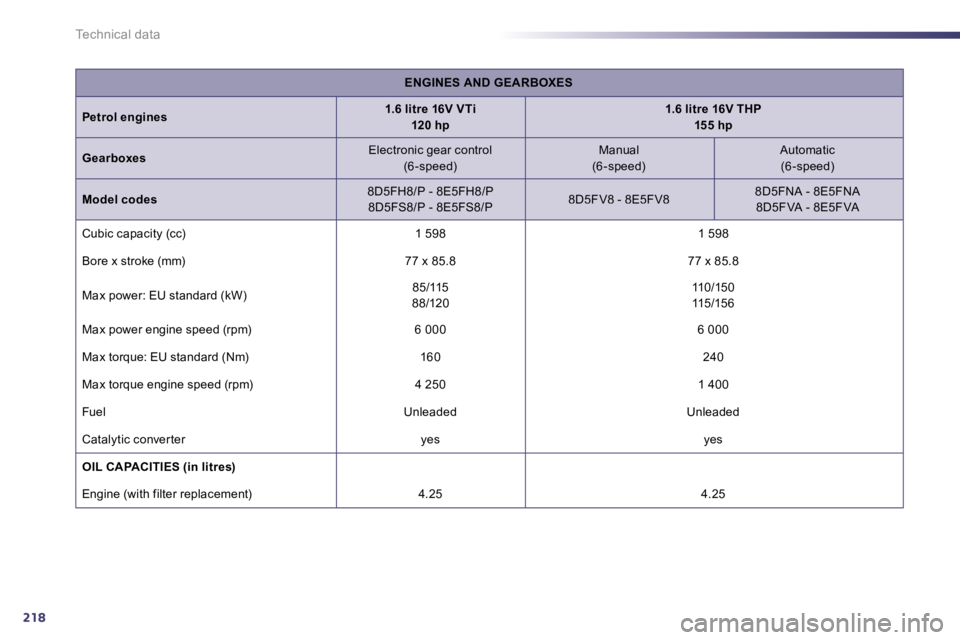

Technical data
ENGINES AND GEARBOXES
Petrol engines1.6 litre 16V VTi120 hp1.6 litre 16V THP155 hp
Gearboxes Electronic gear control (6 -speed) Manual (6 -speed) Automatic (6 -speed)
Model codes 8D5FH8/P - 8E5FH8/P 8D5FS8/P - 8E5FS8/P 8D5FV8 - 8E5FV8 8D5FNA - 8E5FNA8D5FVA - 8E5FVA
Cubic capacity (cc) 1 598 1 598
Bore x stroke (mm) 77 x 85.8 77 x 85.8
Max power: EU standard (kW) 85/11588/120 110/150115/156
Max power engine speed (rpm) 6 000 6 000
Max torque: EU standard (Nm) 160 240
Max torque engine speed (rpm) 4 250 1 400
Fuel Unleaded Unleaded
Catalytic conver ter yes yes
OIL CAPACITIES (in litres)
Engine (with filter replacement) 4.25 4.25

220
Technical data
ENGINES AND GEARBOXES
Diesel engine1.6 litre Turbo HDi110 hp
Gearboxes Manual (5 -speed) Electronic gear control (6 -speed)
Model codes 8D9HL08E9HL0 8D9HR8/PS8E9HR8/PS
Outline Saloon SW Saloon SW
Cubic capacity (cc) 1 560 1 560
Bore x stroke (mm) 75 x 88.3 75 x 88,3
Max power: EU standard (kW) 82 82
Max power engine speed (rpm) 3 600 3 600
Max torque: EU standard (Nm) 240 270
Max torque engine speed (rpm) 1 750 1 750
Fuel Diesel
Catalytic conver ter yes
Par ticle emission filter yes
OIL CAPACITIES (in litres)
Engine (with filter replacement) 3.25

10
221
Technical data
ENGINES AND GEARBOXES
Diesel engines2 litre Turbo HDi 140 hp2 litre Turbo HDi 163 hp
Gearboxes Manual (6 -speed) Automatic (6 -speed)
Model codes 8DRHR8 - 8ERHR88DRHF8 - 8ERHF8 8DRHHA - 8ERHHA8DRHDA - 8ERHDA
Outline Saloon SW Saloon SW
Cubic capacity (cc) 1 997 1 997
Bore x stroke (mm) 85 x 88 85 x 88
Max power: EU standard (kW) 100/135 103/140 100/135 120/163
Max power engine speed (rpm) 4 000 3 750
Max torque: EU standard (Nm) 320 340
Max torque engine speed (rpm) 2 000 2 000
Fuel Diesel
Catalytic conver ter yes
Par ticle emission filter yes
OIL CAPACITIES (in litres)
Engine (with filter replacement) 5.25 5

222

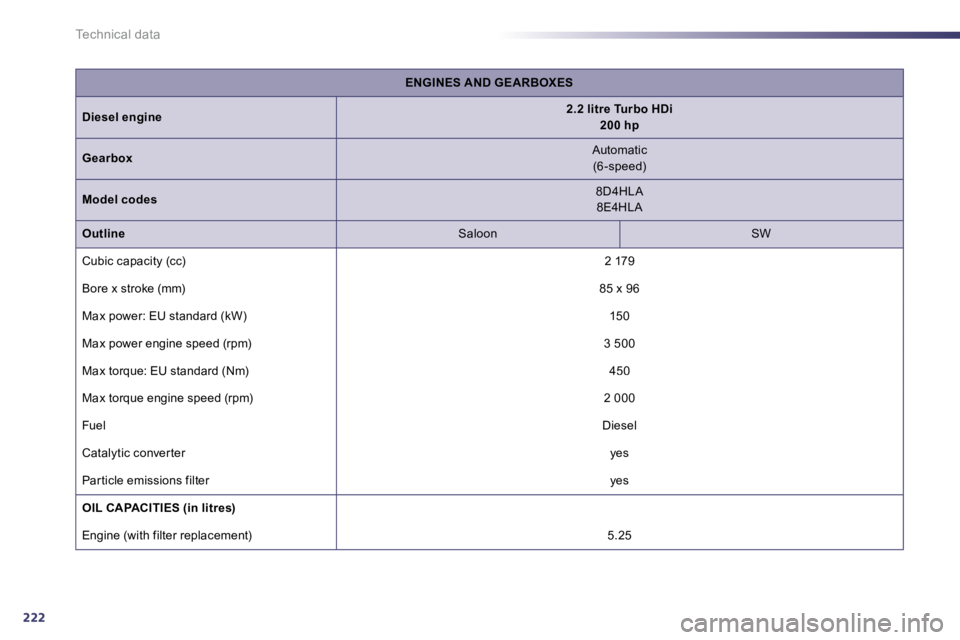

Technical data
ENGINES AND GEARBOXES
Dieselengine2.2 litre Turbo HDi 200 hp
Gearbox Automatic (6 -speed)
Model codes 8D4HLA 8E4HLA
Outline Saloon SW
Cubic capacity (cc) 2 179
Bore x stroke (mm) 85 x 96
Max power: EU standard (kW) 150
Max power engine speed (rpm) 3 500
Max torque: EU standard (Nm) 450
Max torque engine speed (rpm) 2 000
Fuel Diesel
Catalytic conver ter yes
Par ticle emissions filter yes
OIL CAPACITIES (in litres)
Engine (with filter replacement) 5.25

10
219
Technical data
* The kerb weight is equal to the unladen weight + driver (75 kg). ** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towi ng vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid u p to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The speed of a towing vehicle must not exceed 60 m ph (100 km/h) (comply with the legislation in force in your country). High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

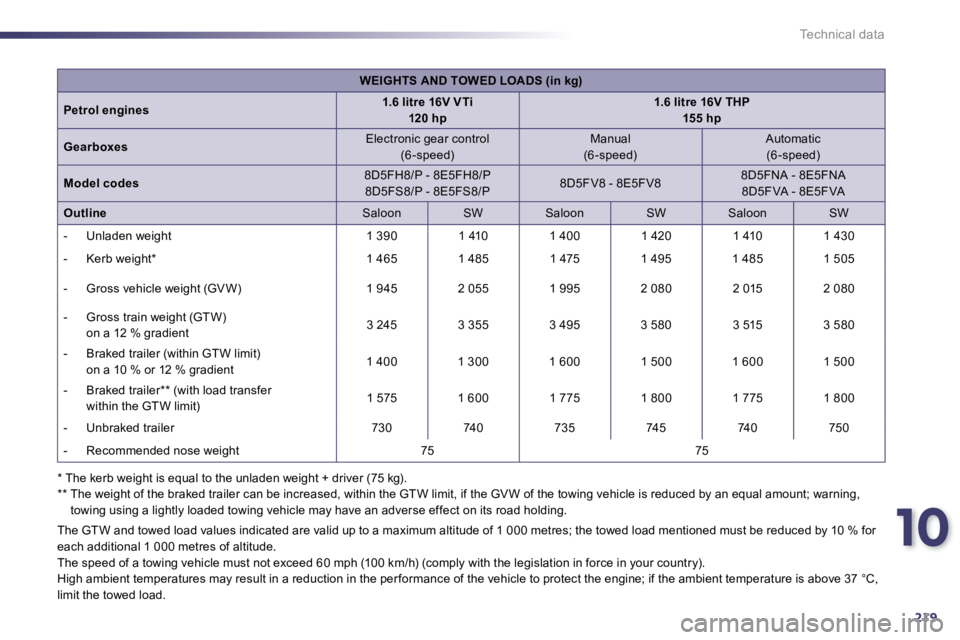

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines1.6 litre 16V VTi120 hp1.6 litre 16V THP155 hp
Gearboxes Electronic gear control (6 -speed) Manual (6 -speed) Automatic (6 -speed)
Model codes 8D5FH8/P - 8E5FH8/P8D5FS8/P - 8E5FS8/P 8D5FV8 - 8E5FV8 8D5FNA - 8E5FNA8D5FVA - 8E5FVA
Outline Saloon SW Saloon SW Saloon SW
- Unladen weight 1 390 1 410 1 400 1 420 1 410 1 430
- Kerb weight * 1 465 1 485 1 475 1 495 1 485 1 505
- Gross vehicle weight (GV W) 1 945 2 055 1 995 2 080 2 015 2 080
- Gross train weight (GTW) on a 12 % gradient 3 245 3 355 3 495 3 580 3 515 3 580
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 1 400 1 300 1 600 1 500 1 600 1 500
- Braked trailer ** (with load transfer within the GTW limit) 1 575 1 600 1 775 1 800 1 775 1 800
- Unbraked trailer 730 740 735 745 740 750
- Recommended nose weight 75 75

10
223
Technical data
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country). High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
* The kerb weight is equal to the unladen weight + driver (75 kg). ** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towi ng vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

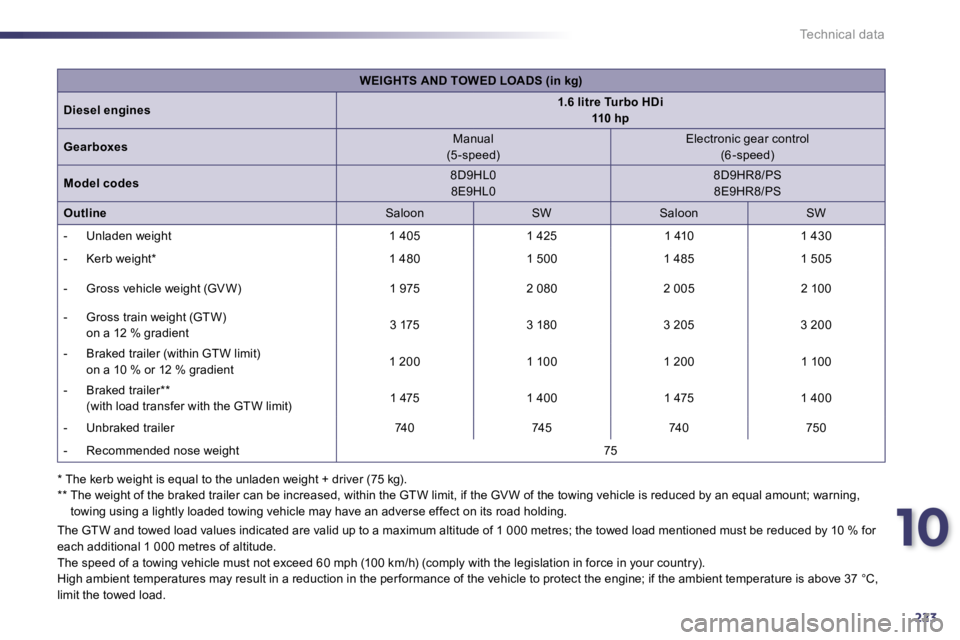

WEIGHTS AND TOWED LOADS (in kg)
Diesel engines1.6 litre Turbo HDi 110 hp
Gearboxes Manual (5 -speed) Electronic gear control (6 -speed)
Model codes 8D9HL08E9HL0 8D9HR8/PS8E9HR8/PS
Outline Saloon SW Saloon SW
- Unladen weight 1 405 1 425 1 410 1 430
- Kerb weight * 1 480 1 500 1 485 1 505
- Gross vehicle weight (GV W) 1 975 2 080 2 005 2 100
- Gross train weight (GTW) on a 12 % gradient 3 175 3 180 3 205 3 200
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 1 200 1 100 1 200 1 100
- Braked trailer ** (with load transfer with the GTW limit) 1 475 1 400 1 475 1 400
- Unbraked trailer 740 745 740 750
- Recommended nose weight 75

224
Technical data
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country). High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
* The kerb weight is equal to the unladen weight + driver (75 kg). ** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

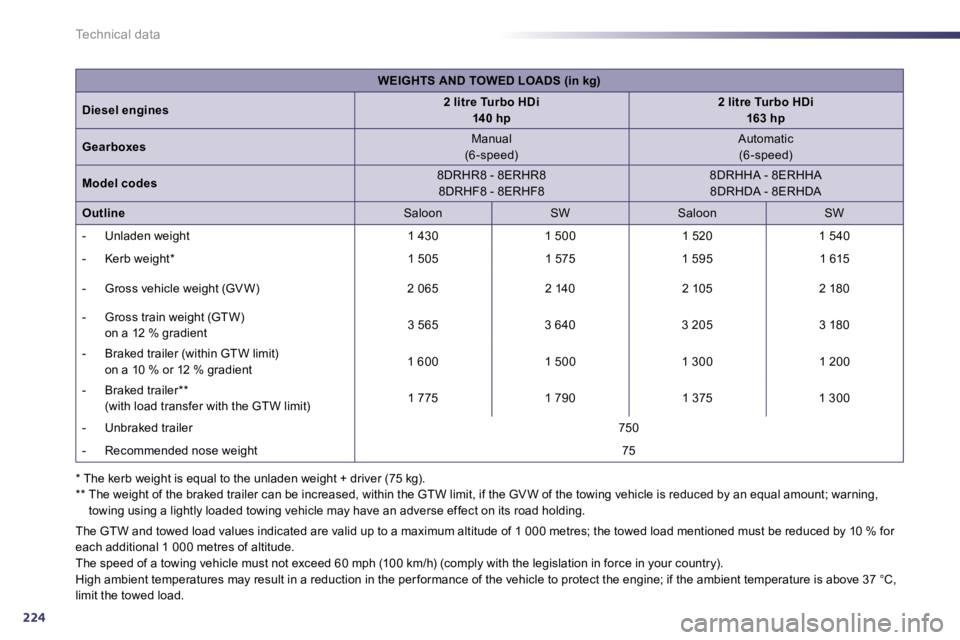

WEIGHTS AND TOWED LOADS (in kg)
Diesel engines2 litre Turbo HDi 140 hp2 litre Turbo HDi 163 hp
Gearboxes Manual (6 -speed) Automatic (6 -speed)
Model codes 8DRHR8 - 8ERHR8 8DRHF8 - 8ERHF8 8DRHHA - 8ERHHA8DRHDA - 8ERHDA
Outline Saloon SW Saloon SW
- Unladen weight 1 430 1 500 1 520 1 540
- Kerb weight * 1 505 1 575 1 595 1 615
- Gross vehicle weight (GV W) 2 065 2 140 2 105 2 180
- Gross train weight (GTW) on a 12 % gradient 3 565 3 640 3 205 3 180
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 1 600 1 500 1 300 1 200
- Braked trailer ** (with load transfer with the GTW limit) 1 775 1 790 1 375 1 300
- Unbraked trailer 750
- Recommended nose weight 75
