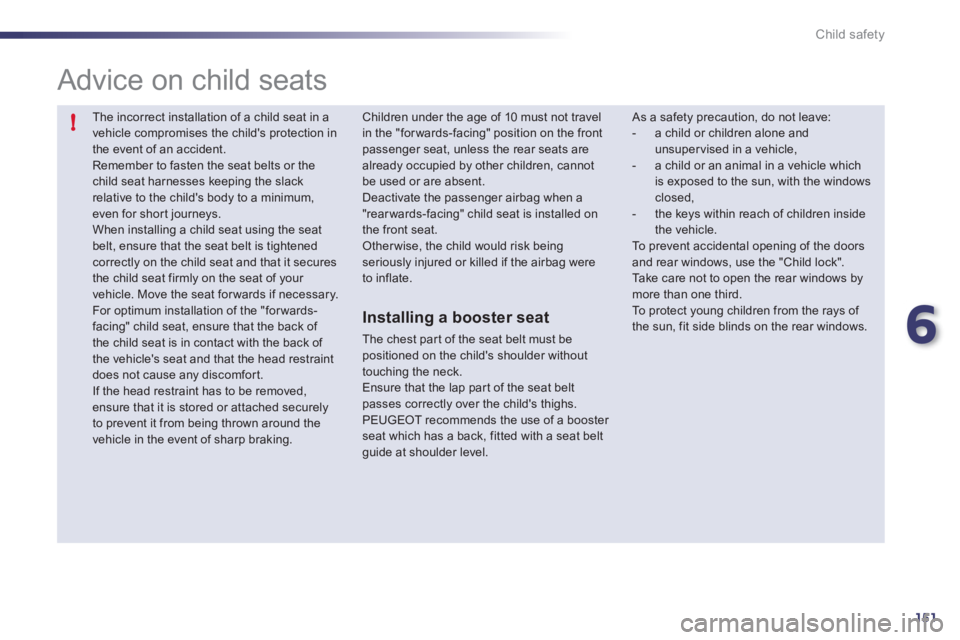

Child safety
The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
relative to the child's body to a minimum,
even for shor t journeys.
When installing a child seat using the seat
belt, ensure that the seat belt is tightened
correctly on the child seat and that it secures
the child seat firmly on the seat of your
vehicle. Move the seat for wards if necessary.
For optimum installation of the "for wards-
facing" child seat, ensure that the back of
the child seat is in contact with the back of
the vehicle's seat and that the head restraint
does not cause any discomfor t.
If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.
Advice on child seats

As a safety precaution, do not leave:


- a child or children alone and
unsuper vised in a vehicle,

- a child or an animal in a vehicle which
is exposed to the sun, with the windows
closed,

- the keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors
and rear windows, use the "Child lock".
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds on the rear windows.
Children under the age of 10 must not travel
in the "for wards-facing" position on the front
passenger seat, unless the rear seats are
already occupied by other children, cannot
be used or are absent.
Deactivate the passenger airbag when a
"rear wards-facing" child seat is installed on
the front seat.
Other wise, the child would risk being
seriously injured or killed if the airbag were
to inflate.


Installing a booster seat

The chest par t of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.

152
!

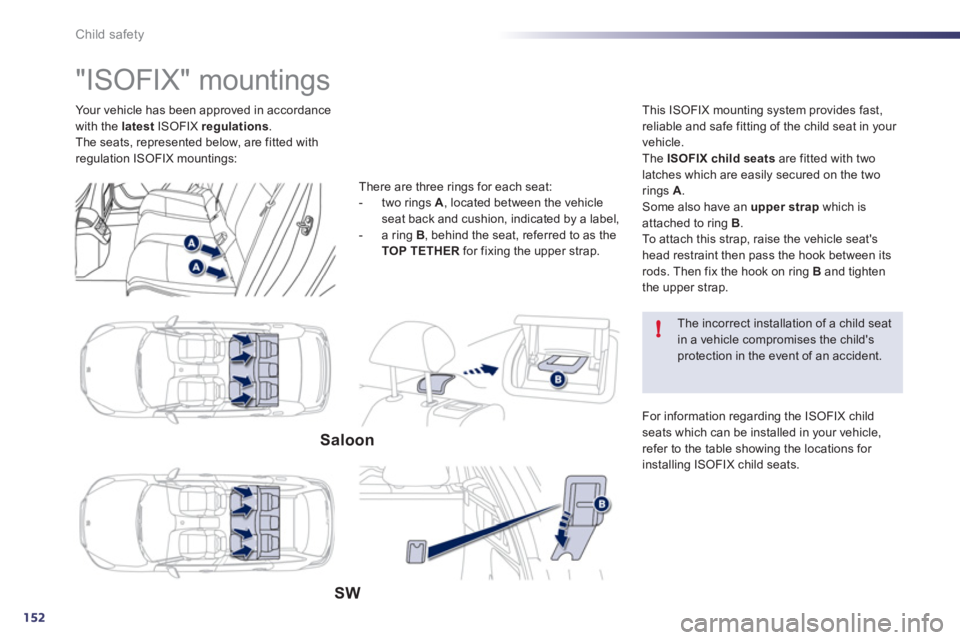

Child safety
Your vehicle has been approved in accordance
with the latest
ISOFIX regulation

s
.
The seats, represented below, are fitted with
regulation ISOFIX mountings:














"ISOFIX" mountings

There are three rings for each seat:


- two rings A
, located between the vehicle
seat back and cushion, indicated by a label,

- a ring B
, behind the seat, referred to as the
TOP TETHER
for fixing the upper strap. This ISOFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
The ISOFIX child seats
are fitted with two
latches which are easily secured on the two
rings A
.
Some also have an upper strap
which is
attached to ring B
.
To attach this strap, raise the vehicle seat's
head restraint then pass the hook between its
rods. Then fix the hook on ring B
and tighten
the upper strap.


Saloon

SW


The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
For information regarding the ISOFIX child
seats which can be installed in your vehicle,
refer to the table showing the locations for
installing ISOFIX child seats.

.
319 Alphabetical index
Accessories ..................................................205
Accessories socket, 12 volt ............................ 71
Adjusting headlamps .................................... 137
Adjusting head restraints .......................... 61, 64
Adjusting seat belt height .............................. 164
Adjusting the steering wheel ........................... 70
Airbags ............................................................30
Air conditioning ...............................................83
Air conditioning (digital) ............................ 81, 84
Air conditioning (manual) .......................... 81, 82
Air filter .......................................................... 216
Air vents ..........................................................80
Alarm ............................................................... 48
Anti-theft steering lock ....................................95
Armrest ............................................................ 71
Assistance call ......................................158, 230
Audible warning ............................................ 158
Audio streaming (Bluetooth) .........274, 300, 302
Audio system (radio) ..................................... 287
Automatic gearbox ................................ 106, 217
Automatic illumination of headlamps .... 130, 134
Automatic operation
of hazard warning lamps ............................ 157
Automatic rain sensitive
windscreen wipers .............................. 140, 142
Auxiliary sockets ...........................................299Battery recharge ........................................... 196
Bluetooth (hands-free) .......................... 257, 301
Bluetooth (telephone) .................................... 257
Boot ................................................................. 52
Boot (opening) ................................................. 40
Brake discs .................................................... 217
Brake lamps ..........................................188, 189
Brake pads .................................................... 217
Brakes ........................................................... 217
Capacity, fuel tank ..........................................58
CD .................................................................294
CD MP3 ................................................ 295, 296
Central locking ................................................ 41
Changing a bulb .................... 183, 188, 189, 191
Changing a fuse ............................................ 192
Changing a wheel ................................. 176, 177
Changing a wiper blade ........................143, 200
Changing the date .........................................277
Changing the remote control battery ........45, 46
Changing the time ................................. 277, 310
Checking levels ..................................... 213, 215
Checking the engine oil level ..........................35
Checking tyre pressures
(using the kit) .............................................. 170
Checks ................................... 210 -212, 216, 217
Children .........................................149, 153, 154
Child seats ................................................... 146
Child seats, conventional ...................... 148, 149
Child seats, Isofix .......................................... 154
Closing the boot .............................................. 52
Closing the doors ............................................ 41
Colour and map display DT .................. 237, 278
Connectors, audio ........................... 73, 297, 299
Control stalk, wipers ..............................140 -142
Coolant level ........................................... 31, 213Dashboard fusebox ....................................... 192
Date (display) ................................................277
Daytime running lamps ................. 132, 183, 187
Deactivating ESP .......................................... 162
Deactivating the passenger airbag ............... 166
Deadlocking .................................................... 42
Defrosting ........................................................ 92
Diesel additive level ...................................... 215
Diesel engine .......... 60, 209, 211, 212, 221, 224
Dimensions ...................................................227
Dipped beam ..................................129, 183 -185
Dipstick .................................................... 35, 213
Directional lighting ................................ 138, 139
Direction indicators ........ 133, 157, 183, 187-189
Door mirrors ..............................................68, 69
Driving positions (memorising) ....................... 63
Dual-zone air conditioning .............................. 92
Dynamic emergency braking ..........................96
A
C
D
Coolant temperature ....................................... 31
Coolant temperature indicator ........................ 31
Cour tesy lamps ............................................. 144
Cruise control ........................................ 120, 123
Cup holder ....................................................... 71
Cur tain airbags .....................................168, 169 4-zone air conditioning ....................... 87, 90, 92
Battery ................................................... 196, 216
Battery, remote control ............................. 45 - 47
BEconomy mode ............................................. 199
Electric parking brake ....................................96
Electronic engine immobiliser ................... 47, 95
Electronic gear control gearbox .....110, 114, 217
E

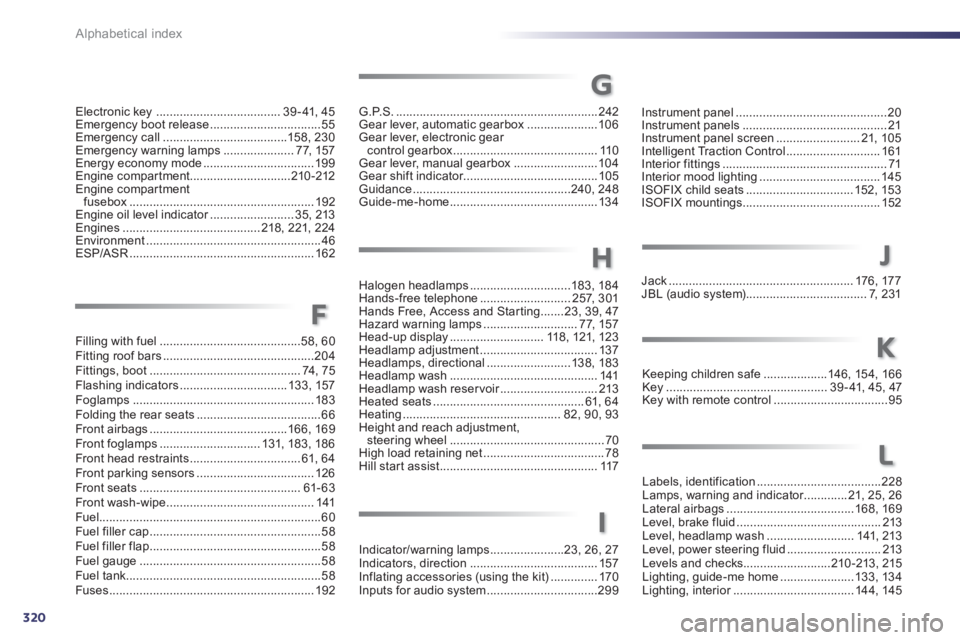

320
Alphabetical index
Electronic key ..................................... 39 - 41, 45
Emergency boot release .................................55
Emergency call .....................................158, 230
Emergency warning lamps ..................... 77, 157
Energy economy mode ................................. 199
Engine compartment ..............................210 -212
Engine compartment
fusebox ....................................................... 192
Engine oil level indicator ......................... 35, 213
Engines ......................................... 218, 221, 224
Environment .................................................... 46
ESP/ASR ....................................................... 162
Filling with fuel ..........................................58, 60
Fitting roof bars .............................................204
Fittings, boot ............................................. 74, 75
Flashing indicators ................................ 133, 157
Foglamps ...................................................... 183
Folding the rear seats .....................................66
Front airbags .........................................166, 169
Front foglamps .............................. 131, 183, 186
Front head restraints ................................. 61, 64
Front parking sensors ................................... 126
Front seats ................................................ 61- 63
Front wash-wipe ............................................ 141
Fuel..................................................................60
Fuel filler cap ...................................................58
Fuel filler flap ...................................................58
Fuel gauge ......................................................58
Fuel tank ..........................................................58
Fuses ............................................................. 192Halogen headlamps ..............................183, 184
Hands-free telephone ........................... 257, 301
Hands Free, Access and Star ting .......23, 39, 47
Hazard warning lamps ............................ 77, 157
Head-up display ............................ 118, 121, 123
Headlamp adjustment ................................... 137
Headlamps, directional ......................... 138, 183
Headlamp wash ............................................ 141
Headlamp wash reser voir ............................. 213
Heated seats ............................................. 61, 64
Heating ............................................... 82, 90, 93
Height and reach adjustment,
steering wheel .............................................. 70
High load retaining net .................................... 78
Hill star t assist ............................................... 117Instrument panel ............................................. 20
Instrument panels ........................................... 21
Instrument panel screen ......................... 21, 105
Intelligent Traction Control ............................ 161
Interior fittings ................................................. 71
Interior mood lighting .................................... 145
ISOFIX child seats ................................ 152, 153
ISOFIX mountings ......................................... 152
Jack ....................................................... 176, 177
JBL (audio system).................................... 7, 231
Indicator/warning lamps ......................23, 26, 27
Indicators, direction ...................................... 157
Inflating accessories (using the kit) .............. 170
Inputs for audio system .................................299Keeping children safe ...................146, 154, 166
Key ................................................ 39 - 41, 45, 47
Key with remote control ..................................95
F
I
HJ
K
G.P.S. ............................................................ 242
Gear lever, automatic gearbox ..................... 106
Gear lever, electronic gear
control gearbox ........................................... 110
Gear lever, manual gearbox ......................... 104
Gear shift indicator........................................ 105
Guidance ...............................................240, 248
Guide-me-home ............................................ 134
G
Labels, identification .....................................228
Lamps, warning and indicator ............. 21, 25, 26
Lateral airbags ......................................168, 169
Level, brake fluid ........................................... 213
Level, headlamp wash .......................... 141, 213
Level, power steering fluid ............................ 213
Levels and checks..........................210 -213, 215
Lighting, guide-me home ...................... 133, 134
Lighting, interior .................................... 144, 145
L

.
321

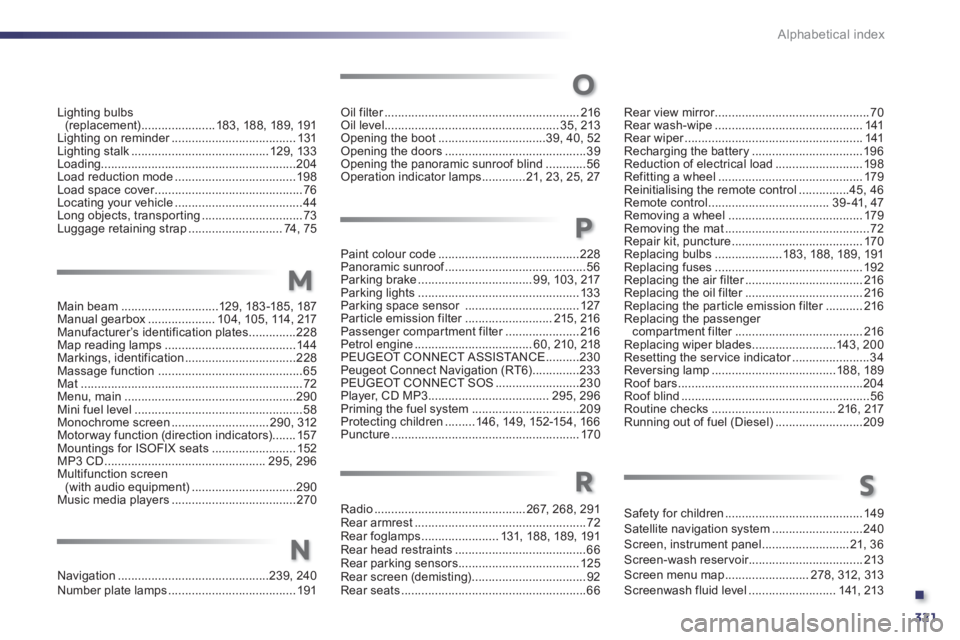

Alphabetical index
Lighting bulbs
(replacement) ...................... 183, 188, 189, 191
Lighting on reminder ..................................... 131
Lighting stalk ......................................... 129, 133
Loading..........................................................204
Load reduction mode .................................... 198
Load space cover ............................................ 76
Locating your vehicle ......................................44
Long objects, transporting .............................. 73
Luggage retaining strap ............................ 74, 75
Main beam .............................129, 183 -185, 187
Manual gearbox .................... 104, 105, 114, 217
Manufacturer’s identification plates ..............228
Map reading lamps ....................................... 144
Markings, identification .................................228
Massage function ...........................................65
Mat .................................................................. 72
Menu, main ...................................................290
Mini fuel level ..................................................58
Monochrome screen ............................. 290, 312
Motor way function (direction indicators) ....... 157
Mountings for ISOFIX seats ......................... 152
MP3 CD ................................................ 295, 296
Multifunction screen
(with audio equipment) ...............................290
Music media players ..................................... 270Oil filter .......................................................... 216
Oil level .................................................... 35, 213
Opening the boot ................................39, 40, 52
Opening the doors ..........................................39
Opening the panoramic sunroof blind ............56
Operation indicator lamps ............. 21, 23, 25, 27
Paint colour code ..........................................228
Panoramic sunroof ..........................................56
Parking brake .................................. 99, 103, 217
Parking lights ................................................ 133
Parking space sensor .................................. 127
Par ticle emission filter .......................... 215, 216
Passenger compar tment filter ...................... 216
Petrol engine ................................... 60, 210, 218
PEUGEOT CONNECT ASSISTANCE ..........230
Peugeot Connect Navigation (RT6) ..............233
PEUGEOT CONNECT SOS .........................230
Player, CD MP3 .................................... 295, 296
Priming the fuel system ................................209
Protecting children .........146, 149, 152-154, 166
Puncture ........................................................ 170
Radio ............................................. 267, 268, 291
Rear armrest ................................................... 72
Rear foglamps ....................... 131, 188, 189, 191
Rear head restraints .......................................66
Rear parking sensors .................................... 125
Rear screen (demisting) .................................. 92
Rear seats .......................................................66Safety for children ......................................... 149
Satellite navigation system ........................... 240
Screen, instrument panel .......................... 21, 36
Screen-wash reser voir.................................. 213
Screen menu map ......................... 278, 312, 313
Screenwash fluid level .......................... 141, 213
M
O
P
RS
Navigation .............................................239, 240
Number plate lamps ...................................... 191
N
Rear view mirror .............................................. 70
Rear wash-wipe ............................................ 141
Rear wiper ..................................................... 141
Recharging the battery ................................. 196
Reduction of electrical load .......................... 198
Refitting a wheel ........................................... 179
Reinitialising the remote control ...............45, 46
Remote control .................................... 39 - 41, 47
Removing a wheel ........................................ 179
Removing the mat ........................................... 72
Repair kit, puncture ....................................... 170
Replacing bulbs .................... 183, 188, 189, 191
Replacing fuses ............................................ 192
Replacing the air filter ................................... 216
Replacing the oil filter ................................... 216
Replacing the particle emission filter ........... 216
Replacing the passenger
compar tment filter ...................................... 216
Replacing wiper blades .........................143, 200
Resetting the ser vice indicator .......................34
Reversing lamp .....................................188, 189
Roof bars .......................................................204
Roof blind ........................................................56
Routine checks ..................................... 216, 217
Running out of fuel (Diesel) ..........................209

.
325

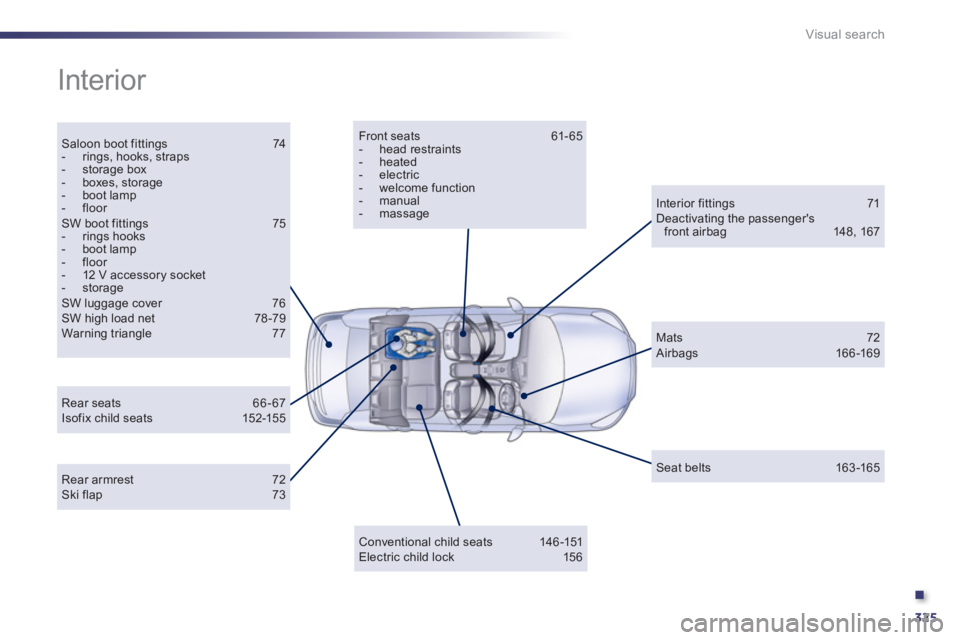

Visual search
Interior


Saloon boot fittings 74


- rings, hooks, straps

- storage box

- boxes, storage

- boot lamp

- floor
SW boot fittings 75


- rings hooks

- boot lamp

- floor

- 12 V accessory socket

- storage
SW luggage cover 76
SW high load net 78 -79
Warning triangle 77

Conventional child seats 146 -151
Electric child lock 156
Front seats 61- 65


- head restraints

- heated

- electric

- welcome function

- manual

- massage


Rear armrest 72
Ski flap 73
Mats 72
Airbags 166 -169
Interior fittings 71
Deactivating the passenger's
front airbag 148, 167

Seat belts 163 -165

Rear seats 66 - 67
Isofix child seats 152-155
