fuel tank capacity Peugeot 508 2011 Owner's Manual - RHD (UK, Australia)
[x] Cancel search | Manufacturer: PEUGEOT, Model Year: 2011, Model line: 508, Model: Peugeot 508 2011Pages: 340, PDF Size: 25.76 MB
Page 8 of 340
6
i
Familiarisation
Open
A.
Unfolding/Folding the key.
B.
Unlocking the vehicle.
Remote control key
1.
Opening the fuel filler flap.
Fuel t ank
58
Unlocking
With the electronic key on your person and in the
defined zone around the vehicle, pass your hand
behind the door handle to unlock the vehicle,
then pull on the handle to open the door.
Locking
With the electronic key in the defined zone
around the vehicle, press with a finger on the
door handle (at the markings) to lock
the vehicle.
Keyless Entry and Starting
system
2.
Opening and hooking the fuel filler cap.
Tank capacity: approximately 72 litres
(or 55 litres according to version).
Other functions...
C.
Normal locking of the vehicle
Vehicle location.
39

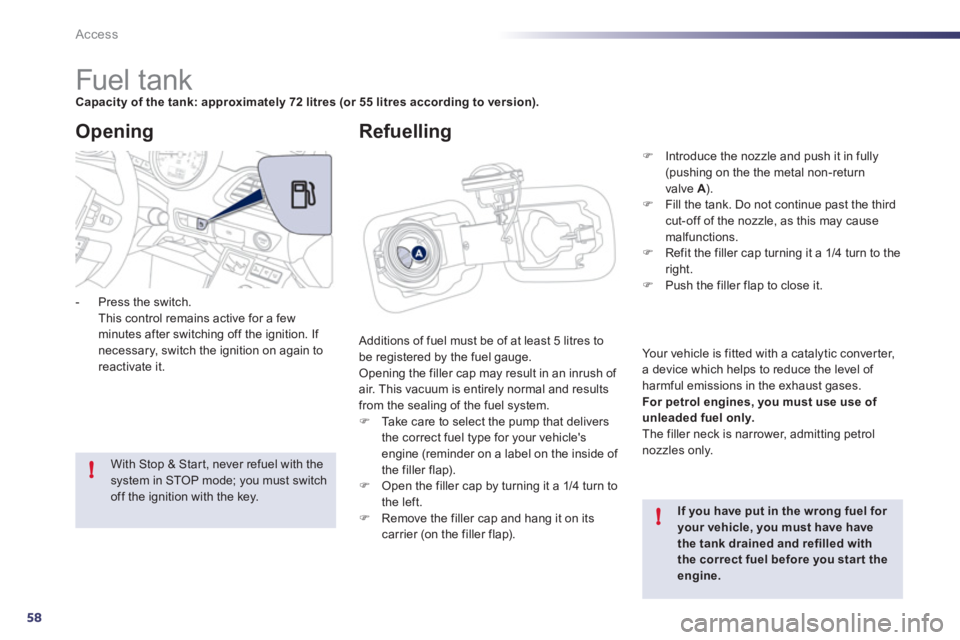

Page 60 of 340
58
!
!
Access
Fuel tank
Capacity of the tank: approximately 72 litres
(or 55 litres according to version).
Additions of fuel must be of at least 5 litres to
be registered by the fuel gauge.
Opening the filler cap may result in an inrush of
air. This vacuum is entirely normal and results
from the sealing of the fuel system.
)
Take care to select the pump that delivers
the correct fuel type for your vehicle's
engine (reminder on a label on the inside of
the filler flap).
)
Open the filler cap by turning it a 1/4 turn to
the left.
)
Remove the filler cap and hang it on its
carrier (on the filler flap).
Opening
If you have put in the wrong fuel for
your vehicle, you must have have
the tank drained and refilled with
the correct fuel before you star t the
engine.
With Stop & Star t, never refuel with the
system in STOP mode; you must switch
off the ignition with the key.
- Press the switch.
This control remains active for a few
minutes after switching off the ignition. If
necessary, switch the ignition on again to
reactivate it.
Refuelling
)
Introduce the nozzle and push it in fully
(pushing on the the metal non-return
valve A
).
)
Fill the tank. Do not continue past the third
cut-off of the nozzle, as this may cause
malfunctions.
)
Refit the filler cap turning it a 1/4 turn to the
right.
)
Push the filler flap to close it.
Your vehicle is fitted with a catalytic conver ter,
a device which helps to reduce the level of
harmful emissions in the exhaust gases.
For petrol engines, you must use use of
unleaded fuel only.
The filler neck is narrower, admitting petrol
nozzles only.
Page 321 of 340
.
319 Alphabetical index
Accessories ..................................................205
Accessories socket, 12 volt ............................ 71
Adjusting headlamps .................................... 137
Adjusting head restraints .......................... 61, 64
Adjusting seat belt height .............................. 164
Adjusting the steering wheel ........................... 70
Airbags ............................................................30
Air conditioning ...............................................83
Air conditioning (digital) ............................ 81, 84
Air conditioning (manual) .......................... 81, 82
Air filter .......................................................... 216
Air vents ..........................................................80
Alarm ............................................................... 48
Anti-theft steering lock ....................................95
Armrest ............................................................ 71
Assistance call ......................................158, 230
Audible warning ............................................ 158
Audio streaming (Bluetooth) .........274, 300, 302
Audio system (radio) ..................................... 287
Automatic gearbox ................................ 106, 217
Automatic illumination of headlamps .... 130, 134
Automatic operation
of hazard warning lamps ............................ 157
Automatic rain sensitive
windscreen wipers .............................. 140, 142
Auxiliary sockets ...........................................299Battery recharge ........................................... 196
Bluetooth (hands-free) .......................... 257, 301
Bluetooth (telephone) .................................... 257
Boot ................................................................. 52
Boot (opening) ................................................. 40
Brake discs .................................................... 217
Brake lamps ..........................................188, 189
Brake pads .................................................... 217
Brakes ........................................................... 217
Capacity, fuel tank ..........................................58
CD .................................................................294
CD MP3 ................................................ 295, 296
Central locking ................................................ 41
Changing a bulb .................... 183, 188, 189, 191
Changing a fuse ............................................ 192
Changing a wheel ................................. 176, 177
Changing a wiper blade ........................143, 200
Changing the date .........................................277
Changing the remote control battery ........45, 46
Changing the time ................................. 277, 310
Checking levels ..................................... 213, 215
Checking the engine oil level ..........................35
Checking tyre pressures
(using the kit) .............................................. 170
Checks ................................... 210 -212, 216, 217
Children .........................................149, 153, 154
Child seats ................................................... 146
Child seats, conventional ...................... 148, 149
Child seats, Isofix .......................................... 154
Closing the boot .............................................. 52
Closing the doors ............................................ 41
Colour and map display DT .................. 237, 278
Connectors, audio ........................... 73, 297, 299
Control stalk, wipers ..............................140 -142
Coolant level ........................................... 31, 213Dashboard fusebox ....................................... 192
Date (display) ................................................277
Daytime running lamps ................. 132, 183, 187
Deactivating ESP .......................................... 162
Deactivating the passenger airbag ............... 166
Deadlocking .................................................... 42
Defrosting ........................................................ 92
Diesel additive level ...................................... 215
Diesel engine .......... 60, 209, 211, 212, 221, 224
Dimensions ...................................................227
Dipped beam ..................................129, 183 -185
Dipstick .................................................... 35, 213
Directional lighting ................................ 138, 139
Direction indicators ........ 133, 157, 183, 187-189
Door mirrors ..............................................68, 69
Driving positions (memorising) ....................... 63
Dual-zone air conditioning .............................. 92
Dynamic emergency braking ..........................96
A
C
D
Coolant temperature ....................................... 31
Coolant temperature indicator ........................ 31
Cour tesy lamps ............................................. 144
Cruise control ........................................ 120, 123
Cup holder ....................................................... 71
Cur tain airbags .....................................168, 169 4-zone air conditioning ....................... 87, 90, 92
Battery ................................................... 196, 216
Battery, remote control ............................. 45 - 47
BEconomy mode ............................................. 199
Electric parking brake ....................................96
Electronic engine immobiliser ................... 47, 95
Electronic gear control gearbox .....110, 114, 217
E
