washer fluid Peugeot 508 2011 Owner's Manual - RHD (UK, Australia)

5
141
!

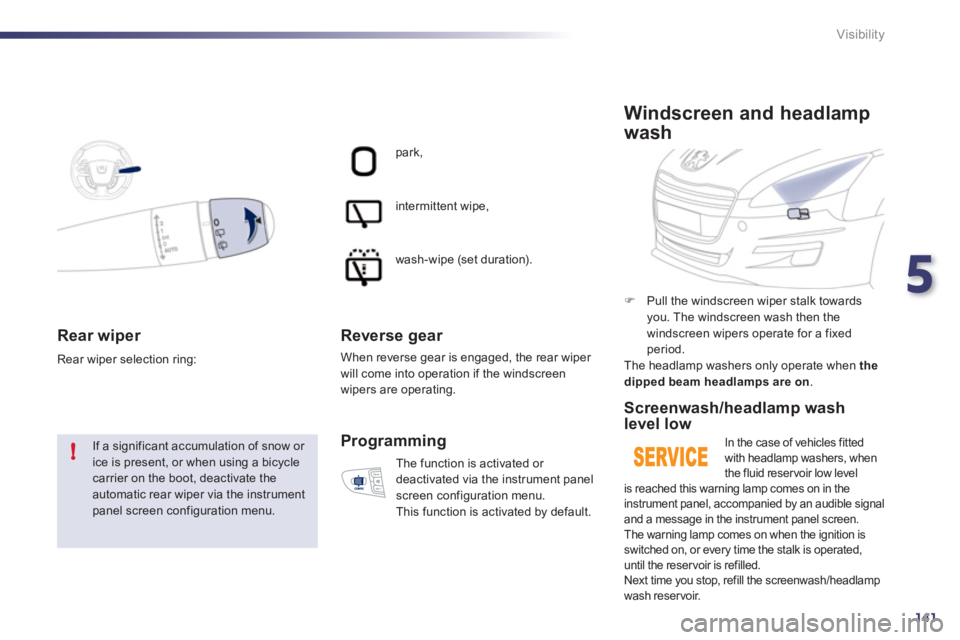

Visibility












Rear wiper

If a significant accumulation of snow or
ice is present, or when using a bicycle
carrier on the boot, deactivate the
automatic rear wiper via the instrument
panel screen configuration menu. Rear wiper selection ring: park,
intermittent wipe,
wash-wipe (set duration).


Reverse gear

When reverse gear is engaged, the rear wiper
will come into operation if the windscreen
wipers are operating.
The function is activated or
deactivated via the instrument panel
screen configuration menu.
This function is activated by default.



Programming



)
Pull the windscreen wiper stalk towards
you. The windscreen wash then the
windscreen wipers operate for a fixed
period.
The headlamp washers only operate when the
dipped beam headlamps are on
.










Windscreen and headlamp
wash










Screenwash/headlamp wash
level low
In the case of vehicles fitted
with headlamp washers, when
the fluid reser voir low level
is reached this warning lamp comes on in the
instrument panel, accompanied by an audible signal
and a message in the instrument panel screen.
The warning lamp comes on when the ignition is
switched on, or every time the stalk is operated,
until the reser voir is refilled.
Next time you stop, refill the screenwash/headlamp
wash reservoir.

214
Checks

Coolant level

The coolant level should be close
to the "MA X" mark but should never
exceed it.
When the engine is warm, the
temperature of the coolant is regulated by the
fan. This can operate with the ignition off.

On vehicles which are fitted with a par ticle
emission filter, the fan may operate after
the vehicle has been switched off, even if
the engine is cold.

In addition, as the cooling system is pressurised,
wait at least one hour after switching off the
engine before carrying out any work.
To avoid any risk of scalding, unscrew the cap
by two turns to allow the pressure to drop.
When the pressure has dropped, remove the
cap and top up the level.
Changing the coolant

The coolant does not have to be changed.


Fluid specifi cation

The coolant must conform to the
manufacturer's recommendations.



Fluid specifi cation

For optimum cleaning and to avoid freezing,
this fluid must not be topped up with or
replaced with plain water.



Screenwash and headlamp
wash fluid
In the case of vehicles fitted with
headlamp washers, the low fluid level
is indicated by an audible signal and
a message in the instrument panel
screen.
Top up the reser voir when you stop the vehicle.

9
217
!

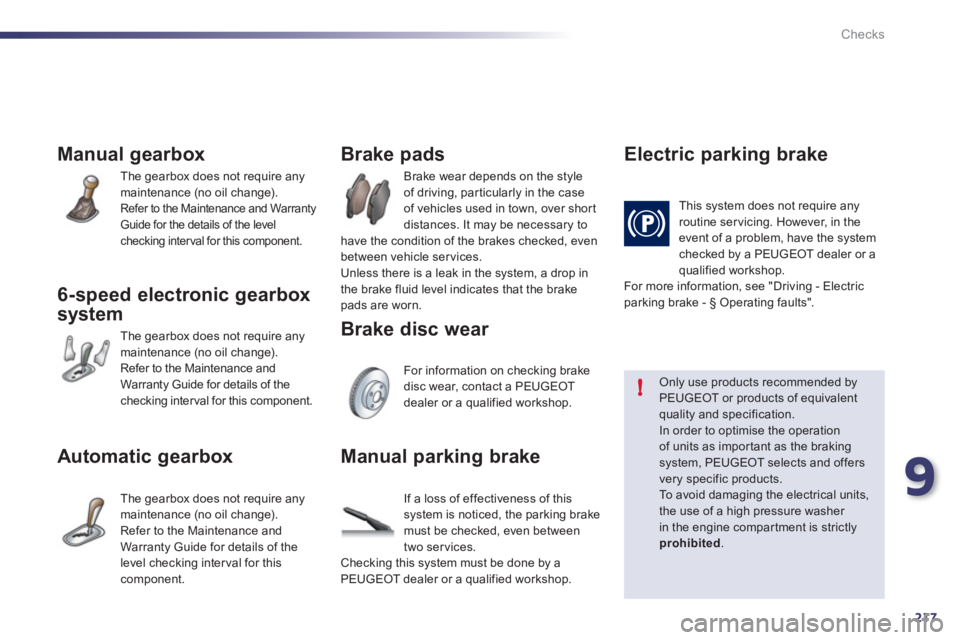

Checks






Manual gearbox

The gearbox does not require any
maintenance (no oil change).
Refer to the Maintenance and Warranty
Guide for the details of the level
checking interval for this component.







6-speed electronic gearbox
system
The gearbox does not require any
maintenance (no oil change).
Refer to the Maintenance and
Warranty Guide for details of the
checking interval for this component.







Automatic gearbox

The gearbox does not require any
maintenance (no oil change).

Refer to the Maintenance and
Warranty Guide for details of the
level checking inter val for this
component. Brake wear depends on the style
of driving, par ticularly in the case
of vehicles used in town, over shor t
distances. It may be necessary to
have the condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the system, a drop in
the brake fluid level indicates that the brake
pads are worn.
















Brake pads

For information on checking brake
disc wear, contact a PEUGEOT
dealer or a qualified workshop.


Brake disc wear

Manual parking brake

If a loss of effectiveness of this
system is noticed, the parking brake
must be checked, even between
two ser vices.
Checking this system must be done by a
PEUGEOT dealer or a qualified workshop.






















Electric parking brake

This system does not require any
routine servicing. However, in the
event of a problem, have the system
checked by a PEUGEOT dealer or a
qualified workshop.
For more information, see "Driving - Electric
parking brake - § Operating faults".
















Only use products recommended by
PEUGEOT or products of equivalent
quality and specification.
In order to optimise the operation
of units as impor tant as the braking
system, PEUGEOT selects and offers
very specific products.
To avoid damaging the electrical units,
the use of a high pressure washer
in the engine compar tment is strictly
prohibited
.
