Peugeot 508 2012 Owner's Manual

4
109
i
Driving
Six speed automatic gearbox which offers a choice between the comfor t of fully automatic
operation, enhanced by spor t and snow
programmes, or manual gear changing.
Four driving modes are offered:-automatic
operation for electronic management of the gears by the gearbox,
-
sport
programme for a more dynamic style
of driving,

- snowprogramme to improve driving when
traction is poor,

- manua
loperation for sequential changing
of the gears by the driver.

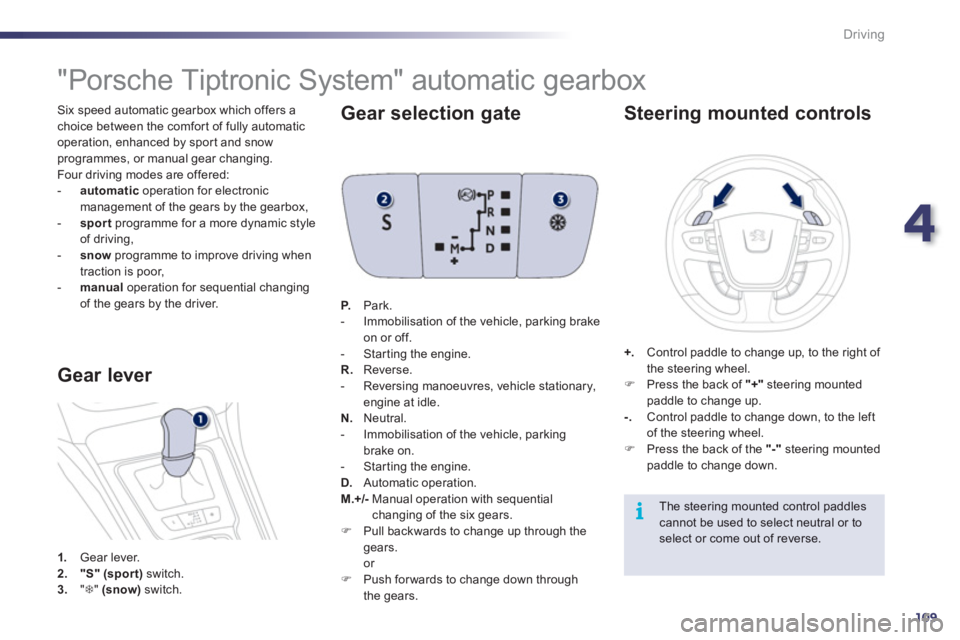

"Porsche Tiptronic System" automatic gearbox
1.
Gear lever. 2. "S"
(sport)
switch.3."7"(snow)switch.


Gear lever Gear selection
gate
P. Park.
- Immobilisation of the vehicle, parking brakeon or off.
- Starting the engine.
R. Reverse.
- Reversing manoeuvres, vehicle stationary, engine at idle.N. Neutral.
- Immobilisation of the vehicle, parking brake on.
- Starting the engine.D.
Automatic operation. M.+/-
Manual operation with sequentialchanging of the six gears.)
Pull backwards to change up through thegears. or )
Push forwards to change down through
the gears.



Steering mounted controls
+. Control paddle to change up, to the right of
the steering wheel. ) Press the back of "+"steering mountedpaddle to change up.-.
Control paddle to change down, to the left
of the steering wheel. ) Press the back of the "-"
steering mounted paddle to change down.


The steering mounted control paddles cannot be used to select neutral or to
select or come out of reverse.

110
i!
Driving
Displays in the instrument
panel
When you move the lever in the gate to select aposition, the corresponding indicator comes on
in the instrument panel.
P. Park R. ReverseN.
Neutral D.
Drive (Automatic driving) S.Sport
programme7
. Snow
programme 1 to 6.
Gear engaged during manual operation-. Invalid value during manual operation
)
With your foot on the brake, select
pos
ition Por N.) Start the engine.
If this procedure is not followed, an audible
signal is heard, accompanied by a message in
the instrument panel screen.
) With the engine running, press the brake
pedal.
) Release the parking brake, unless it is
programmed to automatic mode. ) Select position R , D
or M , )
Gradually release the brake pedal.
The vehicle moves off immediately.


Moving off


When the engine is running at idle, with the brakes released, if position R , D
or M
is selected, the vehicle moves evenwithout the accelerator being pressed. When the engine is running, never leave children in the vehicle without supervision.
When carrying out maintenance with the engine running, apply the parkingbrake and select position P
.
P
If position Nis engaged inadver tently while driving, allow the engine to return to idle then engage position Dto accelerate.

4
111
!
Driving
Never select position Nwhile thevehicle is moving. Never select positions Por R
unless the vehicle is completely stationary.


Automatic operation
)Select position D
for automatic
changing
o
f the six gears.
The gearbox then operates in auto-adaptive mode, without any inter vention on the par t
of the driver. It continuously selects the most suitable gear according to the style of driving,
the profile of the road and the load in the
v
ehicle.
For maximum acceleration without touching
the lever, press the accelerator pedal down fully (kick down). The gearbox changes down
automatically or maintains the gear selected
until the maximum engine speed is reached.

On braking, the gearbox changes down
automatically to provide efficient engine
braking.
If you release the accelerator sharply, the gearbox will not change to a higher gear for safety reasons.
Sport and snow
pro
grammes
Sport programme "S"
) Press the "S"switch, after star ting the engine.
The gearbox automatically favours a dynamic
style of driving.
Sappears in the instrument panel.
Snow programme "7"
)
Press the " 7
" switch, after star ting theengine.
The gearbox adapts to driving on slippery roads. This programme improves star ting and drivewhen traction is poor.
7 appears in the instrument panel.


Return to automatic
o
peration
) At any time, press the button selected
again to quit the programme engaged and
return to auto-adaptive mode.
These two special programmes supplement theautomatic operation in very specific conditionsof use.

112
i!
Driving
Manual operation
)Select position M for sequentialchanging
o
f the six gears.)Pull the lever towards the + sign to changeup a gear. )Push the lever towards the -
sign to change
down a gear.
It is only possible to change from one gear to another if the vehicle speed and engine speedpermit; otherwise, the gearbox will operate
temporarily in automatic mode.
Ddisappears and the gears engaged appear in succession in the
instrument panel.

Invalid value during manual operation

This symbol is displayed if a gear
is not engaged correctly (selector
between two positions).

Stopping the vehicle

Before switching off the engine, you can engage position P
or Nto place the gearbox in
neutral.
In both cases, apply the parking brake to
immobilise the vehicle, unless it is pro
grammed
to automatic mode.

Operating fault
When the ignition is on, amessage appears in the
instrument panel screen to indicate a gearbox
fault.
In this case, the gearbox switches to back-up mode and is locked in 3rd gear. You may feel
a substantial knock when changing from Pto Rand from N to R
. This will not cause any damage to the gearbox.
Do not exceed 60 mph (10 0 km/h), local speed
restrictions permitting.
Have it checked by a PEUGEOT dealer or a qualified workshop.
I
f the engine speed is too low or too high, the
gear selected flashes for a few seconds, then
the actual gear engaged is displayed.
It is possible to change from position D(automatic) to position M (manual) at any time.
When the vehicle is stationary or movingvery slowly, the gearbox selects gear M1automatically. The spor t and snow programmes do not
operate in manual mode.

You risk damaging the gearbox:


- if you press the accelerator and brake pedals at the same time,

- if you force the lever from position Pto another position when the batteryis flat.If the lever is not in position P
, when the Pdriver's door is opened or approximately 45 seconds after the ignition is switchedoff, there is an audible signal and a message appears. )Return the lever to position P;the audible signal stops and themessage disappears.



To r e d u c e fuel consumption when stationary for long periods with the
engine running (traffic jam...), positionthe gear lever at Nand apply theparking brake, unless it is programmed in automatic mode.

4
113
i
Driving














6-speed electronic gear control gearbox


Six-speed electronic gear control gearbox
which offers a choice between the comfort of
fully automatic operation or the pleasure of manual gear changing.
There are two driving modes: -automatedmode for automatic control of
the gears by the gearbox,
-
manualmode for sequential gear changing
by the driver.
In automated mode, it remains possible to
change gear manually by using the steering mounted control paddles when required, when
over taking, for example.
This gearbox provides you with the benefit of additional functions:


- hill star t assist,

- the creep function (movement of the
vehicle on releasing the brake pedal) in automated mode or reverse.R
. Reverse )
With your foot on the brake, lift the lever
and push forwards.
N
. Neutral.) With your foot on the brake, select this
position to start. A.
Automated mode.)
Move the lever backwards to select this
mode. M.Manual mode with sequential gear changing. )
Move the lever to the left to select this
mode, then use the steering mounted control paddles to change gear:

Gear lever
+. Change up paddle to the right of the steering wheel.)
Press the back of the "+"
steering mounted paddle to change up a gear. -.
Change down paddle to the left of the steering wheel.)
Press the back of the "-"
steering mounted paddle to change down a gear.


Steering mounted control
paddles


The steering mounted paddles cannotbe used to select neutral or to engage or disengage reverse gear.

114
i
i
i
Driving

Engagement of reverse gear is accompanied by an audible signal.
N
flashes in the instrument panel, accompanied by an audible signal and a message in the instrument panel screen, if the gear lever is not inposition N
on starting.Foot on brake
flashes on theinstrument panel, accompanied by anaudible signal and a message in theinstrument panel screen, if the brakepedal is not pressed on starting.

For optimum acceleration, for example when overtaking another vehicle, press the accelerator pedal firmly past the point of resistance.

Displays in the instrument
panel
Gear lever positions
N.
Neutral R.Reverse1, 2, 3, 4, 5, 6.Gears in manual modeA.
This comes on when the automatic modeis selected. It switches off on changing tomanual mode.
)Place your foot on the brakewhen a message appears in the
instrument panel screen.



Moving off
)
Select position N . )
Press the brake pedal down fully.
)
Star t the engine.
N
appears in the instrument panelscreen.
)
Select first gear (position Mor A
) or Areverse (position R).R)
Release the parking brake unless it is
programmed to automatic mode. ) Ta k e y o u r foot off the brake pedal, thenaccelerate.
Aand 1
or Rappears in the
instrument panel screen.


Automated mode
)After star ting the vehicle, select position Afor enter automated mode.
A
and the gear engaged appear in
the instrument panel screen.
The
gearbox is then operating in auto-active mode, without any action on the par t of thedriver. It continuously selects the most suitable gear, depending on the:


- style of driving,

- profile of the road.

4
115
i
!
Driving

Manual gear changing
)
When the vehicle has moved off, select
pos
ition M to change to manual mode. )
Pull the lever towards the +sign to change up a gear. )
Push the lever towards the -sign to change down a gear.



At very low speed, if reverse gear is requested, this will only be takeninto account when the vehicle isimmobilised. A warning lamp appears in the instrument panel screen.

On sharp acceleration, the gearbox willnot change up unless the driver acts onthe gear lever or the steering mountedpaddles. Never select neutral N
while the vehicleis moving. Only engage reverse gear Rwhen thevehicle is immobilised with the brake pedal pressed.
A
disappears and M
appears with thegears engaged successively, in the instrument panel screen.
The
gear change commands are only carried
out if the engine speed permits.It is not necessary to release the accelerator during gear changes. When braking or slowing down, the gearbox
changes down automatically to permitacceleration in the correct gear. This selective
gear change mode enables you
to over take, for example, while still remaining in automatic mode.)Operate the + or -
steering mounted controlpaddle.
The gearbox engages the gear requested if the engine speed permits. A
is still displayed in theinstrument panel.
After a few moments without any action on
the controls, the gearbox resumes automaticcontrol of the gears.
Manual mode

116
!
!
Driving
You must press the brake pedal when star ting the engine.
Whatever the circumstances, you must manually apply the parking brake when parking, unless the parking brake isprogrammed in automatic mode.

When immobilising the vehicle, with the engine running, you must place the gear lever in neutral N.Before carrying out any work in the engine compar tment, check that the
gear lever is in neutral N
and that the parking brake is applied.



Stopping the vehicle
With the ignition on, theflashing of this warning lamp, accompanied by an audiblesignal and a message in the instrument panelscreen, indicates a malfunction of the gearbox.
have it checked by PEUGEOT or a qualified
workshop. Be
fore switching off the engine, you can
choose to:


- move to position N
to engage neutral,

- leave the gear engaged; in this case, it will
not be possible to move the vehicle.
In both cases,
you must apply the parking brake to immobilise the vehicle.


Operating fault Creep function
This function greatly facilitates manoeuvering
of the vehicle at low speed (when parking, in a
traffic jam…).
Having placed the gear lever in position A , Mor R
, the vehicle moves as soon as you take your foot off the brake pedal.
With the engine at idle, brakes released, if position A , M or Ris selected, the vehiclemoves even without any action on theaccelerator pedal.
For your safety, this function is only activated
if you press the brake pedal when changing to
for ward or reverse gear.
Never leave children unsuper vised inside the
vehicle with the en
gine running.

4
117
i
!
Driving











Stop & Start
The Stop & Star t system puts the engine temporarily into standby - STOP mode - during stops in the traffic (red lights, traffic jams, or other...). The engine restarts automatically - START mode - as soon as you want to move off. The restart takes place instantly, quickly and silently.
Per fect for urban use, the Stop & Star t system reduces fuel consumption and exhaust emissions as well as the noise level when stationary.


Operation


Going into engine STOP mode
The "ECO"
warning lamp comes
on in the instrument panel and theengine goes into standby:


-
with the electronic gearbox system, at speeds below 4 mph (6 km/h), press the
brake pedal or put the gear lever inposition N .

I
f your vehicle is fitted with the system, a timecounter calculates the sum of the periods in
STOP mode during a journey. It rests itself to
zero every time the ignition is switched on with
the ke
y.
Never refuel with the engine in STOPmode; you must switch off the ignition with the key.
For your comfort, during parking maoeuvres, STOP mode is not available for a few seconds after coming out of reverse gear. STOP mode does not affect the functionality of the vehicle, such as for example, braking, power steering...


Special cases: STOP mode notavailable
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not fastened,

- the vehicle has not exceeded 6 mph (10 km/h) since the last engine star t using
the key,

- the electric parking brake is applied or
being applied,

- the engine is needed to maintain acomfor table temperature in the passenger compartment,

- demisting is active,

- some special conditions (battery charge, engine temperature, braking assistance,
ambient temperature...) where the engine isneeded to assure control of a system.
In this case, the
"ECO"warning
lamp flashes for a few seconds then
goes off.
This operation is perfectly normal.

118
i
Driving
The "ECO"warning lamp goes
off and the engine star ts with the
electronic gearboxsystem:
- gear lever in position Aor M
, release the
brake pedal,
- or
gear lever in position Nand the brake pedal released, move the gear lever toposition A
or M,- or engage reverse gear.
START mode is invoked automaticall
y when:


- the driver's door is open,

- the driver's seat belt is not fastened,

- the speed of the vehicle exceeds 7 mph(11 k m/h) with the electronic gearbox system,

- the electric parking brake is being applied,

- some special conditions (battery charge,engine temperature, braking assistance,
ambient temperature...) where the engine
is needed for control of a system.

Special cases: START invoked
automatically
In this case the "ECO"
warninglamp flashes for a few seconds,
then goes off. This operation is per fectly normal.

If the system has been deactivatedin STOP mode, the engine restartsimmediately.

At any time, press the "ECO OFF"
switch todeactivate the system.
This is confirmed by the switch warning lampcoming on accompanied by a message in the screen.


Deactivation
