Peugeot 508 2013 - RHD (UK, Australia) Manual Online

3
79
Comfort

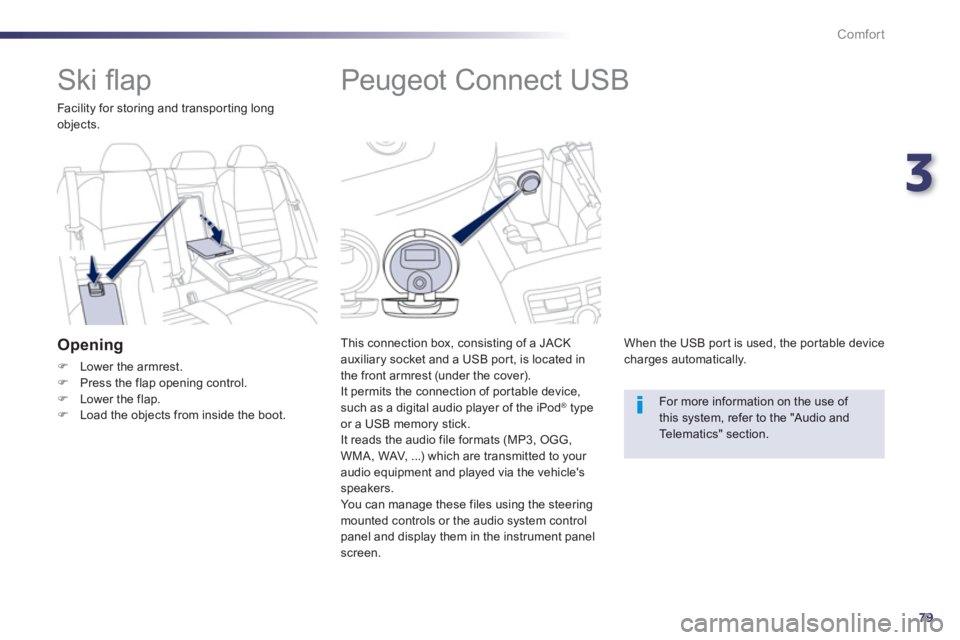

Peugeot Connect USB
This connection box, consisting of a JACKauxiliary socket and a USB port, is located in
the front armrest (under the cover).
It permits the connection of por table device,
such as a di
gital audio player of the iPod® type®
or a USB memory stick.
It reads the audio file formats (MP3, OGG,WMA, WAV, ...) which are transmitted to your audio equipment and played via the vehicle's
speakers.
You can mana
ge these files using the steeringmounted controls or the audio system control
panel and display them in the instrument panel screen.
When the USB por t is used, the por table device
charges automatically.


For more information on the use of this system, refer to the "Audio andTelematics" section.









Ski fl ap


Facility for storing and transporting longobjects.


Opening
FLower the armrest. FPress the flap opening control.FLower the flap. FLoad the objects from inside the boot.

80
Comfort

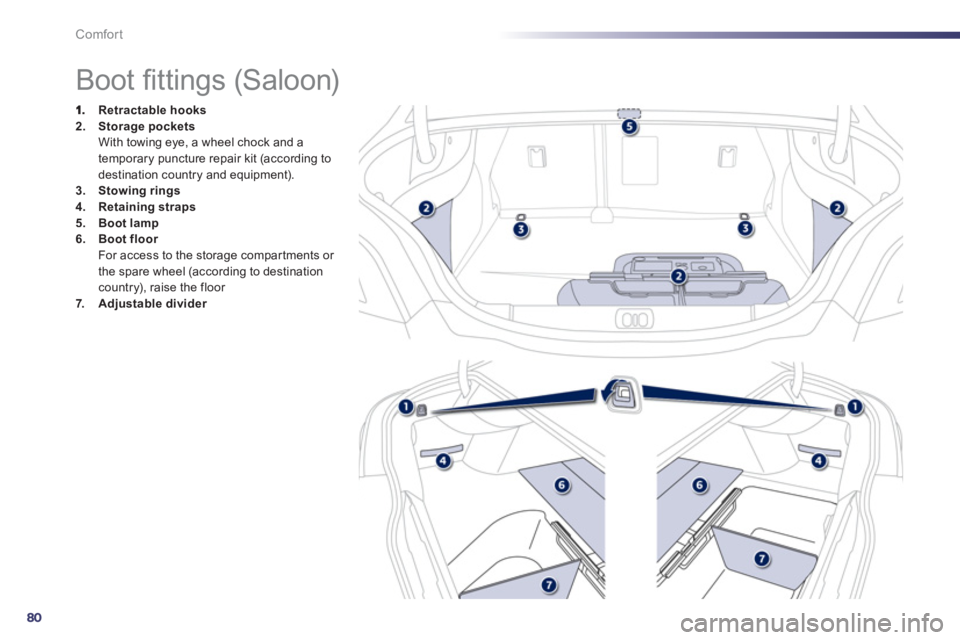

Boot fi ttings (Saloon)
Retractable hooks2.Storage pockets
With towing eye, a wheel chock and a
temporary puncture repair kit (according to
destination country and equipment).3.Stowing rings4.Retaining straps5.Boot lamp6.Boot floorFor access to the storage compar tments or
the spare wheel (according to destinationcountry), raise the floor 7.Adjustable divider

3
81
Comfort

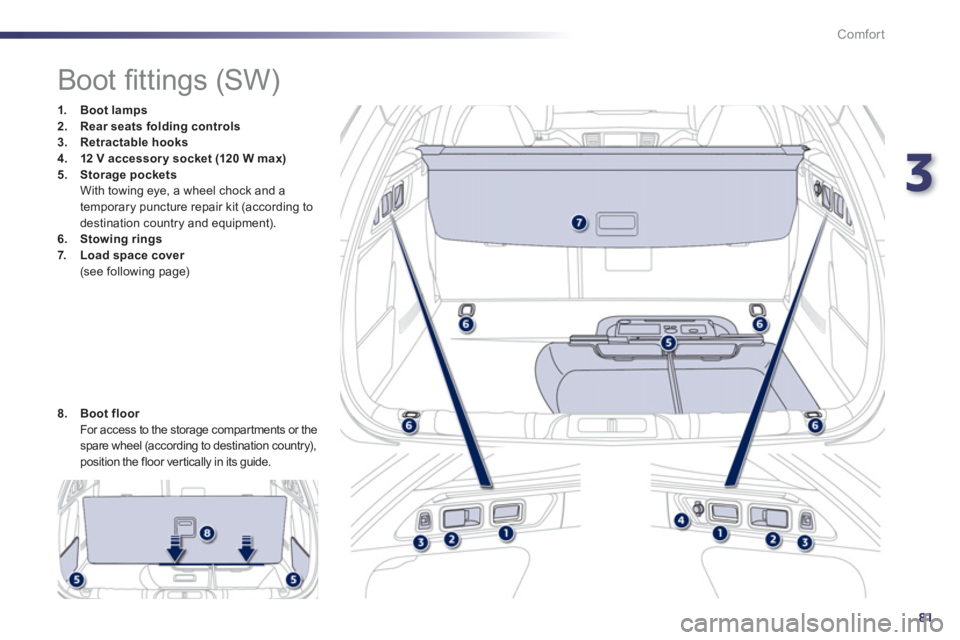

Boot fi ttings (SW)
1.Boot lamps2.Rear seats folding controls3.Retractable hooks
4.12 V accessory socket (120 W max)5.Storagepockets
With towing eye, a wheel chock and a
temporary puncture repair kit (according to
destination country and equipment).
6.Stowing rings7.Load space cover (see following page)
8.Boot floor
For access to the storage compar tments or the spare wheel (according to destination country), position the floor ver tically in its guide.

82
Comfort

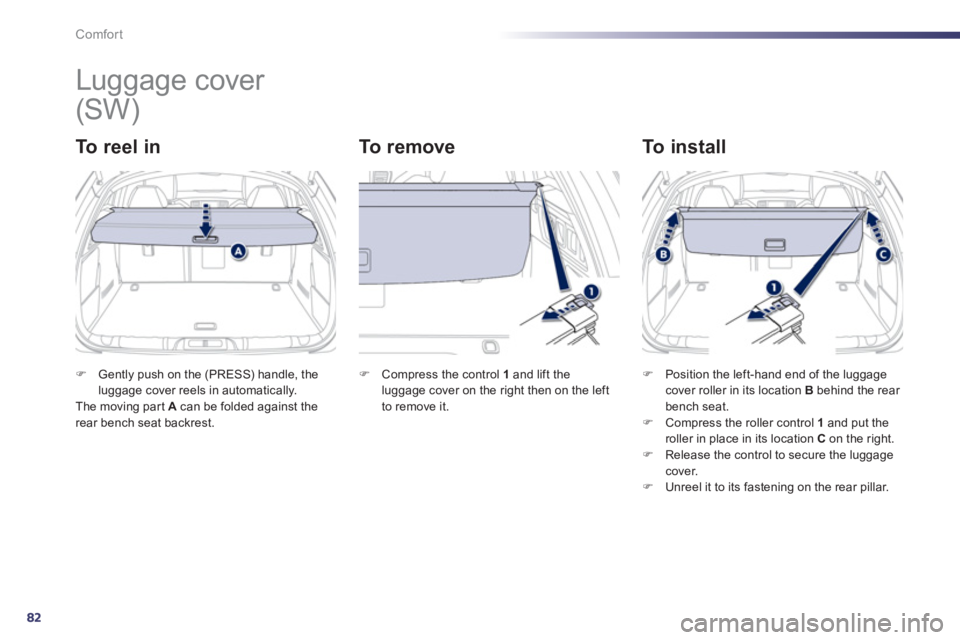

Luggage cover
To r e e l i n
To r e m o v e
To install
FGently push on the (PRESS) handle, theluggage cover reels in automatically. The moving part A
can be folded against therear bench seat backrest.
F
Compress the control 1and lift theluggage cover on the right then on the left
to remove it.

F
Position the left-hand end of the luggage cover roller in its location B
behind the rear bench seat. F
Compress the roller control 1and put the roller in place in its location Con the right. F
Release the control to secure the luggage cover. F
Unreel it to its fastening on the rear pillar.

(SW)

3
83
Comfort

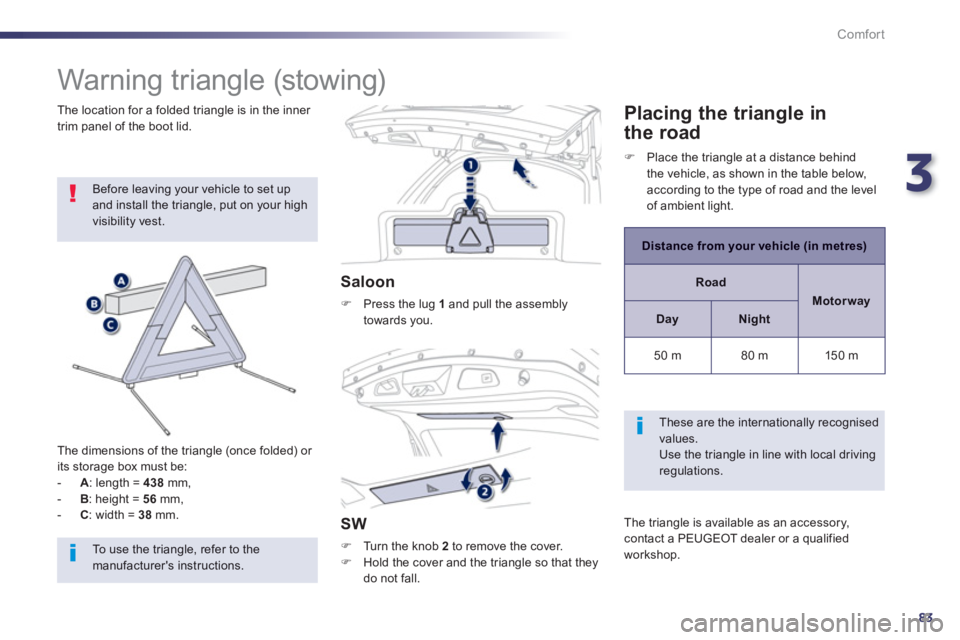

Warning triangle (stowing)

Before leaving your vehicle to set up and install the triangle, put on your high visibility vest.

The dimensions o
f the triangle (once folded) or its storage box must be:

-
A
: length = 438mm,
-
B: height = 56
mm,

- C: width = 38mm.
Saloon
FPress the lug 1and pull the assembly
towards you.
SW
FTurn the knob 2 to remove the cover.FHold the cover and the triangle so that theydo not fall.


The location for a folded trian
gle is in the inner
trim panel of the boot lid.Placing the triangle in
t
he road
Distance from your vehicle (in metres)
Road
Motorway
DayNight
50 m 80 m
150 m
These are the internationally recognisedvalues.
Use the triangle in line with local driving regulations.

The trian
gle is available as an accessory, contact a PEUGEOT dealer or a qualified
workshop.
F Place the triangle at a distance behindthe vehicle, as shown in the table below,
according to the type of road and the level
of ambient light.
To use the triangle, refer to themanufacturer's instructions.

84
Comfort

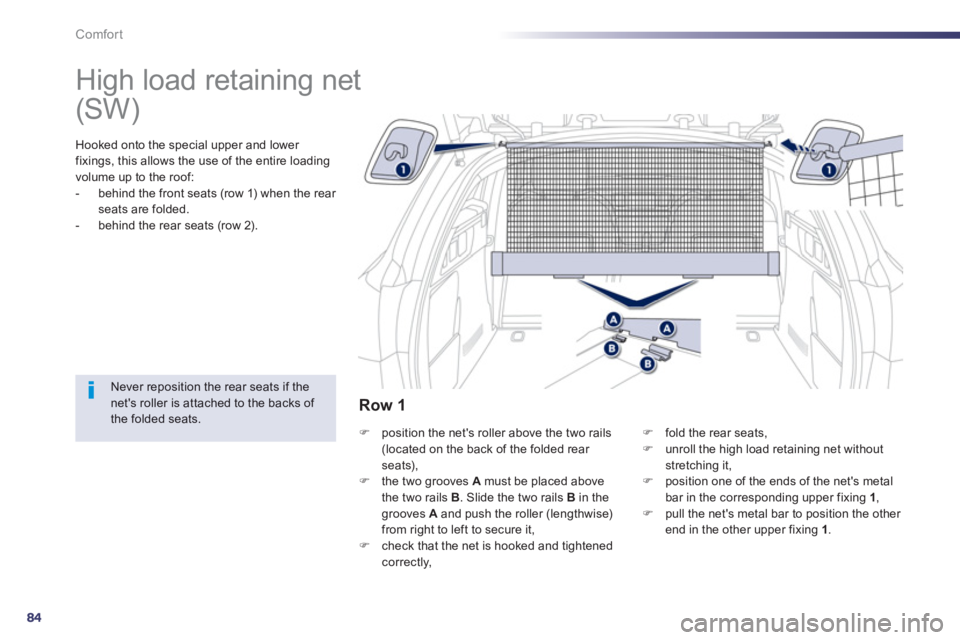

High load retaining net
Hooked onto the special upper and lower
fixings, this allows the use of the entire loading
volume up to the roof:
- behind the front seats (row 1) when the rear seats are folded.
- behind the rear seats (row 2).


Never reposition the rear seats if thenet's roller is attached to the backs of the folded seats. F
position the net's roller above the two rails (located on the back of the folded rear seats),F
the two grooves Amust be placed above
the two rails B
. Slide the two rails B
in the grooves A
and push the roller (lengthwise)from right to left to secure it,
F
check that the net is hooked and tightened correctly,
F
fold the rear seats, F
unroll the high load retaining net withoutstretching it, F
position one of the ends of the net's metal
bar in the corresponding upper fixing 1,F pull the net's metal bar to position the other end in the other upper fixing 1 .




Row 1

(SW)

3
85
Comfort

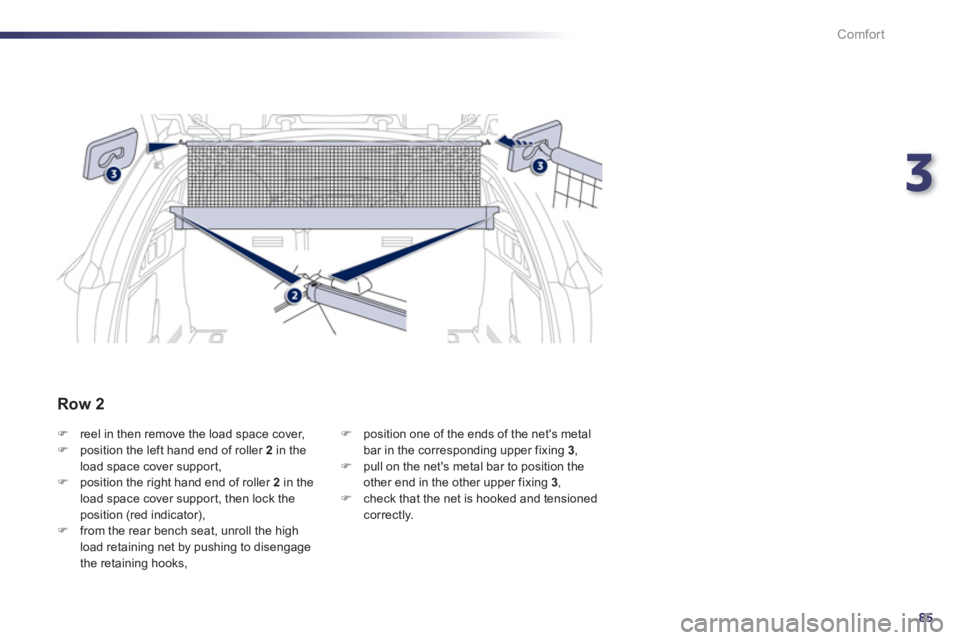

F reel in then remove the load space cover, F
position the left hand end of roller 2
in the load space cover suppor t, F
position the right hand end of roller 2
in theload space cover support, then lock theposition (red indicator), F
from the rear bench seat, unroll the high
load retaining net by pushing to disengage
the retaining hooks,
Fposition one of the ends of the net's metalbar in the corresponding upper fixing 3 ,Fpull on the net's metal bar to position the
other end in the other upper fixing 3,Fcheck that the net is hooked and tensioned correctly.




Row 2

86
Comfort

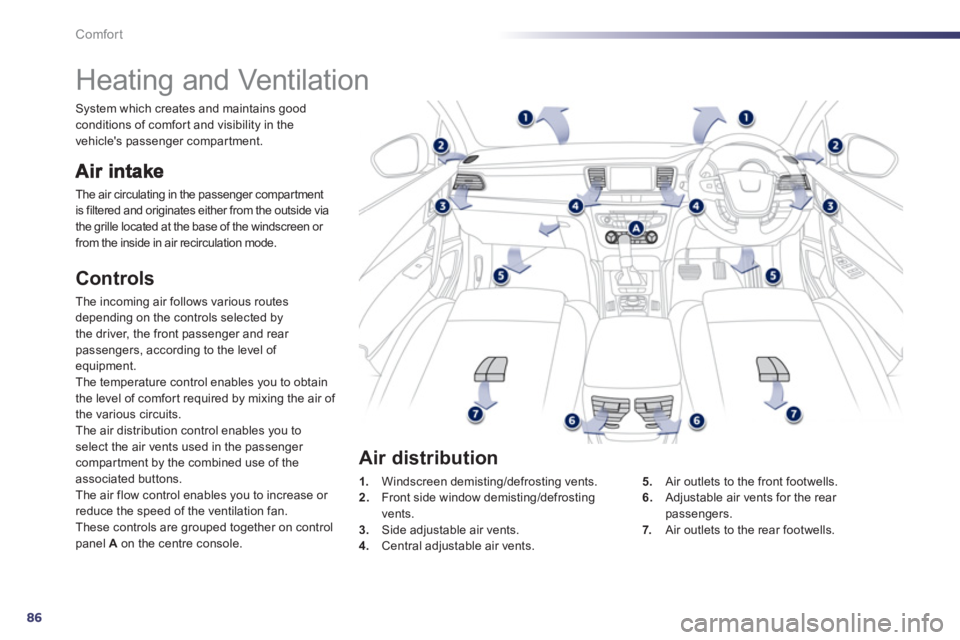

Heating and Ventilation
The air circulating in the passenger compartment
is filtered and originates either from the outside via
the grille located at the base of the windscreen or
from the inside in air recirculation mode.
Controls
The incoming air follows various routes
depending on the controls selected by
the driver, the
front passenger and rear passengers, according to the level of equipment.
The temperature control enables you to obtain
the level of comfor t required by mixing the air of
the various circuits.The air distribution control enables you toselect the air vents used in the passenger compar tment by the combined use of theassociated buttons.
The air flow control enables you to increase or reduce the speed of the ventilation fan.
These controls are grouped together on controlpanel Aon the centre console.
1.Windscreen demisting/defrosting vents.2. Front side window demisting/defrosting
vents. 3. Side adjustable air vents. 4.Central adjustable air vents. 5
. Air outlets to the front footwells.
6.Adjustable air vents for the rear passengers.
7. Air outlets to the rear footwells.


Air distribution
System which creates and maintains goodconditions of comfor t and visibility in the
vehicle's passenger compartment.

3
87
Comfort

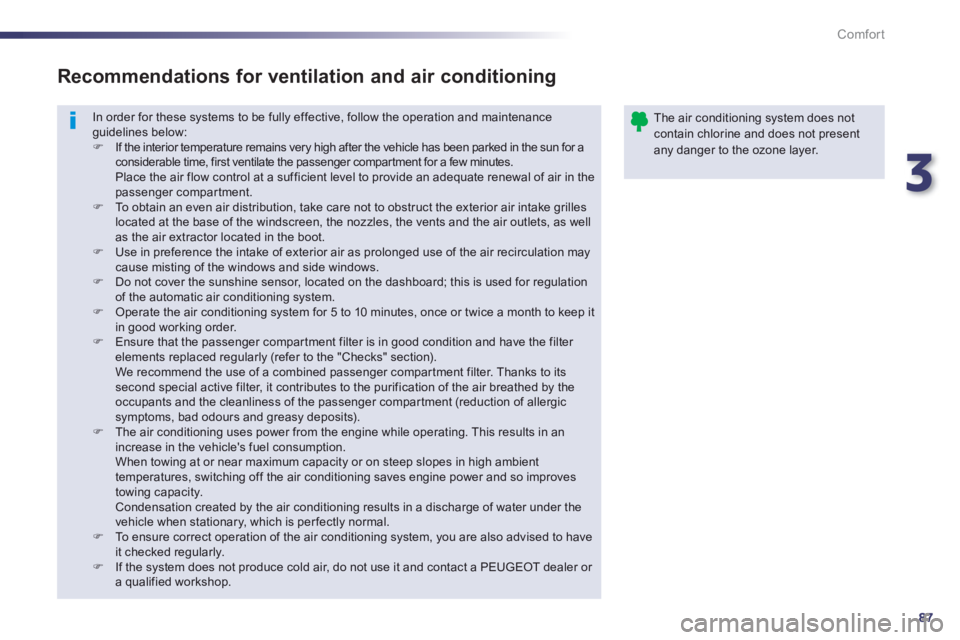

In order for these systems to be fully effective, follow the operation and maintenance guidelines below: F
If the interior temperature remains very high after the vehicle has been parked in the sun for a considerable time, first ventilate the passenger compar tment for a few minutes. Place the air flow control at a sufficient level to provide an adequate renewal of air in the passenger compartment.F
To obtain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles, the vents and the air outlets, as wellas the air extractor located in the boot. F
Use in preference the intake of exterior air as prolonged use of the air recirculation maycause misting of the windows and side windows.F
Do not cover the sunshine sensor, located on the dashboard; this is used for regulation of the automatic air conditioning system.F
Operate the air conditioning system for 5 to 10 minutes, once or twice a month to keep itin good working order. F
Ensure that the passenger compar tment filter is in good condition and have the filter elements replaced regularly (refer to the "Checks" section). We recommend the use of a combined passenger compartment filter. Thanks to its second special active filter, it contributes to the purification of the air breathed by the occupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad odours and greasy deposits).F
The air conditioning uses power from the engine while operating. This results in anincrease in the vehicle's fuel consumption. When towing at or near maximum capacity or on steep slopes in high ambient temperatures, switching off the air conditioning saves engine power and so improvestowing capacity. Condensation created by the air conditioning results in a discharge of water under thevehicle when stationary, which is per fectly normal.F
To ensure correct operation of the air conditioning system, you are also advised to haveit checked regularly.F
If the system does not produce cold air, do not use it and contact a PEUGEOT dealer or a qualified workshop.
Recommendations for ventilation and air conditioning


The air conditioning system does notcontain chlorine and does not present any danger to the ozone layer.

88
Comfort

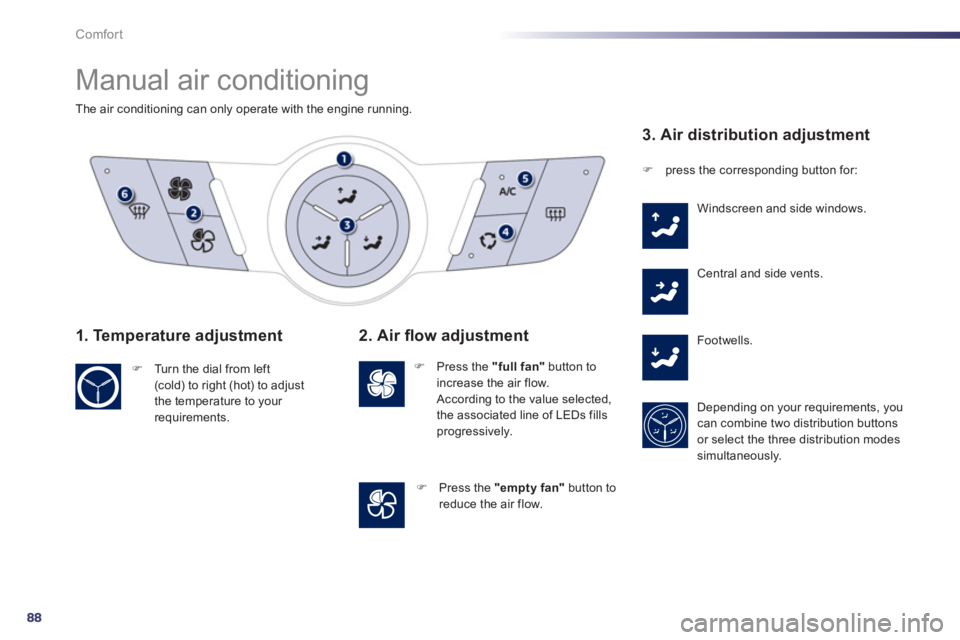

Manual air conditioning
The air conditioning can only operate with the engine running.
1. Temperature adjustment
F
Turn the dial from left(cold) to right (hot) to adjust
the temperature to your
requirements.



2. Air fl ow adjustment
F
Press the "full fan"
button to
increase the air flow.
According to the value selected,
the associated line of LEDs fills progressively.
F Press the "empty fan"
button toreduce the air flow.


3. Air distribution adjustment
F
press the corresponding button for:
Windscreen and side windows.
Central and side vents.
F
ootwells.
Depending on your requirements, you can combine two distribution buttons or select the three distribution modes
simultaneously.
