PEUGEOT 508 2023 Owners Manual

209
PEUGEOT i-Connect Advanced - PEUGEOT i-Connect

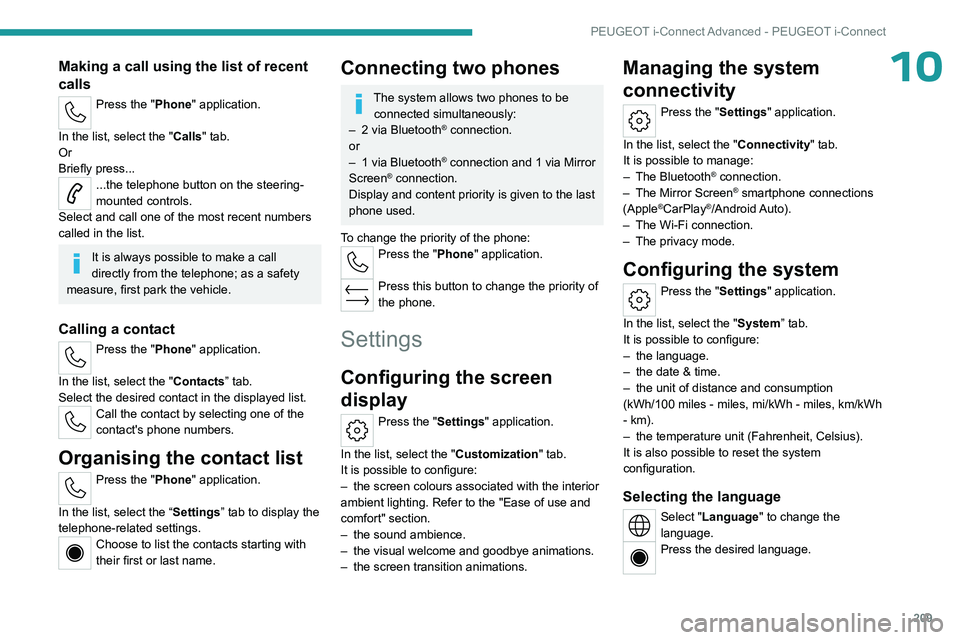

10Making a call using the list of recent
calls
Press the "Phone" application.
In the list, select the "Calls" tab.
Or
Briefly press...
...the telephone button on the steering-
mounted controls.
Select and call one of the most recent numbers
called in the list.
It is always possible to make a call
directly from the telephone; as a safety
measure, first park the vehicle.
Calling a contact
Press the "Phone" application.
In the list, select the "Contacts” tab.
Select the desired contact in the displayed list.
Call the contact by selecting one of the
contact's phone numbers.
Organising the contact list
Press the "Phone" application.
In the list, select the “Settings” tab to display the
telephone-related settings.
Choose to list the contacts starting with
their first or last name.
Connecting two phones
The system allows two phones to be connected simultaneously:
–

2 via
Bluetooth
® connection.
or
–

1 via


Bluetooth
® connection and 1 via Mirror
Screen® connection.
Display and content priority is given to the last
phone used.
To change the priority of the phone:
Press the "Phone" application.
Press this button to change the priority of
the phone.
Settings
Configuring the screen
display
Press the "Settings" application.
In the list, select the "Customization" tab.
It is possible to configure:
–

the screen colours associated with the interior
ambient lighting. Refer to the "Ease of use and
comfort" section.
–


the sound ambience.
–


the visual welcome and goodbye animations.
–


the screen transition animations.
Managing the system
connectivity
Press the "Settings" application.
In the list, select the "Connectivity" tab.
It is possible to manage:
–

The Bluetooth® connection.
–
The Mirror Screen® smartphone connections
(Apple®CarPlay®/Android Auto).
–
The Wi-Fi connection.
–

The privacy mode.
Configuring the system
Press the "Settings" application.
In the list, select the "System” tab.
It is possible to configure:
–

the language.
–


the date & time.
–


the unit of distance and consumption
(kWh/100 miles - miles, mi/kWh - miles, km/kWh
- km).
–


the temperature unit (Fahrenheit, Celsius).
It is also possible to reset the system
configuration.
Selecting the language
Select "Language" to change the
language.
Press the desired language.

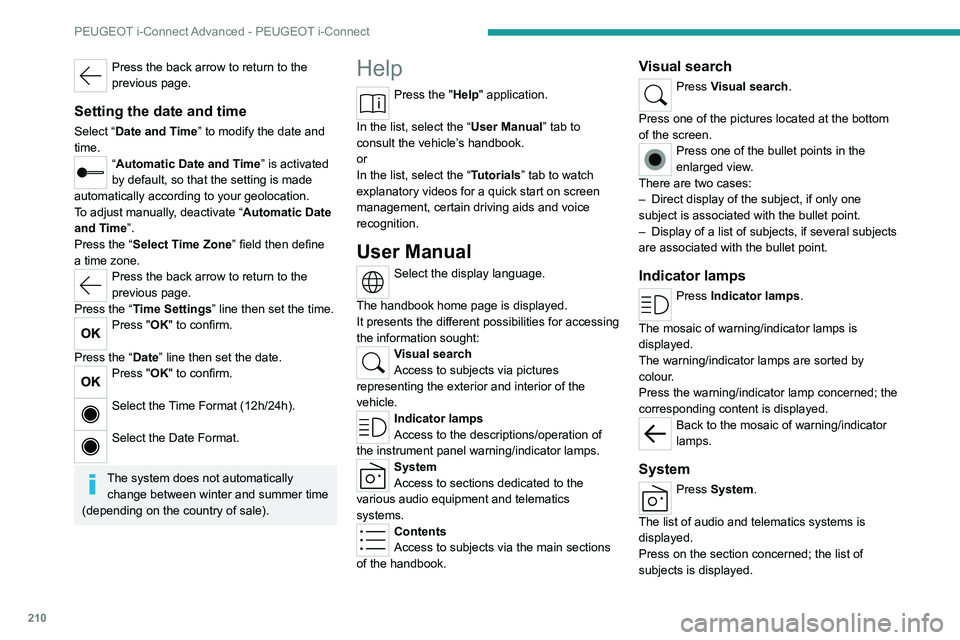

210
PEUGEOT i-Connect Advanced - PEUGEOT i-Connect
Press the back arrow to return to the
previous page.
Setting the date and time
Select “Date and Time” to modify the date and
time.
“Automatic Date and Time” is activated
by default, so that the setting is made
automatically according to your geolocation.
To adjust manually, deactivate “Automatic Date
and Time”.
Press the “Select Time Zone” field then define
a time zone.
Press the back arrow to return to the
previous page.
Press the “Time Settings” line then set the time.
Press "OK" to confirm.
Press the “Date” line then set the date.
Press "OK" to confirm.
Select the Time Format (12h/24h).
Select the Date Format.
The system does not automatically change between winter and summer time
(depending on the country of sale).
Help
Press the "Help" application.
In the list, select the “User Manual” tab to
consult the vehicle’s handbook.
or
In the list, select the “Tutorials” tab to watch
explanatory videos for a quick start on screen
management, certain driving aids and voice
recognition.
User Manual
Select the display language.
The handbook home page is displayed.
It presents the different possibilities for accessing
the information sought:
Visual search
Access to subjects via pictures
representing the exterior and interior of the
vehicle.
Indicator lamps
Access to the descriptions/operation of
the instrument panel warning/indicator lamps.
System
Access to sections dedicated to the
various audio equipment and telematics
systems.
Contents
Access to subjects via the main sections
of the handbook.
Visual search
Press Visual search.
Press one of the pictures located at the bottom
of the screen.
Press one of the bullet points in the
enlarged view.
There are two cases:
–

Direct display of the subject, if only one
subject is associated with the bullet point.
–


Display of a list of subjects, if several subjects
are associated with the bullet point.
Indicator lamps
Press Indicator lamps.
The mosaic of warning/indicator lamps is
displayed.
The warning/indicator lamps are sorted by
colour.
Press the warning/indicator lamp concerned; the
corresponding content is displayed.
Back to the mosaic of warning/indicator
lamps.
System
Press System.
The list of audio and telematics systems is
displayed.
Press on the section concerned; the list of
subjects is displayed.

2 11
PEUGEOT i-Connect Advanced - PEUGEOT i-Connect

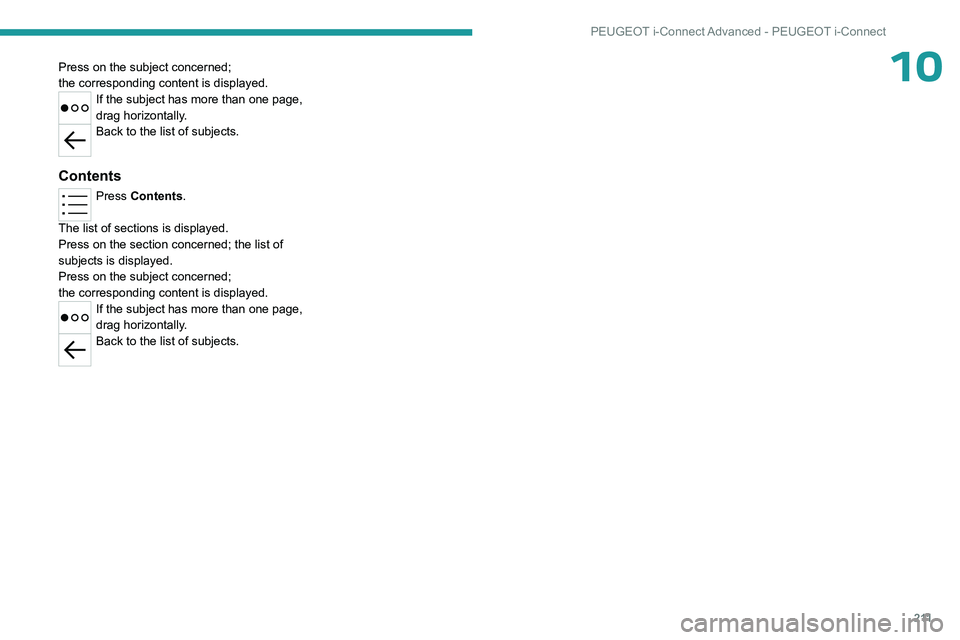

10Press on the subject concerned;
the corresponding content is displayed.
If the subject has more than one page,
drag horizontally.
Back to the list of subjects.
Contents
Press Contents.
The list of sections is displayed.
Press on the section concerned;
the list of
subjects is displayed.
Press on the subject concerned;
the

corresponding content is displayed.
If the subject has more than one page,
drag horizontally.
Back to the list of subjects.

212
Vehicle data recording and privacy
Vehicle data recording
and privacy
Electronic control units are installed in your
vehicle. These control units process data
received from the vehicle's sensors, for example,
or data they generate themselves or exchange
with each other. Some of these control units are
required for the correct operation of your vehicle,
some others assist you while driving (driving or
manoeuvring aids), while others provide comfort
or infotainment functions.
The following contains general information about
how data is processed within the vehicle.
You will find additional information about the
specific data which is downloaded, stored
and transmitted to third parties and what it is
used for in your vehicle under the keyword
"Data protection". This information is directly
associated with the references for the functions
in question contained in the corresponding
vehicle handbook, or in the general terms and
conditions of sale.
This information is also available online.
Vehicle operating data
The control units process the data used for the
operation of the vehicle.
This data includes, for example:
–
Information about the state of the vehicle
(e.g.

speed, travel time, lateral acceleration,
wheel rotation rate, fastened seat belts display). –

Environmental conditions (e.g.
temperature,
rain sensor, distance sensor).
As a general rule, this data is temporary, is
not stored for longer than one operating cycle
and is only used within the vehicle itself. The
control units often record this data (including the
vehicle's key). This function allows either the
temporary or permanent storage of information
about the state of the vehicle, stresses on
components, servicing requirements, as well as
events and technical errors.
Depending on the vehicle's equipment level, the
data stored is as follows:
–
Operating state of system components
(e.g.
filling level, tyre pressures, battery charge
status).
–
Faults and malfunctions in important system
components (e.g.
lamps, brakes).
–
System reactions in specific driving situations
(e.g.
deployment of an airbag, triggering of
stability control and braking systems).
–
Information about events which have
damaged the vehicle.
–

For electric and rechargeable hybrid vehicles,
the traction battery charge level and the
estimated driving range.
In particular circumstances (e.g.
if the vehicle
has detected a malfunction), it may be necessary
to record data which would otherwise simply not
be stored.
When taking your vehicle in for servicing
(e.g.
repairs, maintenance), the stored operating
data may be read along with the vehicle's identification number and used if necessary.
The personnel working for the servicing network
(e.g.
garages, manufacturers) or third parties
(e.g. roadside assistance agents) may read
the vehicle's data. This also applies to work
carried out under warranty and quality assurance
measures.
This data is generally read via the OBD
(On-Board Diagnostics) port fitted by law to
the vehicle. It is used to report on the technical
state of the vehicle or its components and
facilitates the diagnosis of malfunctions, in
compliance with warranty obligations and for
quality improvement. This data, in particular the
information relating to stress on components,
technical events, operator errors and other
malfunctions, is sent to the Manufacturer, if
necessary, along with the vehicle's identification
number. The Manufacturer's liability may also be
engaged. The Manufacturer may also use the
operating data taken from the vehicle for product
recalls. This data may also be used to check the
customer's warranty and any claims made under
warranty.
Any malfunctions stored in the vehicle may be
reset by an after-sales service company during
servicing or repair work, or at your request.

213
Vehicle data recording and privacy

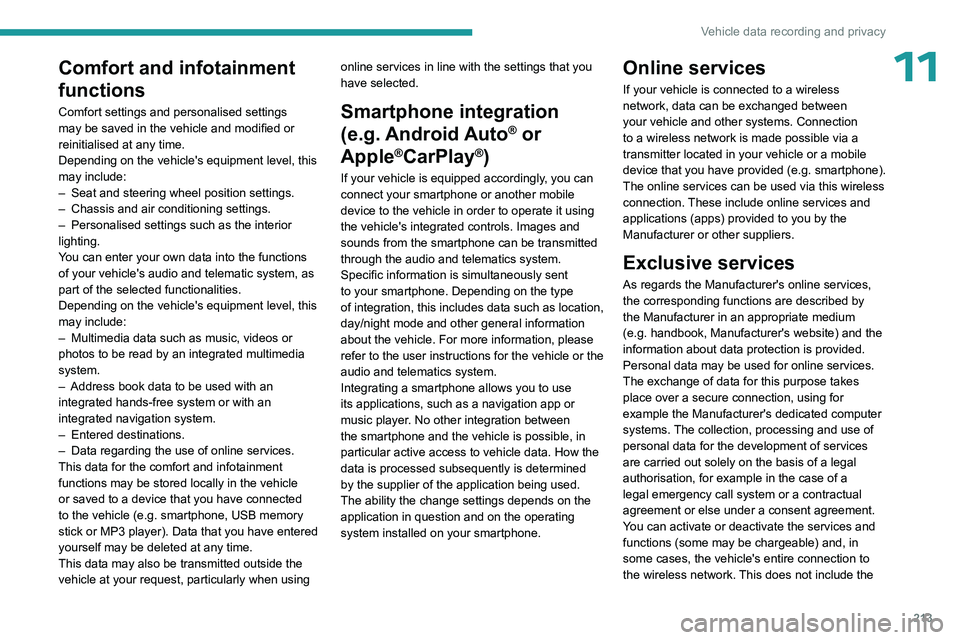

11Comfort and infotainment
functions
Comfort settings and personalised settings
may be saved in the vehicle and modified or
reinitialised at any time.
Depending on the vehicle's equipment level,
this
may
include:
–

Seat and steering wheel position settings.
–


Chassis and air conditioning settings.
–


Personalised settings such as the interior
lighting.
Y

ou can enter your own data into the functions
of your vehicle's audio and telematic system, as
part of the selected functionalities.
Depending on the vehicle's equipment level,
this
may
include:
–

Multimedia data such as music, videos or
photos to be read by an integrated multimedia
system.
–


Address book data to be used with an
integrated hands-free system or with an
integrated navigation system.
–


Entered destinations.
–


Data regarding the use of online services.
This data for the comfort and infotainment
functions may be stored locally in the vehicle
or saved to a device that you have connected
to the vehicle (e.g.

smartphone, USB memory
stick or MP3 player). Data that you have entered
yourself may be deleted at any time.
This data may also be transmitted outside the
vehicle at your request, particularly when using online services in line with the settings that you
have selected. Smartphone integration
(e.g.

Android
Auto
® or
Apple
®CarPlay®)
If your vehicle is equipped accordingly, you can
connect your smartphone or another mobile
device to the vehicle in order to operate it using
the vehicle's integrated controls. Images and
sounds from the smartphone can be transmitted
through the audio and telematics system.
Specific information is simultaneously sent
to your smartphone. Depending on the type
of
integration, this includes data such as location,
day/night mode and other general information
about the vehicle. For more information, please
refer to the user instructions for the vehicle or the
audio and telematics system.
Integrating a smartphone allows you to use
its applications, such as a navigation app or
music player. No other
integration between
the smartphone and the vehicle is possible, in
particular active access to vehicle data. How the
data is processed subsequently is determined
by the supplier of the application being used.
The ability the change settings depends on the
application in question and on the operating
system installed on your smartphone.
Online services
If your vehicle is connected to a wireless
network, data can be exchanged between
your vehicle and other systems. Connection
to a wireless network is made possible
via a
transmitter located in your vehicle or a mobile
device that you have provided (e.g.

smartphone).
The online services can be used via this wireless
connection.

These include online services and
applications (apps) provided to you by the
Manufacturer or other suppliers.
Exclusive services
As regards the Manufacturer's online services,
the corresponding functions are described by
the Manufacturer in an appropriate medium
(e.g.
handbook, Manufacturer's website) and the
information about data protection is provided.
Personal data may be used for online services.
The exchange of data for this purpose takes
place over a secure connection, using for
example the Manufacturer's dedicated computer
systems. The collection, processing and use of
personal data for the development of services
are carried out solely on the basis of a legal
authorisation, for example in the case of a
legal emergency call system or a contractual
agreement or else under a consent agreement.
You can activate or deactivate the services and
functions (some may be chargeable) and, in
some cases, the vehicle's entire connection to
the wireless network. This does not include the

214
Vehicle data recording and privacy

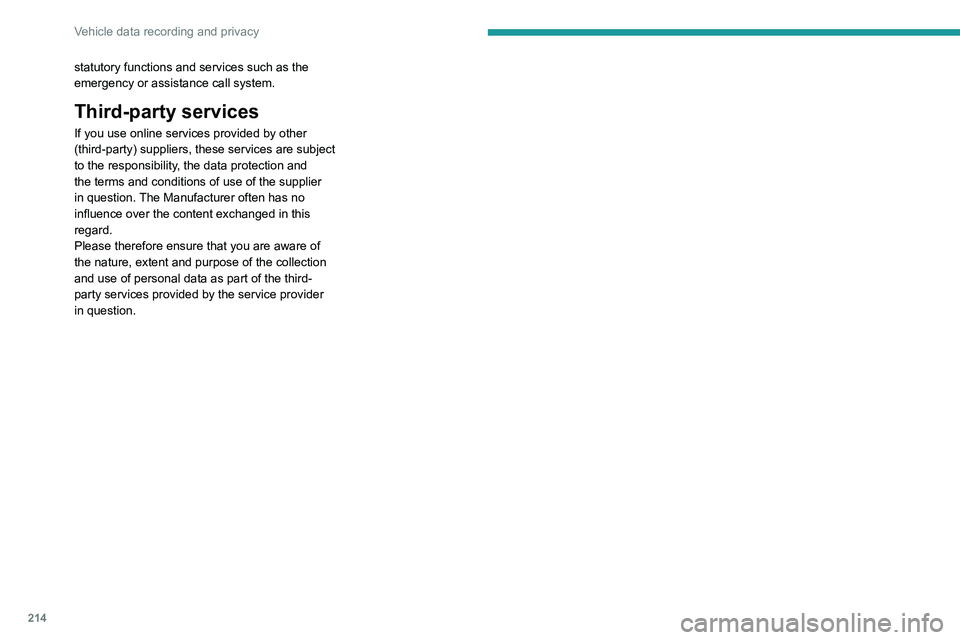

statutory functions and services such as the
emergency or assistance call system.
Third-party services
If you use online services provided by other
(third-party) suppliers, these services are subject
to the responsibility, the data protection and
the terms and conditions of use of the supplier
in question. The Manufacturer often has no
influence over the content exchanged in this
regard.
Please therefore ensure that you are aware of
the nature, extent and purpose of the collection
and use of personal data as part of the third-
party services provided by the service provider
in question.

215

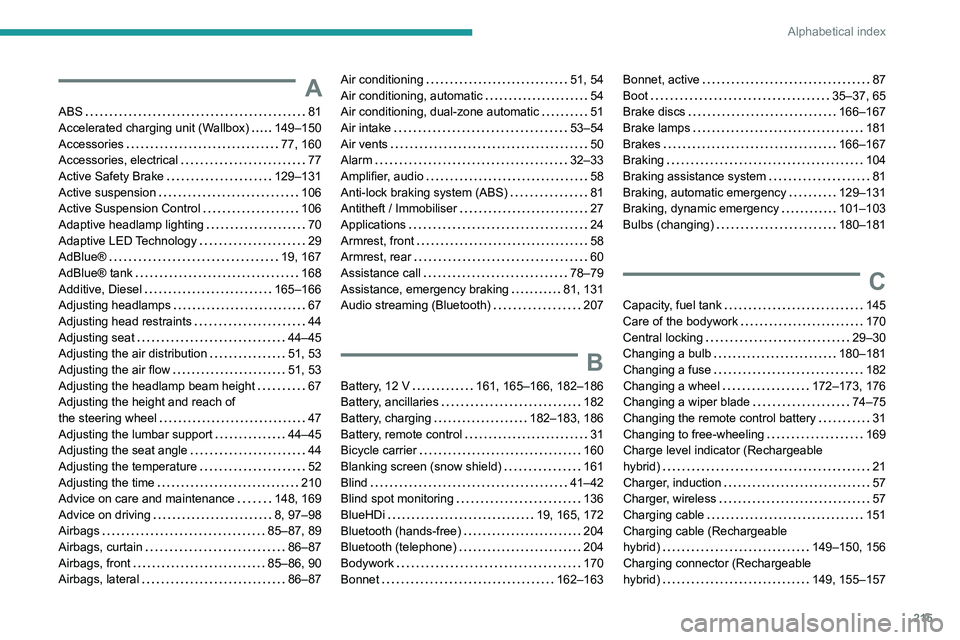

Alphabetical index
A
ABS 81
Accelerated charging unit (Wallbox)
149–150
Accessories

77, 160
Accessories, electrical

77
Active Safety Brake

129–131
Active suspension

106
Active Suspension Control

106
Adaptive headlamp lighting

70
Adaptive LED Technology

29
AdBlue®

19, 167
AdBlue® tank

168
Additive, Diesel

165–166
Adjusting headlamps

67
Adjusting head restraints

44
Adjusting seat

44–45
Adjusting the air distribution

51, 53
Adjusting the air flow

51, 53
Adjusting the headlamp beam height

67
Adjusting the height and reach of
the steering wheel

47
Adjusting the lumbar support

44–45
Adjusting the seat angle

44
Adjusting the temperature

52
Adjusting the time

210
Advice on care and maintenance

148, 169
Advice on driving

8, 97–98
Airbags

85–87, 89
Airbags, curtain

86–87
Airbags, front

85–86, 90
Airbags, lateral

86–87
Air conditioning 51, 54
Air conditioning, automatic
54
Air conditioning, dual-zone automatic

51
Air intake

53–54
Air vents

50
Alarm

32–33
Amplifier, audio

58
Anti-lock braking system (ABS)

81
Antitheft / Immobiliser

27
Applications

24
Armrest, front

58
Armrest, rear

60
Assistance call

78–79
Assistance, emergency braking

81, 131
Audio streaming (Bluetooth)

207
B
Battery, 12 V 161, 165–166, 182–186
Battery, ancillaries
182
Battery, charging

182–183, 186
Battery, remote control

31
Bicycle carrier

160
Blanking screen (snow shield)

161
Blind

41–42
Blind spot monitoring

136
BlueHDi

19, 165, 172
Bluetooth (hands-free)

204
Bluetooth (telephone)

204
Bodywork

170
Bonnet

162–163
Bonnet, active 87
Boot
35–37, 65
Brake discs

166–167
Brake lamps

181
Brakes

166–167
Braking

104
Braking assistance system

81
Braking, automatic emergency

129–131
Braking, dynamic emergency

101–103
Bulbs (changing)

180–181
C
Capacity, fuel tank 145
Care of the bodywork
170
Central locking

29–30
Changing a bulb

180–181
Changing a fuse

182
Changing a wheel

172–173, 176
Changing a wiper blade

74–75
Changing the remote control battery

31
Changing to free-wheeling

169
Charge level indicator (Rechargeable
hybrid)

21
Charger, induction

57
Charger, wireless

57
Charging cable

151
Charging cable (Rechargeable
hybrid)

149–150, 156
Charging connector (Rechargeable
hybrid)

149, 155–157

216

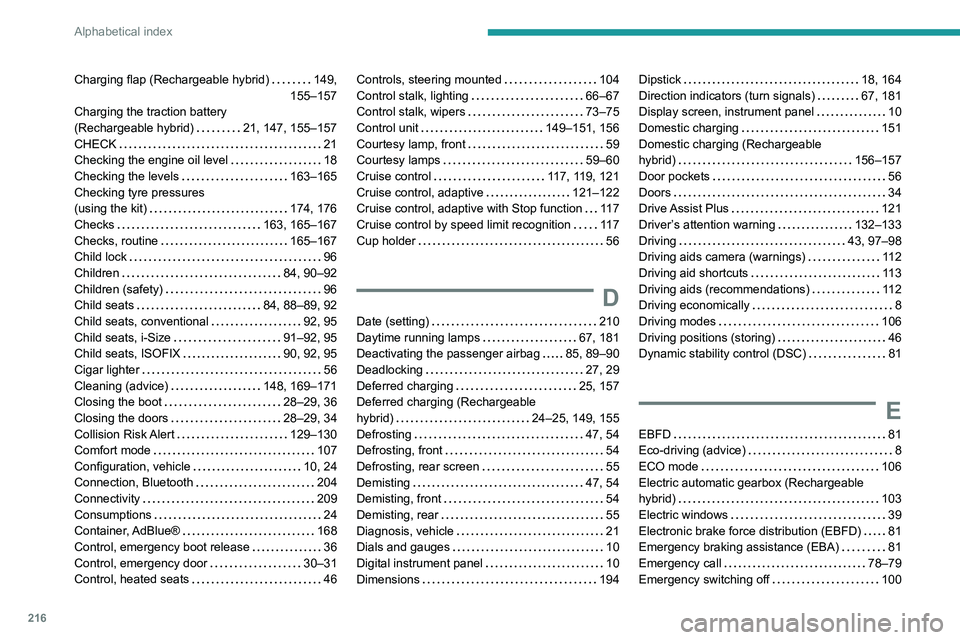

Alphabetical index
Charging flap (Rechargeable hybrid) 149,
155–157
Charging the traction battery
(Rechargeable hybrid)

21, 147, 155–157
CHECK

21
Checking the engine oil level

18
Checking the levels

163–165
Checking tyre pressures
(using the kit)

174, 176
Checks

163, 165–167
Checks, routine

165–167
Child lock

96
Children

84, 90–92
Children (safety)

96
Child seats

84, 88–89, 92
Child seats, conventional

92, 95
Child seats, i-Size

91–92, 95
Child seats, ISOFIX

90, 92, 95
Cigar lighter

56
Cleaning (advice)

148, 169–171
Closing the boot

28–29, 36
Closing the doors

28–29, 34
Collision Risk Alert

129–130
Comfort mode

107
Configuration, vehicle

10, 24
Connection, Bluetooth

204
Connectivity

209
Consumptions

24
Container, AdBlue®

168
Control, emergency boot release

36
Control, emergency door

30–31
Control, heated seats

46Controls, steering mounted 104
Control stalk, lighting
66–67
Control stalk, wipers

73–75
Control unit

149–151, 156
Courtesy lamp, front

59
Courtesy lamps

59–60
Cruise control

117, 119, 121
Cruise control, adaptive

121–122
Cruise control, adaptive with Stop function

11 7
Cruise control by speed limit recognition

11 7
Cup holder

56
D
Date (setting) 210
Daytime running lamps
67, 181
Deactivating the passenger airbag

85, 89–90
Deadlocking

27, 29
Deferred charging

25, 157
Deferred charging (Rechargeable
hybrid)

24–25, 149, 155
Defrosting

47, 54
Defrosting, front

54
Defrosting, rear screen

55
Demisting

47, 54
Demisting, front

54
Demisting, rear

55
Diagnosis, vehicle

21
Dials and gauges

10
Digital instrument panel

10
Dimensions

194
Dipstick 18, 164
Direction indicators (turn signals)
67, 181
Display screen, instrument panel

10
Domestic charging

151
Domestic charging (Rechargeable
hybrid)

156–157
Door pockets

56
Doors

34
Drive Assist Plus

121
Driver’s attention warning

132–133
Driving

43, 97–98
Driving aids camera (warnings)

11 2
Driving aid shortcuts

11 3
Driving aids (recommendations)

11 2
Driving economically

8
Driving modes

106
Driving positions (storing)

46
Dynamic stability control (DSC)

81
E
EBFD 81
Eco-driving (advice)
8
ECO mode

106
Electric automatic gearbox (Rechargeable
hybrid)

103
Electric windows

39
Electronic brake force distribution (EBFD)

81
Emergency braking assistance (EBA)

81
Emergency call

78–79
Emergency switching off

100

217

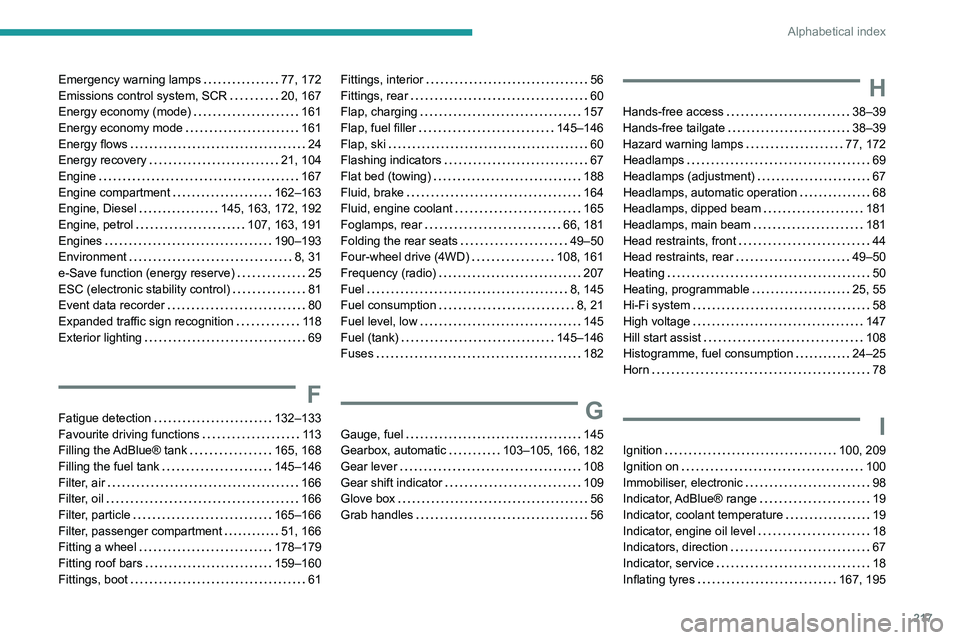

Alphabetical index
Emergency warning lamps 77, 172
Emissions control system, SCR
20, 167
Energy economy (mode)

161
Energy economy mode

161
Energy flows

24
Energy recovery

21, 104
Engine

167
Engine compartment

162–163
Engine, Diesel

145, 163, 172, 192
Engine, petrol

107, 163, 191
Engines

190–193
Environment

8, 31
e-Save function (energy reserve)

25
ESC (electronic stability control)

81
Event data recorder

80
Expanded traffic sign recognition

11 8
Exterior lighting

69
F
Fatigue detection 132–133
Favourite driving functions
11 3
Filling the AdBlue® tank

165, 168
Filling the fuel tank

145–146
Filter, air

166
Filter, oil

166
Filter, particle

165–166
Filter, passenger compartment

51, 166
Fitting a wheel

178–179
Fitting roof bars

159–160
Fittings, boot

61
Fittings, interior 56
Fittings, rear
60
Flap, charging

157
Flap, fuel filler

145–146
Flap, ski

60
Flashing indicators

67
Flat bed (towing)

188
Fluid, brake

164
Fluid, engine coolant

165
Foglamps, rear

66, 181
Folding the rear seats

49–50
Four-wheel drive (4WD)

108, 161
Frequency (radio)

207
Fuel

8, 145
Fuel consumption

8, 21
Fuel level, low

145
Fuel (tank)

145–146
Fuses

182
G
Gauge, fuel 145
Gearbox, automatic
103–105, 166, 182
Gear lever

108
Gear shift indicator

109
Glove box

56
Grab handles

56
H
Hands-free access 38–39
Hands-free tailgate
38–39
Hazard warning lamps

77, 172
Headlamps

69
Headlamps (adjustment)

67
Headlamps, automatic operation

68
Headlamps, dipped beam

181
Headlamps, main beam

181
Head restraints, front

44
Head restraints, rear

49–50
Heating

50
Heating, programmable

25, 55
Hi-Fi system

58
High voltage

147
Hill start assist

108
Histogramme, fuel consumption

24–25
Horn

78
I
Ignition 100, 209
Ignition on
100
Immobiliser, electronic

98
Indicator, AdBlue® range

19
Indicator, coolant temperature

19
Indicator, engine oil level

18
Indicators, direction

67
Indicator, service

18
Inflating tyres

167, 195

218

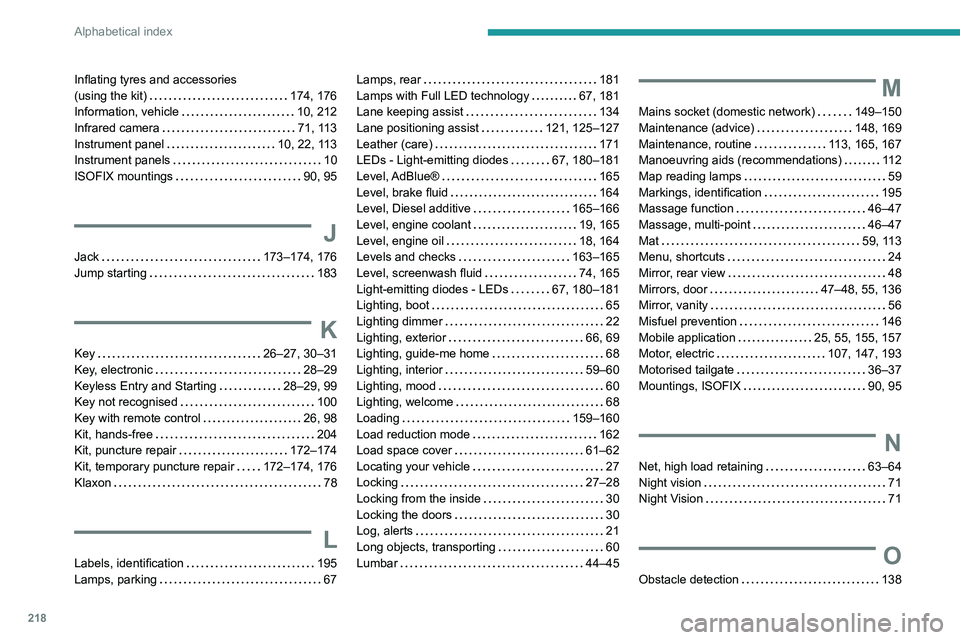

Alphabetical index
Inflating tyres and accessories
(using the kit)
174, 176
Information, vehicle

10, 212
Infrared camera

71, 113
Instrument panel

10, 22, 113
Instrument panels

10
ISOFIX mountings

90, 95
J
Jack 173–174, 176
Jump starting
183
K
Key 26–27, 30–31
Key, electronic
28–29
Keyless Entry and Starting

28–29, 99
Key not recognised

100
Key with remote control

26, 98
Kit, hands-free

204
Kit, puncture repair

172–174
Kit, temporary puncture repair

172–174, 176
Klaxon

78
L
Labels, identification 195
Lamps, parking
67
Lamps, rear 181
Lamps with Full LED technology
67, 181
Lane keeping assist

134
Lane positioning assist

121, 125–127
Leather (care)

171
LEDs - Light-emitting diodes

67, 180–181
Level, AdBlue®

165
Level, brake fluid

164
Level, Diesel additive

165–166
Level, engine coolant

19, 165
Level, engine oil

18, 164
Levels and checks

163–165
Level, screenwash fluid

74, 165
Light-emitting diodes - LEDs

67, 180–181
Lighting, boot

65
Lighting dimmer

22
Lighting, exterior

66, 69
Lighting, guide-me home

68
Lighting, interior

59–60
Lighting, mood

60
Lighting, welcome

68
Loading

159–160
Load reduction mode

162
Load space cover

61–62
Locating your vehicle

27
Locking

27–28
Locking from the inside

30
Locking the doors

30
Log, alerts

21
Long objects, transporting

60
Lumbar

44–45M
Mains socket (domestic network) 149–150
Maintenance (advice)
148, 169
Maintenance, routine

113, 165, 167
Manoeuvring aids (recommendations)

11 2
Map reading lamps

59
Markings, identification

195
Massage function

46–47
Massage, multi-point

46–47
Mat

59, 113
Menu, shortcuts

24
Mirror, rear view

48
Mirrors, door

47–48, 55, 136
Mirror, vanity

56
Misfuel prevention

146
Mobile application

25, 55, 155, 157
Motor, electric

107, 147, 193
Motorised tailgate

36–37
Mountings, ISOFIX

90, 95
N
Net, high load retaining 63–64
Night vision
71
Night Vision

71
O
Obstacle detection 138
