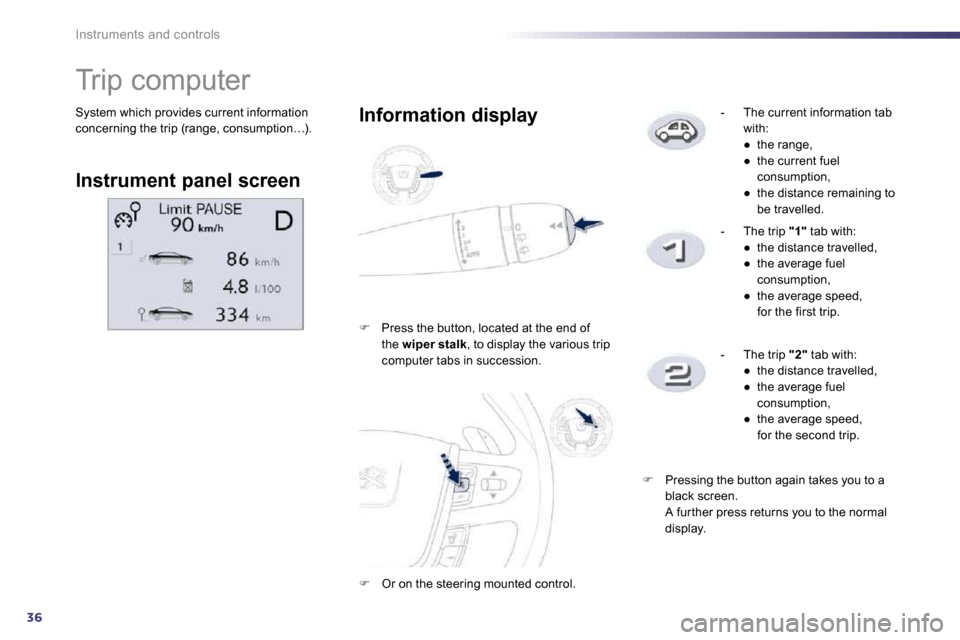

System which provides current information concerning the trip (range, consumption…).
Trip computer
Instrument panel screen
Information display
Press the button, located at the end of the wiper stalk , to display the various trip computer tabs in succession.
- The current information tab with:
Page 37 of 330
137
i
i
i
Instruments and controls
If dashes are displayed continuously
while driving in place of the digits, contact a PEUGEOT dealer or a qualified workshop.
This function is only displayed from 20 mph (30 km/h).
This value may vary following a change in the style of driving or the relief, resulting in a significant change in the current fuel consumption.

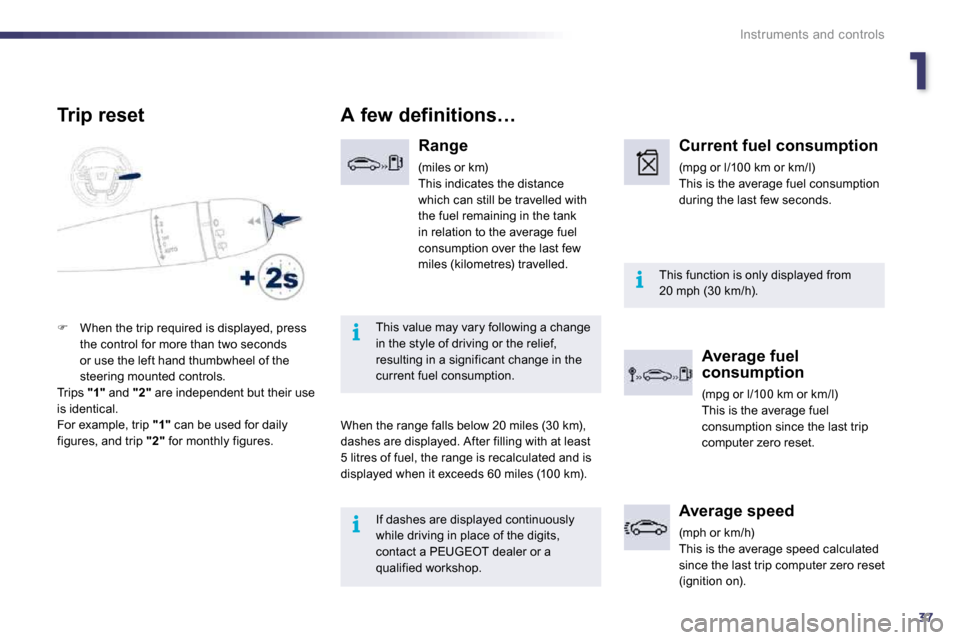

A few definitions…
Range
(miles or km) This indicates the distance which can still be travelled with the fuel remaining in the tank
in relation to the average fuel consumption over the last few miles (kilometres) travelled.
When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds 60 miles (100 km).
Current fuel consumption
(mpg or l/100 km or km/l) This is the average fuel consumption during the last few seconds.
Average fuel consumption
(mpg or l/100 km or km/l) This is the average fuel consumption since the last trip computer zero reset.
Average speed
(mph or km/h) This is the average speed calculated since the last trip computer zero reset (ignition on).
Trip reset
When the trip required is displayed, press the control for more than two seconds or use the left hand thumbwheel of the steering mounted controls. Trips "1" and "2" are independent but their use is identical. For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.
Page 38 of 330
38
Instruments and controls
Distance travelled
(miles or km) This indicates the distance travelled since the last trip computer zero reset.
Stop & Start time counter
(minutes/seconds or hours/minutes) If your vehicle is fitted with Stop & Start, a time counter calculates the time spent in STOP mode during a journey. It resets to zero every time the ignition is switched on with the key.
Page 299 of 330
