Technical data
* The kerb weight is equal to the unladen weight + driver (75 kg). ** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country). High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

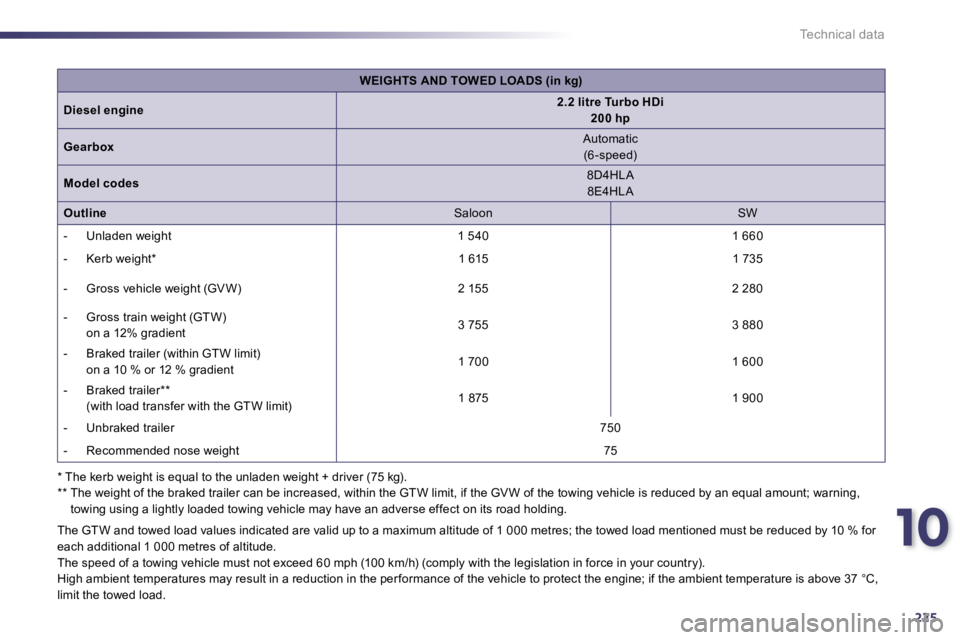

WEIGHTS AND TOWED LOADS (in kg)
Diesel engine2.2 litre Turbo HDi 200 hp
Gearbox Automatic (6 -speed)
Model codes 8D4HLA 8E4HLA
Outline Saloon SW
- Unladen weight 1 540 1 660
- Kerb weight * 1 615 1 735
- Gross vehicle weight (GV W) 2 155 2 280
- Gross train weight (GTW) on a 12% gradient 3 755 3 880
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 1 700 1 600
- Braked trailer ** (with load transfer with the GTW limit) 1 875 1 900
- Unbraked trailer 750
- Recommended nose weight 75

226
Technical data
Saloon SW

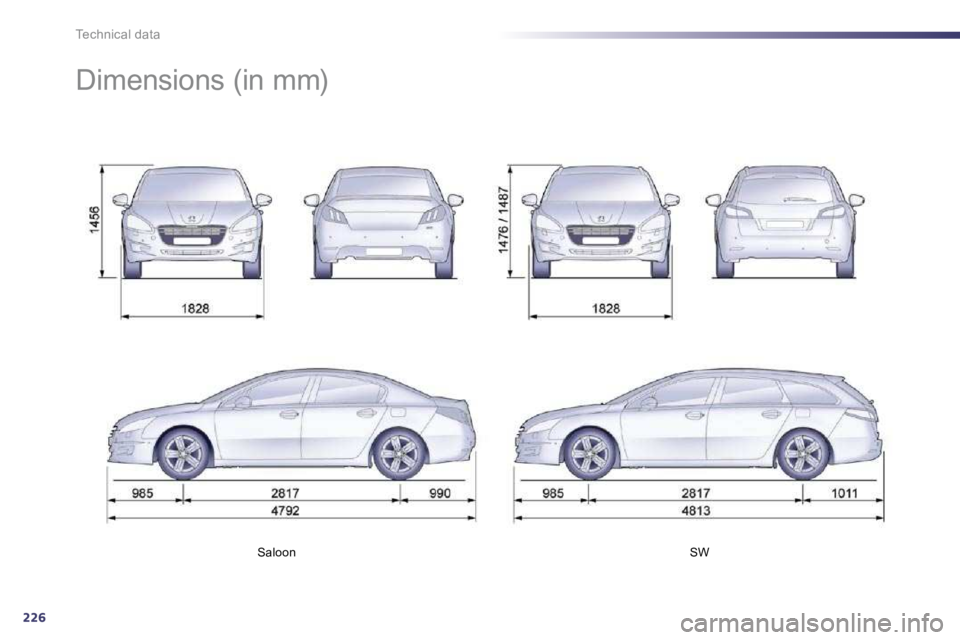

Dimensions (in mm)

10
227
i
Technical data

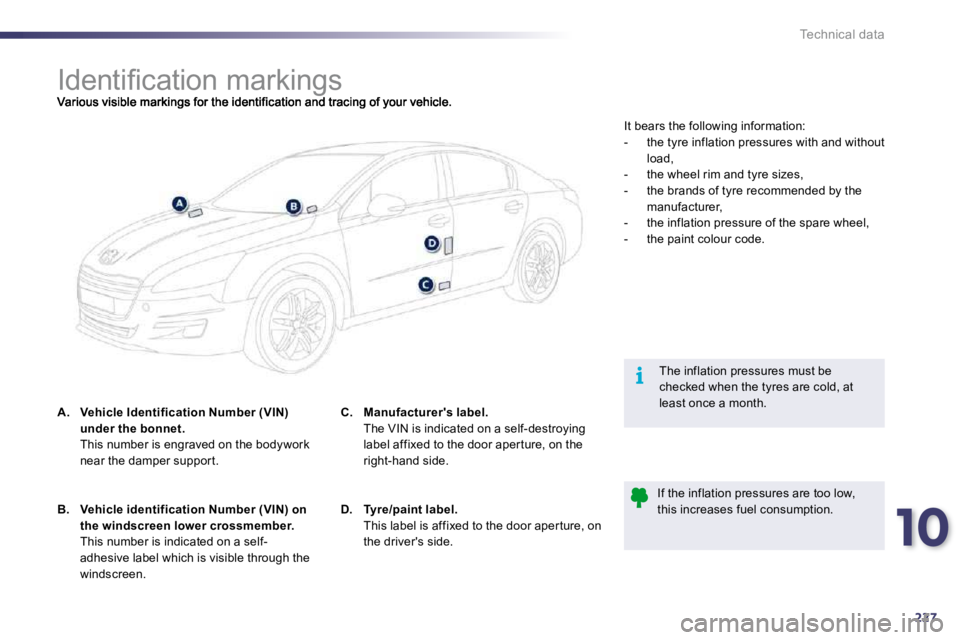

Identifi cation markings
A. Vehicle Identification Number (VIN) under the bonnet.
This number is engraved on the bodywork near the damper suppor t.
The inflation pressures must be checked when the tyres are cold, at least once a month.
If the inflation pressures are too low, this increases fuel consumption. B. Vehicle identification Number (VIN) on the windscreen lower crossmember. This number is indicated on a self-adhesive label which is visible through the windscreen.
C. Manufacturer's label. The VIN is indicated on a self-destroying
label affixed to the door aper ture, on the right-hand side.
D. Tyre/paint label. This label is affixed to the door aper ture, on the driver's side.
It bears the following information: - the tyre inflation pressures with and without load, - the wheel rim and tyre sizes, - the brands of tyre recommended by the manufacturer, - the inflation pressure of the spare wheel,
- the paint colour code.

230

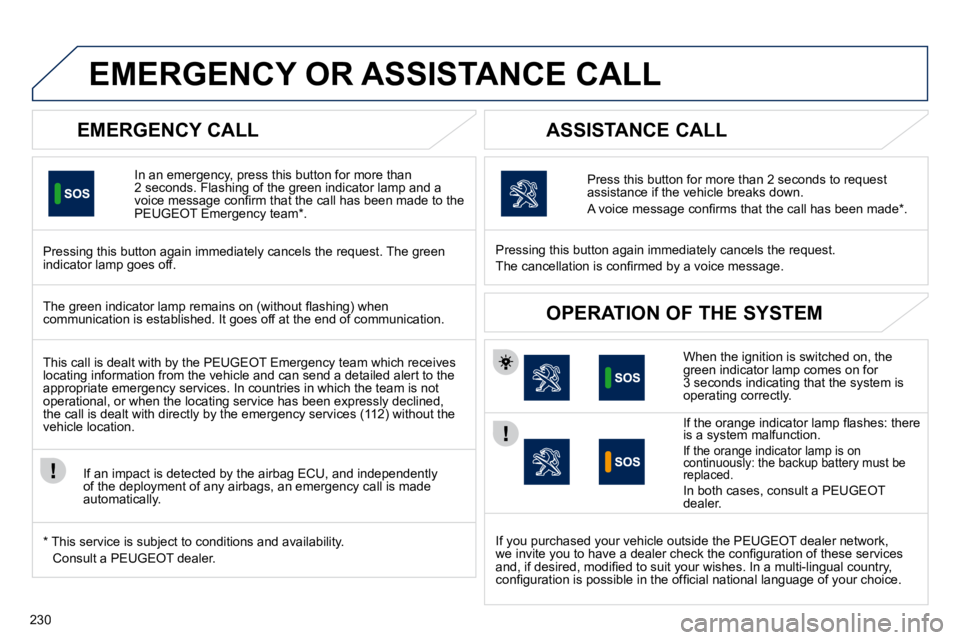

EMERGENCY OR ASSISTANCE CALL
EMERGENCY CALL
In an emergency, press this button for more than 2 seconds. Flashing of the green indicator lamp and a voice message confi rm that the call has been made to the PEUGEOT Emergency team * .
Pressing this button again immediately cancels the request. The green indicator lamp goes off.
ASSISTANCE CALL
When the ignition is switched on, the green indicator lamp comes on for3 seconds indicating that the system is operating correctly.
If the orange indicator lamp fl ashes: there is a system malfunction. f the orange indicator lamp fl ashes: there f the orange indicator lamp fl ashes: there
If the orange indicator lamp is on continuously: the backup battery must be replaced. In both cases, consult a PEUGEOT dealer.
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.
Press this button for more than 2 seconds to request assistance if the vehicle breaks down.
A voice message confi rms that the call has been made * .
OPERATION OF THE SYSTEM The green indicator lamp remains on (without fl ashing) when communication is established. It goes off at the end of commun ication.
This call is dealt with by the PEUGEOT Emergency team which recei ves locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries in which the team is no t operational, or when the locating service has been expressly declined, the call is dealt with directly by the emergency services (112) without the vehicle location.
If an impact is detected by the airbag ECU, and independently of the deployment of any airbags, an emergency call is made automatically.
* This service is subject to conditions and availability.
Consult a PEUGEOT dealer.
If you purchased your vehicle outside the PEUGEOT dealer netwo rk, we invite you to have a dealer check the confi guration of these services and, if desired, modifi ed to suit your wishes. In a multi-lingual country, confi guration is possible in the offi cial national language of your choice.

231
The system is protected in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact a PEUGEOT dealer for confi guration of the system.
SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH TELEPHONE
AUDIO SYSTEM
01 First steps - Control panel
For safety reasons, the driver must carry out operations which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of the battery, the system switches off following the activation of the energy economy mode.
CONTENTS
02 Steering mounted controls
03 General operation
04 Navigation - Guidance
05 Traffic information
06 Using the telephone
07 Contacts - ADDR BOOK
08 Radio
09 Music media players
10 Audio settings
11 Configuration
12 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
232
234
235
237
251
254
262
265
268
274
275
276
Frequently asked questions p. 279

232
1
6
2
9
3
20
912
13
8
10
14
22
17
721
451119
15
18
16

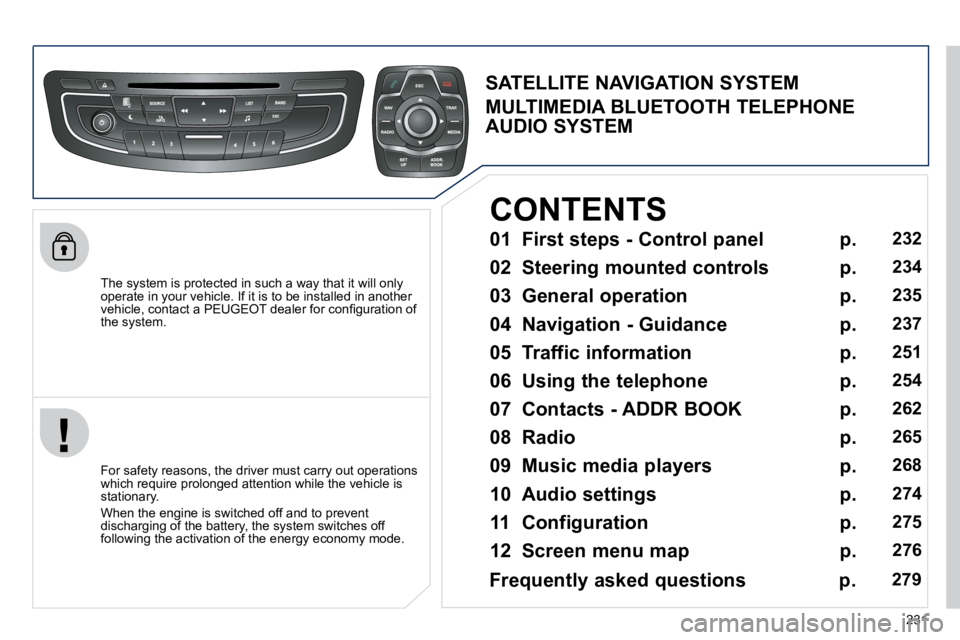

01 FIRST STEPS
CONTROL PANEL

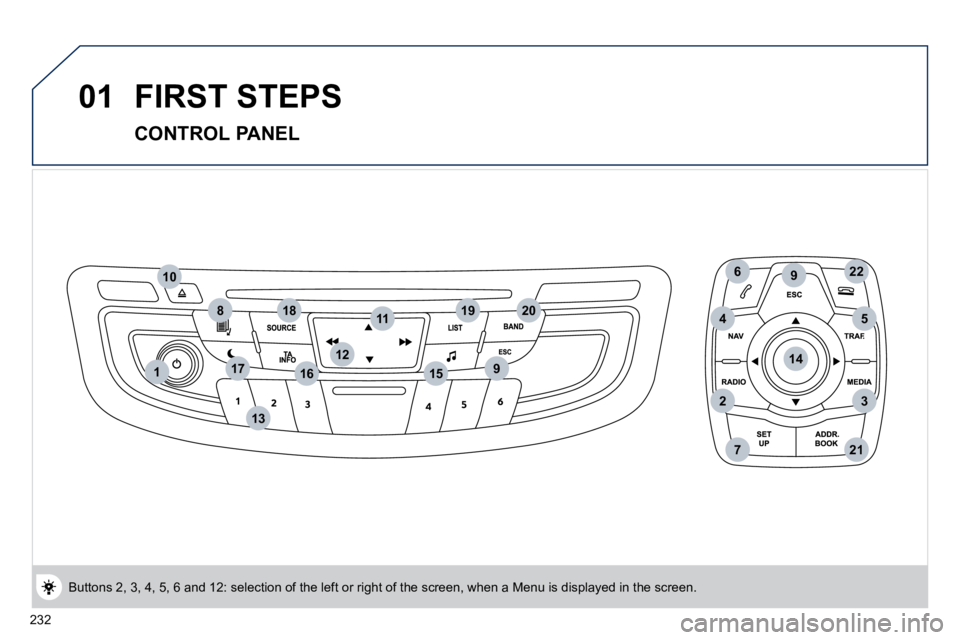

Buttons 2, 3, 4, 5, 6 and 12: selection of the left or right of the screen, when a Menu is displayed in the screen.

233
01
1. Rotary control:
- Short press engine not running: on/off.
- Short press engine running: mute on/off.
- Rotation: volume adjustment (each source is independent, including TA messages and navigation information).
2. Radio source, access to the " FM/AM band " menu and display the list of stations.
3. Access to the " MEDIA " menu and display the list of tracks.
4. Access to the " Navigation - guidance " menu and display the last destinations.
5. Access to the " Traffi c information " menu and display the current traffi c alerts.
6. Access to the " Telephone " menu and display the recent calls list.
7. Access to the " Confi guration " menu.
Long press: access to the GPS coverage and the navigation demonstration mode.
8. MODE button:
Selection of the type of permanent display.
9. ESC: abandon the operation in progress, up one level in the menu
Long press: return to permanent display.
10. CD eject
Continuous press: reinitialisation of the system.
11. According to context:
Selection of the previous/next line in a list or menu.
Selection of the previous/next media folder.
Step by step selection of the previous/next radio frequency.
Selection of the next/previous MP3 folder.
Move up/down in " Move the map " mode.
12. According to context:
Automatic selection of the next lower/higher radio frequency
Selection of the previous/next CD, MP3 or media track
Selection of left/right on the screen when a menu is displayed.
Move left/right in " Move the map " mode.
13. Buttons 1 to 6:
Short press: selection of the stored radio station.
Long press: store the current radio station.
14. Dial for selection and OK confi rmation
Selection of an item on the screen or in a list in a menu, then confi rmation with a short press.
Other than for menus and lists, a short press displays a contextual menu depending on the current screen.
Rotation with map displayed: zoom the map scale in and out.
15. Access to " Audio settings ": musical ambience, base, treble, loudness, distribution, left/right balance, front/rear balance, automatic volume correction.
16. TA (Traffi c Announcement) function On/Off.
17. Display black screen (DARK).
18. Selection of audio source:
CD, USB, AUX, Bluetooth, Radio.
19. Display the list of stations received, the CD/MP3 tracks or folders.
Long press: manage the sorting of MP3/WMA fi les/update the list of stations received.
20. Selection of FM and AM wavebands.
21. Display the list of contacts/Access to the "Directory of contacts" menu.
22. Reject an incoming call or end the call in progress.
FIRST STEPS

234

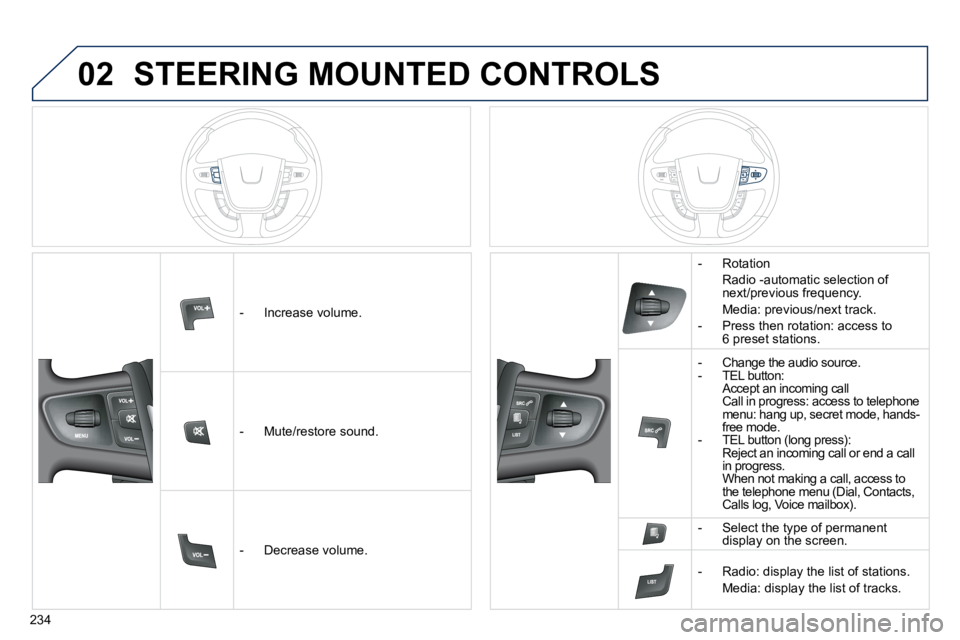

02 STEERING MOUNTED CONTROLS
- Increase volume.
- Mute/restore sound.
- Decrease volume.
- Rotation
Radio -automatic selection of next/previous frequency.
Media: previous/next track.
- Press then rotation: access to 6 preset stations.
- Change the audio source. - TEL button: Accept an incoming call Call in progress: access to telephone menu: hang up, secret mode, hands-free mode. - TEL button (long press): Reject an incoming call or end a call in progress. When not making a call, access to the telephone menu (Dial, Contacts, Calls log, Voice mailbox).
- Select the type of permanent display on the screen.
- Radio: display the list of stations.
Media: display the list of tracks.

235
03
For a detailed global view of the menus available, refer to the "Screen menu map" section. For cleaning the screen, the use of a soft, non-abrasive clot h (spectacles cloth) is recommended, with no additional product.
RADIO/MEDIA
" TELEPHONE "
(If conversation in progress)
SETUP: PARAMETERS
date and time, display parameters, sound.
Changing the audio source:
RADIO: radio broadcasts.
MUSIC : playing MEDIA.

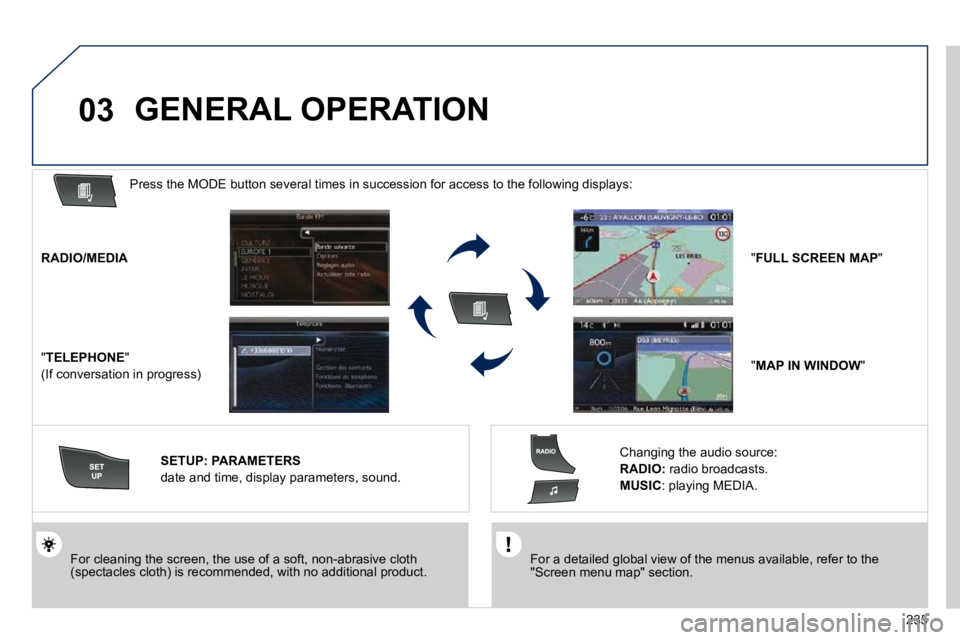

Press the MODE button several times in succession for access to the foll owing displays:
GENERAL OPERATION
" FULL SCREEN MAP "
" MAP IN WINDOW "

236
03
A press on the OK dial gives access to short-cut menus according to the display on the screen.
RADIO:
Activate/Deactivate TA
Activate/Deactivate RDS
GENERAL OPERATION
DISPLAY ACCORDING TO CONTEXT MUSIC MEDIA PLAYERS,
CD or USB (according to
media):
Play modes:
Normal
Random
Random on all media
Repetition
TELEPHONE (call in
progress):
Private mode FULL SCREEN MAP OR IN A
NEW WINDOW:
Stop/Restore guidance
Select destination
Enter an address
Directory
GPS coordinates
Divert route
Move the map
Info. on location
Select as destination
Select as stage
Save this place (contacts)
Quit map mode
Guidance criteria
Put call on hold
DTMF ring tones
Hang up
1
11
1
1
1
1
1
2
2
2
2
2
1
2
2
2
1
1
1
1
1
1
