22
Instruments and controls

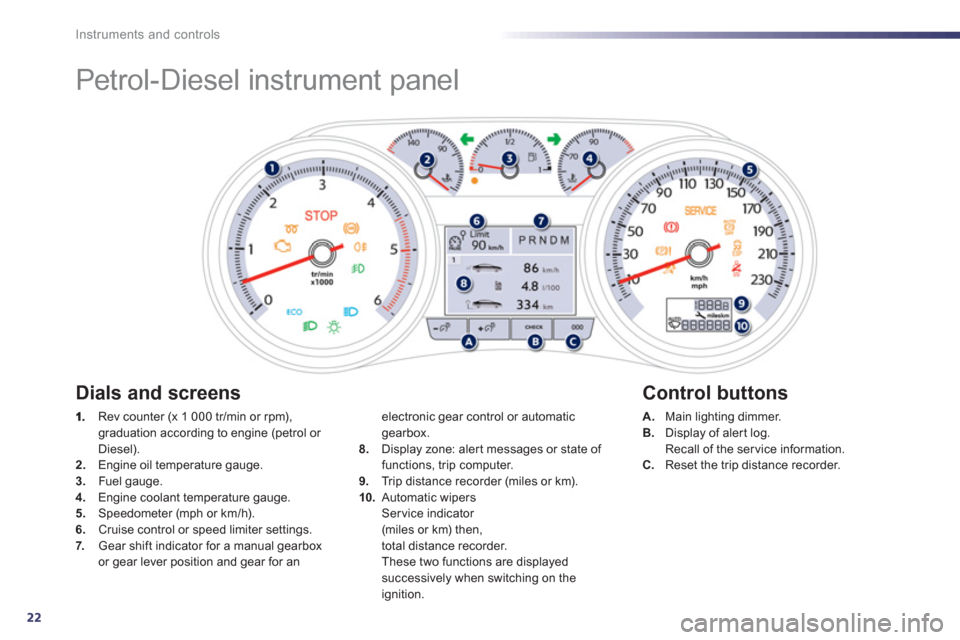

Petrol-Diesel instrument panel

Rev counter (x 1 000 tr/min or rpm), graduation according to engine (petrol or Diesel).2.
Engine oil temperature gauge. 3.Fuel gauge.4.
Engine coolant temperature gauge. 5.
Speedometer (mph or km/h).
6.Cruise control or speed limiter settings.
7. Gear shift indicator for a manual gearbox
or gear lever position and gear for anA
.Main lighting dimmer.
B.Display of aler t log.
Recall of the service information. C.Reset the trip distance recorder.

electronic gear control or automaticgearbox.8.
Display zone: aler t messages or state of functions, trip computer.9.Trip distance recorder (miles or km).
10. Automatic wipers
Service indicator
(miles or km) then,
total distance recorder.
These two functions are displayed successively when switching on the
ignition.

Dials and screens
Control buttons

28
Instruments and controls

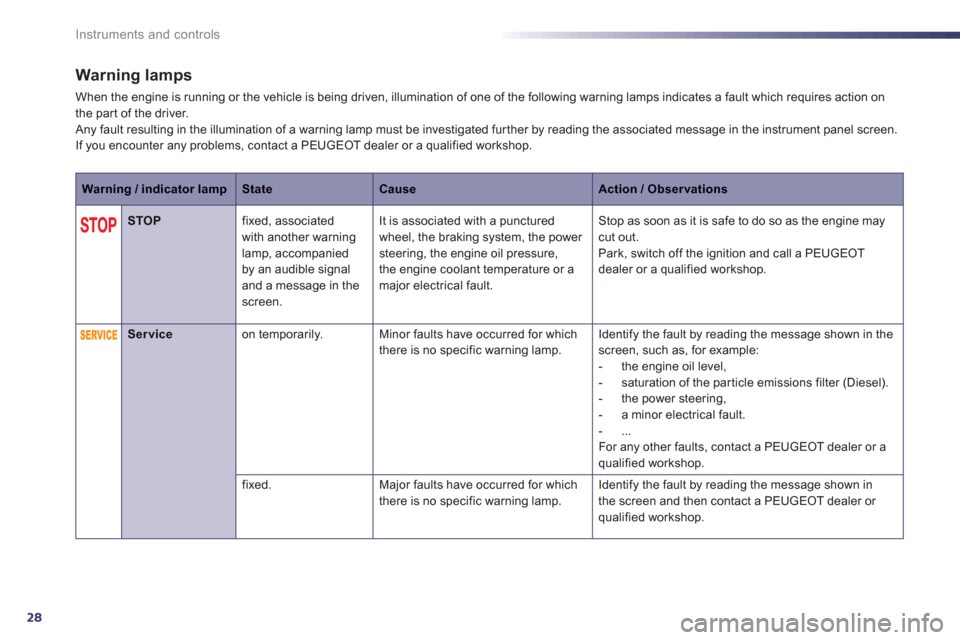

Warning lamps
When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the par t of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated fur ther by reading the associated message in the instrument panel screen.
If you encounter any problems, contact a PEUGEOT dealer or a qualified workshop.
Warning / indicator lampStateCauseAction / Observations


STOPfixed, associated
with another warning
lamp, accompanied
b
y an audible signaland a message in the screen. It is associated with a
punctured
wheel, the braking system, the power steering, the engine oil pressure,
the engine coolant temperature or a major electrical fault.
Stop as soon as it is safe to do so as the engine may cut out.
Park, switch off the ignition and call a PEUGEOT
dealer or a qualified workshop.
Serviceon temporarily.Minor faults have occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown in the screen, such as, for example:
- the engine oil level,
- saturation o
f the par ticle emissions filter (Diesel).
- the power steering,
- a minor electrical fault.
-
...
For any other faults, contact a PEUGEOT dealer or a
qualified workshop.
fix
ed.Major faults have occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown in
the screen and then contact a PEUGEOT dealer or
qualified workshop.

1
33
Instruments and controls

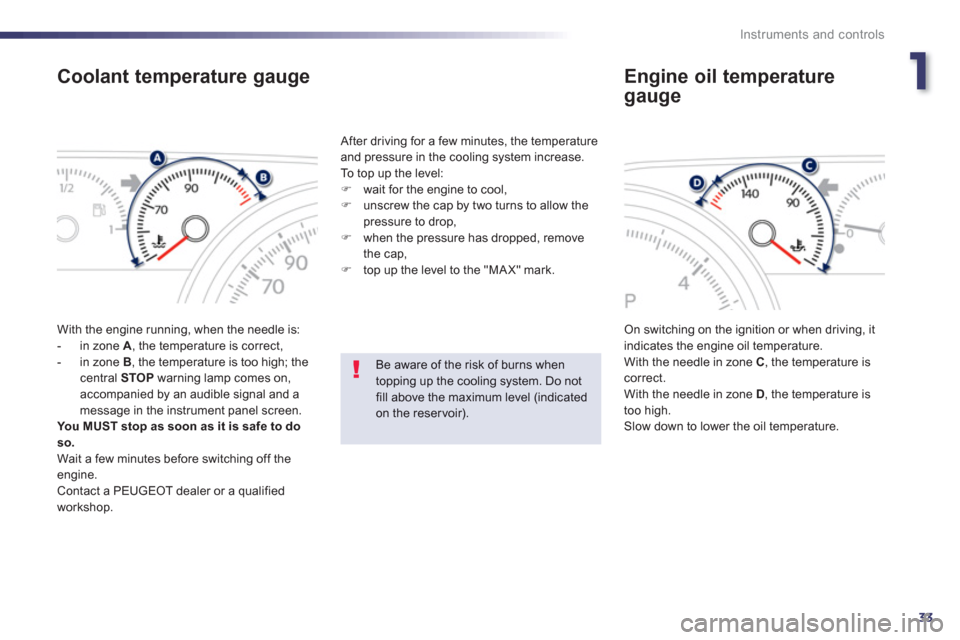

Coolant temperature gauge
With the engine running, when the needle is:


- in zone A
, the temperature is correct,

- in zone B, the temperature is too high; the central STOP
warning lamp comes on,accompanied by an audible signal and amessage in the instrument panel screen.You MUST stop as soon as it is safe to do so.
Wait a few minutes before switching off theengine.
Contact a PEUGEOT dealer or a qualified
wor
kshop.
After drivin
g for a few minutes, the temperatureand pressure in the cooling system increase.
To top up the level:
) wait for the engine to cool, )
unscrew the cap by two turns to allow the
pressure to drop,
) when the pressure has dropped, remove
the cap,) top up the level to the "MA X" mark.


On switching on the ignition or when driving, it
indicates the engine oil temperature.
With the needle in zone C , the temperature is correct.
With the needle in zone D , the temperature is
too high.
Slow down to lower the oil temperature.


Engine oil temperature
gauge
Be aware of the risk of burns whentopping up the cooling system. Do not fill above the maximum level (indicatedon the reservoir).

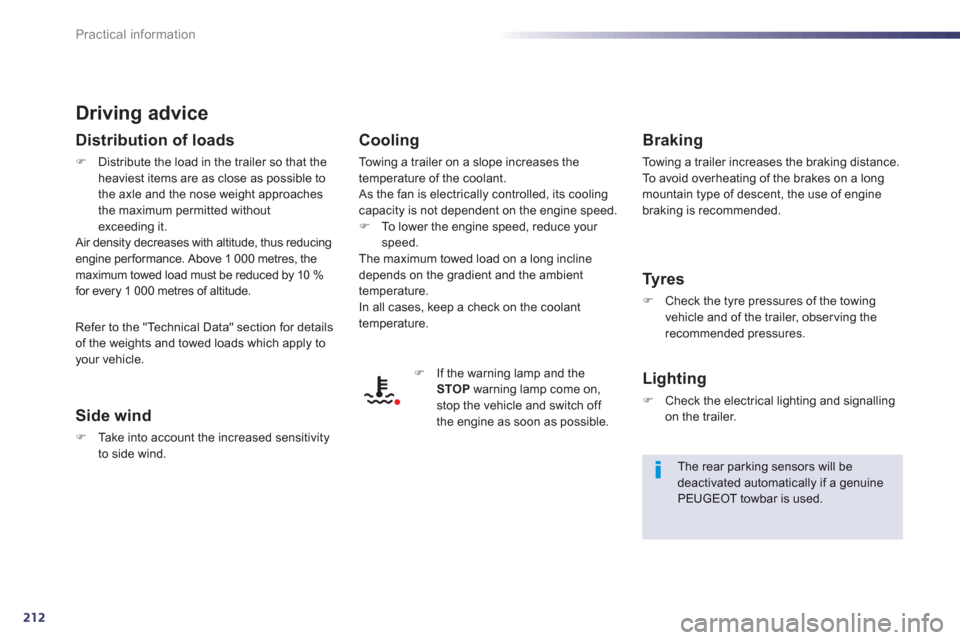

212
Practical information
Driving advice
Distribution of loads
)Distribute the load in the trailer so that theheaviest items are as close as possible to
the axle and the nose weight approaches
the maximum permitted without
excee
ding it.
Air density decreases with altitude, thus reducingengine performance. Above 1 000 metres, the maximum towed load must be reduced by 10 %
for every 1 000 metres of altitude.
Side wind
)Take into account the increased sensitivity
to side wind.

Cooling

To w i ng a trailer on a slope increases the
temperature of the coolant.
As the fan is electricall
y controlled, its cooling capacity is not dependent on the engine speed.
)
To lower the engine speed, reduce your speed.
The maximum towed load on a long incline
depends on the
gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
)If the warning lamp and the
STOP warning lamp come on, stop the vehicle and switch off
the engine as soon as possible.



Braking

To w i ng a trailer increases the braking distance.
To avoid overheating of the brakes on a longmountain type of descent, the use of engine braking is recommended.


Tyres
)Check the tyre pressures of the towingvehicle and of the trailer, obser ving the recommended pressures.



Lighting
)Check the electrical lighting and signalling on the trailer.


The rear parking sensors will be deactivated automatically if a genuine PEUGEOT towbar is used.
R
efer to the "Technical Data" section for details
of the weights and towed loads which apply to your vehicle.

9
219
Checks
The various caps and covers allow access for checking the levels of the various fluids and for
replacing cer tain components.

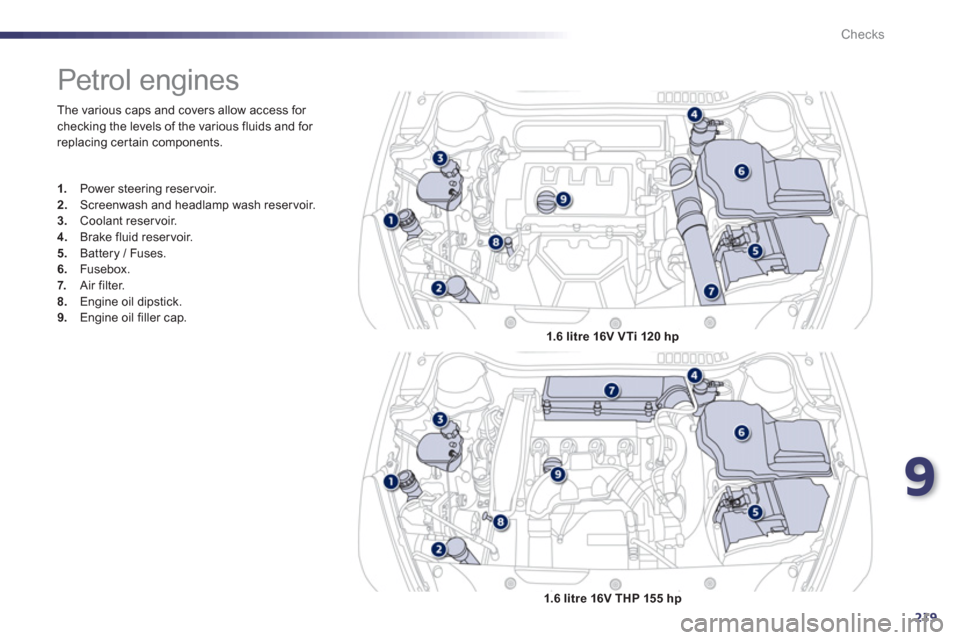

Petrol engines
1.
Power steering reservoir.2.Screenwash and headlamp wash reservoir.3.Coolant reservoir.4.
Brake fluid reservoir.
5. Battery / Fuses.
6.Fusebox.
7. Air filter.8.Engine oil dipstick.9.
Engine oil filler cap.
1.6 litre 16V VTi 120 hp
1.6 litre 16V THP 155 hp

220
Checks
checking the levels of the various fluids, for replacing cer tain components and for primingthe fuel system.
*
Accordin
g to engine.

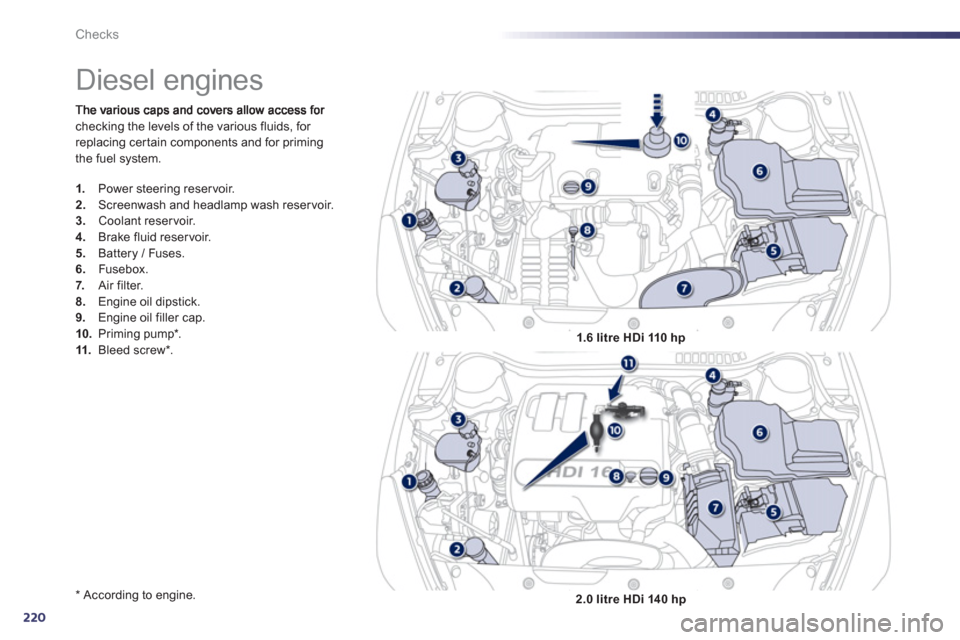

Diesel engines
1.
Power steering reservoir.2.
Screenwash and headlamp wash reservoir.3.
Coolant reservoir. 4.
Brake fluid reservoir.5.
Battery / Fuses.
6.Fusebox.
7. Air filter.8.Engine oil dipstick. 9.
Engine oil filler cap.10.Priming pump * . 11.
Bleed screw *
. 1.6 litre HDi 110 hp
2.0 litre HDi 140 hp

9
221
Checks
The various caps and covers allow access for checking the levels of the various fluids, for
replacing cer tain components and for primingthe fuel system.

*

According to engine.

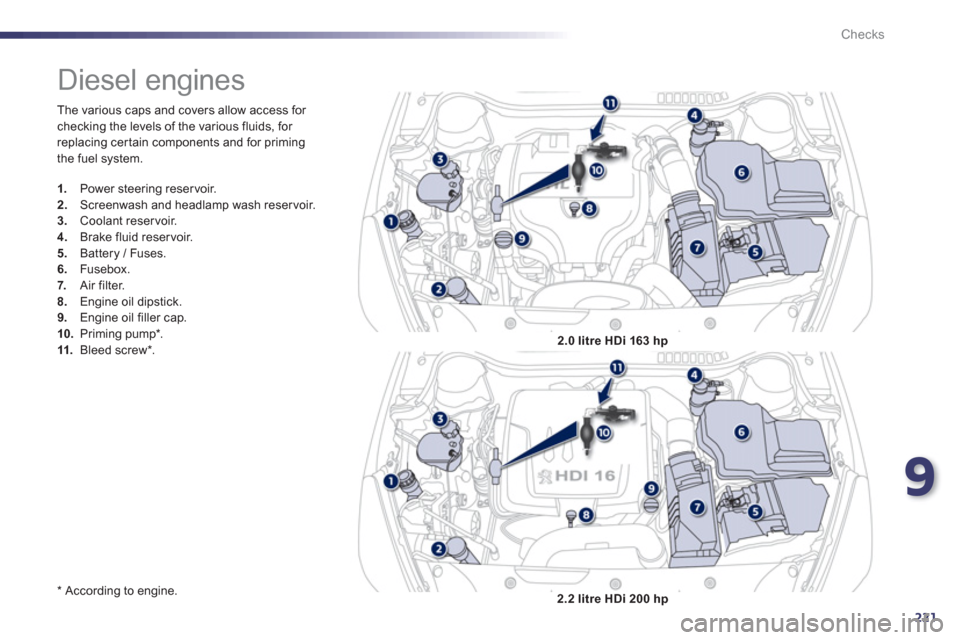

Diesel engines
1.
Power steering reservoir.2.Screenwash and headlamp wash reservoir.3.Coolant reservoir.4.
Brake fluid reservoir.
5. Battery / Fuses.
6.Fusebox.
7. Air filter.8.Engine oil dipstick.9.
Engine oil filler cap.10.Priming pump * . 11.
Bleed screw *
. 2.0 litre HDi 163 hp
2.2 litre HDi 200 hp

9
223
Checks

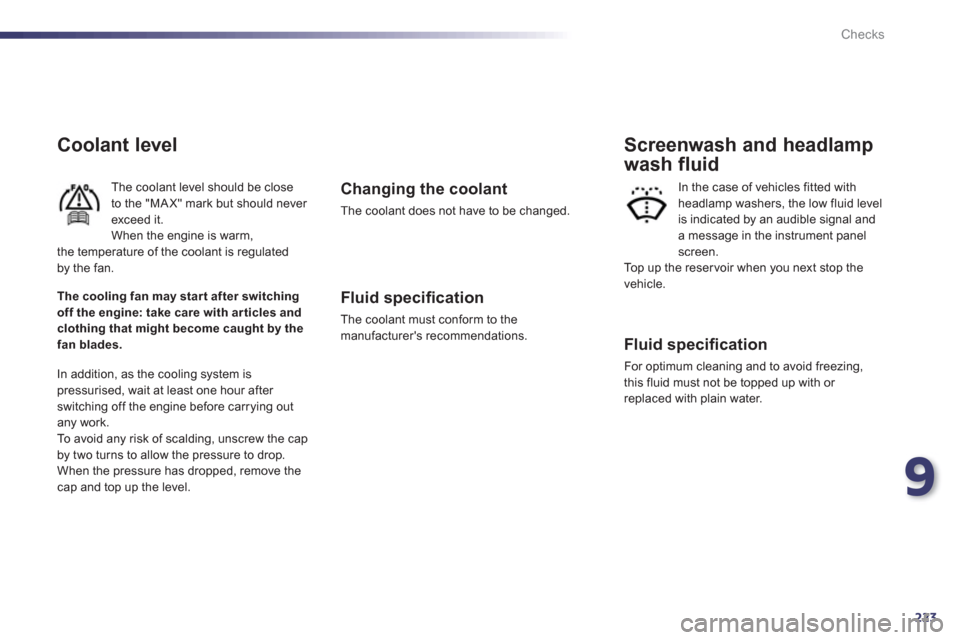

Coolant level
The coolant level should be closeto the "MA X" mark but should never exceed it.When the engine is warm,
the temperature of the coolant is regulated
by the fan.
In addition, as the cooling system is
pressurised, wait at least one hour after switching off the engine before carrying out
any work.
To avoid an
y risk of scalding, unscrew the cap
by two turns to allow the pressure to drop.When the pressure has dropped, remove thecap and top up the level.
Changing the coolant
The coolant does not have to be changed.
Fluid specifi cation
The coolant must conform to the
manufacturer's recommendations.


Fluid specifi cation

For optimum cleaning and to avoid freezing,
this fluid must not be topped up with or
replaced with plain water.
Screenwash and headlamp
wash fluid

In the case of vehicles fitted with
headlamp washers, the low fluid level is indicated by an audible signal anda message in the instrument panelscreen.
Top up the reser voir when you next stop the
vehicle. The cooling fan may star t after switchingoff the engine: take care with ar ticles andclothing that might become caught by thefan blades.

.

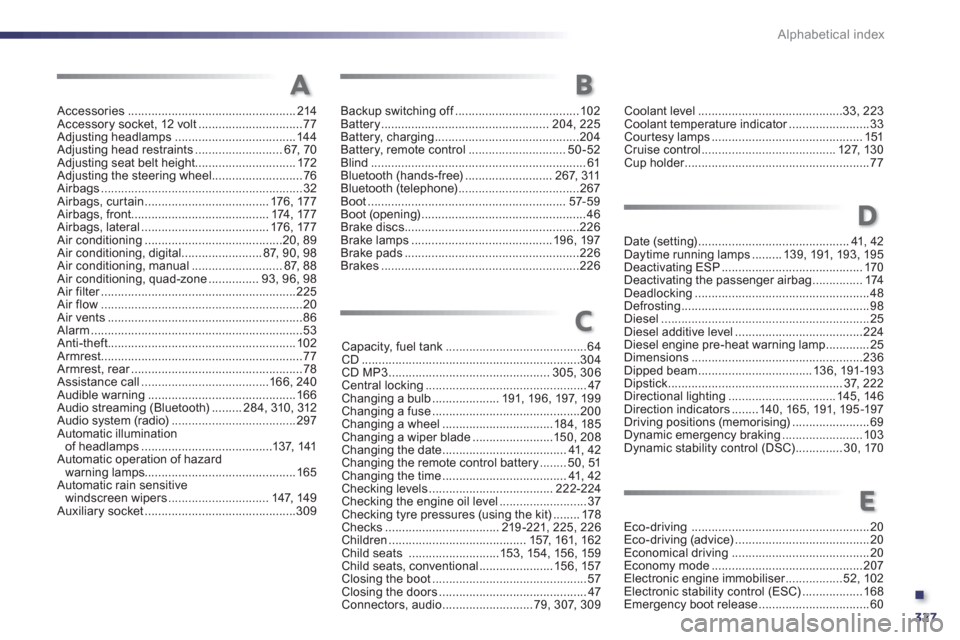

327 Alphabetical index
Accessories ..................................................214Accessory socket, 12 volt ...............................77Adjusting headlamps .................................... 144Adjusting head restraints..........................67,70Adjusting seat belt height..............................172Adjusting the steering wheel...........................76Airbags............................................................32Airbags, curtain .....................................176,177Airbags, front.........................................174,177Airbags, lateral......................................176,177Air conditioning.........................................20, 89Air conditioning, digital........................87,90, 98Air conditioning, manual...........................87, 88Air conditioning, quad-zone...............93, 96, 98Air filter..........................................................r225Air flow............................................................20Air vents ..........................................................86Alarm ...............................................................53Anti-theft........................................................102Armrest............................................................77Armrest, rear...................................................r78Assistance call......................................166,240Audible warning............................................166Audio streaming (Bluetooth).........284,310,312Audio system (radio).....................................297Automatic illumination
of headlamps .......................................137, 141Automatic operation of hazard
warning lamps.............................................165Automatic rain sensitive
windscreen wipers..............................147,149Auxiliary socket.............................................309
Backup switching off.....................................f102Battery..................................................204, 225Battery, charging ...........................................204Battery, remote control.............................50-52Blind................................................................61Bluetooth (hands-free)..........................267, 311Bluetooth (telephone)....................................267Boot...........................................................57-59Boot (opening).................................................46Brake discs ....................................................226Brake lamps ..........................................196,197Brake pads ....................................................226Brakes...........................................................226
Capacity, fuel tank..........................................64CD.................................................................304CD MP3 ................................................305, 306Central locking................................................47Changing a bulb ....................191, 196,197, 199Changing a fuse............................................200Changing a wheel ................................. 184,185Changing a wiper blade........................150,208Changing the date.....................................41,42Changing the remote control battery........50, 51Changing the time.....................................41,42Checking levels .....................................222-224Checking the engine oil level ..........................37Checking tyre pressures (using the kit) ........178Checks ..................................219-221, 225, 226Children ......................................... 157, 161,162Child seats ...........................153,154,156,159Child seats, conventional......................156, 157Closing the boot..............................................57Closing the doors............................................47Connectors, audio ...........................79, 307, 309
Date (setting).............................................41,42Daytime running lamps ......... 139, 191,193, 195Deactivating ESP..........................................170Deactivating the passenger airbag...............174Deadlocking....................................................48Defrosting........................................................98Diesel..............................................................25Diesel additive level......................................224
Diesel engine pre-heat warning lamp .............25Dimensions ...................................................236Dipped beam ..................................136,191-193Dipstick....................................................37, 222Directional lighting................................145, 146Direction indicators........140,165, 191,195-197Driving positions (memorising).......................69Dynamic emergency braking........................103Dynamic stability control (DSC) ..............30, 170
AB
C
D
Coolant level ...........................................33,223Coolant temperature indicator........................r33Cour tesy lamps .............................................151Cruise control........................................127,130Cup holder.......................................................r77
Eco-driving.....................................................20Eco-driving (advice)........................................20Economical driving .........................................20Economy mode.............................................207Electronic engine immobiliser.................r52, 102Electronic stability control (ESC)..................168Emergency boot release .................................60
E

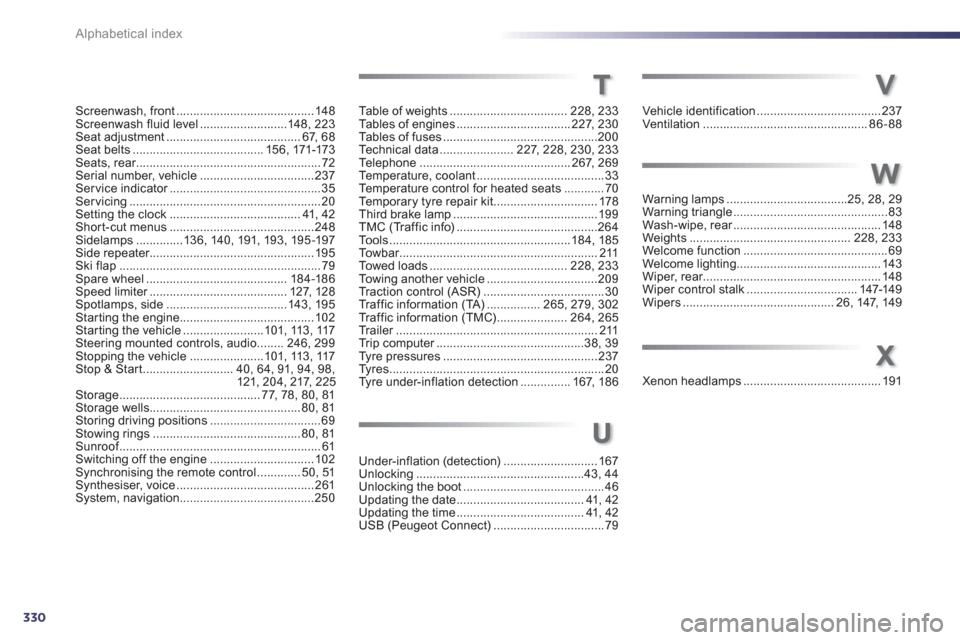

330Alphabetical index
