mirror Peugeot 508 Hybrid 2013 Owner's Manual

.
Contents
Instrument panel 22
Indicator and warning lamps 23
Gauges and indicators 33
Tr ip computer 38
Setting the date and time 41
Instruments and controlsFamiliarisation
Remote control key 43
Alarm 53
Electric windows 55
Boot 57
Motorised tailgate (SW) 58
Sunroof 61
Panoramic sunroof (SW) 63
Fuel tank 64
Diesel misfuel prevention 65
Access
Front seats 67
Rear seats 72
Mirrors 74
Steering wheel adjustment 76
Interior fi ttings 77
Boot fi ttings (Saloon) 80
Boot fi ttings (SW) 81
Heating and Ventilation 86
Manual air conditioning 88
Dual-zone digital air conditioning 90
Quad-zone digital air conditioning 93
Rear screen demist - defrost 98
Programmable Heating / Ventilation 99
Comfort
Starting-switching off the engine 101
Electric parking brake 103
Manual parking brake 110
Manual gearbox 111
Gear effi ciency indicator 112
Automatic gearbox 113
6-speed electronic gear control gearbox 117
Stop & Star t 121
Hill start assist 124
Head-up display 125
Speed limiter 128
Cruise control 130
Parking sensors 132
Parking space sensors 134
Driving
Lighting controls 136
Automatic illumination of headlamps 141
Headlamp adjustment 144
Directional lighting 145
Wiper controls 147
Automatic rain sensitive wipers 149
Cour tesy lamps 151
Interior mood lighting 152
Visibility
Eco-driving 20

.
13
Familiarisation

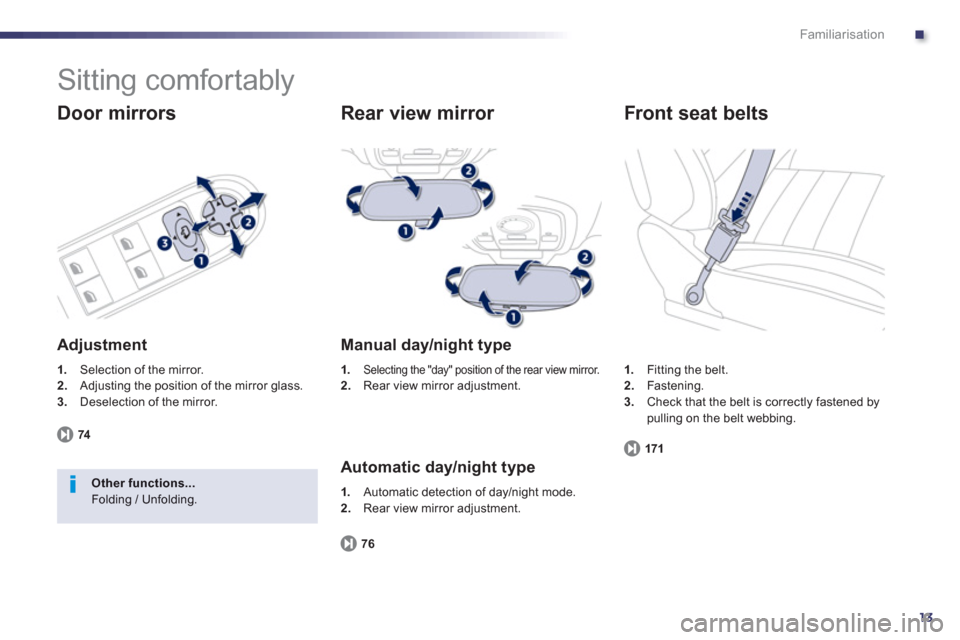

Sitting comfortably


Door mirrors


Adjustment
1.
Selection of the mirror. 2.Adjusting the position of the mirror glass. 3.Deselection of the mirror.
7
4
Other functions... Folding / Unfolding.
Rear view mirror
Manual day/night type
1.Selecting the "day" position of the rear view mirror.2.
Rear view mirror adjustment.

Automatic day/night type
76
1.Automatic detection of day/night mode.
2. Rear view mirror adjustment. 1
. Fitting the belt.2.Fastening.3.Check that the belt is correctly fastened by pulling on the belt webbing.


Front seat belts
171

44
Access
System that allows the opening, closingand starting of the vehicle while keeping theelectronic key on your person. It can also beused as a remote control.

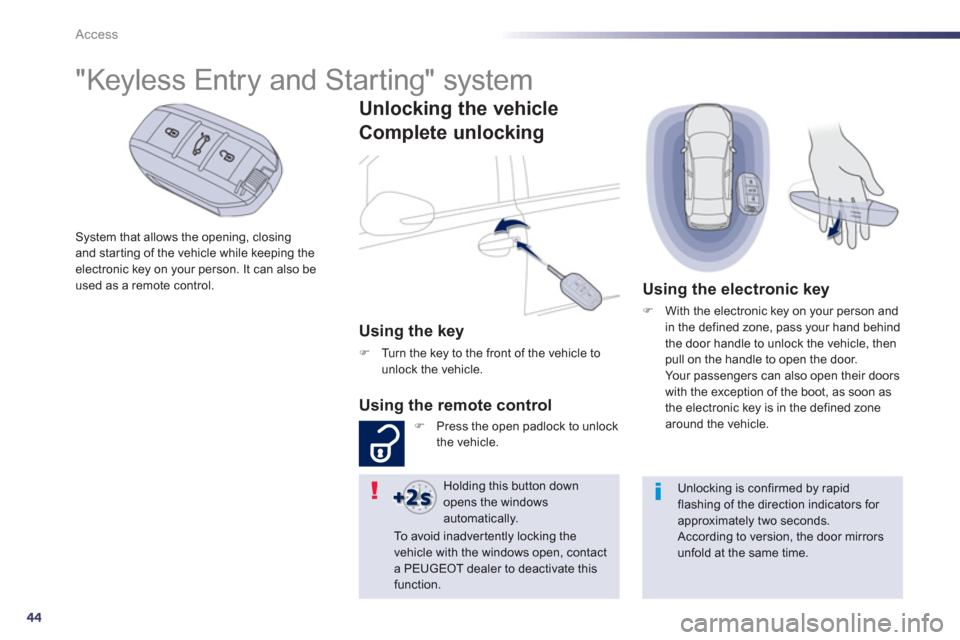

"Keyless Entry and Starting" system


Unlocking the vehicle
Complete unlockin
g

Using the key
)
Turn the key to the front of the vehicle tounlock the vehicle.



Using the remote control
)Press the open padlock to unlockthe vehicle.



Using the electronic key
)With the electronic key on your person and
in the defined zone, pass your hand behind
the door handle to unlock the vehicle, then
pull on the handle to open the door.
Yo u r p a s s e ngers can also open their doors
with the exception of the boot, as soon as
the electronic ke
y is in the defined zonearound the vehicle.
Holding this button down opens the windowsautomatically.


Unlocking is confirmed by rapid flashing of the direction indicators for approximately two seconds.

According to version, the door mirrors unfold at the same time.

To a v o i d i n a d v e r t e n t ly locking thevehicle with the windows open, contact a PEUGEOT dealer to deactivate this
function.

2
45
Access

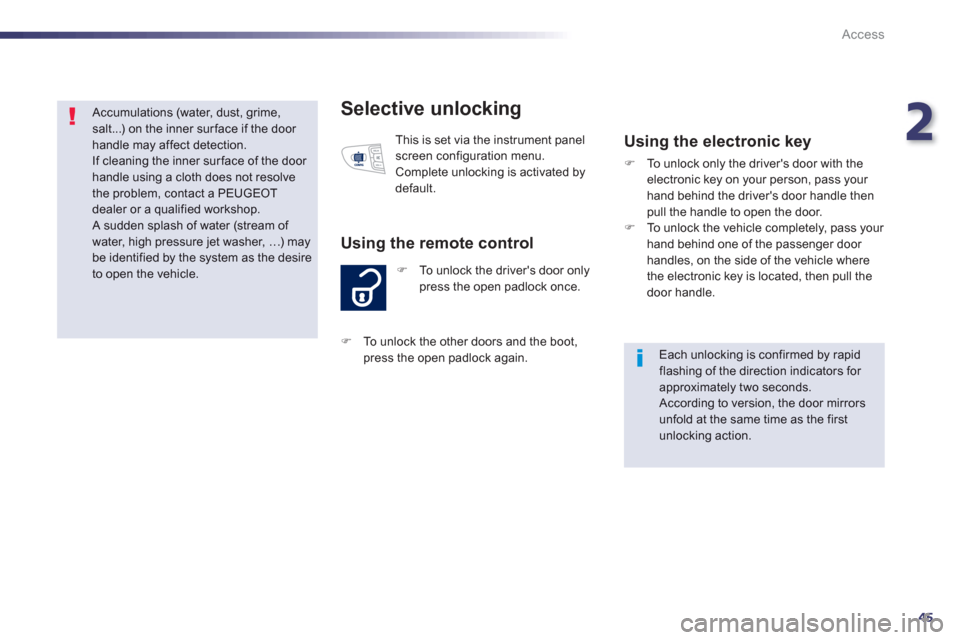

Selective unlocking
)To unlock the driver's door onlypress the open padlock once.
Using the remote control
This is set via the instrument panelscreen configuration menu.
Complete unlocking is activated bydefault.
Using the electronic key
)
To unlock only the driver's door with theelectronic key on your person, pass your hand behind the driver's door handle thenpull the handle to open the door.)
To unlock the vehicle completely, pass your hand behind one of the passenger door handles, on the side of the vehicle where
the electronic key is located, then pull the door handle.



Each unlocking is confirmed by rapid flashing of the direction indicators for approximately two seconds. According to version, the door mirrorsunfold at the same time as the firstunlocking action.

)
To unlock the other doors and the boot,
press the open padlock again
.
Accumulations (water, dust, grime,salt...) on the inner sur face if the door handle may affect detection.
If cleaning the inner surface of the door handle using a cloth does not resolvethe problem, contact a PEUGEOT dealer or a qualified workshop.
A sudden splash of water (stream of water, high pressure jet washer, …) may be identified by the system as the desireto open the vehicle.

2
47
Access

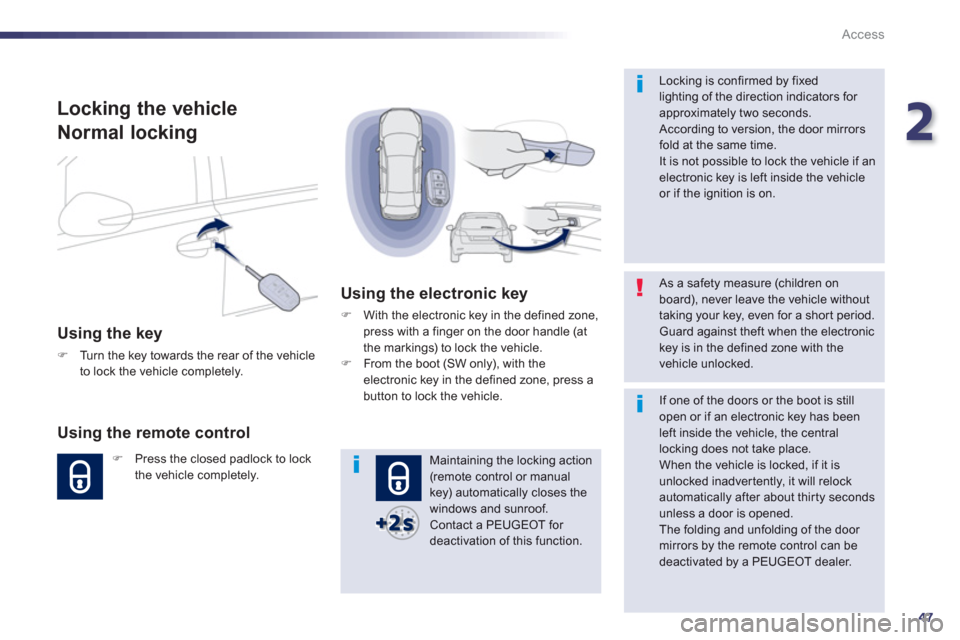

Locking the vehicle
Normal lockin
g


Using the key
)Turn the key towards the rear of the vehicle
to lock the vehicle completely.

Using the remote control
)
Press the closed padlock to lockthe vehicle completely.
Using the electronic key
)
With the electronic key in the defined zone,
press with a finger on the door handle (at
the markings) to lock the vehicle. ) From the boot (SW only), with theelectronic key in the defined zone, press a button to lock the vehicle.


Maintaining the locking action (remote control or manual key) automatically closes the windows and sunroof.
Contact a PEUGEOT for deactivation of this function.


As a safety measure (children on board), never leave the vehicle withouttaking your key, even for a shor t period. Guard against theft when the electronickey is in the defined zone with the vehicle unlocked.


Locking is confirmed by fixedlighting of the direction indicators for approximately two seconds.
According to version, the door mirrorsfold at the same time.

It is not possible to lock the vehicle if an electronic key is left inside the vehicleor if the ignition is on.


If one of the doors or the boot is still open or if an electronic key has been left inside the vehicle, the centrallocking does not take place.
When the vehicle is locked, if it isunlocked inadvertently, it will relockautomatically after about thir ty secondsunless a door is opened.
The folding and unfolding of the door mirrors by the remote control can bedeactivated by a PEUGEOT dealer.

2
49
Access

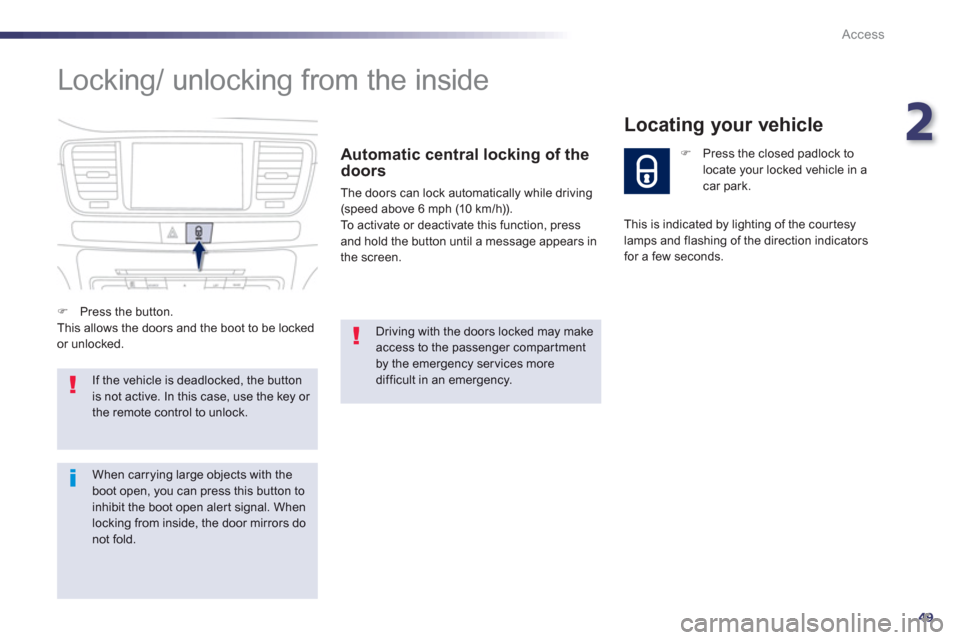

Locking/ unlocking from the inside
Automatic central locking of the
doors
The doors can lock automatically while driving(speed above 6 mph (10 km/h)).
To activate or deactivate this function, press
and hold the button until a message appears in
the screen.

If the vehicle is deadlocked, the buttonis not active. In this case, use the key or the remote control to unlock.
Driving with the doors locked may make access to the passenger compar tment by the emergency ser vices more difficult in an emergency.
)
Press the closed padlock to locate your locked vehicle in acar park.
Locating your vehicle
)Press the button.
This allows the doors and the boot to be locked or unlocked. This is indicated b
y lighting of the cour tesy
lamps and flashing of the direction indicatorsfor a few seconds.
When carrying large objects with the boot open, you can press this button toinhibit the boot open aler t signal. Whenlocking from inside, the door mirrors do not fold.

3
69
Comfort

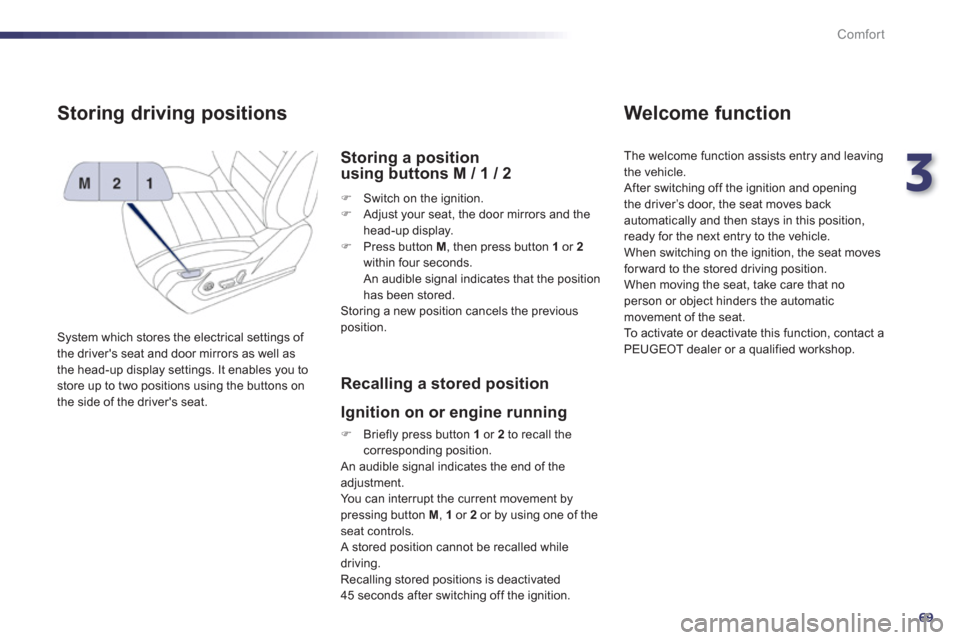

Storing driving positions
System which stores the electrical settings of
the driver's seat and door mirrors as well as
the head-up display settings. It enables you to store up to two positions using the buttons on
the side of the driver's seat.
Storing a position using buttons M / 1 / 2

)
Switch on the ignition. )
Adjust your seat, the door mirrors and the
head-up display.
) Press button M
, then press button 1or 2
within four seconds.
An audible signal indicates that the position
has been stored.
Storing a new position cancels the previousposition.
Recalling a stored position
I
gnition on or engine running
) Briefly press button 1
or 2
to recall thecorresponding position.
An audible signal indicates the end of the adjustment. You can interrupt the current movement by pressing button M , 1or 2or by using one of the seat controls.
A stored position cannot be recalled while
driving.
Recalling stored positions is deactivated
45 seconds after switching off the ignition.

Welcome function

The welcome function assists entry and leaving
th
e vehicle.
After switching off the ignition and openingthe driver’s door, the seat moves back
automatically and then stays in this position,
ready for the next entry to the vehicle.
When switching on the ignition, the seat movesfor ward to the stored driving position.
When moving the seat, take care that no
person or object hinders the automatic
movement of the seat.
To activate or deactivate this function, contact a
PEUGEOT dealer or a qualified workshop.

74
Comfort

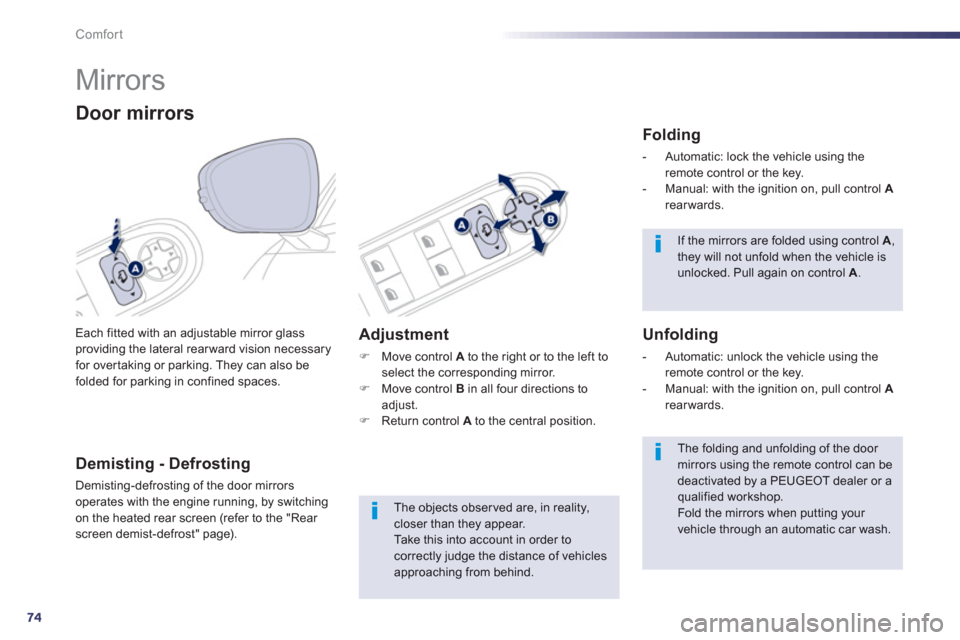

Mirrors
Each fitted with an adjustable mirror glassproviding the lateral rearward vision necessaryfor overtaking or parking. They can also befolded for parking in confined spaces.
Door mirrors

If the mirrors are folded using control A ,they will not unfold when the vehicle is unlocked. Pull again on control A.


The folding and unfolding of the door mirrors using the remote control can bedeactivated by a PEUGEOT dealer or a qualified workshop.
Fold the mirrors when putting your vehicle through an automatic car wash.
The objects obser ved are, in reality, closer than they appear.Take this into account in order to correctly judge the distance of vehicles approaching from behind.

Demisting - Defrosting
Demisting-defrosting of the door mirrors
operates with the engine running, by switching
on the heated rear screen (refer to the "Rear screen demist-defrost" page).

Adjustment
)
Move control Ato the right or to the left to select the corresponding mirror. )
Move control Bin all four directions toadjust. )
Return control Ato the central position.



Folding



- Automatic: lock the vehicle using the remote control or the key.

- Manual: with the ignition on, pull control Arearwards.


Unfolding



- Automatic: unlock the vehicle using the remote control or the key.

- Manual: with the ignition on, pull control Arearwards.

3
75
Comfort

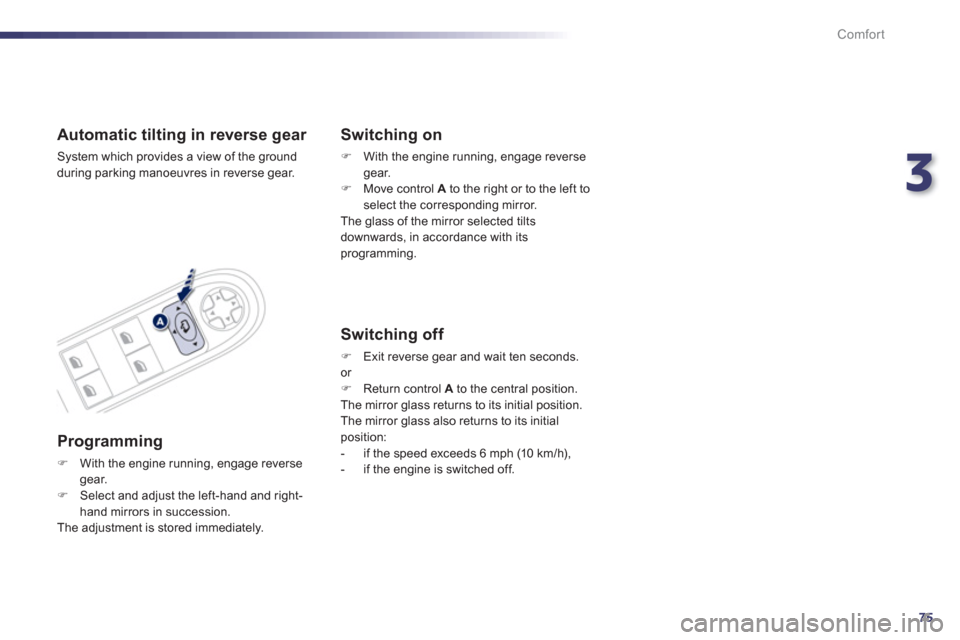

Automatic tilting in reverse gear
System which provides a view of the ground
during parking manoeuvres in reverse gear.

Programming
)With the engine running, engage reverse gear.)Select and adjust the left-hand and right-hand mirrors in succession.
The adjustment is stored immediately.
Switching on
)
With the engine running, engage reversegear. )
Move control A
to the right or to the left to select the corresponding mirror.
The glass of the mirror selected tilts downwards, in accordance with its programming.
Switching off
) Exit reverse gear and wait ten seconds.or )
Return control Ato the central position.
The mirror glass returns to its initial position.
The mirror glass also returns to its initial position:
- if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.

76
Comfort

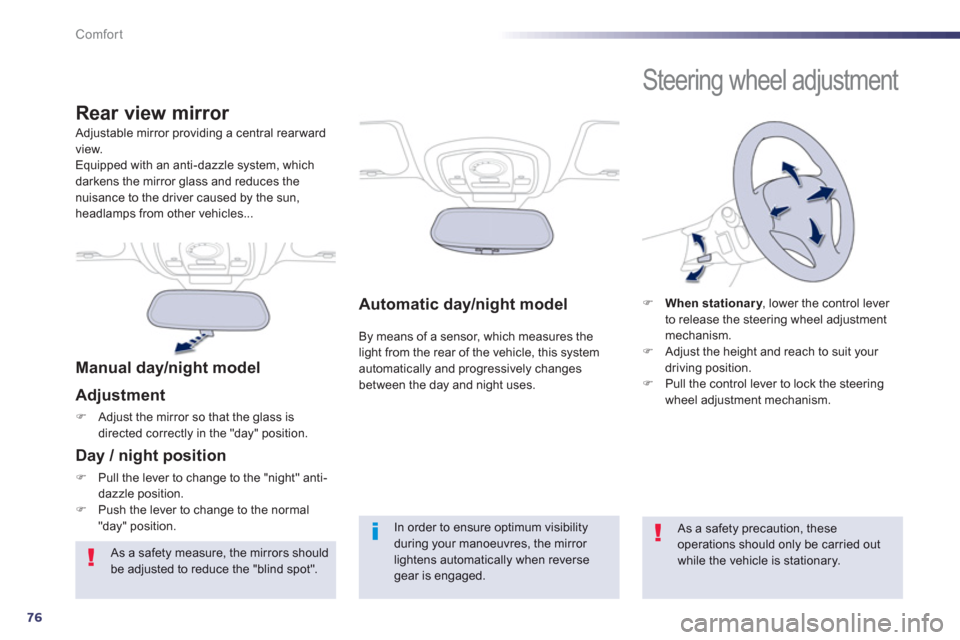

Automatic day/night model

By means of a sensor, which measures thelight from the rear of the vehicle, this system
automatically and progressively changes
between the day and night uses.
Adjustable mirror providing a central rear ward
view.
Equipped with an anti-dazzle system, which
darkens the mirror glass and reduces thenuisance to the driver caused by the sun, headlamps from other vehicles...
Rear view mirror
Manual day/night model
Adjustment
)Adjust the mirror so that the glass is
directed correctly in the "day" position.
Day / night position
)Pull the lever to change to the "night" anti-
dazzle position.
)Push the lever to change to the normal"day" position.In order to ensure optimum visibility during your manoeuvres, the mirror lightens automatically when reversegear is engaged.










Steering wheel adjustment
)When stationary, lower the control lever yto release the steering wheel adjustment mechanism. )Adjust the height and reach to suit your
driving position. )Pull the control lever to lock the steeringwheel adjustment mechanism.

As a safety precaution, these operations should only be carried out while the vehicle is stationary.
As a safety measure, the mirrors should be adjusted to reduce the "blind spot".
