Peugeot 508 Hybrid 2016 Workshop Manual

49
508_en_Chap02_ouvertures_ed01-2016

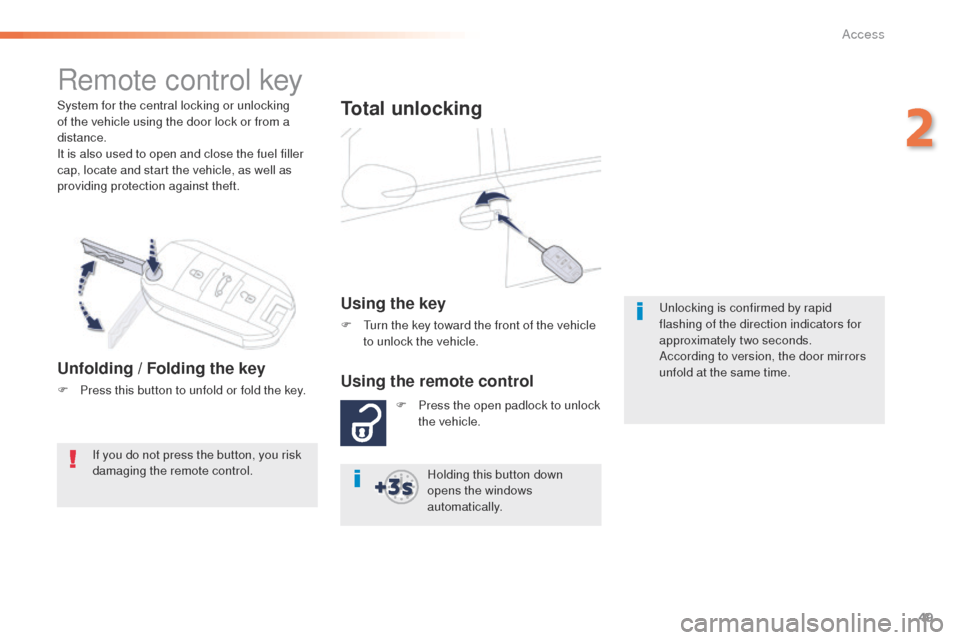

System for the central locking or unlocking
of the vehicle using the door lock or from a
distance.
It is also used to open and close the fuel filler
cap, locate and start the vehicle, as well as
providing protection against theft.
Remote control key
Unfolding / Folding the key
F Press this button to unfold or fold the key.
Total unlocking
Using the key
F turn the key toward the front of the vehicle to unlock the vehicle.
If you do not press the button, you risk
damaging the remote control. F

P
ress the open padlock to unlock
the vehicle.
Using the remote control
Holding this button down
opens the windows
automatically.
un
locking is confirmed by rapid
flashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time.
2
Access

50
508_en_Chap02_ouvertures_ed01-2016
Selective unlockingUnlocking the boot
Using the remote control
Boot only function activated
Don't forget to lock your boot
afterwards.ea
ch unlocking action is confirmed by
rapid flashing of the direction indicators
for about two seconds.
According to version, the door mirrors
unfold at the same time as the first
unlocking action. F

P
ress this button to unlock the
vehicle and open the boot.
th
is is set in the instrument panel
configuration menu.
th

is function is deactivated by default.
F
t
h
e use of the remote control then unlocks
and/or opens only the boot.
Normal locking
Using the key
F turn the key toward the rear of the vehicle to lock the vehicle totally.
F

P
ress the closed padlock to lock
the vehicle totally.
Using the remote control
this is set via the instrument panel
screen configuration menu.
to

tal unlocking is activated by
default.
Using the remote control
F to unlock the driver's door only press the open padlock once.
F
t
o u

nlock the other doors and the boot,
press the open padlock again.
Access

51
508_en_Chap02_ouvertures_ed01-2016

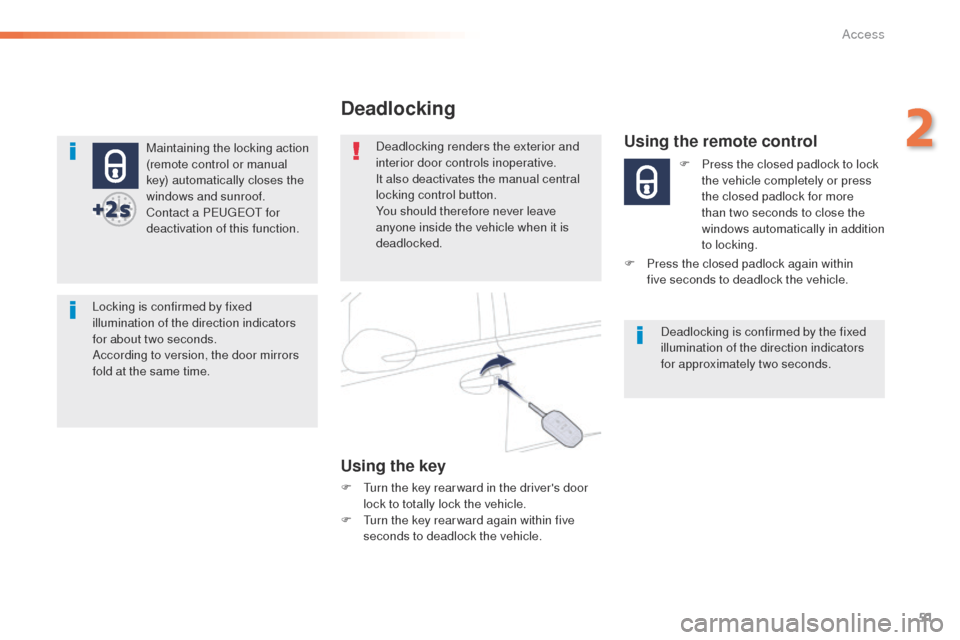

Maintaining the locking action
(remote control or manual
key) automatically closes the
windows and sunroof.
Contact a P
e
uge
Ot
for
deactivation of this function.
Locking is confirmed by fixed
illumination of the direction indicators
for about two seconds.
According to version, the door mirrors
fold at the same time.
Deadlocking
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
locking control button.
You should therefore never leave
anyone inside the vehicle when it is
deadlocked.
Using the key
F turn the key rear ward in the driver's door lock to totally lock the vehicle.
F
t
u
rn the key rear ward again within five
seconds to deadlock the vehicle.
Using the remote control
Deadlocking is confirmed by the fixed
illumination of the direction indicators
for approximately two seconds. F

P
ress the closed padlock to lock
the vehicle completely or press
the closed padlock for more
than two seconds to close the
windows automatically in addition
to locking.
F

P

ress the closed padlock again within
five

seconds to deadlock the vehicle.
2
Access

52
508_en_Chap02_ouvertures_ed01-2016
F Press the closed padlock to locate your locked vehicle in a
car park.
Locating your vehicle
this is indicated by lighting of the courtesy
lamps and flashing of the direction indicators
for a few seconds.
Anti-theft protection
Electronic engine immobiliser
the key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
th

is electronic engine immobiliser locks the
engine management system a few moments
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal and
a message in the screen.
Keep safely, away from your vehicle,
the label attached to the keys given to
you on acquisition of the vehicle.
In this case, your vehicle will not start; contact
a P
e

uge
Ot
dealer as soon as possible.
Access

53
508_en_Chap02_ouvertures_ed01-2016

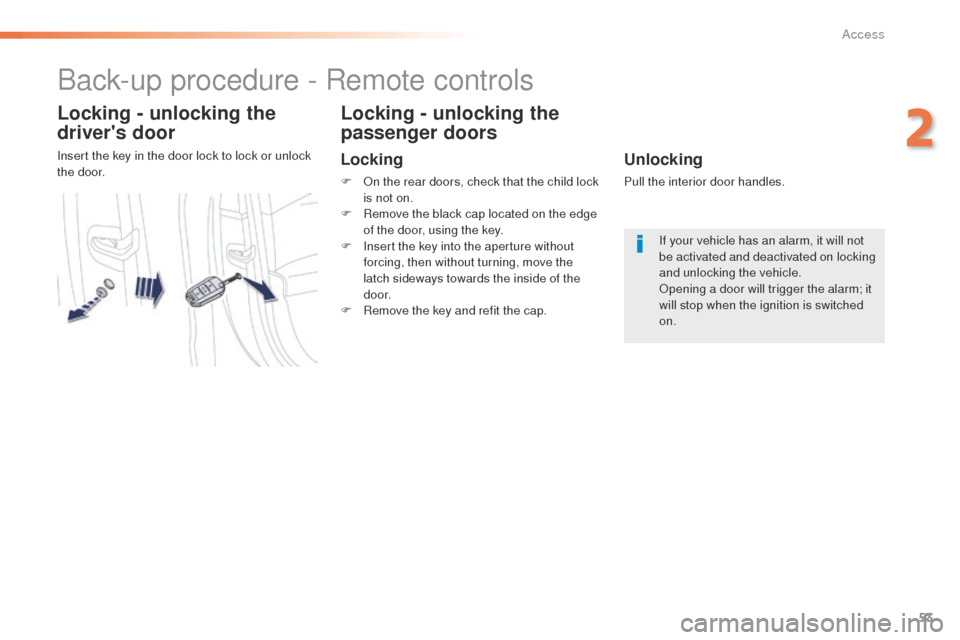

Back-up procedure - Remote controls
Locking - unlocking the
driver's door
Insert the key in the door lock to lock or unlock
the door.
Locking - unlocking the
passenger doors
Locking
F On the rear doors, check that the child lock is not on.
F

R
emove the black cap located on the edge
of the door, using the key.
F

I
nsert the key into the aperture without
forcing, then without turning, move the
latch sideways towards the inside of the
d o o r.
F

R
emove the key and refit the cap.
Unlocking
Pull the interior door handles. If your vehicle has an alarm, it will not
be activated and deactivated on locking
and unlocking the vehicle.
Opening a door will trigger the alarm; it
will stop when the ignition is switched
on.
2
Access

54
508_en_Chap02_ouvertures_ed01-2016
Battery ref.: CR2032 / 3 volts.this replacement battery is available from a
P
e

uge
Ot
dealer or a qualified workshop.
A message appears in the instrument panel
screen when replacement of the battery is
needed.
F
u
n
clip the cover using a small screwdriver
at the cutout.
F

L
ift off the cover.
F

R
emove the flat battery from its location.
F

F
it the new battery into its location
observing the original direction of fitment.
F

C
lip the cover onto the casing.
Remote control fault
Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a fault with the remote control,
you can no longer unlock, lock or locate your
vehicle.
F
F
irst of all, use the key in the door lock to
unlock or lock your vehicle.
F
t
hen
, reinitialise the remote control.
If the problem persists, contact a P
e

uge
Ot

dealer or a qualified workshop as soon as
possible.
Reinitialisation
F Switch the ignition on.
F I mmediately press one of the remote
control buttons for a few seconds.
F

S
witch the ignition off.
th

e remote control is fully operational again. Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
ta

ke them to an approved collection
point.
Changing the battery of the key
Access

55
508_en_Chap02_ouvertures_ed01-2016

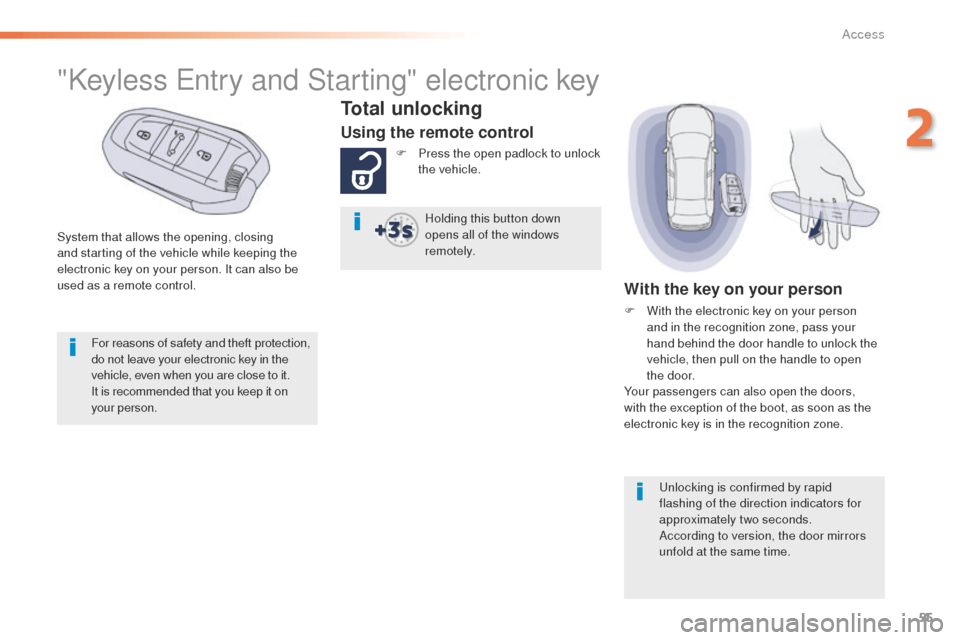

System that allows the opening, closing
and starting of the vehicle while keeping the
electronic key on your person. It can also be
used as a remote control.
"Keyless entry and Starting" electronic key
Total unlocking
Using the remote control
F Press the open padlock to unlock
the vehicle.
With the key on your person
F With the electronic key on your person and in the recognition zone, pass your
hand behind the door handle to unlock the
vehicle, then pull on the handle to open
the


door.
Your passengers can also open the doors,
with the exception of the boot, as soon as the
electronic key is in the recognition zone.
Holding this button down
opens all of the windows
remotely.
For reasons of safety and theft protection,
do not leave your electronic key in the
vehicle, even when you are close to it.
It is recommended that you keep it on
your person.
un

locking is confirmed by rapid
flashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time.
2
Access

56
508_en_Chap02_ouvertures_ed01-2016
Selective unlocking
F to unlock the driver's door only press the open padlock once.
Using the remote control
this is set via the instrument panel
screen configuration menu.
to

tal unlocking is activated by
default.With the electronic key on your
person
F to unlock only the driver's door with the electronic key on your person, pass your
hand behind the driver's door handle then
pull the handle to open the door.
F
t
o u
nlock the vehicle totally, pass your
hand behind one of the passenger door
handles, on the side of the vehicle where
the electronic key is located, then pull the
door handle.
ea

ch unlocking is confirmed by rapid
flashing of the direction indicators for
about two seconds.
According to version, the door mirrors
unfold at the same time as the
first


unlocking action.
F
t
o u

nlock the other doors and the boot,
press the open padlock again.
Accumulations (water, dust, grime,
salt...) on the inner sur face if the door
handle may affect detection.
If cleaning the inner sur face of the door
handle using a cloth does not restore
detection, contact a Pe
ugeOt
dealer
or a qualified workshop.
A sudden splash of water (stream of
water, high pressure jet washer, …)
may be identified by the system as the
desire to open the vehicle.
Access

57
508_en_Chap02_ouvertures_ed01-2016

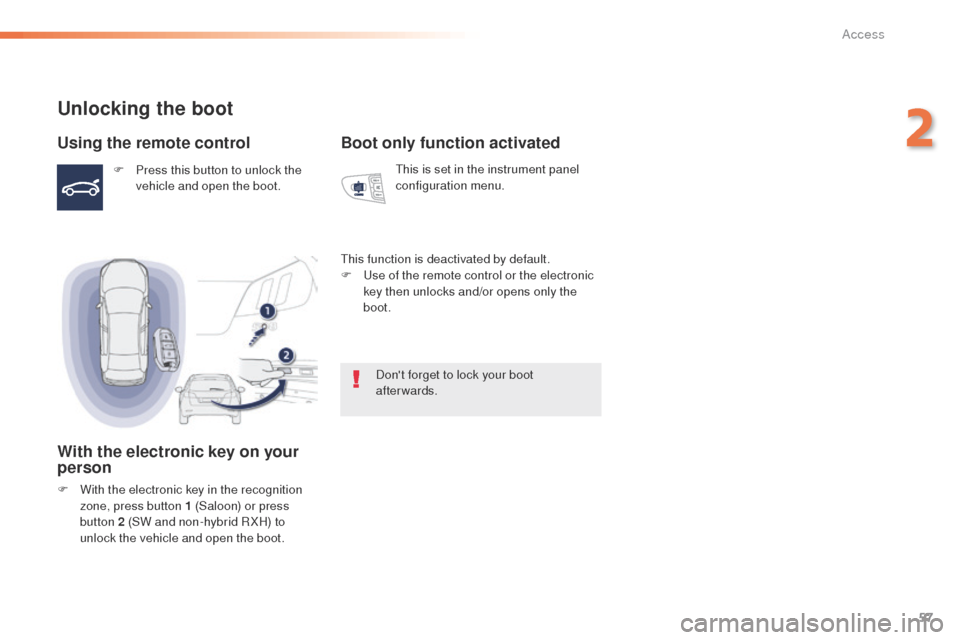

Unlocking the boot
Using the remote control
F Press this button to unlock the vehicle and open the boot.
With the electronic key on your
person
F With the electronic key in the recognition zone, press button 1 (Saloon) or press
button 2 (SW and non-hybrid R XH) to
unlock the vehicle and open the boot.
Boot only function activated
this is set in the instrument panel
configuration menu.
th

is function is deactivated by default.
F
u
s

e of the remote control or the electronic
key then unlocks and/or opens only the
boot.
Don't forget to lock your boot
afterwards.
2
Access

58
508_en_Chap02_ouvertures_ed01-2016
Normal locking
Using the remote control
F Press the closed padlock to lock the vehicle totally.
With the electronic key on your person
Maintaining the locking action
(remote control or manual
key) automatically closes the
windows and sunroof.
Contact a P
e

uge
Ot
for
deactivation of this function.
Locking is confirmed by fixed lighting
of the direction indicators for about
two


seconds.
According to version, the door mirrors
fold at the same time.
F

F

rom the boot (SW and non-hybrid
R XH only), with the electronic key in the
recognition zone, press the right-hand
tailgate button to lock the vehicle.
F

W

ith the electronic key in the recognition
zone, press with a finger or thumb on
the door handle (at the markings) to lock
the


vehicle.
Access
