Instruments and controls

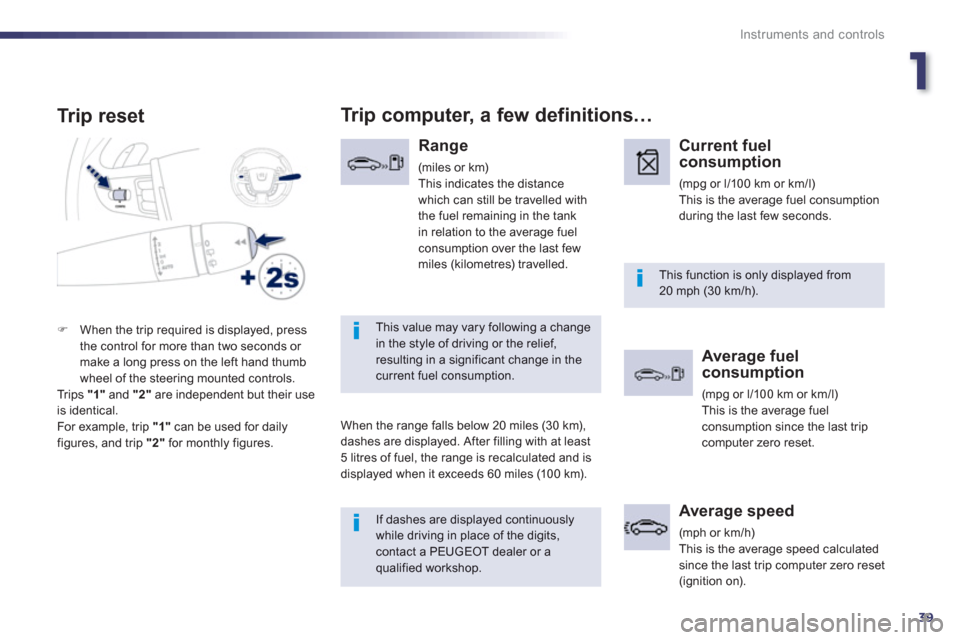

Tr ip reset
If dashes are displayed continuously while driving in place of the digits,contact a PEUGEOT dealer or aqualified workshop.

This function is only displayed from20 mph (30 km/h).
This value may vary following a change in the style of driving or the relief, resulting in a significant change in the current fuel consumption.
Trip computer, a few definitions…
Range
(miles or km)This indicates the distance
which can still be travelled with
the fuel remaining in the tank
in relation to the average fuel consumption over the last fewmiles (kilometres) travelled.
When the ran
ge falls below 20 miles (30 km),
dashes are displayed. After filling with at least 5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (10 0 km).
Current fuel
consumption
(mpg or l/100 km or km/l)This is the average fuel consumption
during the last few seconds.

Average fuel consumption
(mpg or l/100 km or km/l)
This is the average fuelconsumption since the last tripcomputer zero reset.
Average speed
(mph or km/h)
This is the average speed calculated
since the last trip computer zero reset
(ignition on).
)When the trip required is displayed, press
the control for more than two seconds or make a long press on the left hand thumb
wheel of the steering mounted controls.
Trips "1"
and "2"are independent but their useis identical.
For example, trip "1"
can be used for daily figures, and trip "2"
for monthly figures.

40
Instruments and controls
Stop & Start time counter
(minutes / seconds or hours /
minutes) If your vehicle is fitted withStop & Star t, a time counter calculates the time spent inSTOP mode during a journey. It resets to zero every time the
ignition is switched on with thekey.

1
41
Instruments and controls

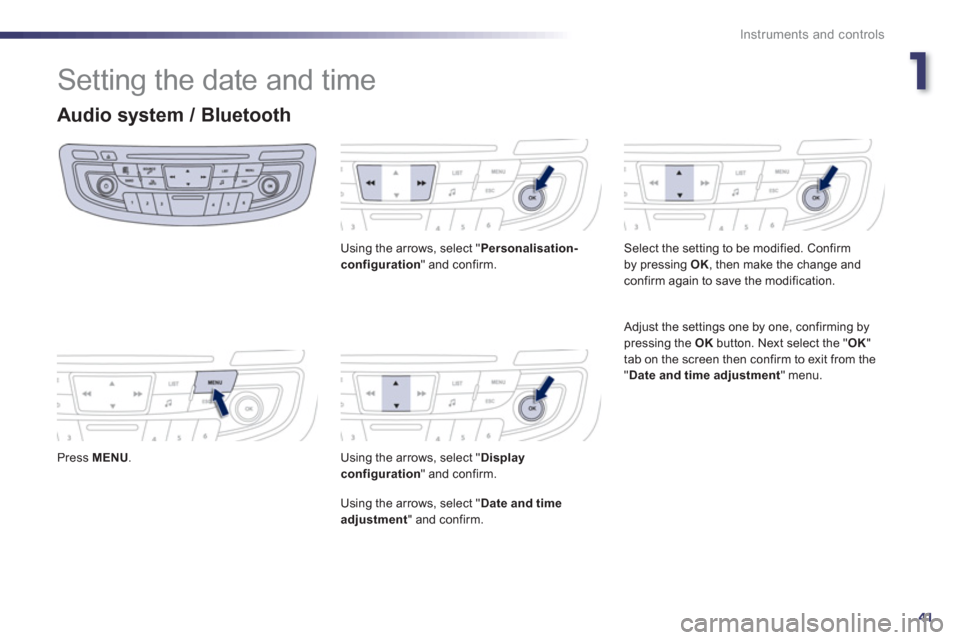

Setting the date and time
Audio system / Bluetooth

Press MENU.
Using the arrows, select " Personalisation-configuration
" and confirm.
Using the arrows, select " Display configuration
" and confirm.
Usin
g the arrows, select " Date and timeadjustment " and confirm.
Select the settin
g to be modified. Confirm
by pressing OK, then make the change andconfirm again to save the modification.

Adjust the settings one by one, confirming by
pressing the OK
button. Next select the " OK"
tab on the screen then confirm to exit from the"Date and time adjustment" menu.

42
Instruments and controls

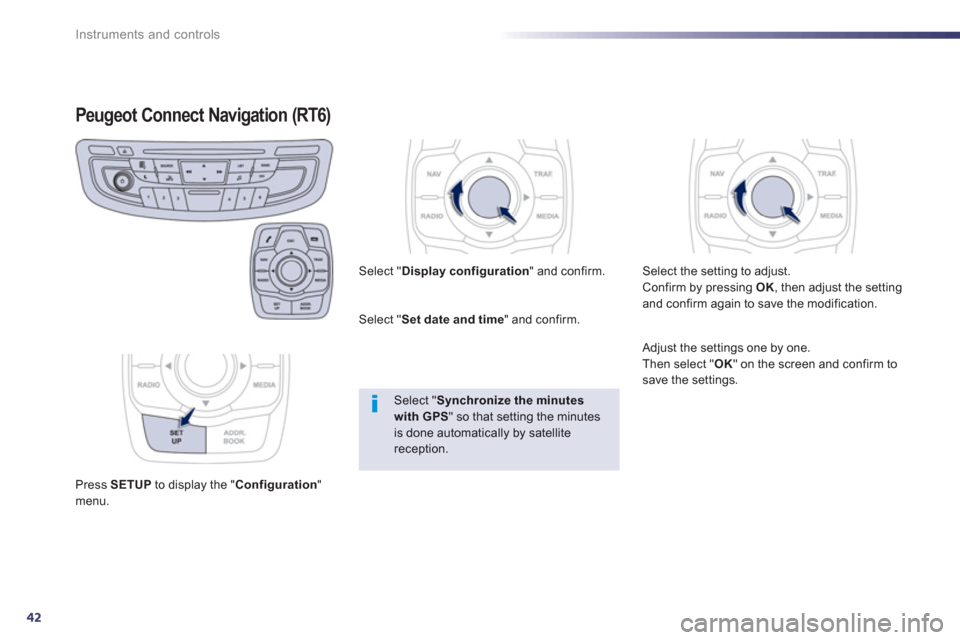

Peugeot Connect Navigation (RT6)
Press SETUPto display the "Configuration
"menu.
Select "Display configuration
" and confirm.

Select " Set date and time" and confirm.
Select " Synchronize the minutes with GPS
" so that setting the minutesis done automatically by satellite reception.
Select the setting to adjust.
Confirm by pressing OK, then adjust the setting
and confirm again to save the modification.

Adjust the settings one by one.
Then select "OK
" on the screen and confirm tosave the settings.

2
43
Access

System which permits central unlocking or locking of the vehicle using the lock or from a distance.
It is also used to locate and start the vehicle, as well as providing protection against theft.

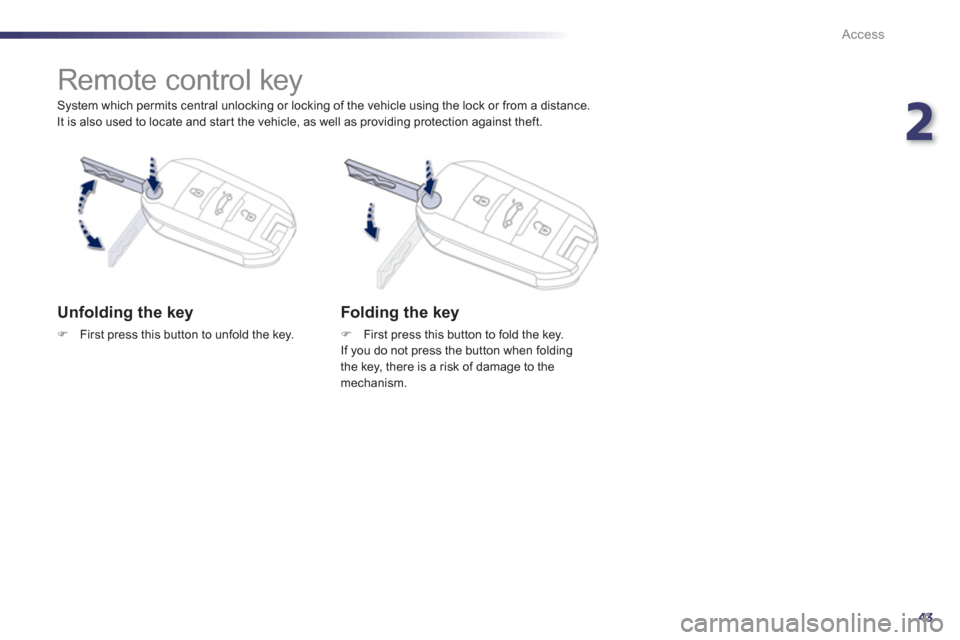

Remote control key


Unfolding the key
)First press this button to unfold the key.


Folding the key
)
First press this button to fold the key.
If you do not press the button when foldingthe key, there is a risk of damage to the
mechanism.

44
Access
System that allows the opening, closingand starting of the vehicle while keeping theelectronic key on your person. It can also beused as a remote control.















"Keyless Entry and Starting" system


Unlocking the vehicle
Complete unlockin
g

Using the key
)
Turn the key to the front of the vehicle tounlock the vehicle.



Using the remote control
)Press the open padlock to unlockthe vehicle.



Using the electronic key
)With the electronic key on your person and
in the defined zone, pass your hand behind
the door handle to unlock the vehicle, then
pull on the handle to open the door.
Yo u r p a s s e ngers can also open their doors
with the exception of the boot, as soon as
the electronic ke
y is in the defined zonearound the vehicle.
Holding this button down opens the windowsautomatically.


Unlocking is confirmed by rapid flashing of the direction indicators for approximately two seconds.

According to version, the door mirrors unfold at the same time.

To a v o i d i n a d v e r t e n t ly locking thevehicle with the windows open, contact a PEUGEOT dealer to deactivate this
function.

2
45
Access
Selective unlocking
)To unlock the driver's door onlypress the open padlock once.
Using the remote control
This is set via the instrument panelscreen configuration menu.
Complete unlocking is activated bydefault.
Using the electronic key
)
To unlock only the driver's door with theelectronic key on your person, pass your hand behind the driver's door handle thenpull the handle to open the door.)
To unlock the vehicle completely, pass your hand behind one of the passenger door handles, on the side of the vehicle where
the electronic key is located, then pull the door handle.



Each unlocking is confirmed by rapid flashing of the direction indicators for approximately two seconds. According to version, the door mirrorsunfold at the same time as the firstunlocking action.

)
To unlock the other doors and the boot,
press the open padlock again
.
Accumulations (water, dust, grime,salt...) on the inner sur face if the door handle may affect detection.
If cleaning the inner surface of the door handle using a cloth does not resolvethe problem, contact a PEUGEOT dealer or a qualified workshop.
A sudden splash of water (stream of water, high pressure jet washer, …) may be identified by the system as the desireto open the vehicle.

46
Access

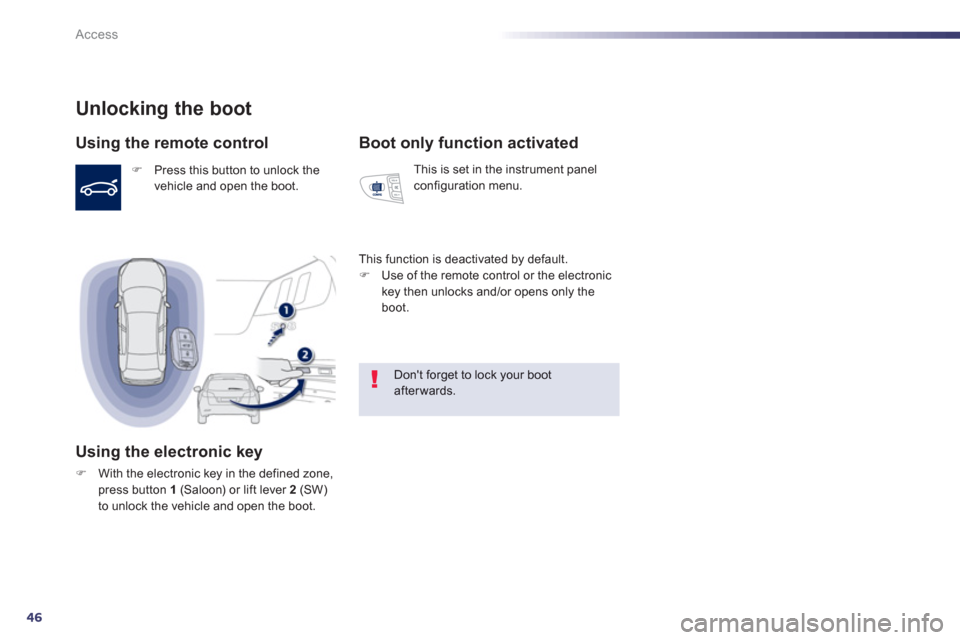

Unlocking the boot
Using the remote control
) Press this button to unlock thevehicle and open the boot.
Using the electronic key
)With the electronic key in the defined zone, press button 1(Saloon) or lift lever 2
(SW)to unlock the vehicle and open the boot.


Boot only function activated
This is set in the instrument panel configuration menu.
This function is deactivated b
y default. )
Use of the remote control or the electronic key then unlocks and/or opens only the boot.
Don't forget to lock your bootafterwards.

2
47
Access
Locking the vehicle
Normal lockin
g


Using the key
)Turn the key towards the rear of the vehicle
to lock the vehicle completely.

Using the remote control
)
Press the closed padlock to lockthe vehicle completely.
Using the electronic key
)
With the electronic key in the defined zone,
press with a finger on the door handle (at
the markings) to lock the vehicle. ) From the boot (SW only), with theelectronic key in the defined zone, press a button to lock the vehicle.


Maintaining the locking action (remote control or manual key) automatically closes the windows and sunroof.
Contact a PEUGEOT for deactivation of this function.


As a safety measure (children on board), never leave the vehicle withouttaking your key, even for a shor t period. Guard against theft when the electronickey is in the defined zone with the vehicle unlocked.


Locking is confirmed by fixedlighting of the direction indicators for approximately two seconds.
According to version, the door mirrorsfold at the same time.

It is not possible to lock the vehicle if an electronic key is left inside the vehicleor if the ignition is on.


If one of the doors or the boot is still open or if an electronic key has been left inside the vehicle, the centrallocking does not take place.
When the vehicle is locked, if it isunlocked inadvertently, it will relockautomatically after about thir ty secondsunless a door is opened.
The folding and unfolding of the door mirrors by the remote control can bedeactivated by a PEUGEOT dealer.

48
Access

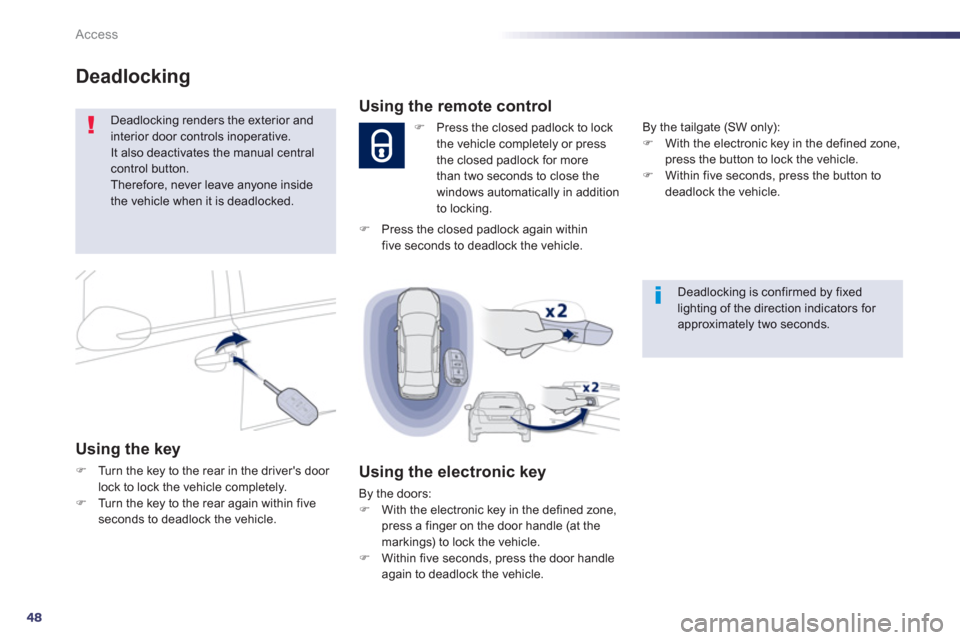

Deadlocking
Deadlocking renders the exterior and interior door controls inoperative. It also deactivates the manual central control button.
Therefore, never leave anyone insidethe vehicle when it is deadlocked.

Using the key
)Turn the key to the rear in the driver's door lock to lock the vehicle completely. )Turn the key to the rear again within fiveseconds to deadlock the vehicle.


Deadlocking is confirmed by fixedlighting of the direction indicators for approximately two seconds.


Using the remote control
)
Press the closed padlock to lock
the vehicle completely or press
the closed padlock for more
th
an two seconds to close the
windows automatically in addition
to locking.
Using the electronic key
By the doors: )
With the electronic key in the defined zone,
press a finger on the door handle (at the
markings) to lock the vehicle.) Within five seconds, press the door handle
again to deadlock the vehicle. B
y the tailgate (SW only):)With the electronic key in the defined zone,
press the button to lock the vehicle. )Within five seconds, press the button to deadlock the vehicle.

)
Press the closed padlock again within five seconds to deadlock the vehicle.
