PRACTICAL INFORMATION139
CHECKING THE LEVELS
Oil level
Check the level regularly and top
up between changes (maximum
consumption is 0.5 l per 600 miles
(1000 km).
Checking is carried out with the
vehicle level, engine cold, using
the oil level gauge on the check
module or the dipstick.
Dipstick There are two marks
on the dipstick:
A= maximum
Never fill past this
mark.
B = minimum
To maintain the reliabil
ity of engines and
emission control sys
tems, the use of addi
tives in engine oil is
prohibited.
Oil change
According to the information given in
"PEUGEOT SERVICING".
NOTE: Prevent used oil from coming
into prolonged contact with the skin. Viscosity selection
In all cases, the oil selected must
meet the manufacturer's require
ments.
Brake and clutch fluid level:
The level must always be between
the DANGER and MAXIMUM
marks in the reservoir.
If the level drops substantially, con tact a PEUGEOT dealer immedi
ately.
Fluid change:
must be carried out according to the manufacturer's schedule
use fluids approved by the manu facturer, which fulfil DOT4 stan
dards.
WARNING: brake and clutch fluid is
harmful to health and very corrosive.
Coolant level
Use fluid recommended by the man
ufacturer.
When the engine is warm, the tem
perature of the coolant is controlled
by the engine fan. As this fan can
operate with the ignition off and
because the cooling system is pres
surised, wait for at least one hour
after the engine has stopped before
carrying out any work. Unscrew the cap two turns to allow
the pressure to drop to prevent any
risk of scalding. When the pressure
has dropped, remove the cap and
top up the level.
Note:
The coolant does not need to
be changed.
Used oil
Do not dispose of used oil, brake
fluid or coolant into drains or onto the
ground.
Power steering reservoir  Open the reservoir, with the
engine at ambient temperature.
The level should always be above
the MINI mark and close to the
MAXI mark.
Windscreen and headlamp
wash reservoir
For best quality cleaning and for your
safety, we recommend that you use
products approved by PEUGEOT
(reservoir capacity 4.5 litres or
6.5 litres with headlamp wash).
Measure the fluid level using the dip
stick incorporated in the reservoir
cap.
Close the air hole on the cap and
remove it, then check the level.
18-11-2002

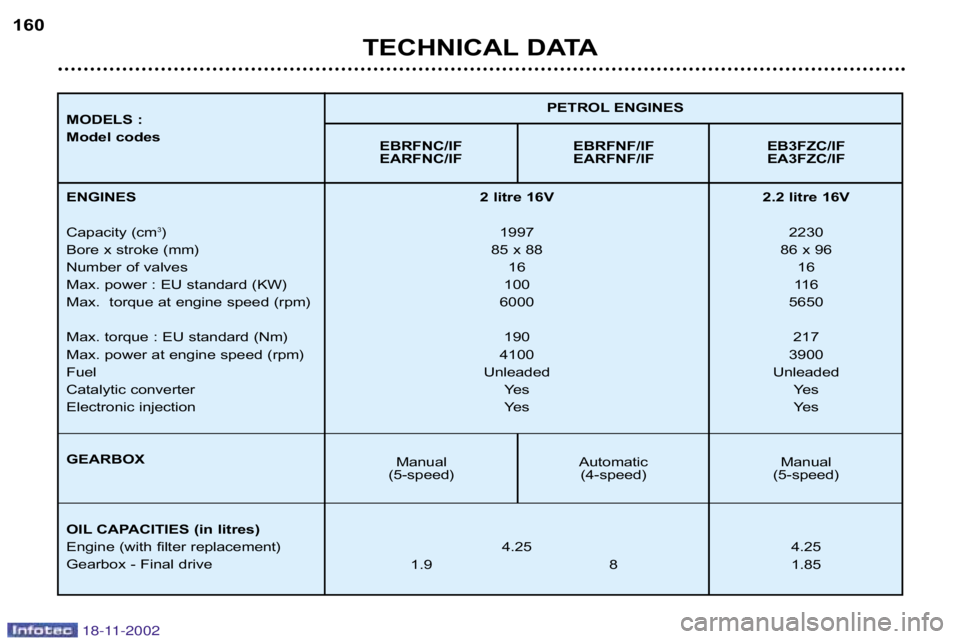

TECHNICAL DATA
160
2 litre 16V 2.2 litre 16V
1997 2230
85 x 88 86 x 96 16 16
100 116
6000 5650
190 217
4100 3900
Unleaded Unleaded Yes Yes
Yes Yes
Manual Automatic Manual
(5speed)(4speed)(5speed)
4.25 4.25
1.9 8 1.85
PETROL ENGINES
MODELS :
Model codes EBRFNC/IF EBRFNF/IF EB3FZC/IF
EARFNC/IF EARFNF/IF EA3FZC/IF
ENGINES
Capacity (cm 3
)
Bore x stroke (mm)
Number of valves
Max. power : EU standard (KW)
Max. torque at engine speed (rpm)
Max. torque : EU standard (Nm)
Max. power at engine speed (rpm)
Fuel
Catalytic converter
Electronic injection
GEARBOX
OIL CAPACITIES (in litres)
Engine (with filter replacement)
Gearbox Final drive
18-11-2002

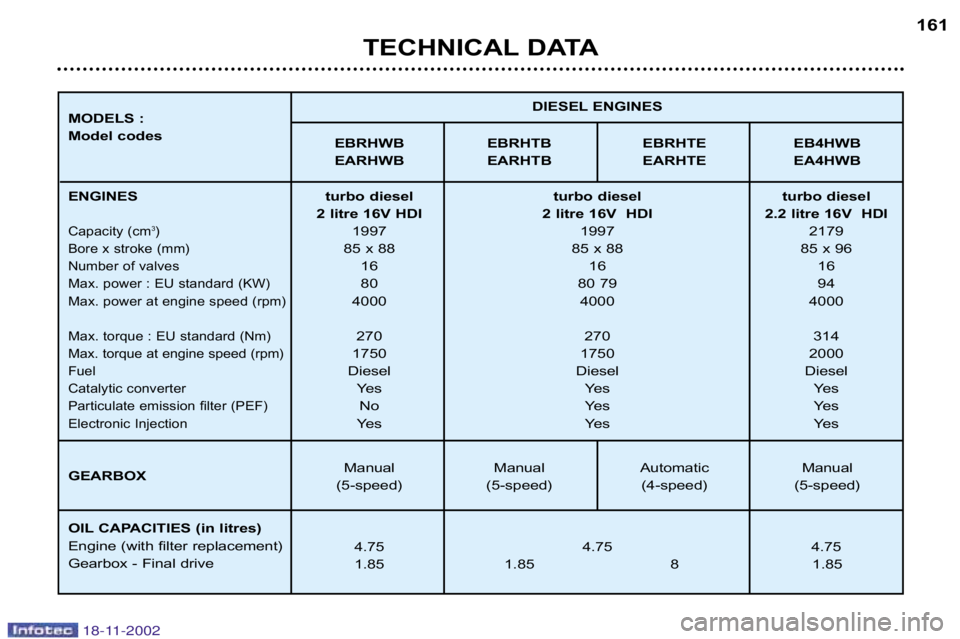

TECHNICAL DATA161
turbo diesel turbo diesel turbo diesel
2 litre 16V HDI 2 litre 16V HDI 2.2 litre 16V HDI 1997 1997 2179
85 x 88 85 x 88 85 x 96 16 16 16
80 80 79 94
4000 4000 4000
270 270 314
1750 1750 2000
Diesel Diesel Diesel Ye s Ye s Ye sNo Yes Yes
Ye s Ye s Ye s
Manual Manual Automatic Manual
(5speed)(5speed) (4speed) (5speed)
4.75 4.75 4.75
1.85 1.85 8 1.85
DIESEL ENGINES
MODELS :
Model codes EBRHWB EBRHTB EBRHTE EB4HWB
EARHWB EARHTB EARHTE EA4HWB
ENGINES
Capacity (cm 3
)
Bore x stroke (mm)
Number of valves
Max. power : EU standard (KW)
Max. power at engine speed (rpm)
Max. torque : EU standard (Nm)
Max. torque at engine speed (rpm)
Fuel
Catalytic converter
Particulate emission filter (PEF)
Electronic Injection
GEARBOX
OIL CAPACITIES (in litres)
Engine (with filter replacement)
Gearbox Final drive
18-11-2002
