TECHNICAL DATA
160
2 litre 16V 2.2 litre 16V
1997 2230
85 x 88 86 x 96 16 16
100 116
6000 5650
190 217
4100 3900
Unleaded Unleaded Yes Yes
Yes Yes
Manual Automatic Manual
(5speed)(4speed)(5speed)
4.25 4.25
1.9 8 1.85

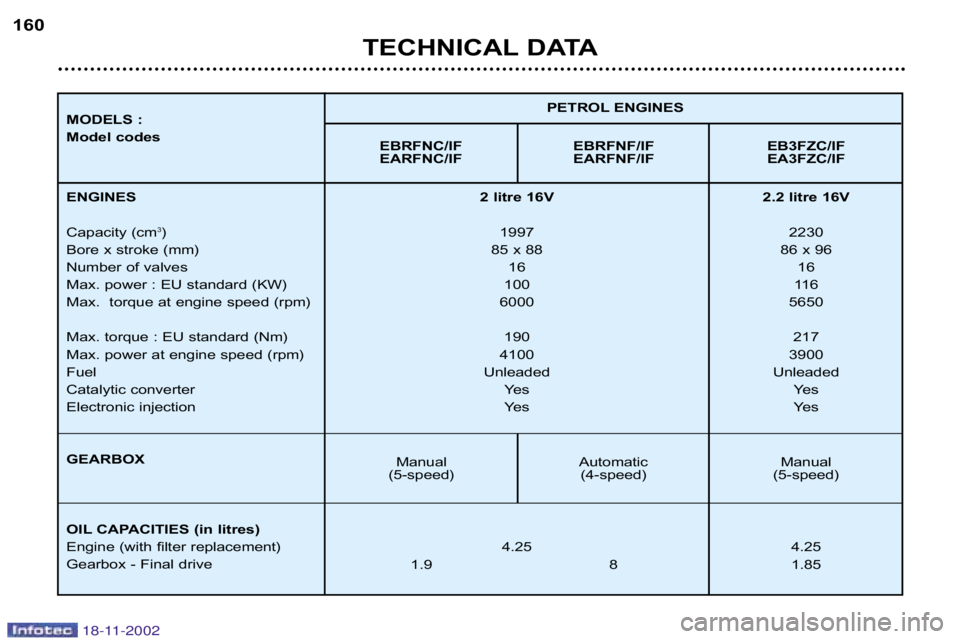

PETROL ENGINES
MODELS :
Model codes EBRFNC/IF EBRFNF/IF EB3FZC/IF
EARFNC/IF EARFNF/IF EA3FZC/IF
ENGINES
Capacity (cm 3
)
Bore x stroke (mm)
Number of valves
Max. power : EU standard (KW)
Max. torque at engine speed (rpm)
Max. torque : EU standard (Nm)
Max. power at engine speed (rpm)
Fuel
Catalytic converter
Electronic injection
GEARBOX
OIL CAPACITIES (in litres)
Engine (with filter replacement)
Gearbox Final drive
18-11-2002

TECHNICAL DATA161
turbo diesel turbo diesel turbo diesel
2 litre 16V HDI 2 litre 16V HDI 2.2 litre 16V HDI 1997 1997 2179
85 x 88 85 x 88 85 x 96 16 16 16
80 80 79 94
4000 4000 4000
270 270 314
1750 1750 2000
Diesel Diesel Diesel Ye s Ye s Ye sNo Yes Yes
Ye s Ye s Ye s
Manual Manual Automatic Manual
(5speed)(5speed) (4speed) (5speed)
4.75 4.75 4.75
1.85 1.85 8 1.85

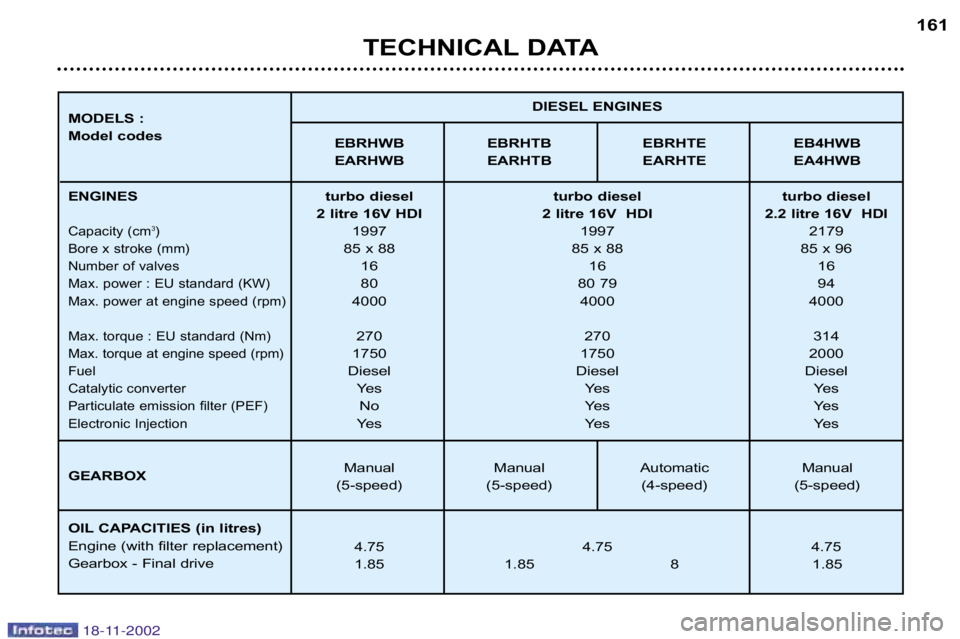

DIESEL ENGINES
MODELS :
Model codes EBRHWB EBRHTB EBRHTE EB4HWB
EARHWB EARHTB EARHTE EA4HWB
ENGINES
Capacity (cm 3
)
Bore x stroke (mm)
Number of valves
Max. power : EU standard (KW)
Max. power at engine speed (rpm)
Max. torque : EU standard (Nm)
Max. torque at engine speed (rpm)
Fuel
Catalytic converter
Particulate emission filter (PEF)
Electronic Injection
GEARBOX
OIL CAPACITIES (in litres)
Engine (with filter replacement)
Gearbox Final drive
18-11-2002

TECHNICAL DATA
162
2 litre 16V
Manual 22.9 (12.3) 38.7(7.3) 31.0(9.1) 218
2 litre 16V Automatic 20.6(13.7) 38.7(7.3) 29.4(9.6) 230
2.2 litre 16V Manual 22.4(12.9)36.2(7.8) 29.1(9.7) 231
2 litre 16V turbo diesel HDI Manual 30.7(9.2)47.9(5.9) 40.4(7.0) 186
2 litre turbo diesel HDI Manual 30.1(9.4) 47.9 (5.9) 39.2(7.2) 189
16V PEF
2 litre turbo diesel HDI Automatic
16V PEF
2.2 litreturbo diesel HDI Manual 27.9(10.1)47.9(5.9) 38.2(7.4) 199
16V PEF

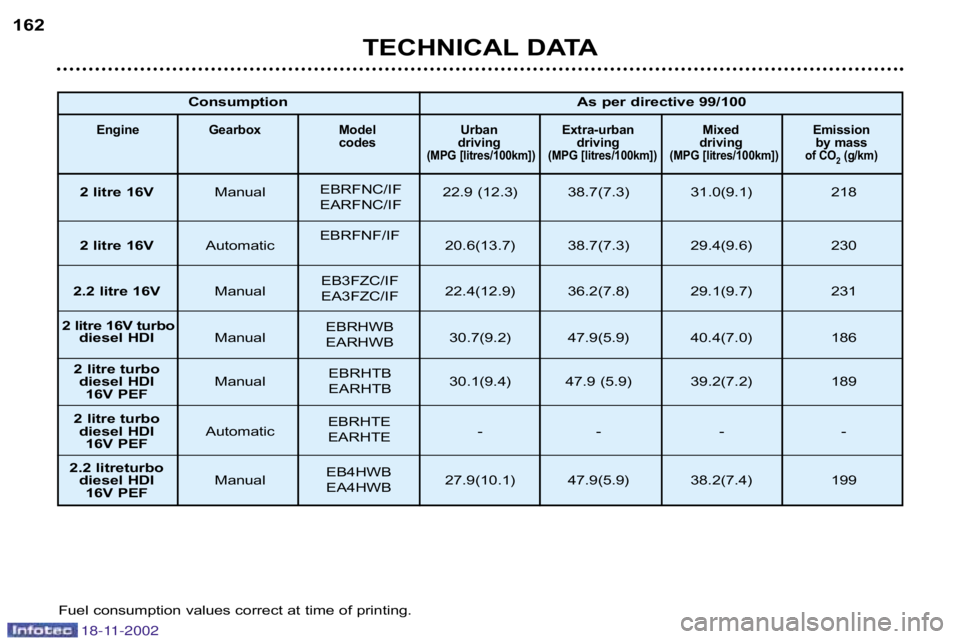

Fuel consumption values correct at time of printing. Consumption
As per directive 99/100
Engine Gearbox Model Urban Extraurban Mixed Emission
codesdriving driving driving by mas s
(MPG [litres/100km]) (MPG [litres/100km]) (MPG [litres/100km]) of CO
2(g/km)
EBRFNF/IF
EB3FZC/IF
EA3FZC/IF EBRHWB
EARHWB
EBRHTB
EARHTB
EBRHTE
EARHTE
EB4HWB
EA4HWB
EBRFNC/IF
EARFNC/IF
18-11-2002

TECHNICAL DATA163

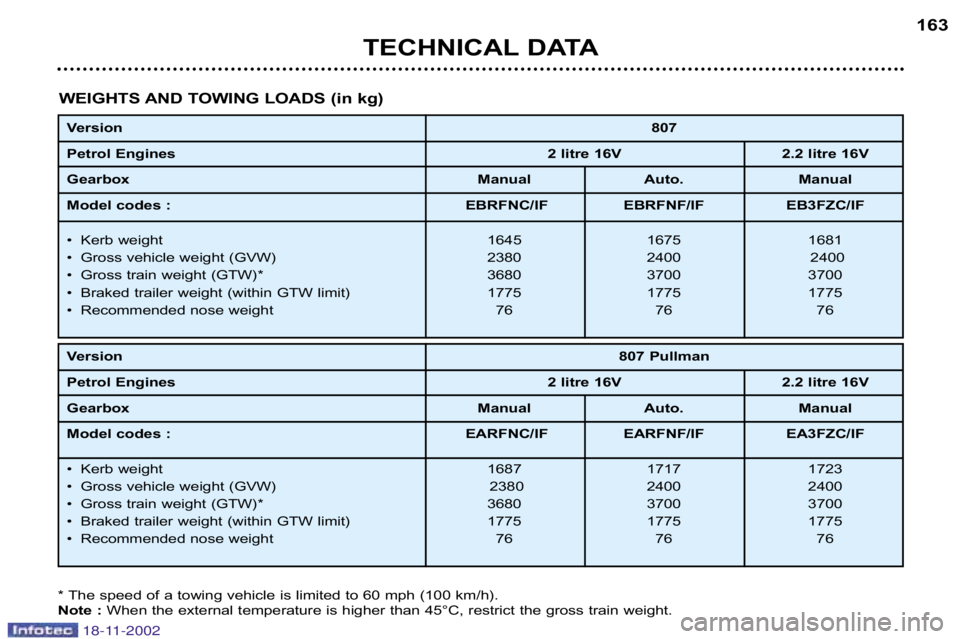

WEIGHTS AND TOWING LOADS (in kg)
Version 807
Petrol Engines2 litre 16V 2.2 litre 16V
Gearbox Manual Auto. Manual
Model codes : EBRFNC/IF EBRFNF/IF EB3FZC/IF
• Kerb weight 1645 1675 1681
• Gross vehicle weight (GVW)2380 2400 2400
• Gross train weight (GTW)* 3680 3700 3700
• Braked trailer weight (within GTW limit) 1775 1775 1775
• Recommended nose weight 76 76 76
Version 807 Pullman
Petrol Engines2 litre 16V 2.2 litre 16V
Gearbox Manual Auto. Manual
Model codes : EARFNC/IF EARFNF/IF EA3FZC/IF
• Kerb weight 1687 1717 1723
• Gross vehicle weight (GVW)2380 2400 2400
• Gross train weight (GTW)* 3680 3700 3700
• Braked trailer weight (within GTW limit) 1775 1775 1775
• Recommended nose weight 76 76 76
* The speed of a towing vehicle is limited to 60 mph (100 km/h).
Note : When the external temperature is higher than 45°C, restrict th e gross train weight.
18-11-2002

TECHNICAL DATA
164

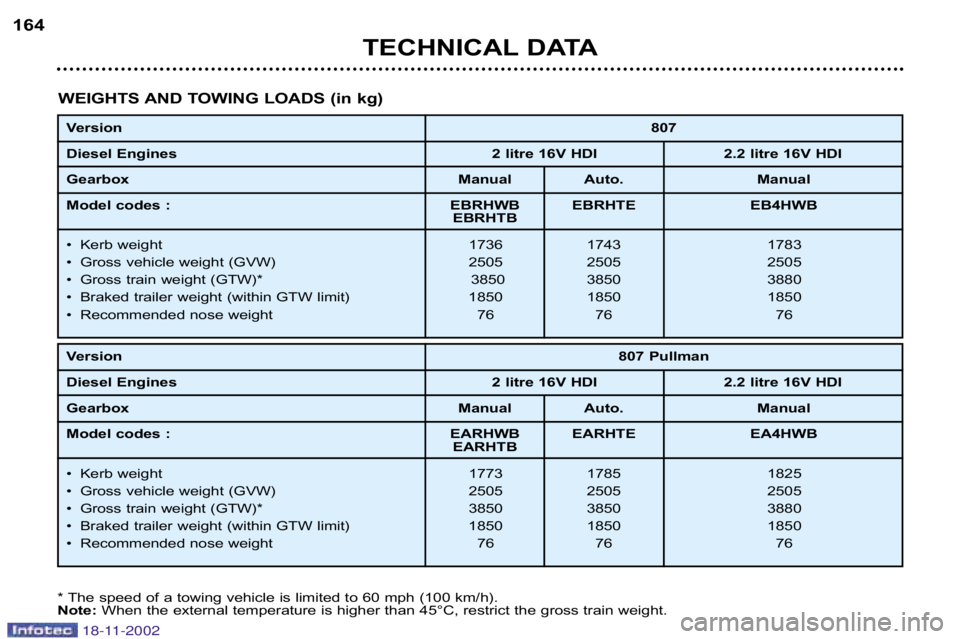

WEIGHTS AND TOWING LOADS (in kg)
Version 807
Diesel Engines 2 litre 16V HDI 2.2 litre 16V HDI
Gearbox Manual Auto. Manual
Model codes : EBRHWB EBRHTE EB4HWB
EBRHTB
• Kerb weight 1736 1743 1783
• Gross vehicle weight (GVW)2505 2505 2505
• Gross train weight (GTW)* 3850 3850 3880
• Braked trailer weight (within GTW limit) 1850 1850 1850
• Recommended nose weight 76 76 76
Version 807 Pullman
Diesel Engines 2 litre 16V HDI 2.2 litre 16V HDI
Gearbox Manual Auto. Manual
Model codes : EARHWB EARHTE EA4HWB
EARHTB
• Kerb weight 1773 1785 1825
• Gross vehicle weight (GVW)2505 2505 2505
• Gross train weight (GTW)* 3850 3850 3880
• Braked trailer weight (within GTW limit) 1850 1850 1850
• Recommended nose weight 76 76 76
* The speed of a towing vehicle is limited to 60 mph (100 km/h).
Note: When the external temperature is higher than 45°C, restrict th e gross train weight.
18-11-2002

TECHNICAL DATA165

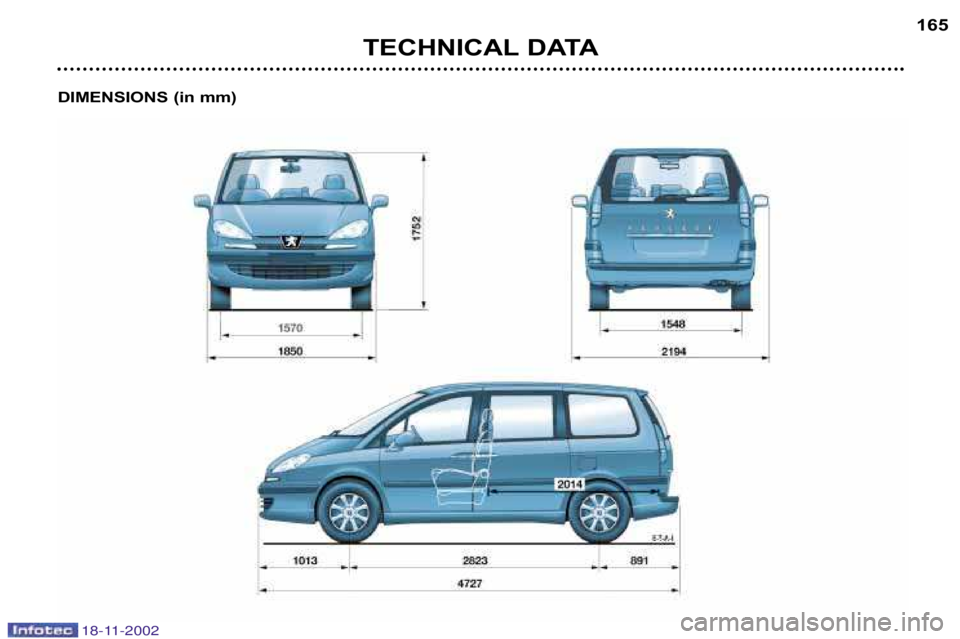

DIMENSIONS (in mm)
18-11-2002

TECHNICAL DATA
166

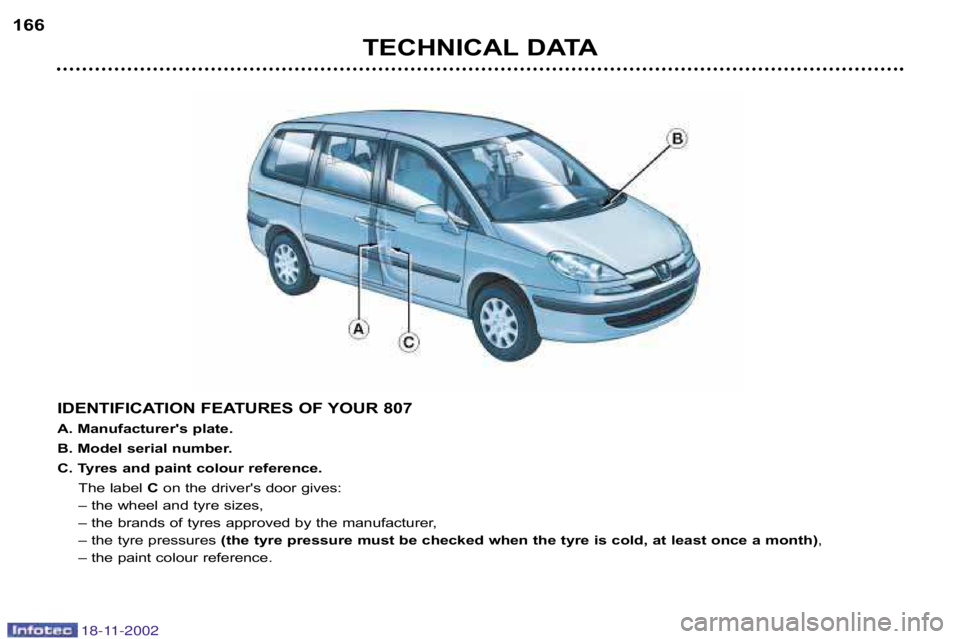

IDENTIFICATION FEATURES OF YOUR 807
A. Manufacturer's plate.
B. Model serial number.
C. Tyres and paint colour reference.The label Con the driver's door gives:
–the wheel and tyre sizes,
–the brands of tyres approved by the manufacturer,
–the tyre pressures (the tyre pressure must be checked when the tyre is cold, at least once a month),
–the paint colour reference.
