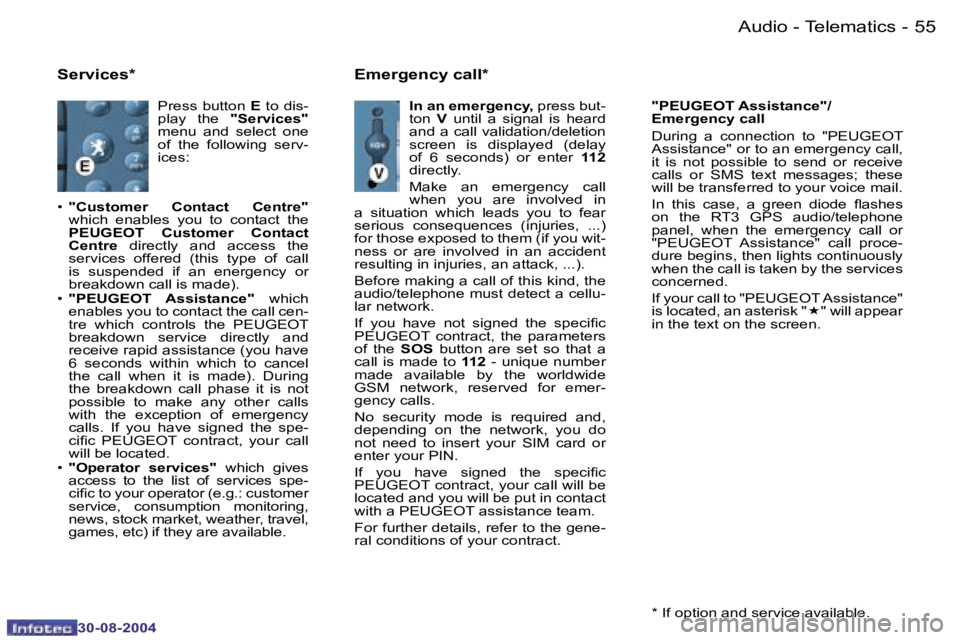

Press button E to dis-
play the "Services"
menu and select one
of the following serv-
ices:
Services*
In an emergency, press but-
ton V until a signal is heard
and a call validation/deletion
screen is displayed (delay
of 6 seconds) or enter 112
directly.
Make an emergency call
when you are involved in
a situation which leads you to fear
serious consequences (injuries, ...)
for those exposed to them (if you wit-
ness or are involved in an accident
resulting in injuries, an attack, ...).
Before making a call of this kind, the
audio/telephone must detect a cellu-
lar network.
If you have not signed the speciic
PEUGEOT contract, the parameters
of the SOS button are set so that a
call is made to 112 - unique number
made available by the worldwide
GSM network, reserved for emer-
gency calls.
No security mode is required and,
depending on the network, you do
not need to insert your SIM card or
enter your PIN.
If you have signed the speciic
PEUGEOT contract, your call will be
located and you will be put in contact
with a PEUGEOT assistance team.
For further details, refer to the gene-
ral conditions of your contract.
Emergency call*
* If option and service available.
•
฀ "Customer Contact Centre"
which enables you to contact the
PEUGEOT Customer Contact
Centre directly and access the
services offered (this type of call
is suspended if an energency or
breakdown call is made).
• ฀ "PEUGEOT Assistance" which
enables you to contact the call cen-
tre which controls the PEUGEOT
breakdown service directly and
receive rapid assistance (you have
6 seconds within which to cancel
the call when it is made). During
the breakdown call phase it is not
possible to make any other calls
with the exception of emergency
calls. If you have signed the spe-
ciic PEUGEOT contract, your call
will be located.
• ฀ "Operator services" which gives
access to the list of services spe-
ciic to your operator (e.g.: customer
service, consumption monitoring,
news, stock market, weather, travel,
games, etc) if they are available. "PEUGEOT Assistance"/
Emergency call
During a connection to "PEUGEOT
Assistance" or to an emergency call,
it is not possible to send or receive
calls or SMS text messages; these
will be transferred to your voice mail.
In this case, a green diode lashes
on the RT3 GPS audio/telephone
panel, when the emergency call or
"PEUGEOT Assistance" call proce-
dure begins, then lights continuously
when the call is taken by the services
concerned.
If your call to "PEUGEOT Assistance"
is located, an asterisk "
«" will appear
in the text on the screen.

Audio - Telematics56 -
30-08-2004
57Audio - Telematics-
30-08-2004
The directory
General
The "Directory" application gives
access to 400 iles divided into 4 in-
dependent sub-directories ("User1",
"User2", "User3" and "User4"). It
enables you to manage these iles,
make calls using the SIM card and
activate guidance.
From the general menu , select the
"Directory" application to access its
main menu and select one of the fol-
lowing functions:
• "Call", to call a number stored in a ile,
• "Activate guidance to", to initiate guidance to a location stored in a
ile,
• "Management of directory iles", to add, delete, modify and consult di-
rectory iles or exchange them with
the SIM card,
• "Directory coniguration", to select the working directory and deine
the directory when the system is
switched on.
Main menu

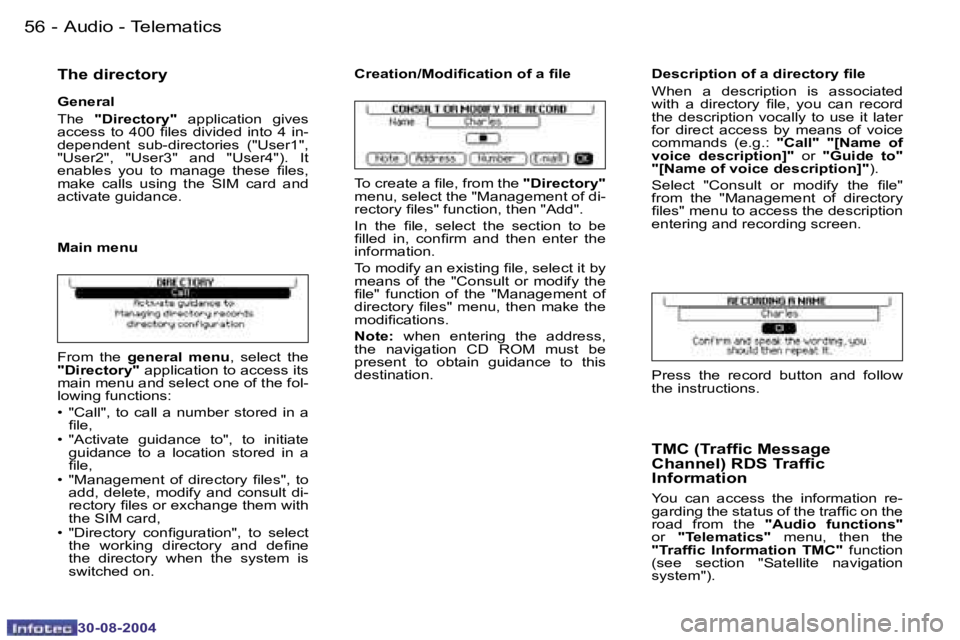

To create a ile, from the
"Directory"
menu, select the "Management of di-
rectory iles" function, then "Add".
In the ile, select the section to be
illed in, conirm and then enter the
information.
To modify an existing ile, select it by
means of the "Consult or modify the
ile" function of the "Management of
directory iles" menu, then make the
modiications.

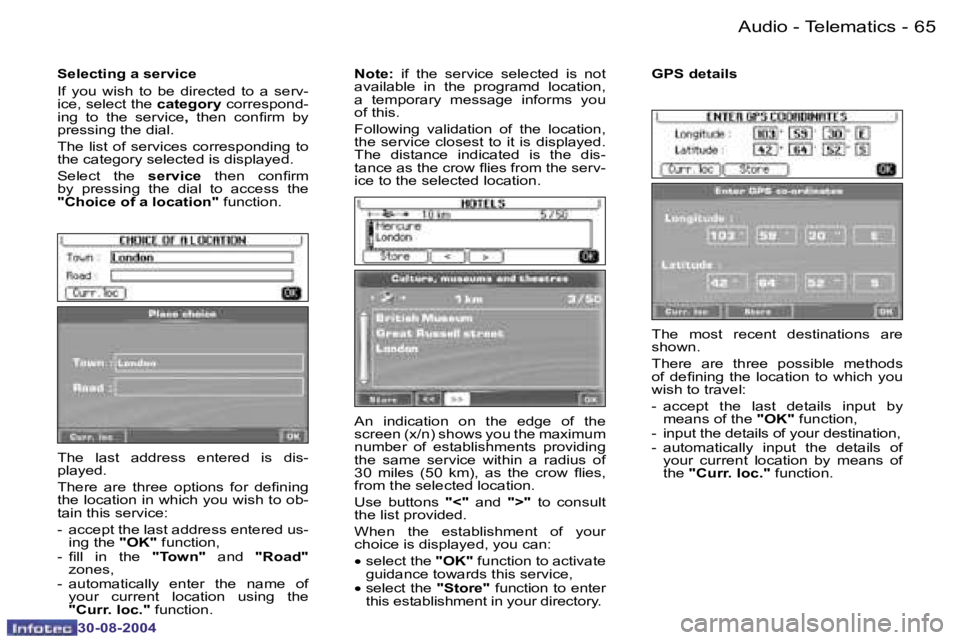

Note: when entering the address,
the navigation CD ROM must be
present to obtain guidance to this
destination.
Creation/Modiication of a ile Description of a directory il
e
When a description is associated
with a directory ile, you can record
the description vocally to use it later
for direct access by means of voice
commands (e.g.: "Call" "[Name of
voice description]" or "Guide to"
"[Name of voice description]" ).
Select "Consult or modify the ile"
from the "Management of directory
iles" menu to access the description
entering and recording screen.
Press the record button and follow
the instructions.
TMC (Trafic Message
Channel) RDS Trafic
Information
You can access the information re-
garding the status of the trafic on the
road from the "Audio functions"
or "Telematics" menu, then the
"Trafic Information TMC" function
(see section "Satellite navigation
system").

Audio - Telematics56 -
30-08-2004
57Audio - Telematics-
30-08-2004
VOICE COMMANDS
The voice commands make it pos-
sible to use pre-recorded words or
phrases to control a certain number
of functions of the RT3 GPS audio/
telephone.
They are organised in three levels
(levels 1, 2 and 3).
When you say a level 1 command,
the system makes the level 2 com-
mands available; when you say a
level 2 command, the system makes
the level 3 commands available.Notes:
- between two key words, a screen
indicates the time remaining and
the key word recognised,
- in the absence of any voice com- mands, this function will be swi-
tched off after approximately ive
seconds,
- if a command is not understood, the system transmits the phrase
"Pardon" and displays "Word not
recognised" on the screen.
Saying the phrase "Help" or "What
can I say" displays all of the com-
mands available on the screen.
Saying the phrase "Cancel" cancels
all of the voice commands.
Miscellaneous phrases: STOP/
DELETE/YES/NO/PREVIOUS/NEXTActivation of the voice commands

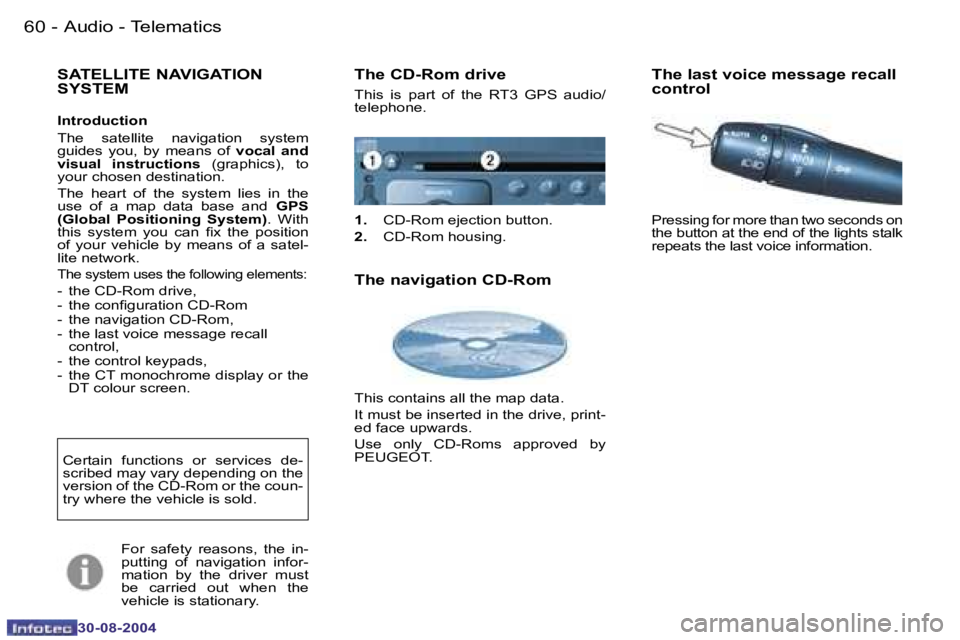

Press the button on the end of the
lights stalk to activate or deacitvate
this function.
Example: to recall the radio station
stored on button 3, the key words
are: "Radio" "Memory" "3" .
To use these key words, you must
say the word "Radio", wait for the
audible conirmation signal, then
say the word "Memory", wait for the
audible conirmation signal, then end
with the word "3", wait for the audible
conirmation signal which will carry
out the action requested.

Audio - Telematics58 -
30-08-2004
59Audio - Telematics-
30-08-2004

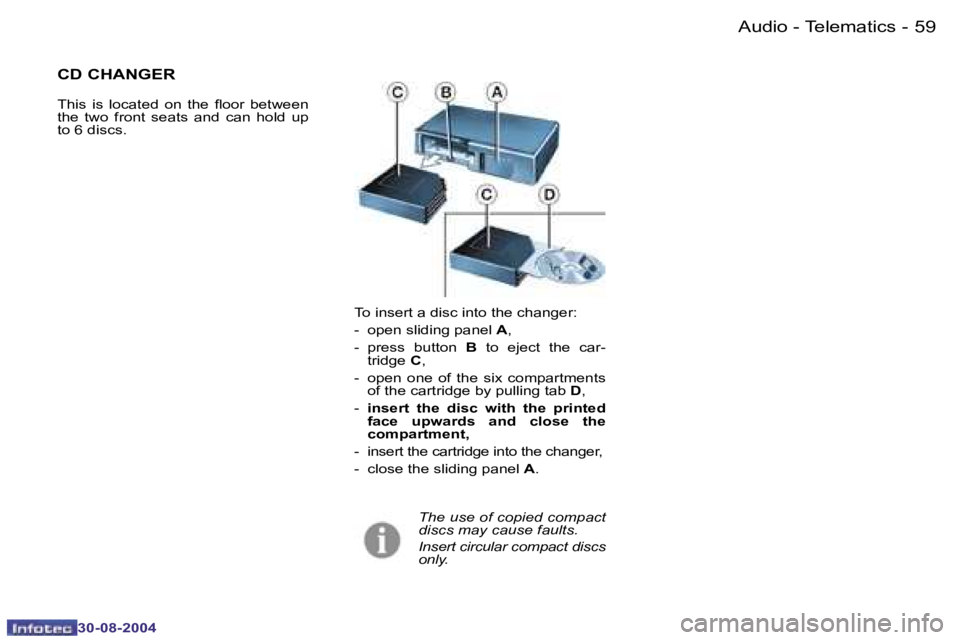

To insert a disc into the changer:
- open sliding panel
A,
- press button
B to eject the car-
tridge C,
- open one of the six compartments of the cartridge by pulling tab
D,
-
insert the disc with the printed
face upwards and close the
compartment,
- insert the cartridge into the changer,
- close the sliding panel
A.
This is located on the loor between
the two front seats and can hold up
to 6 discs.
CD CHANGER
The use of copied compact
discs may cause faults.
Insert circular compact discs
only.

Audio - Telematics60 -
30-08-2004
61Audio - Telematics-
30-08-2004
SATELLITE NAVIGATION
SYSTEM
Introduction
The satellite navigation system
guides you, by means of vocal and
visual instructions (graphics), to
your chosen destination.
The heart of the system lies in the
use of a map data base and
GPS
(Global Positioning System) . With
this system you can ix the position
of your vehicle by means of a satel-
lite network.
The system uses the following elements:
- the CD-Rom drive,
- the coniguration CD-Rom
- the navigation CD-Rom,
- the last voice message recall control,
- the control keypads,
- the CT monochrome display or the DT colour screen.
Certain functions or services de-
scribed may vary depending on the
version of the CD-Rom or the coun-
try where the vehicle is sold.
For safety reasons, the in-
putting of navigation infor-
mation by the driver must
be carried out when the
vehicle is stationary.
The CD-Rom drive
This is part of the RT3 GPS audio/
telephone.
1. CD-Rom ejection button.
2. CD-Rom housing.
The navigation CD-Rom
This contains all the map data.
It must be inserted in the drive, print-
ed face upwards.
Use only CD-Roms approved by
PEUGEOT.
The last voice message recall
control
Pressing for more than two seconds on
the button at the end of the lights stalk
repeats the last voice information.

Audio - Telematics60 -
30-08-2004
61Audio - Telematics-
30-08-2004
RT3 GPS audio/telephone control
keypad
The control keypads
These let you select and validate the
functions, commands and programs
displayed.
The additional telematics control is
located by the side of the gear lever.
or additional telematics controlRotation of the dial:
This allows you to
move round the
screen and thus select a function.
It also allows you :
- with a 'setting' type parameter,
after selection, to increase or de-
crease the value,
- with a 'list' type parameter, after
opening the list, to scroll through
the values,
- with map guidance, to increase or
decrease the zoom. 'ESC' button:
- Brief press:
cancelling of opera-
tion in progress or erasing of last
superimposed display.
- Pressing for more than two sec- onds: erasing of all superimposed
displays and return to the perma-
nent display.
Pressing the dial:
This allows:
- access to the list of controls (con-
textual menu) of the permanent
display, if there is no other display
superimposed.
- conirmation of the selected func-
tion or the modiied value.
- selection of a 'setting' or 'list'
type parameter for modiication.
"MODE" button
- Brief press: modiication of permanent display (audio system, navigation/
guidance...),
- Pressing for more than two seconds displays general information. 'MENU' button:
- Brief press: access to the
general
menu .
- Pressing for more than two sec- onds: access to the help menu and
to the list of voice commands .
"NAV" button
- Brief press: display of the con- textual menu of the navigation/
guidance function.
"MAIN" button
- Brief press: display of the general
information.
Tip:
You can access the general menu
by pressing:
- the dial G of the RT3 GPS audio/
telephone,
or
- the dial of the additional telematics control.

Audio - Telematics62 -
30-08-2004
63Audio - Telematics-
30-08-2004
General menu
Switch on the RT3 GPS audio/
telephone and insert the navigation
CD-Rom.
Press the "MENU" button to access
the general menu .
During guidance, if the navigation
CD-Rom is present, the screen dis-
plays different information depend-
ing on the manoeuvres to be carried
out.

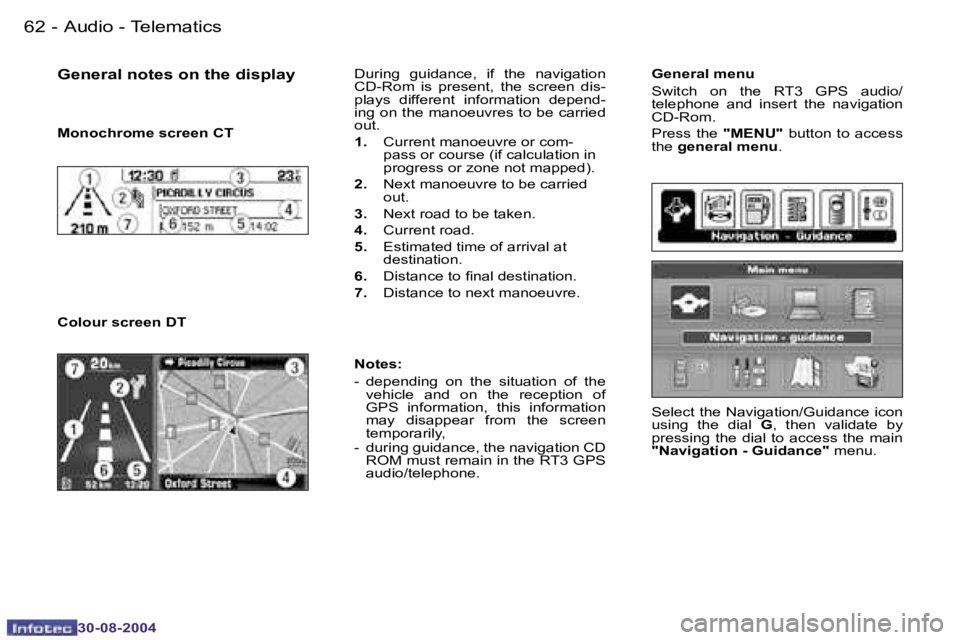

1.
Current manoeuvre or com-
pass or course (if calculation in
progress or zone not mapped).
2. Next manoeuvre to be carried
out.
3. Next road to be taken.
4. Current road.
5. Estimated time of arrival at
destination.
6. Distance to inal destination.
7. Distance to next manoeuvre.General notes on the display
Monochrome screen CT
Colour screen DT

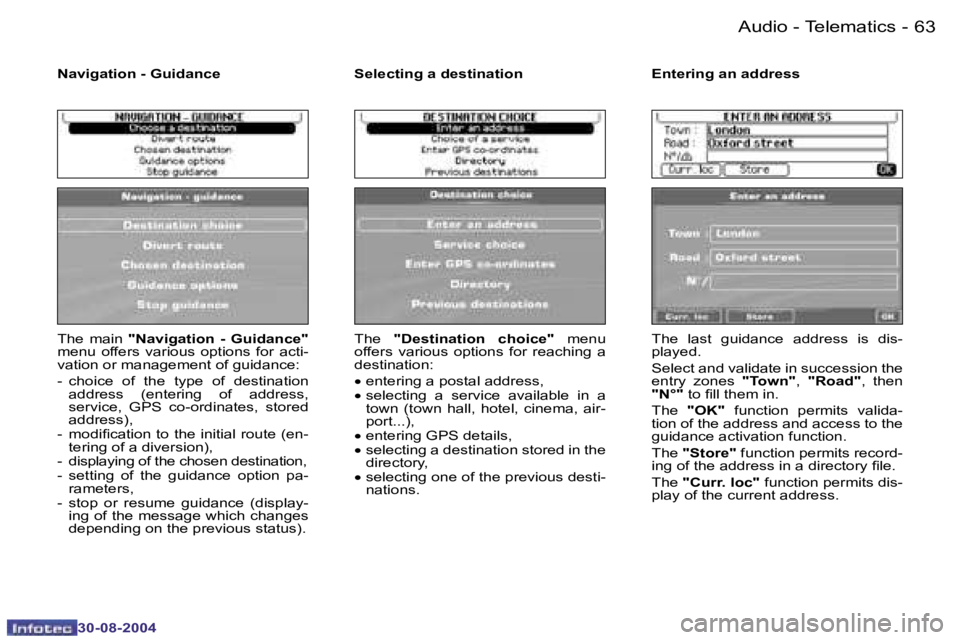

Select the Navigation/Guidance icon
using the dial G, then validate by
pressing the dial to access the main
"Navigation - Guidance" menu.
Notes:
- depending on the situation of the
vehicle and on the reception of
GPS information, this information
may disappear from the screen
temporarily,
- during guidance, the navigation CD ROM must remain in the RT3 GPS
audio/telephone.

Audio - Telematics62 -
30-08-2004
63Audio - Telematics-
30-08-2004
The main "Navigation - Guidance"
menu offers various options for acti-
vation or management of guidance:
- choice of the type of destination address (entering of address,
service, GPS co-ordinates, stored
address),
- modiication to the initial route (en- tering of a diversion),
- displaying of the chosen destination,
- setting of the guidance option pa- rameters,
- stop or resume guidance (display- ing of the message which changes
depending on the previous status).
Navigation - Guidance
The "Destination choice" menu
offers various options for reaching a
destination: •฀ entering a postal address,
•฀ selecting a service available in a
town (town hall, hotel, cinema, air-
port...),
•฀ entering GPS details,
•฀ selecting a destination stored in the
directory,
•฀ selecting one of the previous desti-
nations.
Selecting a destination
The last guidance address is dis-
played.
Select and validate in succession the
entry zones "Town", "Road" , then
"N°" to ill them in.
The "OK" function permits valida-
tion of the address and access to the
guidance activation function.
The "Store" function permits record-
ing of the address in a directory ile.
The "Curr. loc" function permits dis-
play of the current address.
Entering an address

Audio - Telematics64 -
30-08-2004
65Audio - Telematics-
30-08-2004

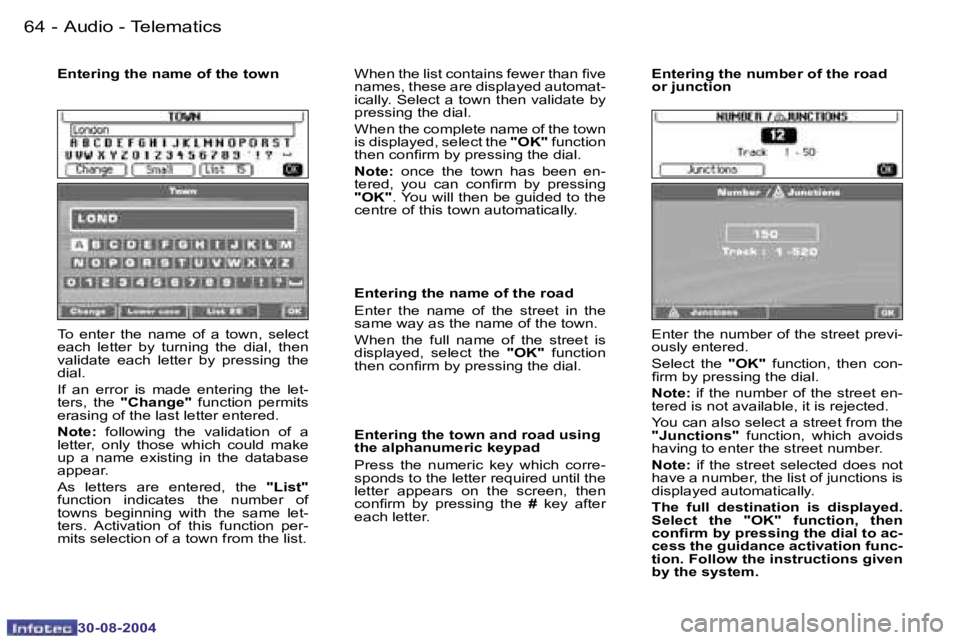

To enter the name of a town, select
each letter by turning the dial, then
validate each letter by pressing the
dial.
If an error is made entering the let-
ters, the "Change" function permits
erasing of the last letter entered.
Note: following the validation of a
letter, only those which could make
up a name existing in the database
appear.
As letters are entered, the "List"
function indicates the number of
towns beginning with the same let-
ters. Activation of this function per-
mits selection of a town from the list.
Entering the name of the town
When the list contains fewer than ive
names, these are displayed automat-
ically. Select a town then validate by
pressing the dial.
When the complete name of the town
is displayed, select the "OK" function
then conirm by pressing the dial.
Note: once the town has been en-
tered, you can conirm by pressing
"OK" . You will then be guided to the
centre of this town automatically.
Enter the number of the street previ-
ously entered.
Select the "OK" function, then con-
irm by pressing the dial.
Note: if the number of the street en-
tered is not available, it is rejected.
You can also select a street from the
"Junctions" function, which avoids
having to enter the street number.
Note: if the street selected does not
have a number, the list of junctions is
displayed automatically.
The full destination is displayed.
Select the "OK" function, then
conirm by pressing the dial to ac-
cess the guidance activation func-
tion. Follow the instructions given
by the system.
Entering the number of the road
or junction
Entering the name of the road
Enter the name of the street in the
same way as the name of the town.
When the full name of the street is
displayed, select the
"OK" function
then conirm by pressing the dial.
Entering the town and road using
the alphanumeric keypad
Press the numeric key which corre-
sponds to the letter required until the
letter appears on the screen, then
conirm by pressing the # key after
each letter.

Audio - Telematics64 -
30-08-2004
65Audio - Telematics-
30-08-2004
The last address entered is dis-
played.
There are three options for deining
the location in which you wish to ob-
tain this service:
- accept the last address entered us-ing the "OK" function,
- ill in the "Town" and "Road"
zones,
- automatically enter the name of your current location using the
"Curr. loc." function.
Selecting a service
If you wish to be directed to a serv-
ice, select the
category correspond-
ing to the service , then conirm by
pressing the dial.
The list of services corresponding to
the category selected is displayed.
Select the service then conirm
by pressing the dial to access the
"Choice of a location" function.
An indication on the edge of the
screen (x/n) shows you the maximum
number of establishments providing
the same service within a radius of
30 miles (50 km), as the crow lies,
from the selected location.
Use buttons "<" and ">" to consult
the list provided.
When the establishment of your
choice is displayed, you can: •฀ select the "OK" function to activate
guidance towards this service,
•฀ select the "Store" function to enter
this establishment in your directory.
Note:
if the service selected is not
available in the programd location,
a temporary message informs you
of this.
Following validation of the location,
the service closest to it is displayed.
The distance indicated is the dis-
tance as the crow lies from the serv-
ice to the selected location.
The most recent destinations are
shown.
There are three possible methods
of deining the location to which you
wish to travel:
- accept the last details input by means of the "OK" function,
- input the details of your destination,
- automatically input the details of your current location by means of
the "Curr. loc." function.
GPS details
