Towing a trailer
On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
In all cases, pay attention to the
coolant temperature.
Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake
gradually. Please contact a PEUGEOT dealer
fi r s t f o r f u r t h e r i n f o r m a t i o n .
Automatic adjustment
For vehicles with Xenon bulbs, and if
the change in load makes it necessary,
this system automatically corrects the
height of the beam after approximately
2 minutes. The driver is then assured
of having optimum lighting and not
causing a nuisance to other road
users.
In certain cases of particularly
arduous use (towing the
maximum load up a steep slope
in high temperatures), the engine
automatically limits its power. In this
case, cutting off the air conditioning
allows the engine power to be
recovered, and therefore the towing
s p e e d t o b e s i g n i fi c a n t l y i n c r e a s e d
(approximately 12 mph [20 km/h]
more). Sequential control of the
gearbox may also become unavailable.
Lighting
Bicycle carrier
R e f e r t o t h e " I d e n t i fi c a t i o n
features" section of chapter 8. Refer to the "Steering wheel
controls" section of chapter 3.
When using a trailer connection,
you must add a fuse. Refer to
the "Changing a fuse" section of
chapter 7.
If the coolant temperature warning light
comes on, stop the vehicle and switch
off the engine as soon as possible.
Tyres: check the tyre pressures of
the towing vehicle and of the trailer,
observing the recommended pressure.
Side wind: sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.
Towbar
We recommend the use of original
PEUGEOT towbars, which have been
tested for endurance from the design
stage of your vehicle.
T o w i n g e q u i p m e n t m u s t b e fi t t e d i n
accordance with the manufacturer’s
instructions, with particular attention to
the towing capacities of your vehicle,
the load towed, the nose weight and
t h e e l e c t r i c a l c o n n e c t i o n . A s t h i s fi t t i n g
should be carried out by a professional,
we recommend that you entrust the
fi t t i n g o f t h i s e q u i p m e n t t o a P E U G E O T
dealer.
In accordance with the general
instructions referred to above, we draw
your attention to the risk connected
w i t h fi t t i n g a t o w b a r o r o t h e r e l e c t r i c a l
accessory which is not recommended
by the PEUGEOT network. Fitting such
equipment could result in a failure of
your vehicle’s electronic system. Manual adjustment
Adjust your headlamps so as not to
dazzle other road users. Check the
electrical signalling of the trailer.
I f y o u fi t a b i c y c l e c a r r i e r o n
the tailgate, deactivate the
rear wiper from the display’s
c o n fi g u r a t i o n m e n u .
Page 114 of 266
112
Other accessories
These accessories and parts, after
being tested and approved for reliability
and safety, are all adapted to your
vehicle. A wide choice of recommended
accessories and original parts is offered
by the PEUGEOT Marque. To avoid any jamming under the
pedals:
- e n s u r e t h a t t h e m a t a n d i t s fi x i n g s are positioned correctly,
- never place one mat on top of another.
Compatible portable equipment
For the hands-free kit audio
e q u i p m e n t , t h e fi t t i n g o f a n R C A
a u x i l i a r y s o c k e t i s o f f e r e d s p e c i fi c a l l y
by the Network.
The audio cable for connection to
the auxiliary socket (RCA yellow-red
located in the glove box) is also offered
by the network.
Following connection of the cable and
selection of the AUX mode, via the
source button, your portable equipment
is ready to operate.
Set the portable equipment to half
volume to avoid saturating the audio
system sound. Then use the audio
system volume button. Audio systems, telephone,
hands-free kit, speakers, CD
changer, navigation system,
DVD player, ...
Alloy wheels, trims,
aluminium interior trim kit,
m u d fl a p s , . . .
Seat covers compatible with
side air bags, mats, boot tray,
sunroof, luggage net, door
d e fl e c t o r s , c o o l b o x s e c u r e d
on the slides, clip armrest, load
carrying roof bars, roof box,
snow chains, ski carrier, tailgate
bicycle carrier, interior bicycle carrier,
b o o s t e r s e a t s a n d c h i l d s e a t s , I s o fi x
seats, side sun blinds and rear blind, ...
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y a
PEUGEOT dealer. T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not
recommended by PEUGEOT
may result in a failure of your vehicle’s
electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g . Y o u
are advised to contact a representative
of the Marque to be shown the range
of recommended equipment or
accessories.
Depending on the country in which
the vehicle is sold, it is compulsory to
have a safety jacket, warning triangle
and replacement bulbs available in the
vehicle. Screenwash, interior and
exterior maintenance
and cleaning products,
replacement bulbs, ...
When using a tailgate bicycle
carrier, deactivate the rear
wiper from the display
c o n fi g u r a t i o n m e n u .
Before installing a
radiocommunication transmitter with
aerial, contact a PEUGEOT dealer who
w i l l i n f o r m y o u o f t h e s p e c i fi c a t i o n s o f
t h e t r a n s m i t t e r s w h i c h c a n b e fi t t e d ,
in accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).
A further range is also available,
structured around comfort, leisure and
maintenance:
Anti-theft alarm, window
e n g r a v i n g , fi r s t a i d k i t , s a f e t y
jacket, rear parking assistance,
warning triangle, ...
Page 129 of 266
127
TROUBLESHOOTING
7
Changing a bulb
CHANGING A BULB
Handle the bulbs with a dry cloth.
Make access easier on the right-
hand side by removing the wash-wipe
p i p e a n d t h e f u s e b o x c o v e r .
High pressure washing: when using
this type of washing on stubborn dirt,
do not persist on the headlamps, the
lights and their surrounds to avoid
damaging their coating and their seal. 2 - Main beam headlamps
H 7 - 5 5 W o r x e n o n b u l b .
- Turn the protective cover
corresponding to the faulty bulb
a quarter of a turn to the left and
remove it.
- Disconnect the connector.
- Press the end of the securing clip to free it. Change the bulb.
W h e n fi t t i n g t h e n e w b u l b , e n s u r e t h a t
the direction notches are positioned
c o r r e c t l y a n d t h e s e c u r i n g c l i p i s fi x e d
properly.
- Reconnect the connector.
- R e fi t t h e p r o t e c t i v e c o v e r , t h e n t u r n it a quarter of a turn to the right.
3 - Fog lamps
H1-55 W.

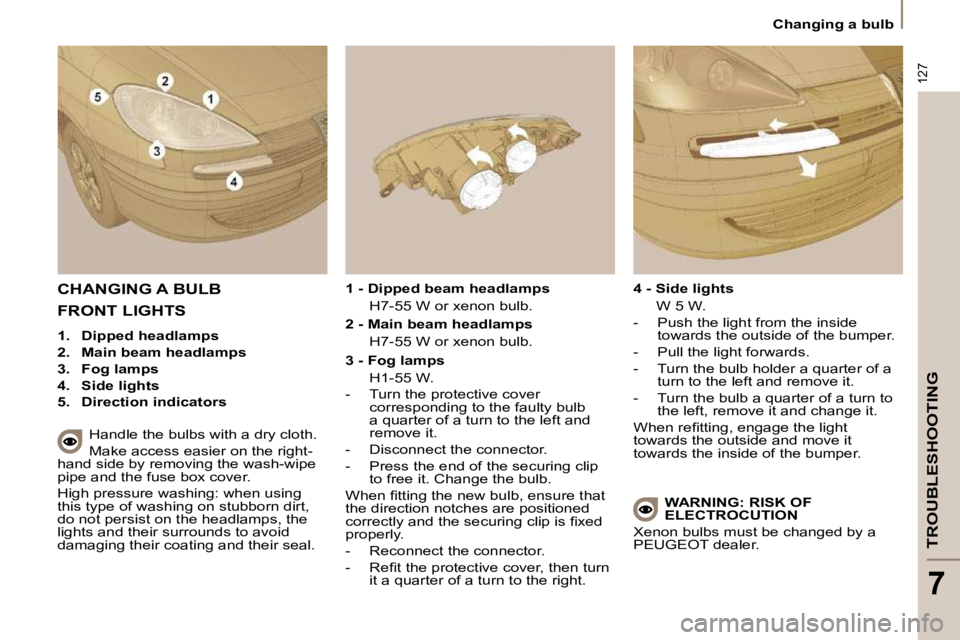

FRONT LIGHTS
1. Dipped headlamps
2. Main beam headlamps
3. Fog lamps
4. Side lights
5. Direction indicators 1 - Dipped beam headlamps
H 7 - 5 5 W o r x e n o n b u l b .
4 - Side lights
W 5 W.
- Push the light from the inside towards the outside of the bumper.
- Pull the light forwards.
- Turn the bulb holder a quarter of a turn to the left and remove it.
- Turn the bulb a quarter of a turn to the left, remove it and change it.
W h e n r e fi t t i n g , e n g a g e t h e l i g h t
towards the outside and move it
towards the inside of the bumper.
WARNING: RISK OF
ELECTROCUTION
Xenon bulbs must be changed by a
PEUGEOT dealer.
Page 130 of 266
128
Changing a bulb

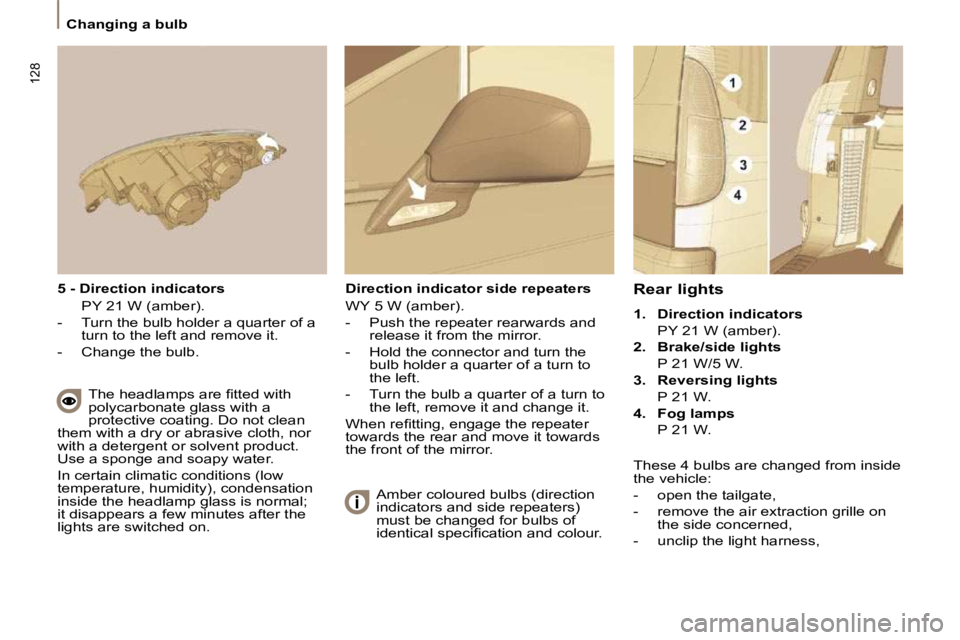

Rear lights
1. Direction indicators
PY 21 W (amber).
2. Brake/side lights
P 21 W/5 W.
3. Reversing lights
P 21 W.
4. Fog lamps
P 21 W.
5 - Direction indicators
PY 21 W (amber).
- Turn the bulb holder a quarter of a
turn to the left and remove it.
- Change the bulb.
T h e h e a d l a m p s a r e fi t t e d w i t h
polycarbonate glass with a
protective coating. Do not clean
them with a dry or abrasive cloth, nor
with a detergent or solvent product.
Use a sponge and soapy water.
In certain climatic conditions (low
temperature, humidity), condensation
inside the headlamp glass is normal;
it disappears a few minutes after the
lights are switched on. Direction indicator side repeaters
WY 5 W (amber).
- Push the repeater rearwards and
release it from the mirror.
- Hold the connector and turn the bulb holder a quarter of a turn to
the left.
- Turn the bulb a quarter of a turn to the left, remove it and change it.
W h e n r e fi t t i n g , e n g a g e t h e r e p e a t e r
towards the rear and move it towards
the front of the mirror.
Amber coloured bulbs (direction
indicators and side repeaters)
must be changed for bulbs of
i d e n t i c a l s p e c i fi c a t i o n a n d c o l o u r . These 4 bulbs are changed from inside
the vehicle:
- open the tailgate,
- r e m o v e t h e a i r e x t r a c t i o n g r i l l e o n
the side concerned,
- unclip the light harness,
Page 131 of 266
128
Changing a bulb
Rear lights
1. Direction indicators
PY 21 W (amber).
2. Brake/side lights
P 21 W/5 W.
3. Reversing lights
P 21 W.
4. Fog lamps
P 21 W.
5 - Direction indicators
PY 21 W (amber).
- Turn the bulb holder a quarter of a
turn to the left and remove it.
- Change the bulb.
T h e h e a d l a m p s a r e fi t t e d w i t h
polycarbonate glass with a
protective coating. Do not clean
them with a dry or abrasive cloth, nor
with a detergent or solvent product.
Use a sponge and soapy water.
In certain climatic conditions (low
temperature, humidity), condensation
inside the headlamp glass is normal;
it disappears a few minutes after the
lights are switched on. Direction indicator side repeaters
WY 5 W (amber).
- Push the repeater rearwards and
release it from the mirror.
- Hold the connector and turn the bulb holder a quarter of a turn to
the left.
- Turn the bulb a quarter of a turn to the left, remove it and change it.
W h e n r e fi t t i n g , e n g a g e t h e r e p e a t e r
towards the rear and move it towards
the front of the mirror.
Amber coloured bulbs (direction
indicators and side repeaters)
must be changed for bulbs of
i d e n t i c a l s p e c i fi c a t i o n a n d c o l o u r . These 4 bulbs are changed from inside
the vehicle:
- open the tailgate,
- r e m o v e t h e a i r e x t r a c t i o n g r i l l e o n
the side concerned,
- unclip the light harness,
Page 132 of 266
129
TROUBLESHOOTING
7
Changing a bulb
THIRD BRAKE LIGHT
5 W 5 W bulbs.
- Remove the tailgate upper trim by unclipping it on each side.
- Squeeze the two tabs 1 to release
the bulb holder.
- Change the faulty bulb.
- W h e n r e fi t t i n g , e n s u r e t h a t t h e tailgate upper trim has been put
back in place correctly.
- unscrew the two interior nuts and
remove the light,
- unscrew the bulb holder concerned an eighth of a turn to the left and
remove it,
- unscrew the faulty bulb an eighth of a turn to the left and change it.
When two or more bulbs are
faulty, you must replace them
immediately.
W h e n r e fi t t i n g :
- take care to position the bulb
correctly and press on it to engage it,
- take care to position the bulb holder correctly and screw it in an eighth
of a turn to the right,
- take care to position and secure the light correctly.
NUMBER PLATE LIGHTS
W 5 W.
- Remove the lens.
- Change the faulty bulb.
Page 261 of 266
19
0 7
1
2
3
2
3
1
4
2Do not the discard the batteries or
the bulbs, take them to a collection
point.
C H A N G I N G A B A T T E R Y
M A I N T E N A N C E A N D C A R E
R E P L A C I N G A B U L B
Open the battery compartment on
the back of the remote control. Replace the remote control batteries when
t h e D V D / D I V X p l a y e r n o l o n g e r r e a c t s t o t h e
p r e s s i n g o f a b u t t o n .
R e m o v e t h e l a t b a t t e r i e s .
Fit the 2 new AAA type (micro)
batteries. Observe the polarity
indicated.
Close the battery compartment. Replace the faulty bulb with a bulb of
the same type (12 V/2 - 3 W).
Close the cover.
U s i n g a s c r e w d r i v e r , g e n t l y l i f t t h e
t r a n s p a r e n t c o v e r o f t h e i n t e r i o r l i g h t
located on the equipment in order to
remove it carefully.
