Peugeot Bipper 2009 Owner's Manual

114
Changing a wheel
Removing

1. Park the vehicle on level, stable and non-
slippery ground. Apply the handbrake.
Switch off the ignition and engage first
gear or reverse, depending on the slope.

2. Detach the trim (large model) using
the wheelbrace 1 , pulling at the valve
passage.
Slide the screwdriver 3 into the notch on
the trim (small model) and use the tool as
a lever, pressing to unclip the trim.

3. Slacken the wheel bolts using the
wheelbrace.
4. Position the jack underneath the body,
in accordance with the illustration, at
the mark A (in the side member recess)
as close as possible to the wheel to be
changed.

5. Extend the jack 4 until its base is in
contact with the ground. Ensure that the
centreline of the jack base is vertical in
relation to the location used.

6. Raise the vehicle.

7. Remove the bolts and detach the wheel.
Putting the wheel back in place

1. Install the support on the wheel.

2. Place the cable B in position.

3. Lower the cover A .

4. Position the wheel.

5. Turn the wheelbrace clockwise to raise
the spare wheel completely.

115
7
TROUBLESHOOTING
Changing a wheel
Refitting the wheel

6. Put the trim back in place, starting by
placing its notch facing the valve, and
press with the palm of your hand.

7. Stow the tools and the wheel.

8. Check the wheel inflation pressure (see
"Identification") and have the balance
checked. Refer to the "Identification features"
section of chapter 8 to locate the tyre
label.
Have the tightening of the bolts and the
pressure of the spare wheel checked by a
PEUGEOT dealer without delay.

1. Put the wheel in place using the centring
guide 2 to assist you.

2. Screw in the 3 bolts by hand and remove
the centring guide. Position the 4th bolt.

3. Pre-tighten using the wheelbrace 1 .

4. Fold the jack 4 and detach it.

5. Tighten the wheel bolts using the
wheelbrace. Also, have the original wheel repaired
and refitted by a PEUGEOT dealer as
soon as possible.

116
Changing a wheel
PUNCTURE REPAIR KIT
This kit is located at the front of the
passenger compartment. It consists of:
- a repair cartridge A , containing the filling
fluid, equipped with:

117
7
TROUBLESHOOTING
Changing a wheel
- If a pressure of at least 1.5 bars is not
reached within 5 minutes :

118
Changing a bulb
Front lamps
Open the bonnet. To access the bulbs, reach
behind the headlamp unit.
Remove the protective covers to gain
access to the bulbs.
Carry out the operations in reverse order to
refit each bulb.
CHANGING A BULB
Types of bulb
Various types of bulb are fitted on your
vehicle.
To remove them:

1. Type A
Entirely glass bulb: pull gently as it is fitted by pressure.

2. Type B
Bayonet bulb: press on the bulb then turn it anticlockwise.

3. Type C
Cylindrical bulb: move aside the contacts.

4. Type D - E
Halogen bulb: release the retaining spring from its housing.
High pressure washing
When using this type of washing on
stubborn dirt, do not persist very long on
the headlamps, or on other lamps and their
surrounds to avoid damaging their coating
and their seal.

119
7
TROUBLESHOOTING
Changing a bulb
1 - Dipped headlamp

Type D , H4 - 55 W
- Remove the cover by turning it anticlockwise.
- Disconnect the electrical connector.
- Release the retaining spring by pressing on the two clips.
- Change the bulb taking care to align the metal part with the grooves on the light.
2 - Sidelamp

Type A , W 5 W - 5 W
- Remove the cover by turning it anticlockwise.
- Pull the bulb holder to gain access to the bulb.
- Change the bulb.
3 - Main beam headlamp

Type D , H4 - 55 W
- Remove the cover by turning it anticlockwise.
- Disconnect the electrical connector.
- Release the retaining spring by pressing on the two clips.
- Remove the bulb holder.
- Change the bulb taking care to align the metal part with the groove on the light.
4 - Direction indicators

Type B , PY 21 W - 21 W amber
- Turn the bulb holder a quarter turn anticlockwise.
- Remove the bulb by pressing it lightly while turning it anticlockwise.
- Change the bulb.
If you encounter any difficulty, consult a
PEUGEOT dealer.
When each operation has been
completed, check the operation of the
lights.
5 - Foglamps

Type E , H1 - 55 W
Consult a PEUGEOT dealer.

120
Changing a bulb
Front/rear courtesy lamps

Type C , 12 V 10 W - 10 W
- Release the courtesy lamp using a screwdriver.
- Remove the cover to gain access to the bulb.
- Change the bulb moving aside the two contacts.
- Ensure that the new bulbs are secured correctly between the two contacts.
- Close the protective flap.
- Fix the courtesy light in its housing and ensure that it is secured correctly.
Direction indicator side repeater

Type A , WY 5 W - 5 W amber
- Push the repeater rearwards and release it.
- Support the connector and turn the bulb holder a quarter of a turn to the left.
- Turn the bulb a quarter of a turn to the left.
- Pull the bulb then change it.
- When refitting, engage the repeater rearwards then move it forwards.

120
Changing a bulb
Front/rear courtesy lamps

Type C , 12 V 10 W - 10 W
- Release the courtesy lamp using a screwdriver.
- Remove the cover to gain access to the bulb.
- Change the bulb moving aside the two contacts.
- Ensure that the new bulbs are secured correctly between the two contacts.
- Close the protective flap.
- Fix the courtesy light in its housing and ensure that it is secured correctly.
Direction indicator side repeater

Type A , WY 5 W - 5 W amber
- Push the repeater rearwards and release it.
- Support the connector and turn the bulb holder a quarter of a turn to the left.
- Turn the bulb a quarter of a turn to the left.
- Pull the bulb then change it.
- When refitting, engage the repeater rearwards then move it forwards.

121
7
TROUBLESHOOTING
Changing a bulb
Rear lamps
- Identify the faulty bulb then open the rear doors.
- Unscrew the two screws using the screwdriver supplied in the tool kit
(behind the driver's seat) and extract the
bulb holder.
- Release the lamp unit.
- Disconnect the electrical connector.
- Remove the support by moving aside the tabs.
- Change the bulb.
Number plate lamps

Type A, C5 W - 5 W
- Unclip the transparent cover using the screwdriver supplied in the tool kit
(behind the driver's seat) and extract the
bulb holder.
- Change the bulb by moving aside the two contacts.
- Ensure that the new bulbs are secured correctly between the two contacts.
- Replace the plastic lens and press on it.
For further information concerning the bulbs,
refer to the table "Types of bulb".

1. Brake lamps
Type B , P21 W - 21 W

2. Direction indicators
Type B, PY 21 W - 21 W amber

3. Reversing lamps
Type B, P21 W - 21 W

4. Sidelamps/Foglamps
Type B , P4/21 W - 4 W/21 W
On the hinged rear doors
On the tailgate

122
Changing a bulb

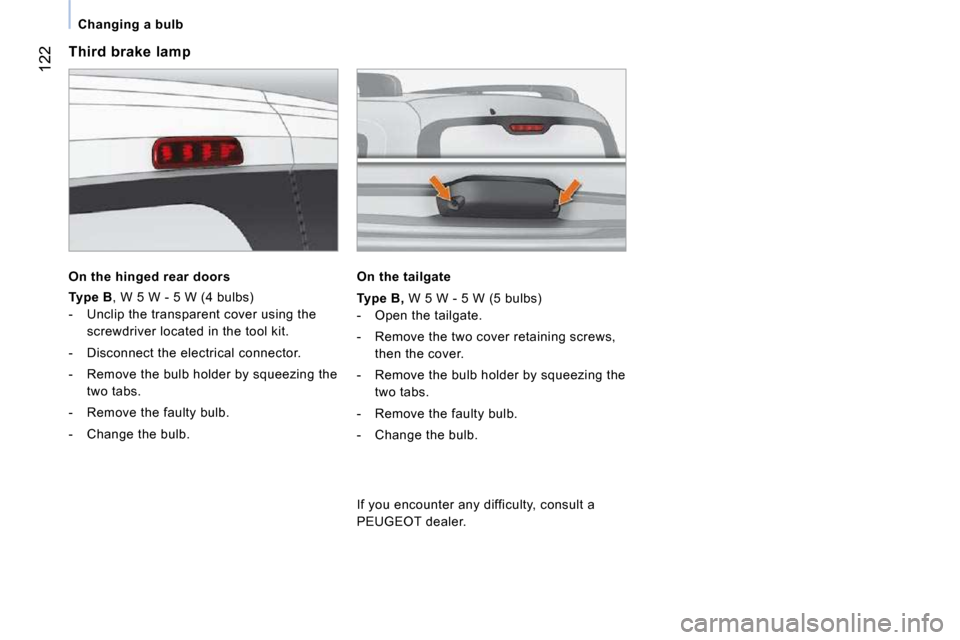

Third brake lamp
On the hinged rear doors

Type B , W 5 W - 5 W (4 bulbs)
- Unclip the transparent cover using the screwdriver located in the tool kit.
- Disconnect the electrical connector.
- Remove the bulb holder by squeezing the two tabs.
- Remove the faulty bulb.
- Change the bulb.
On the tailgate

Type B, W 5 W - 5 W (5 bulbs)
- Open the tailgate.
- Remove the two cover retaining screws, then the cover.
- Remove the bulb holder by squeezing the two tabs.
- Remove the faulty bulb.
- Change the bulb.
If you encounter any difficulty, consult a
PEUGEOT dealer.
