Page 9 of 166
12
Familiarisation
SEEING CLEARLY
Ring L i g h t i n g o f f .
Sidelamps.
Dipped/main beam headlamps.
Foglamps Rear foglamp.
or
Front and rear foglamps.
39 Direction indicators
"Motorway" function
Press the lighting control stalk up or down
o n c e , w i t h o u t p a s s i n g t h e p o i n t o f r e s i s t a n c e ;
t h e c o r r e s p o n d i n g d i r e c t i o n i n d i c a t o r s w i l l fl a s h
three times.
39 Wipers
Ring A: windscreen wipers
41
Ring B: rear wiper
41 Single wipe.
Intermittent wipe.
Screenwash.
Screenwash.
Park.
Lighting
Park.
Intermittent.
Slow continuous.
Rapid continuous.
Raise or lower the lighting control stalk past
t h e p o i n t o f r e s i s t a n c e ; t h e c o r r e s p o n d i n g
d i r e c t i o n i n d i c a t o r s w i l l fl a s h u n t i l t h e c o n t r o l i s
moved out of this position.
Page 21 of 166
24
Instruments and controls
Warning lamp
is indicates Solution - action
Sidelamp on. a manual selection. Turn the ring on the lighting control stalk to the
first position.
Dipped beam headlamp on. a manual selection.
Turn the ring on the lighting control stalk to the
first position.
Main beam headlamp a pull on the control stalk. Pull the lighting control stalk to return to dippe
d
beam.
Direction indicators flashing with an
audible signal. a change of direction
using the lighting control
stalk, to the left of the
steering wheel. To the Right: press the stalk upwards.
To the Left: press the stalk downwards.
Hazard warning lamps flashing with an
audible signal. the hazard warning lamp
switch, located in the
middle of the dashboard,
has been pressed. The left and right direction indicators, and the
associated warning lamps, flash simultaneously.
Front foglamps on. that the button on the
dashboard has been
pressed. Manual selection.
The fog amps only operate if the sidelamps or
dipped beam headlamps are on.
Rear foglamps on. that the button on the
dashboard has been
pressed. Manual selection. The foglamps only operate
if the dipped beam headlamps are on. When
visibility is normal, please switch the foglamps
off to avoid breaking the law. This lamp is a
bright dazzling red.
Page 47 of 166
40
Steering mounted controls Headlamp beam
You are advised to adjust the height of the
headlamp beams in accordance with the
load in your vehicle.
This function can only be accessed in
the main beam headlamps and dipped
headlamps position.
Press these controls, located
on the fascia panel, several
times in succession to adjust the
headlamps.
Fog lamps
The controls are located on the fascia panel
control pad.
Front and rear fog lamps
The fog lamps should only be used in
fog or when snow is falling.
In clear weather or in rain, both day and
night, lit rear fog lamps dazzle and are
prohibited.
Do not forget to switch them off when they
are no longer necessary. Guide-me-home lighting
The temporary maintaining of the dipped
headlamps, after switching off the vehicle's
ignition, makes the driver's exit easier when
the light is poor and lights the space in front
of the vehicle.
Activation
With the ignition key in the
STOP position
or removed, pull the lighting stalk towards
the steering wheel within 2 minutes after
switching off the engine.
Each time the control is operated, the
duration for which the lamps will remain
on is extended by 30 seconds, up to a
maximum of 210 seconds. Once this period
of time has elapsed, the lamps switch off
automatically.
Deactivation
Pull the lighting stalk towards the steering
wheel for more than 2 seconds.
The front fog lamps operate with
the side lights and the dipped
headlamps.
The rear fog lamps operate with
the dipped headlamps.
Press one of these controls to switch on the
lights. The warning lamp comes on,
accompanied by a message
on the display, the first time
the control is operated and
remains on until the function is deactivated
automatically. An indicator light on the display
indicates the adjustment position
selected (0, 1, 2, 3).
Page 48 of 166
40
Steering mounted controls Headlamp beam
You are advised to adjust the height of the
headlamp beams in accordance with the
load in your vehicle.
This function can only be accessed in
the main beam headlamps and dipped
headlamps position.
Press these controls, located
on the fascia panel, several
times in succession to adjust the
headlamps.
Fog lamps
The controls are located on the fascia panel
control pad.
Front and rear fog lamps
The fog lamps should only be used in
fog or when snow is falling.
In clear weather or in rain, both day and
night, lit rear fog lamps dazzle and are
prohibited.
Do not forget to switch them off when they
are no longer necessary. Guide-me-home lighting
The temporary maintaining of the dipped
headlamps, after switching off the vehicle's
ignition, makes the driver's exit easier when
the light is poor and lights the space in front
of the vehicle.
Activation
With the ignition key in the
STOP position
or removed, pull the lighting stalk towards
the steering wheel within 2 minutes after
switching off the engine.
Each time the control is operated, the
duration for which the lamps will remain
on is extended by 30 seconds, up to a
maximum of 210 seconds. Once this period
of time has elapsed, the lamps switch off
automatically.
Deactivation
Pull the lighting stalk towards the steering
wheel for more than 2 seconds.
The front fog lamps operate with
the side lights and the dipped
headlamps.
The rear fog lamps operate with
the dipped headlamps.
Press one of these controls to switch on the
lights. The warning lamp comes on,
accompanied by a message
on the display, the first time
the control is operated and
remains on until the function is deactivated
automatically. An indicator light on the display
indicates the adjustment position
selected (0, 1, 2, 3).
Page 142 of 166
127
7
QUICK HELP
Changing a bulb
1 - Dipped beam headlamp
Type D , H4 - 55 W
- Remove the cover by turning it anticlockwise.
- Disconnect the electrical connector.
- Release the retaining spring by pressing on the two clips.
- Change the bulb taking care to align the metal part with the grooves on the lamp.
2 - Sidelamp
Type A , W 5 W - 5 W
- Remove the cover by turning it anticlockwise.
- Pull the bulb holder to gain access to the bulb.
- Change the bulb. 3 - Main beam headlamp
Type D , H4 - 55 W
- Remove the cover by turning it anticlockwise.
- Disconnect the electrical connector.
- Release the retaining spring by pressing on the two clips.
- Remove the bulb holder.
- Change the bulb taking care to align the metal part with the groove on the lamp. 4 - Direction indicators
Type B , PY 21 W - 21 W amber
- Turn the bulb holder a quarter turn anticlockwise.
- Remove the bulb by pressing it lightly while turning it anticlockwise.
- Change the bulb.
If you encounter any difficulty, consult a
PEUGEOT dealer.
When each operation has been
completed, check the operation of the
lamps.
5 - Foglamps
Type E , H1 - 55 W
Consult a PEUGEOT dealer.
Page 150 of 166
133
7
QUICK HELP

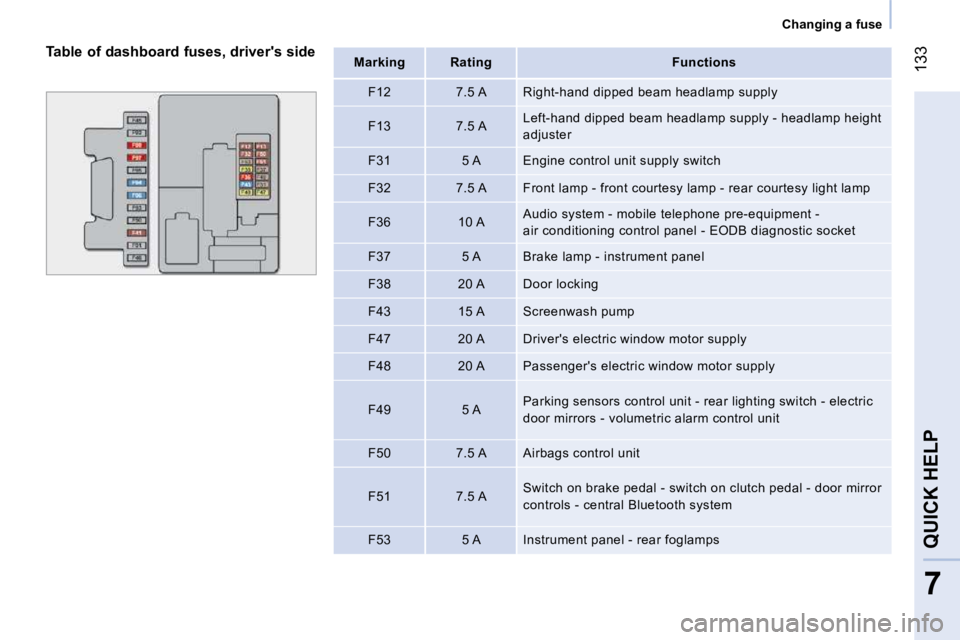

Changing a fuse
Table of dashboard fuses, driver's side
Mark
ing Rating Functions
F12 7.5 A Right-hand dipped beam headlamp su pply
F13 7.5 A Left-hand dipped beam headlamp supply - headlamp h
eight
adjuster
F31 5 A Engine control unit supply switch
F32 7.5 A Front lamp - front courtesy lamp - rear courtesy light lamp
F36 10 A Audio system - mobile telephone pre-equipment -
air conditioning control panel - EODB diagnostic so
cket
F37 5 A Brake lamp - instrument panel
F38 20 A Door locking
F43 15 A Screenwash pump
F47 20 A Driver's electric window motor supp ly
F48 20 A Passenger's electric window motor s upply
F49 5 A Parking sensors control unit - rear lighting switc
h - electric
door mirrors - volumetric alarm control unit
F50 7.5 A Airbags control unit
F51 7.5 A Switch on brake pedal - switch on clutch pedal - d
oor mirror
controls - central Bluetooth system
F53 5 A Instrument panel - rear foglamps
Page 154 of 166
136
Changing a fuse
Marking Rating
Functions
F16 7.5 A Engine management control unit - e lectronic gearbox control unit and gear lever - T20 relay coil
F17 15 A Supply for ignition coil - injector s - engine management control unit (1.3 HDi)
F18 7.5 A Engine management control unit (1. 3 HDi) - T09 relay coil
F19 7.5 A Air conditioning compressor
F20 30 A Supply for heated rear screen, elec tric door mirrors heater elements
F21 15 A Fuel pump (1.4 petrol and 1.3 HDi)
F22 20 A Engine management control unit (1.3 HDi)
F23 20 A ABS hydraulic block electrovalves s upply
F24 7.5 A ABS
F30 15 A Foglamps
F81 60 A Pre-heat unit (1.3 HDi)
F82 30 A Electronic gearbox pump - electroni c gearbox supply
F84 10 A Electronic gearbox control unit and electrovalves
F85 30 A Cigar lighter - 12 V accessory sock et
F87 7.5 A
Reversing lamps - water in Diesel sensor - airflow
sensor - T02, T05, T14, T17 and T19 relay coils
(except 1.3 HDi)
5 A Reversing lamps - water in Diesel sensor - airflow
sensor - T02, T05, T14, T17 and T19 relay coils - battery
state of charge sensor (except 1.3 HDi)
