FAMILIARISATION
Familiarisation
OPENING
Remote control key
A. Unfolding/Folding the key.
B. U n l o c k i n g t h e f r o n t d o o r s o n l y ( L i g h t v a n )
o r a l l o f t h e d o o r s ( C o m b i )
( t w o fl a s h e s o f t h e d i r e c t i o n i n d i c a t o r s ) .
C. C e n t r a l l o c k i n g t h e v e h i c l e
( o n e p r e s s ; o n e fl a s h o f t h e d i r e c t i o n i n d i c a t o r s ) .
or
Deadlocking the vehicle
( t w o c o n s e c u t i v e p r e s s e s ; o n e fl a s h o f t h e d i r e c t i o n i n d i c a t o r s ) .
D. U n l o c k i n g o f t h e l o a d s p a c e ( L i g h t v a n ) o r
of the hinged rear doors or tailgate only
( C o m b i ) .
If a door is open or has not been closed
properly, the failed locking is indicated by three
fl a s h e s o f t h e d i r e c t i o n i n d i c a t o r s .
29 Fuel tank
1. O p e n i n g t h e f u e l fi l l e r fl a p .
2. O p e n i n g a n d h o o k i n g t h e f u e l fi l l e r c a p .
C a p a c i t y o f t h e t a n k : a p p r o x i m a t e l y 4 5 l i t r e s .
139
Opening the rear doors to 180°
Press the catch while opening the door.
35
Opening/Closing the windows
with the remote control
Press button B for more than 3 seconds to
start opening the windows. Hold the button
down until the desired position is reached, then
release the button, the windows stop.
P r e s s b u t t o n C f o r m o r e t h a n 3 s e c o n d s t o
start closing the windows. Hold the button
down until the desired position is reached, then
release the button, the windows stop.
These operations can also be carried out by
inserting and turning the key in the front door
lock barrel.
30
Page 4 of 166
7
FAMILIARISATION
Familiarisation
INSTRUMENTS AND CONTROLS
1. S t e e r i n g w h e e l a d j u s t m e n t c o n t r o l .
2. L i g h t i n g a n d d i r e c t i o n i n d i c a t o r
control stalk.
3. Instrument panel.
4. Steering mounted audio controls.
Bluetooth hands-free system.
5. Driver’s airbag.
Horn.
6. C r u i s e c o n t r o l s w i t c h e s .
7. Gear lever.
8. Parking brake.
9. Bonnet release.
10. Door mirror controls.
11. Fusebox.
12. M a n u a l h e a d l a m p h e i g h t a d j u s t m e n t .
13. S i d e a d j u s t a b l e a i r v e n t .
14. Front side window demisting vent.
15. Electric window controls.
16. Windscreen demisting vent.
17. Wiper/screenwash/trip computer
control stalk.
18. Steering lock and ignition.
19. C e n t r a l a d j u s t a b l e a i r v e n t s .
20. Passenger’s airbag.
21. MENU button.
22. Glove box.
23. 12 V accessory socket.
24. C i g a r l i g h t e r .
25. Ashtray.
26. Heating/air conditioning controls.
27. Audio system.
Page 28 of 166
Access
Opening the windows with the remote
control
Closing the windows using the remote
control When closing the windows using the
remote control you must ensure that
nothing prevents their correct closing. The
anti-pinch function does not operate when
closing the windows this way.
If you want to leave the windows partly
open, it is necessary to deactivate the
volumetric alarm monitoring.
Pressing and holding this button
for more than 3 seconds starts
opening of the windows. Release
the button once the windows are
in the desired position. The windows stop as
soon as you release the button.
This closing operation can also be carried
out by inserting and turning the key in the
front door lock barrel.
This opening operation can also be carried
out by inserting and turning the key in the
front door lock barrel.
Pressing and holding this button
for more than 3 seconds starts
closing of the windows. Release
the button once the windows are
in the desired position. The windows stop as
soon as you release the button.
Page 49 of 166
41
1
READY TO SET OFF
Steering mounted controls
WIPERS STALK
Windscreen wipers
Wiping is only active when the ignition key is
in the RUNNING position.
The stalk may have four different positions.
Three speeds can be selected by turning
the ring.
To change the blades, refer to the
"Changing a wiper blade" section of
chapter 7.
Good practice
Check that the windscreen wiper blades can
operate freely when using the wipers in icy
weather.
Intermittent.
Slow continuous.
Fast continuous.
Single wipe: by pushing up. Windscreen wash
Push the stalk down, the windscreen wash
alone is activated.
Hold the stalk down, the windscreen wash
is accompanied by a timed sweep of the
wipers.
To top up the levels, refer to the
"Levels" section of chapter 7. Rear wiper
This is positioned on the window
of the large rear door.
Turn the ring.
Rear screen wash
The rear screen wash is incorporated next to
the third brake light.
Push the stalk up, the rear screen wash
alone is activated.
Hold the stalk up, the rear screen wash is
accompanied by a timed sweep of the wiper.
With Stop & Start, when the wiper
control stalk is in the fast wipe position,
the STOP mode is not available.
Page 52 of 166
44
Mirrors and windows

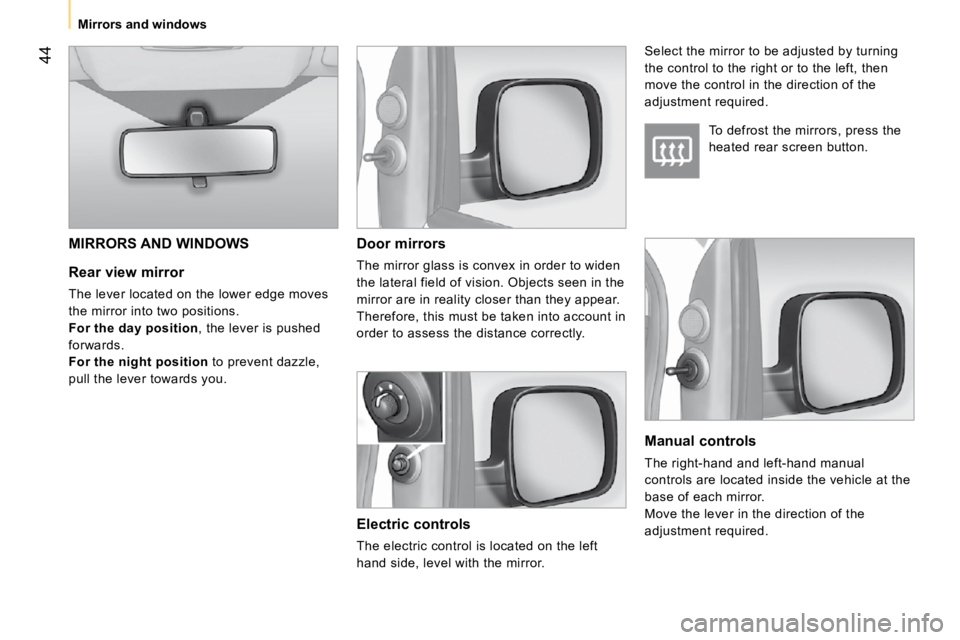

Rear view mirror
The lever located on the lower edge moves
the mirror into two positions.
For the day position , the lever is pushed
forwards.
For the night position to prevent dazzle,
pull the lever towards you. Door mirrors
The mirror glass is convex in order to widen
the lateral field of vision. Objects seen in the
mirror are in reality closer than they appear.
Therefore, this must be taken into account in
order to assess the distance correctly.
Electric controls
The electric control is located on the left
hand side, level with the mirror.
MIRRORS AND WINDOWS
To defrost the mirrors, press the
heated rear screen button.
Select the mirror to be adjusted by turning
the control to the right or to the left, then
move the control in the direction of the
adjustment required.
Manual controls
The right-hand and left-hand manual
controls are located inside the vehicle at the
base of each mirror.
Move the lever in the direction of the
adjustment required.
Page 53 of 166
45
1
READY TO SET OFF
Mirrors and windows
ELECTRIC WINDOWS
Electric controls
The electric windows have a safety anti-
pinch function and are associated with one-
touch controls for lowering and raising.
From the driver's seat, the controls placed
on the door operate the vehicle's front
windows.
On the passenger's side, the control
operates the passenger's front window. One-touch controls
An extended press on the control raises or
lowers the window completely.
Press the control again to stop the window.
Press the control briefly to start the
movement of the window.
Manual controls
Turn the window winder located on the door
trim panel.
Good practice
Always remove the key from the ignition
when leaving the vehicle, even for a short
time.
If the electric window meets an obstacle
during operation, you must reverse the
movement of the window. To do this, press
the control concerned.
When the driver operates the passenger
electric window controls, they must ensure
that no one is preventing correct closing of
the windows.
The driver must ensure that the passenger
uses the electric window correctly.
Be aware of children when operating the
windows.
REAR WINDOWS (COMBI)
To partially open the rear windows, tilt the
lever and push it fully to lock the windows in
the open position.
Page 93 of 166
4
EASE OF USE and COMFORT
Ventilation
DE-ICING AND DEMISTING
Windscreen
The ventilation outlets located at the base
of the windscreen and the side vents for the
side windows increase the effectiveness of
the de-icing and demisting. Do not obstruct
these eight air outlets.
The manual air conditioning consists of the
pollen filter and air recirculation.
The pollen filter permits continuous and
effective filtering of dust.
The air recirculation (which can be activated
by the driver or the passenger) isolates the
passenger compartment from the exterior
atmosphere. However, this position should
only be used temporarily, the norm is to
drive with the control positioned with the
exterior air intake open. Manual mode
Direct the control to this air
distribution setting.
For faster and more effective
de-icing and demisting of the
windscreen: - increase the air flow setting,
Returning to the exterior air
intake position permits renewal
of the air in the passenger
compartment. Rear screen and mirrors de-icing
This function only operates when
the engine is running. Pressing
this button activates the rapid
demisting/de-icing of the rear
screen and mirrors. This function switches
off automatically to prevent an excessive
consumption of energy. It switches off when
the engine is switched off. Pressing this
button switches the function off.
- move the exterior air intake
control temporarily to air
recirculation.
With Stop & Start, when the heated
rear screen is switched on, the STOP
mode is not available.
Page 94 of 166
86
Ventilation
CORRECT USE OF THE AIR CONDITIONING
For even air distribution, ensure that the
exterior air intake grille located at the base
of the windscreen is not obstructed and that
the side and central vents, the air outlets on
the floor and the air extractor at the rear are
open.
The air conditioning is useful in all seasons
as it eliminates condensation and air
humidity. Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in perfect working order.
Have the filter elements (air filter and
passenger compartment filter) replaced
regularly. If you drive in a dusty environment,
have them replaced twice as often.
It is normal that the condensation created by
the air conditioning system results in a flow
of water which may form a puddle under the
vehicle when parked.
If the system does not produce cold air, do
not use it and contact a PEUGEOT dealer .

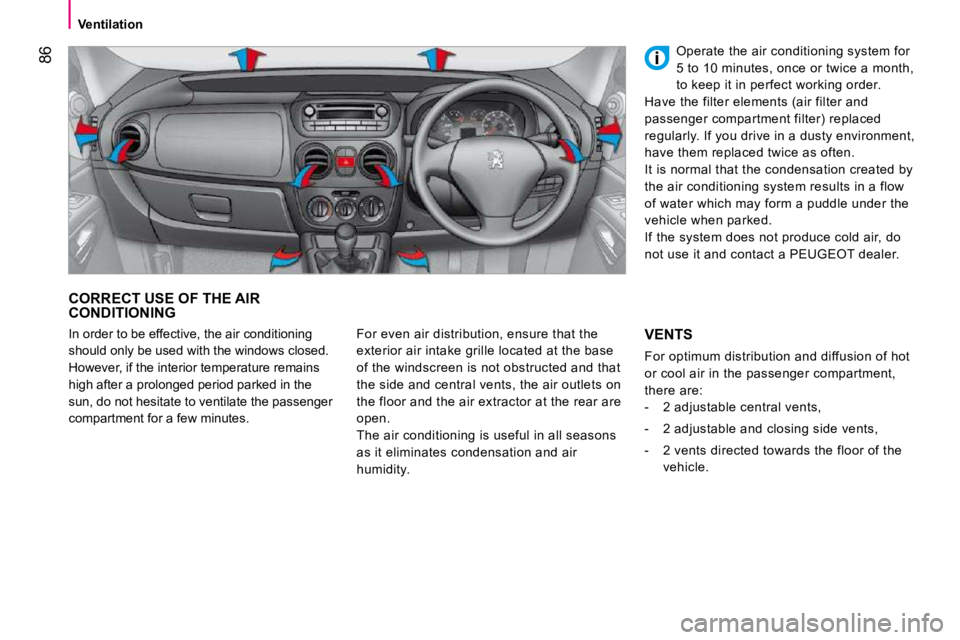

VENTS
For optimum distribution and diffusion of hot
or cool air in the passenger compartment,
there are:
- 2 adjustable central vents,
- 2 adjustable and closing side vents,
- 2 vents directed towards the floor of the vehicle.
In order to be effective, the air conditioning
should only be used with the windows closed.
However, if the interior temperature remains
high after a prolonged period parked in the
sun, do not hesitate to ventilate the passenger
compartment for a few minutes.
Page 95 of 166
87
4
EASE OF USE and COMFORT
Ventilation

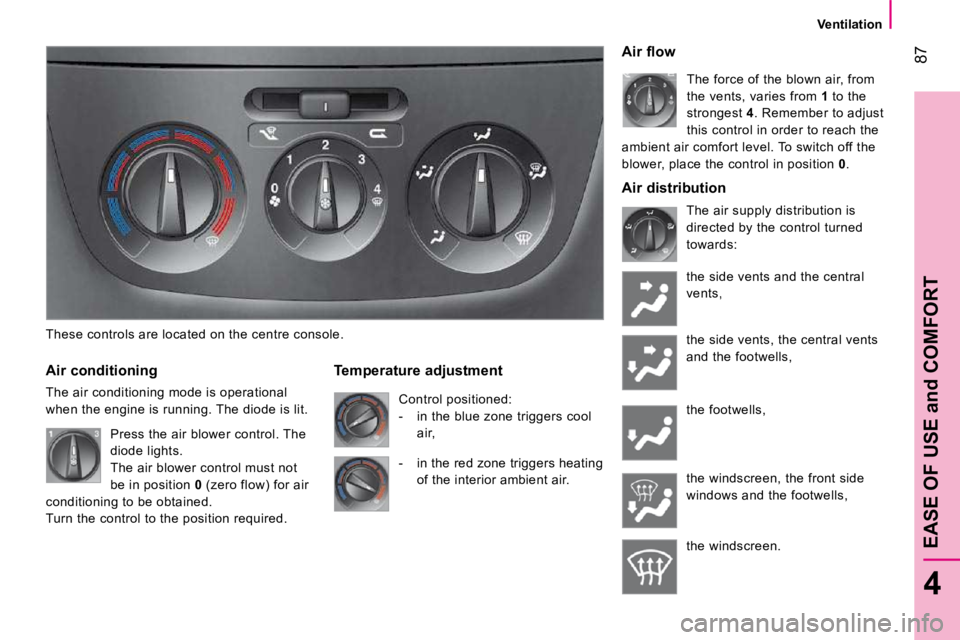

These controls are located on the centre console.
Air conditioning
The air conditioning mode is operational
when the engine is running. The diode is lit.
Temperature adjustment Control positioned:
- in the blue zone triggers cool
air,
Air flow
The force of the blown air, from
the vents, varies from 1 to the
strongest 4 . Remember to adjust
this control in order to reach the
ambient air comfort level. To switch off the
blower, place the control in position 0 .
The air supply distribution is
directed by the control turned
towards:
the side vents and the central
vents,
the side vents, the central vents
and the footwells,
the footwells,
the windscreen, the front side
windows and the footwells,
the windscreen.
Press the air blower control. The
diode lights.
The air blower control must not
be in position 0 (zero flow) for air
conditioning to be obtained.
Turn the control to the position required.
- in the red zone triggers heating
of the interior ambient air.
Air distribution
Page 124 of 166
111
5
SAFETY
Child safety
ADVICE ON CHILD SEATS
Installing a booster seat
The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a
booster seat which has a back, fitted with a
seat belt guide at shoulder level.
As a safety precaution, do not leave:
- one or more children alone and unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with the windows
closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the doors,
use the "Child lock".
Children under the age of 10 must not travel
in the "forward facing" position on the front
passenger seat, unless the rear seats are
already occupied by other children, cannot
be used or are absent.
Deactivate the passenger's airbag when a
"rear facing" child seat is installed on the
front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag were
to inflate.
The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Remember to fasten the seat belts or the
child seat harnesses
keeping the slack in
relation to the child's body to a minimum ,
even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back of
the vehicle's seat and that the head restraint
does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.
To protect young children from the sun,
fit side blinds on the rear windows.
