Peugeot Bipper 2014.5 - RHD (UK, Australia) Owner's Guide

29
Bipper_en_Chap03_pret-a-partir_ed02-2014

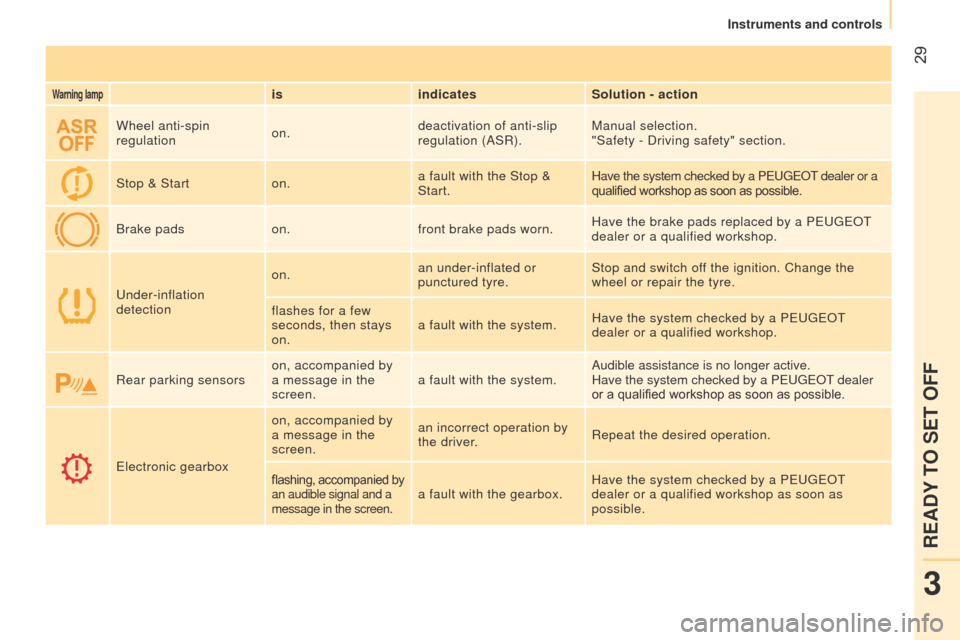

Warning lampisindicates Solution - action
Wheel anti-spin
regulation on.deactivation of anti-slip
regulation (ASR). Manual selection.
"Safety - Driving safety" section.
Stop & Start on.a fault with the Stop &
Start. Have the system checked by a P
euge O t
dealer or a

qualified workshop as soon as possible.
Brake pads on.front brake pads worn. Have the brake pads replaced by a P
euge O t

dealer or a qualified workshop.
u

nder-inflation
detection on.
an under-inflated or
punctured tyre. Stop and switch off the ignition. Change the
wheel or repair the tyre.
flashes for a few
seconds, then stays
on. a fault with the system.
Have the system checked by a P
euge O t

dealer or a qualified workshop.
Rear parking sensors on, accompanied by


a message in the
screen. a fault with the system. Audible assistance is no longer active.
Have the system checked by a P
euge O t
dealer
or a qualified workshop as soon as possible.
e

lectronic gearbox on, accompanied by
a message in the
screen.
an incorrect operation by
the driver.
Repeat the desired operation.
flashing, accompanied by
an audible signal and a
message in the screen.a fault with the gearbox.Have the system checked by a P euge O t
dealer or a qualified workshop as soon as
possible.
3
READY TO SET OFF
Instruments and controls

30
Bipper_en_Chap03_pret-a-partir_ed02-2014

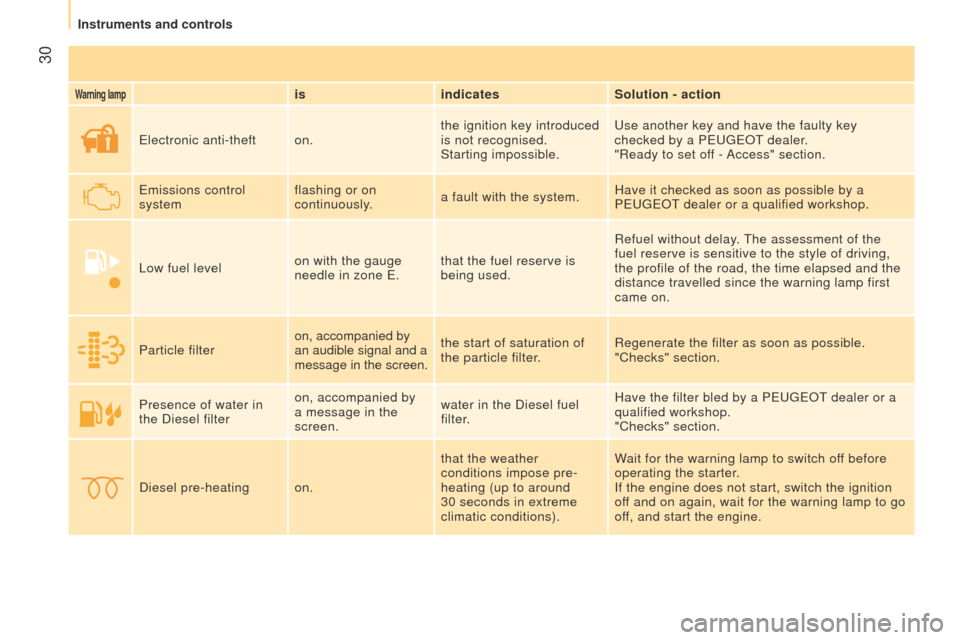

Warning lampisindicates Solution - action
e

lectronic anti-theft on.the ignition key introduced
is not recognised.
Starting impossible.
u

se another key and have the faulty key
checked by a P
euge O t
dealer
.
"Ready to set off - Access" section.
e

missions control
system flashing or on
continuously.
a fault with the system. Have it checked as soon as possible by a
P
euge O t
dealer or a qualified workshop.
l

ow fuel level on with the gauge
needle in zone
e .that the fuel reserve is
being used. Refuel without delay.
t

he assessment of the
fuel reserve is sensitive to the style of driving,
the profile of the road, the time elapsed and the
distance travelled since the warning lamp first
came on.
Particle filter on, accompanied by
an audible signal and a
message in the screen.the start of saturation of
the particle filter.
Regenerate the filter as soon as possible.
"Checks" section.
Presence of water in
the Diesel filter on, accompanied by
a message in the
screen.water in the Diesel fuel
filter. Have the filter bled by a P
euge O t
dealer or a

qualified workshop.
"Checks" section.
Diesel pre-heating on.that the weather
conditions impose pre-
heating (up to around
30 seconds in extreme
climatic conditions). Wait for the warning lamp to switch off before
operating the starter.
If the engine does not start, switch the ignition
off and on again, wait for the warning lamp to go
off, and start the engine.
Instruments and controls

31
Bipper_en_Chap03_pret-a-partir_ed02-2014

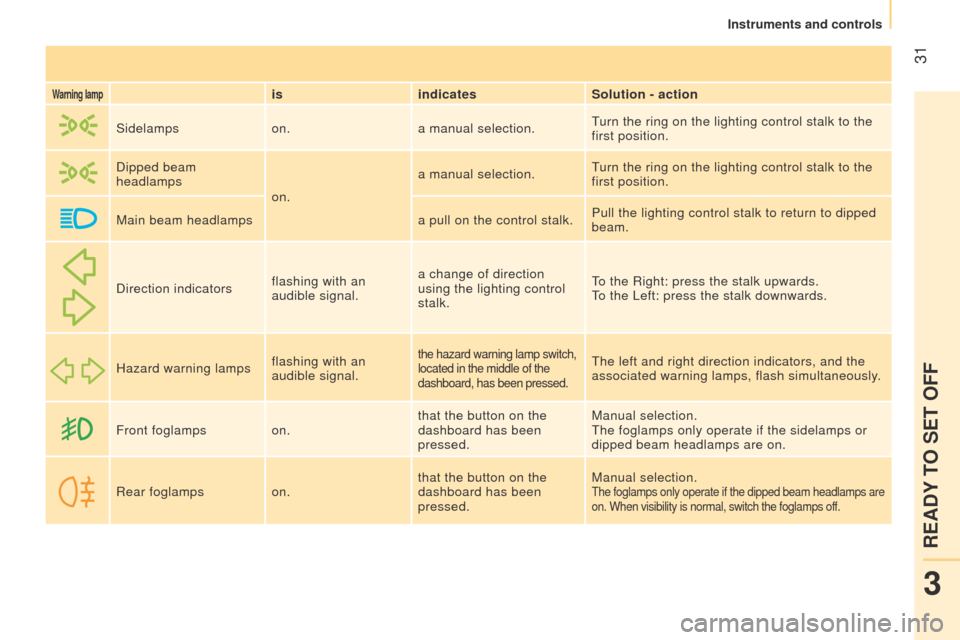

Warning lampisindicates Solution - action
Sidelamps on.a manual selection.
turn the ring on the lighting control stalk to the


first position.
Dipped beam
headlamps on.a manual selection.
turn the ring on the lighting control stalk to the


first position.
Main beam headlamps a pull on the control stalk.Pull the lighting control stalk to return to dipped
beam.
Direction indicators flashing with an
audible signal.a change of direction
using the lighting control
stalk.
to the Right: press the stalk upwards.to the

l eft: press the stalk downwards.
Hazard warning lamps flashing with an
audible signal.
the hazard warning lamp switch,
located in the middle of the
dashboard, has been pressed.the left and right direction indicators, and the
associated warning lamps, flash simultaneously .
Front foglamps on.that the button on the
dashboard has been
pressed. Manual selection.
t

he foglamps only operate if the sidelamps or
dipped beam headlamps are on.
Rear foglamps on.that the button on the
dashboard has been
pressed. Manual selection.
the foglamps only operate if the dipped beam headlamps are
on. When visibility is normal, switch the foglamps of f.
3
READY TO SET OFF
Instruments and controls

32
Bipper_en_Chap03_pret-a-partir_ed02-2014
Warning lampisindicates Solution - action

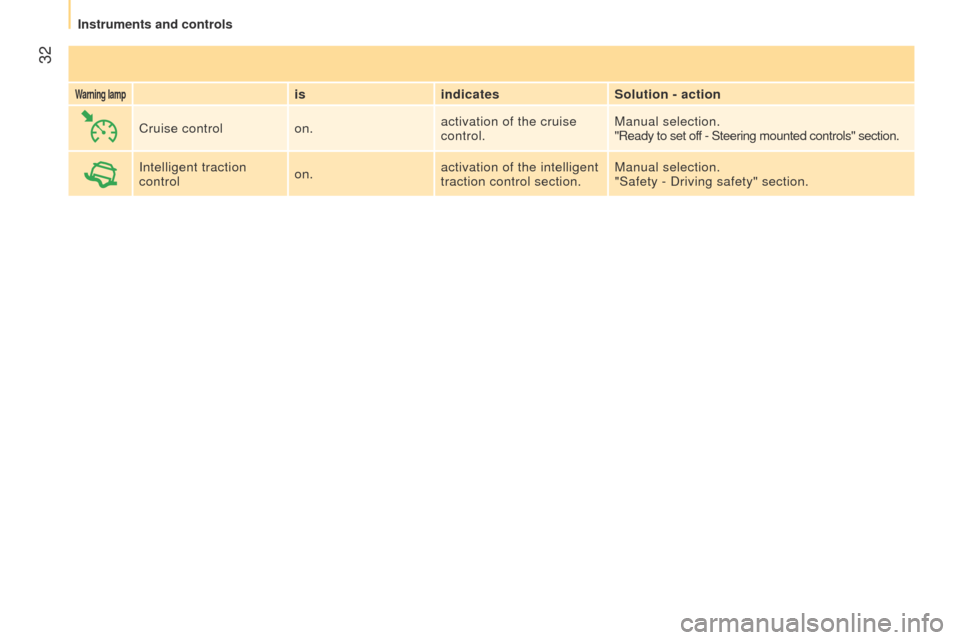

Cruise control on.activation of the cruise
control. Manual selection.
"Ready to set off - Steering mounted controls" section.
Intelligent traction
control on.activation of the intelligent
traction control section. Manual selection.
"Safety - Driving safety" section.
Instruments and controls

33
Bipper_en_Chap03_pret-a-partir_ed02-2014

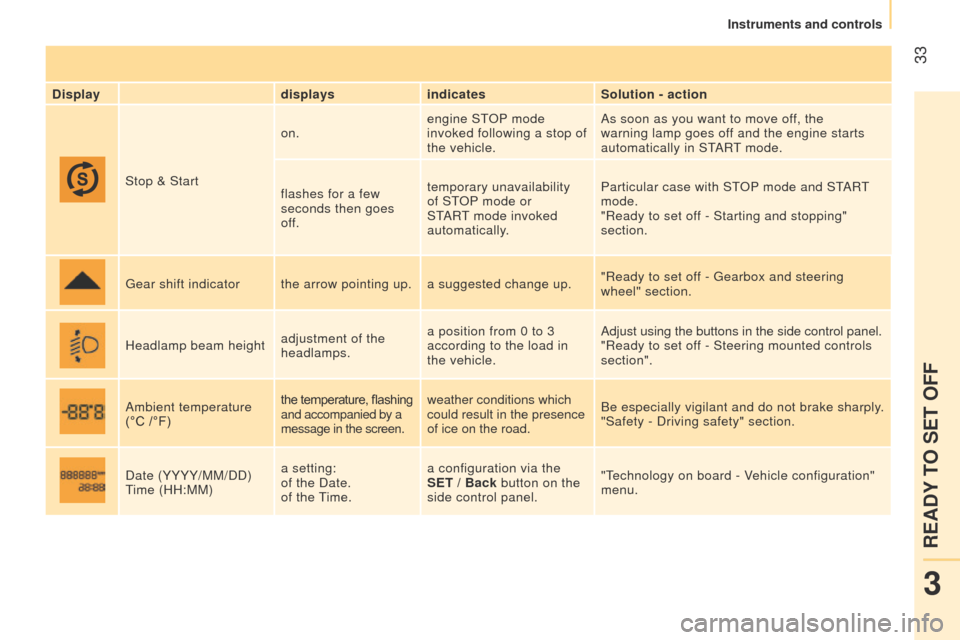

Displaydisplaysindicates Solution - action
Stop & Start on.
engine S
t
OP
mode
invoked following a stop of
the vehicle. As soon as you want to move off, the
warning lamp goes off and the engine starts
automatically in S
t
ARt mode.
flashes for a few


seconds then goes
off. temporary unavailability
of S
t
OP
mode or
S
t
ARt mode invoked

automatically. Particular case with S
t
OP
mode and S t
ARt
mode.
"Ready to set of

f - Starting and stopping"
section.
g

ear shift indicator the arrow pointing up. a suggested change up. "Ready to set off -
g earbox and steering
wheel" section.
Headlamp beam height adjustment of the
headlamps.a position from 0 to 3
according to the load in
the vehicle. Adjust using the buttons in the side control panel.
"Ready to set off - Steering mounted controls
section".
Ambient temperature
(°C /°F) the temperature, flashing
and accompanied by a
message in the screen.weather conditions which
could result in the presence
of ice on the road.
Be especially vigilant and do not brake sharply.
"Safety - Driving safety" section.
Date (YYYY/MM/DD)
time (HH:MM) a setting:
of the Date.
of

the t
ime.a configuration via the


SET / Back button on the
side control panel. "
t
echnology on board - V
ehicle configuration"
menu.
3
READY TO SET OFF
Instruments and controls

34
Bipper_en_Chap03_pret-a-partir_ed02-2014

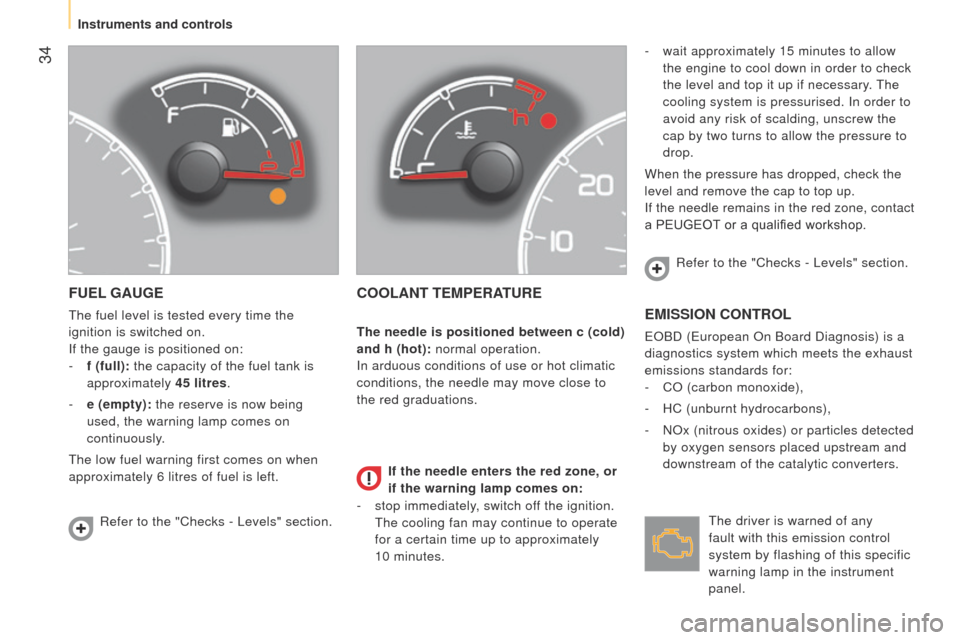

FUEL GAUGE
the fuel level is tested every time the
ignition is switched on.
If the gauge is positioned on:
-

f (full):
the capacity of the fuel tank is
approximately 45 litres.
-

e (empty):
the reserve is now being
used, the warning lamp comes on
continuously.
t

he low fuel warning first comes on when
approximately 6 litres of fuel is left.
COOLANT TEMPERATURE
- wait approximately 15 minutes to allow
the engine to cool down in order to check
the level and top it up if necessary.
t

he
cooling system is pressurised. In order to
avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure to
drop.
When the pressure has dropped, check the
level and remove the cap to top up.
If the needle remains in the red zone, contact
a PEUGEOT or a qualified workshop.
EMISSION CONTROL
eOBD (european On Board Diagnosis) is a
diagnostics system which meets the exhaust
emissions standards for:
-

CO (carbon monoxide),
-


HC (unburnt hydrocarbons),
-


NOx (nitrous oxides) or particles detected

by oxygen sensors placed upstream and
downstream of the catalytic converters.
Refer to the "Checks -
l
evels" section. Refer to the "Checks -
l evels" section.
t

he driver is warned of any
fault with this emission control
system by flashing of this specific
warning lamp in the instrument
panel.
If the needle enters the red zone, or
if the warning lamp comes on:
The needle is positioned between c (cold)
and h (hot): normal operation.
In arduous conditions of use or hot climatic
conditions, the needle may move close to
the red graduations.
-

stop immediately

, switch off the ignition.
t

he cooling fan may continue to operate
for a certain time up to approximately
10

minutes.
Instruments and controls

35
Bipper_en_Chap03_pret-a-partir_ed02-2014

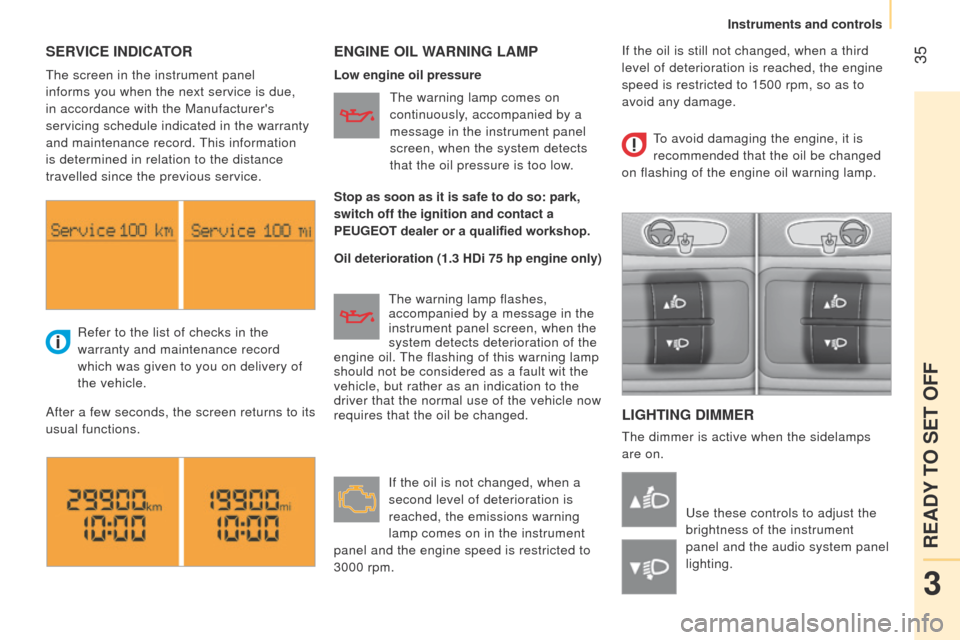

SERVICE INDICATORENGINE OIL WARNING LAMP
L IGHTING DIMMER
the dimmer is active when the sidelamps
are on.
Refer to the list of checks in the

warranty and maintenance record
which was given to you on delivery of
the vehicle.
After a few seconds, the screen returns to its
usual functions.
u

se these controls to adjust the
brightness of the instrument
panel and the audio system panel
lighting.
t

he screen in the instrument panel
informs you when the next service is due,
in accordance with the Manufacturer's
servicing schedule indicated in the warranty
and maintenance record.
t

his information
is determined in relation to the distance
travelled since the previous service. Low engine oil pressure
Oil deterioration (1.3 HDi 75 hp engine only)
t

he warning lamp comes on
continuously, accompanied by a
message in the instrument panel
screen, when the system detects
that the oil pressure is too low.
t

he warning lamp flashes,
accompanied by a message in the
instrument panel screen, when the
system detects deterioration of the
engine oil.
t

he flashing of this warning lamp
should not be considered as a fault wit the
vehicle, but rather as an indication to the
driver that the normal use of the vehicle now
requires that the oil be changed.
If the oil is not changed, when a
second level of deterioration is
reached, the emissions warning
lamp comes on in the instrument
panel and the engine speed is restricted to
3000 rpm.
to avoid damaging the engine, it is

recommended that the oil be changed
on flashing of the engine oil warning lamp.
Stop as soon as it is safe to do so: park,
switch off the ignition and contact a
PEUGEOT dealer or a qualified workshop. If the oil is still not changed, when a third
level of deterioration is reached, the engine
speed is restricted to 1500 rpm, so as to
avoid any damage.
3
READY TO SET OFF
Instruments and controls

36
Bipper_en_Chap03_pret-a-partir_ed02-2014

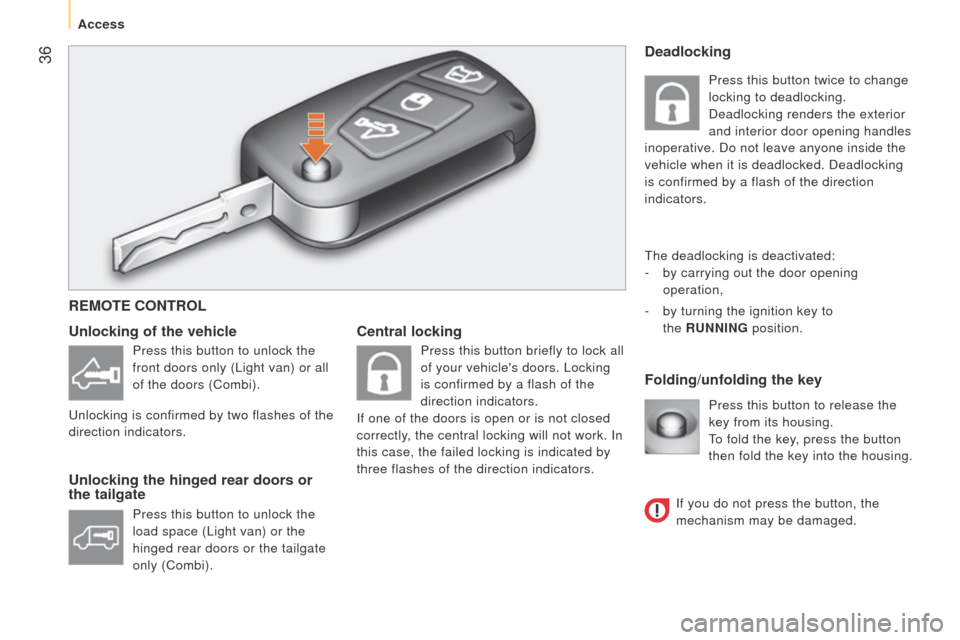

Central lockingFolding/unfolding the key
Unlocking of the vehicle
Unlocking the hinged rear doors or
the tailgate
Press this button to release the
key from its housing.
to fold the key

, press the button
then fold the key into the housing.
Deadlocking
the deadlocking is deactivated:
-
by carrying out the door opening

operation,
-

by turning the ignition key to

the

RUNNING
position.
REMOTE CONTROL
Press this button to unlock the
front doors only (l ight van) or all
of the doors (Combi).
u

nlocking is confirmed by two flashes of the
direction indicators.
Press this button to unlock the
load space (
l ight van) or the
hinged rear doors or the tailgate
only (Combi). Press this button briefly to lock all
of your vehicle's doors.
l ocking
is confirmed by a flash of the
direction indicators.
If one of the doors is open or is not closed
correctly, the central locking will not work. In
this case, the failed locking is indicated by
three flashes of the direction indicators. Press this button twice to change
locking to deadlocking.
Deadlocking renders the exterior
and interior door opening handles
inoperative. Do not leave anyone inside the
vehicle when it is deadlocked. Deadlocking
is confirmed by a flash of the direction
indicators.
If you do not press the button, the


mechanism may be damaged.
Access

37
Bipper_en_Chap03_pret-a-partir_ed02-2014

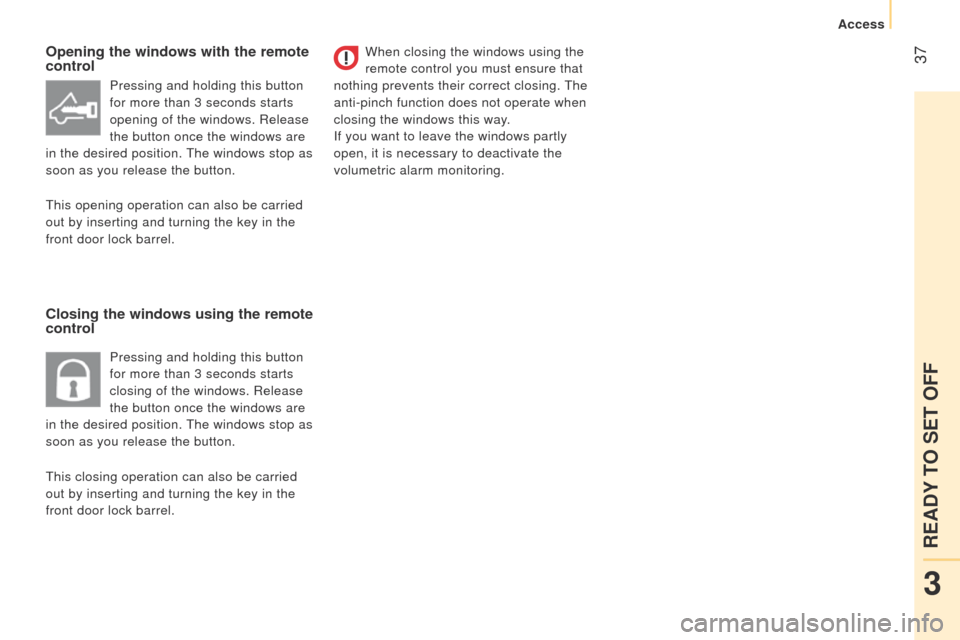

Opening the windows with the remote
control
Closing the windows using the remote
controlWhen closing the windows using the
remote control you must ensure that
nothing prevents their correct closing.
t

he
anti-pinch function does not operate when
closing the windows this way.
If you want to leave the windows partly
open, it is necessary to deactivate the
volumetric alarm monitoring.
Pressing and holding this button
for more than 3 seconds starts
opening of the windows. Release
the button once the windows are
in the desired position.
t

he windows stop as
soon as you release the button.
t

his closing operation can also be carried
out by inserting and turning the key in the
front door lock barrel.
t

his opening operation can also be carried
out by inserting and turning the key in the
front door lock barrel.
Pressing and holding this button
for more than 3 seconds starts
closing of the windows. Release
the button once the windows are
in the desired position.
t

he windows stop as
soon as you release the button.
3
READY TO SET OFF
Access

38
Bipper_en_Chap03_pret-a-partir_ed02-2014

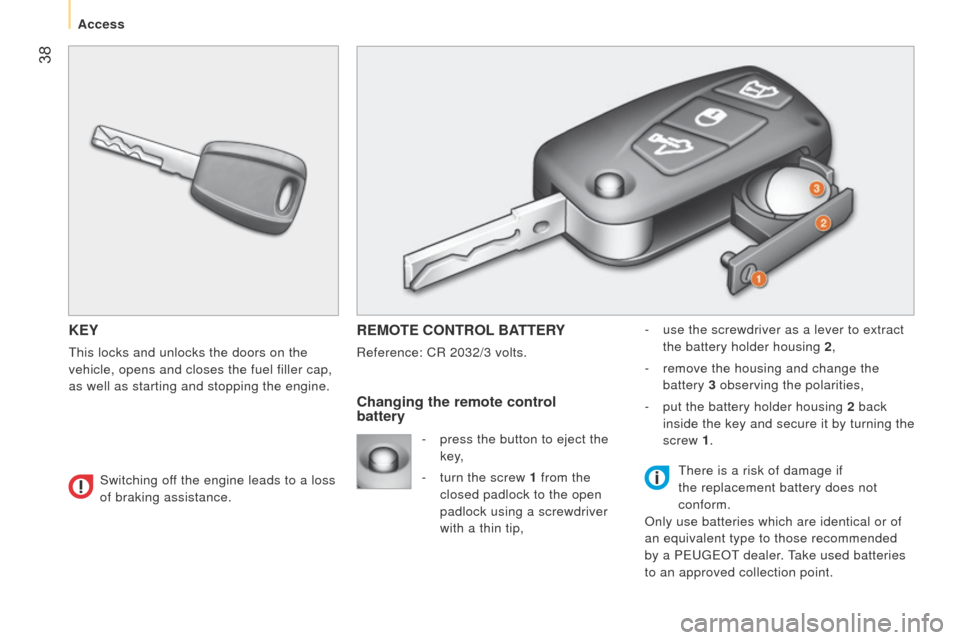

KEY
this locks and unlocks the doors on the
vehicle, opens and closes the fuel filler cap,
as well as starting and stopping the engine.
REMOTE CONTROL BATTERY
Reference: CR 2032/3 volts. -
use the screwdriver as a lever to extract

the battery holder housing 2,
- remove the housing and change the
battery 3 observing the polarities,
-

put the battery holder housing
2 back
inside the key and secure it by turning the
screw 1.
Changing the remote control
battery
there is a risk of damage if
the replacement battery does not
conform.
Only use batteries which are identical or of
an equivalent type to those recommended
by a P
euge O t
dealer
.
take used batteries

to an approved collection point.
-

press the button to eject the


key,
-
turn the screw
1 from the
closed padlock to the open
padlock using a screwdriver
with a thin tip,
Switching off the engine leads to a loss
of braking assistance.
Access
