Page 81 of 154
69
3
IN-CAR TECHNOLOGY

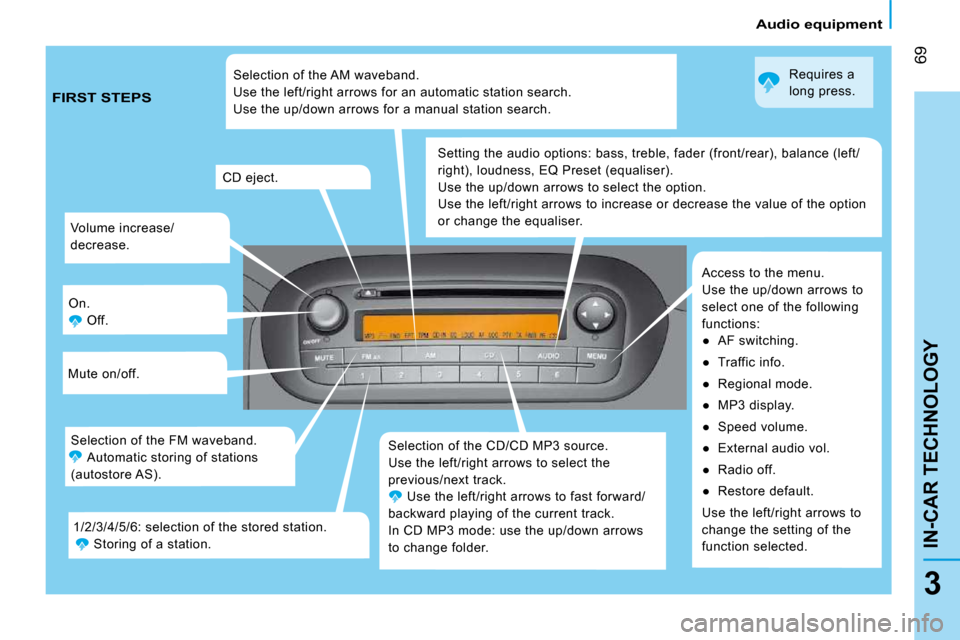

Audio equipment
Volume increase/
decrease.
On. Off.
Mute on/off.
Selection of the CD/CD MP3 source.
Use the left/right arrows to select the
previous/next track. Use the left/right arrows to fast forward/
backward playing of the current track.
In CD MP3 mode: use the up/down arrows
to change folder. Setting the audio options: bass, treble, fader (fr
ont/rear), balance (left/
right), loudness, EQ Preset (equaliser).
Use the up/down arrows to select the option.
Use the left/right arrows to increase or decrease the value of the option
or change the equaliser.
Access to the menu.
Use the up/down arrows to
select one of the following
functions:
Page 82 of 154
70
Audio equipment
"AUDIO FUNCTIONS" MENU
R D S " A F S w i t c h i n g "
The RDS (Radio Data System) enables you
to continue listening to the same station,
regardless of the frequency that it uses in
your current location. The audio equipment
continuously searches for the transmitter
which offers the best reception for the
station.
Press the " " or " " button to activate
(ON) or deactivate (OFF) the RDS.
On the FM waveband, "AF" appears on
the display if the RDS is activated and the
station is broadcasting with the RDS.
" T r a f fi c I n f o "
All traffic information announcements will be
given priority regardless of which source is
currently playing.
The EON (Enhanced Other Networks)
system links stations which belong to the
same network.
" R e g i o n a l M o d e "
Some stations, organised in a network,
broadcast regional programmes in the
various areas which they serve. The regional
mode allows you to choose to continue
listening to the same programme.
Press the " " or " " button to activate
(ON) or deactivate (OFF) the REG function.
On the FM waveband, "LOC" appears on the
display if the REG function is activated and
the station finds a local frequency.
Press the " " or " " button to display the
track number or the MP3 CD information
(Artist/Album/Folder/File/Title/Time elapsed).
Automatic volume control "Speed Volume"
Press the " " or " " button to minimise
(LOW), maximise (HIGH) or deactivate
(OFF) the automatic control of the volume in
relation to the vehicle speed.
I t a l l o w s y o u t o r e c e i v e t r a f fi c i n f o r m a t i o n
transmitted by a station which belongs to the same
network as the station to which you are listening.
T h e v o l u m e o f t h e t r a f fi c i n f o r m a t i o n i s
independent of the volume of the other sources.
You can adjust it using the volume button during
t r a f fi c a n n o u n c e m e n t s ; t h i s s e t t i n g w i l l b e s t o r e d
for the next announcement.
Press the " " or " " button to activate (ON) or
deactivate (OFF) the TA function.
On the FM waveband, "TA" appears on the display
if the TA function is activated and "TPM" appears i f
t h e s t a t i o n b r o a d c a s t s t r a f fi c i n f o r m a t i o n .
"External Audio Vol"
Press the " " or " " button to decrease (down
to 0 minimum), increase (up to 40 maximum)
or deactivate (OFF) the volume of the external
source (e.g.: hands-free kit).
P r o g r a m m e d s w i t c h i n g o f f " R a d i o Off"
Press the " " or " " button to programme
the switch-off time of "00 MIN" or "20 MIN".
This countdown is taken into account with
the doors closed and the key in the STOP
position.
"Restore Default"
Press the " " or " " button to retain the
modified values (NO) or restore the default
values (YES).
"Restoring" appears on the display during
the resetting of the configuration values.
"MP3" appears on the display if the function
is activated and the CD contains tracks in
the MP3 format.
Press the
MENU button
on the audio equipment to
gain access to the "Audio
functions" menu.
Press the " " or " " button to
s e l e c t o n e o f t h e c o n fi g u r a b l e
audio functions below.
Page 83 of 154
22
11
71
3
IN-CAR TECHNOLOGY
Audio equipment
CD
PLAYING A CD OR AN MP3 COMPILATION
Insert circular compact discs only.
Some anti-pirating systems, on original
discs or CDs copied using a personal
recorder, may cause faults which are no reflection on the
quality of the original player.
Insert a CD or an MP3 compilation in
the player, play begins automatically.
If the player already contains a disc,
press the CD button.
Press one of the buttons to select a
track on the CD. The MP3 format, an abbreviation of MPEG 1.2 & 2.5
Audio Layer 3, is an audio compression standard whi
ch
permits the recording of several tens of music file s on a
single disc.
MP3
In order to be able to play a recorded CDR or CDRW , when
recording it is preferable to select standards ISO 9660
level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played
correctly.
It is recommended that the same recording standard is
always used for an individual disc, with as low a s peed as
possible (4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet
standard is recommended.
The audio equipment will only play files with the extension
".mp3" with a sampling rate of 22.05 KHz or 44.1 KH z. No
other type of file (.wma, .mp4, m3u...) can be play ed.
It is advisable to restrict file names to 20 chara cters without
u s i n g s p e c i a l c h a r a c t e r s ( e . g . : " " ? ; ) t o a v o i d a n y p l a y i n g o r
displaying problems.
Page 84 of 154
72
Mobile telephone with hands-free function
MOBILE TELEPHONE WITH HANDS-FREE FUNCTION
This new equipment uses wireless
communication technology referred to
as Bluetooth®
which allows you to make
hands-free telephone calls safely from inside
your vehicle via your Bluetooth ®
compatible
mobile telephone. An incoming call is picked up by pressing
the button represented by a green
telephone. The sound of the telephone call
is transmitted via the vehicle's audio system.
The microphone is incorporated in the
courtesy light console.
Hang up by pressing the button represented
by a red telephone.
Turn the ignition key to the
RUNNING
position.
Switch on your mobile telephone.
Activate the Bluetooth ®
function on
your mobile telephone and search for
the Bluetooth ®
accessories around the
telephone.
Follow the instructions on your mobile
telephone during the matching and the search
between the telephone and the system.
E n t e r t h e c o n n e c t i o n c o d e " 1 2 3 4 " a n d c o n fi r m .
Your mobile telephone is now connected in
Bluetooth ®
mode with the vehicle's hands-
free system (matching).
Activation of the system
Once your mobile telephone has been
matched with the vehicle's hands-free
system, simply: - turn the ignition key to the RUNNING
position,
- switch on your mobile telephone,
- activate the Bluetooth ®
function on your
mobile telephone.
When the connection is established, an
audible signal is heard and the message
"Phone" appears on the audio equipment
display, if it is switched on.
For further information, consult a PEUGEOT
dealer and your mobile telephone manual.
Page 85 of 154
73
3
IN-CAR TECHNOLOGY
Mobile telephone with hands-free function
M a n a g i n g i n c o m i n g c a l l s
When an incoming call is received, the
message "Phone" appears on the audio
equipment display, if it is switched on.
S i n g l e c a l l
To accept a call, press the green
button.
C a l l w a i t i n g
To accept a second call, press the green
button once.
To switch back to the first call, press the
green button again.
To decline the second call, press the red
button.
To end the call, press the red button again. To decline or end a call, press the
red button.
To switch the call between the system and
the mobile telephone (secret mode) and vice
versa, press the green button.
M a n a g i n g o u t g o i n g c a l l s
U s i n g t h e k e y p a d
Dial the number of the person to be called
on the mobile telephone keypad.
Press the "Pick up" button on the mobile
telephone.
Depending on the model of mobile
telephone, the call will be transferred to
hands-free mode automatically, if it is not,
press the green button.
To redial the last number dialled, press and
hold the green button until the number has
been redialled.
U s i n g t h e v o i c e c o m m a n d s
Press the green button.
Wait for the audible signal and/or the
appearance of the message "Phone" on the
audio equipment display.
Say the vocal identity of the person to be
called.
The system repeats the vocal identity
for confirmation and makes the call
automatically.
If the vocal identity repeated by the system
is not correct, press the red button to cancel
and start the procedure again.
C l e a r i n g t h e s y s t e m
To clear the contents of the system's
memory, press the green and red buttons
simultaneously for more than two seconds.
This operation clears all of the matched
mobile telephones and all of the telephone
numbers recorded in the system's memory.
For the next hands-free call you will have
to repeat the first connection to the system
(matching) procedure.
Good practice
You can match up to three mobile
telephones with the system. For safety reasons and because they
require prolonged attention on the part
of the driver, the operations for matching the
mobile telephone and the Bluetooth ®
hands-
free kit must be carried out with the vehicle
stationary and the ignition on.
In order to use the voice commands,
you must first record a vocal identity
and associate it with the telephone number
t o b e c a l l e d ; r e f e r t o y o u r m o b i l e t e l e p h o n e
manual.
It is only possible for the system to
manage the call waiting function if the
function is activated on the mobile telephone.
Page 86 of 154
74
Seats
FRONT SEATS
Head restraints
Head restraint height adjustment: to raise or
lower the head restraint, slide it by pressing
the lug.
The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
To remove the head restraint, release the
base of the rod to press the tab and raise
the head restraint to the highest position.
To refit the head restraint, press the tab of
the lug and engage the head restraint rods
in the openings keeping them in line with the
seat back.
Never drive with the head restraints
removed. They must be in place and
adjusted correctly.
Page 87 of 154
4
ERGONOMICS and COMFORT
Seats
Seat cushion height
To adjust the height of the driver's seat
cushion, pull the control upwards as many
times as necessary to raise.
To lower, push the control downwards as
many times as necessary.
Forwards-backwards adjustment Heated seat control
Press the control.
The temperature is controlled automatically.
Pressing a second time stops operation.
Lift the control bar and slide the seat
forwards or backwards to the required
position.
Lumbar support
Seat back angle
Turn the control to adjust the angle of the
seat back. Turn the control.
Page 88 of 154
76
Seats
RETRACTABLE PASSENGER SEAT Table position
Press the head restraint to place it in the
lowest position.
Push one of the controls rearwards, located
on each side of the seat back.
Lower the seat back onto the seat cushion
to the table position.
Retracted position
After placing the seat back in the table
position, pull the seat's rear strap while
guiding the folded seat back forwards and
towards the floor.
Returning the seat to the sitting position
Pull the seat's rear strap to unlock the seat.
Lift the seat from the front and the rear then
guide it forwards to bring it to the table position.
Push one of the controls rearwards, located on
each side of the seat back while pressing on
the seat back, then place the seat back in the
upright position.
P r e s s o n t h e s e a t b a c k fi r m l y t o t r i g g e r t h e
l o c k i n g o f t h e s e a t o n t h e fl o o r .
Adjust the head restraint using the button on
the side.
Only move the seat when the rear
seats are not occupied.
Page 89 of 154
77
4
ERGONOMICS and COMFORT
Seats
ONE-PIECE REAR BENCH SEAT
Table position
Press the head restraint and its lug
simultaneously to place the head restraint in
the low position.
Unlock the seat back by pushing the two
side controls. The red indicator becomes
visible.
Fold the seat back onto the seat cushion.
Fully folded position
After placing the seat back in the table
position, pull the central strap to unlock the
rear feet of the seat.
Lift the seat fully to secure it in the fully
folded position.
While driving, secure the red retaining
strap, located on the back of the bench
seat cushion, to one of the rods of a front head
restraint.
Removing the bench seat
After placing the bench seat in the fully
folded position, lower the transverse bar to
unlock the front feet of the seat.
Lift the bench seat to detach it from its front
anchorages.
Page 90 of 154
78
Seats
Returning the bench seat to its position
Put the bench seat in place in its front
anchorages in the fully folded position.
Fold the bench seat to the table position,
the front and rear feet of the seat lock
automatically.
Returning the bench seat to the sitting position
Lift the bench seat back.
Take care not to trap the seat belts.
Lock the seat back by pushing it fully
towards the rear. The red indicator is no
longer visible.
Rear head restraints
The rear head restraints can be removed
and have two positions:
high, position for use,
low, storage position.
To raise or lower a head restraint, pull it
forwards sliding it at the same time.
To remove it, place it in the high position,
push the lug and pull it forwards and
upwards.
To refit it, engage the head restraint rods
in the holes taking care to remain in the
centreline of the seat back.
Never drive with the head restraints
removed, they must be in place and
correctly adjusted.
