7
FAMILIARISATION
Familiarisation
INTERIOR
Trip computer
By means of the MENU button, this system
permits management or consultation of the
v a r i o u s v e h i c l e c o n fi g u r a t i o n s / i n f o r m a t i o n s u c h
as the disarming of the passenger air bag, the
automatic locking of the doors, the language,
etc.
64
Retractable multifunction passenger
seat
T h i s e q u i p m e n t e n a b l e s y o u t o c o n fi g u r e y o u r
passenger seat in three positions:
- seat for the transportation of a passenger,
- table to accommodate your various
documents... ,
- retracted for the transportation of long objects.
76
Audio system
T h i s e q u i p m e n t b e n e fi t s f r o m t h e l a t e s t
technology: MP3 compatible audio equipment
and Bluetooth ®
hands-free kit.
69
Cruise control/speed limiter
These two systems maintain the speed of the
vehicle at the programmed value.
41, 44
Electronic gearbox system
This equipment guarantees perfect driving
by combining a fully automatic mode and a
manual mode.
50
Page 14 of 154
17
FAMILIARISATION
Familiarisation
DRIVE SAFELY
Piloted manual gearbox Display on the instrument panel Moving off
50
T h i s fi v e - s p e e d g e a r b o x o f f e r s a c h o i c e
between the comfort of fully automatic
operation or the pleasure of manual gear
changing.
R. Reverse.
N. Neutral.
A. Automated mode.
M +/-. Sequential mode. The gear or the driving mode selected appears
on the instrument panel display.
R: reverse gear.
N: neutral.
AUTO: automatic mode.
1 2 3 4 5: gears engaged. Select position
N and press the brake pedal
fi r m l y w h i l e s t a r t i n g t h e e n g i n e .
E n g a g e fi r s t g e a r ( p o s i t i o n A or M ) or reverse
(position R ) using the gear lever.
Page 15 of 154
18
Familiarisation
DRIVE SAFELY
Cruise control "CRUISE"
1. Cruise control mode Selection/Off.
2. Programming of a speed/Decreasing of
the programmed value.
3. Programming of a speed/Increasing of the
programmed value.
4. Cruise control Off/Resume.
In order to be programmed or activated, the
speed of the vehicle must be higher than
25 mph (40 km/h), with at least fourth gear
engaged on the manual gearbox (second on
the electronic gearbox system).
41
44
1. Speed limiter mode Selection/Off.
2. Decreasing of the programmed value.
3. Increasing of the programmed value.
4. Speed limiter On/Off.
The values must be set with the engine
running.
Speed limiter "LIMIT"
The cruise control or speed limiter mode
appears on the instrument panel when
selected.
Display on the instrument panel
Cruise control
Speed limiter
Page 16 of 154
19
1
READY TO SET OFF
Instruments and controls
INSTRUMENT PANELS
1. Distance recorder in kilometres/miles.
2. Display.
3. Fuel gauge.
4. Coolant temperature.
5. Rev counter.
Instrument panel with level 1 display Instrument panel with level 2 display
Instrument panel display level 1
- Time,
- Kilometres/Miles travelled,
- Trip computer/range, consumption,
average speed,
- Headlamp height,
- Programmable overspeed warning,
- Arming or disarming of the passenger air bag.
Instrument panel display level 2
- Time,
- Date,
- Radio,
- Kilometres/Miles travelled,
- Exterior temperature,
- Modes and gears engaged on the piloted manual gearbox,
- Trip computer/range, consumption, average speed
- Headlamp height,
- Programmable overspeed warning,
- Selection of the display language,
- Arming or disarming of the passenger air bag,
- Activation or deactivation of the automatic locking of the doors while
driving.
Page 17 of 154
20
Instruments and controls
Instrument panel with level 3 display
Instrument panel display level 3
- Cruise control/Speed limiter,
- Time,
- Date,
- Radio,
- Kilometres/Miles travelled,
- Exterior temperature,
- Modes and gears engaged on the piloted manual gearbox, - Trip computer/range, consumption,
average speed,
- Headlamp height,
- Programmable overspeed warning,
- Selection of the display language,
- Arming or disarming of the passenger air bag,
- Activation or deactivation of the automatic locking of the doors while
driving.
Page 23 of 154
26
Instruments and controls
Warning lamp
is indicates Solution - action
Rear parking
assistance on. failure of the system. The audible assistance is no longer active.
Have the system checked by a PEUGEOT
dealer without delay.
Electronic gearbox
system on, accompanied
by the flashing of
"AUTO".
failure of the gearbox.
Have the system checked by a PEUGEOT
dealer without delay.
Display displays indicates Solution - action
Exterior temperature the temperature which
flashes accompanied
by a message on the
display. weather conditions which
could result in the presence
of ice on the road.
Be especially vigilant and do not brake
sharply. Refer to the "Driving safety" section of
chapter 5.
Date
11:00:00 a setting:
of the Date.
of the Time. a configuration via the
MENU menu.
Refer to the "Menu" section of chapter 3.
Headlamp beam height a headlamp height
setting. a position from 0 to 3
depending on the load
carried. Adjust using the control on the fascia panel.
Refer to the "Steering wheel controls" section
of chapter 1.
Page 24 of 154
26
Instruments and controls
Warning lamp
is indicates Solution - action
Rear parking
assistance on. failure of the system. The audible assistance is no longer active.
Have the system checked by a PEUGEOT
dealer without delay.
Electronic gearbox
system on, accompanied
by the flashing of
"AUTO".
failure of the gearbox.
Have the system checked by a PEUGEOT
dealer without delay.
Display displays indicates Solution - action
Exterior temperature the temperature which
flashes accompanied
by a message on the
display. weather conditions which
could result in the presence
of ice on the road.
Be especially vigilant and do not brake
sharply. Refer to the "Driving safety" section of
chapter 5.
Date
11:00:00 a setting:
of the Date.
of the Time. a configuration via the
MENU menu.
Refer to the "Menu" section of chapter 3.
Headlamp beam height a headlamp height
setting. a position from 0 to 3
depending on the load
carried. Adjust using the control on the fascia panel.
Refer to the "Steering wheel controls" section
of chapter 1.
Page 53 of 154
1
READY TO SET OFF
Steering wheel controls
Function selected,
displaying of the "Cruise Control" indicator
light.
Function deactivated,
OFF (example at 107 km/h). Function activated
(example at 107 km/h).
Vehicle speed above (e.g. 118 km/h),
the programmed speed is displayed flashing.
This cruise control shows the function
selection status on the instrument panel and
displays the programmed speed:
CRUISE CONTROL "CRUISE"
"This is the speed at which the
driver wishes to drive".
This aid to driving in free-flowing
traffic enables the vehicle to maintain the
speed programmed by the driver, unless a
steep gradient makes this impossible.
In order for it to be programmed or
activated, the vehicle speed must be greater
than 25 mph (40 km/h) with at least 4th gear
engaged on the manual gearbox (second on
the piloted manual gearbox). Operating fault detected,
OFF - the dashes flash.
Page 61 of 154
49
1
READY TO SET OFF
Gearbox and steering wheel
Good practice
To change gear easily, always press the
clutch pedal fully.
To prevent the mat from becoming caught under the pedal:
- ensure that the mat is positioned correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
Avoid leaving your hand on the gear knob
as the force exerted, even if slight, may
wear the internal components of the gearbox
over time.
STEERING WHEEL ADJUSTMENT MANUAL GEARBOX
Reverse gear
Never engage reverse gear before the
vehicle is completely stationary.
The lever should be moved slowly to reduce
the noise on engaging reverse gear.
If your vehicle is fitted with parking
assistance, the system comes into
operation when reverse gear is engaged and
an audible signal is heard.
Refer to the "Rear parking assistance"
section of chapter 3.

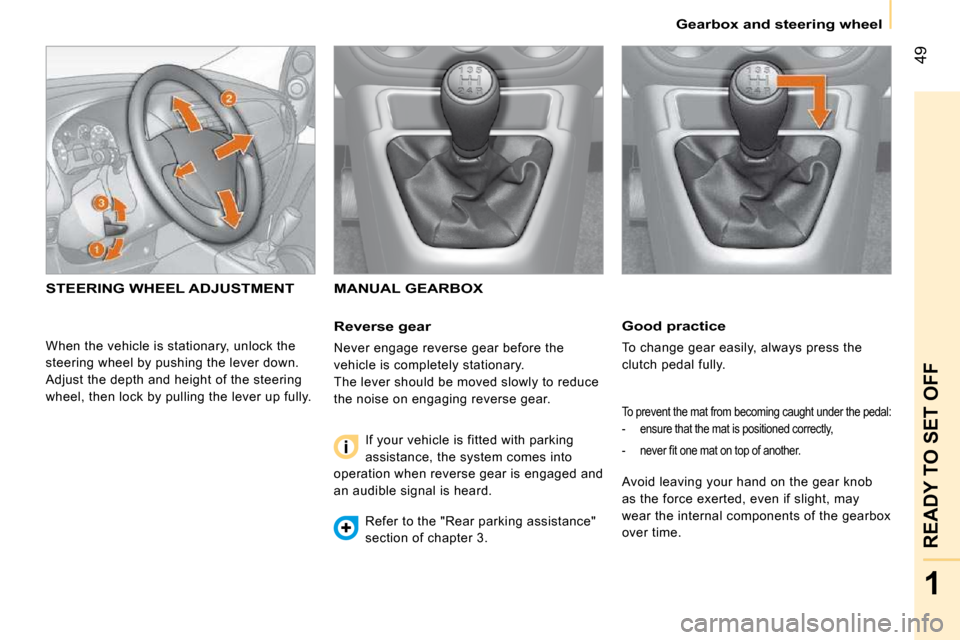

When the vehicle is stationary, unlock the
steering wheel by pushing the lever down.
Adjust the depth and height of the steering
wheel, then lock by pulling the lever up fully.
Page 62 of 154
50
Gearbox and steering wheel
PILOTED MANUAL GEARBOX
The five-speed piloted manual gearbox
offers a choice between the comfort of
automatic regulation or the pleasure of
manual gear changing.
This gearbox enables you to access two
driving modes:
- an automated mode for automatic control of the gears by the gearbox and therefore
without any action on the part of the
driver,
- a sequential mode for manual changing of the gears by the driver using the gear
lever.
It consists of a gear lever 1 on the centre
console for selecting the driving mode,
reverse gear and neutral or for changing
gear in sequential mode.
N: neutral.
With your foot on the brake, select this
position to start.
R: reverse gear.
With the vehicle stationary, keep your foot
on the brake pedal and push the gear lever
upwards.
A: automated mode.
Move the lever downwards to select this
mode.
M +/-: sequential mode with manual gear
changing.
Move the lever downwards, then to the left
to select this mode, then:
- push forward to change up,
- push rearward to change down.
Moving off
Select position N .
Press the brake pedal firmly while
starting the engine.
Start the engine. "N" appears on the
instrument panel display.
Select first gear (position M or A ) or reverse
(position R ).
Release the handbrake.
Release the brake pedal then accelerate.
"AUTO" and "1" or "R" appear on the
instrument panel display.
It is possible to move off in 2nd gear, in
sequential mode only.
