3YOUR BOXER AT A GLANCE
1 -Storage compartment.
2 - Left side vent.
3 - Upper glove box. Passenger air bag.
4 - Storage tray.
5 - Controls:
- Rear door windows
de-icing.
- Fog lamps.- Hazard lights.- Rear fog lamps- ASR.
6 - Audio equipment location or
storage compartment.
7 - Folding writing table.
8 - Central adjustable heating/
ventilation vents and airflow regulation.
9 - Gear lever.
10 - Lights and direction
indicators stalk. 11 -
Instrument dials.
12 - Windscreen wash-wipe
stalk.
13 - Right side vent.
14 - Storage compartment.
15 - Programmable heating.
16 - Right fuse box.
17 - Bonnet release control.
18 - Headlamp height
adjustment.
19 - Driver's air bag. Horn.
20 - Steering wheel adjustment
control.
21 - 12 V accessories socket.
22 - Heating/air conditioning
controls. 23 -
Ashtray.
24 - Storage compartment.
25 - Lighter.
26 - Passenger air bag
disarming control*.
27 - Lower glove box.
28 - Storage compartment.
29 - Left fuse box.
* According to destination.

16-09-2002
Vehicles fitted with front fog
lamps and a rear fog lamp
Front fog lamps. Rear fog lamps. WINDSCREEN WIPERS 4
Single wipe.
0 Off.
1 Intermittent wipe.
2 Normal wipe (moderate rainfall).
3 Rapid wipe (heavy rainfall).
Windscreen wash-wipe: pull thestalk towards you.
5YOUR BOXER AT A GLANCE
STEERING WHEEL
STALKS LIGHTING Front and rear lights
Lights off.
Side lights. Dipped headlamps. Main beam headlamps.
121122

16-09-2002
PEUGEOT SERVICING27
A, B AND C SERVICE LEVELS AND THE INTERMEDIATE VISIT
: All driving conditions: Arduous conditions * According to country.
1st Level
Operations Description of operation serviceAB C Intermediate
DRAIN/REFILL- Engine oil - Bleed fuel filter (diesel) - Oil filter - Fuel filter* (petrol)REPLACE- Fuel filter element (diesel)- Air filter element- Spark plugs (petrol)- Engine oil (check + top-up) - Manual gearbox oil (check + top-up) - Battery (check + top-up) if cap is removable LEVEL- Screen wash (check + top-up)- Coolant (check + top-up) - Brake fluid (check + top-up) - Power steering fluid (check + top up according to specification) - Operation of lights and indicators - Condition of glass, headlamp and light lenses and mirrors - Horn - Windscreen washer jets - Condition of wiper blades - Condition and tension of the ancillary drive belts - Handbrake and clutch - Condition of hydraulic circuits (hoses and covers) CHECK- Condition of rubber boots and gaiters - Brake pads - Play in hubs, link rods, ball joints, flexible mountings- Shock absorbers- Rear drum brake lining wear- Condition and pressure of tyres (including spare wheel) - Emission control check as per current legislation (petrol) - Smoke opacity (diesel) - Pollen filter (according to specification) - Visual check of the whole vehicle
SERVICE*- Courtesy vehicle
ROAD TEST

16-09-2002
1 -Coolant temperature gauge.
2 - Coolant temperature warning light.
3 - Door open warning light.
4 - Speedometer.
5 - Left direction indicator.
6 - Side lights and dippedheadlamps warning light.
7 - Main beam headlamps warning light.
8 - Right direction indicator. 9 -
Rev counter.
10 - Low fuel level warning light.
11 - Fuel gauge.
12 - Brake fluid level warning light.
13 - Traction control (ASR) warning
light.
14 - Passenger air bag disarmed warning light.
15 - Trip distance recorder display
control and zero reset button. 16 -
Front air bags warning light.
17 - Anti-lock braking system (ABS) warning light.
18 - Automatic gearbox temperatureor fault warning light.
19 - Low coolant level warning light.
20 - Service indicator, oil levelgauge, automatic gearbox
display, clock and distance
recorder.
21 - Diesel engine pre-heatingwarning light.
22 - Engine oil pressure warninglight.
23 - Battery charge warning light.
24 - Clock setting button.
25 - Engine autodiagnostics warninglight.
26 - Front brake pads wear warninglight.
27 - Handbrake warning light.
28 - Water in diesel filter warning
light.
29 - Electronic immobiliser keywarning light.
LE CONTRÔLE DE MARCHE
30
PETROL-DIESEL MANUAL AND AUTOMATIC GEARBOX
INSTRUMENT PANELS

16-09-2002
YOUR BOXER IN DETAIL121
THE LIGHTS STALK Front and rear lights Selection is by turning the ring.
Lights off Side lights Dipped headlamps
Main beam head- lamps Dipped / Main beam change Push the stalk forwards to switch on the main beam headlamps. Pull the stalk towards you to switch
them off. Note:
with the ignition off, when the
driver's door is opened, a buzzer sounds if you have left your lights on. Front fog lamps Press the button in the centre of the
instrument panel. The warning lighton the button comes on. The front fog lamps operate with the dipped and main beam headlamps. Direction indicators (flashers)
Left: downwards.
Right: upwards.
Rear fog lamps Press the button in the centre of the
instrument panel. The warning lighton the button comes on. The rear fog lamps operate with the dipped and main beam headlamps.
In good or rainy weather, both day and night, therear fog lamps are dazz-ling and are prohibited. Do not forget to switch the
fog lamps off when they are no lon- ger needed.

16-09-2002
YOUR BOXER IN DETAIL
122
WINDSCREEN WIPERS
STALK W
indscreen wipers
4 Single wipe.
0 Park.
1 Intermittent wipe.
2 Normal wipe.
3 Fast wipe.
Windscreen and headlamp
wash Pull the windscreen wiper stalk towards you. The windscreen wash then the windscreen wipers operate for afixed period. The windscreen wash and headlamp wash operate simultaneously for afew seconds, only if the dipped
beam or main beam headlampsare on.
Parking lights This system enables you to leave the side lights on when parked, with the
ignition off and the key removed. Press the safety control Aand turn the
key one notch in the opposite direction to starting at the same time.

16-09-2002
YOUR BOXER IN DETAIL
122
WINDSCREEN WIPERS
STALK W
indscreen wipers
4 Single wipe.
0 Park.
1 Intermittent wipe.
2 Normal wipe.
3 Fast wipe.
Windscreen and headlamp
wash Pull the windscreen wiper stalk towards you. The windscreen wash then the windscreen wipers operate for afixed period. The windscreen wash and headlamp wash operate simultaneously for afew seconds, only if the dipped
beam or main beam headlampsare on.
Parking lights This system enables you to leave the side lights on when parked, with the
ignition off and the key removed. Press the safety control Aand turn the
key one notch in the opposite direction to starting at the same time.

16-09-2002
YOUR BOXER IN DETAIL
126
ADJUSTING THE HEADLAMPS Depending on the load in your vehicle, adjusting the beam of theheadlamps is recommended. 0
No load.
1 Partial load.
2 Average load.
3 Maximum authorised load.
Initial setting is position 0. Hazard warning lights Press the button, the direction indi- cators flash. They can operate with the ignition
off.
STEERING WHEEL HEIGHT ADJUSTMENT
When the vehicle is stationary, unlock the steering wheel by pullinghandle
Atowards you.
Adjust the height of the steeringwheel, then lock it by pushing hand-le Adown fully.
Horn Press one of the spokes or the centre of the steering wheel.

16-09-2002
PRACTICAL INFORMATION
140
1 -
Power steering reservoir.
2 - Battery.
3 - Coolant reservoir. 4 -
Brake fluid reservoir.
5 - Air filter.
6 - Windscreen and headlamp wash
reservoir. 7 -
Fuse box.
8 - Engine oil filler cap.
9 - Dipstick.

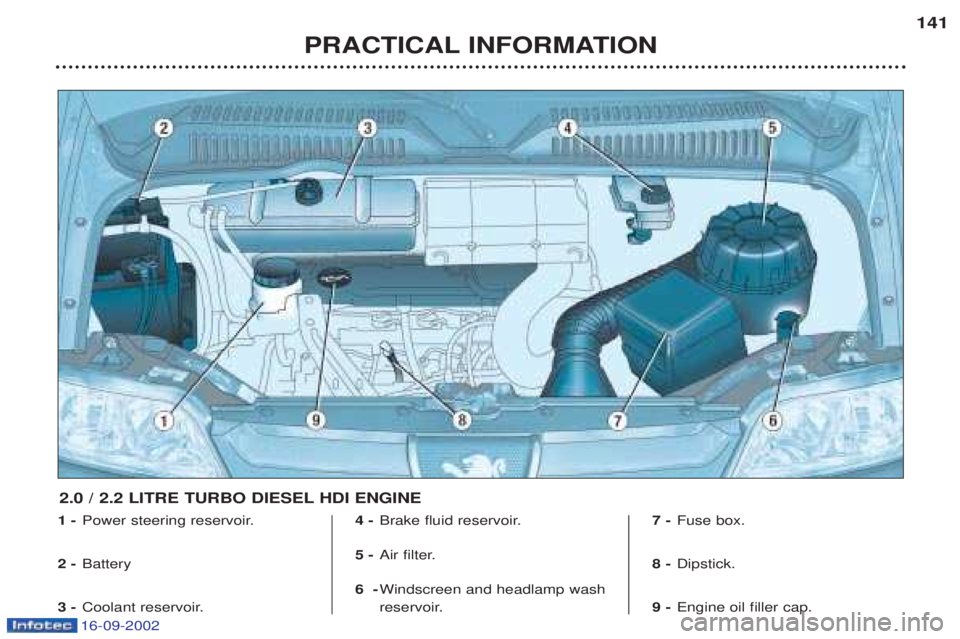

2 LITRE INJECTION PETROL ENGINE

16-09-2002
PRACTICAL INFORMATION141
1 -
Power steering reservoir.
2 - Battery
3 - Coolant reservoir. 4 -
Brake fluid reservoir.
5 - Air filter.
6 - Windscreen and headlamp wash
reservoir. 7 -
Fuse box.
8 - Dipstick.
9 - Engine oil filler cap.
2.0 / 2.2 LITRE TURBO DIESEL HDI ENGINE
