YOUR BOXER IN DETAIL
116
THE ALARM This provides two types of protection: -
exterior protection: it sounds if a
door, the tailgate, the bonnet or asunroof is opened.
- interior protection: it sounds if thevolume inside the passenger com-partment changes (breaking of awindow or a movement inside thevehicle).
Setting the alarm ☞ Switch off the ignition and get out of the vehicle.
☞ Set the alarm within five minutesof getting out of the vehicle, bylocking using the remote control(the red indicator light, located onthe fascia, visible from outside,flashes once per second).
Note: if you wish to lock your vehicle
without setting the alarm, use thedoor lock. When the alarm is triggered, thesiren sounds and the direction indi-cator lights flash for thirty seconds. After triggering, the alarm remains set. W
arning: if the alarm has been trig-
gered ten times in succession, on the eleventh time it becomes inactive. Note: if the red warning light, located
on the fascia, flashes rapidly, the alarm has been triggered while you
were away from your vehicle. To stopit flashing, insert the remote controlkey and switch on the ignition. Disarming Unlock the vehicle with the remote control key (the red indicator light,located on the fascia, goes out).
To set the alarm with exterior
protection only
If, while you are away from the vehicle, you wish to leave a windowpartially open or a pet inside thevehicle, you should choose exterior
protection only. ☞ Switch off the ignition placing the key in the STOPposition.
☞ Place the key in the ONposition.
☞ Switch off the ignition placing thekey in the STOPposition.
☞ Remove the key.
The interior protection is disarmedwhen the red indicator light locatedon the fascia comes on for twoseconds. ☞
Get out of the vehicle.,
☞ Within the next five minutes, setthe alarm by locking using theremote control (the red indicatorlight, located on the fascia,flashes once a second).
Note: when the alarm is set but the
remote control does not operate: ☞ Unlock the doors with the key
and open the door. The alarm istriggered.
☞ Switch on the ignition in the next
ten seconds. The alarm is disar-med.
Incorrect operation When the ignition is switched on, if the red indicator light, located on thefascia, comes on for ten seconds,there is a fault in the siren connection.
Contact a PEUGEOT dealer to have the system checked. Do not make any modifications to the alarm system, this could causefaults.

16-09-2002
PRACTICAL INFORMATION
156
FITTING AUDIO EQUIPMENT
Y our vehicle is equipped with certain
factory-fitted audio equipment under the storage box: Ð roof aerial,
Ð coaxial aerial cable,
Ð basic interference suppression,
Ð supply to front speakers (instru- ment panel),
Ð supply to door speakers,
Ð supply to rear speakers (Minibus),
Ð two 8-way connectors. FITTING SPEAKERS The factory-fitted equipment allows the fitting of: In the front: Ð
165 mm diameter speakers in the front doors,
Ð 100 mm diameter speakers on theinstrument panel,
At the rear (Minibus): Ð 165 mm diameter speakers on the rear side panels (2nd row ofseats),
Ð 100 mm diameter speakers on therear pillars.
Consult a PEUGEOT dealer. A1 : Ð
A2 : Ð
A3 : Ð
A4 : (+) Accessories
A5 : Ð
A6 : (+) Side light
A7 : (+) Permanent
A8 : Earth
B1 : Ð
B2 : Ð
B3 : (+) Front right speaker
B4 : (-) Front right speaker
B5 : (+) Front left speaker
B6 : (Ð) Front left speaker
B7 : Ð
B8 : Ð

16-09-2002
PRACTICAL INFORMATION159

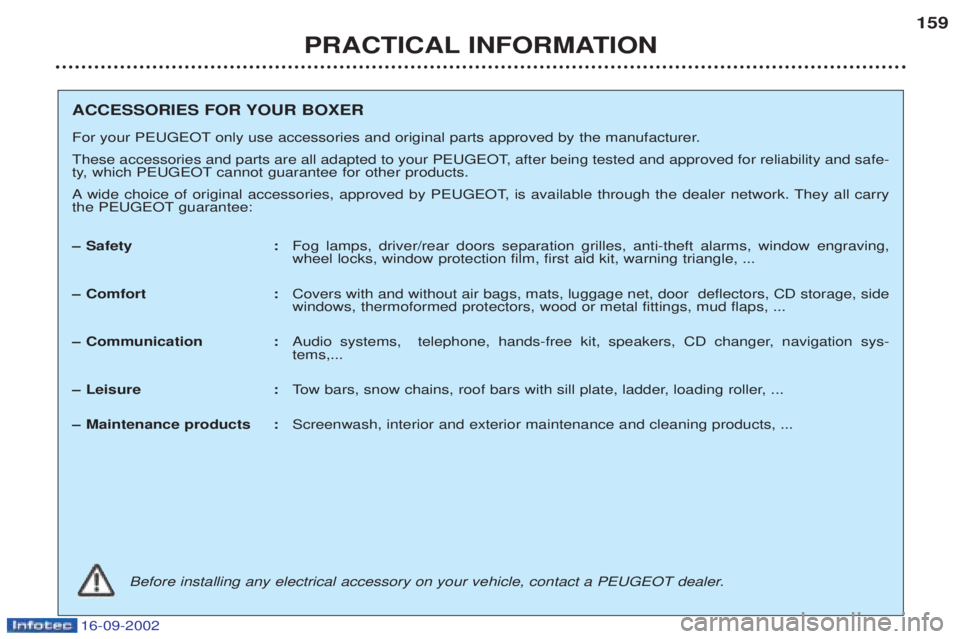

ACCESSORIES FOR YOUR BOXER
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and safe-
ty, which PEUGEOT cannot guarantee for other products. A
wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry
the PEUGEOT guarantee: – Safety : Fog lamps, driver/rear doors separation grilles, anti-theft alarms, window engraving, wheel locks, window protection film, first aid kit, warning triangle, ...
– Comfort : Covers with and without air bags, mats, luggage net, door deflectors, CD storage, sidewindows, thermoformed protectors, wood or metal fittings, mud flaps, ...
– Communication : Audio systems, telephone, hands-free kit, speakers, CD changer, navigation sys-tems,...
– Leisure : Tow bars, snow chains, roof bars with sill plate, ladder, loading roller, ...
– Maintenance products : Screenwash, interior and exterior maintenance and cleaning products, ...
Before installing any electrical accessory on your vehicle, contact a PEUGEOT dealer.
