Peugeot Boxer 2006.5 Owner's Guide

21
2

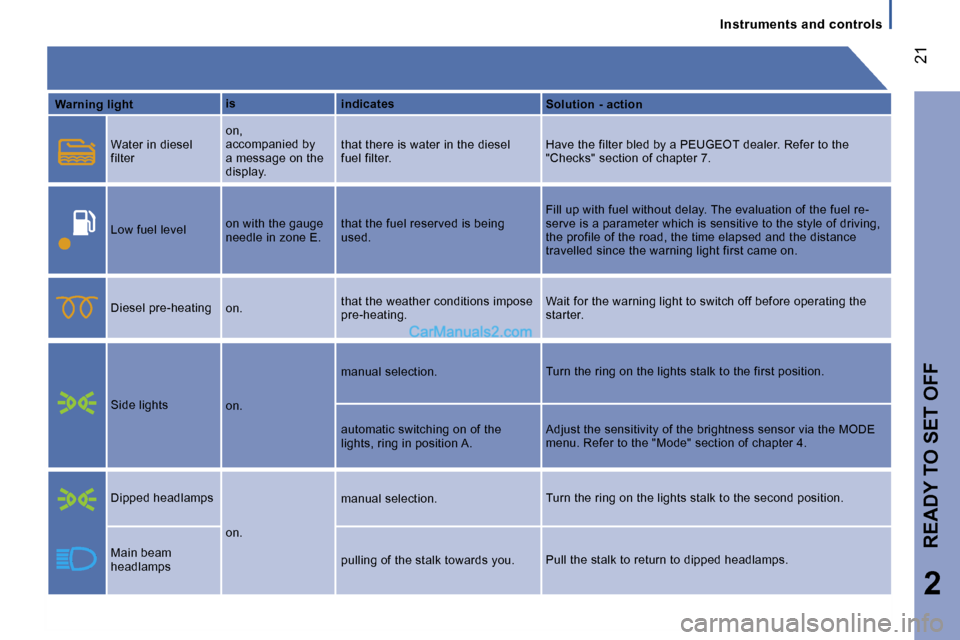

READY TO SET OFF
Instruments and controls
Warning light
Water in diesel
filter
Low fuel level
Diesel pre-heating
Side lights
Dipped headlamps
Main beam
headlamps is
on,
accompanied by
a message on the
display.
on with the gauge
needle in zone E.
on.
on.
on.
indicates
that there is water in the diesel
fuel filter.
that the fuel reserved is being
used.
that the weather conditions impose
pre-heating.
manual selection.
automatic switching on of the
lights, ring in position A.
manual selection.
pulling of the stalk towards you. Solution - action
Have the filter bled by a PEUGEOT dealer. Refer to
the
"Checks" section of chapter 7.
Fill up with fuel without delay. The evaluation of the fuel re-
serve is a parameter which is sensitive to the styl e of driving,
the profile of the road, the time elapsed and the d istance
travelled since the warning light first came on.
Wait for the warning light to switch off before ope rating the
starter.
Turn the ring on the lights stalk to the first posi tion.
Adjust the sensitivity of the brightness sensor via the MODE
menu. Refer to the "Mode" section of chapter 4.
Turn the ring on the lights stalk to the second pos ition.
Pull the stalk to return to dipped headlamps.

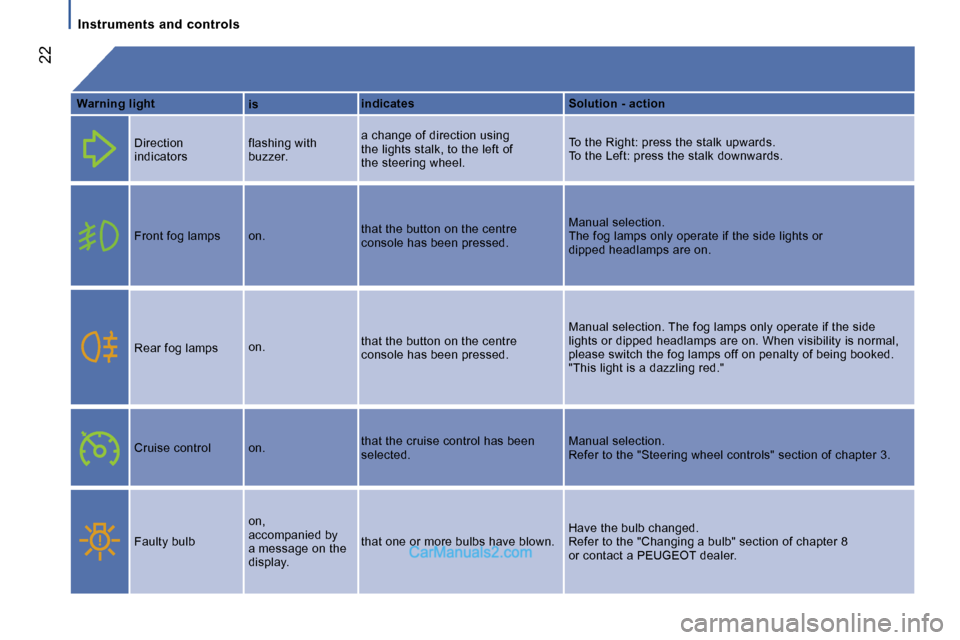

22
Instruments and controls
Warning light
Direction
indicators
Front fog lamps
Rear fog lamps
Cruise control
Faulty bulb is
flashing with
buzzer.
on.
on.
on.
on,
accompanied by
a message on the
display.indicates
a change of direction using
the lights stalk, to the left of
the steering wheel.
that the button on the centre
console has been pressed.
that the button on the centre
console has been pressed.
that the cruise control has been
selected.
that one or more bulbs have blown.
Solution - action
To the Right: press the stalk upwards.
To the Left: press the stalk downwards.
Manual selection.
The fog lamps only operate if the side lights or
dipped headlamps are on.
Manual selection. The fog lamps only operate if the
side
lights or dipped headlamps are on. When visibility is normal,
please switch the fog lamps off on penalty of being booked.
"This light is a dazzling red."
Manual selection.
Refer to the "Steering wheel controls" section of c hapter 3.
Have the bulb changed.
Refer to the "Changing a bulb" section of chapter 8
or contact a PEUGEOT dealer.

23
2
READY TO SET OFF

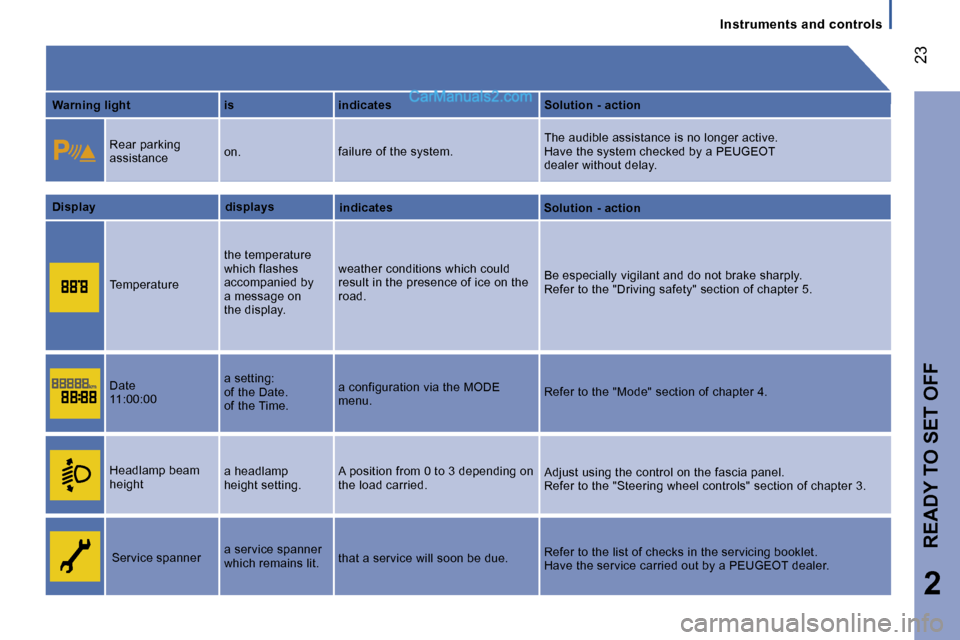

Instruments and controls
Warning light
Rear parking
assistance
Temperature
Display
Date
11:00:00
Headlamp beam
heightService spanner is
on.
the temperature
which flashes
accompanied by
a message on
the display.
displays
a setting:
of the Date.
of the Time.
a headlamp
height setting.
a service spanner
which remains lit. indicates
failure of the system.
weather conditions which could
result in the presence of ice on the
road.
indicates
a configuration via the MODE
menu.
A position from 0 to 3 depending on
the load carried.
that a service will soon be due. Solution - action
The audible assistance is no longer active.
Have the system checked by a PEUGEOT
dealer without delay.
Be especially vigilant and do not brake sharply.
Refer to the "Driving safety" section of chapter 5.
Refer to the "Mode" section of chapter 4.
Adjust using the control on the fascia panel.
Refer to the "Steering wheel controls" section of c
hapter 3.
Refer to the list of checks in the servicing bookle t.
Have the service carried out by a PEUGEOT dealer.
Solution - action

23
2
READY TO SET OFF

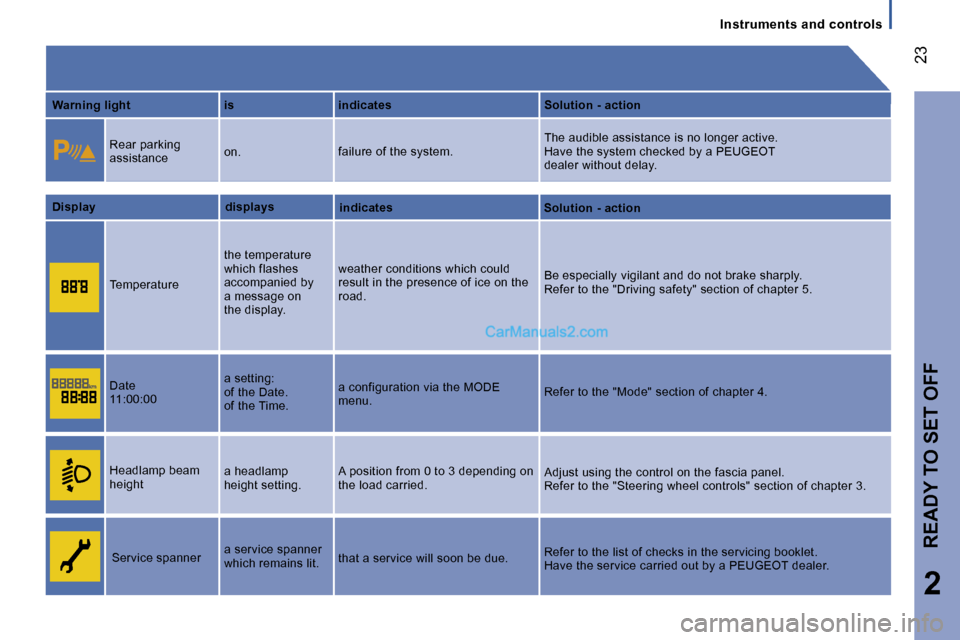

Instruments and controls
Warning light
Rear parking
assistance
Temperature
Display
Date
11:00:00
Headlamp beam
heightService spanner is
on.
the temperature
which flashes
accompanied by
a message on
the display.
displays
a setting:
of the Date.
of the Time.
a headlamp
height setting.
a service spanner
which remains lit. indicates
failure of the system.
weather conditions which could
result in the presence of ice on the
road.
indicates
a configuration via the MODE
menu.
A position from 0 to 3 depending on
the load carried.
that a service will soon be due. Solution - action
The audible assistance is no longer active.
Have the system checked by a PEUGEOT
dealer without delay.
Be especially vigilant and do not brake sharply.
Refer to the "Driving safety" section of chapter 5.
Refer to the "Mode" section of chapter 4.
Adjust using the control on the fascia panel.
Refer to the "Steering wheel controls" section of c
hapter 3.
Refer to the list of checks in the servicing bookle t.
Have the service carried out by a PEUGEOT dealer.
Solution - action

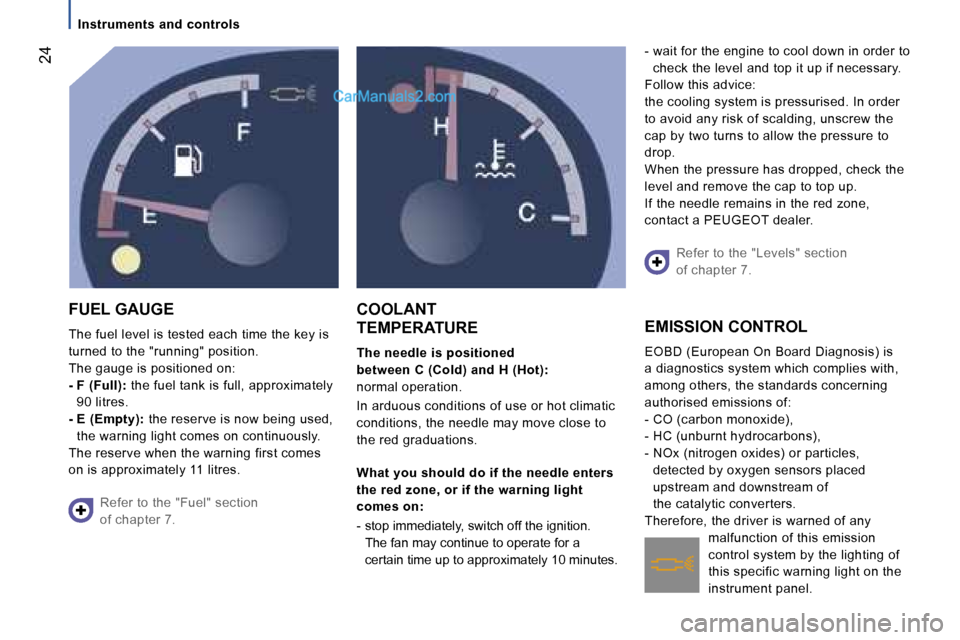

24
Instruments and controls
FUEL GAUGE
The fuel level is tested each time the key is
turned to the "running" position.
The gauge is positioned on:
- F (Full): the fuel tank is full, approximately
90 litres.
- E (Empty): the reserve is now being used,
the warning light comes on continuously.
The reserve when the warning first comes
on is approximately 11 litres.
Refer to the "Fuel" section
of chapter 7.
COOLANT
TEMPERATURE
The needle is positioned
between C (Cold) and H (Hot):
normal operation.
In arduous conditions of use or hot climatic
conditions, the needle may move close to
the red graduations.
What you should do if the needle enters
the red zone, or if the warning light
comes on:
- stop immediately, switch off the ignition. The fan may continue to operate for a
certain time up to approximately 10 minutes. - wait for the engine to cool down in order to
check the level and top it up if necessary.
Follow this advice:
the cooling system is pressurised. In order
to avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure to
drop.
When the pressure has dropped, check the
level and remove the cap to top up.
If the needle remains in the red zone,
contact a PEUGEOT dealer.
Refer to the "Levels" section
of chapter 7.
EMISSION CONTROL
EOBD (European On Board Diagnosis) is
a diagnostics system which complies with,
among others, the standards concerning
authorised emissions of:
- CO (carbon monoxide),
- HC (unburnt hydrocarbons),
- NOx (nitrogen oxides) or particles,
detected by oxygen sensors placed
upstream and downstream of
the catalytic converters.
Therefore, the driver is warned of any malfunction of this emission
control system by the lighting of
this specific warning light on the
instrument panel.

25
2
Instruments and controls

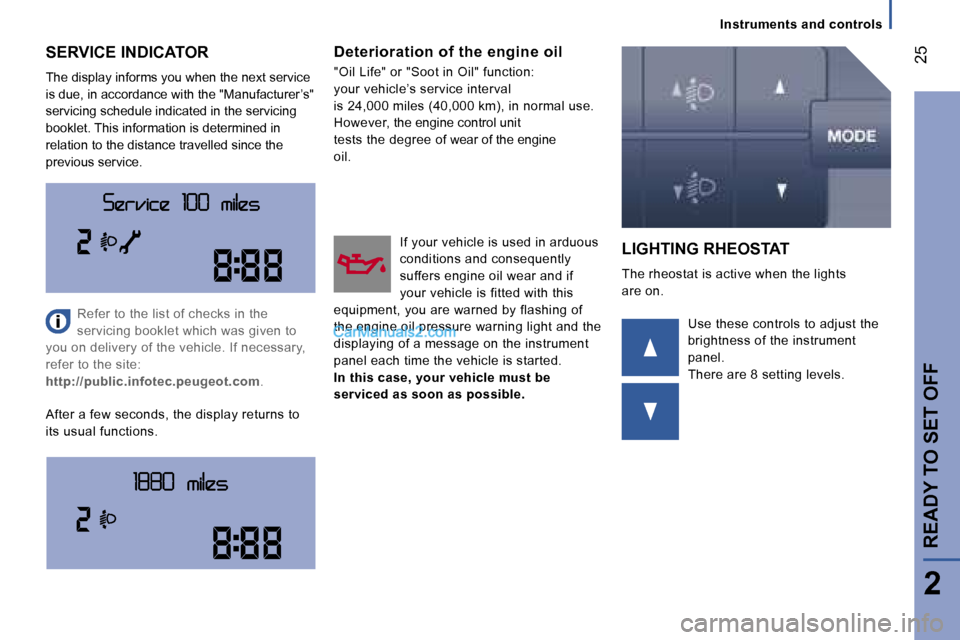

SERVICE INDICATOR
The display informs you when the next service
is due, in accordance with the "Manufacturer’s"
servicing schedule indicated in the servicing
booklet. This information is determined in
relation to the distance travelled since the
previous service.
Refer to the list of checks in the
servicing booklet which was given to
you on delivery of the vehicle. If necessary,
refer to the site:
http://public.infotec.peugeot.com .
After a few seconds, the display returns to
its usual functions. Deterioration of the engine oil
"Oil Life" or "Soot in Oil" function:
your vehicle’s service interval
is 24,000 miles (40,000 km), in normal use.
However,
the engine control unit
tests the degree of wear of the engine
oil.
If your vehicle is used in arduous
conditions and consequently
suffers engine oil wear and if
your vehicle is fitted with this
equipment, you are warned by flashing of
the engine oil pressure warning light and the
displaying of a message on the instrument
panel each time the vehicle is started.
In this case, your vehicle must be
serviced as soon as possible. LIGHTING RHEOSTAT
The rheostat is active when the lights
are on.
Use these controls to adjust the
brightness of the instrument
panel.
There are 8 setting levels.
READY TO SET OFF
2

26

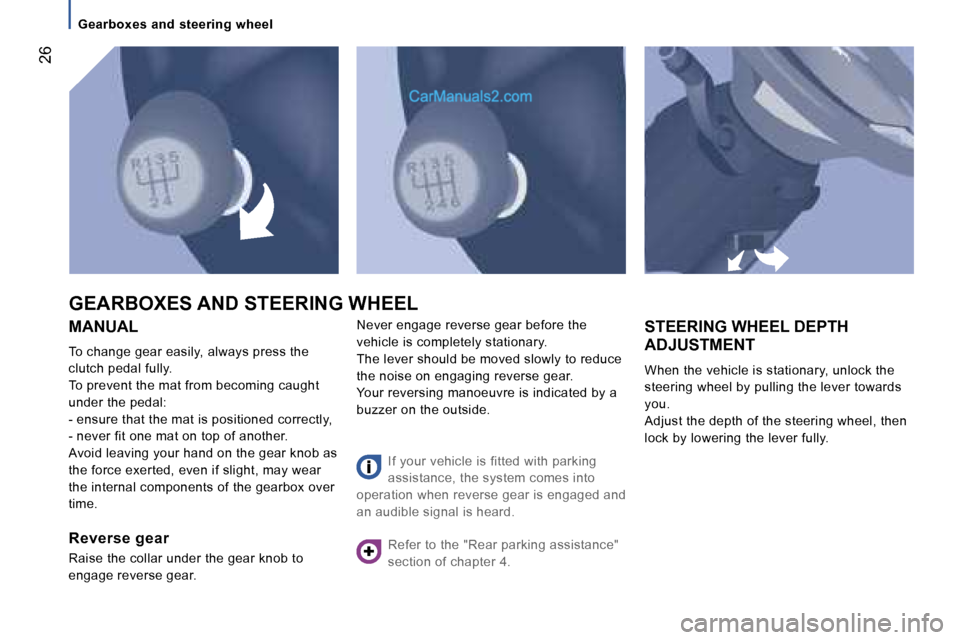

MANUAL
To change gear easily, always press the
clutch pedal fully.
To prevent the mat from becoming caught
under the pedal:
- ensure that the mat is positioned correctly,
- never fit one mat on top of another.
Avoid leaving your hand on the gear knob as
the force exerted, even if slight, may wear
the internal components of the gearbox over
time.
Reverse gear
Raise the collar under the gear knob to
engage reverse gear.
GEARBOXES AND STEERING WHEEL
Gearboxes and steering wheel
Never engage reverse gear before the
vehicle is completely stationary.
The lever should be moved slowly to reduce
the noise on engaging reverse gear.
Your reversing manoeuvre is indicated by a
buzzer on the outside.
If your vehicle is fitted with parking
assistance, the system comes into
operation when reverse gear is engaged and
an audible signal is heard.
Refer to the "Rear parking assistance"
section of chapter 4.
STEERING WHEEL DEPTH
ADJUSTMENT

When the vehicle is stationary, unlock the
steering wheel by pulling the lever towards
you.
Adjust the depth of the steering wheel, then
lock by lowering the lever fully.

27
2

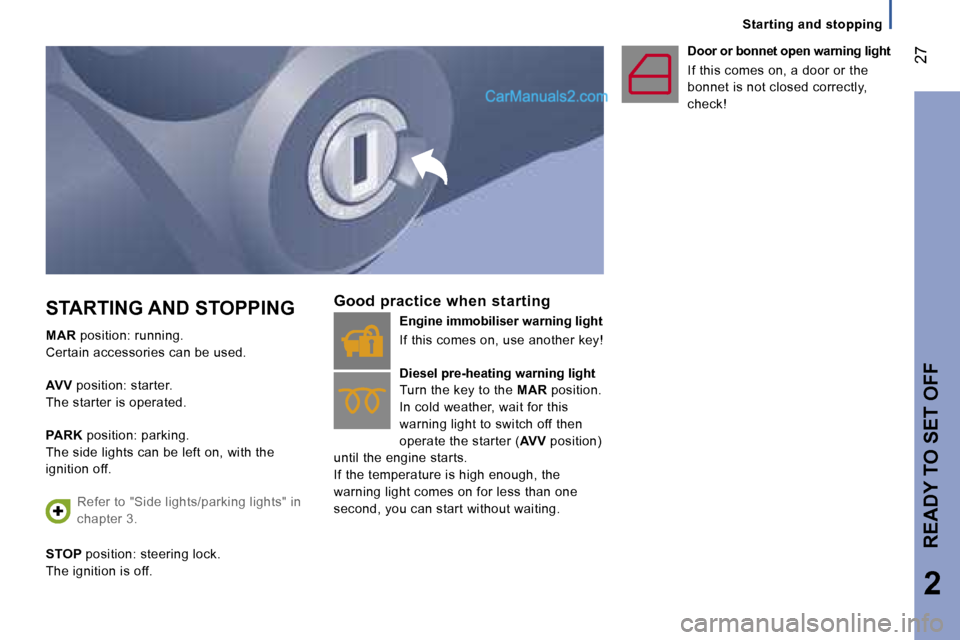

Starting and stopping
MAR position: running.
Certain accessories can be used.
AVV position: starter.
The starter is operated.
PARK position: parking.
The side lights can be left on, with the
ignition off.
Refer to "Side lights/parking lights" in
chapter 3.
STOP position: steering lock.
The ignition is off.
Good practice when starting
Engine immobiliser warning light
If this comes on, use another key!
Diesel pre-heating warning light
Turn the key to the MAR position.
In cold weather, wait for this
warning light to switch off then
operate the starter ( AVV position)
until the engine starts.
If the temperature is high enough, the
warning light comes on for less than one
second, you can start without waiting. Door or bonnet open warning light
If this comes on, a door or the
bonnet is not closed correctly,
check!STARTING AND STOPPING
READY TO SET OFF
2

+ 5%+ 5%
2 s2 s
28

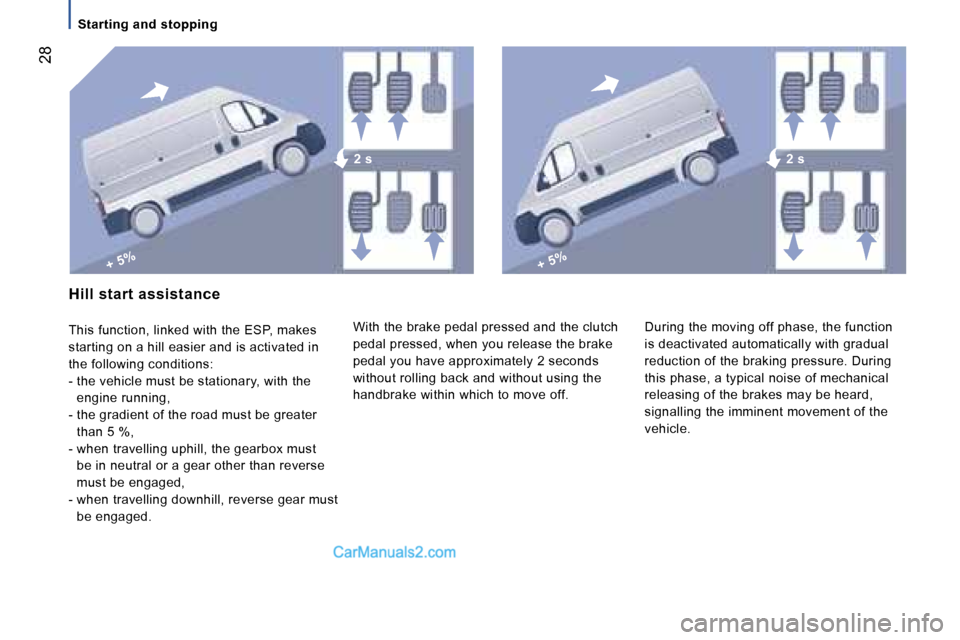

Hill start assistance
This function, linked with the ESP, makes
starting on a hill easier and is activated in
the following conditions:
- the vehicle must be stationary, with the
engine running,
- the gradient of the road must be greater than 5 %,
- when travelling uphill, the gearbox must be in neutral or a gear other than reverse
must be engaged,
- when travelling downhill, reverse gear must
be engaged. During the moving off phase, the function
is deactivated automatically with gradual
reduction of the braking pressure. During
this phase, a typical noise of mechanical
releasing of the brakes may be heard,
signalling the imminent movement of the
vehicle.
With the brake pedal pressed and the clutch
pedal pressed, when you release the brake
pedal you have approximately 2 seconds
without rolling back and without using the
handbrake within which to move off.
Starting and stopping

29
2

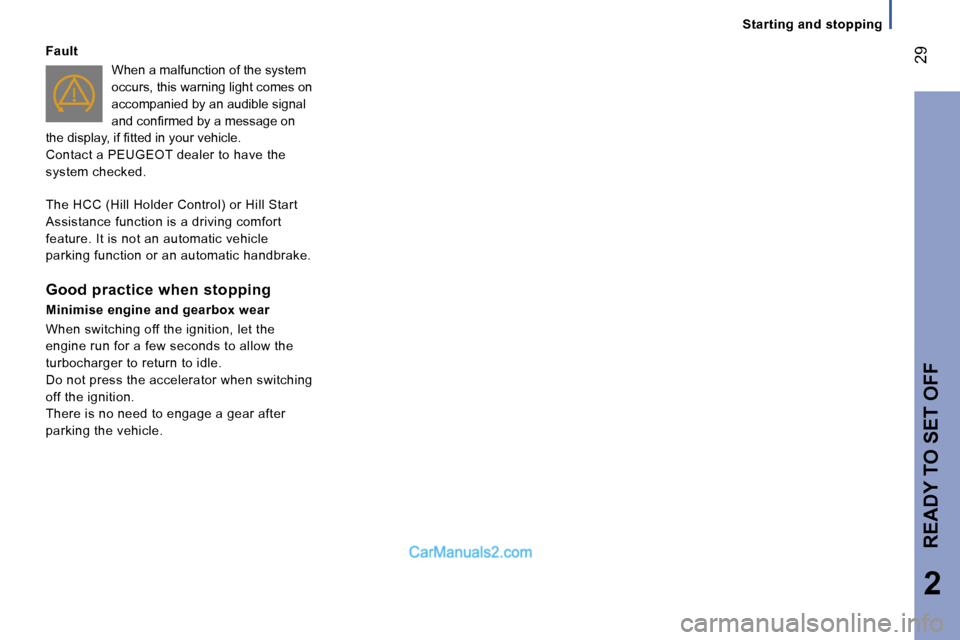

Fault
When a malfunction of the system
occurs, this warning light comes on
accompanied by an audible signal
and confirmed by a message on
the display, if fitted in your vehicle.
Contact a PEUGEOT dealer to have the
system checked.
The HCC (Hill Holder Control) or Hill Start
Assistance function is a driving comfort
feature. It is not an automatic vehicle
parking function or an automatic handbrake.
Good practice when stopping
Minimise engine and gearbox wear
When switching off the ignition, let the
engine run for a few seconds to allow the
turbocharger to return to idle.
Do not press the accelerator when switching
off the ignition.
There is no need to engage a gear after
parking the vehicle. Starting and stopping
READY TO SET OFF
