PEUGEOT BOXER 2015 User Guide

9

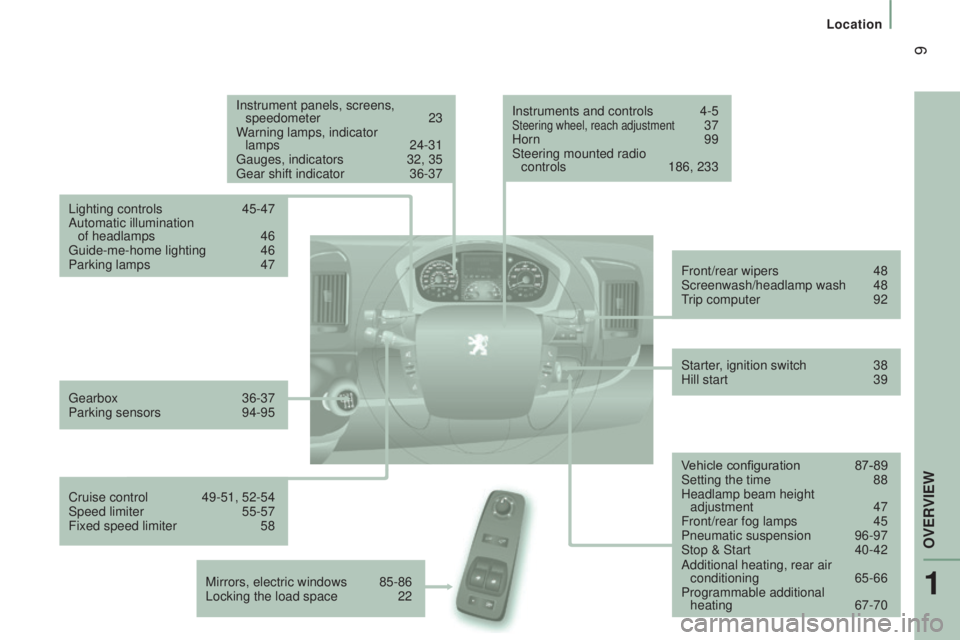

Instrument panels, screens, speedometer 23
Warning lamps, indicator

lamps
24-31gauges, indicators 32, 35gear shift indicator 36-37
Lighting controls
45-47
Automatic illumination of headlamps
46guide-me-home lighting 46
Parking lamps 47
Vehicle configuration
87-89
Setting the time 88
Headlamp beam height adjustment
47
Front/rear fog lamps 45
Pneumatic suspension 96-97
Stop & Start 40-42
Front/rear wipers
48
Screenwash/headlamp wash 48trip computer 92
Starter, ignition switch
38
Hill start 39
Cruise control
49-51, 52-54
Speed limiter 55-57
Fixed speed limiter 58 Instruments and controls
4-5Steering wheel, reach adjustment 37
Horn 99
Steering mounted radio controls
186, 233
Mirrors, electric windows
85-86
Locking the load space 22 Additional heating, rear air
conditioning
65-66
Programmable additional heating
67-70
gearbox 36-37
Parking sensors 94-95
1
OVeRVIeW
Location

10
Changing a wiper blade 155
Bulbs, lighting, changing bulbs
149-154
Very cold conditions protectors 84
Opening the bonnet, stay
127under the bonnet 128
Labels / Precautions 168-171engines 177-178
Identification markings, serial
number

, paint, tyres
182
Levels
129-130
● dipstick,
● brake fluid,
● screenwash / headlamp wash
fluid
●
power steering fluid,
● coolant.
Water bleed, Diesel filter
131
Particle filter 133emission control 33, 139
Checks
131-133
● battery,
● air/passenger compartment filter,● oil filter,
● manual gearbox,
● parking brake,
● brake discs and pads.

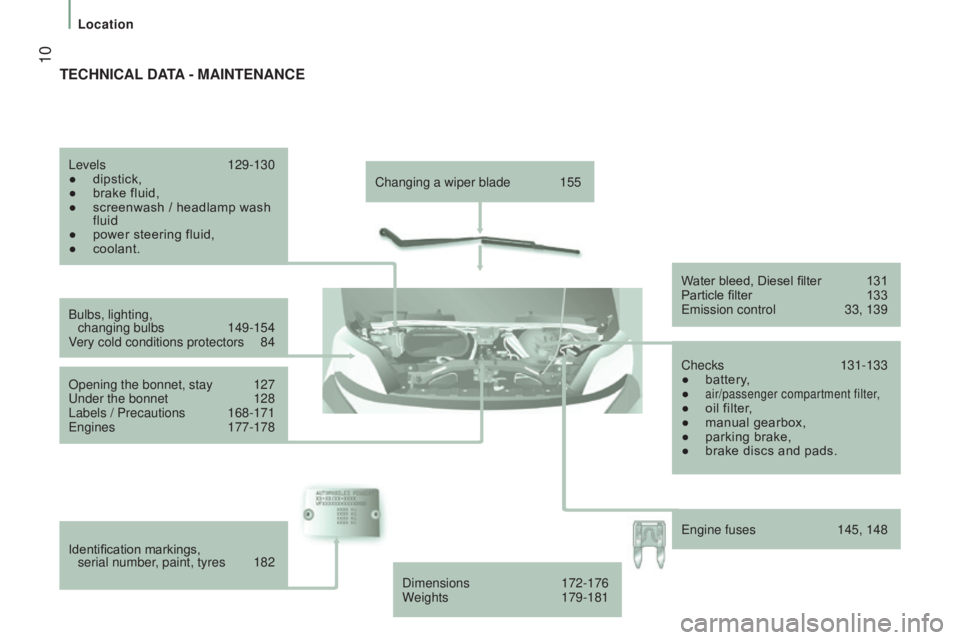

tEcHnIcAL dAtA - MAIntEnAncE
Dimensions 172-176
Weights 179-181
engine fuses 145, 148
Location

11

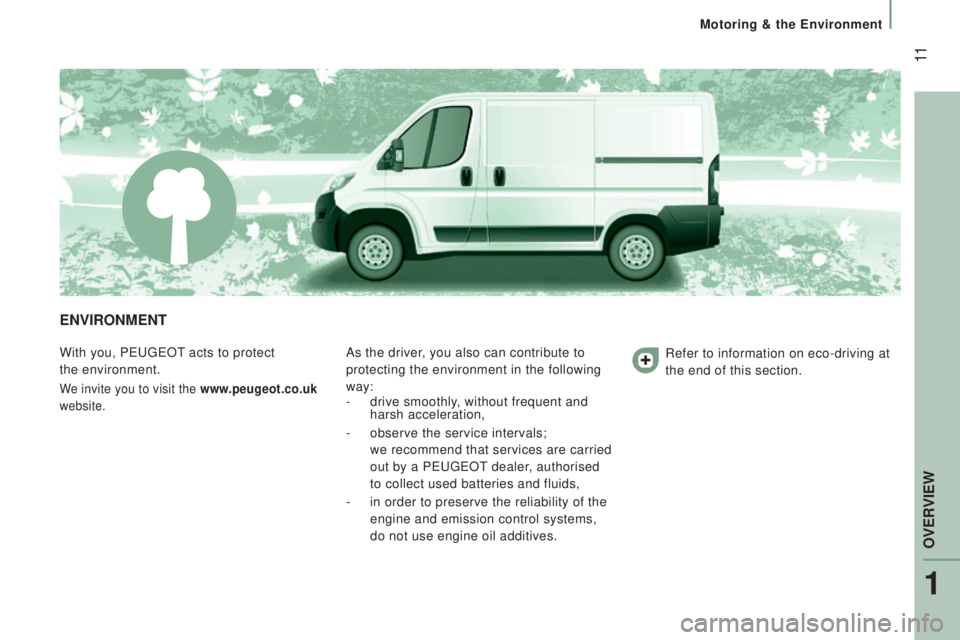

EnVIronMEnt
With you, PeugeOt acts to protect
the
environment.
We invite you to visit the www.peugeot.co.uk
website.
As the driver, you also can contribute to
protecting the environment in the following
way:
-
drive smoothly, without frequent and


harsh acceleration,
-
observe the service intervals;
we
recommend that services are carried


out by a P
eugeOt dealer, authorised


to collect used batteries and fluids,
-
in order to preserve the reliability of the
engine and emission control systems,


do not use engine oil additives. Refer to information on eco-driving at
the end of this section.
1
OVeRVIeW
Motoring & the environment

12

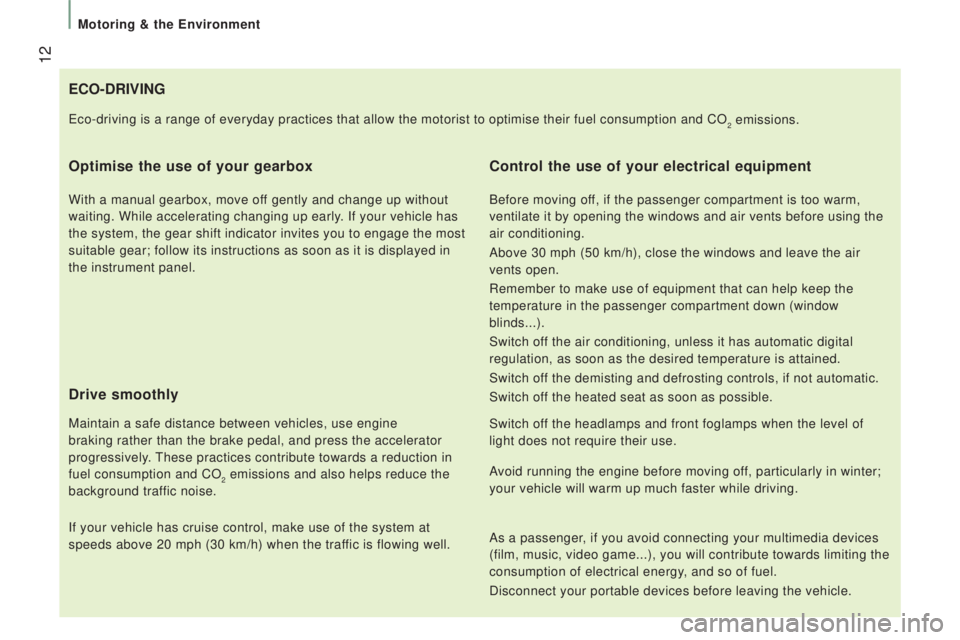

Eco-drIVInG
o
ptimise the use of your gearbox
With a manual gearbox, move off gently and change up without
waiting. While accelerating changing up early. If your vehicle has
the system, the gear shift indicator invites you to engage the most
suitable gear; follow its instructions as soon as it is displayed in
the instrument panel.
drive smoothly
Maintain a safe distance between vehicles, use engine
braking rather than the brake pedal, and press the accelerator
progressively.
these practices contribute towards a reduction in

fuel consumption and CO
2 emissions and also helps reduce the
background traffic noise.
If your vehicle has cruise control, make use of the system at
speeds above 20 mph (30 km/h) when the traffic is flowing well.
control the use of your electrical equipment
Before moving off, if the passenger compartment is too warm,
ventilate it by opening the windows and air vents before using the
air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air
vents open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (window
blinds...).
Switch off the air conditioning, unless it has automatic digital
regulation, as soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the level of
light does not require their use.
eco-driving is a range of everyday practices that allow the motorist to o\
ptimise their fuel consumption and CO2 emissions.
Avoid running the engine before moving off, particularly in winter;
your vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the\

consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.
Motoring & the environment

13
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in
the bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance
(roof bars, roof rack, trailer...).
At the end of winter, remove snow tyres and refit your summer
tyres.
observe the recommendations on maintenance
Check the tyre pressures regularly, when cold, referring to the
label in the door aperture, driver's side.
Carry out this check in particular:
-
before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or
caravan.
Have your vehicle serviced regularly (engine oil, oil filter

, air
filter, cabin filter...) and observe the schedule of operations in the
manufacturer's service schedule.
With a BlueHDi Diesel engine, if the SCR has a fault your vehicle
becomes polluting; go to a P
eugeOt dealer or a qualified
workshop as soon as possible to bring the levels of nitrous oxide


emissions back into line with the regulations.
When refuelling, do not continue after the 3
rd cut-off of the nozzle
to avoid any overflow.
At the wheel of your new vehicle, it is only after the first
1
800 miles (3 000 kilometres) that you will see the fuel


consumption settle down to a consistent average.
1
OVeRVIeW
Motoring & the environment

14

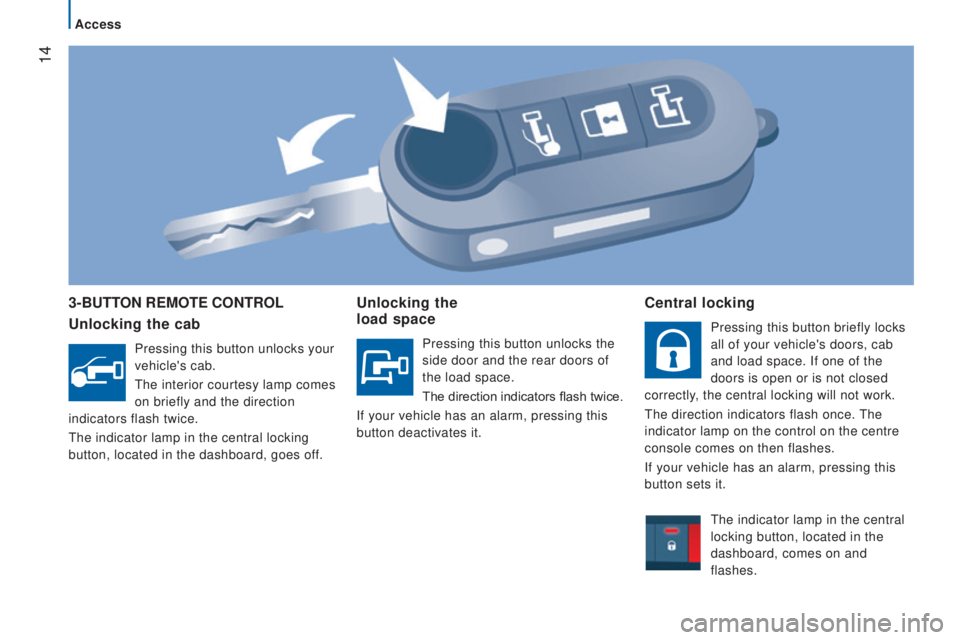

3-Button rEMotE controL
u
nlocking the cab
Pressing this button unlocks your
vehicle's cab.
the interior courtesy lamp comes


on briefly and the direction
indicators flash twice.
the indicator lamp in the central locking


button, located in the dashboard, goes off.
unlocking the
load space
Pressing this button unlocks the
side door and the rear doors of
the load space.
The direction indicators flash twice.
If your vehicle has an alarm, pressing this
button deactivates it.
central locking
Pressing this button briefly locks
all of your vehicle's doors, cab
and load space. If one of the
doors is open or is not closed
correctly, the central locking will not work.
the direction indicators flash once. the


indicator lamp on the control on the centre
console comes on then flashes.
If your vehicle has an alarm, pressing this
button sets it.
the indicator lamp in the central


locking button, located in the
dashboard, comes on and
flashes.
Access

15

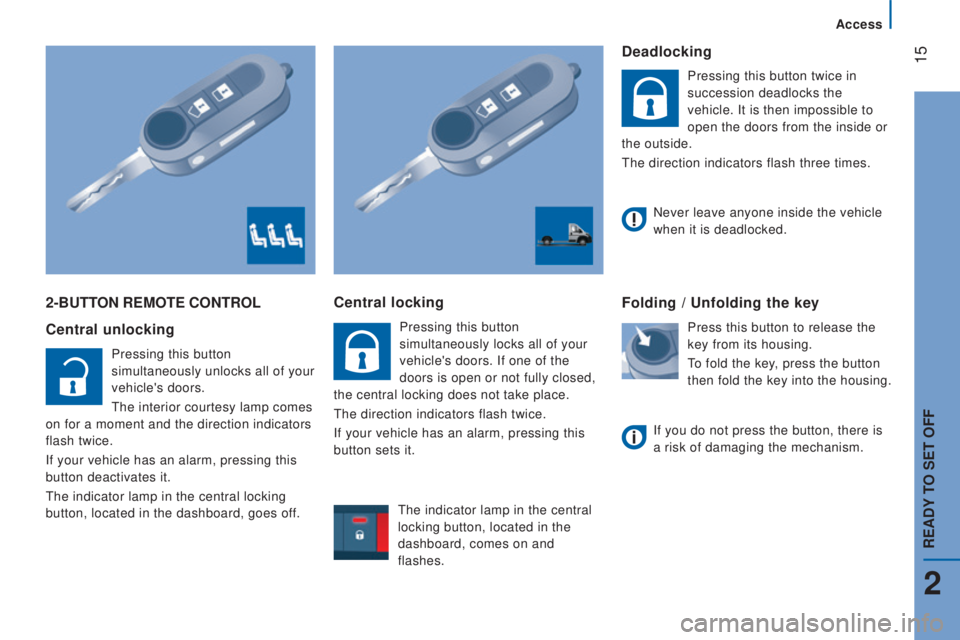

2-Button rEMotE controL
c
entral unlocking
Pressing this button
simultaneously unlocks all of your
vehicle's doors.
the interior courtesy lamp comes


on for a moment and the direction indicators
flash twice.
If your vehicle has an alarm, pressing this
button deactivates it.
the indicator lamp in the central locking


button, located in the dashboard, goes off.
central locking
Pressing this button
simultaneously locks all of your
vehicle's doors. If one of the
doors is open or not fully closed,
the central locking does not take place.
the direction indicators flash twice.
If your vehicle has an alarm, pressing this


button sets it.
deadlocking
Pressing this button twice in
succession deadlocks the
vehicle. It is then impossible to
open the doors from the inside or
the outside.
the direction indicators flash three times.
Folding / unfolding the key
Press this button to release the
key from its housing.
to fold the key, press the button


then fold the key into the housing.
Never leave anyone inside the vehicle
when it is deadlocked.
If you do not press the button, there is
a risk of damaging the mechanism.
the indicator lamp in the central


locking button, located in the
dashboard, comes on and
flashes.
2
Access
rEAdY to SEt oFF

16
KEY
this locks and unlocks the vehicle's doors,
opens and closes the fuel filler cap, as well
as starting and stopping the engine.

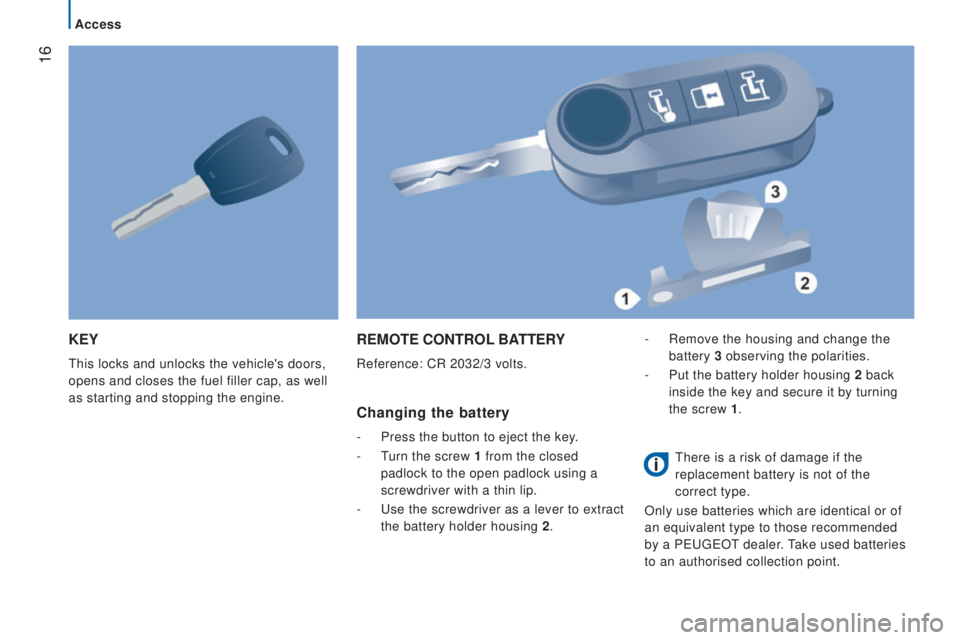

rEMotE controL BAttErY
Reference: CR 2032/3 volts.
changing the battery
- Press the button to eject the key.
-

t
urn the screw 1 from the closed


padlock to the open padlock using a
screwdriver with a thin lip.
-


u
se the screwdriver as a lever to extract

the battery holder housing 2 .-
Remove the housing and change the
battery
3 observing the polarities.
-
Put the battery holder housing 2 back

inside the key and secure it by turning
the screw 1 .
there is a risk of damage if the


replacement battery is not of the
correct type.
Only use batteries which are identical or of
an equivalent type to those recommended
by a P
eugeOt dealer. take used batteries
to an authorised collection point.
Access

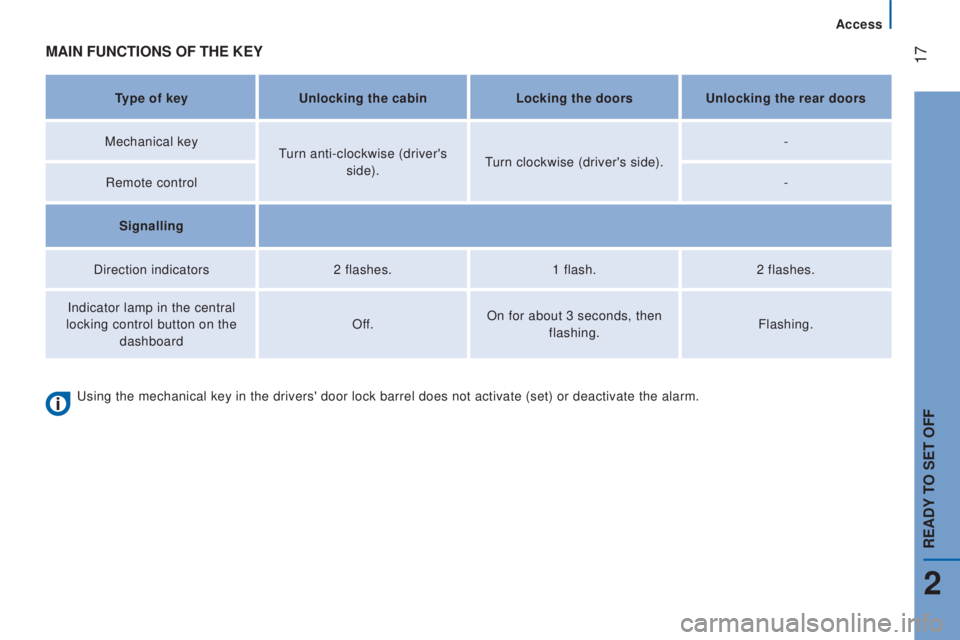

17MAIn FunctIonS oF tHE KEY
type of keyunlocking the cabinLocking the doorsunlocking the rear doors
Mechanical key
turn anti-clockwise (driver's side).turn clockwise (driver's side). -
Remote control -
Signalling
Direction indicators 2 flashes.1 flash.2 flashes.
Indicator lamp in the central
locking control button on the


dashboard Off.
On for about 3 seconds, then
flashing. Flashing.
using the mechanical key in the drivers' door lock barrel does not activa\
te (set) or deactivate the alarm.
2
Access
rEAdY to SEt oFF

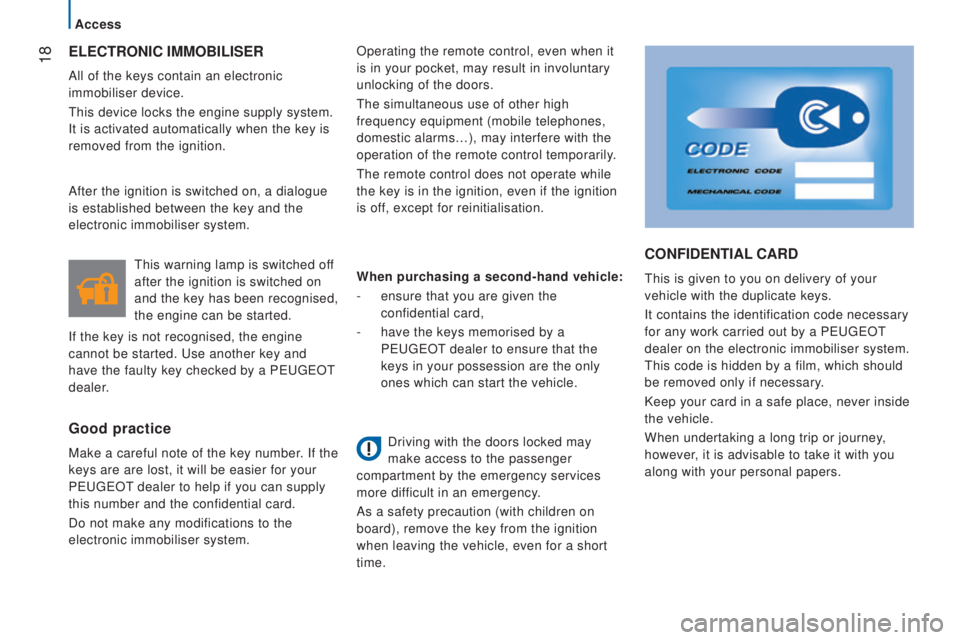

18ELEctronIc IMMoBILISEr
All of the keys contain an electronic
immobiliser device.
this device locks the engine supply system.

It is activated automatically when the key is
removed from the ignition. Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.
the simultaneous use of other high


frequency equipment (mobile telephones,
domestic alarms…), may interfere with the
operation of the remote control temporarily.
the remote control does not operate while


the key is in the ignition, even if the ignition
is off, except for reinitialisation.
Good practice
Make a careful note of the key number. If the
keys are are lost, it will be easier for your
P
eugeOt dealer to help if you can supply
this number and the confidential card.
Do not make any modifications to the


electronic immobiliser system.
this warning lamp is switched of
f
after the ignition is switched on
and the key has been recognised,
the engine can be started.
If the key is not recognised, the engine
cannot be started.
use another key and

have the faulty key checked by a P
eugeOt
dealer. After the ignition is switched on, a dialogue

is established between the key and the
electronic immobiliser system.
conFIdEntIAL cArd
this is given to you on delivery of your
vehicle with the duplicate keys.
It contains the identification code necessary
for any work carried out by a P
eugeOt
dealer on the electronic immobiliser system.
this code is hidden by a film, which should


be removed only if necessary.
Keep your card in a safe place, never inside
the vehicle.
When undertaking a long trip or journey,
however, it is advisable to take it with you
along with your personal papers.
When purchasing a second-hand vehicle:
-
ensure that you are given the
confidential card,
-
have the keys memorised by a
P
eugeOt dealer to ensure that the
keys in your possession are the only


ones which can start the vehicle.
Driving with the doors locked may
make access to the passenger
compartment by the emergency services
more difficult in an emergency.
As a safety precaution (with children on
board), remove the key from the ignition
when leaving the vehicle, even for a short
time.
Access
